    AGS Commercial 225 Hinged Door Corner Image.
    Commercial

    AGS Commercial 225 Hinged Door

    The AGS 225 Hinged Door is a 46mm pocket glazed commercial door panel capable of delivering flexibility, performance and ease of assembly in mind.

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    Acoustic
    Rated
    Cyclone Impact
    Tested
    BAL 40
    Tested
    Disability
    Access
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select
    A photo of Australind Senior High School featuring Capral's Windows
    A photo of Australind Senior High School featuring Capral's Windows

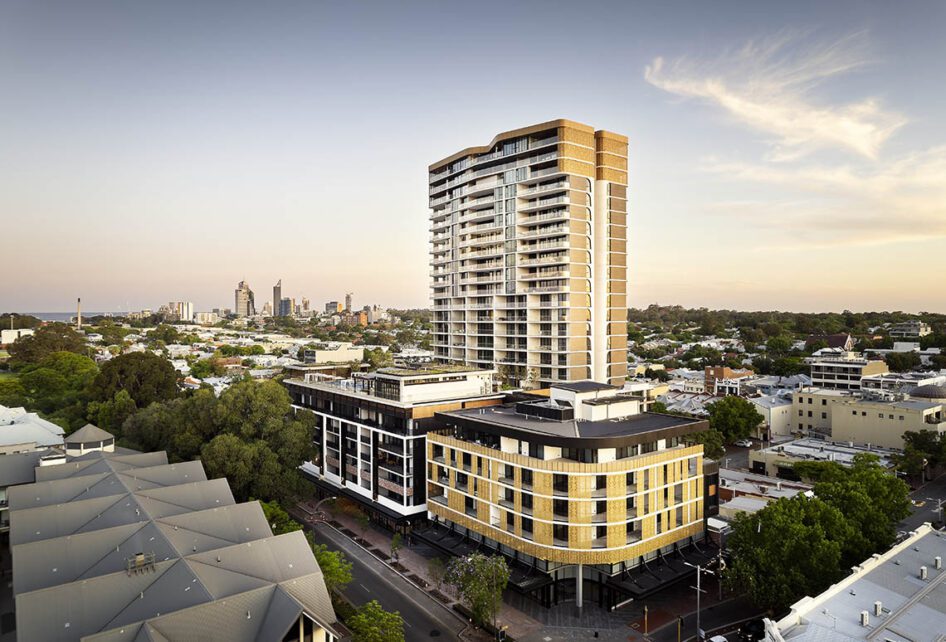

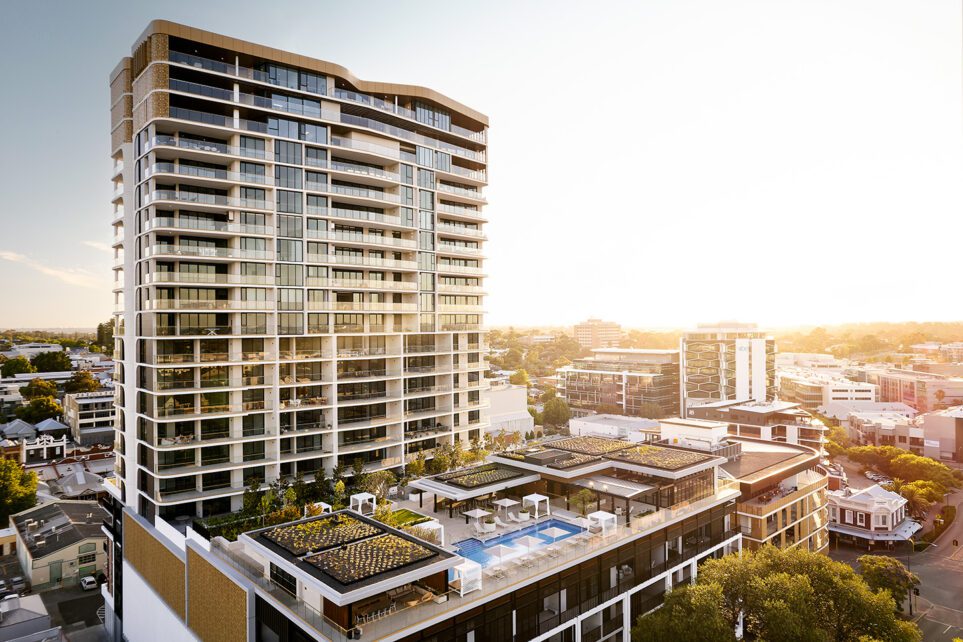

    Capral's Project One Subiaco using Capral window and building systems.
    Capral's Project One Subiaco using Capral window and building systems.

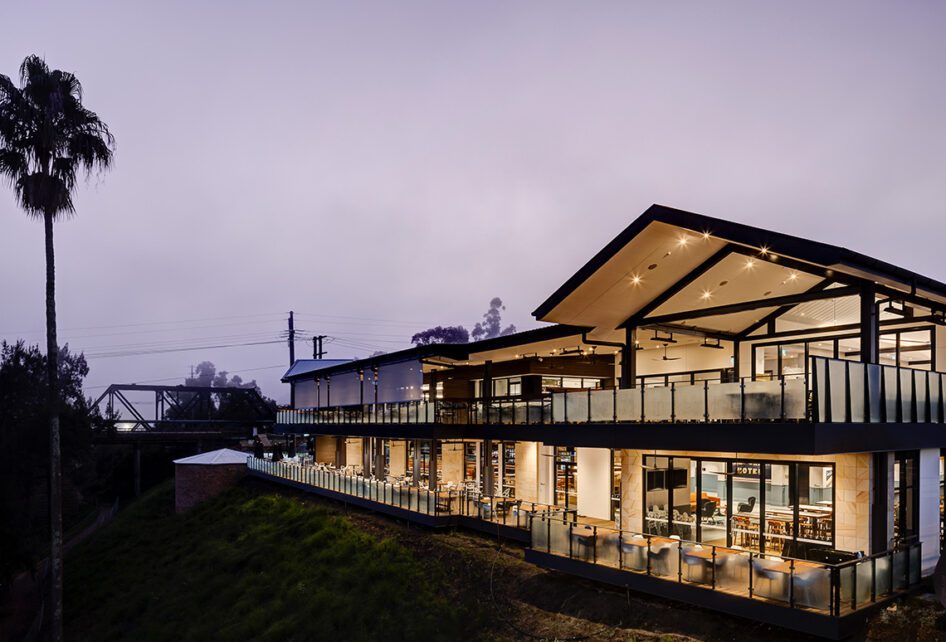

    Capral's Project Rebuilding The Log Cabin Hotel Penrith using Capral window and building systems.

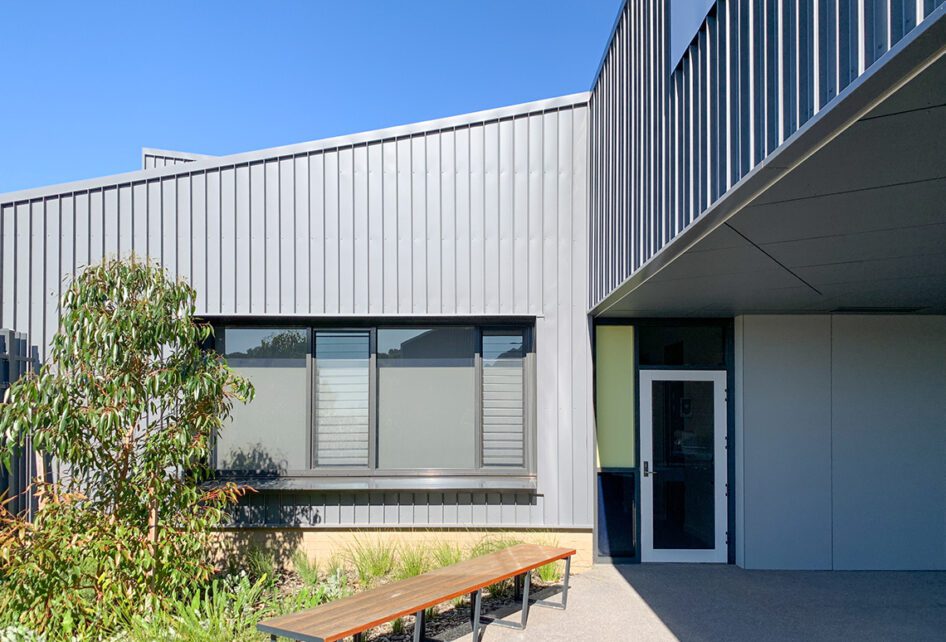

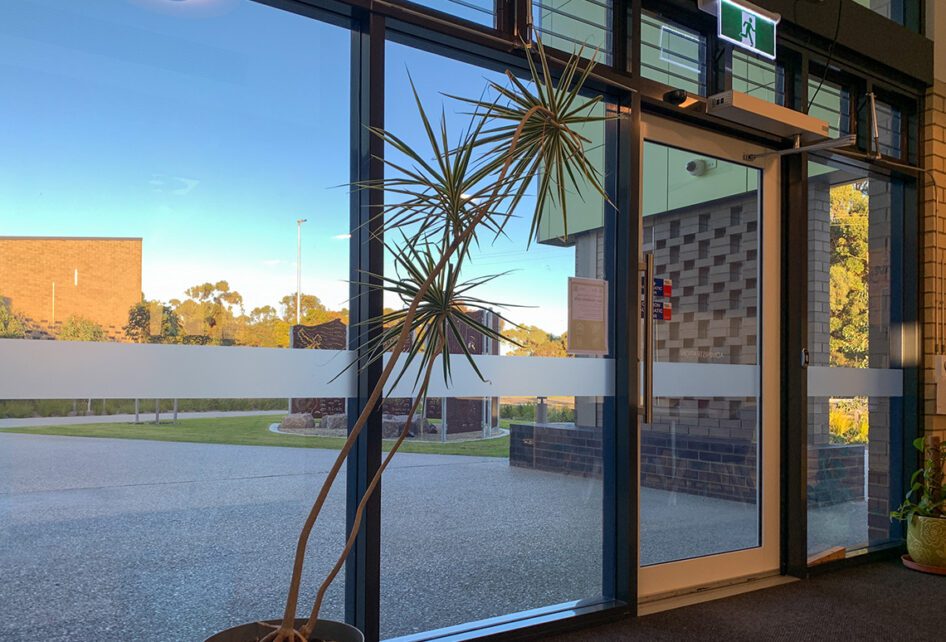

    Capral's Project Esperance TAFE Campus Maximises Light For Learning using Capral window and building systems.
    Capral's Project Esperance TAFE Campus Maximises Light For Learning using Capral window and building systems.

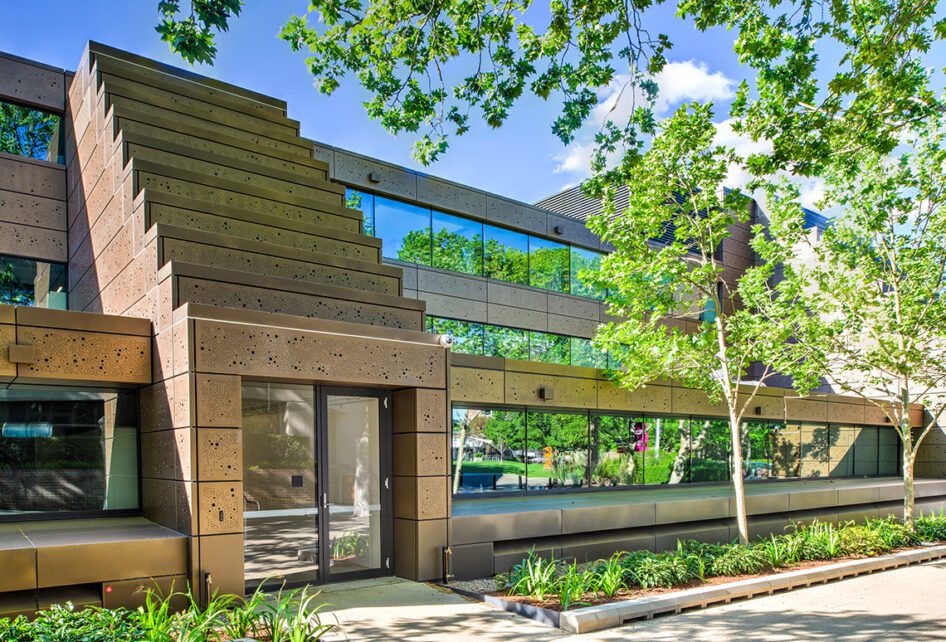

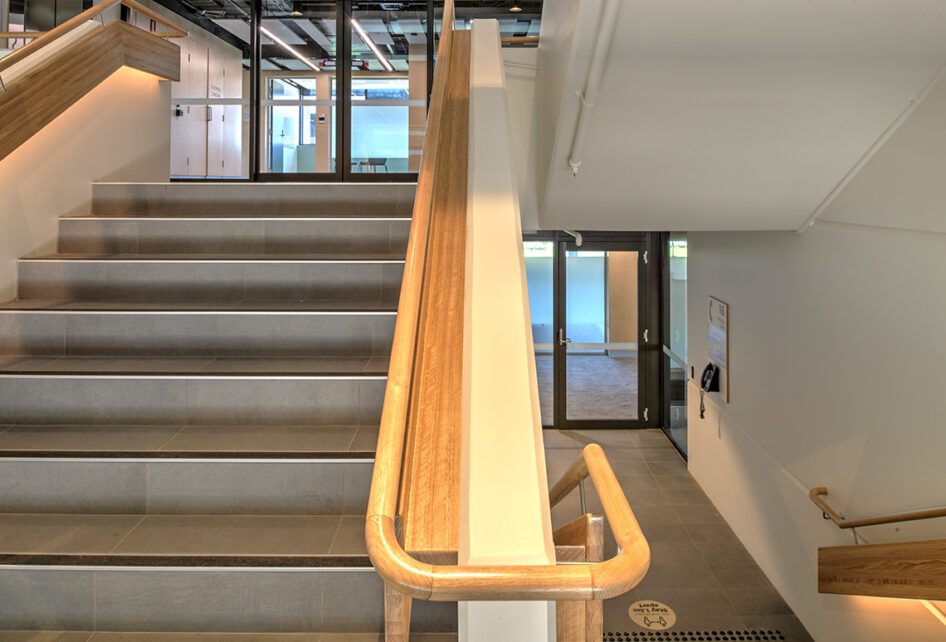

    Capral's Project Macquaire University's Lincoln Building using Capral window and building systems.
    Capral's Project Macquaire University's Lincoln Building using Capral window and building systems.

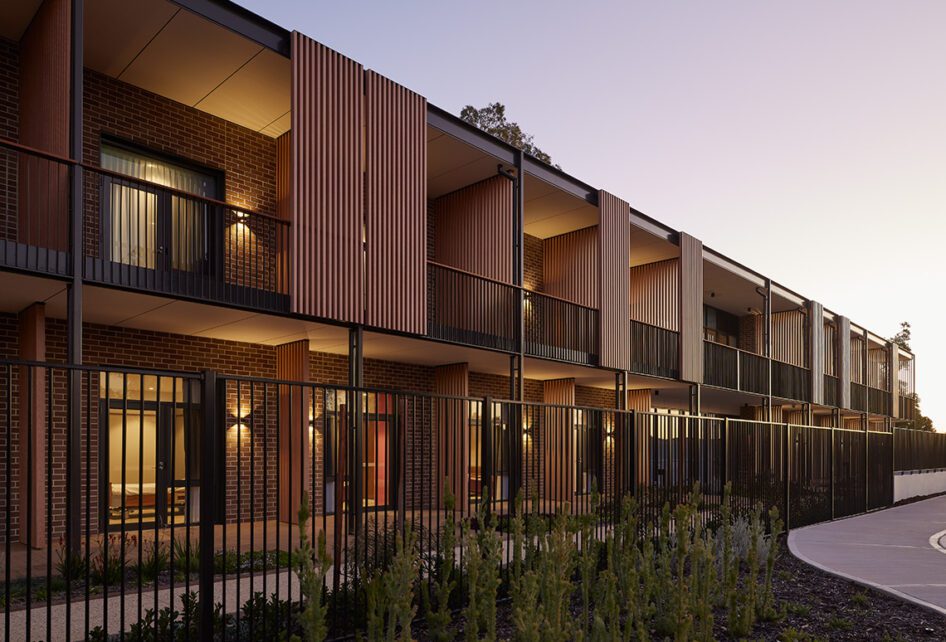

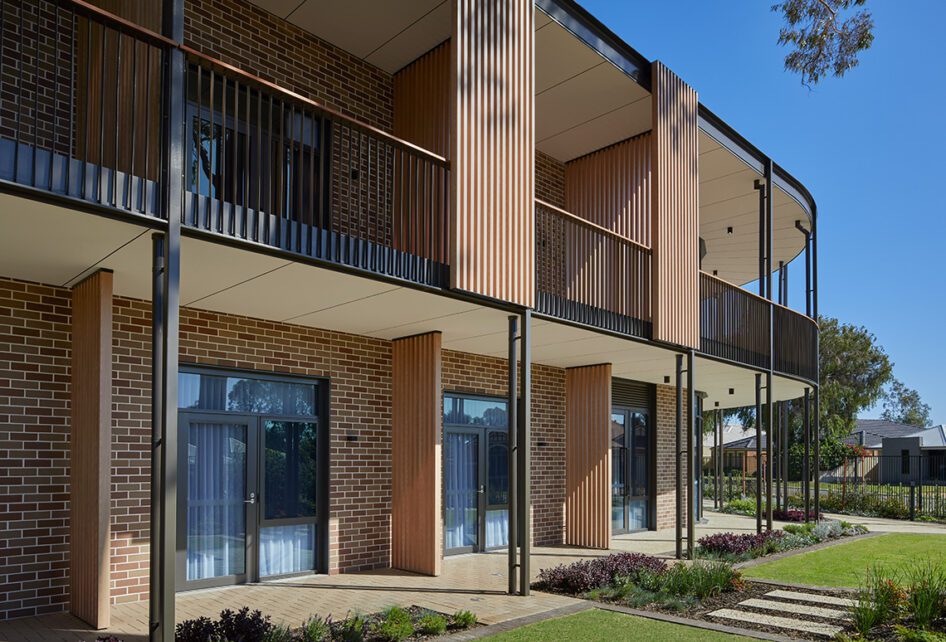

    Capral's Project Karingal Green using Capral window and building systems.
    Capral's Project Karingal Green using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.

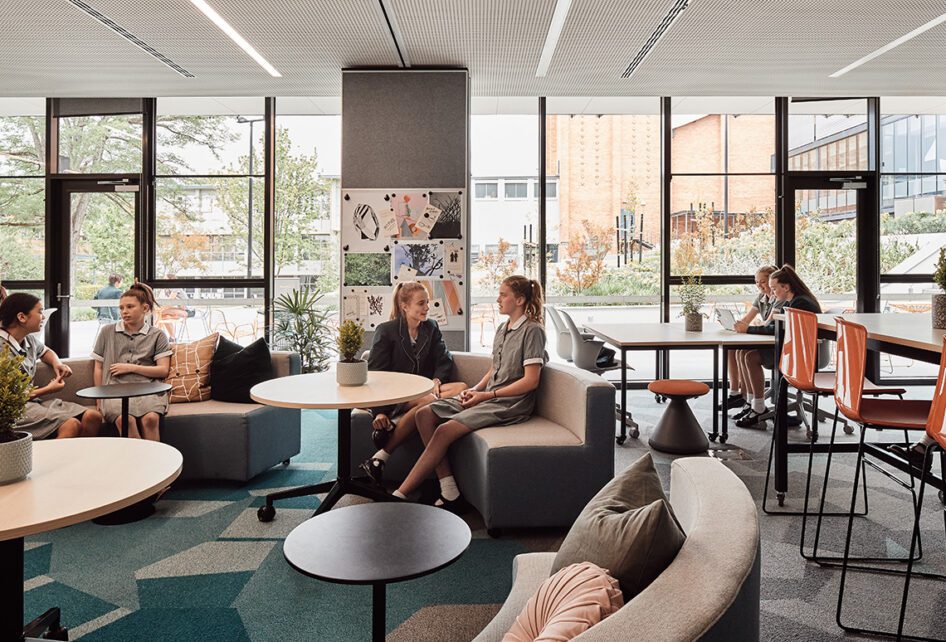

    Capral's Project MLC Nicholas Learning Centre using Capral window and building systems.
    Capral's Project MLC Nicholas Learning Centre using Capral window and building systems.

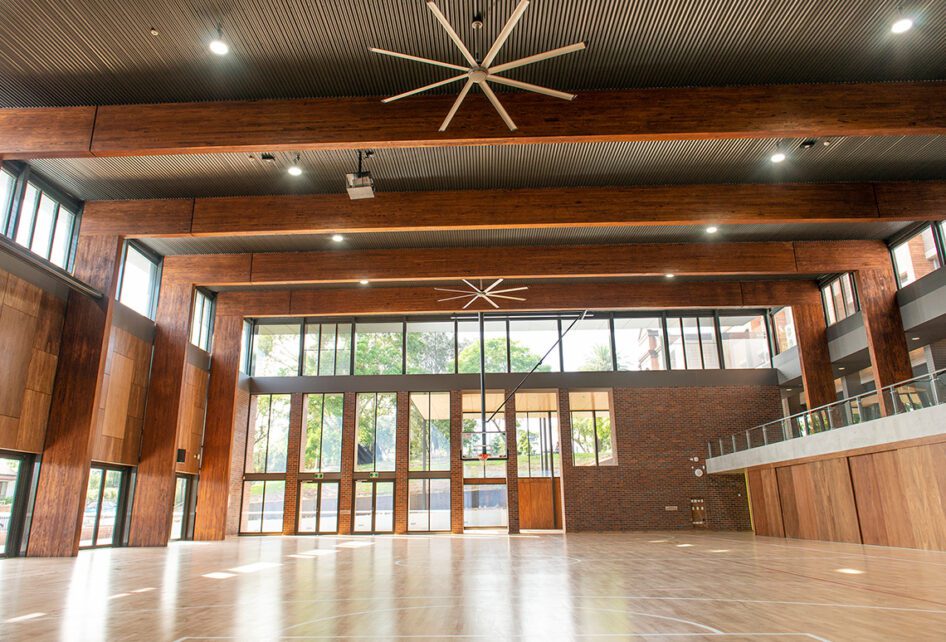

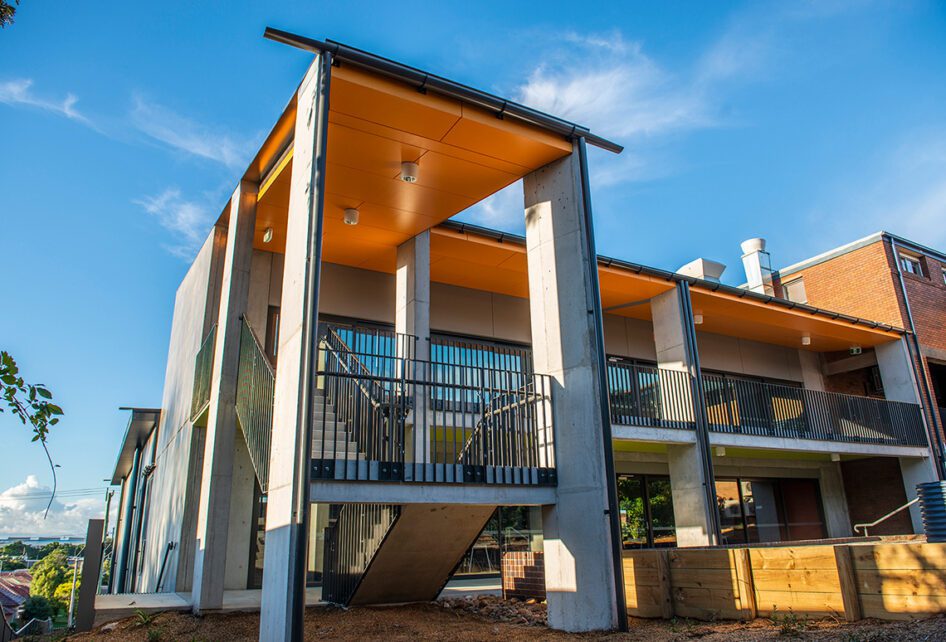

    Capral's Project San Clemente High School using Capral window and building systems.
    Capral's Project San Clemente High School using Capral window and building systems.
    Capral's Project San Clemente High School using Capral window and building systems.

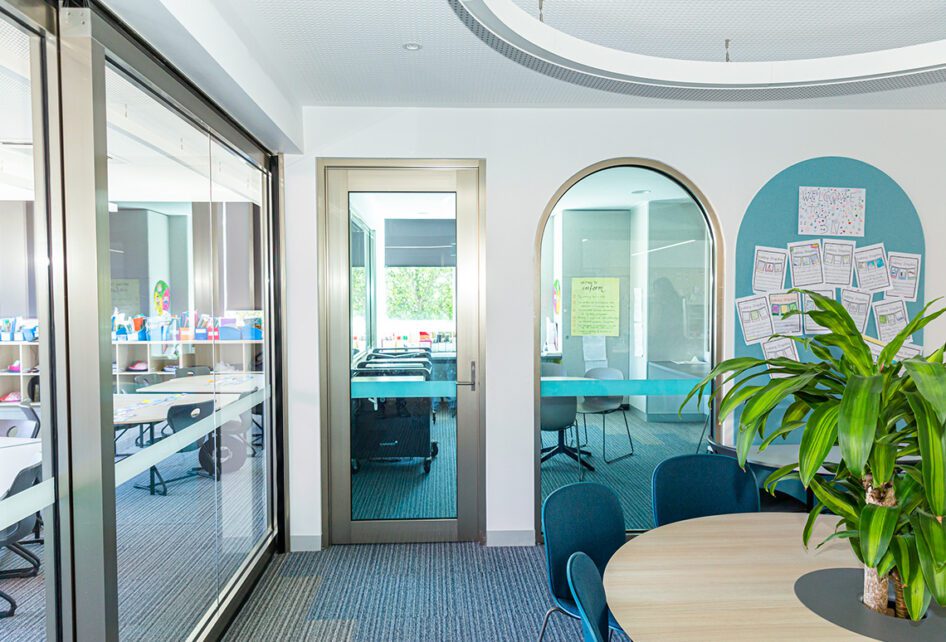

    Capral's Project St James Catholic Primary School using Capral window and building systems.

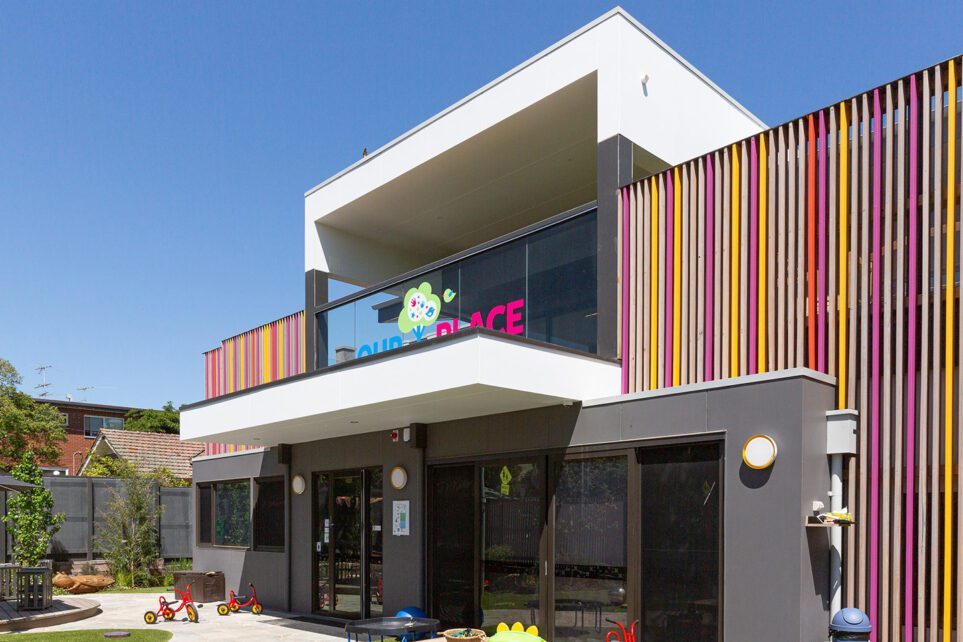

    Capral's Project Our Place Early Learning Centre using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.

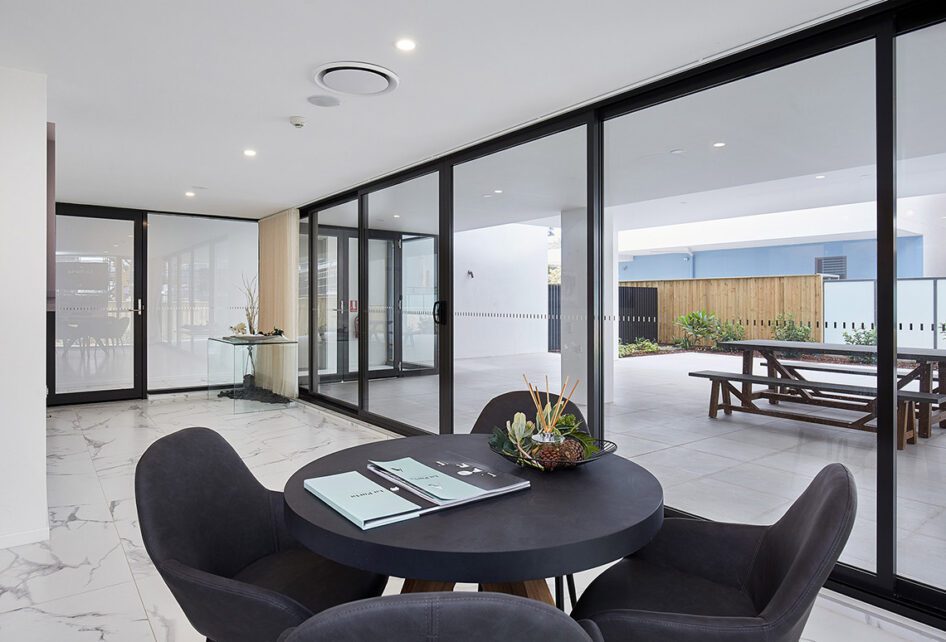

    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.

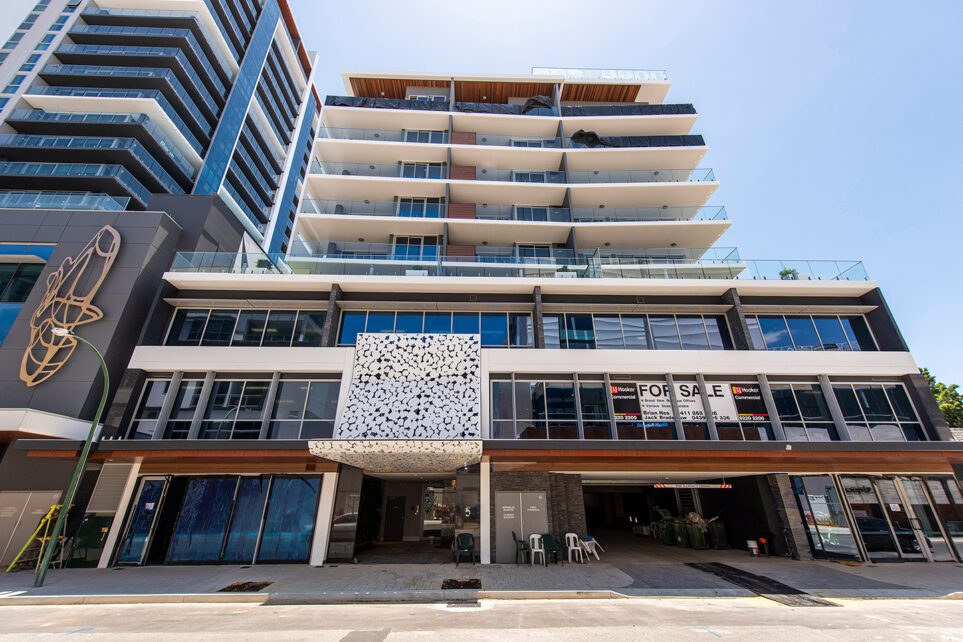

    Capral's Project Reva Apartments using Capral window and building systems.

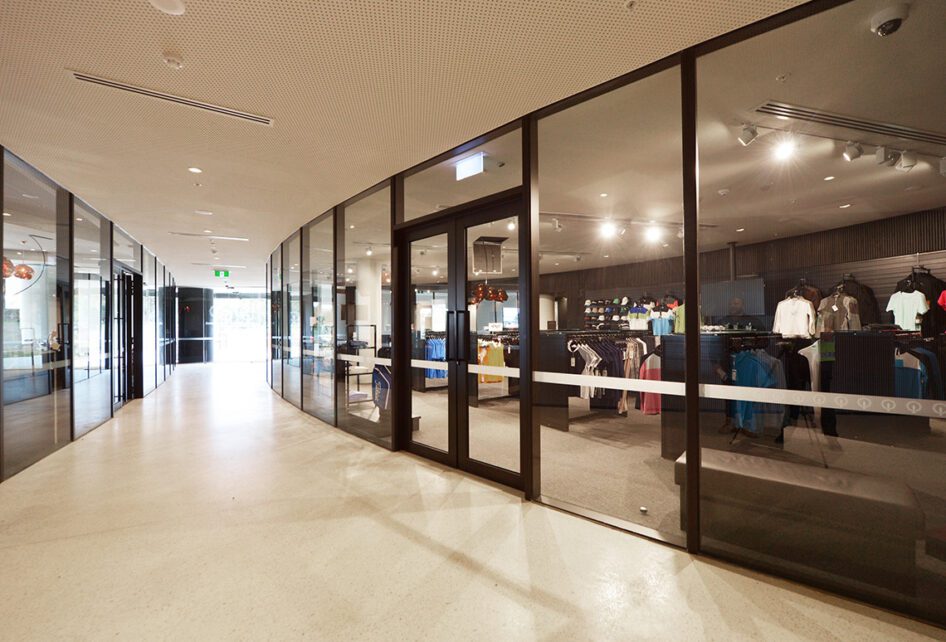

    Capral's Project Cape Schanck Resort using Capral window and building systems.
    Moonah Art Centre containing Capral window and building systems
    A photo of Australind Senior High School featuring Capral's Windows
    A photo of Australind Senior High School featuring Capral's Windows
    Capral's Project One Subiaco using Capral window and building systems.
    Capral's Project One Subiaco using Capral window and building systems.
    Capral's Project Rebuilding The Log Cabin Hotel Penrith using Capral window and building systems.
    Capral's Project Esperance TAFE Campus Maximises Light For Learning using Capral window and building systems.
    Capral's Project Esperance TAFE Campus Maximises Light For Learning using Capral window and building systems.
    Capral's Project Macquaire University's Lincoln Building using Capral window and building systems.
    Capral's Project Macquaire University's Lincoln Building using Capral window and building systems.
    Capral's Project Karingal Green using Capral window and building systems.
    Capral's Project Karingal Green using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project MLC Nicholas Learning Centre using Capral window and building systems.
    Capral's Project MLC Nicholas Learning Centre using Capral window and building systems.
    Capral's Project San Clemente High School using Capral window and building systems.
    Capral's Project San Clemente High School using Capral window and building systems.
    Capral's Project San Clemente High School using Capral window and building systems.
    Capral's Project St James Catholic Primary School using Capral window and building systems.
    Capral's Project Our Place Early Learning Centre using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Reva Apartments using Capral window and building systems.
    Capral's Project Cape Schanck Resort using Capral window and building systems.
    Moonah Art Centre containing Capral window and building systems
    Key features
    • 46mm Door Panel
    • Narrow and Wide Stile options accommodate a wide range of hardware
    • Shallow rail option
    • Suits both single and double glazing
    • Pivot and sliding door panel configurations also available
    • Suits commercial or architectural applications
    • Compatible with a wide range of framing suites

    The AGS 225 Door has been designed with flexibility, performance and ease of assembly in mind. The AGS 225 Door suits a wide range of applications from architectural entry doors through to commercial shopfronts.
    This door can be fitted with either single or double-glazed units and has the option of standard and wide stiles. It is also compatible with a vast range of commercial and architectural locks and furniture and the full range of Capral framing systems.

    Download Brochure

    Details

    Product Specs
    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 3000
    Panel Width (mm) 1500

    Height and width are interdependent and the maximum glazed area must not exceed 3.8m²

    Frame Dimensions (mm)

    Door Panel 46mm Depth

    Acoustic Rating

    Rw (C;Ctr) 36 (-1;-2)

    Bushfire Rating

    BAL 40

    Maximum Product Performance

    SLS (Pa) 4500
    ULS (Pa) 10000
    WATER (Pa) 900

    Water Open In 300Pa

    Glazing Details

    Single Glazed 4 - 12
    Double Glazed 19 - 31
    Thick Glazed 14 - 18

    Sill Options

    Option 1 44 Std Sill
    Option 2 20-25 Flat Sill
    Option 3 12-15
    Low Profile Sill

    Energy Performance

    Uw Range 3.27 - 5.96
    SHGC Range 0.17 - 0.54
    Tvw Range 0.17 - 0.56
    Air infiltration 0.53 - 0.53
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual AGS 225 Hinged & Pivot Doors
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS 215 & 225 Door Systems
    Extrusion Wall Chart AGS Speciality Sub Frames
    Extrusion Wall Chart AGS Sub Framing
    Extrusion Wall Chart Capral Screening
    BIM Files
    Revit AGS Commercial 225 Hinged Door
    Revit Capral Subframes
    CAD Files
    CAD Files AGS 225 Hinged & Pivot Doors
    CAD Wall Chart AGS 215 & 225 Doors
    CAD Files AGS Sub Frames
    CAD Files Capral Screening
    CAD Wall Chart AGS Sub Framing
    Revit
    AGS Commercial 225 Hinged Door
    Bulletins
    PB462 - AGS 225 Hinge Door - DG 180mm Lock Stile
    PB1018 - AGS 225 Door – Manual Split & New Additions
    PB445 - 300677 1030 Slider Cushion Stop Package
    PB445 - 300677 1030 Slider Cushion Stop Package
    PB318 - AGS 225 Sliding Door Track Additions
    PB303 - AGS Hinged Door Backing Plate
    PB299 - AGS Hinged Door Threshold Additions
    PB300 - AGS Hollow Sub Heads
    Other
    Capral AGS 225 Commercial Hinged & Pivot Door Brochure Specification AGS 225 Hinged Door Architectural Series White paper Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
