    Capral's AGS Commercial 419 Flushline Slingle Glazed (100mm) Corner Image.
    Commercial

    AGS Commercial 419 Flushline Single Glazed (100mm)

    The AGS 419 Flushline is a 100mm, single glazed, flush-glazed framing system offering a clean and modern external appearance.

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    Acoustic
    Rated
    Cyclone Impact
    Tested
    BAL 40
    Tested
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select

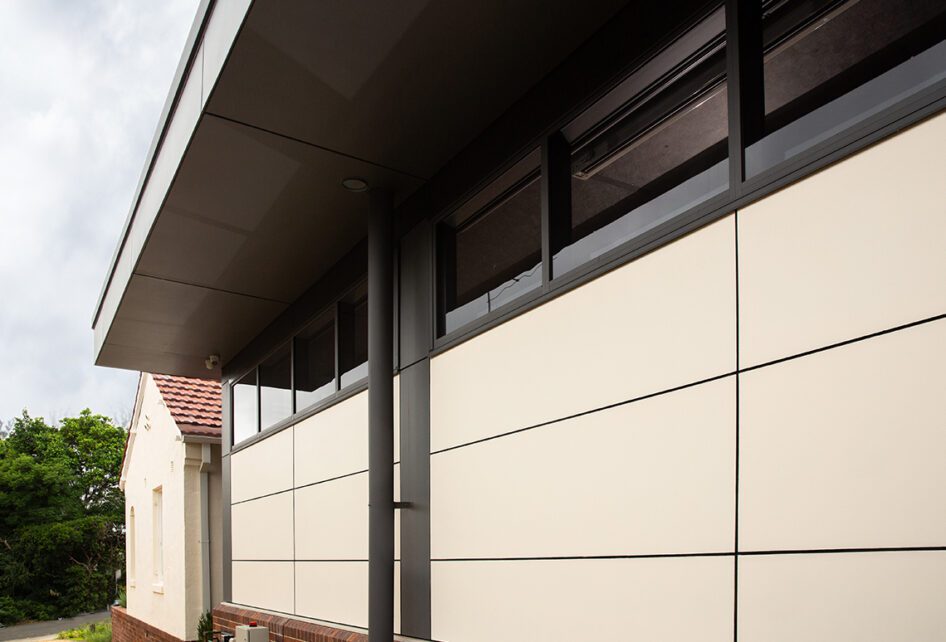

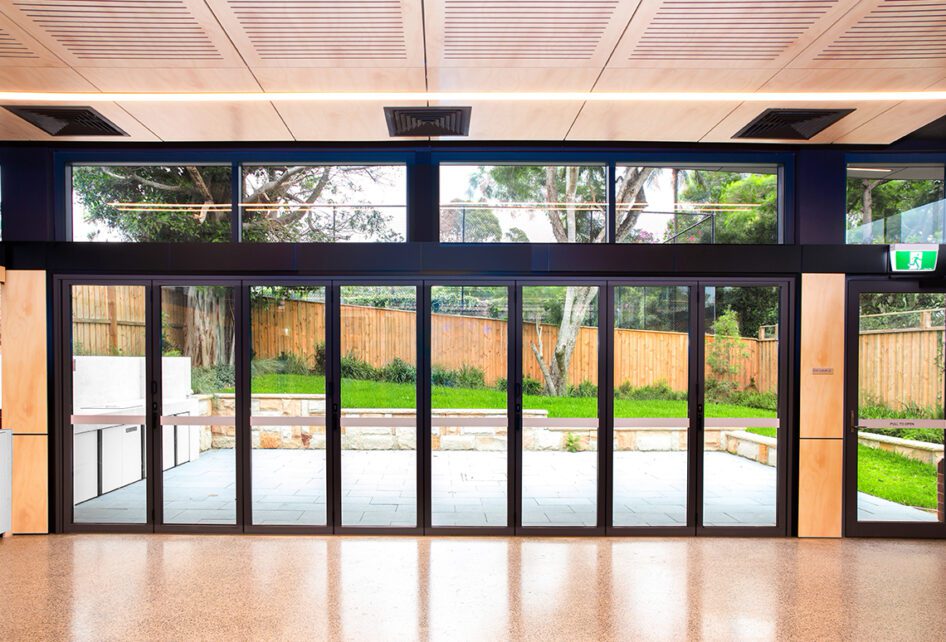

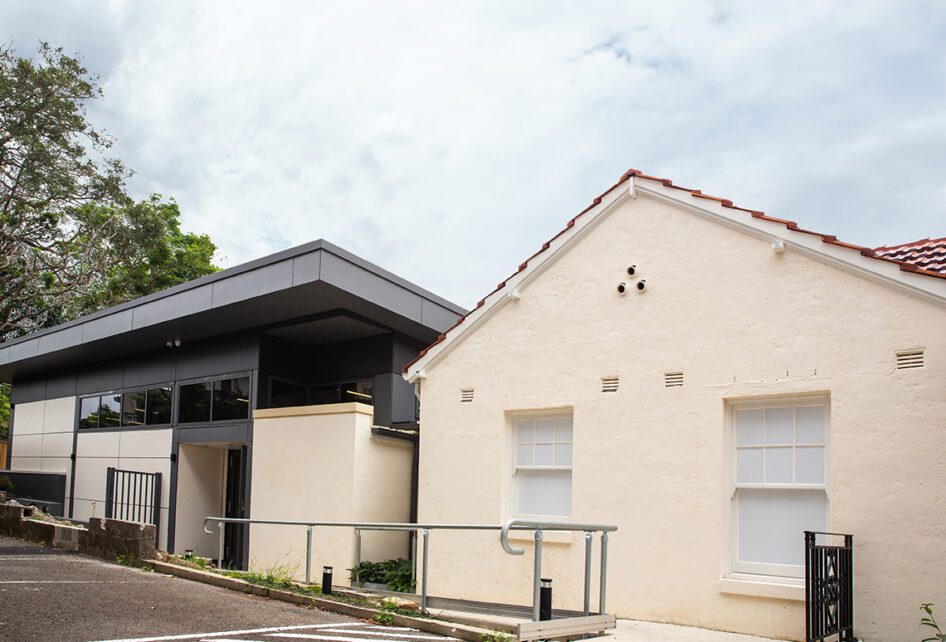

    Gordan Baptist Church featuring Capral and Schuco systems
    Gordan Baptist Church featuring Capral and Schuco systems
    Gordan Baptist Church featuring Capral and Schuco systems

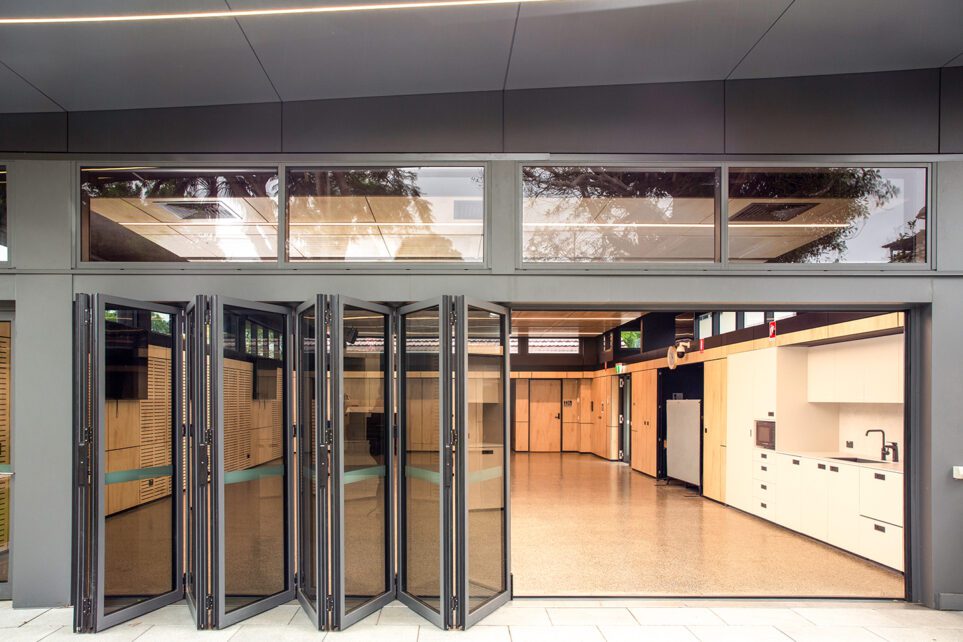

    Capral's Project Gordon Baptist Church using Capral window and building systems.

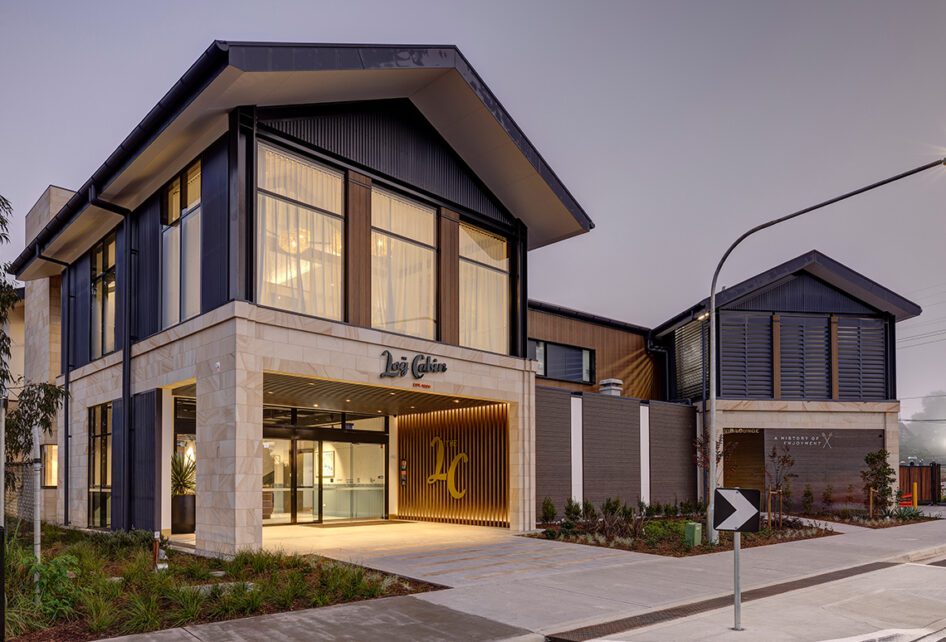

    Capral's Project Rebuilding The Log Cabin Hotel Penrith using Capral window and building systems.

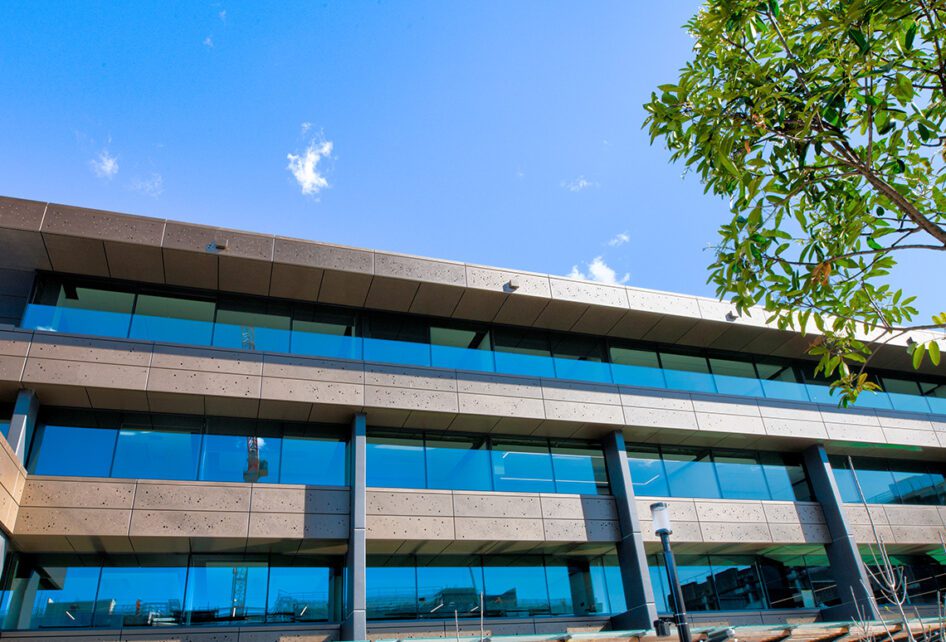

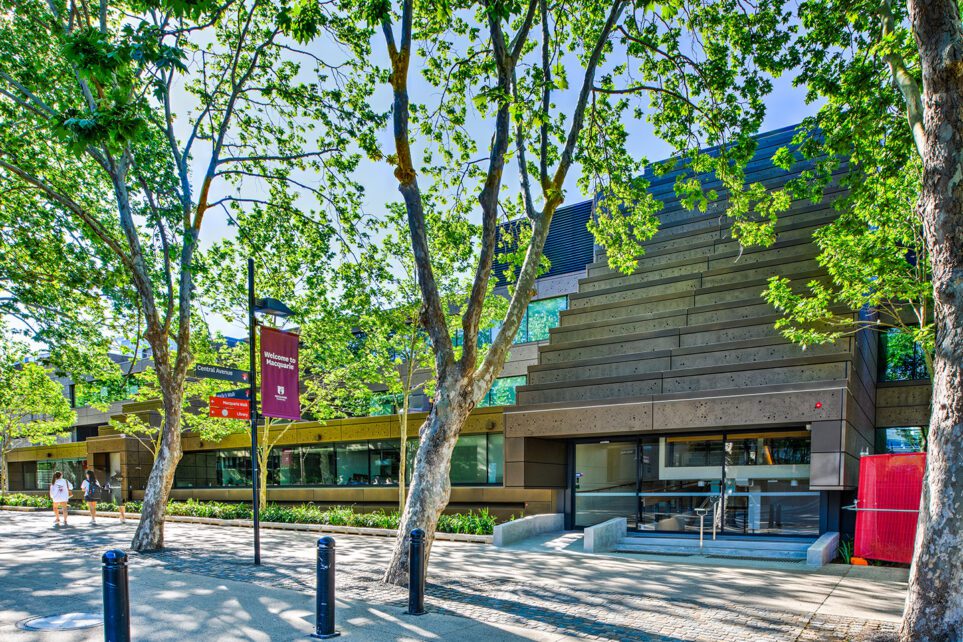

    Capral's Project Macquaire University's Lincoln Building using Capral window and building systems.
    Capral's Project Macquaire University's Lincoln Building using Capral window and building systems.

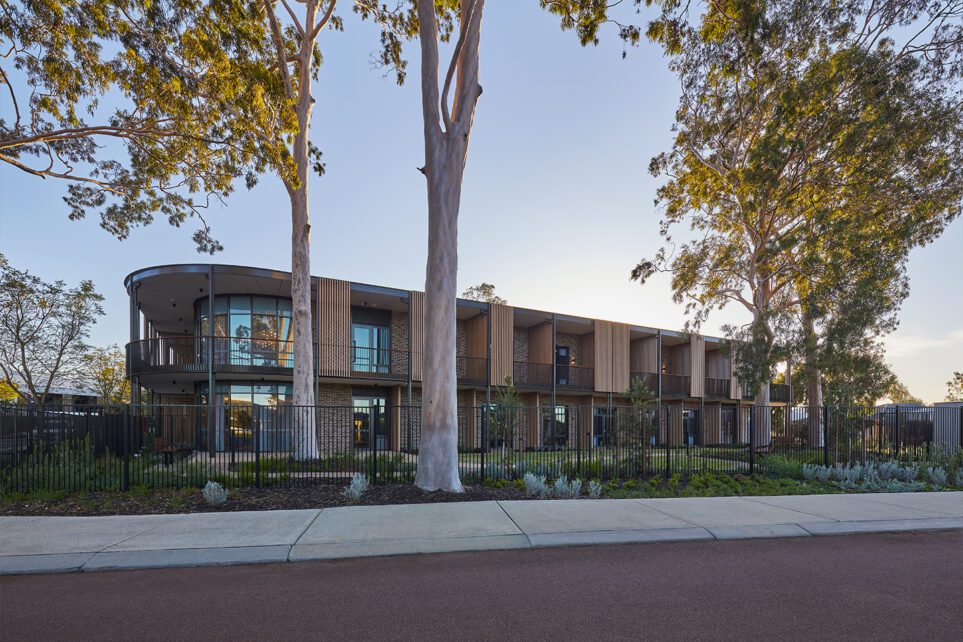

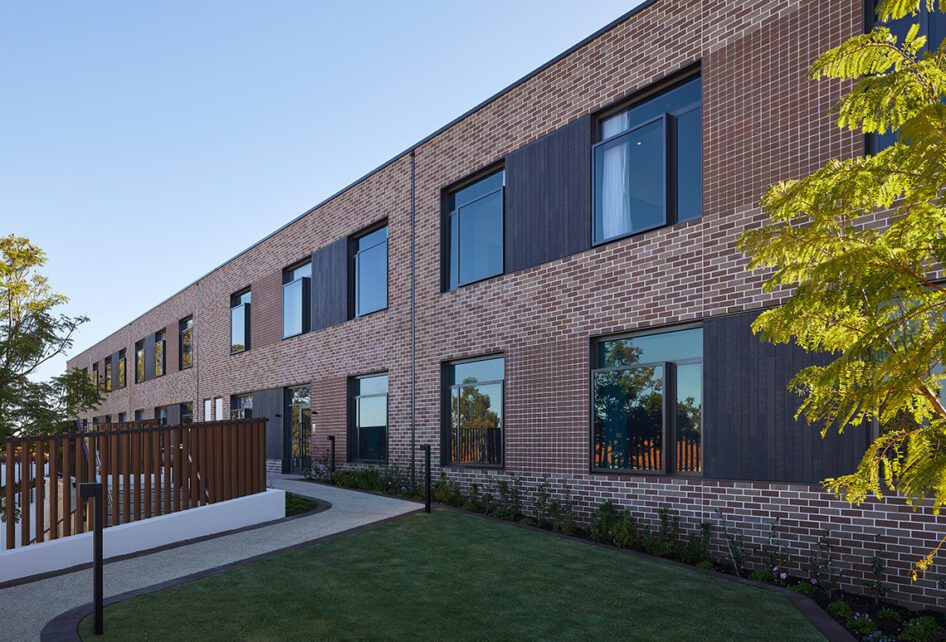

    Capral's Project Karingal Green using Capral window and building systems.
    Capral's Project Karingal Green using Capral window and building systems.

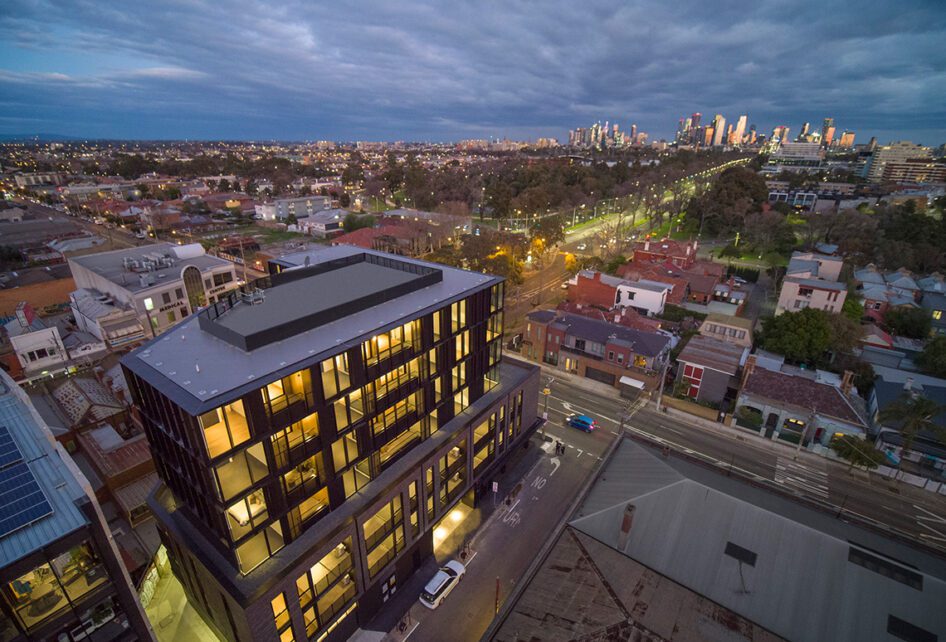

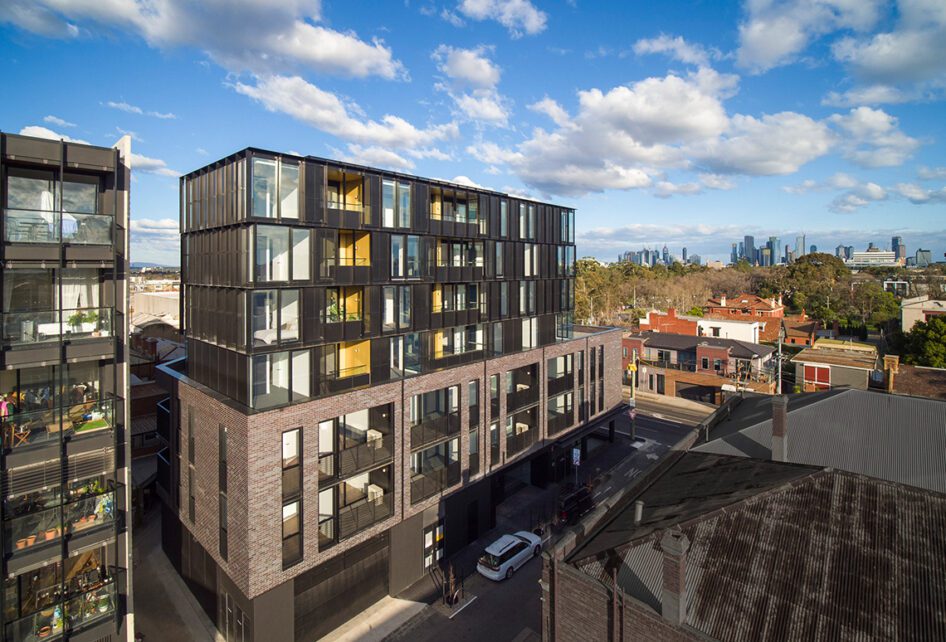

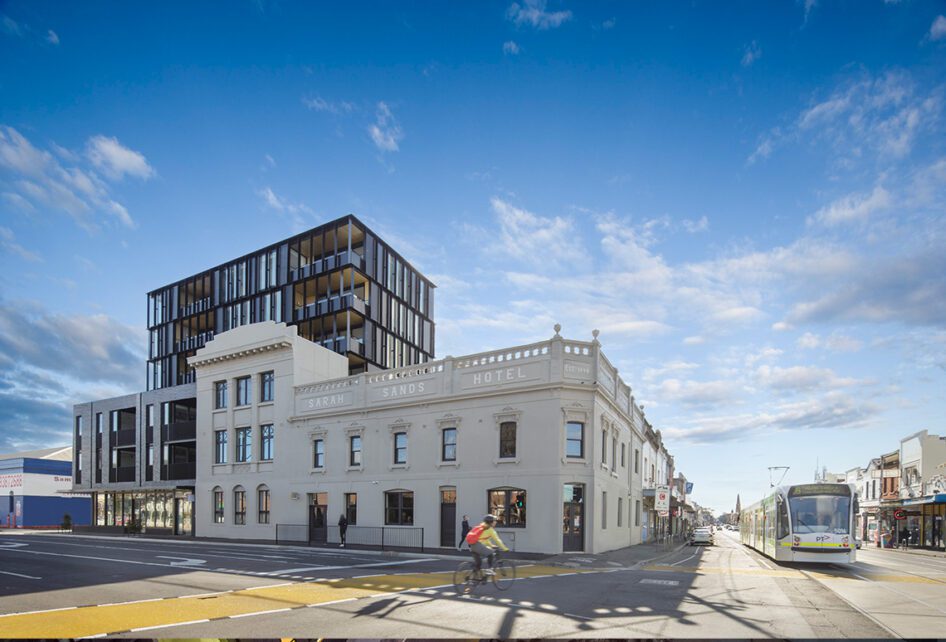

    Capral's Project Sarah Sands using Capral window and building systems.
    Capral's Project Sarah Sands using Capral window and building systems.
    Capral's Project Sarah Sands using Capral window and building systems.

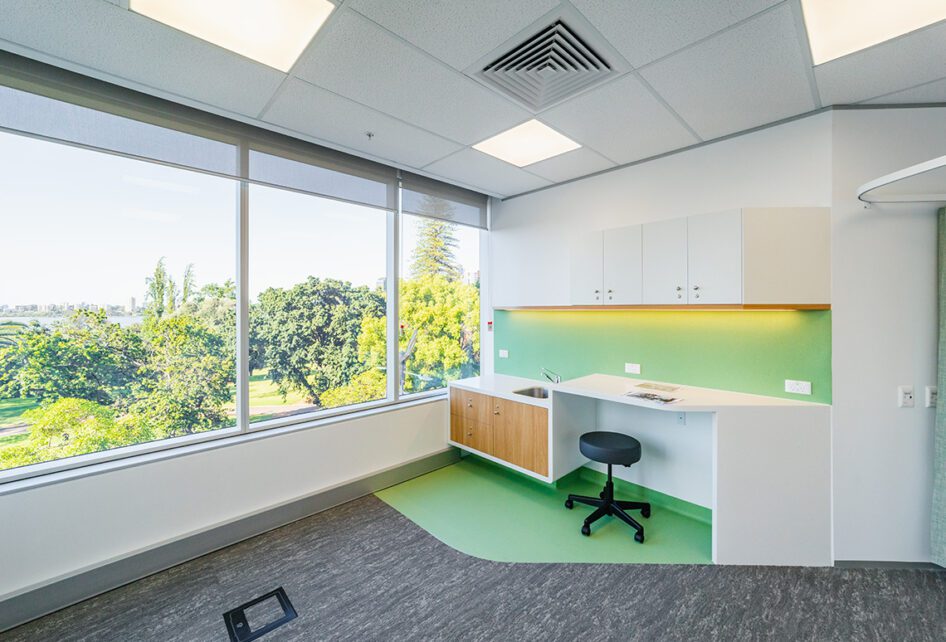

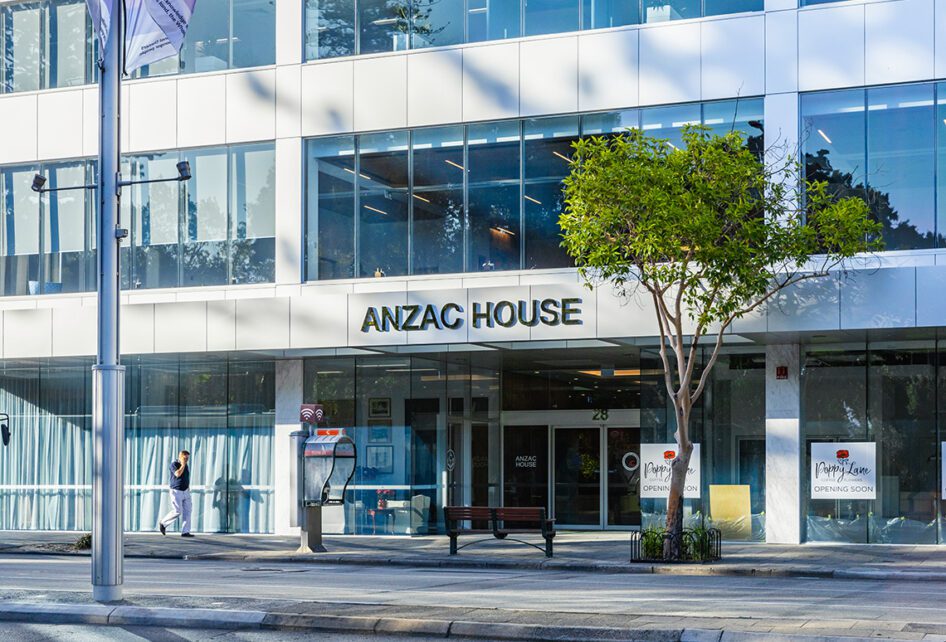

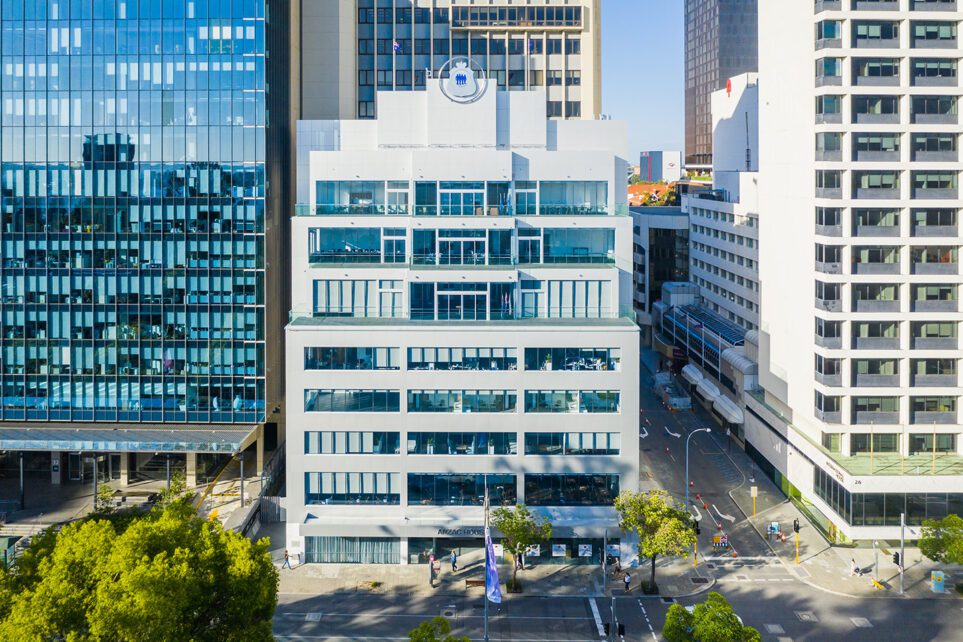

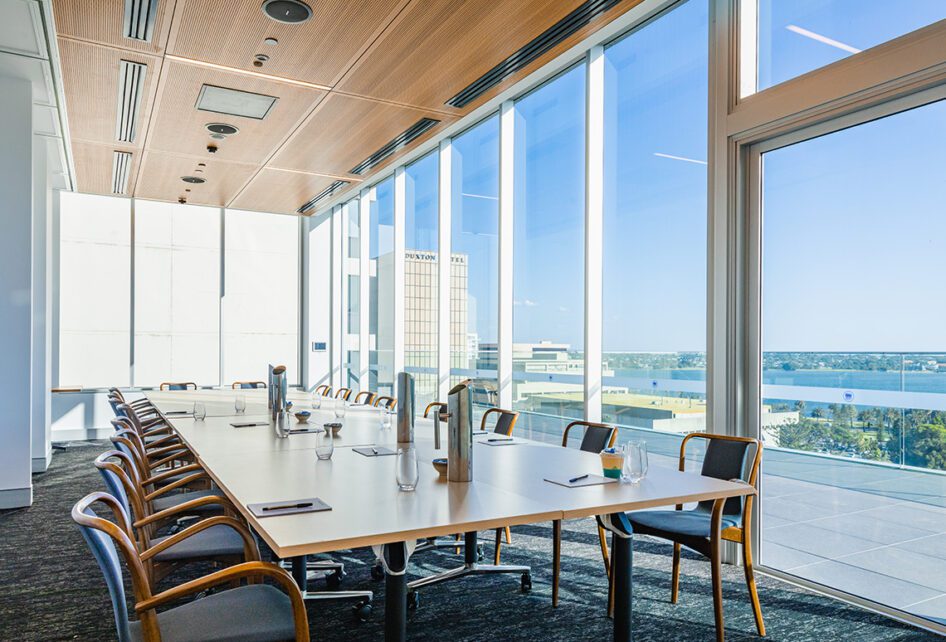

    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.

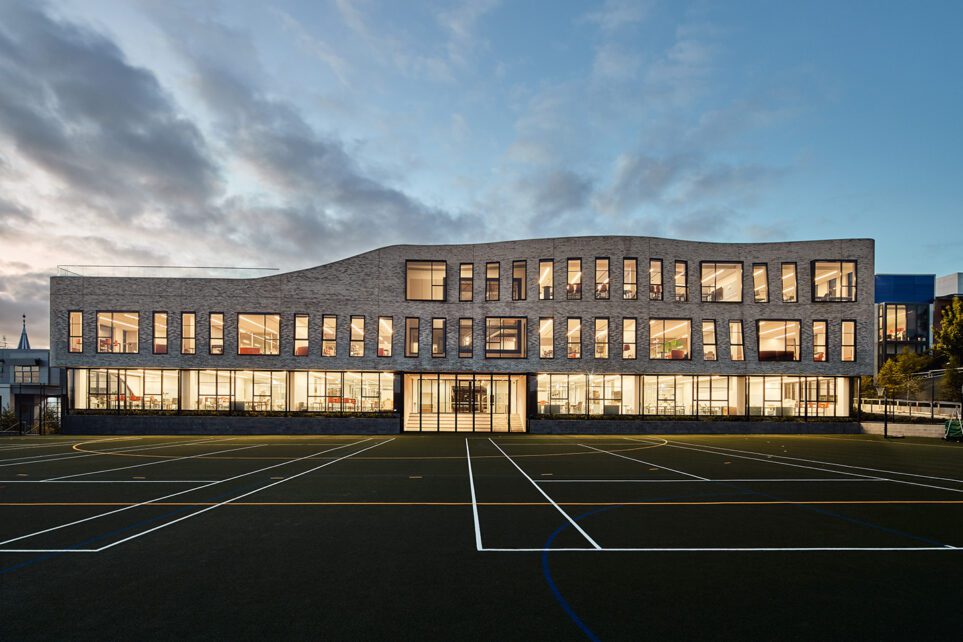

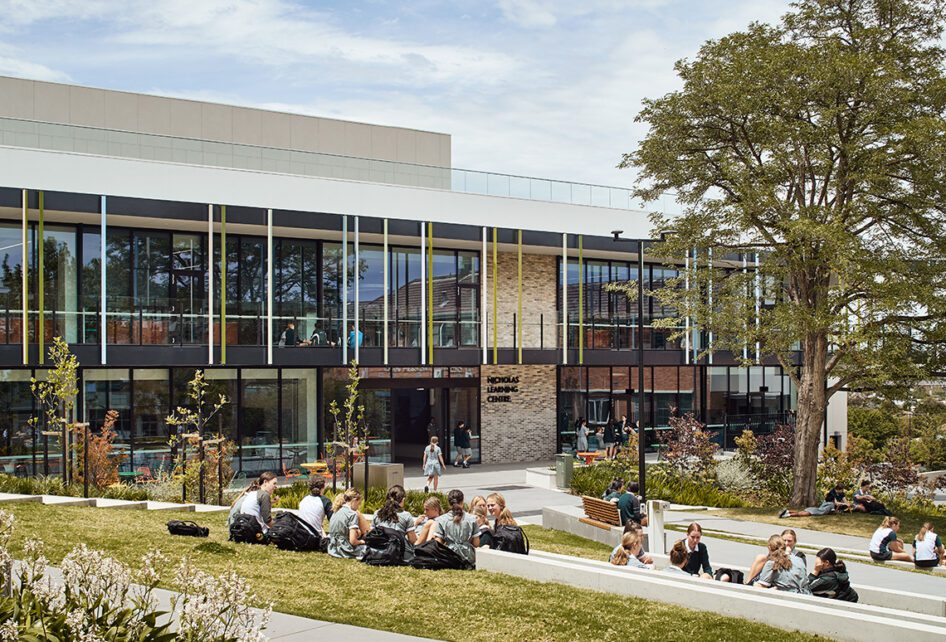

    Capral's Project MLC Nicholas Learning Centre using Capral window and building systems.
    Capral's Project MLC Nicholas Learning Centre using Capral window and building systems.

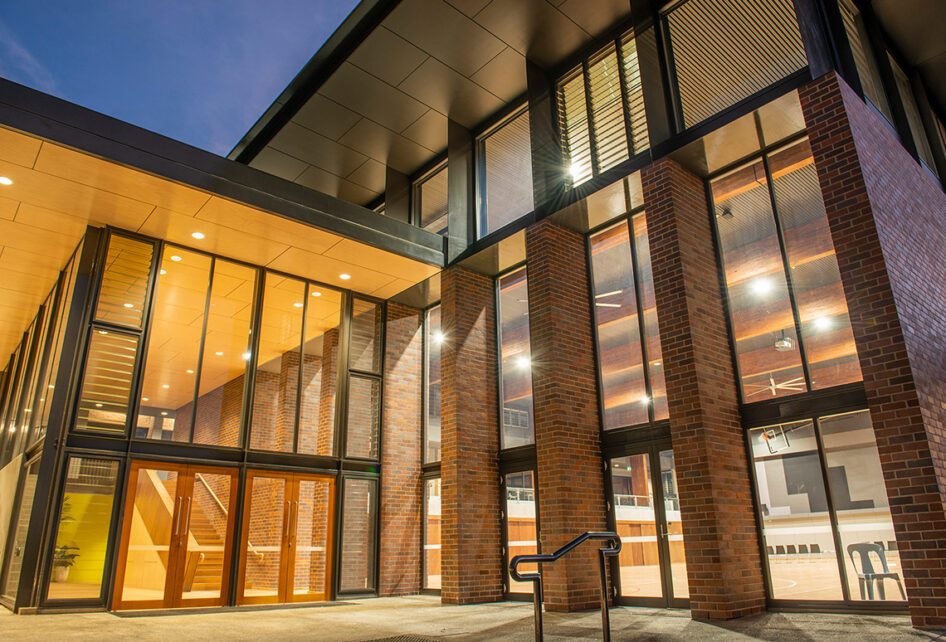

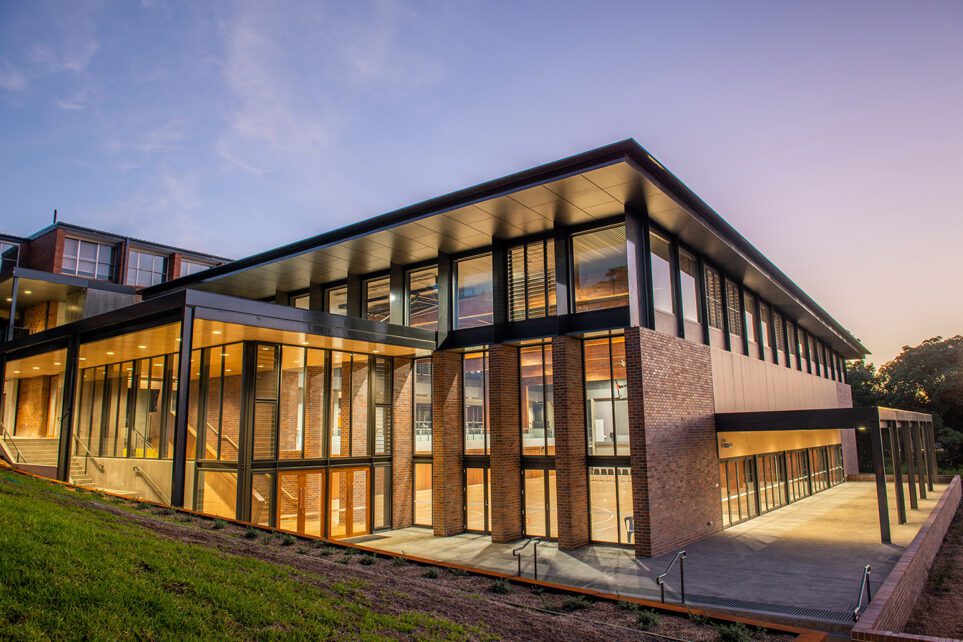

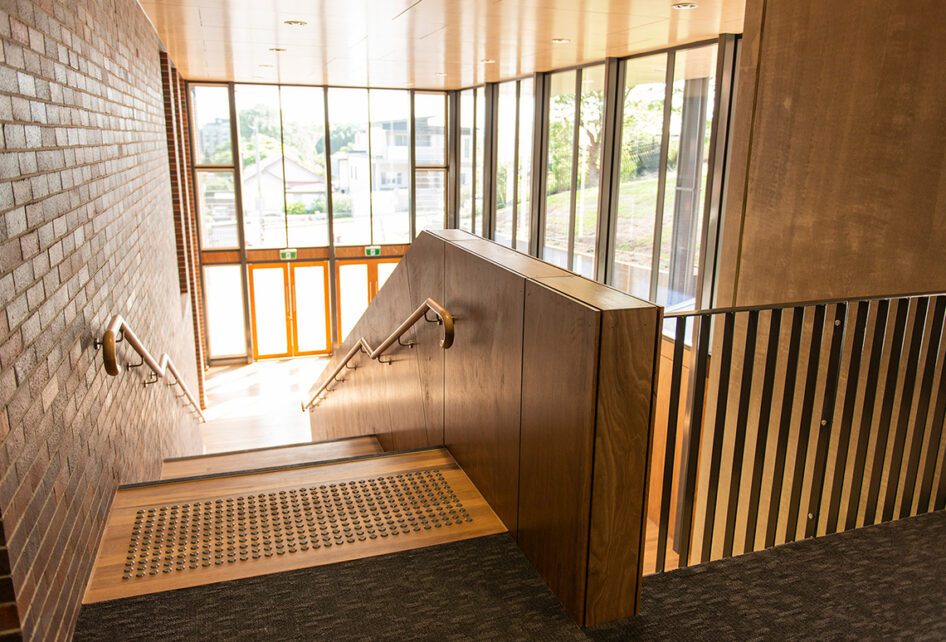

    Capral's Project San Clemente High School using Capral window and building systems.
    Capral's Project San Clemente High School using Capral window and building systems.

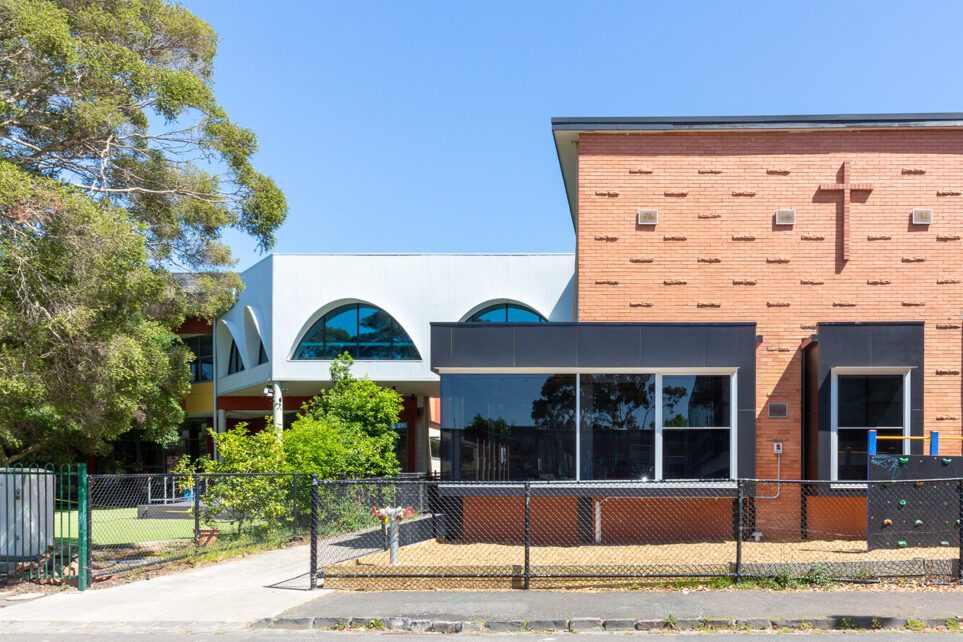

    Capral's Project St James Catholic Primary School using Capral window and building systems.

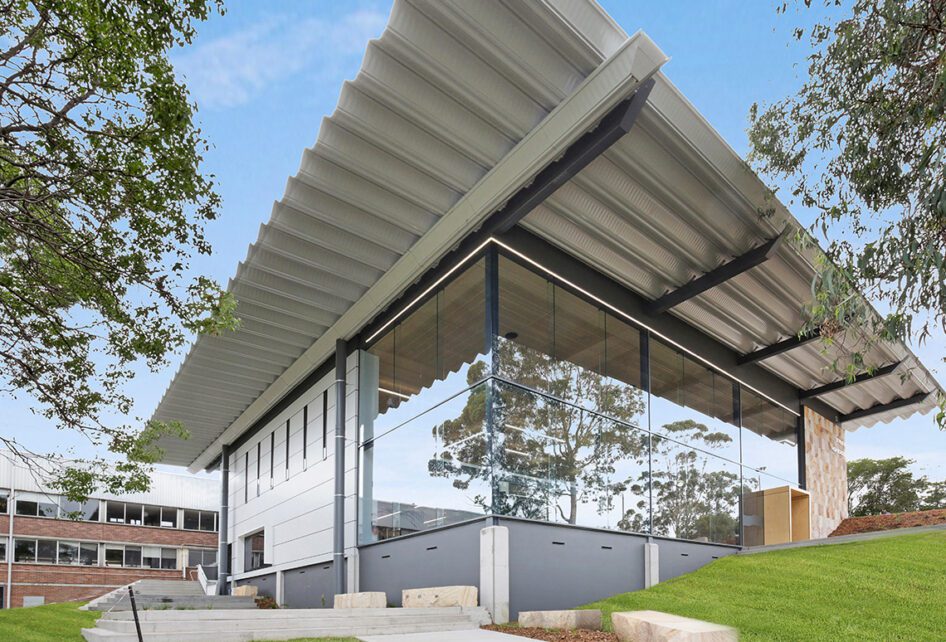

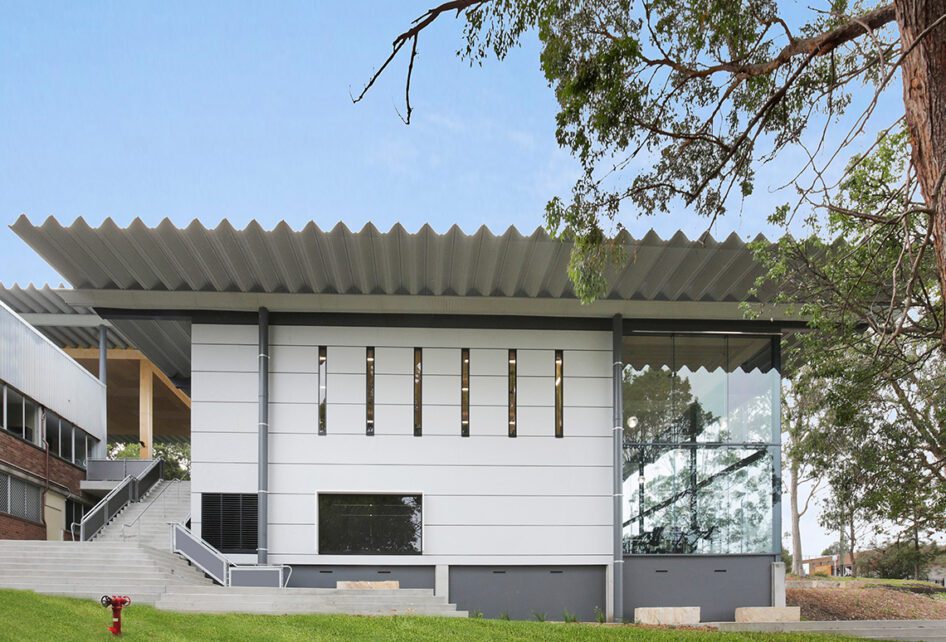

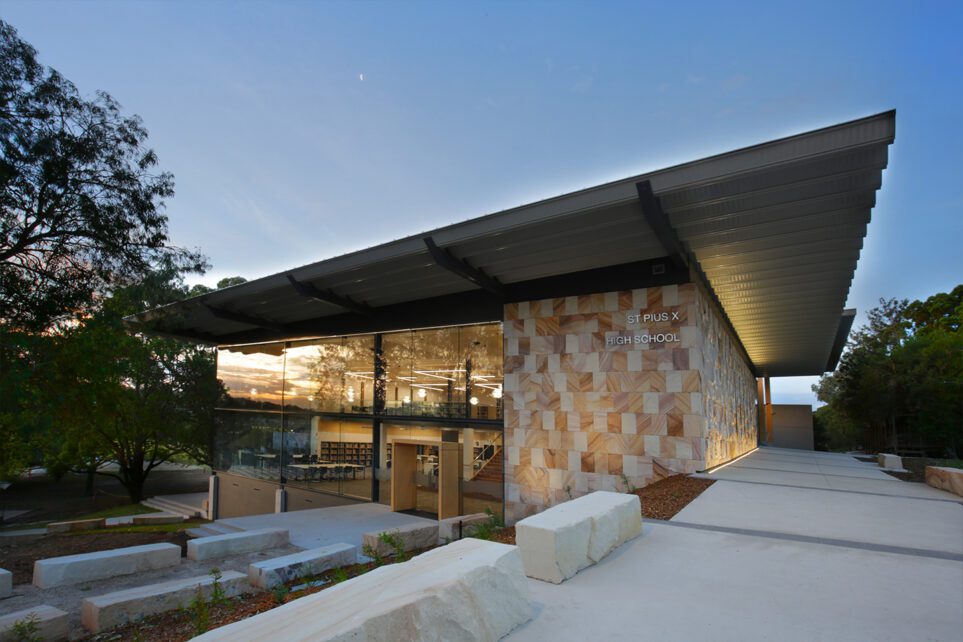

    Capral's Project St Pius X High School using Capral window and building systems.
    Capral's Project St Pius X High School using Capral window and building systems.
    Capral's Project St Pius X High School using Capral window and building systems.

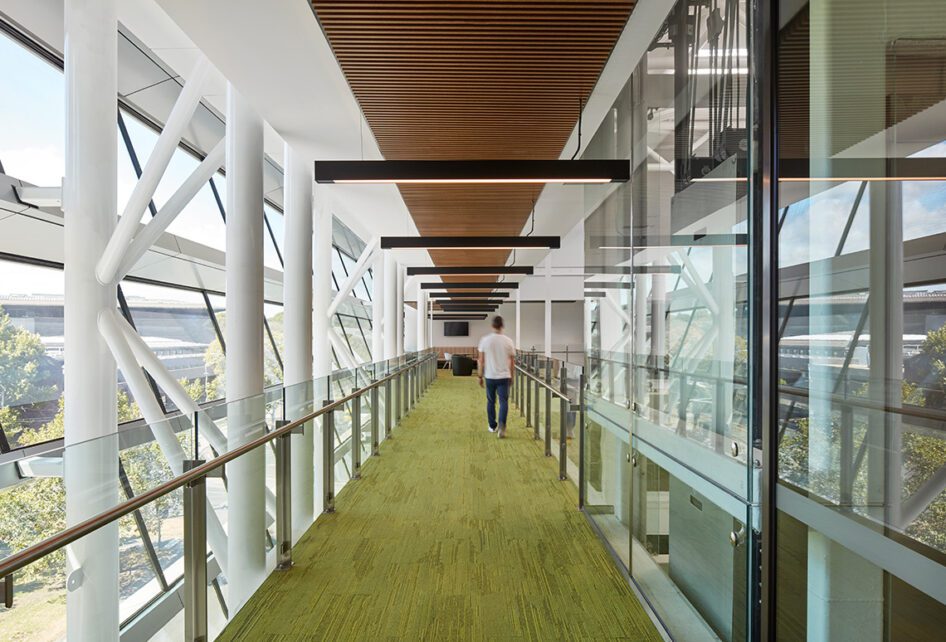

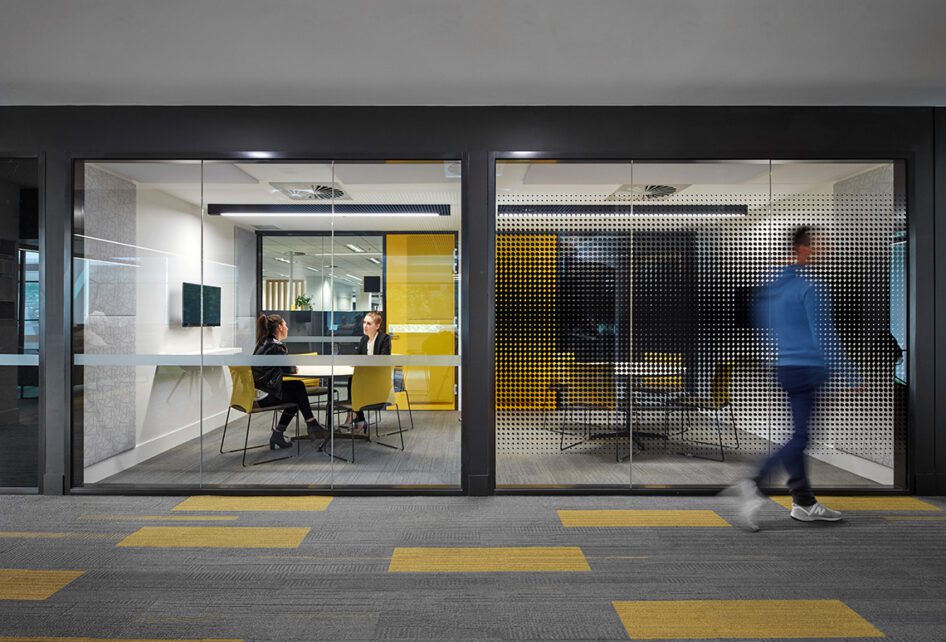

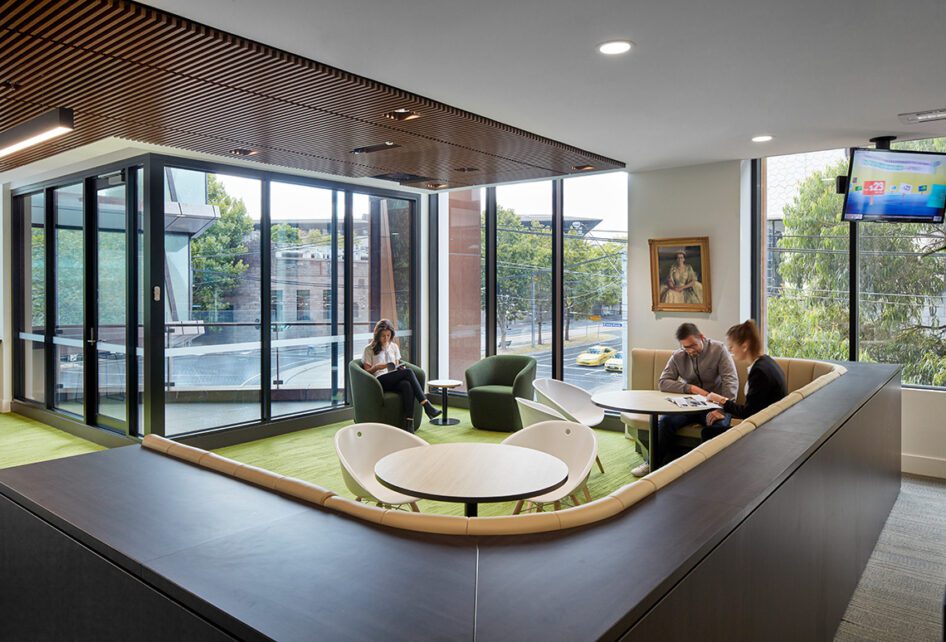

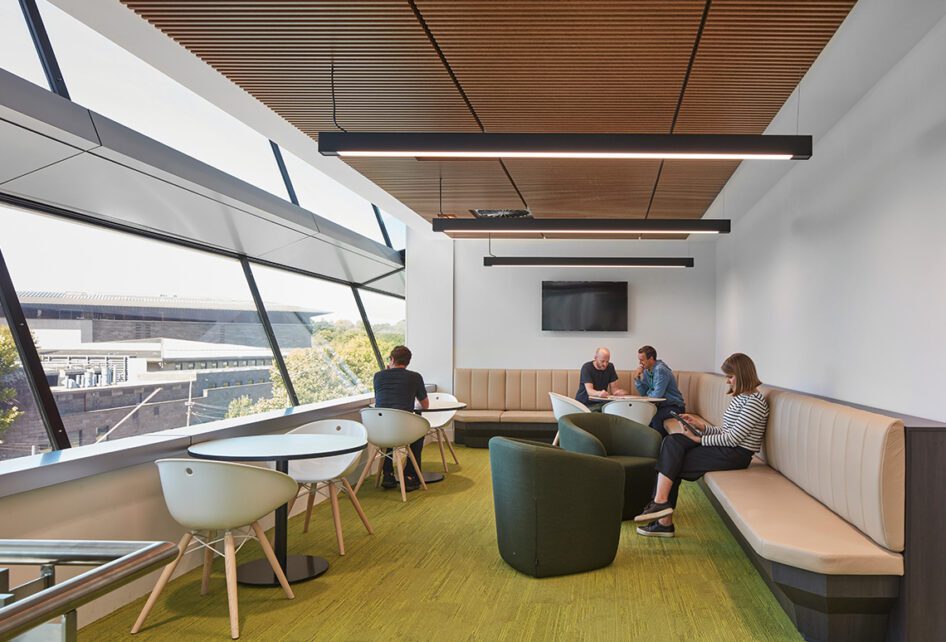

    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.

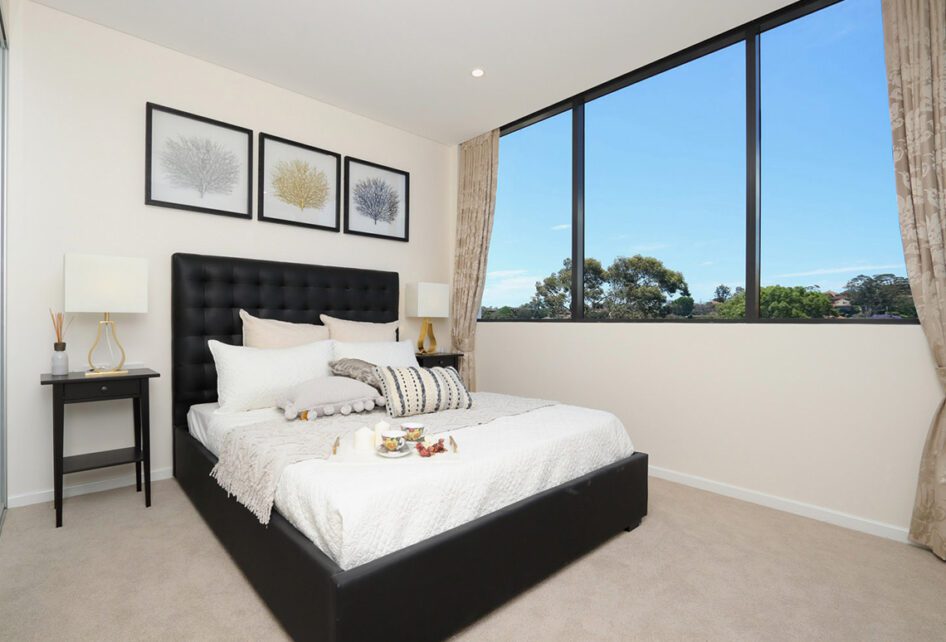

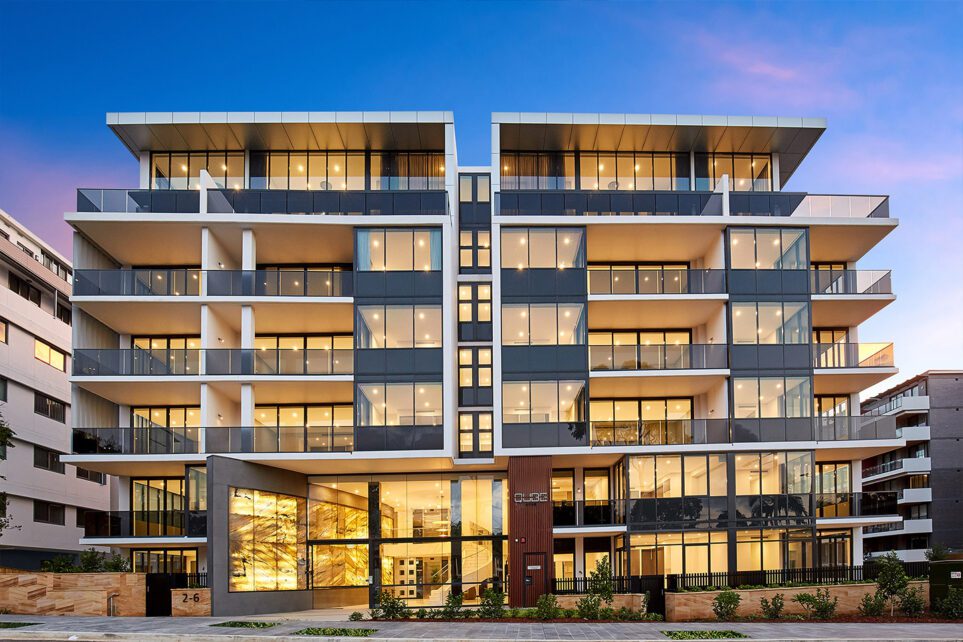

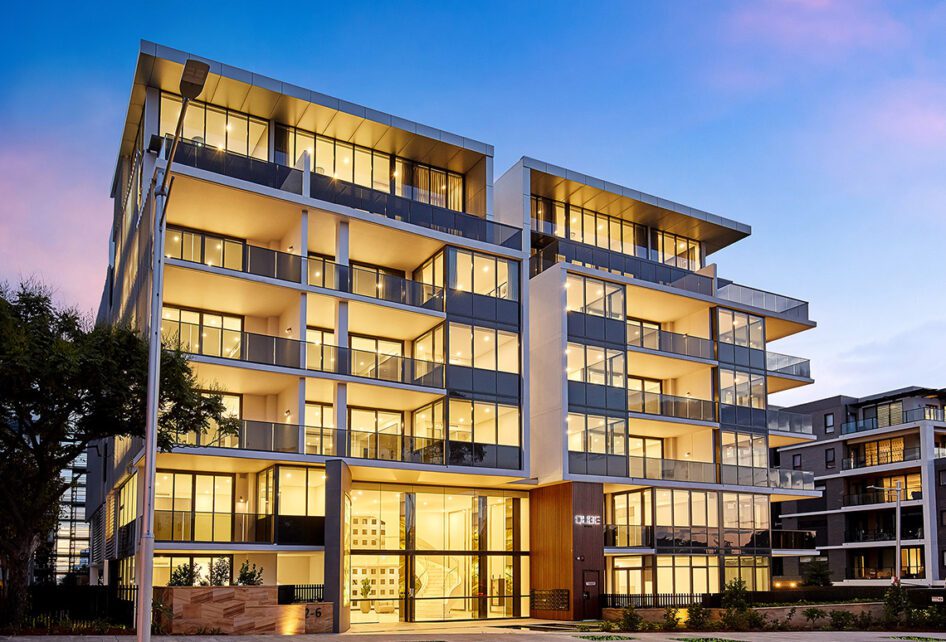

    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.

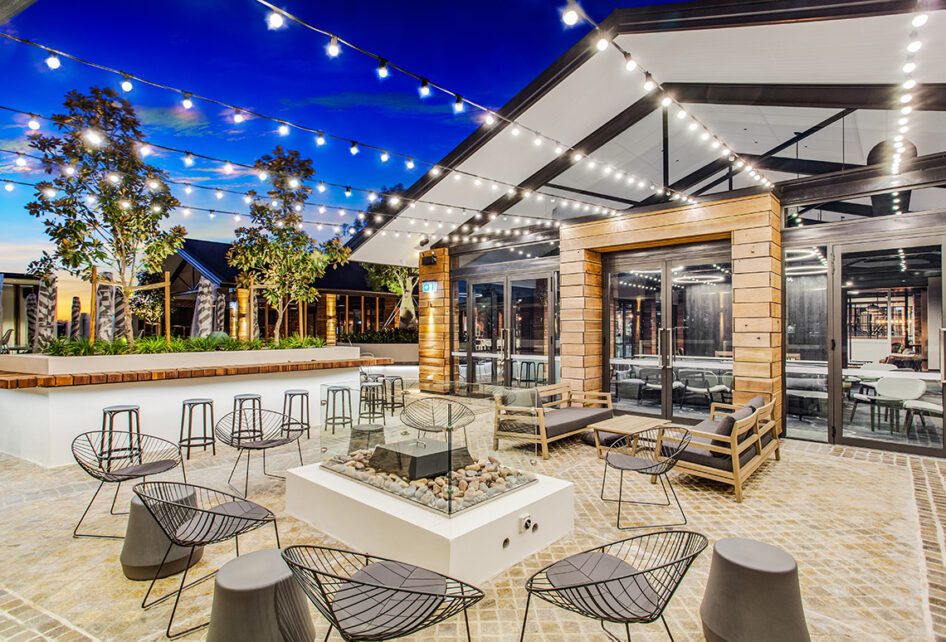

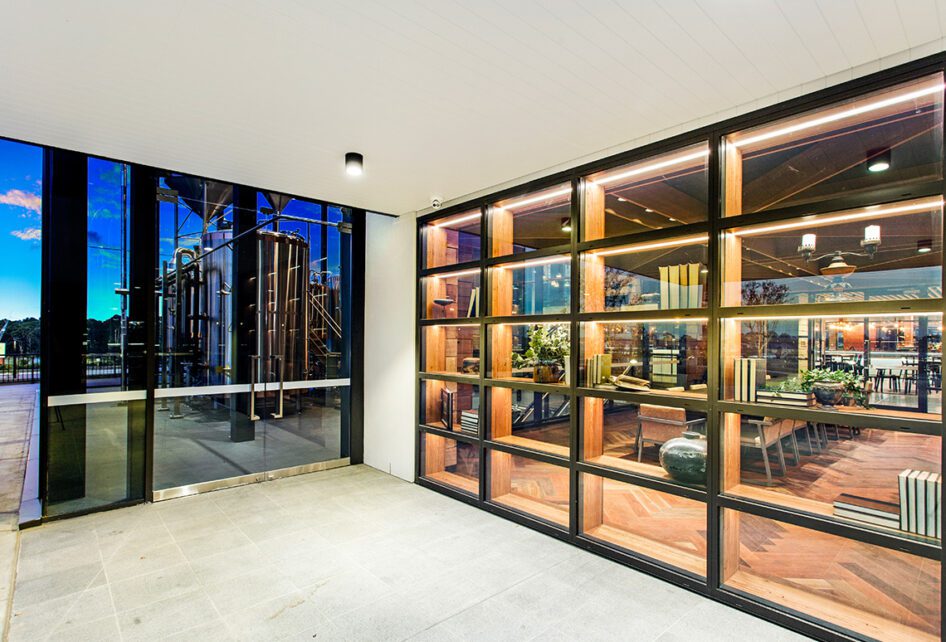

    Capral's Project Marsden Brewhouse using Capral window and building systems.

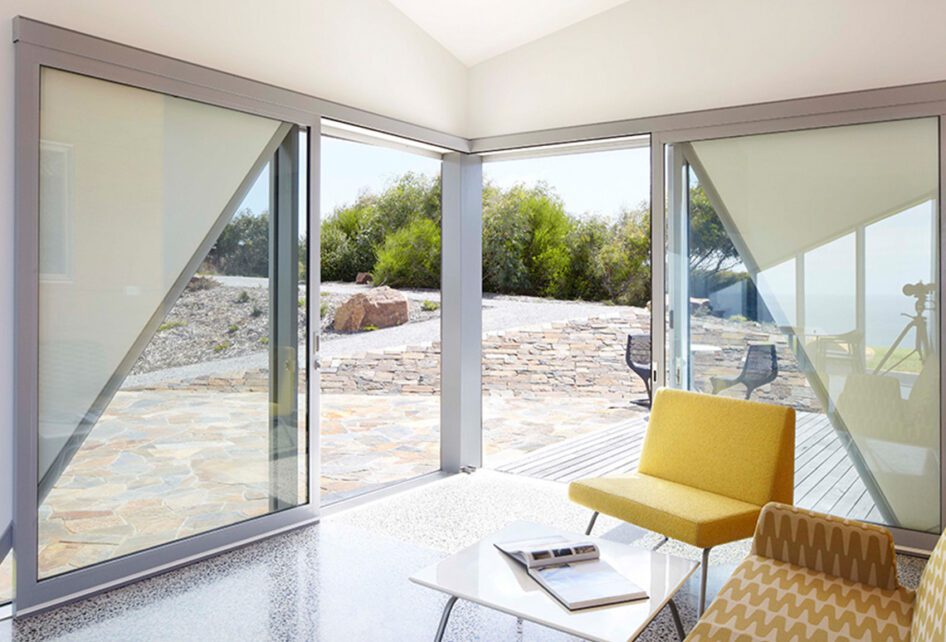

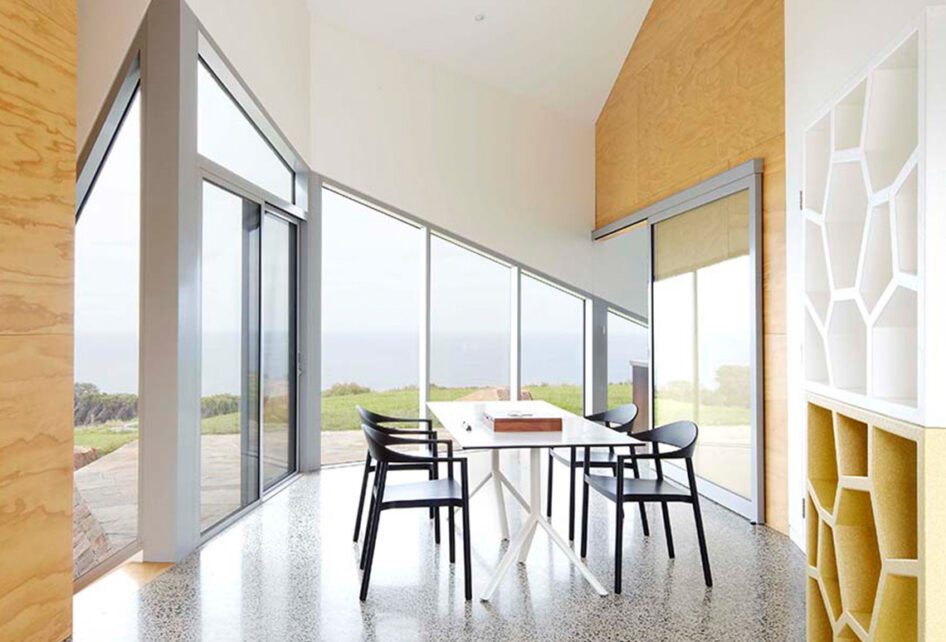

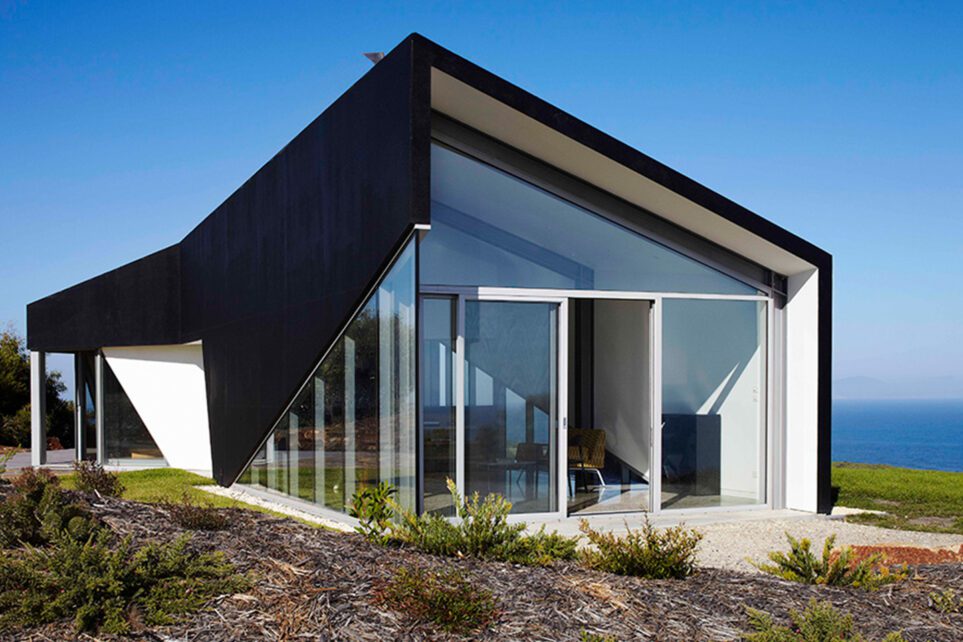

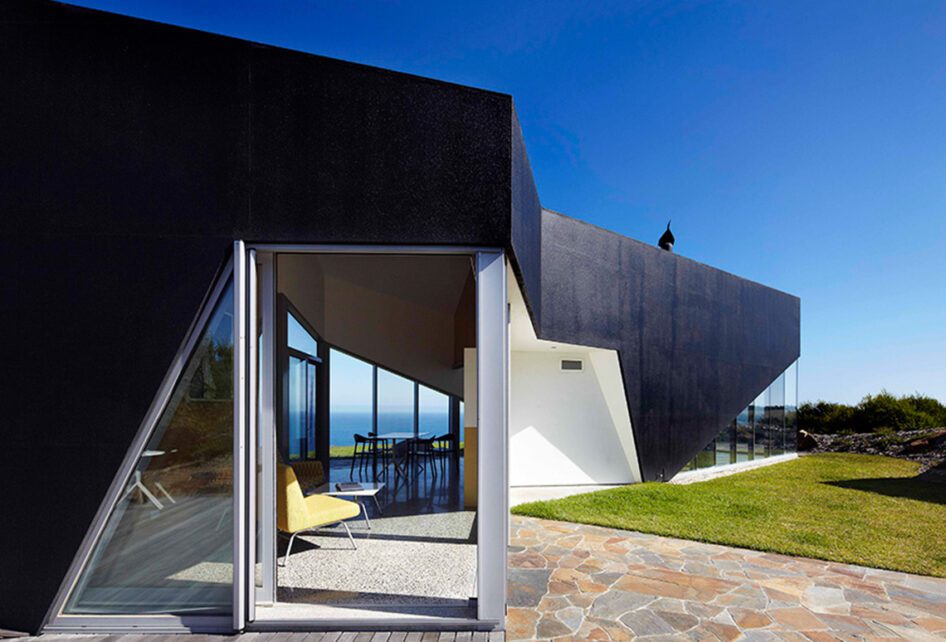

    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.

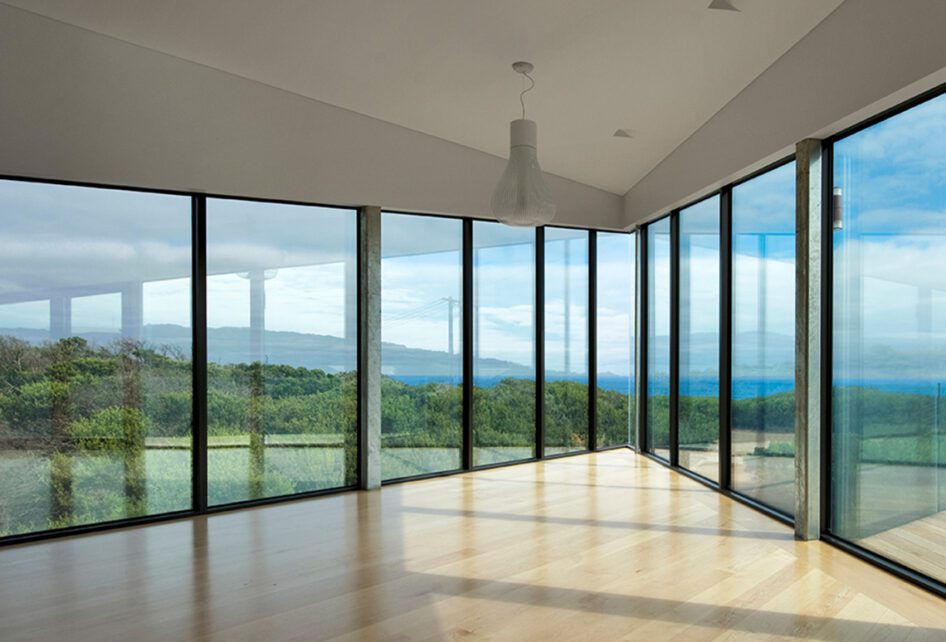

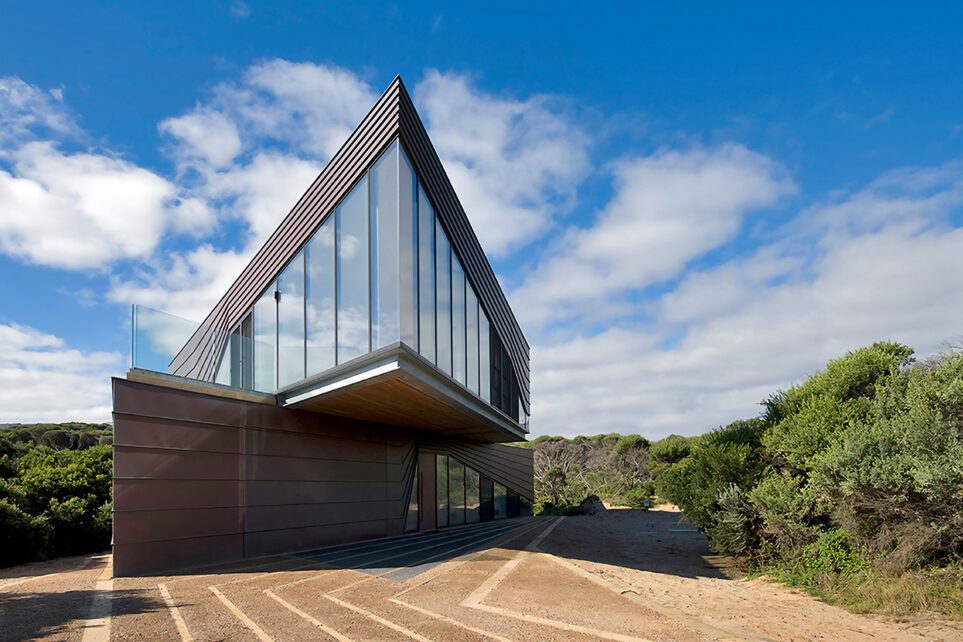

    Capral's Project Paradise Drive using Capral window and building systems.
    Capral's Project Paradise Drive using Capral window and building systems.
    Gordan Baptist Church featuring Capral and Schuco systems
    Gordan Baptist Church featuring Capral and Schuco systems
    Gordan Baptist Church featuring Capral and Schuco systems
    Capral's Project Gordon Baptist Church using Capral window and building systems.
    Capral's Project Rebuilding The Log Cabin Hotel Penrith using Capral window and building systems.
    Capral's Project Macquaire University's Lincoln Building using Capral window and building systems.
    Capral's Project Macquaire University's Lincoln Building using Capral window and building systems.
    Capral's Project Karingal Green using Capral window and building systems.
    Capral's Project Karingal Green using Capral window and building systems.
    Capral's Project Sarah Sands using Capral window and building systems.
    Capral's Project Sarah Sands using Capral window and building systems.
    Capral's Project Sarah Sands using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project MLC Nicholas Learning Centre using Capral window and building systems.
    Capral's Project MLC Nicholas Learning Centre using Capral window and building systems.
    Capral's Project San Clemente High School using Capral window and building systems.
    Capral's Project San Clemente High School using Capral window and building systems.
    Capral's Project St James Catholic Primary School using Capral window and building systems.
    Capral's Project St Pius X High School using Capral window and building systems.
    Capral's Project St Pius X High School using Capral window and building systems.
    Capral's Project St Pius X High School using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Marsden Brewhouse using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Paradise Drive using Capral window and building systems.
    Capral's Project Paradise Drive using Capral window and building systems.
    Key features
    • 100x50mm single-glazed frame
    • Suits residential, commercial and architectural applications
    • Forward-positioned glazing pocket for flush external finish or reverse installation possible
    • for expressed mullions
    • Structurally glazed mullion and transom options
    • Compatible door and window suites are available
    • Internal and externally beaded options

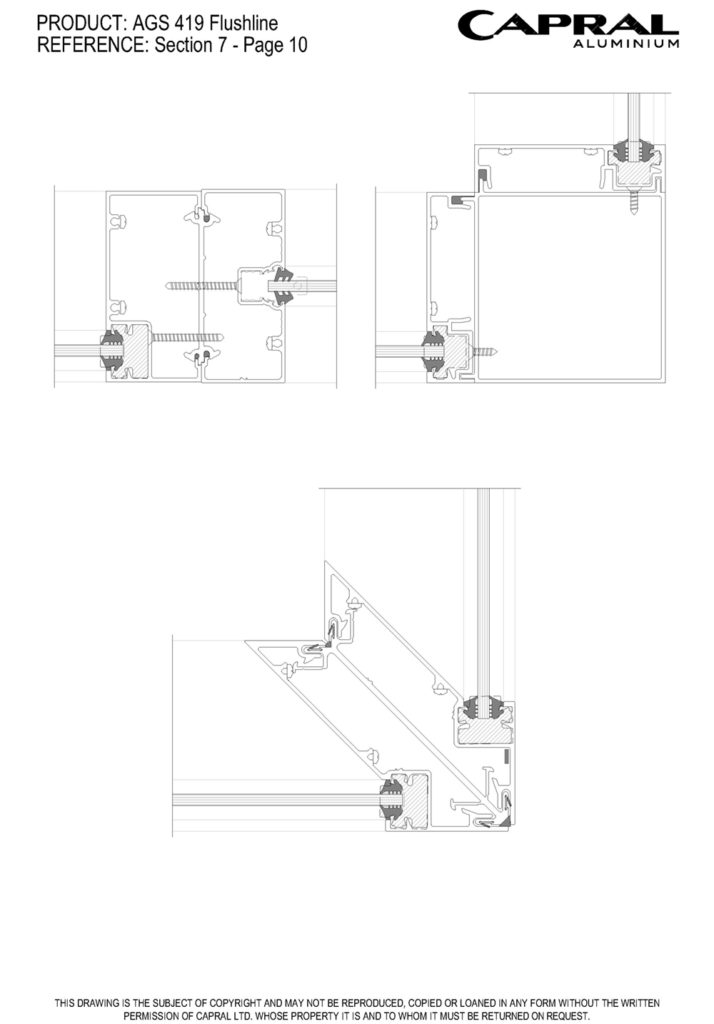

    • Corner mullion and post options
    • Tested for BAL 40 compliance
    • Subframe including spandrel sub frame available

    The AGS 419 Flushline is a 100mm, single-glazed, flush-glazed framing system offering a clean and modern external appearance. Popular on commercial and architectural projects throughout Australia.
    The AGS 419 Flushline can incorporate structurally glazed mullion profiles and offers several operable door and window options.

    Download Brochure

    Details

    Product Specs
    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 3800
    Panel Width (mm) 2400

    Frame Dimensions (mm)

    Frame depth (mm) 100
    Face Width (mm) 50

    Acoustic Rating

    Rw (C;Ctr) 37 (0;-2)

    Bushfire Rating

    BAL 40

    Maximum Product Performance

    SLS (Pa) 6000
    ULS (Pa) 9000
    WATER (Pa) 1500

    Glazing Details

    Single Glazed 6 - 12

    Energy Performance

    Uw Range 3.97 - 6.28
    SHGC Range 0.22 - 0.75
    Tvw Range 0.08 - 0.80
    Air infiltration 0.17 - 0.17
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual AGS 419 Flushline
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS 100mm & 250mm Flushline Framing Systems
    Extrusion Wall Chart AGS Speciality Sub Frames
    Extrusion Wall Chart AGS Sub Framing
    BIM Files
    Revit AGS Flushline Framing
    Revit Capral Subframes
    CAD Files
    CAD Files AGS 419 Flushline
    CAD Files AGS Sub Frames
    CAD Wall Chart AGS Flushline Framing
    CAD Wall Chart AGS Sub Framing
    Bulletins
    PB468 - AGS Commercial Sub Frames – Sub Sill Splice Plate
    PB463 - AGS Flushline - 90˚ Corner Post for 419 & 429 Framing Systems
    PB343 - AGS Flushline Relaunch
    PB323 - AGS 419 Tall Sub Head Additions
    PB286 - AGS 419 150mm DG Rotation Mullion Release
    PB257 - 9mm Glazing Wedge
    PB266 - Futureline Plastic Pocket Filler
    PB260 - March 2021 Documentation Updates
    PB20210202 - February Documentation Updates
    Other
    Capral AGS 419 Flushline Brochure Specification AGS 419 Flushline Architectural Series White paper Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
