AGS Commercial 600 Narrowline Single Glazed (150mm)
The AGS 600 Narrowline offers an increased level of structural Performance than the AGS 400 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
Certified
Key features
- Bold 150mm x 50mm centre glazed framing system
- Suits most commercial applications requiring more strength than the AGS 400 Narrowline
- Crisp, unbroken lines for clean aesthetics
- Can accommodate glazing up to 14mm in thickness
- Various mullion options for design flexibility
- Sub-frame options
- Compatible door and window suites are available
- Internal and externally beaded options
- Captive glazing wedge options for more accessible on-site glazing
The AGS 600 Narrowline offers more structural performance than the AGS 400 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
The centre pocketed framing system offers optional self-mating or snap mullion combinations and can accommodate single glazing up to a thickness of 14mm.
The AGS 600 Narrowline also offers several door and window options.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
4400
Panel Width (mm)
2200
Frame Dimensions (mm)
Frame depth (mm)
150
Face Width (mm)
50
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
10900
WATER (Pa)
900
Glazing Details
Single Glazed
6 - 14
Energy Performance
Uw Range
4.39 - 6.29
SHGC Range
0.31 - 0.71
Tvw Range
0.07 - 0.78
Air infiltration
0.12 - 0.12
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 600 Narrowline
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS Narrowline Framing Systems
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
Revit AGS Narrowline Framing
CAD Files
CAD Files AGS 600 Narrowline
CAD Files AGS Sub Frames
CAD Wall Chart AGS Narrowline Framing
CAD Wall Chart AGS Sub Framing
Bulletins
PB337 - AGS Narrowline Relaunch
Other
Compatible Products
AGS Commercial 650 Narrowline Wide Pocket (150mm)The AGS 650 Narrowline framing boasts extra-wide glazing pockets, making it ideal for various applications.
More products from this range
AGS Commercial 481 Double Hung WindowThe AGS 481 Double Hung window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400 Narrowline framing system.
AGS Commercial 35 Awning SashThis AGS Commercial Awning Window is an operable window sash available for use with AGS commercial framing.
AGS Commercial 491 Double Hung WindowThe AGS 491 Double Hung window features a substantial outer frame that provides a modern aesthetic for residential, architectural and commercial applications.
AGS Commercial 325 Narrowline Double Glazed (76mm)The AGS 325 Narrowline double-glazed aluminium framing system's slimline frame depth and ability to accommodate a captive glazing wedge make it an economical option for architectural projects.
AGS Commercial 225 Sliding DoorThe AGS 225 Sliding Door is a 46mm pocket glazed commercial door panel capable of delivering flexibility, performance and ease of assembly in mind.
AGS Commercial CW116 116mm Curtain WallThe Capral CW116 Curtain Wall system has been designed as an economical, four-sided, structurally glazed system suitable for small to mid-sized projects. An evolution of the highly successful CW175 Curtain Wall system, the CW116 shares several of its extrusions and design features.
AGS Commercial 50 Casement SashThe AGS 50 Series window is a high-performance commercial casement window compatible with AGS framing.
AGS Commercial 225 Pivot DoorThe AGS 225 Pivot Door is a 46mm pocket glazed commercial door panel capable of delivering flexibility, performance and ease of assembly in mind.
Not quite what you’re looking for? Consider...
SGS Commercial 400 Narrowline Single Glazed (100mm) (QLD Only)The SGS 400 Narrowline framing system redefines the standard for centre-glazed framing.
AGS Commercial 425 Narrowline Double Glazed (101.6mm)The AGS 425 Narrowline framing system was developed specifically to cater for the growing requirement for energy-efficient double glazing.
AGS Commercial 450 Narrowline Wide Pocket (101.6mm)The AGS 450 Narrowline has been designed with extra wide glazing pockets to accept double-glazed units with internal Venetian blinds
AGS Commercial 400 Narrowline Single Glazed (101.6mm)The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.
AGS Commercial 325 Narrowline Double Glazed (76mm)The AGS 325 Narrowline double-glazed aluminium framing system's slimline frame depth and ability to accommodate a captive glazing wedge make it an economical option for architectural projects.
AGS Commercial 625 Narrowline Double Glazed (150mm)The AGS 625 Narrowline offers an increased level of structural performance than the AGS 425 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
AGS Commercial 300 Narrowline Single Glazed (76mm)The AGS 300 Narrowline’s slimline frame depth makes it ideal for lowrise commercial applications
AGS Commercial 650 Narrowline Wide Pocket (150mm)The AGS 650 Narrowline framing boasts extra-wide glazing pockets, making it ideal for various applications.
Projects that use this system

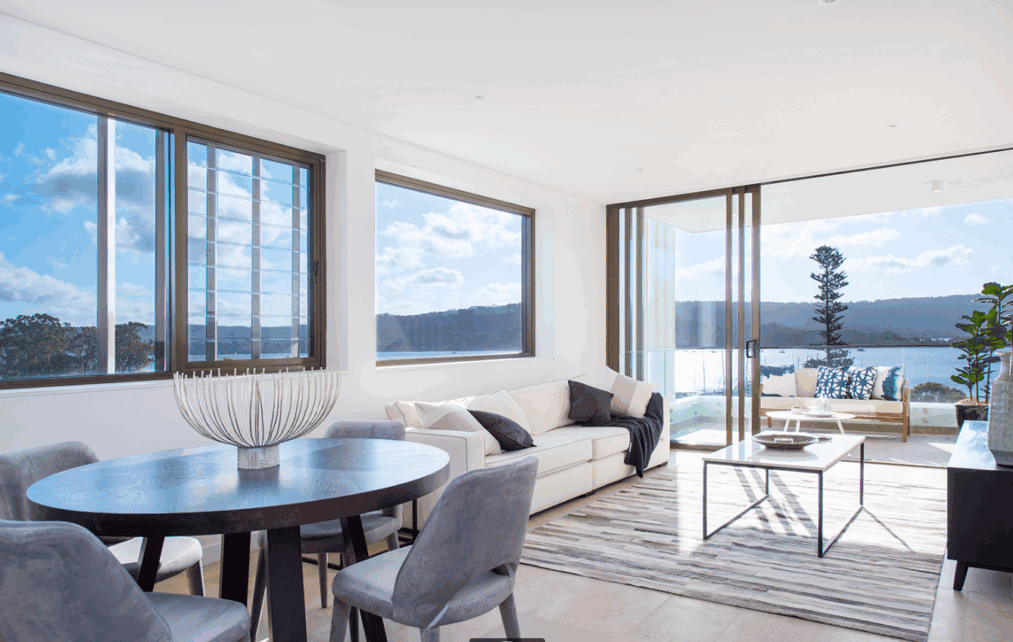

Capri Apartments
