Overview

Product Overview

The cutting edge Artisan Architectural 900 Series Sliding Door represents the latest generation of commercial door development.

Specifically designed to deliver unrivalled performance and design flexibility, the Artisan Architectural 900 Series Sliding Door is capable of panel sizes up to 3000mm in height, and 2500mm in width. Multi-stack configurations are available and this product has been tested to meet cyclonic requirements.

Incorporating high quality hardware including heavy duty double wheel rollers and various locking options, the Artisan Architectural 900 Series Sliding Door is proving extremely popular on many landmark commercial and residential development projects.

For enhanced thermal comfort and performance, both thick and double glazing is possible incorporating insulated glass unit up to 26mm in thickness.

VIEW MORE +
Single Glazed
Double Glazed
Wind and Water Rated
Acoustic Rated
WERS
Bushfire Rated
Flyscreen Option
Cyclonic rated
Air circulation
Passive Venting
Australian Standards
Benefits
  • Ultra high performance design
  • Suited to almost any commercial or architectural application
  • Extended product limitations for large configurations
  • Tested to cyclonic requirements
  • High performance roller hardware
  • Standard and multi-stack configurations of up to 6 panels
  • May be internally or externally screened
BAL Rating
Low
12.5
19
29
40
Glazing
Single
Double
Triple
Cyclonic Region
C1
C2
C3
C4
N Rating
N1
N2
N3
N4
N5
N6
Acoustic RW Rating
22
27
32
37
42
47
53
View WERS ★ Rating
Residential Commercial

Details

Details

  • Product Specs
  • Configurations
  • Arrangements
  • 3D
Product Specs
Maximum Recommended Sizes
Panel Height
3000mm
Panel Width
1750mm Std Rail
Panel Width
2500mm HD Rail
Panel Weight
160kg, 250kg or 300kg
Frame Dimensions (Depth & Height)
Option 1
100 & 150 x 44 Sill
Option 2
100 & 150 x 50 Sill
Option 3
100 & 150 x 80 HP Sill
Glazing Details
Single Glazed
4mm to 10mm
Thick Glazed
10mm to 15mm
Double Glazed
19mm to 26mm
Max. Product Performance
SLS (Pa)
6000
ULS (Pa)
10500
WATER (Pa)
700
Max. Acoustic Rating
Rw (C;Ctr)
39 (-1;-3)
Bushfire Tested
Tested to BAL40

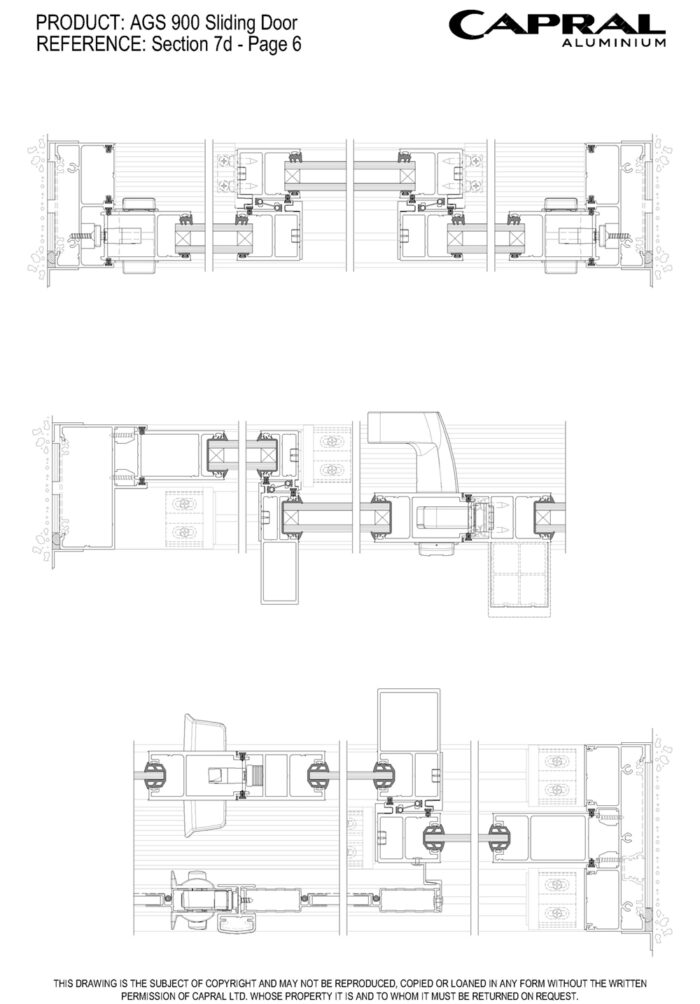

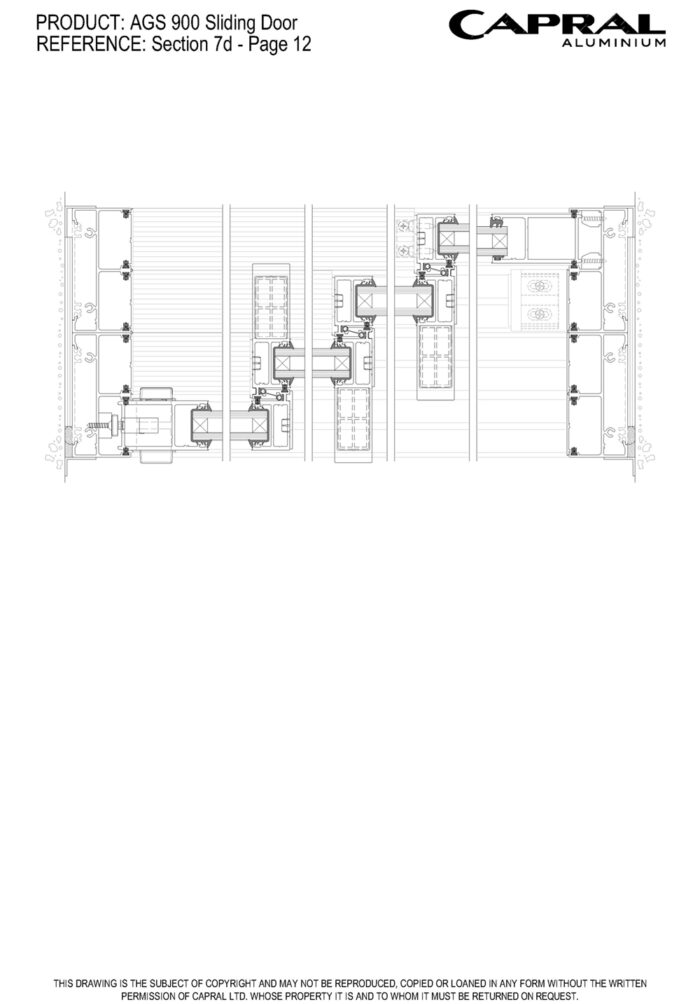

Configurations
N:Technical Manuals & DataWeb DocumentationConfigurationsCon
N:Technical Manuals & DataWeb DocumentationConfigurationsSet
N:Technical Manuals & DataWeb DocumentationConfigurationsCon
N:Technical Manuals & DataWeb DocumentationConfigurationsSet
N:Technical Manuals & DataWeb DocumentationConfigurationsCon
N:Technical Manuals & DataWeb DocumentationConfigurationsCon
N:Technical Manuals & DataWeb DocumentationConfigurationsCon
N:Technical Manuals & DataWeb DocumentationConfigurationsSet
N:Technical Manuals & DataWeb DocumentationConfigurationsSet
N:Technical Manuals & DataWeb DocumentationConfigurationsSet
Arrangements

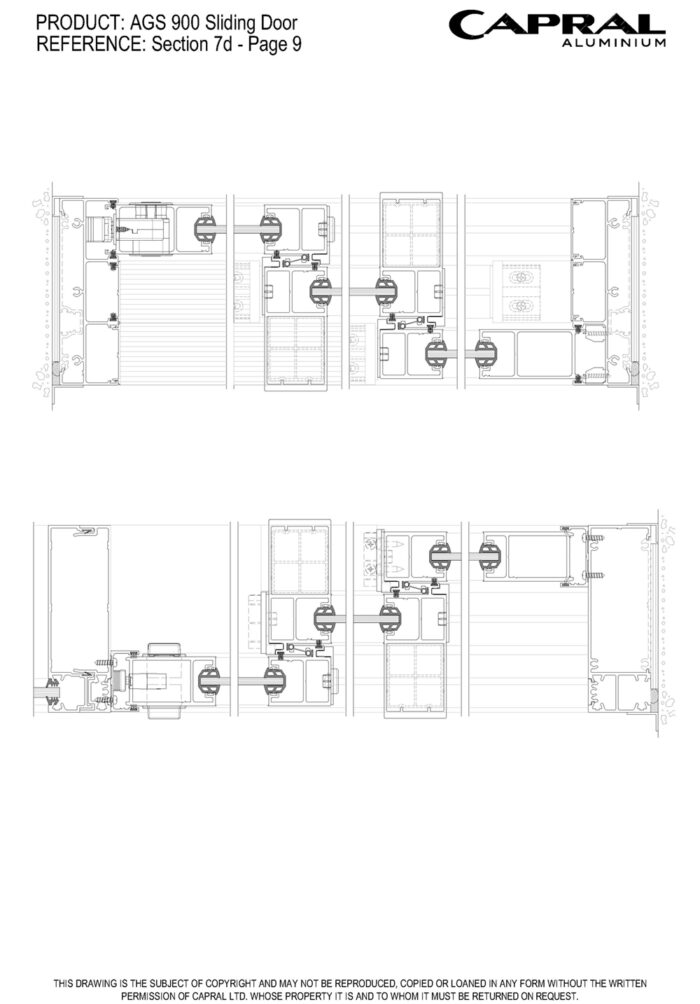

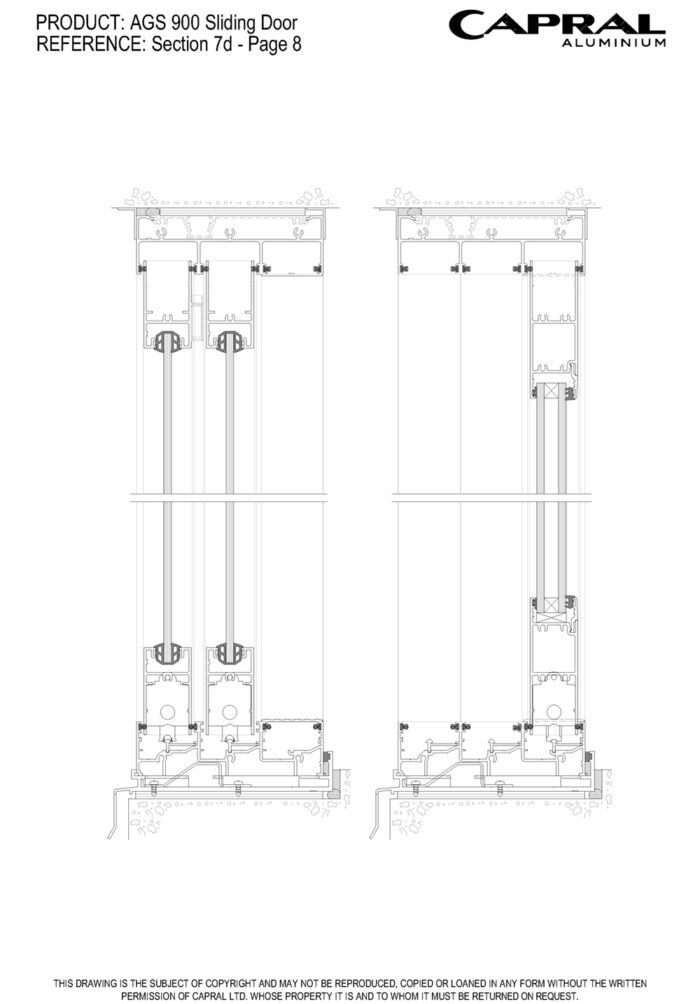

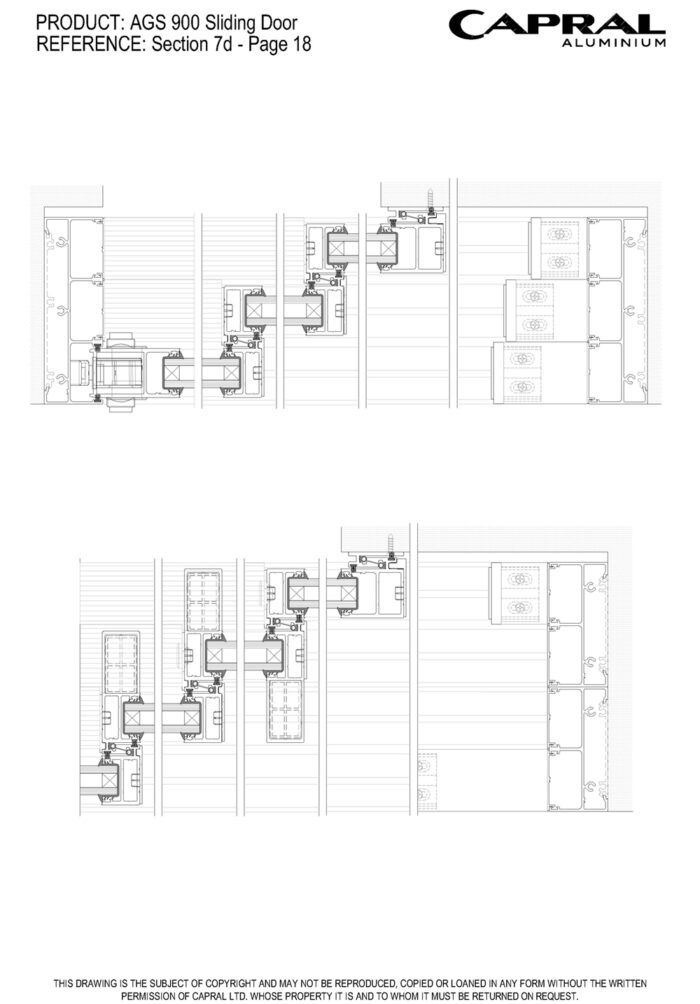

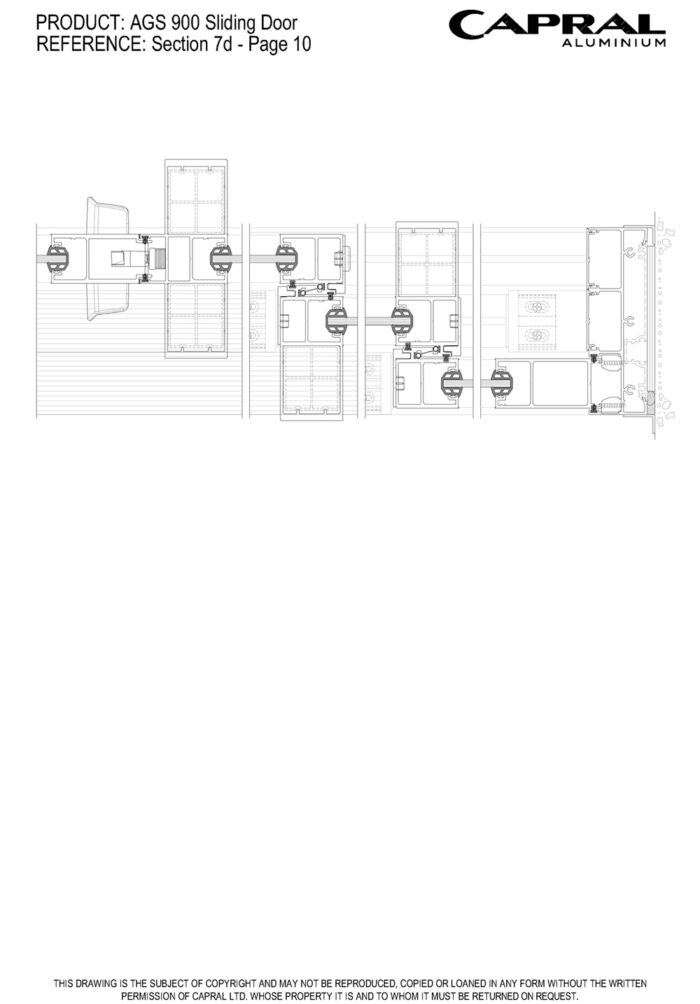

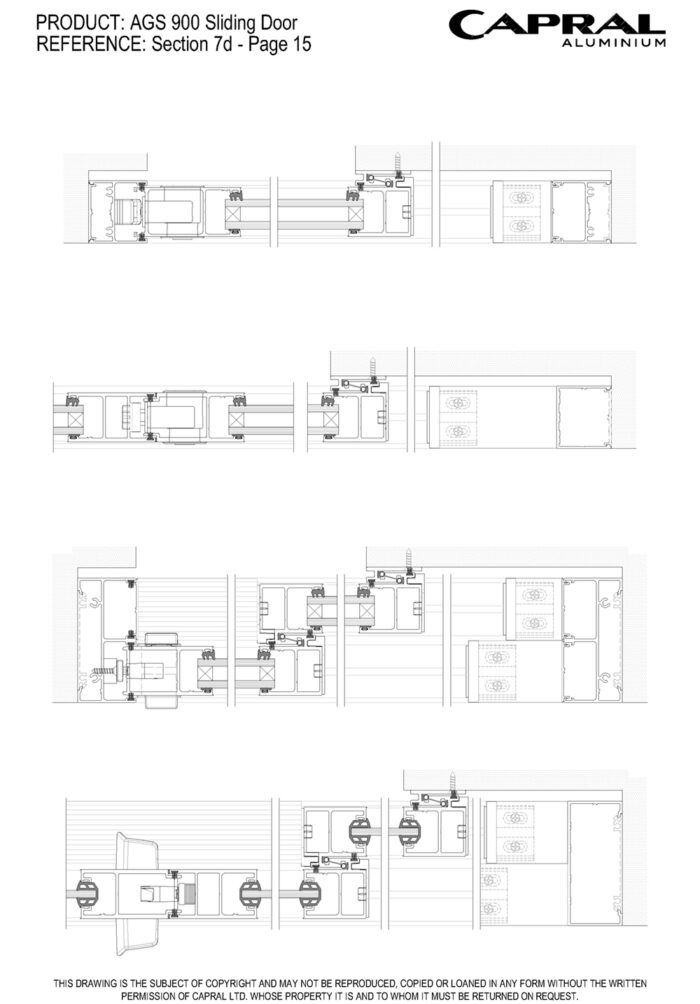

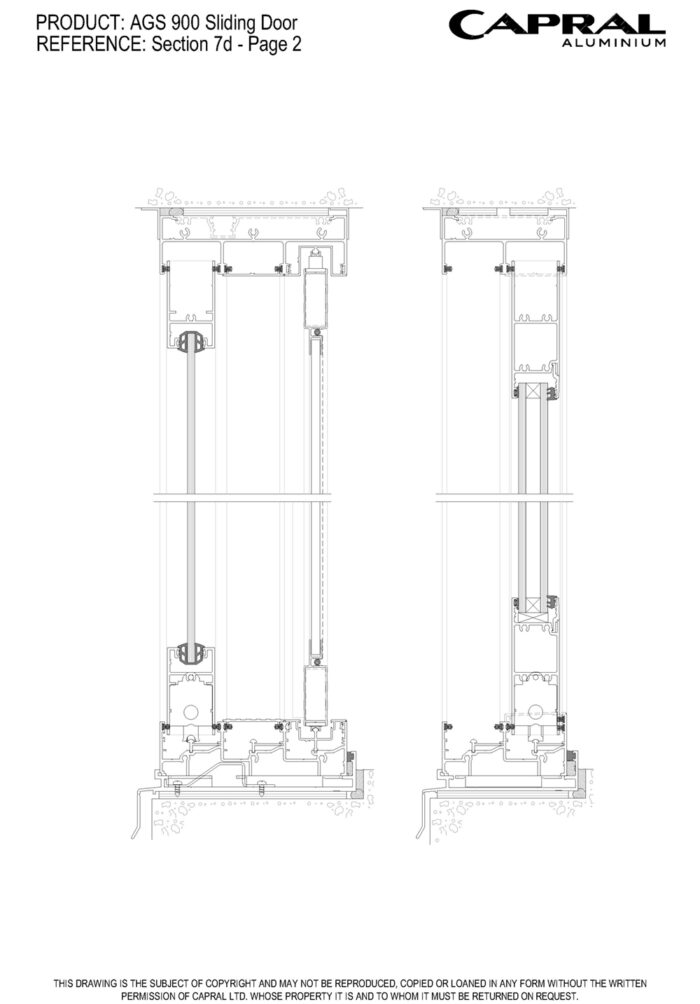

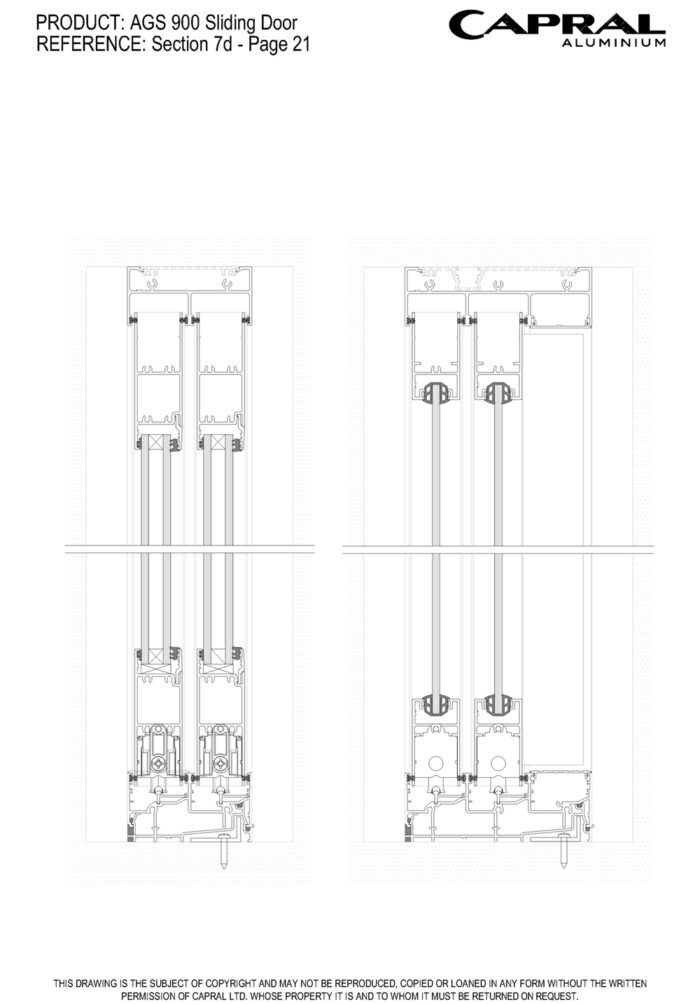

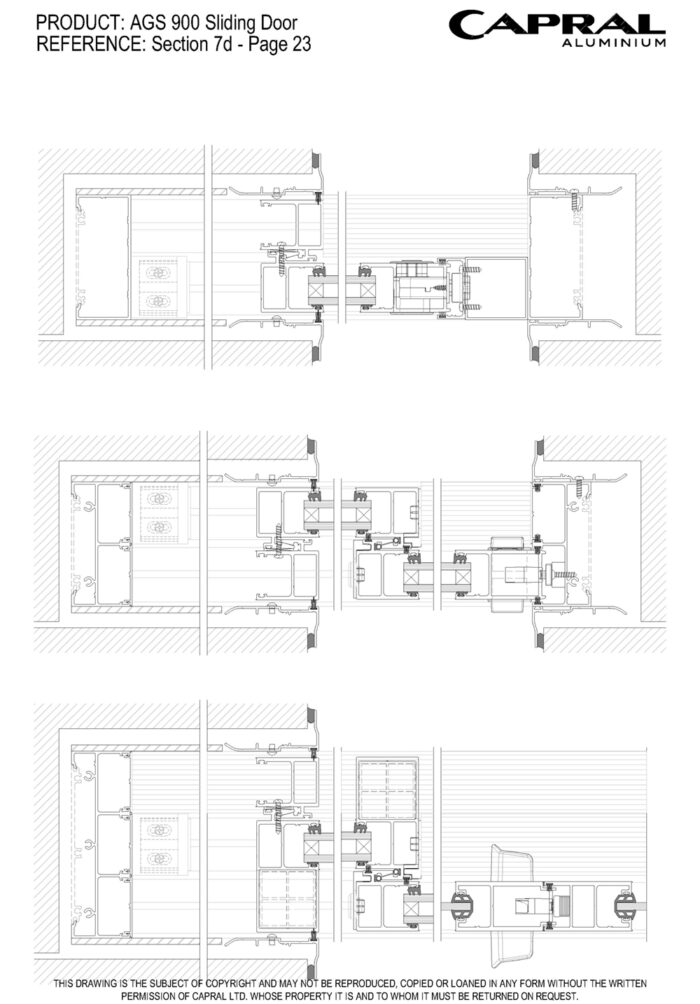

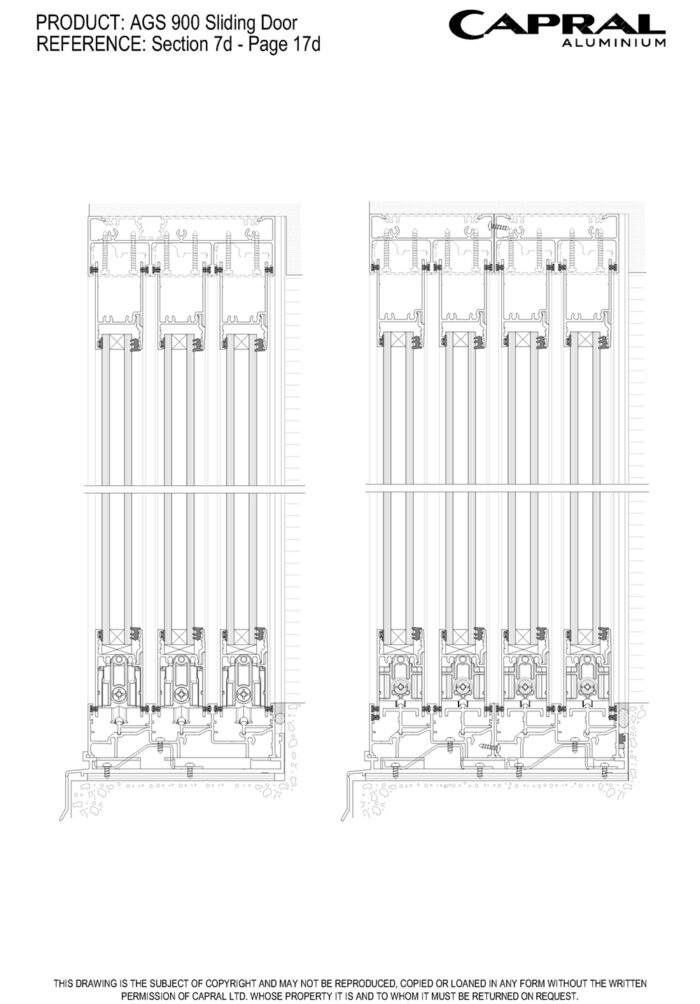

Specification Drawings

Sliding Head and Sill

900_01_Ex Sliding Head n Sill_2012_12_10

Fixed Head and Sill

900_02_Ex Fixed Hed n Sill_2012_12_10

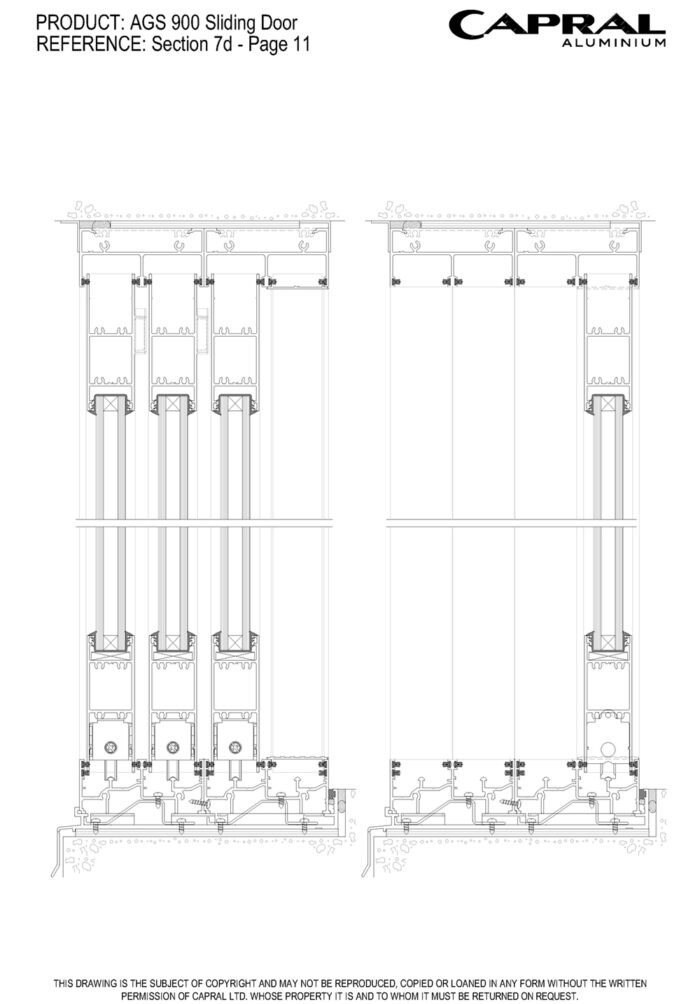

Stacker Head and Sill

900_03_Ex Stacker Head & SIll_2012_12_10

Stacker Head and Sill Small

900_03_Ex Stacker Head & SIll_2012_12_10_small

Stacked Frame Head and Sill

900_04_Ex Stacked Frame Head n Sill_2012_12_10

Stacked Frame Head and Sill Small

900_04_Ex Stacked Frame Head n Sill_2012_12_10_small

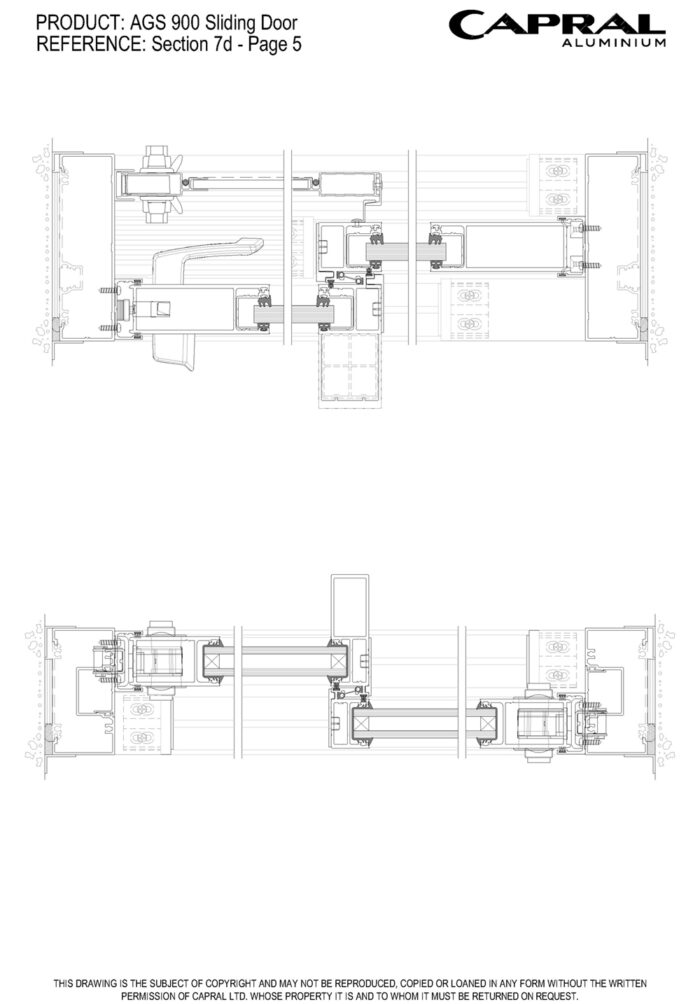

Jambs

900_05_Ex Jambs_2012_12_10

Jambs Small

900_05_Ex Jambs_2012_12_10_small

Stacked Frame Jamb

900_06_Stacked Frame Jamb_2012_12_10

Stacked Frame Jamb Small

900_06_Stacked Frame Jamb_2012_12_10_small

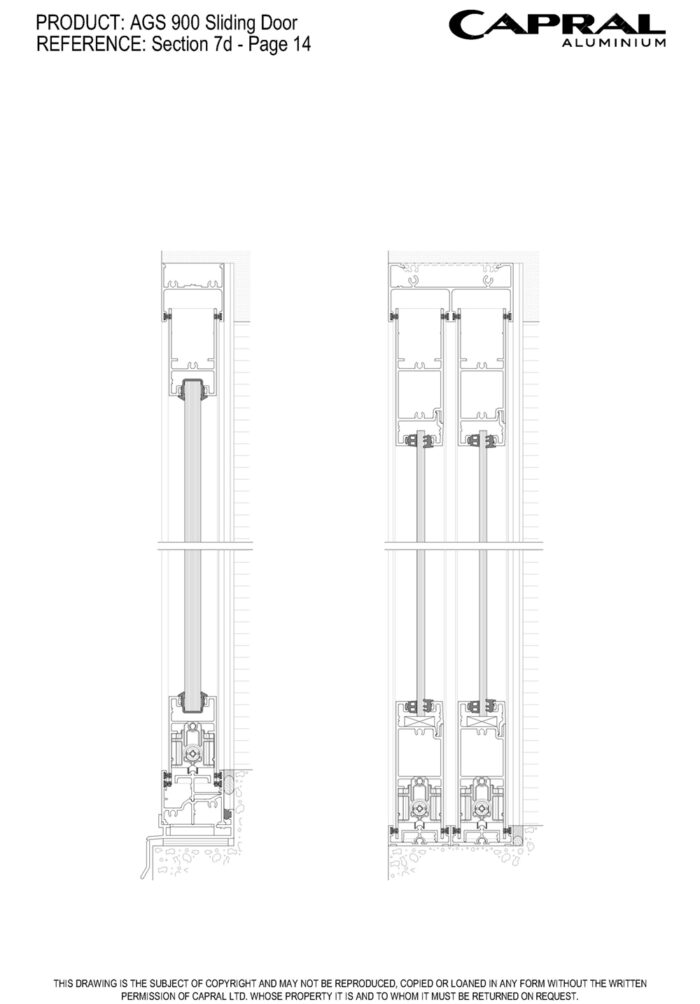

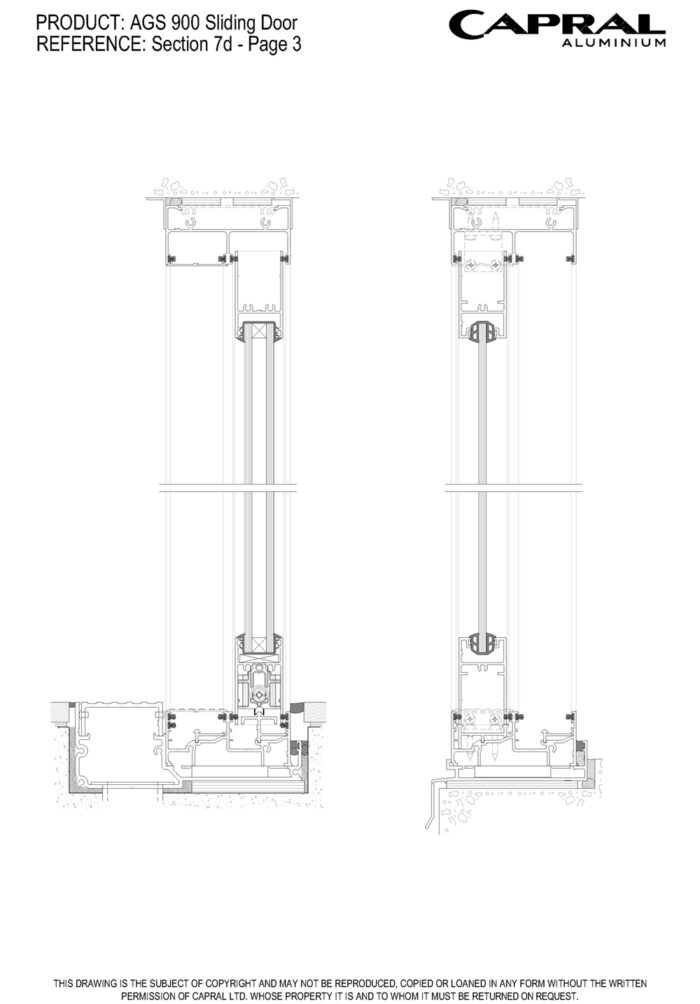

Head and Sill

900_07_Int Head n Sill_2012_12_10

Head and Sill Small

900_07_Int Head n Sill_2012_12_10_small

Stacker Head and Sill

900_08_Int Stacker Head n Sill_2012_12_10

Stacker Head and Sill Small

900_08_Int Stacker Head n Sill_2012_12_10_small

Stacked Frame Head and Sill

900_09_Int Stacked Frame Head n Sill_2012_12_10

Stacked Frame Head and Sill Small

900_09_Int Stacked Frame Head n Sill_2012_12_10_small

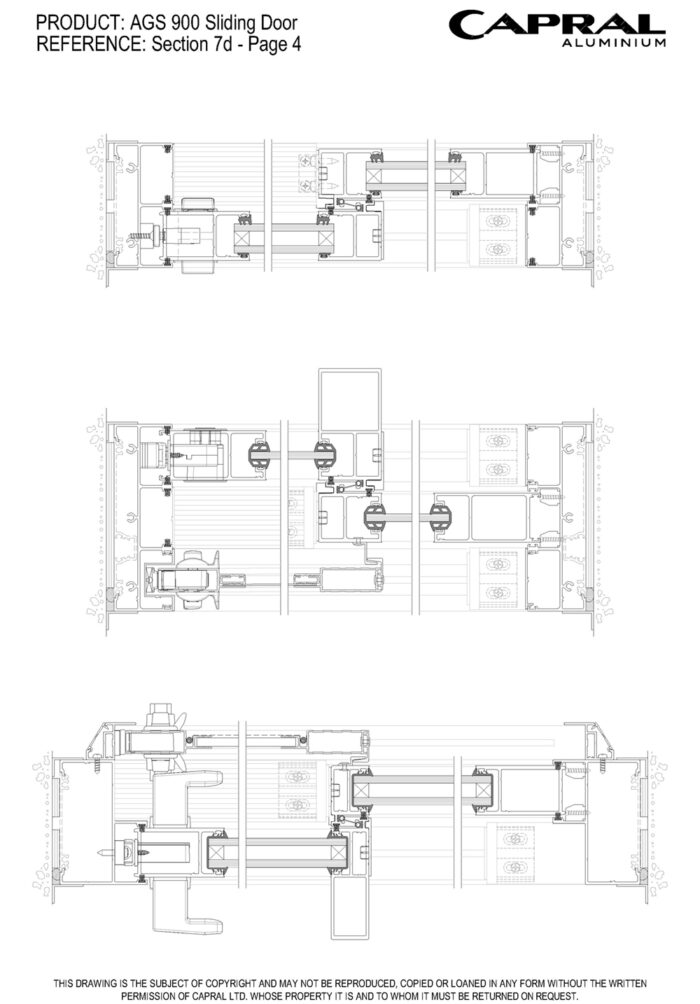

Jambs

900_10_Int Jambs_2012_12_10

Jambs Small

900_10_Int Jambs_2012_12_10_small

Stacked Frame Jambs

900_11_Int Stacked Frame Jambs_2012_12_10

Stacked Frame Jambs Small

900_11_Int Stacked Frame Jambs_2012_12_10_small

Highlights

900_12_Highlights_2012_12_10

Highlights Small

900_12_Highlights_2012_12_10_small

Low Profile Sills

900_13_Low Profile Sills_2012_12_10

Low Profile Sills Small

900_13_Low Profile Sills_2012_12_10_small

Interlock and Meeting Style

900_14_Interlock & Meeting Stile_2012_12_10

Interlock and Meeting Style Small

900_14_Interlock & Meeting Stile_2012_12_10_small

Sidelights

900_15_Sidelights_2012_12_10

Sidelights Small

900_15_Sidelights_2012_12_10_small

Inside Screen Adapter Head and Sill

900_16_Inside Screen Adaptor Head n Sill_2012_12_10

Inside Screen Adapter Head and Sill

900_16_Inside Screen Adaptor Head n Sill_2012_12_10_small

Inside Integrated Screen Head and Sill

900_15_Sidelights_2012_12_10

Inside Integrated Screen Head and Sill Small

900_15_Sidelights_2012_12_10_small

Outside Integrated Screen Head and Sill

900_16_Inside Screen Adaptor Head n Sill_2012_12_10

Outside Integrated Screen Head and Sill

900_16_Inside Screen Adaptor Head n Sill_2012_12_10_small

Screen Jambs

900_19_Screen Jambs_2012_12_10

Screen Jambs Small

900_19_Screen Jambs_2012_12_10_small

Screen Interlocks and Meeting Styles

900_20_Screen Interlocks n Meeting Stiles_2012_12_10

Screen Interlocks and Meeting Styles Small

900_20_Screen Interlocks n Meeting Stiles_2012_12_10_small

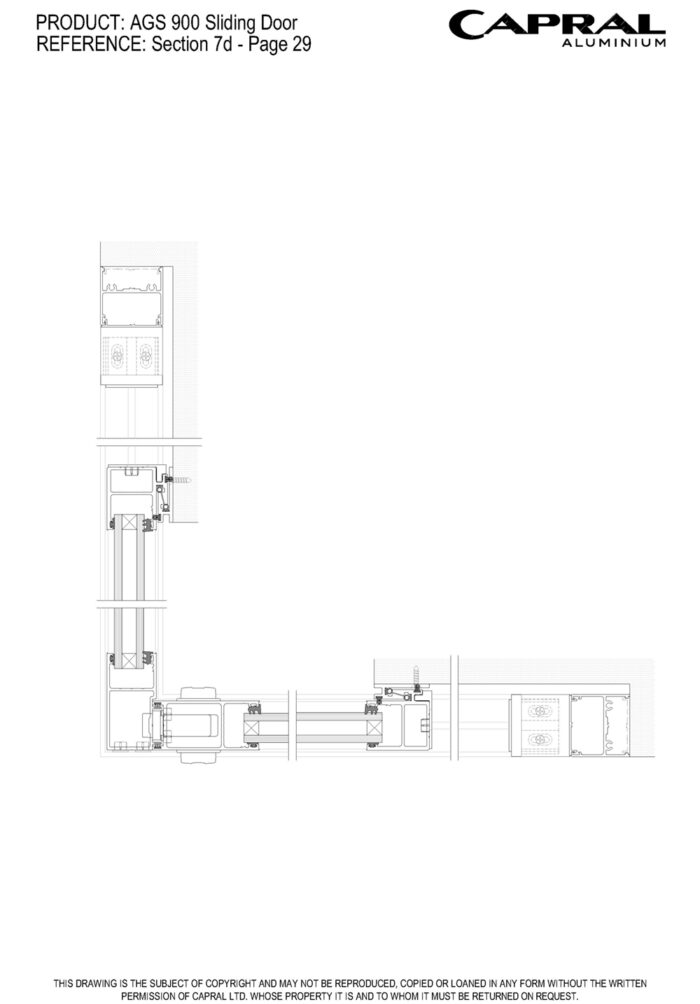

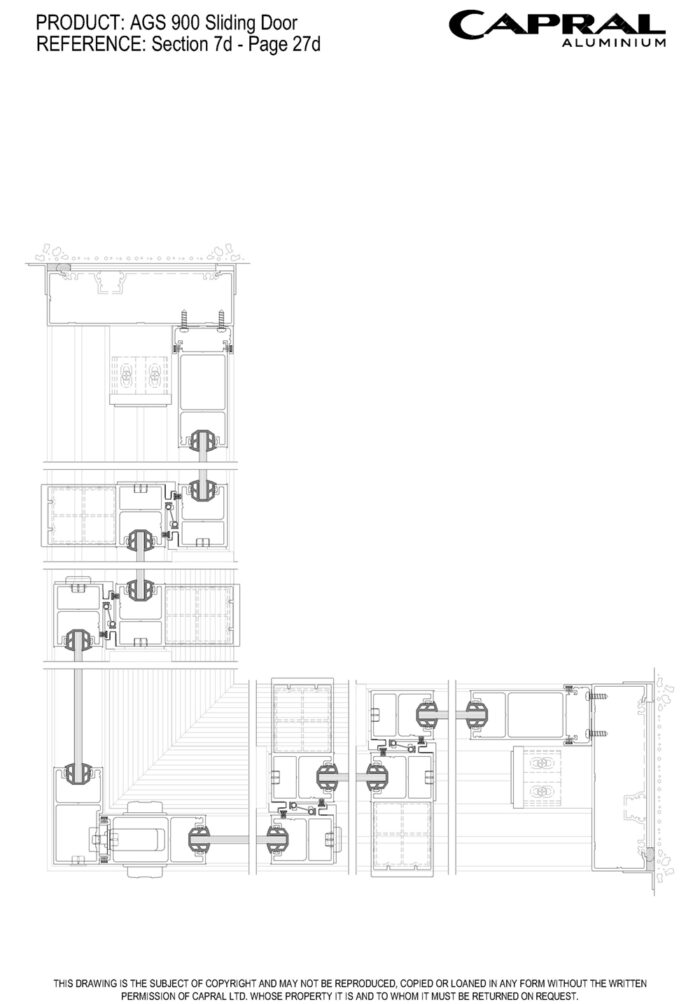

Inside Corner

900_21_Int Inside Corner_2012_12_10

Inside Corner Small

900_21_Int Inside Corner_2012_12_10_small

Outside Corner

900_22_Ex Outside Corner_2012_12_10

Outside Corner Small

900_22_Ex Outside Corner_2012_12_10_small
3D

3D Rendering

900 Sliding Door_3D_DG_Lg
900 Sliding Door_3D_SG_Lg
900_1701

Downloads & Resources

Downloads

  • Brochures & Resources
  • Technical Information
  • CAD Files
  • REVIT Files
Brochures & Resources
ExtrusionWallChart_AGS-900SlidingDoor-SubFrames_Capral_1911
Download
Capral AGS 900 Sliding Door Bro_web
Download
Technical Information
900-HP-Sliding-Door-Technical-Manual_2019_12_01
Specification-900SlidingDoor_1903
Sub-Sills-and-Frames-Technical-Manual_2019_12_01
CAD Files
CAD-Files_900_Capral_R1907
CAD-Files_SubFrames_Capral_R1911
CAD-Files_WallChart_AGS-900SlidingDoor-SubFrames_Capral_R2001
REVIT Files
RevitGallery_AGS-900SlidingDoor_100mmXO_Capral_R1911
RevitFiles_900SlidingDoor_Capral_1911W
