AGS 419 & 619 Flushline Acoustic Framing

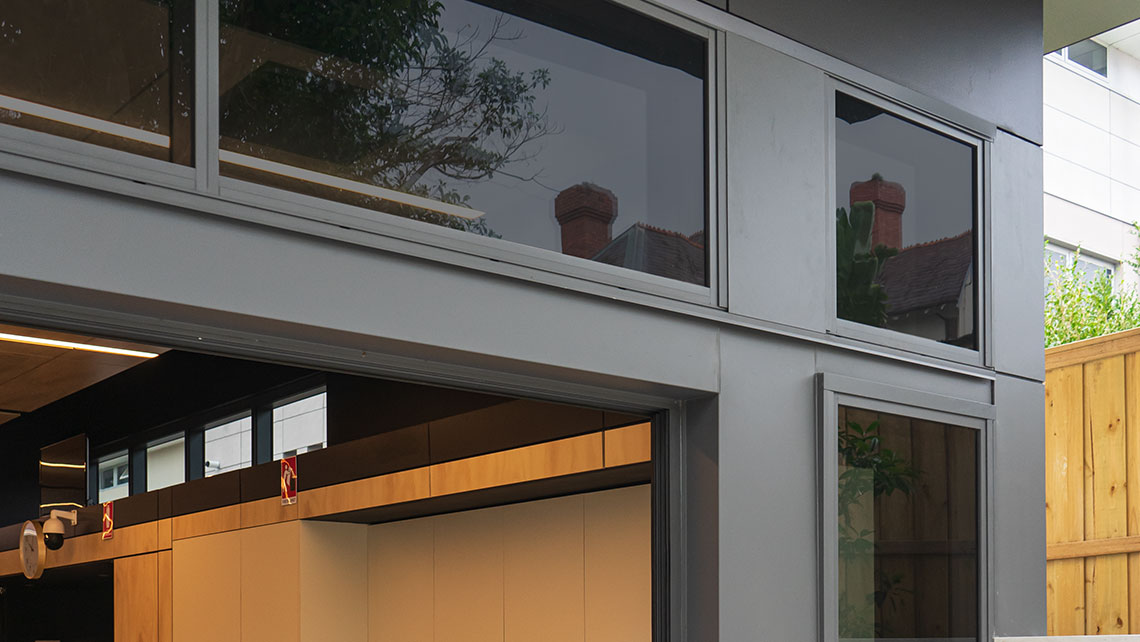

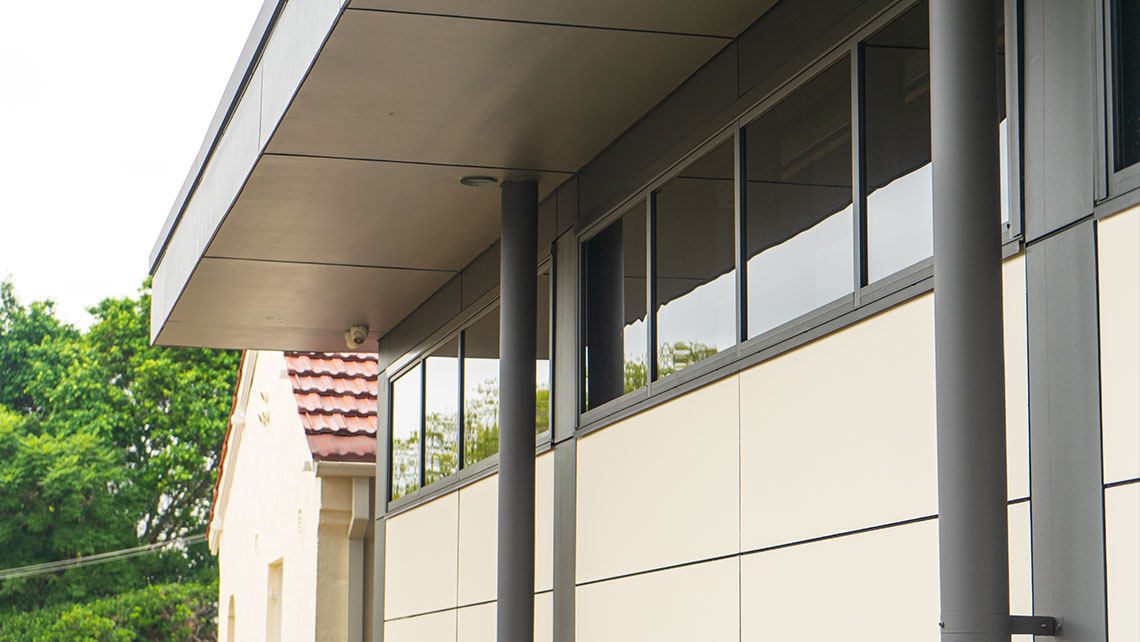

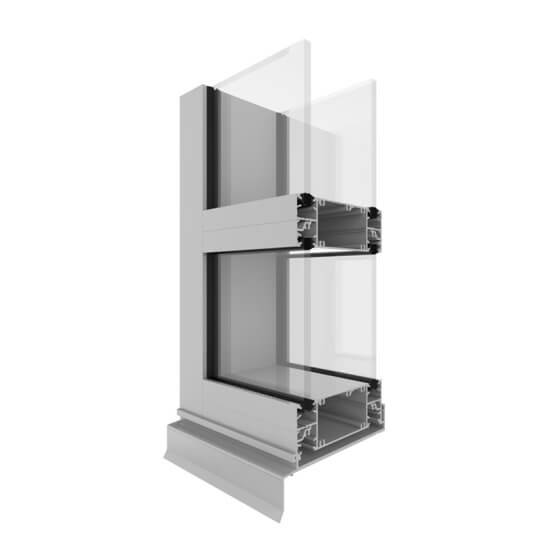

The AGS 419 & 619 Flushline Acoustic framing systems have been developed to provide a product where acoustic performance is paramount.
Rated
Key features
- 100mm x 50mm or 150mm x 50mm frame
- Dual glazing pockets allow 60mm or 100mm of air space to maximise noise reduction
- Captive glazing wedge options for easier on-site glazing
- A wide range of compatible AGS window and door suites are available
- Sub frame option available for both 100mm and 150mm frame
The AGS 419 & 619 Flushline Acoustic framing systems have been developed to provide a product where acoustic performance is paramount. Accommodating two panes of glass separated by an acoustic gap of approximately 60mm and 100mm respectively, it is ideal for use where there are nearby airports, train stations, busy roads, or other noisy areas.
With a frame depth of 100mm or 150mm, this acoustic framing system can be used with the Single & Double Glazed 419 Flushline systems for a consistent external appearance.
Download BrochureDetails
Product Specs

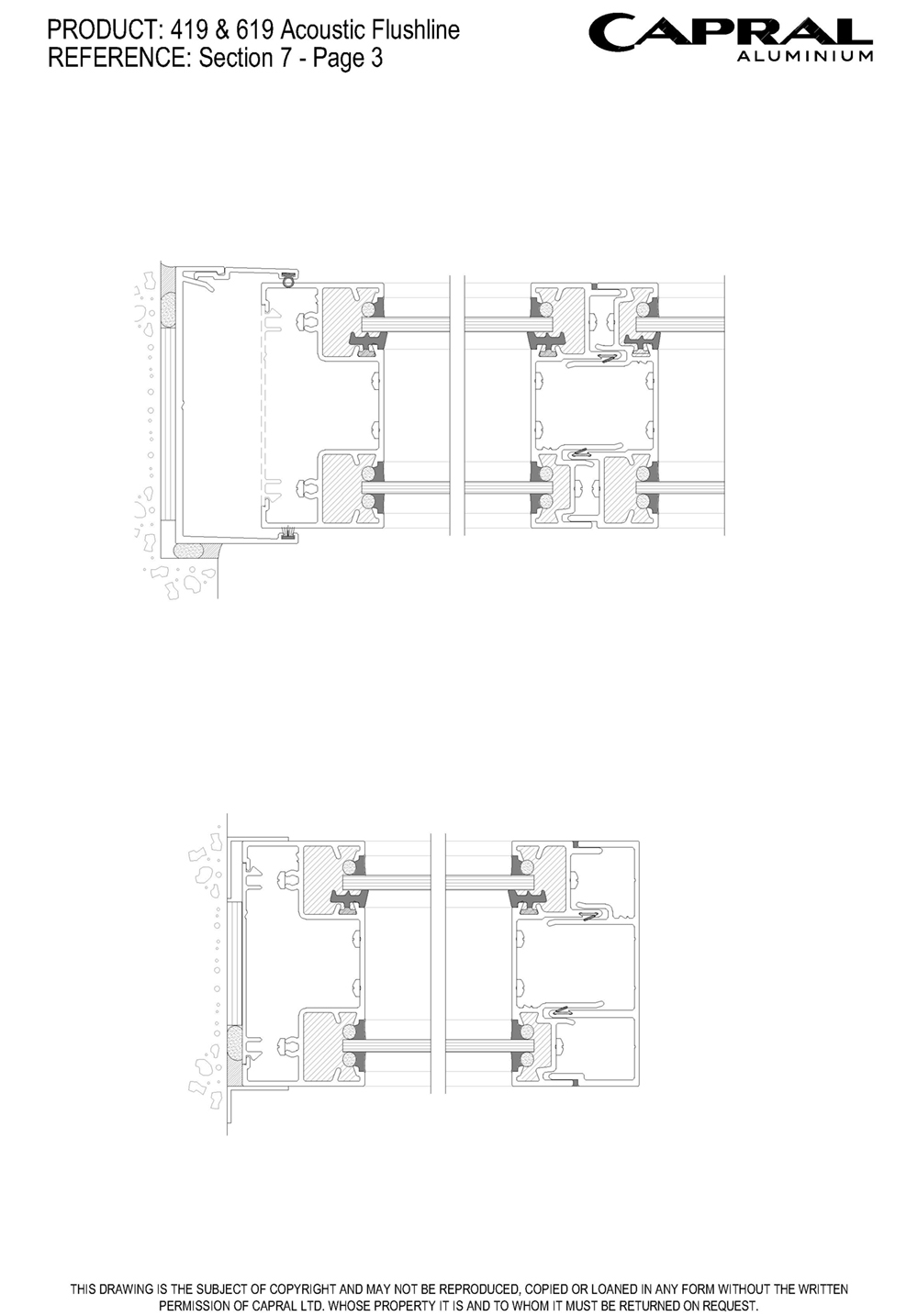

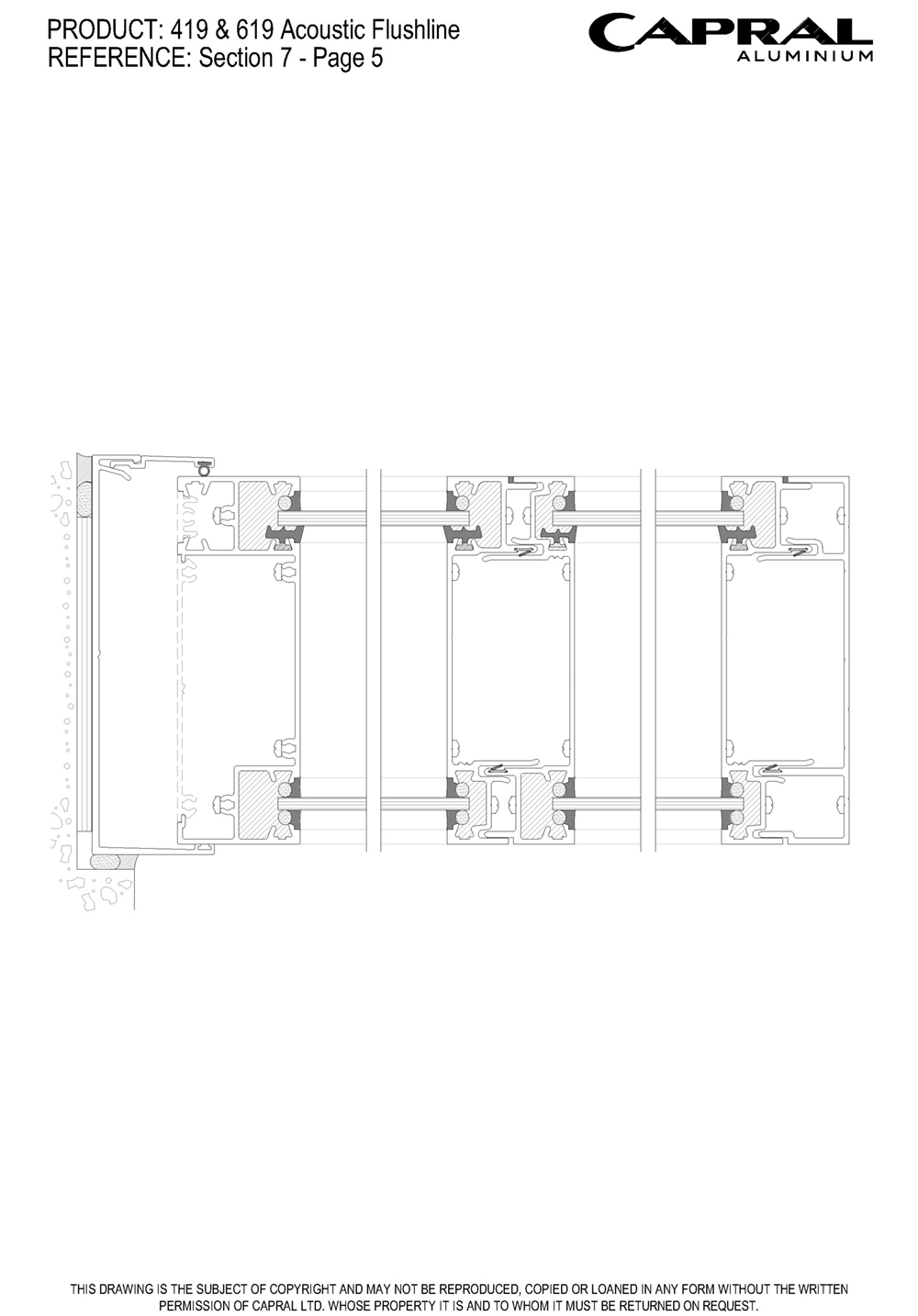

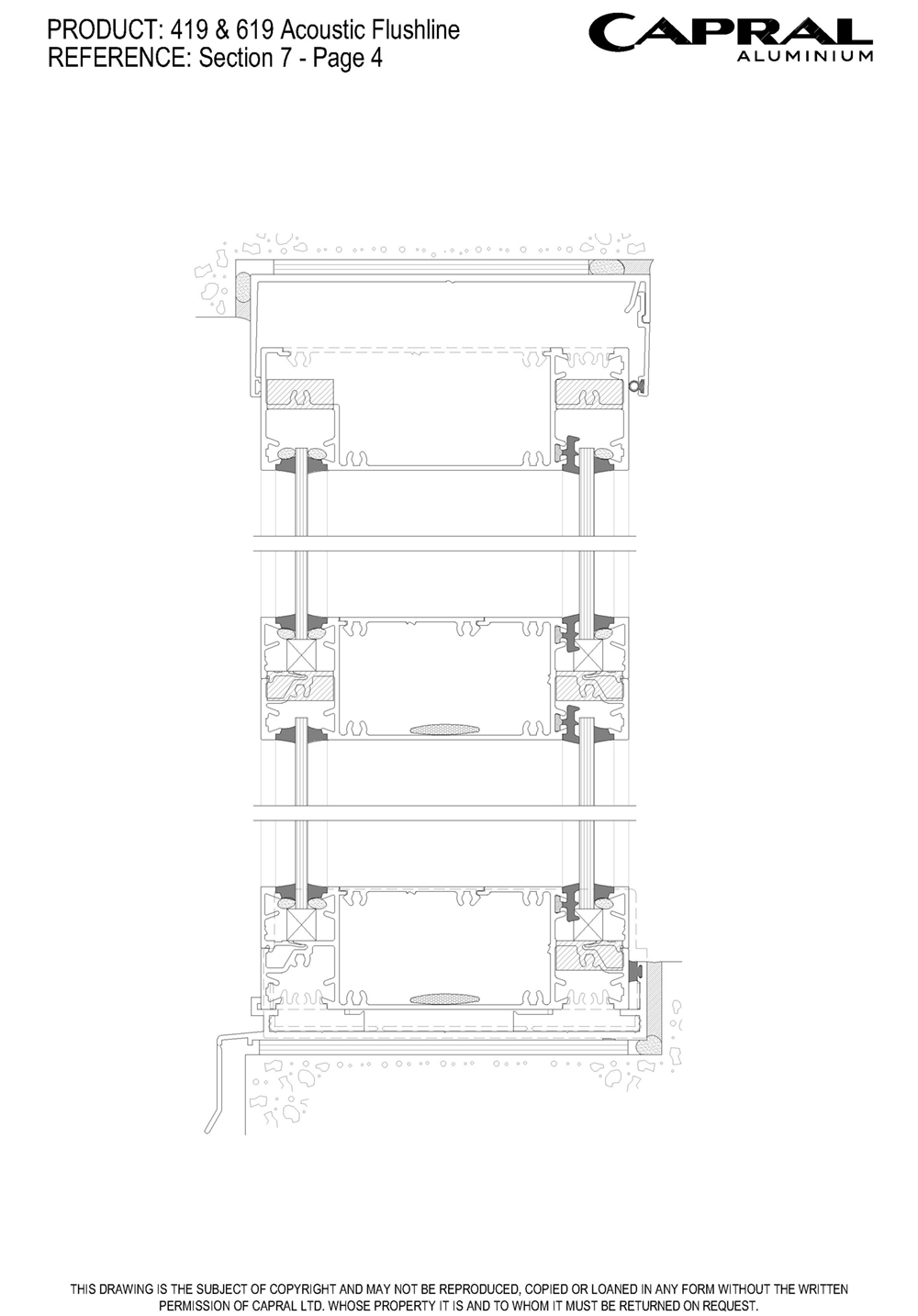

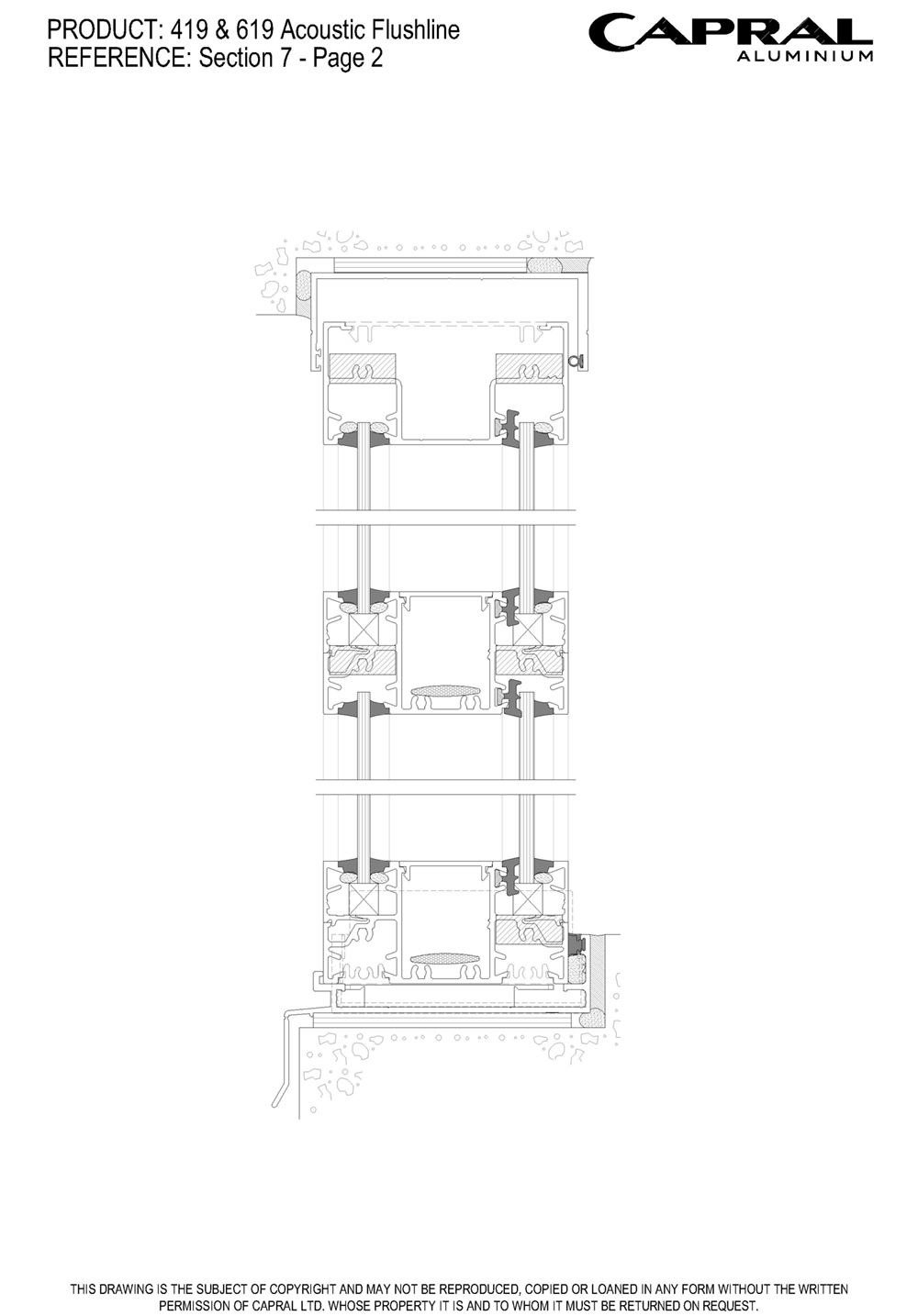

Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
4400
Panel Width (mm)
2400
Sizes for 150mm 619 shown
Frame Dimensions (mm)
419 Acoustic
100
619 Acoustic
150
Acoustic Rating
Rw (C;Ctr)
50 (-3;-8)
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
11500
WATER (Pa)
900
Glazing Details
Single Glazed
5 - 12
Dual glass panes with approx. 60mm or 100mm of air space
Energy Performance
Uw Range
2.3 - 2.8
SHGC Range
0.18 - 0.64
Tvw Range
0.07 - 0.75
Air infiltration
0.03 - 0.03
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 419/619 Flushline Acoustic Framing System
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS 100mm & 250mm Flushline Framing Systems
Extrusion Wall Chart AGS 150mm Flushline Framing Systems
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
Revit AGS Flushline Framing
CAD Files
CAD Files AGS 419 & 619 Flushline Acoustic
CAD Files AGS Sub Frames
CAD Wall Chart AGS Flushline Framing
CAD Wall Chart AGS Sub Framing
Bulletins
PB385 - AGS 419 Flushline Acoustic Framing System Release
Other
Capral_ArchitecturalSeries_Whitepaper
Capral AGS 419 & 619 Acoustic Framing Brochure
Specification AGS 419 619 Acoustic Flushline
Environmental Protection Declaration (EPDs)
Compatible Products
AGS Commercial 419 Flushline Single Glazed (100mm)The AGS 419 Flushline is a 100mm, single glazed, flush-glazed framing system offering a clean and modern external appearance.
AGS Commercial 619 Single Glazed (150mm)Flushline AGS619 is the new name for the product formerly known as Flushline 419SG 150mm x 50mm. The AGS 619 Flushline offers a clean and modern external appearance.
More products from this range
AGS Commercial 482 Awning WindowThe 482 Awning Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400/425 Narrowline framing systems and 100mm Flushline framing systems.
AGS Commercial 619 Single Glazed (150mm)Flushline AGS619 is the new name for the product formerly known as Flushline 419SG 150mm x 50mm. The AGS 619 Flushline offers a clean and modern external appearance.
AGS Commercial 425 Narrowline Double Glazed (101.6mm)The AGS 425 Narrowline framing system was developed specifically to cater for the growing requirement for energy-efficient double glazing.
AGS Commercial 625 Narrowline Double Glazed (150mm)The AGS 625 Narrowline offers an increased level of structural performance than the AGS 425 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
AGS Commercial 601 Narrowline Offset Single Glazed (150mm)The AGS 601 Narrowline framing system delivers increased structural performance with the 150mm frame depth while maintaining a typical external appearance.
AGS Commercial 499 Strut WindowThe AGS 499 Gas Strut Window is ideal in servery applications, designed to maximise functionality, airflow and convenience.
AGS Commercial 600 Narrowline Single Glazed (150mm)The AGS 600 Narrowline offers an increased level of structural Performance than the AGS 400 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
AGS Commercial CW116 116mm Curtain WallThe Capral CW116 Curtain Wall system has been designed as an economical, four-sided, structurally glazed system suitable for small to mid-sized projects. An evolution of the highly successful CW175 Curtain Wall system, the CW116 shares several of its extrusions and design features.
Not quite what you’re looking for? Consider...
AGS Commercial 1029 Flushline Double Glazed (250mm)Flushline AGS1029 is the new name for the product formerly known as Flushline419DG 250mm * 55mm
AGS Commercial 429 Flushline Double Glazed (100mm)Flushline AGS429 is the new name for the product formerly known as Flushline 419DG 100mm x 55mm. This commercial framing system has been developed to accommodate internal and external glazing techniques.
AGS Commercial 619 Single Glazed (150mm)Flushline AGS619 is the new name for the product formerly known as Flushline 419SG 150mm x 50mm. The AGS 619 Flushline offers a clean and modern external appearance.
AGS Commercial 419 Flushline Single Glazed (100mm)The AGS 419 Flushline is a 100mm, single glazed, flush-glazed framing system offering a clean and modern external appearance.
AGS Commercial 659 Flushline Wide Pocket (150mm)The AGS 659 150mm wide glazed commercial Flushline framing system has been developed to accommodate both internal and external glazing techniques.
AGS Commercial 629 Flushline Double Glazed (150mm)Flushline AGS629 is the new name for the product formerly known as Flushline 419DG 150mm x 55mm. This system was developed to accommodate both internal and external glazing.
Projects that use this system
The Bruce Gordon Centre
The Bruce Gordon Centre brings together elite training, administration and community facilities in a purpose-built high-performance centre featuring Capral Aluminium’s AGS Commercial systems.
Training Facility

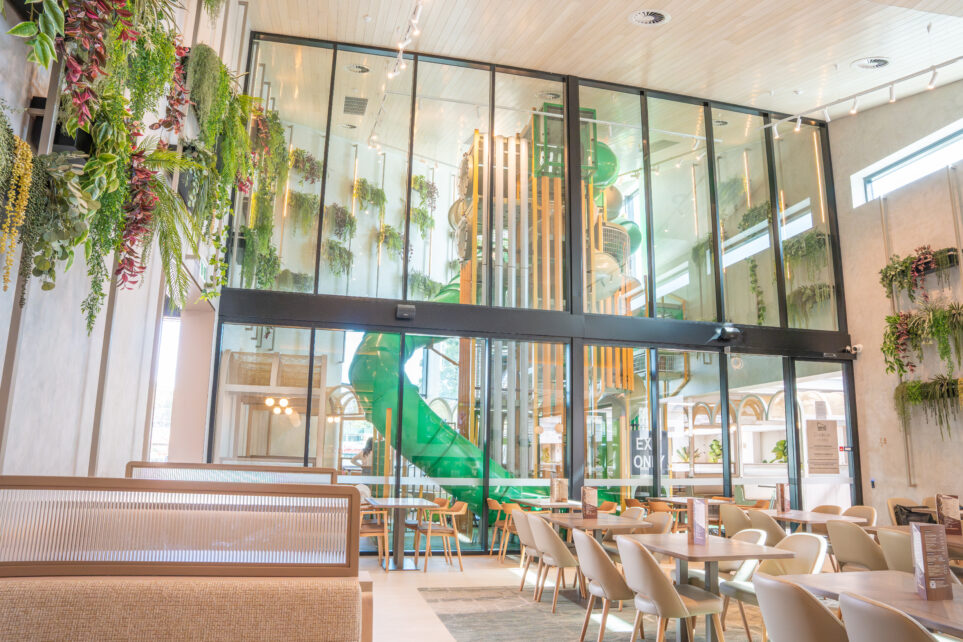

Chipping Norton Hotel: Family-Focused Hospitality with High-Performance Glazing
