AGS Commercial 1029 Flushline Double Glazed (250mm)

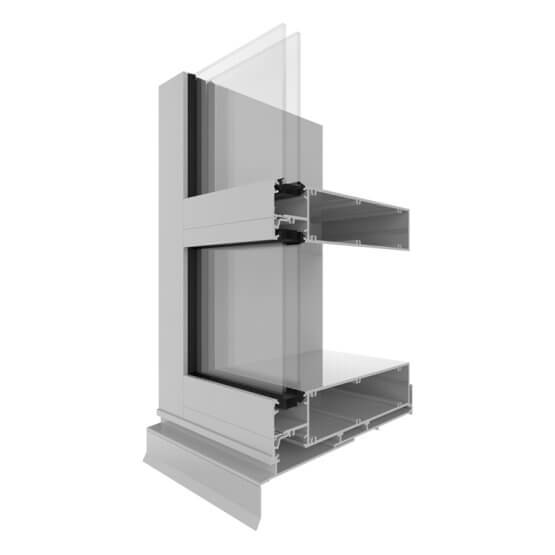

Flushline AGS1029 is the new name for the product formerly known as Flushline419DG 250mm * 55mm
Certified
Rated
Key features
- 250 x 55mm double-glazed frame

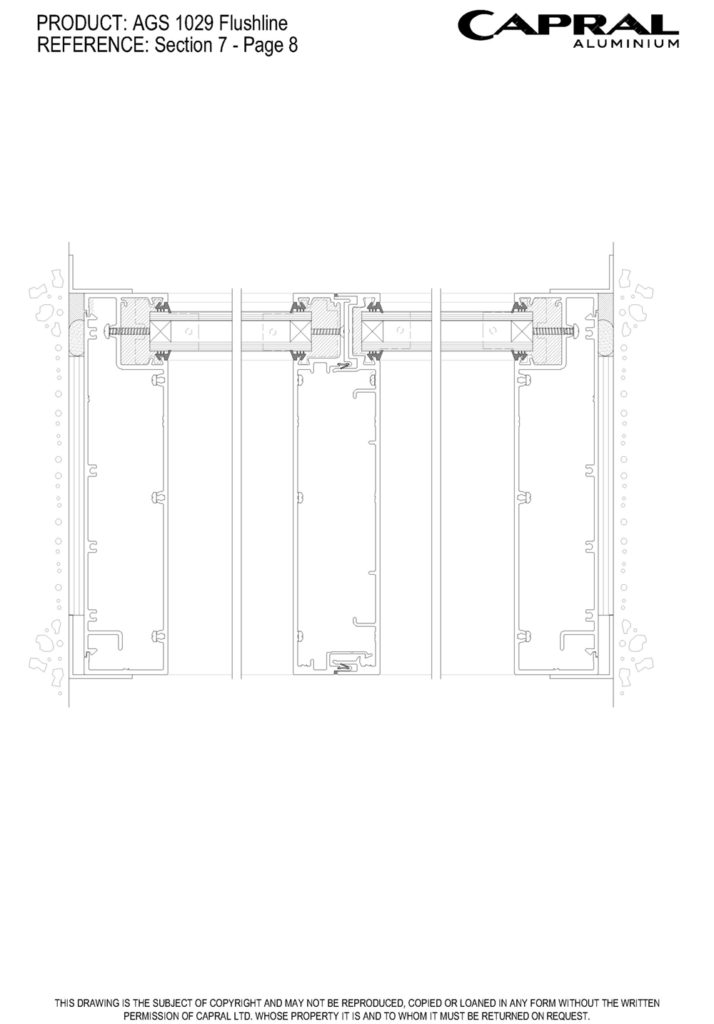

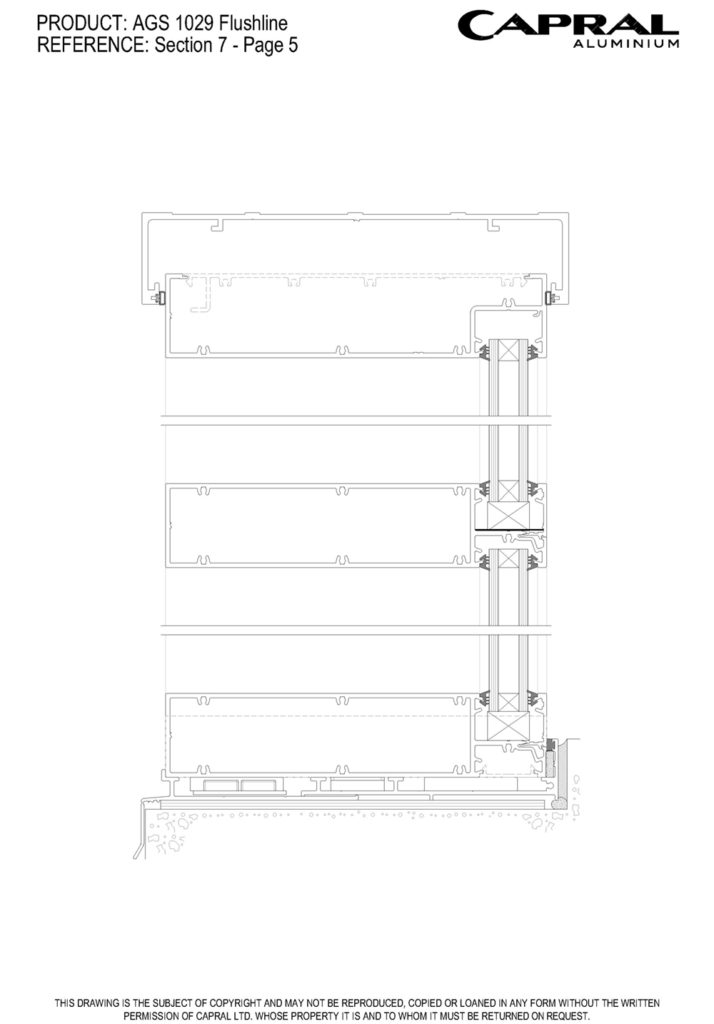

- Forward-positioned glazing pocket for flush external finish or reverse installation possible for expressed mullions
- Captive glazing wedge options for more accessible on-site glazing

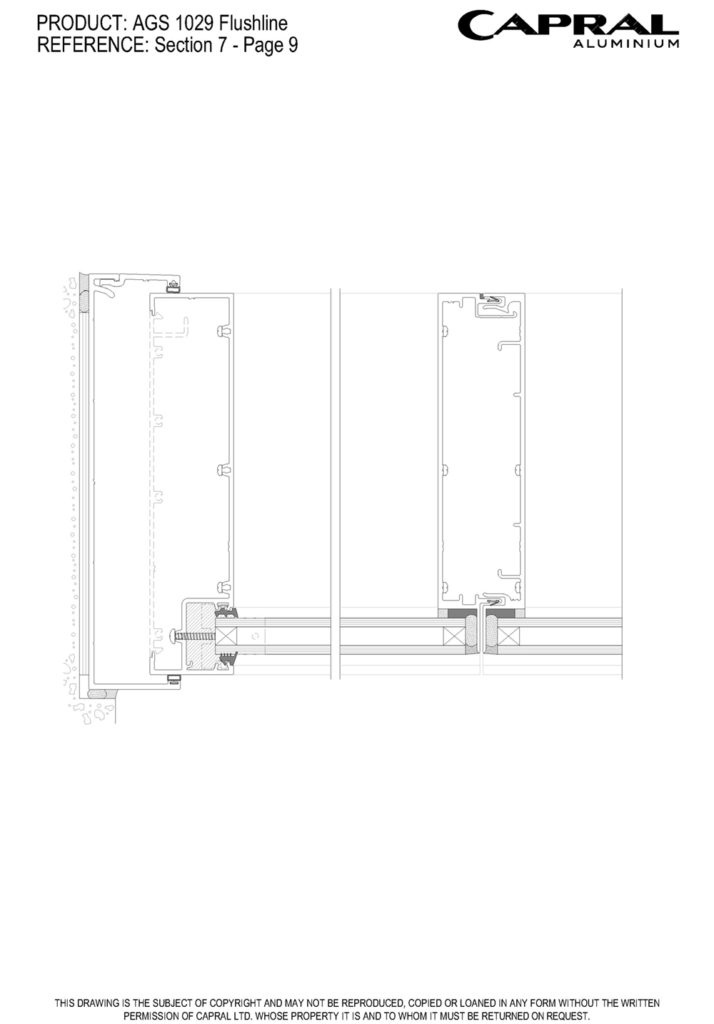

- Structurally glazed mullion options
- Compatible door and window suites are available
- Supports various glass thicknesses with the use of an adaptor
- Subhead available
- Internal and externally beaded options
- Double-glazed with adaptors for single & thick glass options
The AGS 1029 Flushline Double Glazed (250mm) framing system has been developed to accommodate internal and external glazing techniques. The front-glazed arrangement has been designed to maximise interior areas. The bold 250mm framing system delivers excellent strength and can achieve up to 6000mm panel heights.
The AGS 1029 Flushline system accepts double or single glazing with an adaptor, incorporates optional structurally glazed mullion profiles and offers several operable door and window options.
Details
Product Specs
Configurations

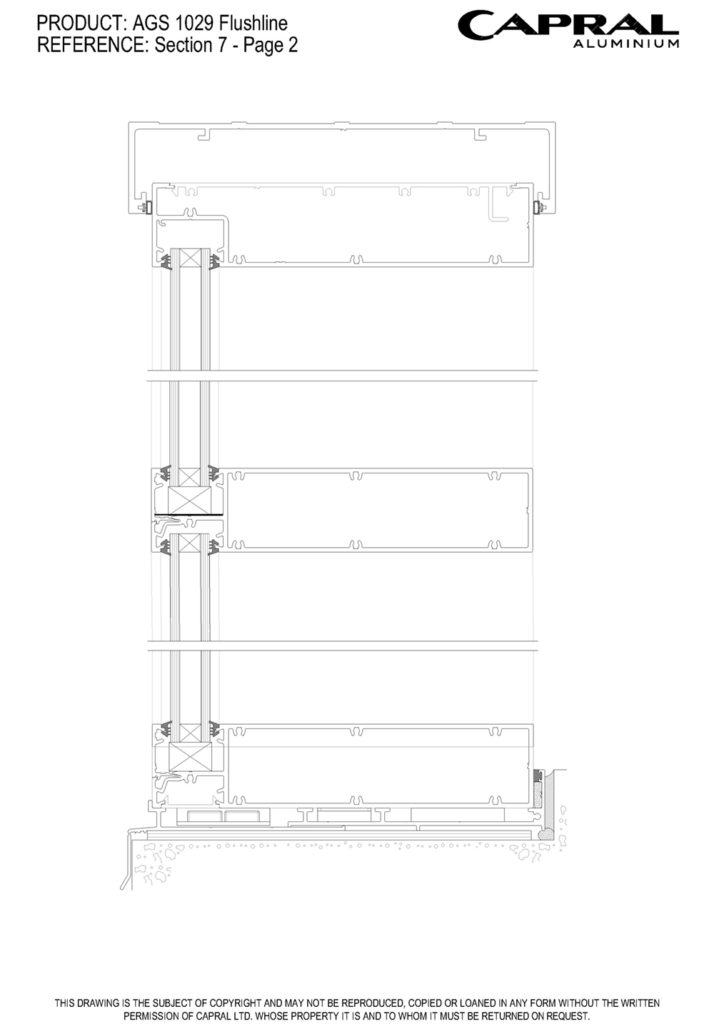

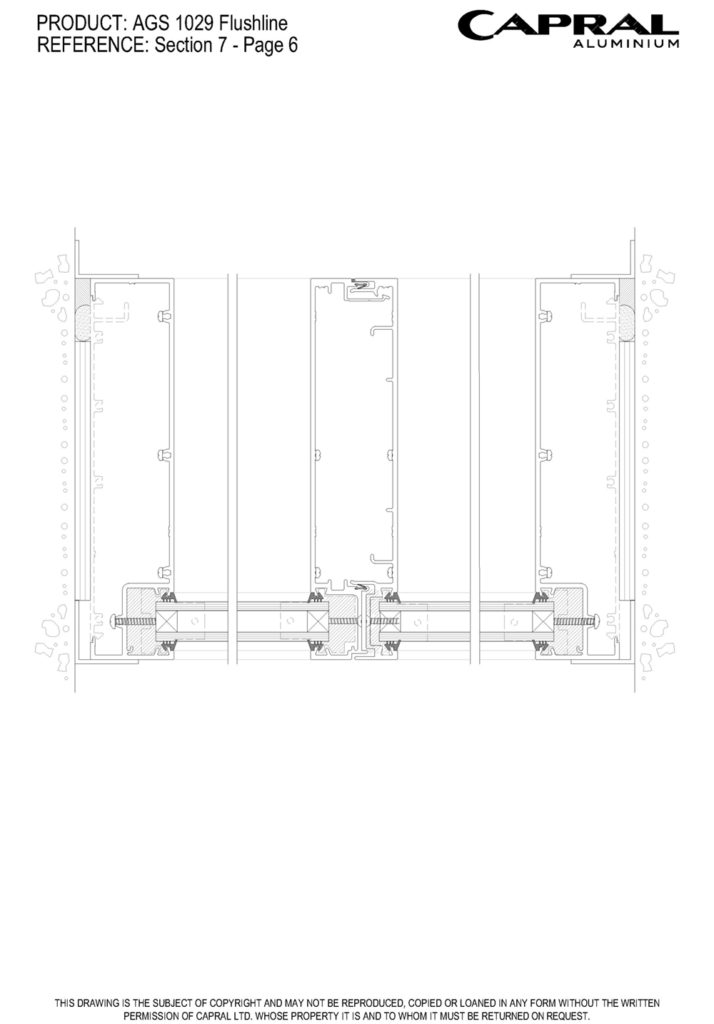

Arrangements
Maximum Product Sizes
Panel Height (mm)
6000
Panel Width (mm)
2400
Frame Dimensions (mm)
Frame depth (mm)
250
Face Width (mm)
55
Acoustic Rating
Rw (C;Ctr)
39 (-1;-4)
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
10500
WATER (Pa)
900
Glazing Details
Single Glazed
5 - 12
Double Glazed
22 - 29
Thick Glazed
12 - 18

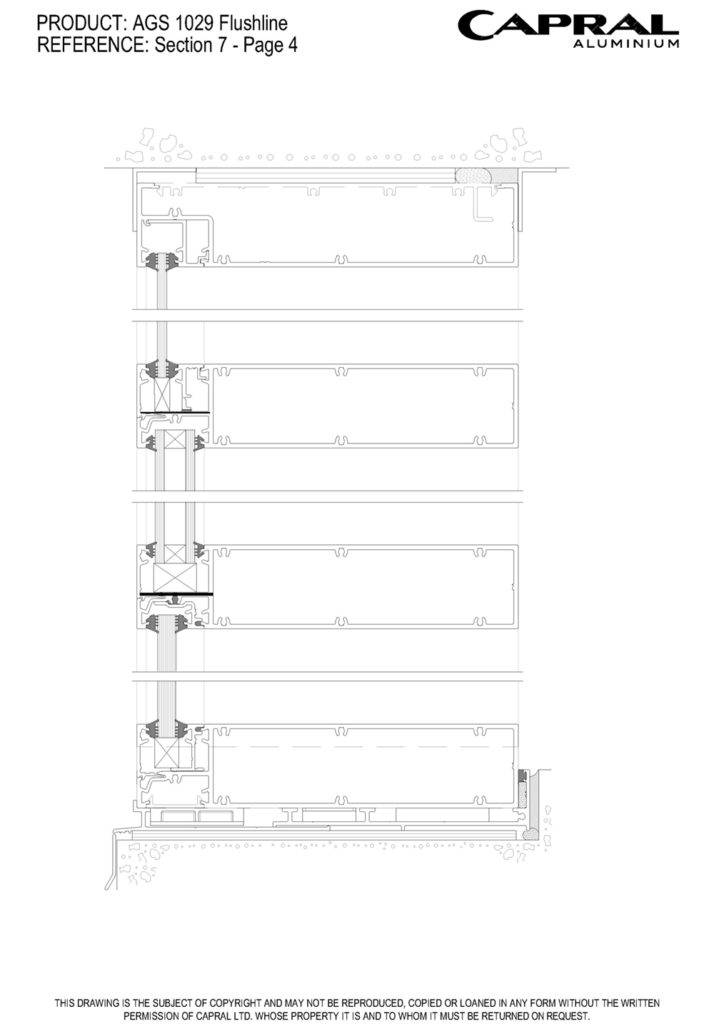

Single and Thick glazing using an adaptor
Energy Performance
Uw Range
3.17 - 6.79
SHGC Range
0.15 - 0.76
Tvw Range
0.03 - 0.78
Air infiltration
0.14 - 0.89
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 1029 Flushline
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS 100mm & 250mm Flushline Framing Systems
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
Revit AGS Flushline Framing
CAD Files
CAD Files AGS 1029 Flushline
CAD Files AGS Sub Frames
CAD Wall Chart AGS Flushline Framing
CAD Wall Chart AGS Sub Framing
Bulletins
PB343 - AGS Flushline Relaunch
Other
Compatible Products
AGS Commercial 35 Hook Hinge Awning SashThis AGS Commercial Awning Window with Hook Hinge is an operable window sash available for use with AGS commercial framing.
AGS Commercial 35 Casement SashThis AGS Commercial Casement Window is an operable window sash available for use with AGS commercial framing.
AGS Glazing AdaptorsCapral offers a wide range of adaptors that provide glazing options for existing and new structures.
AGS Commercial Louvre AdaptorThe AGS Commercial Louvre Adaptor gives you the flexibility you need to create a high-performance louvre window with a clean architectural finish.
More products from this range
AGS Commercial 659 Flushline Wide Pocket (150mm)The AGS 659 150mm wide glazed commercial Flushline framing system has been developed to accommodate both internal and external glazing techniques.
AGS Commercial 215 Hinged DoorThe AGS 215 Door is a 36mm pocket glazed hinged door panel designed to meet the market demand for a cost-effective hinge door while still having the key attributes of a commercial hinged door
AGS Commercial 480 Sliding Window (101.6mm)The AGS 480 Sliding Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400/425 Narrowline framing systems.
AGS Commercial 50 Casement SashThe AGS 50 Series window is a high-performance commercial casement window compatible with AGS framing.
AGS Glazing AdaptorsCapral offers a wide range of adaptors that provide glazing options for existing and new structures.
AGS Commercial 600 Narrowline Single Glazed (150mm)The AGS 600 Narrowline offers an increased level of structural Performance than the AGS 400 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
AGS Commercial 225 Pivot DoorThe AGS 225 Pivot Door is a 46mm pocket glazed commercial door panel capable of delivering flexibility, performance and ease of assembly in mind.
AGS Commercial 50 Awning SashThe AGS 50 Series window is a high-performance commercial awning window compatible with AGS framing.
Not quite what you’re looking for? Consider...
AGS Commercial 419 Flushline Single Glazed (100mm)The AGS 419 Flushline is a 100mm, single glazed, flush-glazed framing system offering a clean and modern external appearance.
AGS Commercial 629 Flushline Double Glazed (150mm)Flushline AGS629 is the new name for the product formerly known as Flushline 419DG 150mm x 55mm. This system was developed to accommodate both internal and external glazing.
AGS 419 & 619 Flushline Acoustic FramingThe AGS 419 & 619 Flushline Acoustic framing systems have been developed to provide a product where acoustic performance is paramount.
AGS Commercial 429 Flushline Double Glazed (100mm)Flushline AGS429 is the new name for the product formerly known as Flushline 419DG 100mm x 55mm. This commercial framing system has been developed to accommodate internal and external glazing techniques.
AGS Commercial 619 Single Glazed (150mm)Flushline AGS619 is the new name for the product formerly known as Flushline 419SG 150mm x 50mm. The AGS 619 Flushline offers a clean and modern external appearance.
AGS Commercial 659 Flushline Wide Pocket (150mm)The AGS 659 150mm wide glazed commercial Flushline framing system has been developed to accommodate both internal and external glazing techniques.
Projects that use this system
Chalmers Ave Mascot
Chalmers Ave Mascot demonstrates the effective utilization of innovative building solutions to achieve architectural excellence and functional efficiency in commercial developments.
Commercial

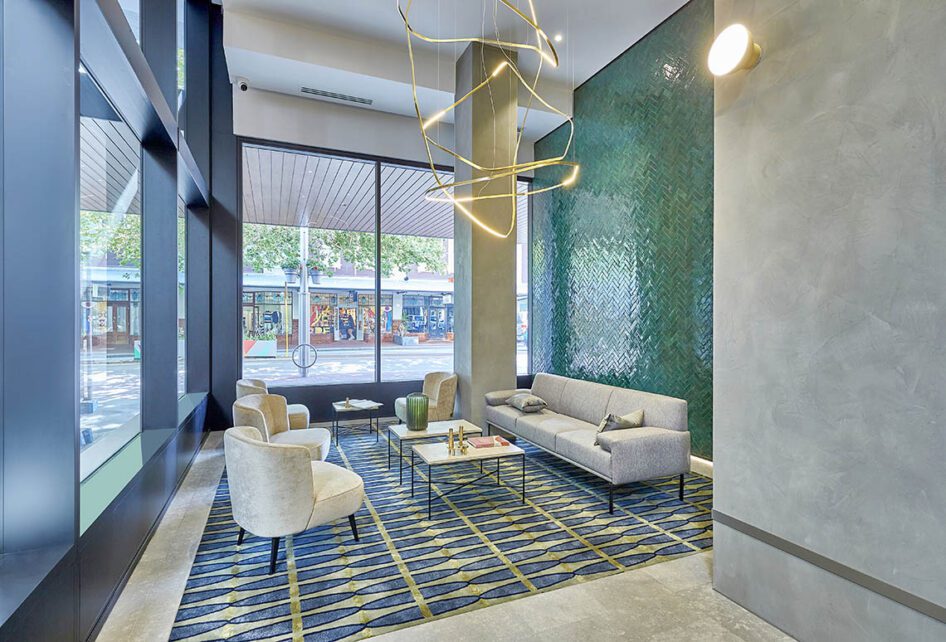

One Subiaco
Exemplary design revitalises an iconic Perth site. The recent completion of the landmark project One Subiaco has revitalised its suburb’s iconic Pavilion Markets site and delivered a striking architectural residential development with ocean, city and river vistas.
Apartments and Multi-residential Buildings

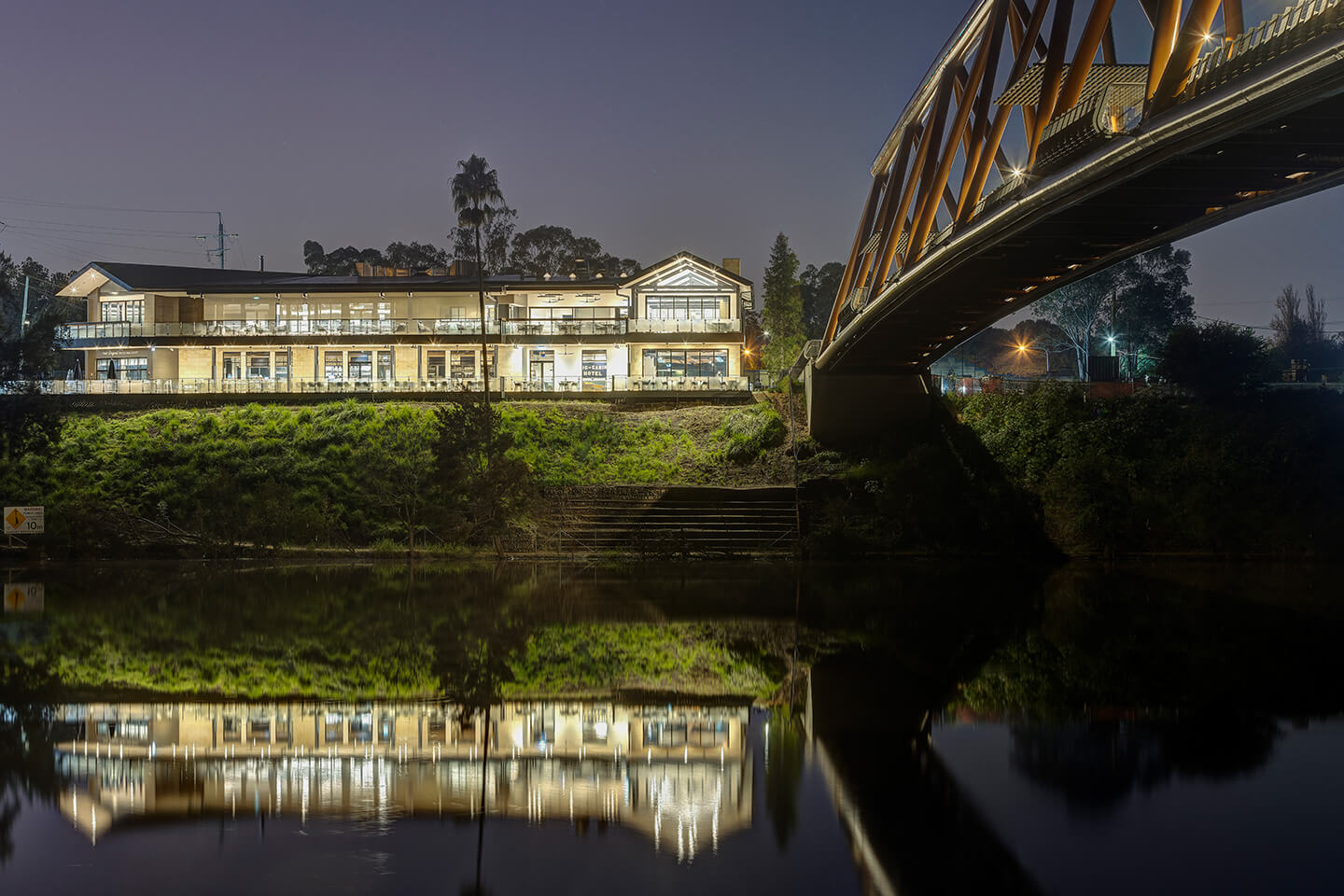

Rebuilding The Log Cabin Hotel Penrith
