AGS Commercial 300 Narrowline Single Glazed (76mm)

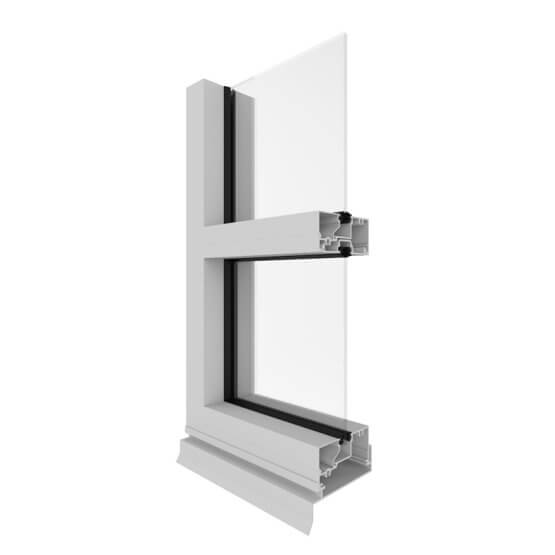

The AGS 300 Narrowline’s slimline frame depth makes it ideal for lowrise commercial applications
Certified
Rated
Key features
- 76mm x 35mm centre glazed framing system
- Suits light-commercial, internal fit-out or architectural applications
- Supports single glazing
- Economical, lightweight design
- Captive glazing wedge options for easier on-site glazing
- Sub-sill option
- Compatible door and window suites are available
- Dedicated reveal leg frames
- Internal and externally beaded options
- Dedicated corner posts
The AGS 300 Narrowline aluminium framing system is designed to provide a crisp, narrow Commercial appearance with unbroken lines and face-matched mullion, transom and frame profiles. The centre-glazed configuration can also incorporate adaptors to accommodate hinged doors and operable windows.
Its slimline frame depth and ability to accommodate a captive glazing wedge make it an economical option for shop front applications of modest dimensions or for internal partitioning applications.

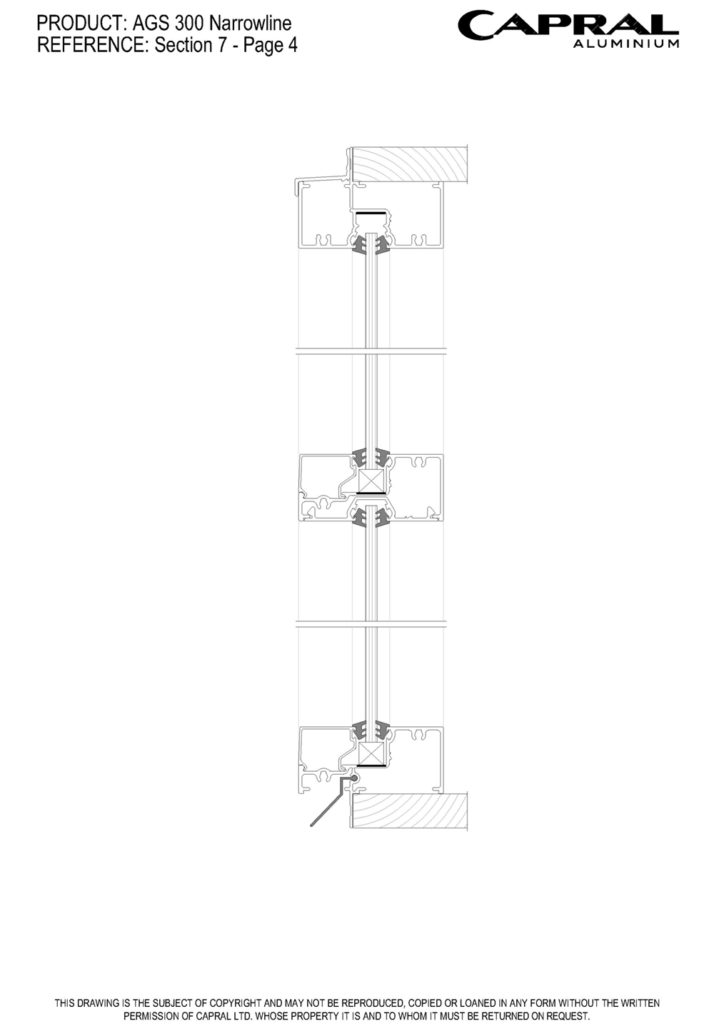

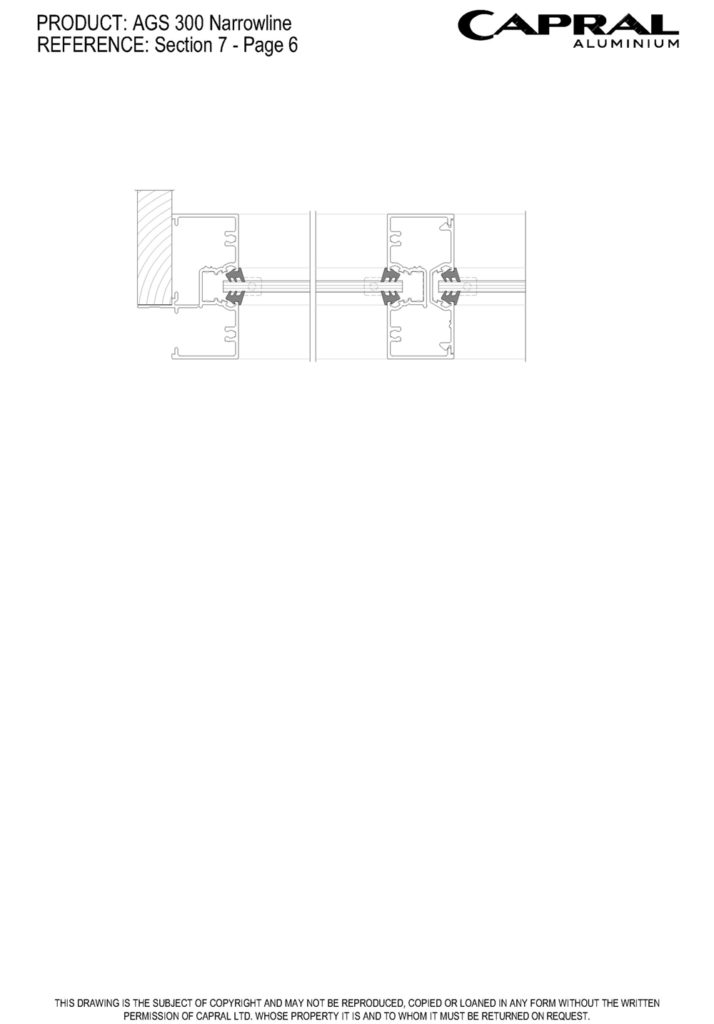

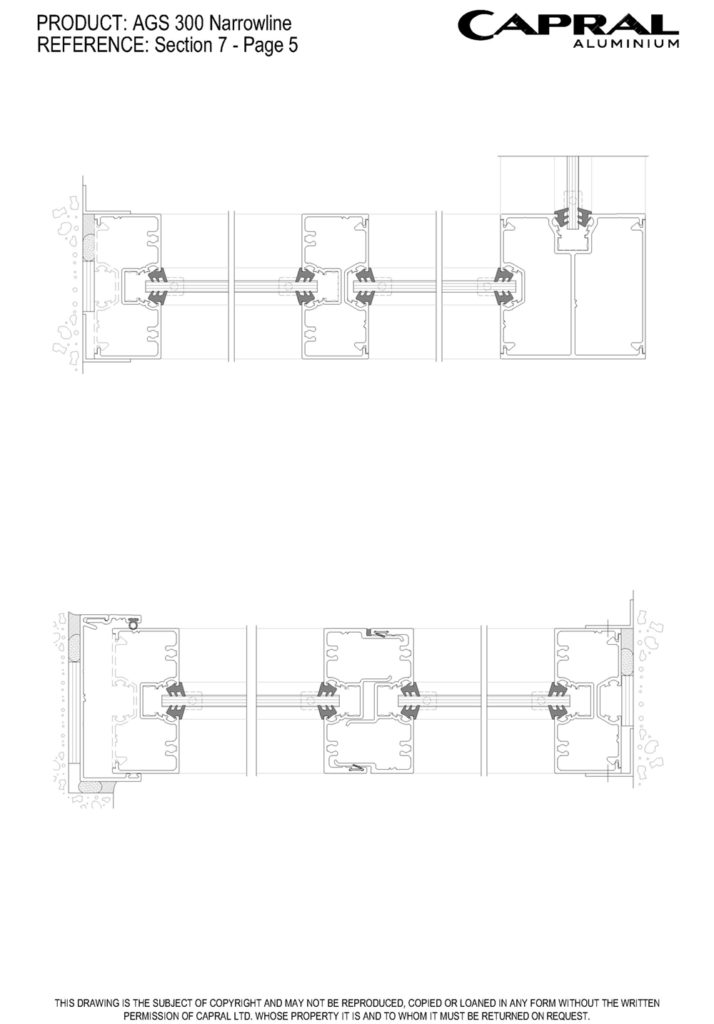

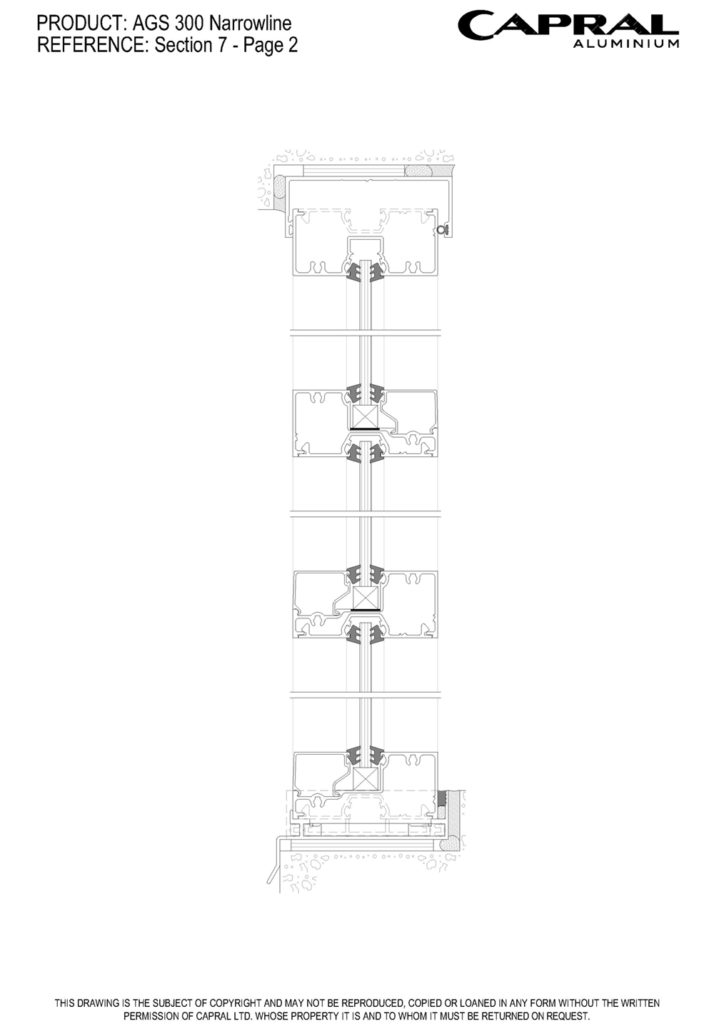

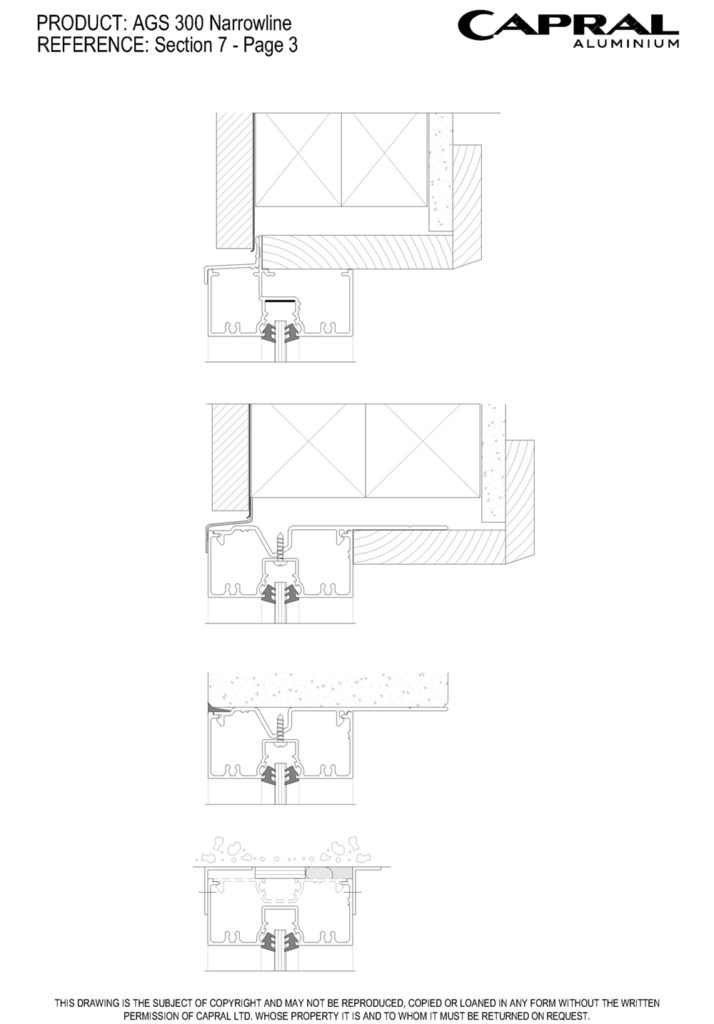

Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
3300
Panel Width (mm)
2000
Frame Dimensions (mm)
Frame depth (mm)
76
Face Width (mm)
35
Acoustic Rating
Rw (C;Ctr)
37(0;-2)
Maximum Product Performance
SLS (Pa)
2200
ULS (Pa)
4300
WATER (Pa)
600
Glazing Details
Single Glazed
4 - 10
Energy Performance
Uw Range
3.94 - 5.91
SHGC Range
0.48 - 0.77
Tvw Range
0.38 - 0.82
Air infiltration
0.09 - 0.09
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 300 Narrowline
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS Narrowline Framing Systems
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
Revit AGS Narrowline Framing
CAD Files
CAD Files AGS 300 Narrowline
CAD Files AGS Sub Frames
CAD Wall Chart AGS Narrowline Framing
CAD Wall Chart AGS Sub Framing
Bulletins
PB337 - AGS Narrowline Relaunch
PB305 - Urban Plus to AGS Couplers
PB284 - July 2021 Documentation Updates
Other
Compatible Products
AGS Commercial 325 Narrowline Double Glazed (76mm)The AGS 325 Narrowline double-glazed aluminium framing system's slimline frame depth and ability to accommodate a captive glazing wedge make it an economical option for architectural projects.
Urban Plus Fixed Light Window (76mm)The Urban Plus Fixed Light Window has been designed to provide a clean and streamlined appearance to complement the range of Urban Plus operable windows and doors.
Urban Plus 391 Double Hung WindowThe Urban Plus Double Hung window features a substantial outer frame allowing for large configurations with a modern architectural aesthetic. Ideal for high-end homes and architectural applications.
AGS Commercial 35 Hook Hinge Awning SashThis AGS Commercial Awning Window with Hook Hinge is an operable window sash available for use with AGS commercial framing.
AGS Commercial 382 Awning WindowThe 382 Awning Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 300/325 framing systems.
AGS Commercial 35 Awning SashThis AGS Commercial Awning Window is an operable window sash available for use with AGS commercial framing.
Urban Plus 392 Awning WindowThe Urban Plus Awning window incorporates clean, flat sash profiles within a bold outer frame to deliver a modern aesthetic with excellent strength and performance characteristics.
Urban Plus 392 Casement WindowThe Urban Plus Casement window incorporates clean, flat sash profiles within a bold outer frame to deliver a modern aesthetic with excellent strength and performance characteristics.
Extruded LouvreAn extensive range of extruded louvre blades are available from Capral to cater for various ventilation, shading and aesthetic requirements
Urban Plus 390 Sliding WindowThe Urban Plus Sliding window delivers contemporary styling, strength, and performance, making it an ideal solution for high-end architectural applications.
More products from this range
AGS Commercial 450 Narrowline Wide Pocket (101.6mm)The AGS 450 Narrowline has been designed with extra wide glazing pockets to accept double-glazed units with internal Venetian blinds
AGS Commercial 380 Sliding Window (76mm)The AGS 380 Sliding Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 300/325 Narrowline framing systems.
AGS Commercial 619 Single Glazed (150mm)Flushline AGS619 is the new name for the product formerly known as Flushline 419SG 150mm x 50mm. The AGS 619 Flushline offers a clean and modern external appearance.
AGS Commercial 425 Narrowline Double Glazed (101.6mm)The AGS 425 Narrowline framing system was developed specifically to cater for the growing requirement for energy-efficient double glazing.
AGS Commercial 659 Flushline Wide Pocket (150mm)The AGS 659 150mm wide glazed commercial Flushline framing system has been developed to accommodate both internal and external glazing techniques.
Extruded LouvreAn extensive range of extruded louvre blades are available from Capral to cater for various ventilation, shading and aesthetic requirements
AGS Glazing AdaptorsCapral offers a wide range of adaptors that provide glazing options for existing and new structures.
AGS Commercial 400 Narrowline Single Glazed (101.6mm)The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.
Not quite what you’re looking for? Consider...
AGS Commercial 425 Narrowline Double Glazed (101.6mm)The AGS 425 Narrowline framing system was developed specifically to cater for the growing requirement for energy-efficient double glazing.
AGS Commercial 400 Narrowline Single Glazed (101.6mm)The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.
AGS Commercial 450 Narrowline Wide Pocket (101.6mm)The AGS 450 Narrowline has been designed with extra wide glazing pockets to accept double-glazed units with internal Venetian blinds
AGS Commercial 325 Narrowline Double Glazed (76mm)The AGS 325 Narrowline double-glazed aluminium framing system's slimline frame depth and ability to accommodate a captive glazing wedge make it an economical option for architectural projects.
AGS Commercial 601 Narrowline Offset Single Glazed (150mm)The AGS 601 Narrowline framing system delivers increased structural performance with the 150mm frame depth while maintaining a typical external appearance.
AGS Commercial 625 Narrowline Double Glazed (150mm)The AGS 625 Narrowline offers an increased level of structural performance than the AGS 425 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
AGS Commercial 650 Narrowline Wide Pocket (150mm)The AGS 650 Narrowline framing boasts extra-wide glazing pockets, making it ideal for various applications.
AGS Commercial 600 Narrowline Single Glazed (150mm)The AGS 600 Narrowline offers an increased level of structural Performance than the AGS 400 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
Projects that use this system

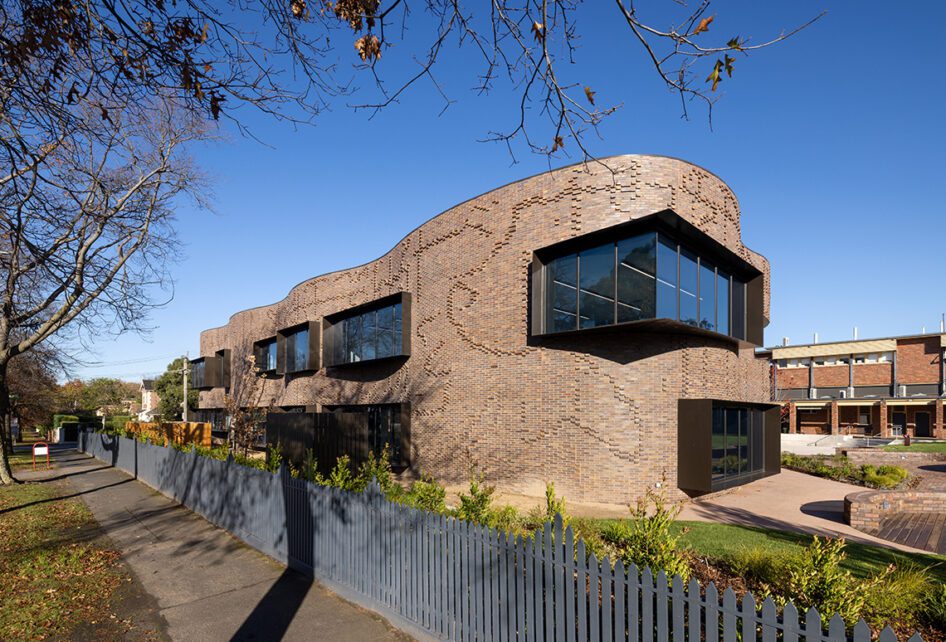

Annie Hughston Centre, Fintona Girls’ School
The Annie Hughston Centre responds to the learning challenges of today and tomorrow with Capral's AGS Commercial 300 Narrowline framing system.
Education
Karingal Green
Nestled in the Perth suburb of High Wycombe is Karingal Green Health and Aged Care Community, a 160-bed residential care facility designed by international design practice Hassell.
Aged Care and Community Living

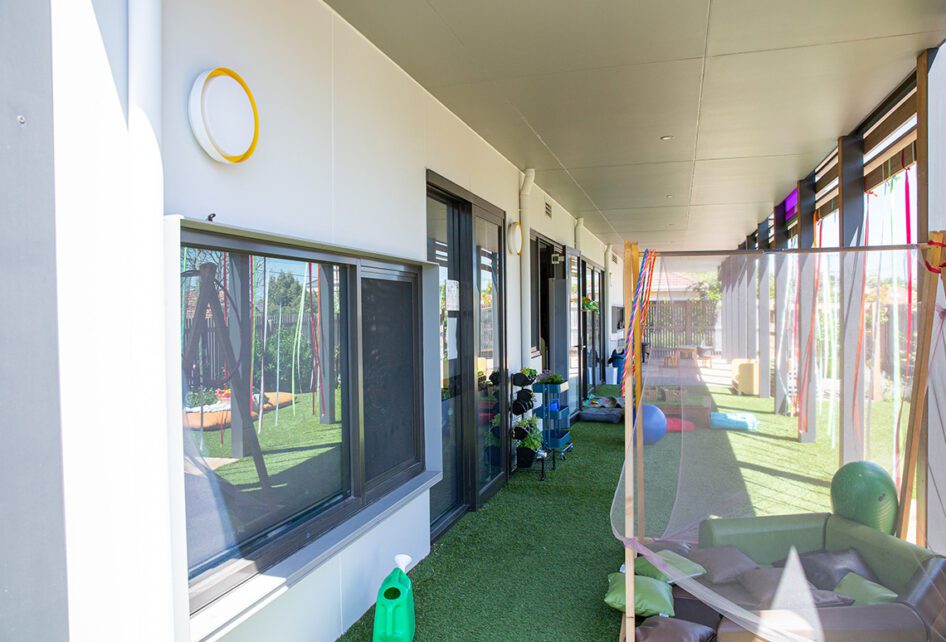

Our Place Early Learning Centre
