AGS Commercial 35 Awning Sash

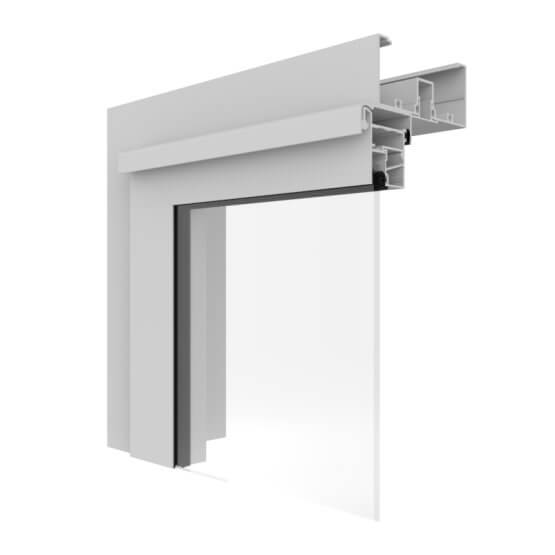

This AGS Commercial Awning Window is an operable window sash available for use with AGS commercial framing.
Certified
Rated
Tested
Key features
- Single, thick and double-glazing options
- It suits most commercial and architectural applications
- Compatible with a range of AGS suites
- Rated to BAL-40
- Integrated flyscreen ability
- A high degree of design flexibility
- Square and bevelled sash and bead options
- Continuous hook hinge or stay hinge method
- Inset or overlap options available
- A large range of operating hardware, including automatic options are available
This AGS Commercial Awning Window is an operable window sash available for use with AGS commercial framing. It may be installed directly into most AGS framing systems.
With a choice of either square or bevelled sash profiles, the double-sealed construction delivers assured weather sealing.
The AGS Commercial Awning Window will accommodate single, thick and double glazing up to a thickness of 25mm.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1800
Panel Width (mm)
1500
Panel Weight (kg)
60
Panel Area (m2)
2.9
Frame Dimensions (mm)
Narrowline
76, 101.6 or 150
Flusline
100, 150 or 250
Acoustic Rating
Rw (C;Ctr)
37 (-1;-3)
Bushfire Rating
BAL
40
Maximum Product Performance
SLS (Pa)
2200
ULS (Pa)
3300
WATER (Pa)
1000
Glazing Details
Single Glazed
3 - 6
Double Glazed
18 - 25
Thick Glazed
8 - 16
Energy Performance
Uw Range
3.9 - 7.09
SHGC Range
0.18 - 0.55
Tvw Range
0.05 - 0.55
Air infiltration
0.04 - 0.44

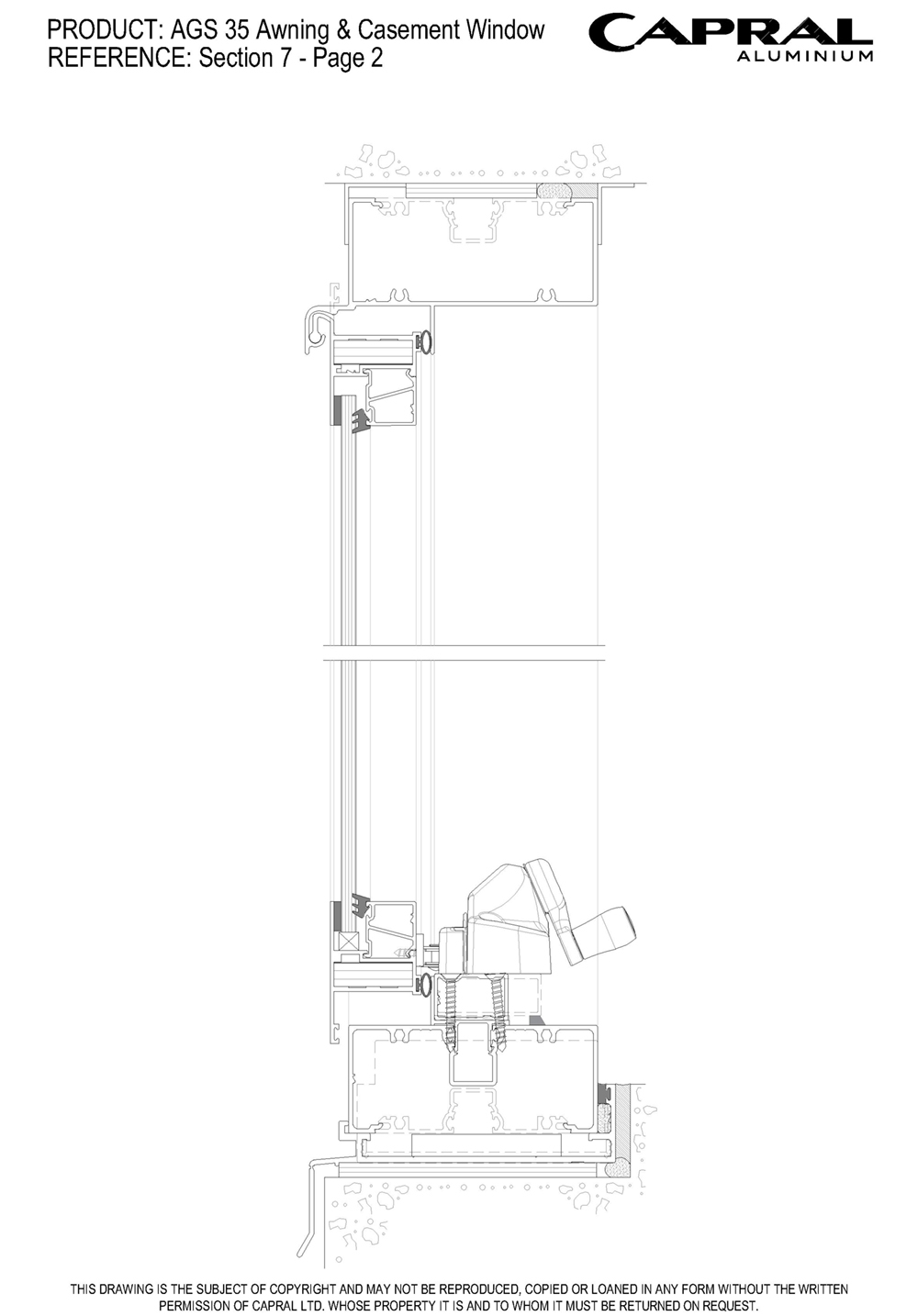

Narrowline Overlap Sash (Ver)

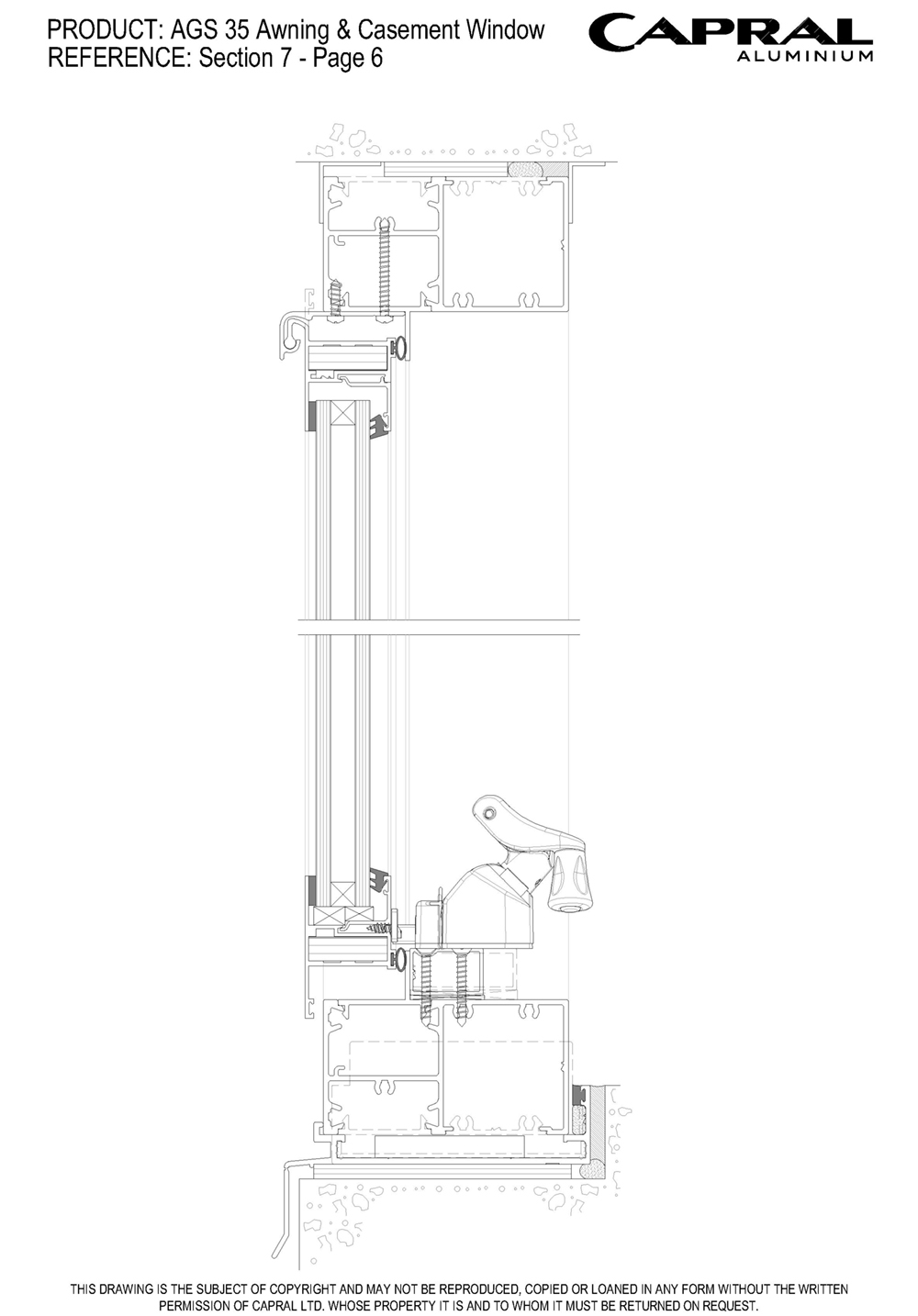

Flushline Overlap Sash (Ver)

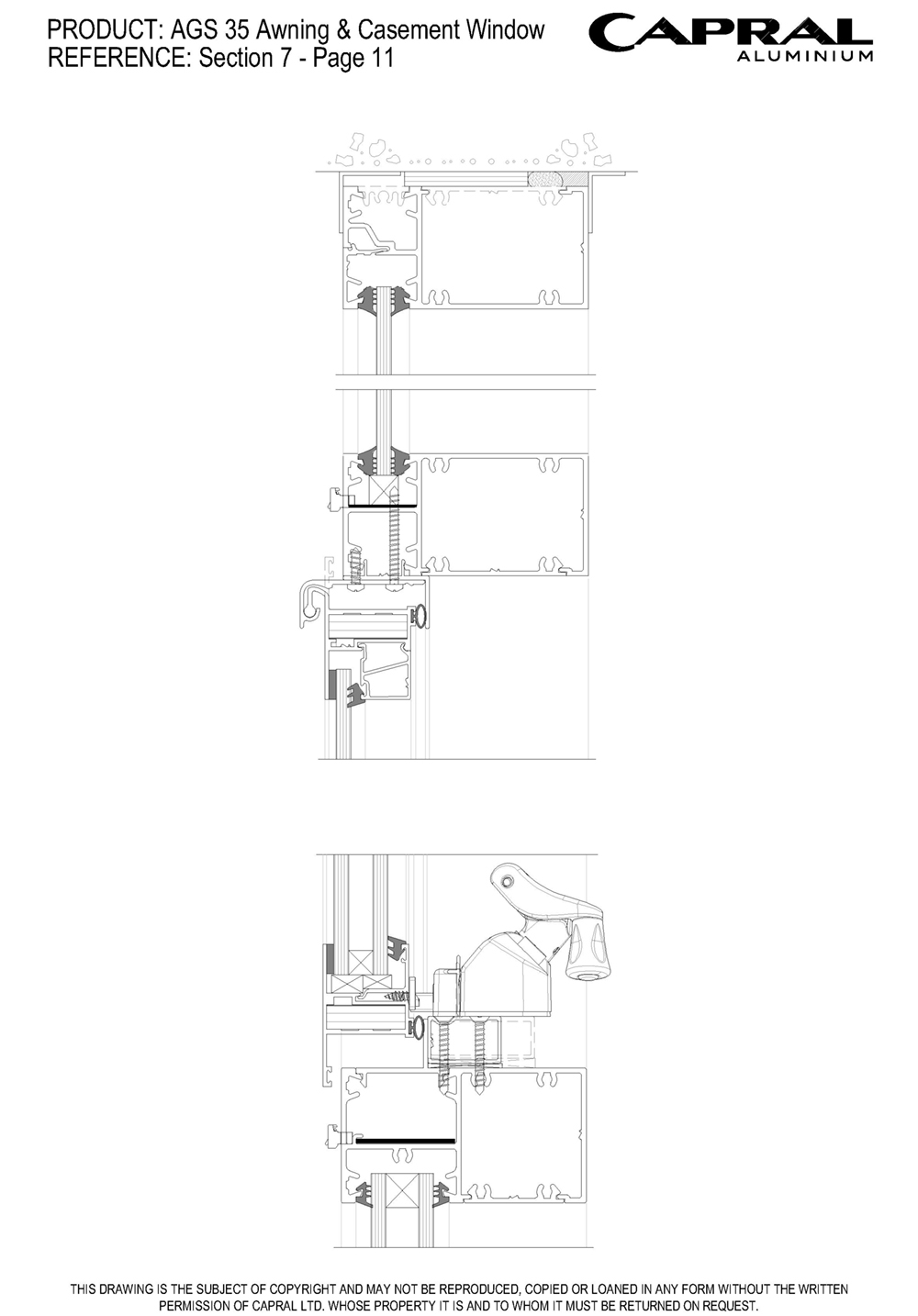

Overlap Sash Flushline High & Low Lights

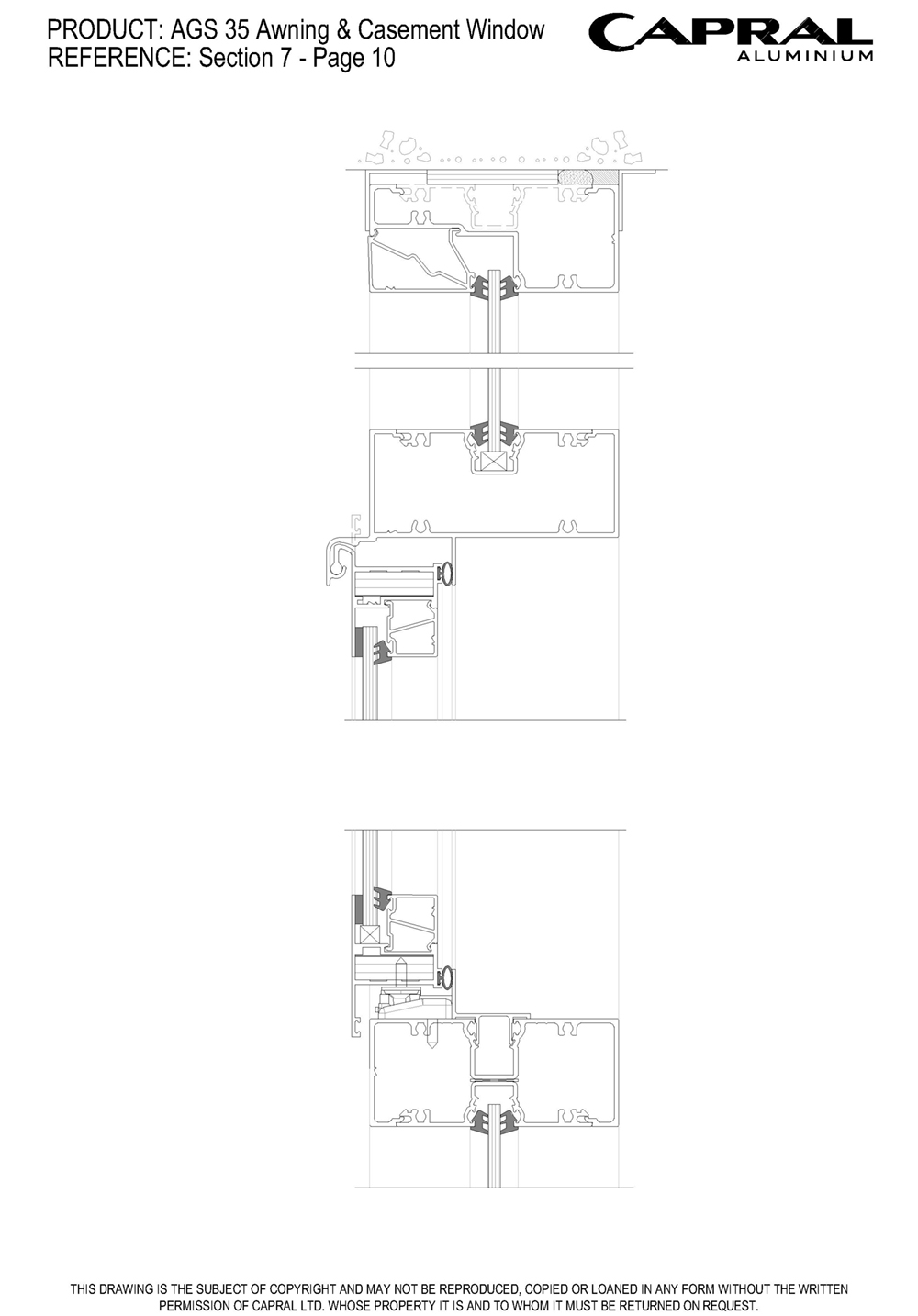

Overlap Sash Narrowline High & Low Lights

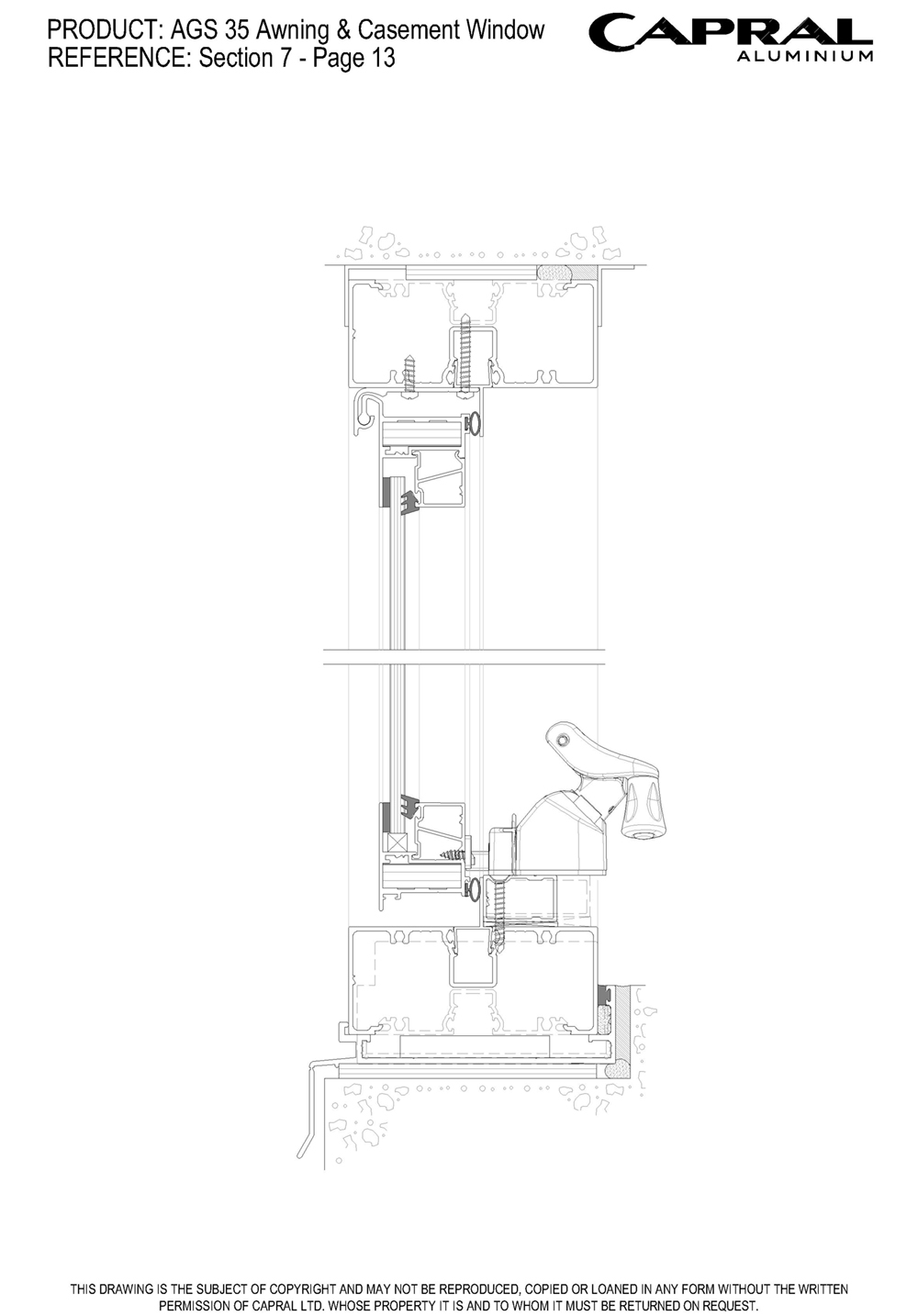

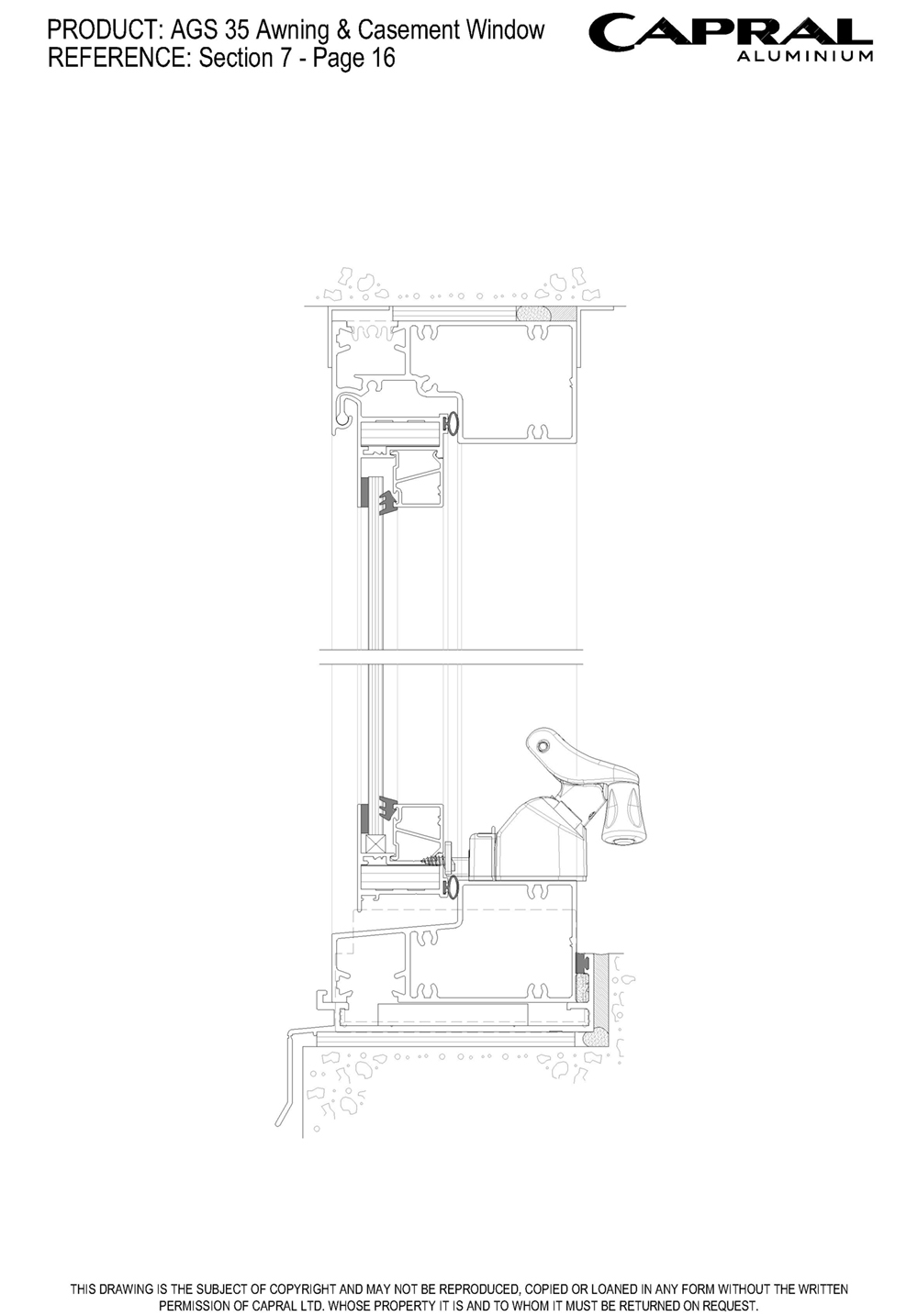

Inset Sash (Ver)
Integrated Head & Sill

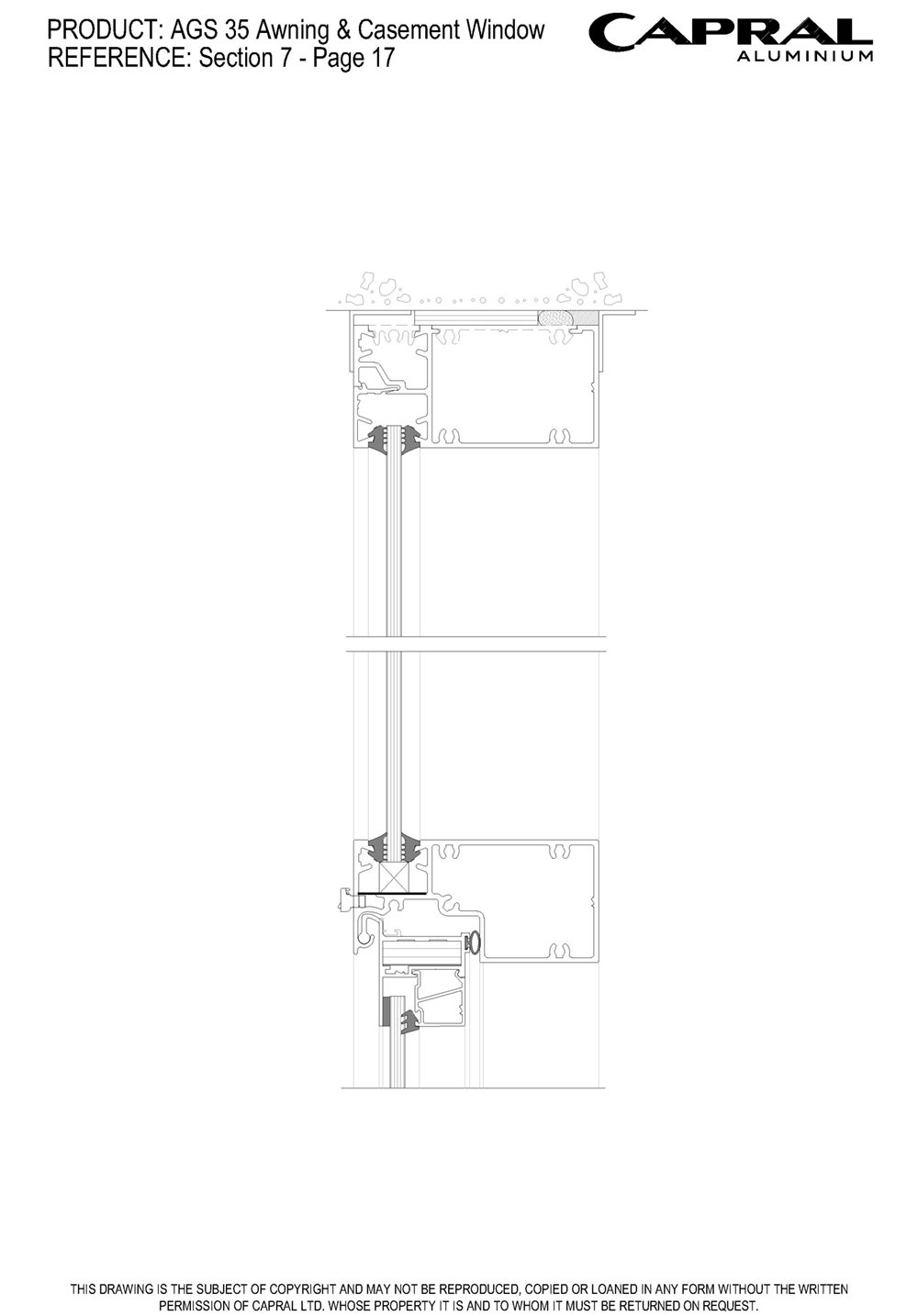

Integrated High Light

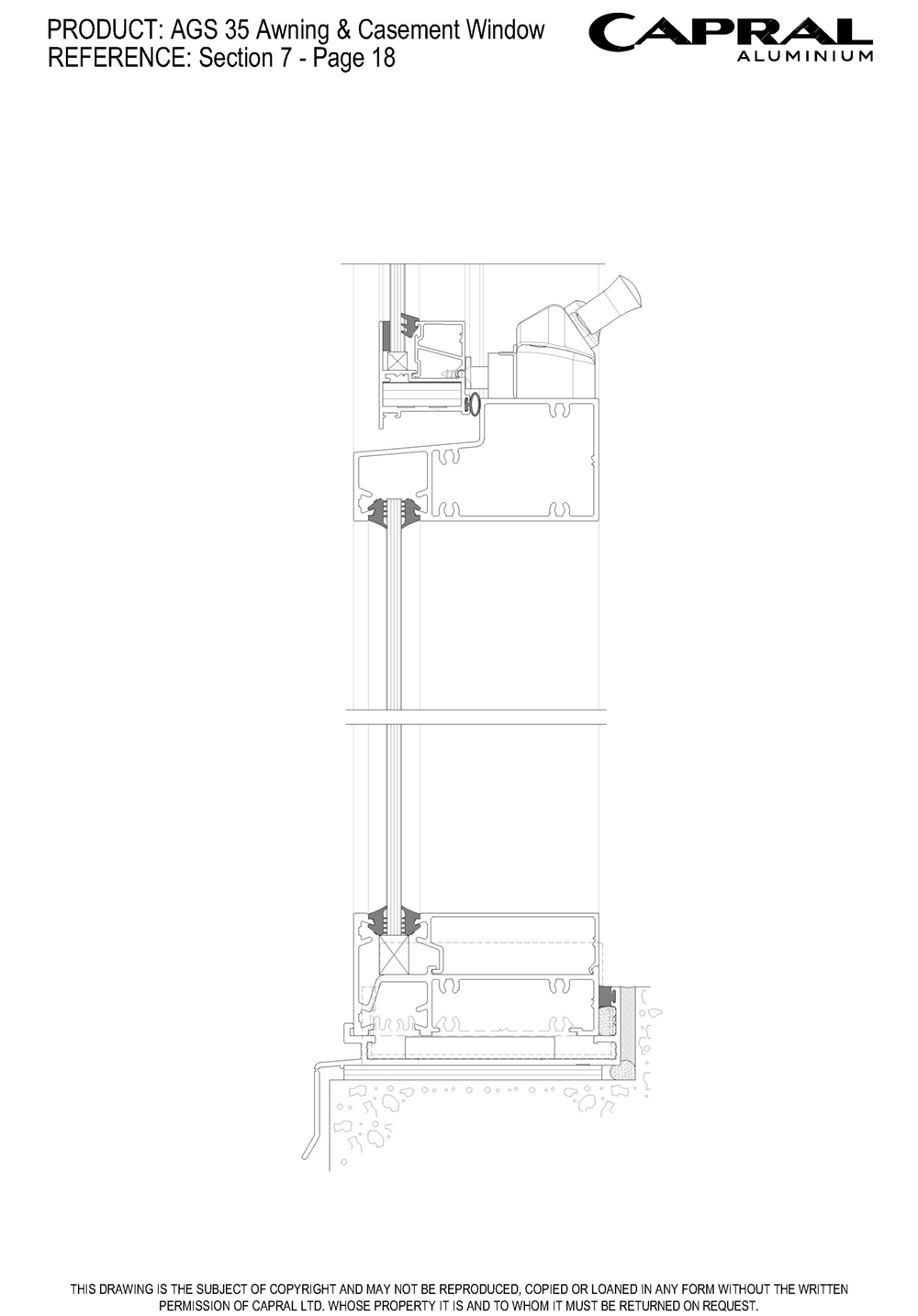

Integrated Low Light

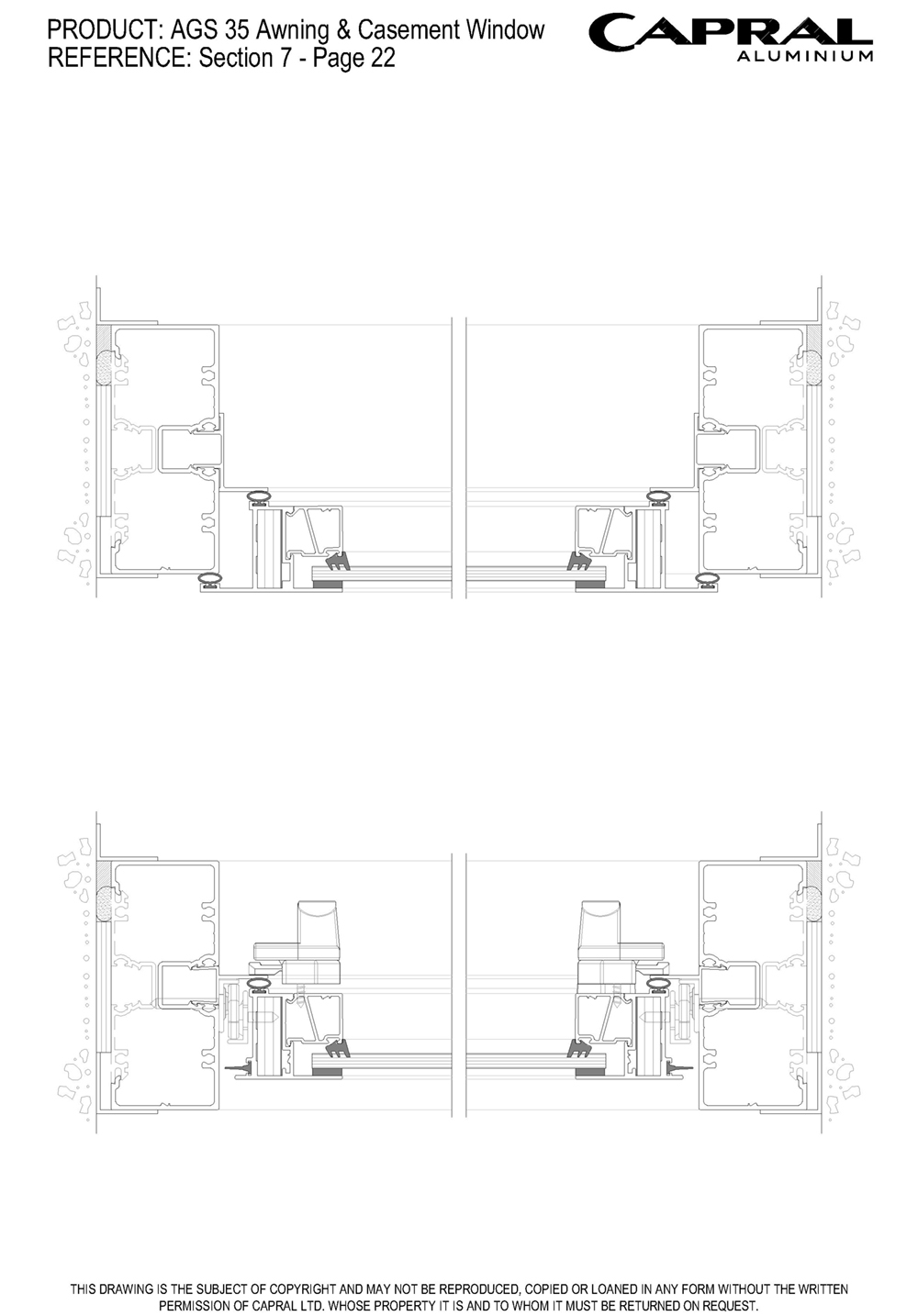

Narrowline Jambs

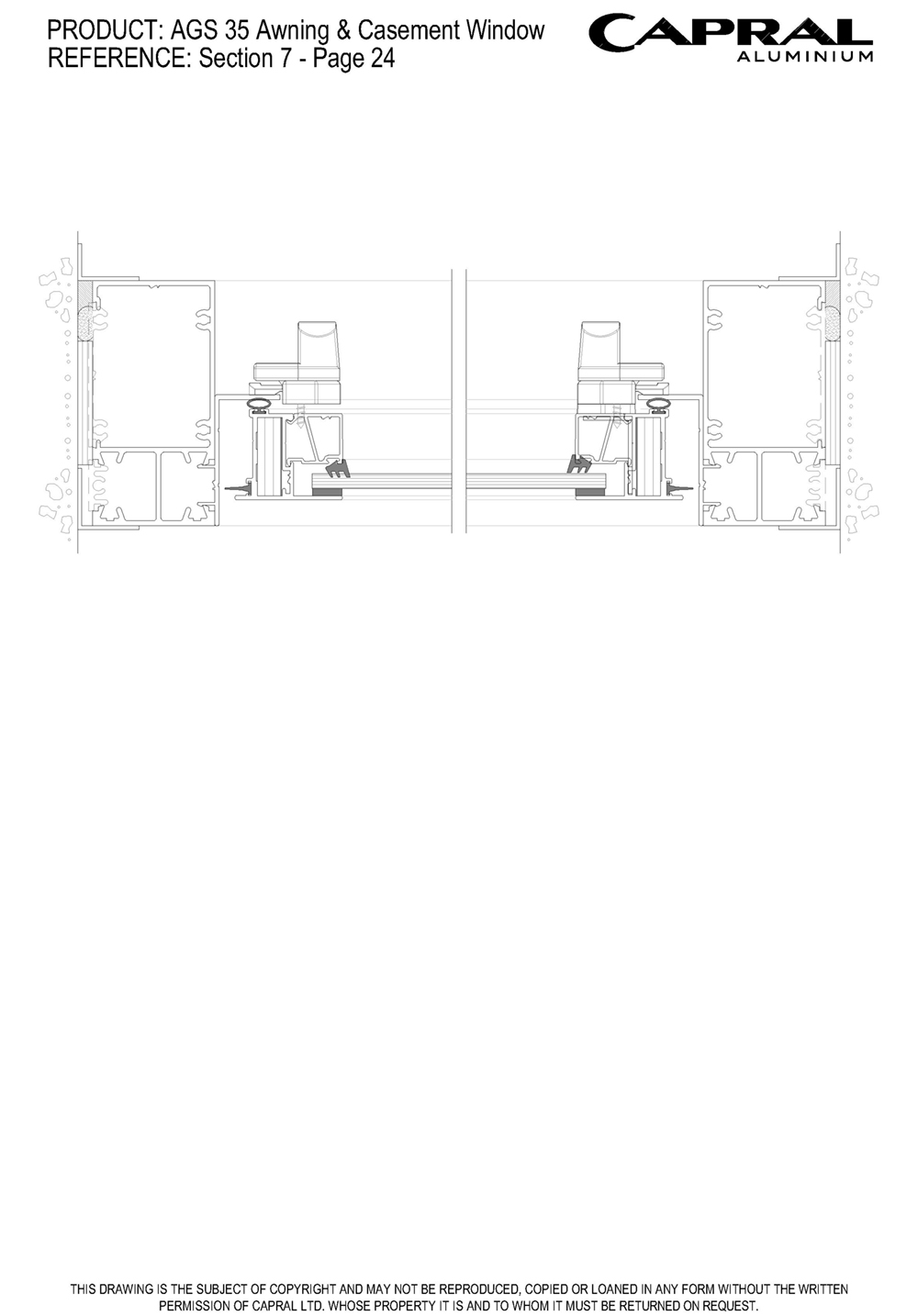

Inset Sash Flushline Jambs

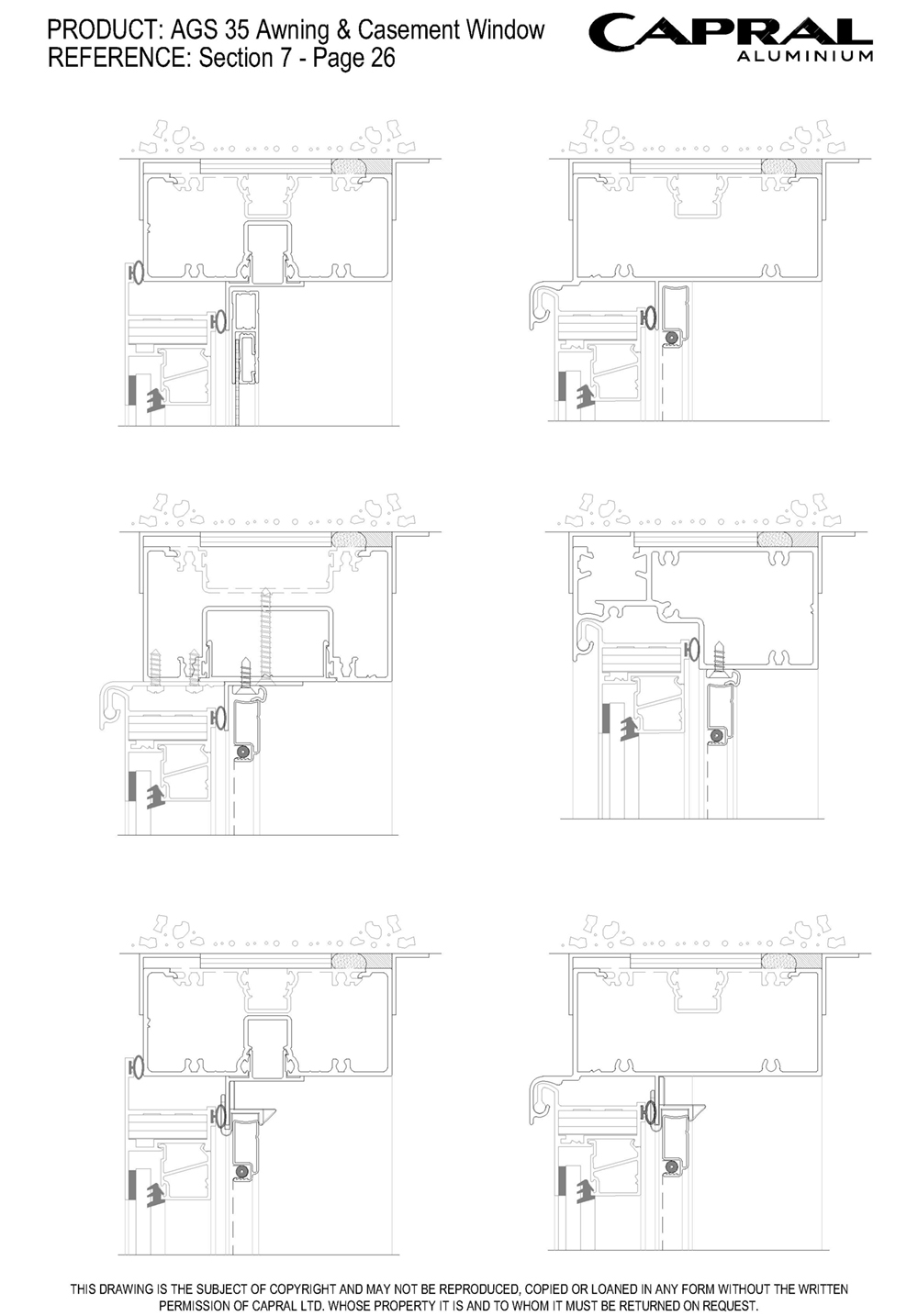

Screen Heads

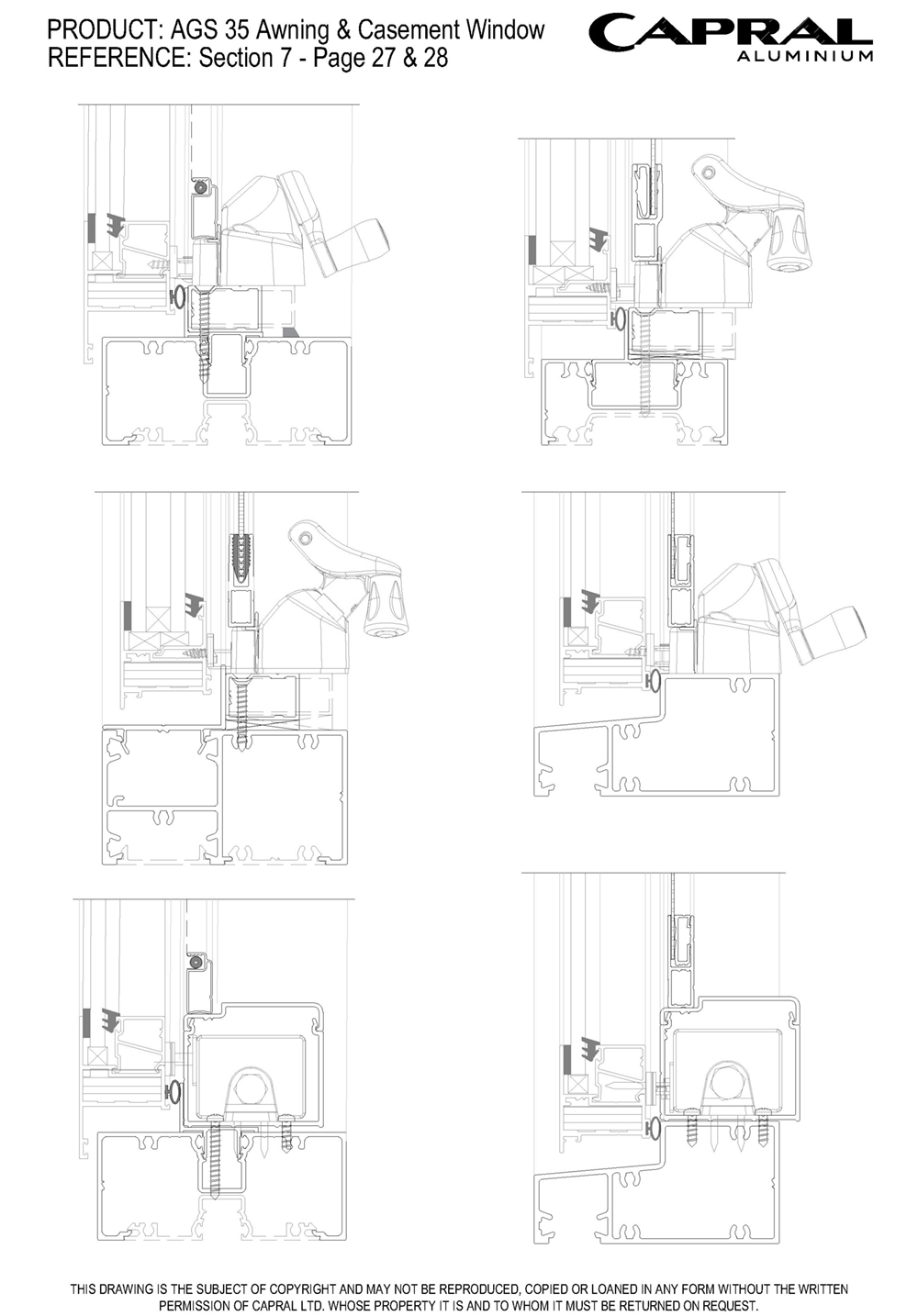

Screen Sills

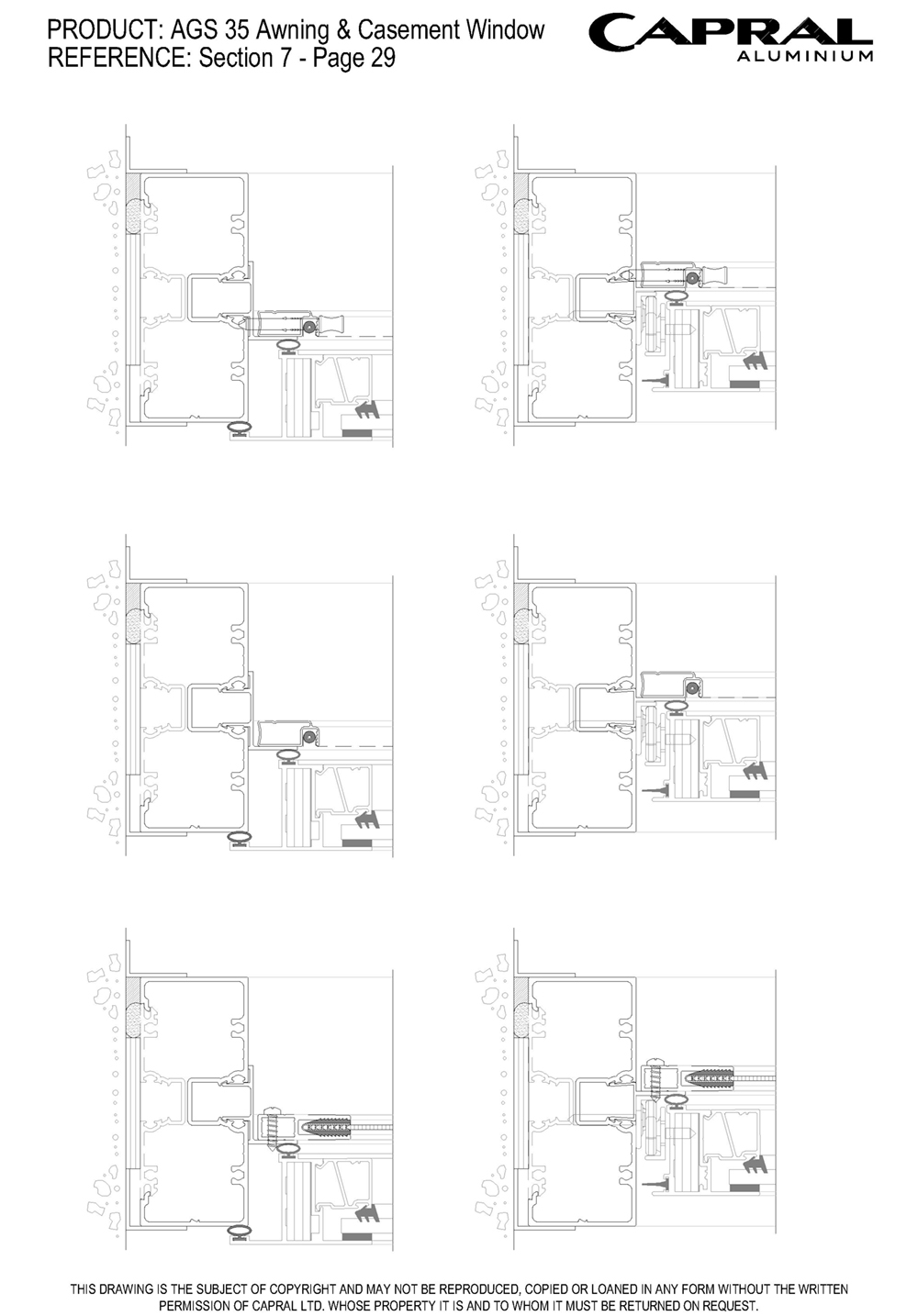

Screen Jambs
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 35 Awning & Casement Window
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS Projecting Windows
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
Extrusion Wall Chart Capral Screening
Revit AGS Commercial 35 Awning Sash
CAD Files
CAD Files AGS 35 Awning & Casement Window
CAD Files AGS Sub Frames
CAD Files Capral Screening
CAD Wall Chart AGS Sub Framing
CAD Wall Chart Capral Screening
Bulletins
PB300 - AGS Hollow Sub Heads
Other
