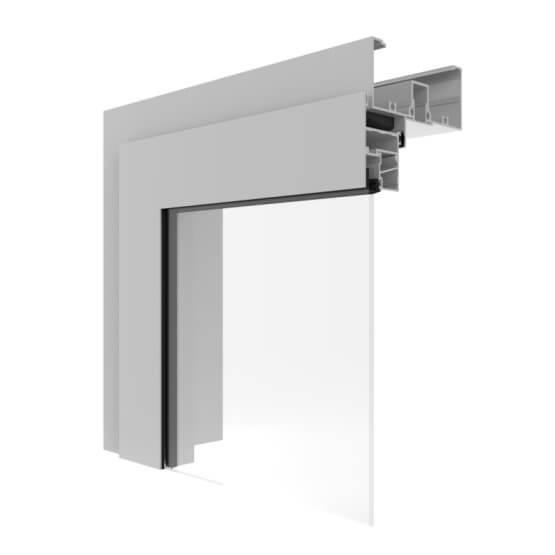

AGS Commercial 35 Casement Sash Corner Image.
Commercial

AGS Commercial 35 Casement Sash

This AGS Commercial Casement Window is an operable window sash available for use with AGS commercial framing.

Declare Label
Certified
Acoustic
Rated
BAL 40
Tested
Jump to:
Select
Key features
  • Single, thick and double-glazing options
  • It suits most commercial and architectural applications
  • Compatible with a range of AGS suites
  • Rated to BAL-40
  • A high degree of design flexibility
  • Square and bevelled sash and bead options
  • Inset or overlap options available

This AGS Commercial Casement Window is an operable window sash available for use with AGS commercial framing. It may be installed directly into most AGS framing systems.
With a choice of either square or bevelled sash profiles, the double-sealed construction delivers assured weather sealing.
The AGS Commercial Casement Window will accommodate single, thick and double glazing up to a thickness of 25mm.

Details

Product Specs
Configurations
Arrangements

Maximum Product Sizes

Panel Height (mm) 1500
Panel Width (mm) 750
Panel Weight (kg) 40
Panel Area (m2) 1.5

Frame Dimensions (mm)

Narrowline 76, 101.6, or 150
Flushline 100, 150 or 250

Acoustic Rating

Rw (C;Ctr) 37 (-1;-3)

Bushfire Rating

BAL 40

Maximum Product Performance

SLS (Pa) 1500
ULS (Pa) 3700
WATER (Pa) 800

Glazing Details

Single Glazed 3 - 6
Double Glazed 18 - 25
Thick Glazed 8 - 16

Energy Performance

Uw Range 3.9 - 7.09
SHGC Range 0.18 - 0.55
Tvw Range 0.05 - 0.55
Air infiltration 0.04 - 0.44
