AGS Commercial 35 Hook Hinge Awning Sash

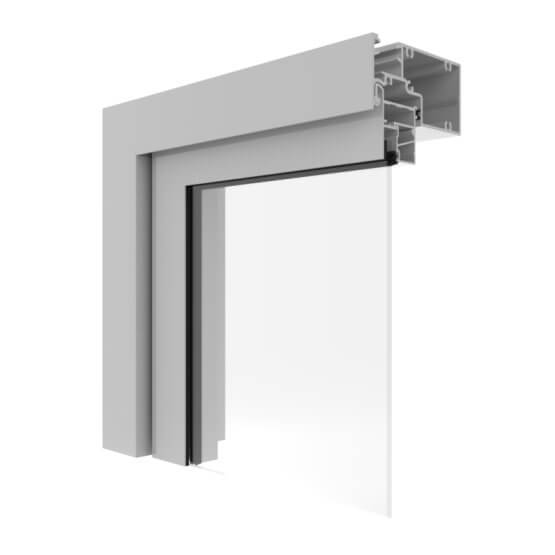

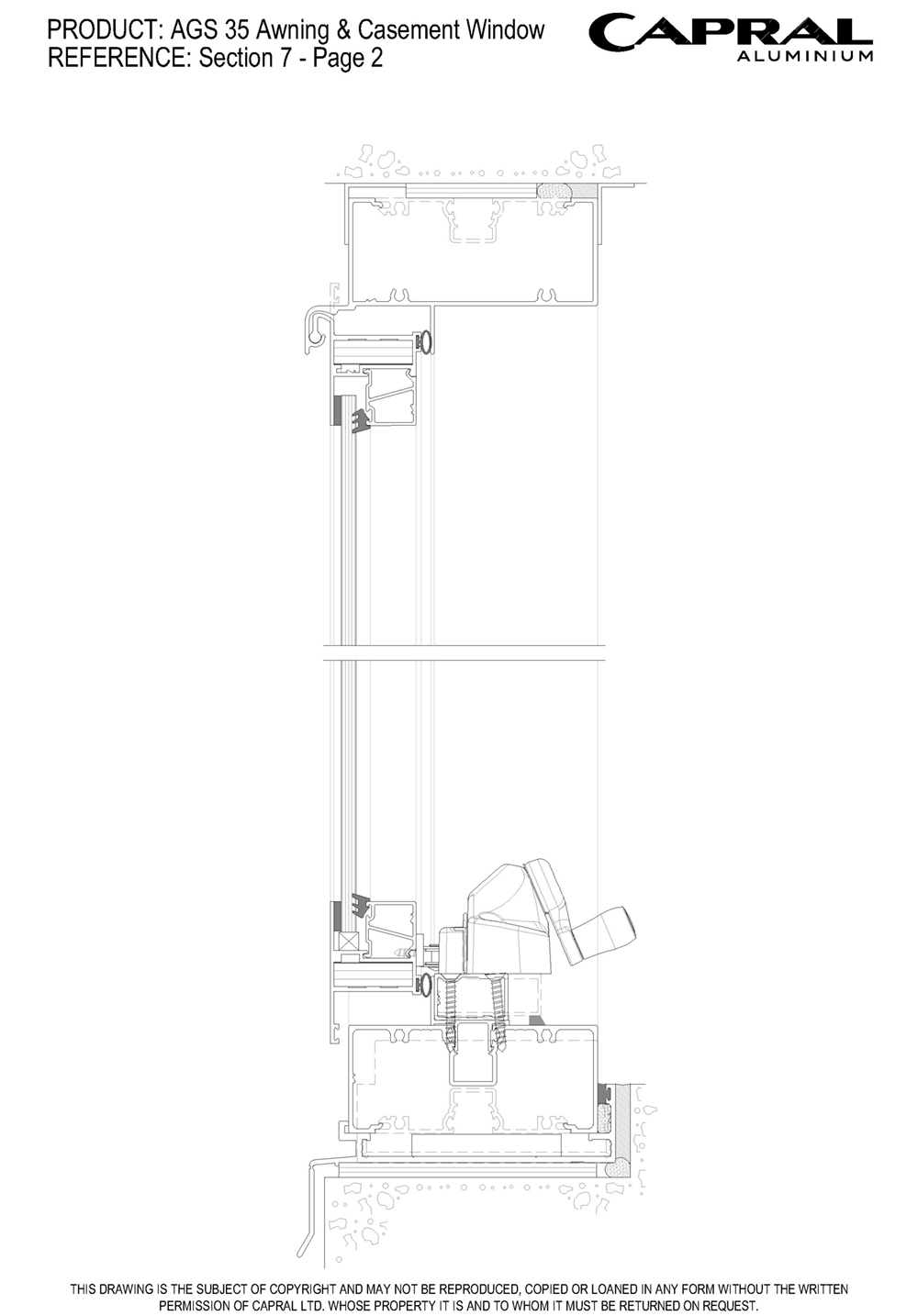

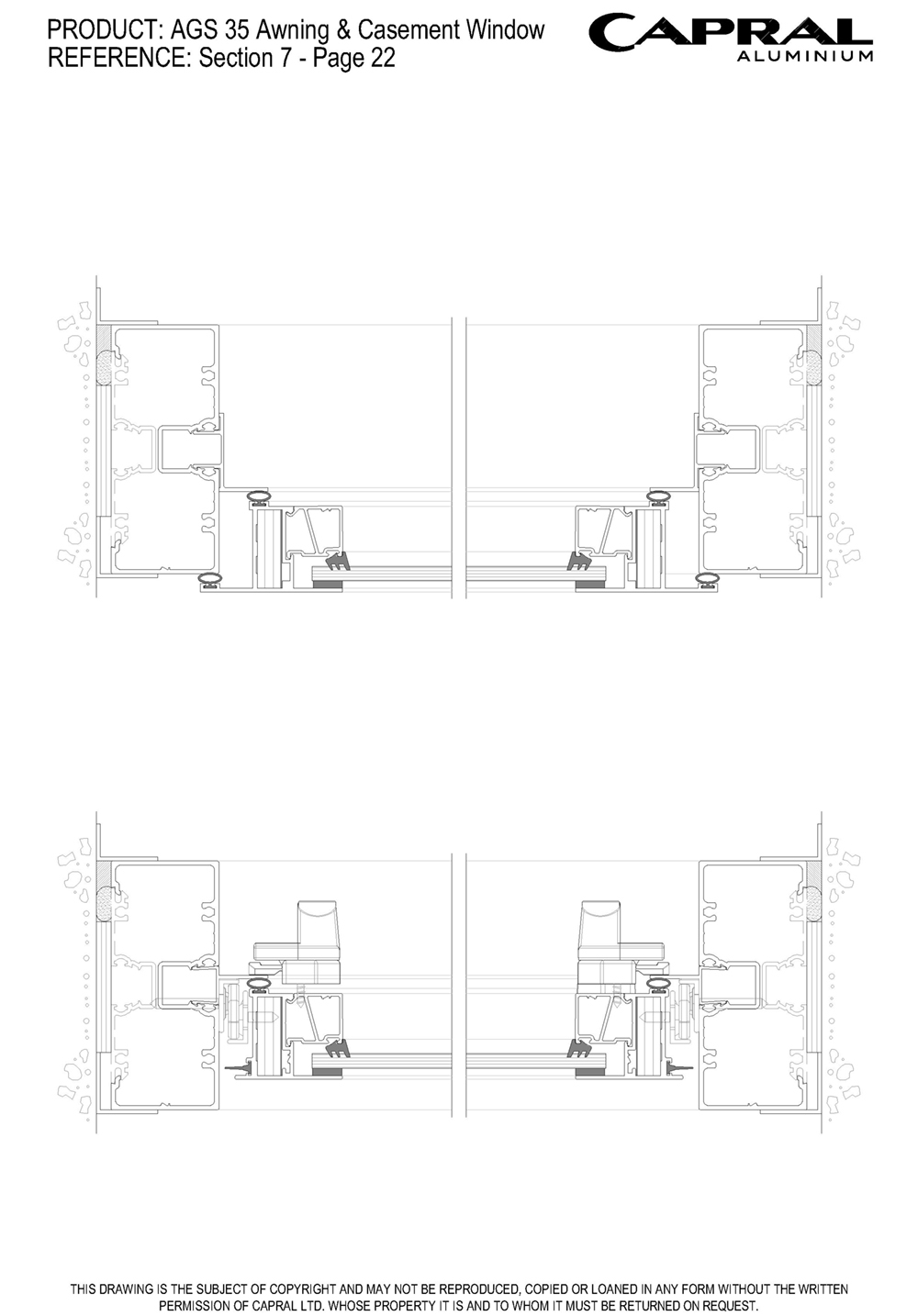

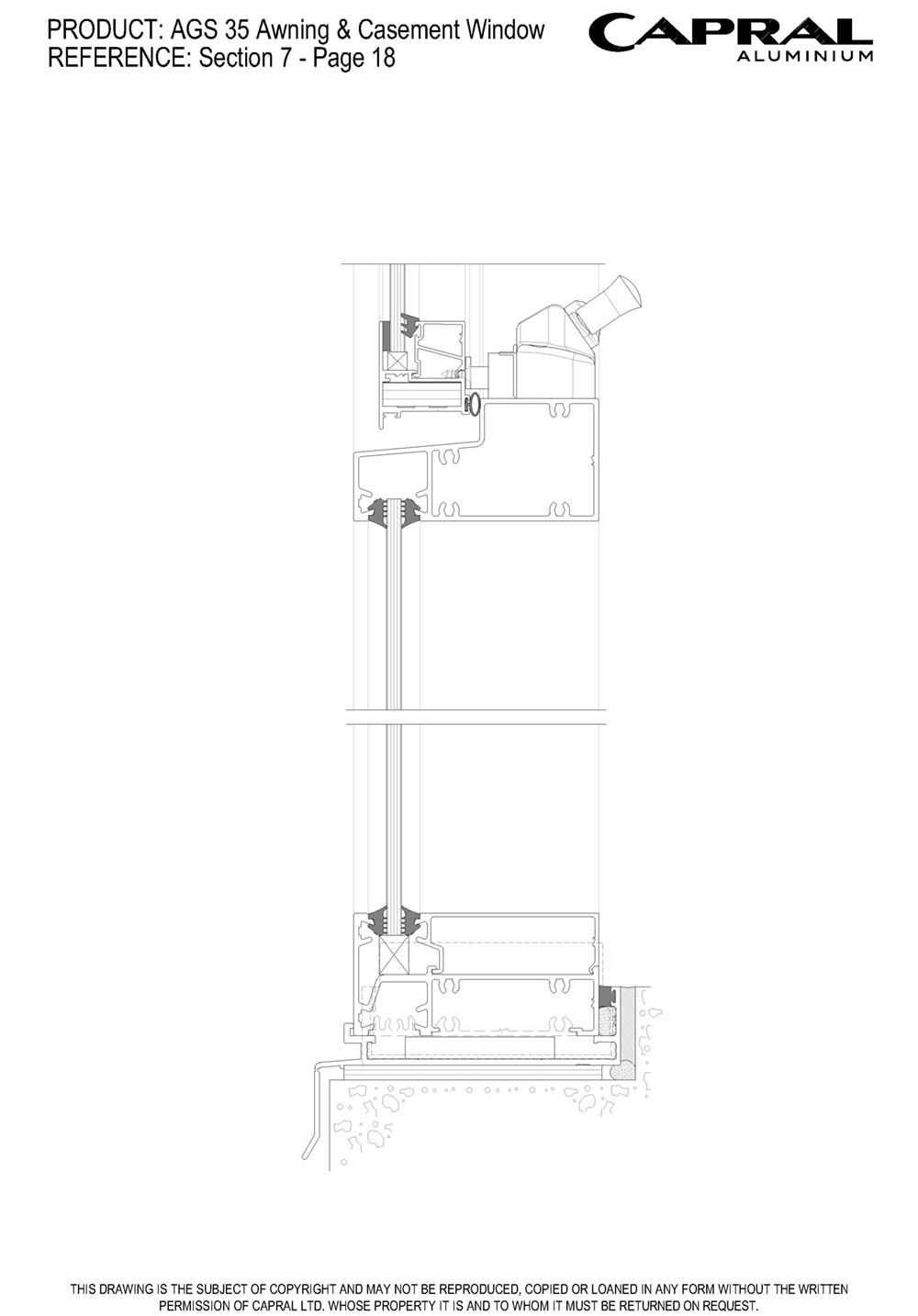

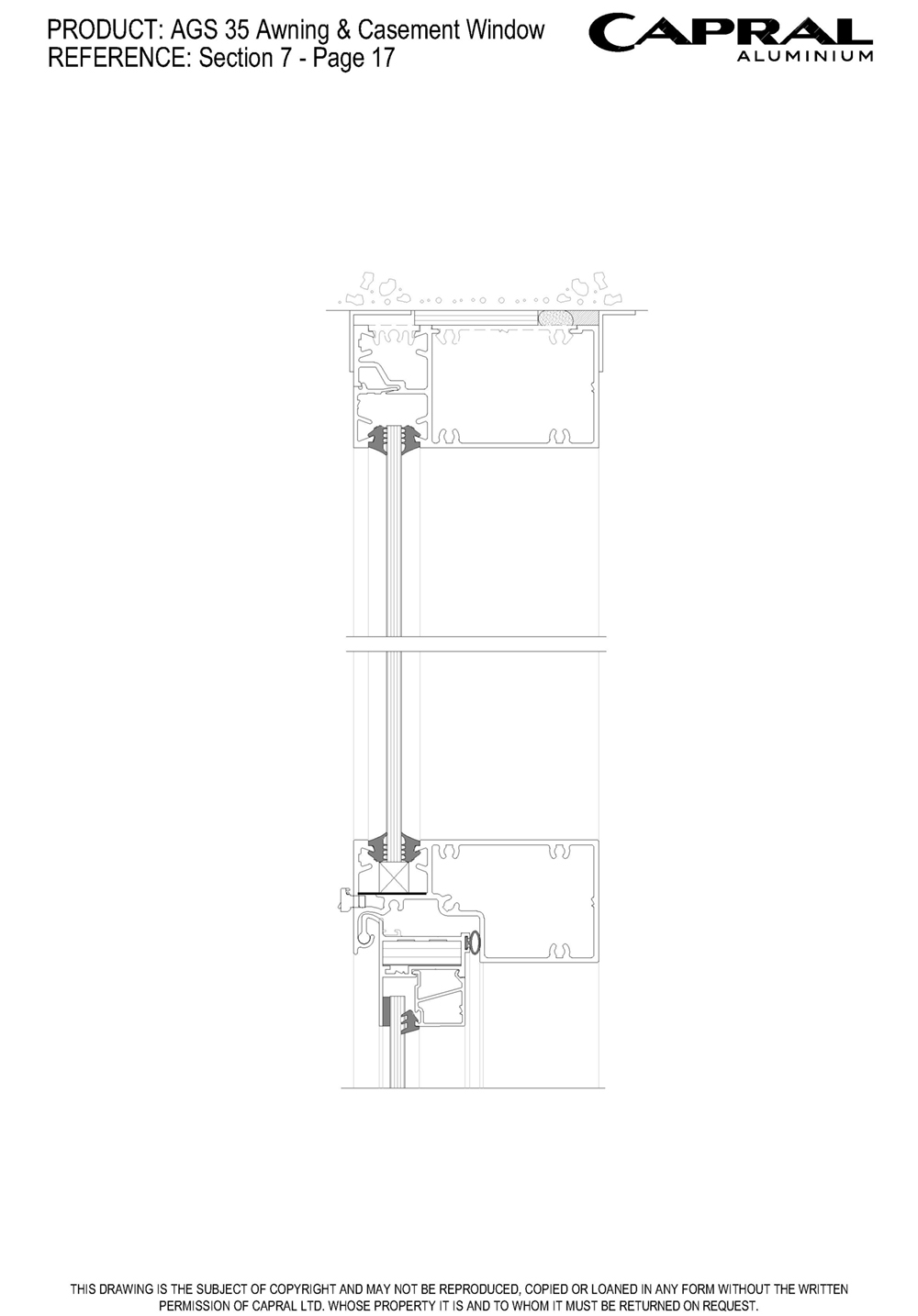

This AGS Commercial Awning Window with Hook Hinge is an operable window sash available for use with AGS commercial framing.
Certified
Rated
Tested
Key features
- Single, thick and double-glazing options
- It suits most commercial and architectural applications
- Compatible with a range of AGS suites
- Rated to BAL-40
- Integrated flyscreen ability
- A high degree of design flexibility
- Square and bevelled sash and bead options
- Continuous hook hinge or stay hinge method

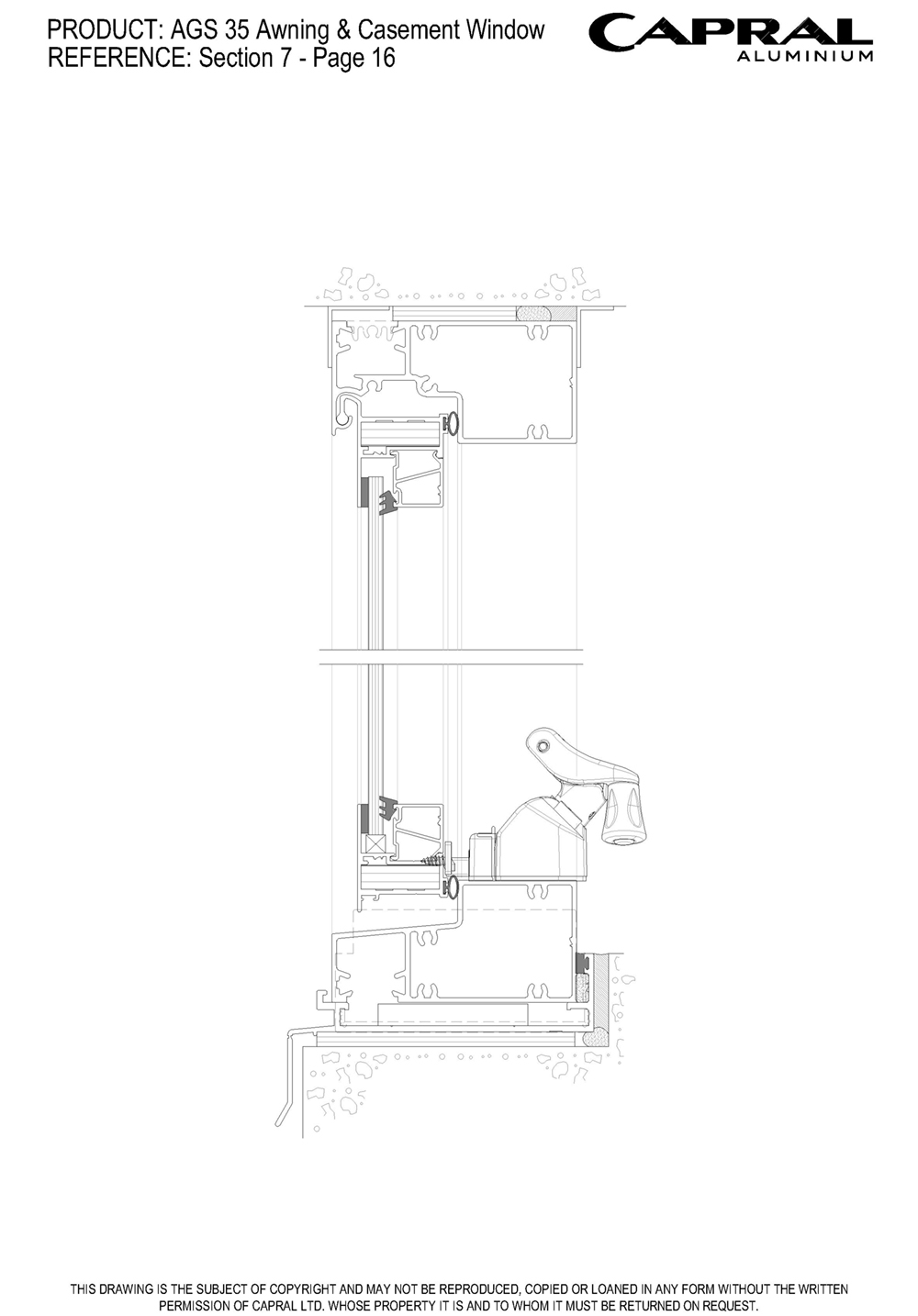

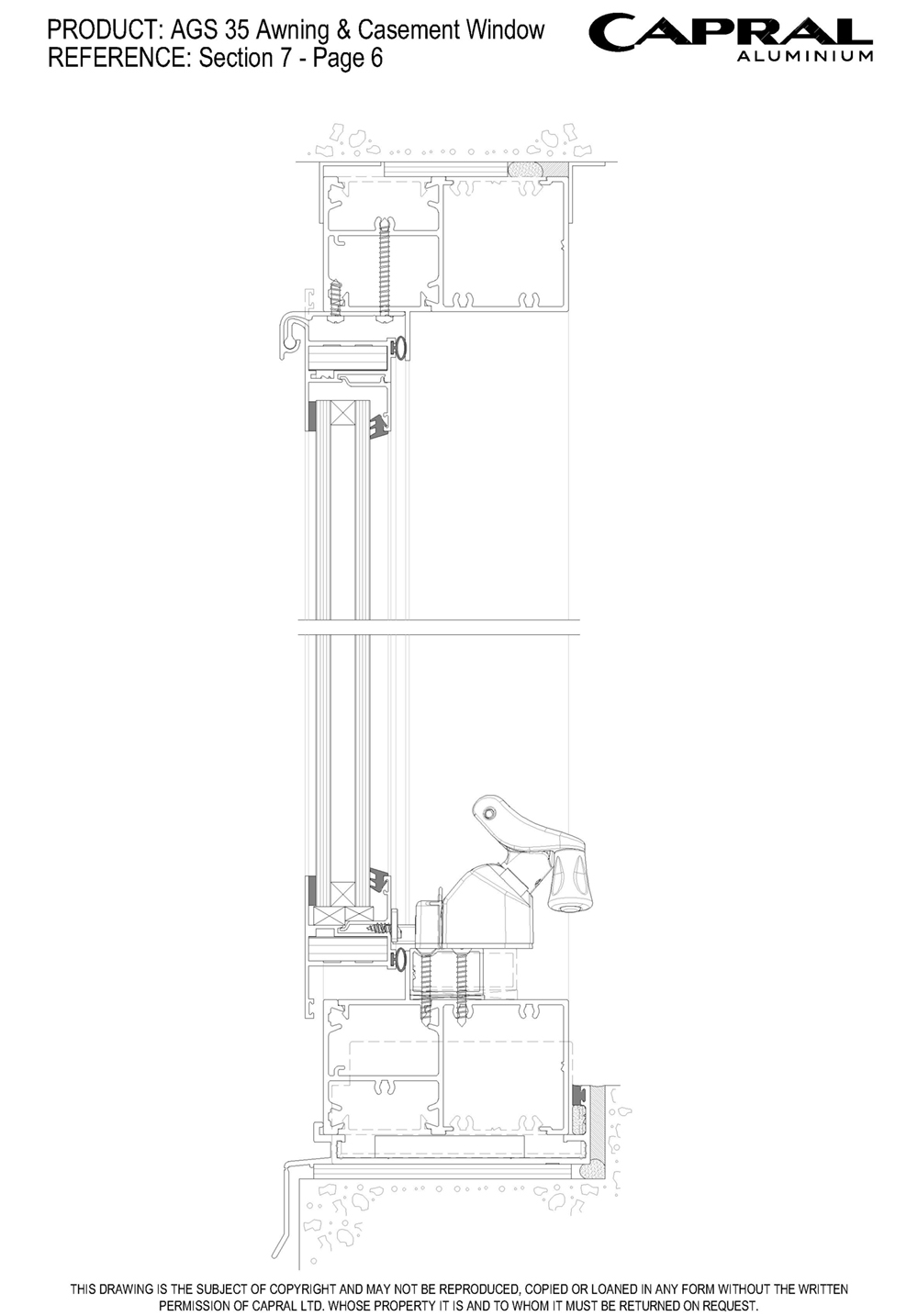

- Inset or overlap options available
- A large range of operating hardware, including automatic options are available
This AGS Commercial Hook Hinge Awning Window is an operable window sash available for use with AGS commercial framing. It may be installed directly into most AGS framing systems.
With a choice of either square or bevelled sash profiles, the double-sealed construction delivers assured weather sealing.
The AGS Commercial Awning Window will accommodate single, thick and double glazing up to a thickness of 25mm.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1800
Panel Width (mm)
1500
Panel Weight (kg)
60
Panel Area (m2)
2.9
Frame Dimensions (mm)

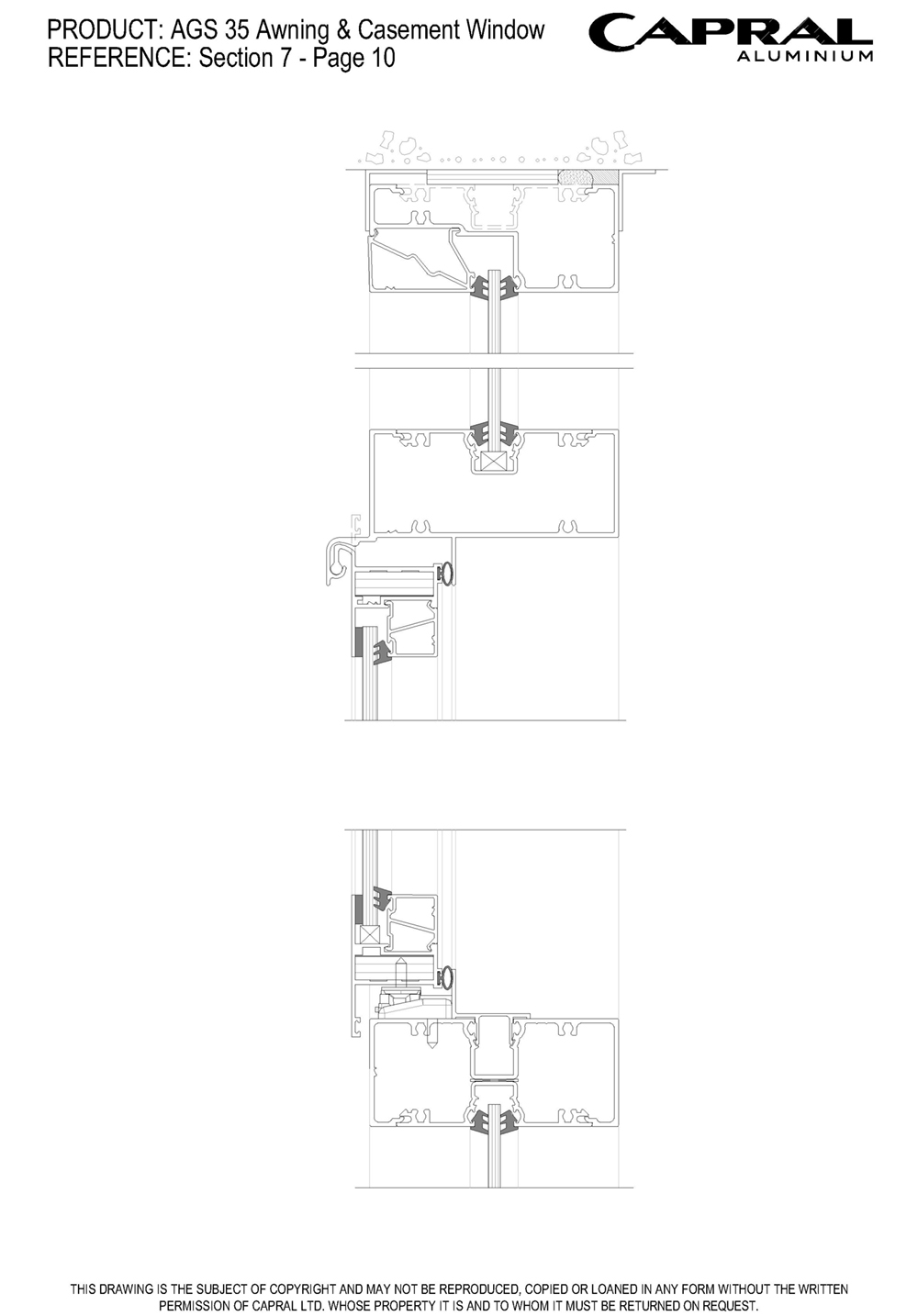

Narrowline
101.6

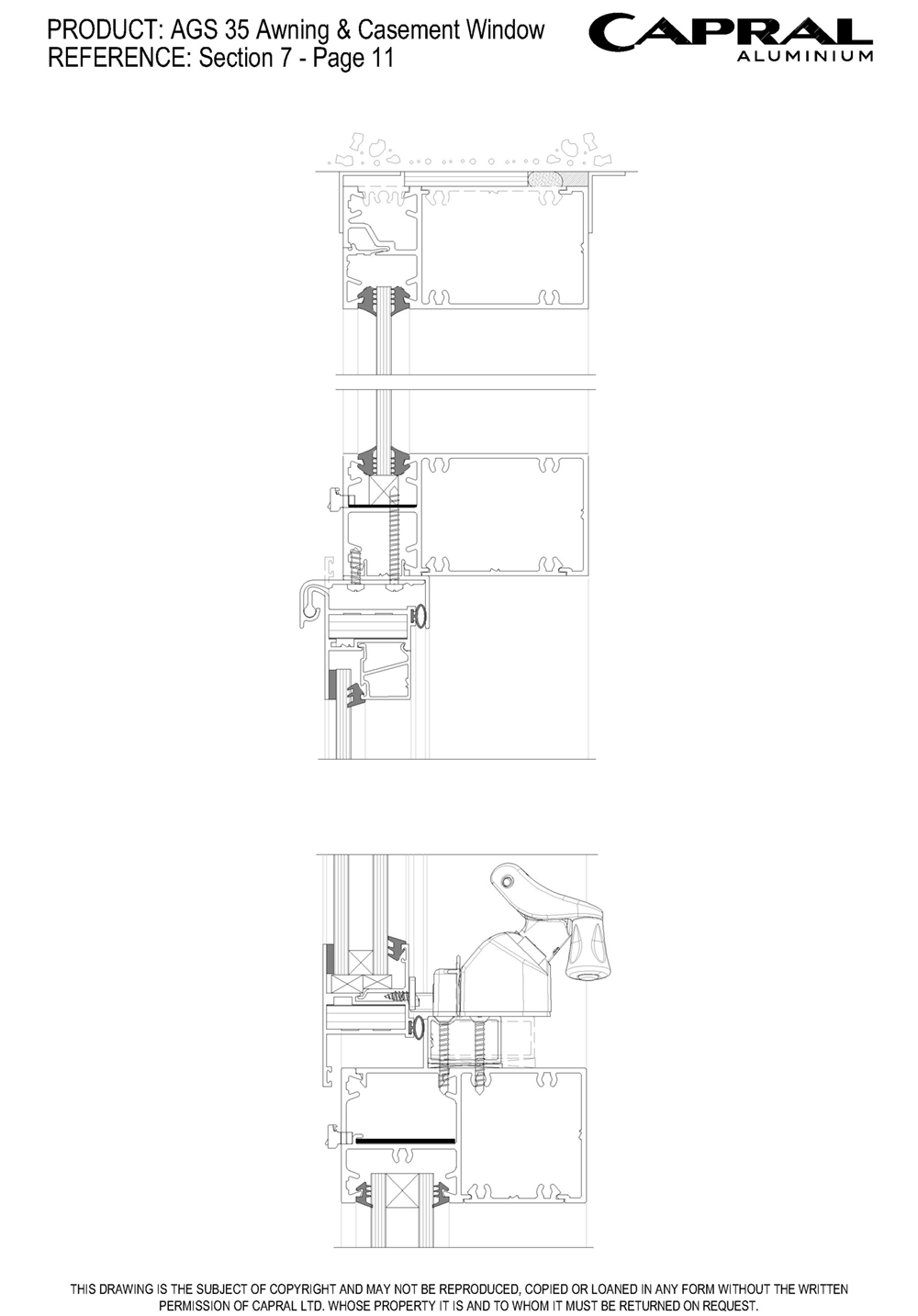

Flushline
100
Acoustic Rating
Rw (C;Ctr)
37 (-1;-3)
Bushfire Rating
BAL
40
Maximum Product Performance
SLS (Pa)
2300
ULS (Pa)
3700
WATER (Pa)
800
Glazing Details
Single Glazed
3 - 6
Double Glazed
18 - 25
Thick Glazed
8 - 16
Energy Performance
Uw Range
3.9 - 7.09
SHGC Range
0.18 - 0.55
Tvw Range
0.05 - 0.54
Air infiltration
0.04 - 0.44
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 35 Awning & Casement Window
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS Projecting Windows
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
Extrusion Wall Chart Capral Screening
CAD Files

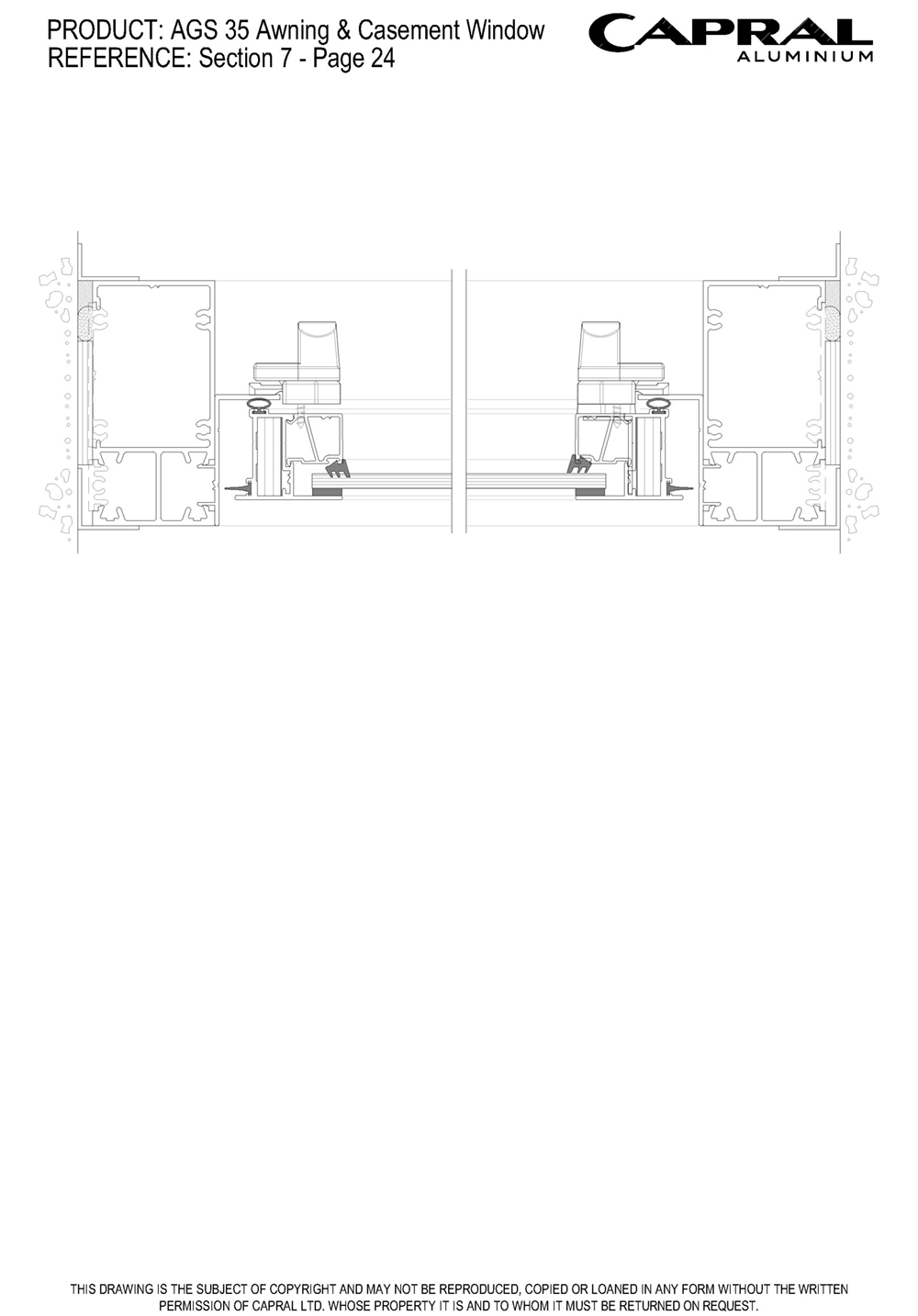

CAD Files AGS 35 Awning & Casement Window
CAD Files AGS Sub Frames
CAD Files Capral Screening
CAD Wall Chart AGS Sub Framing
Bulletins
PB421-Hook Hinge End Cap - AGS 35 and AGS 50
Other
NATSPEC Branded Work Section
Environmental Protection Declaration (EPDs)
