    Home Our Systems Windows Awning AGS Commercial 382 Awning Window
    Commercial

    AGS Commercial 382 Awning Window

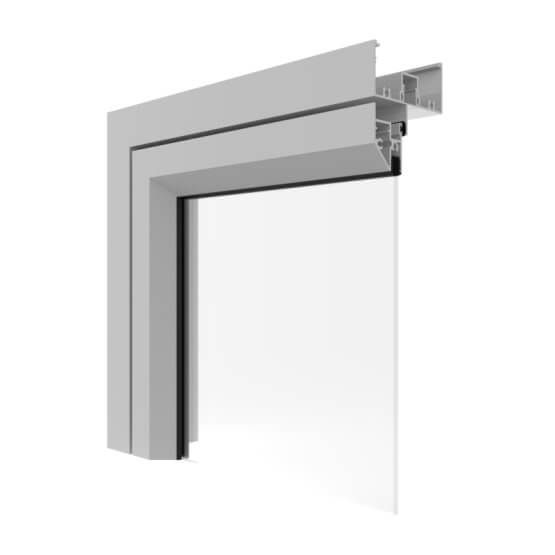

    The 382 Awning Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 300/325 framing systems.

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    Automation
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select
    Key features
    • 76mm Narrowline outer frames for residential, commercial and architectural applications
    • Single and double-glazed options

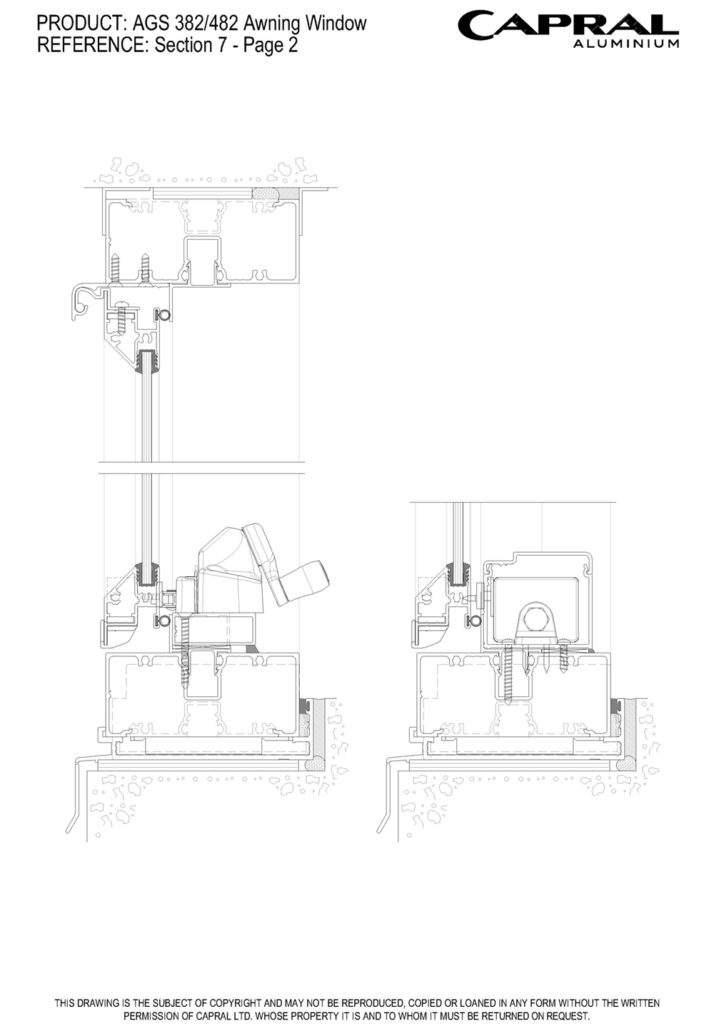

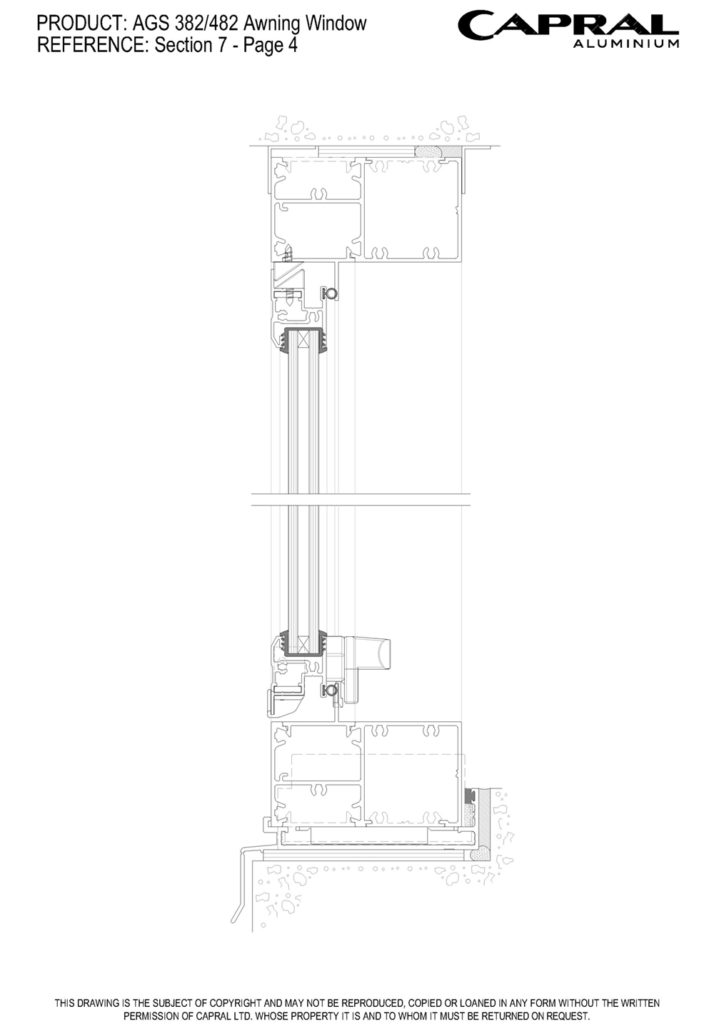

    • Hook hinge & Stay hardware options
    • Electric Awning hardware options are available

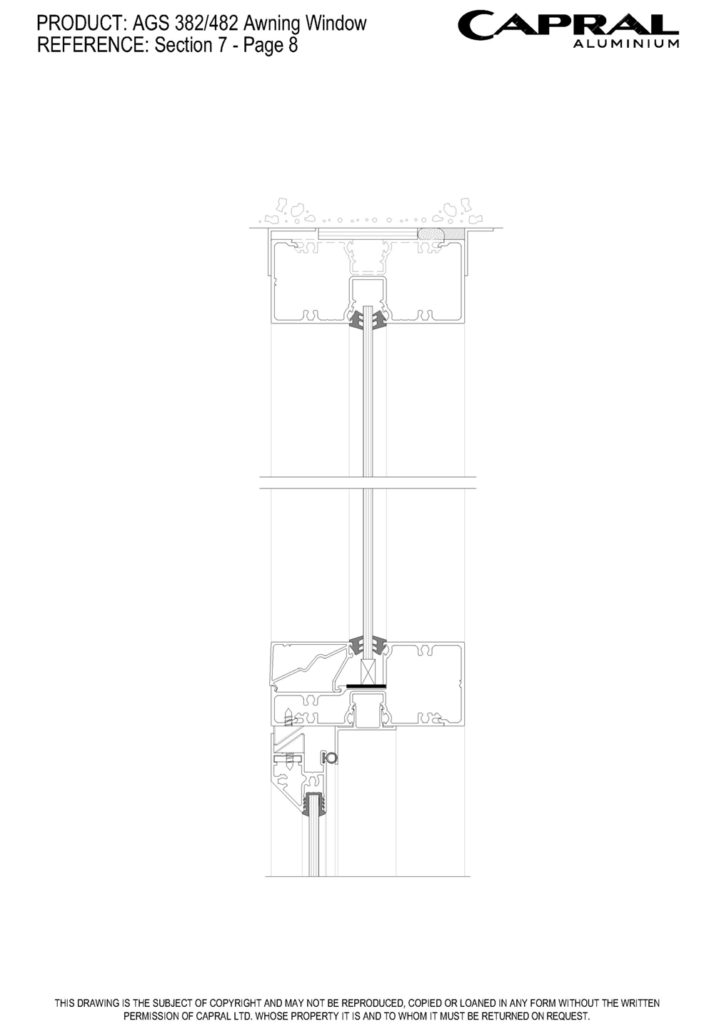

    • Lowlight, sidelight and highlight options are available

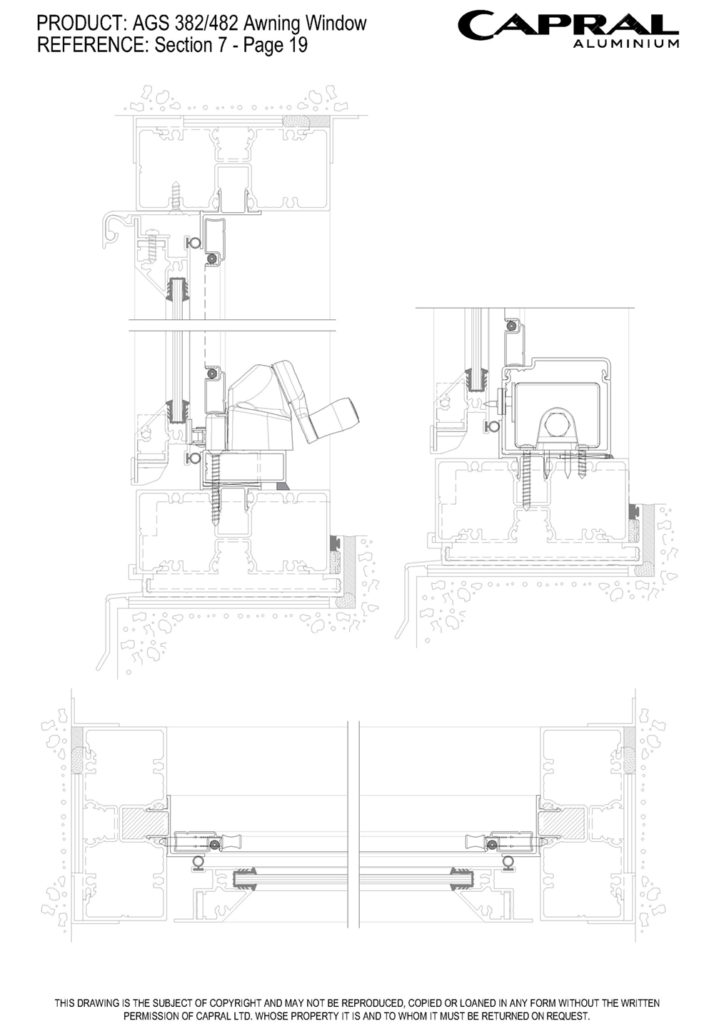

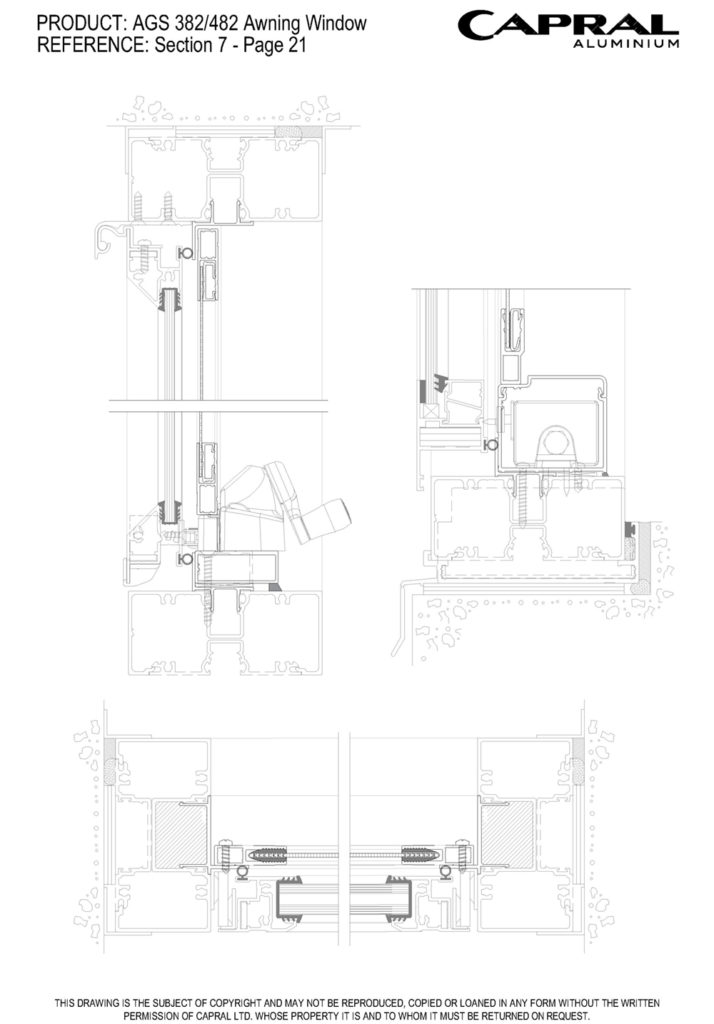

    • Integrated insect and security screening options
    • Exclusively designed components to improve the performance and function of the system

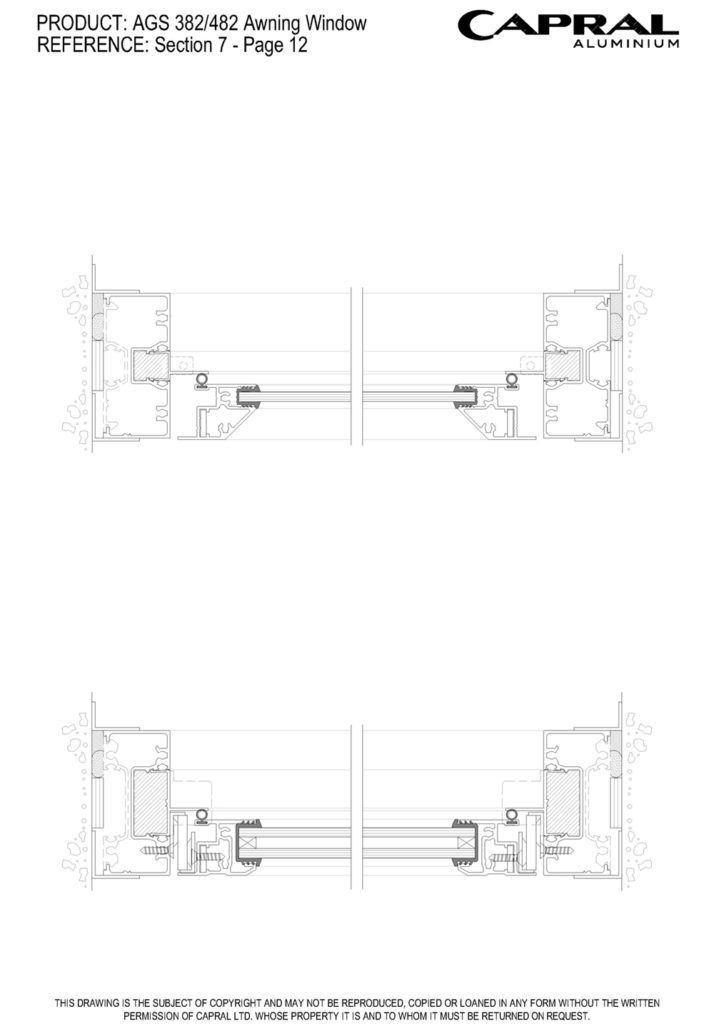

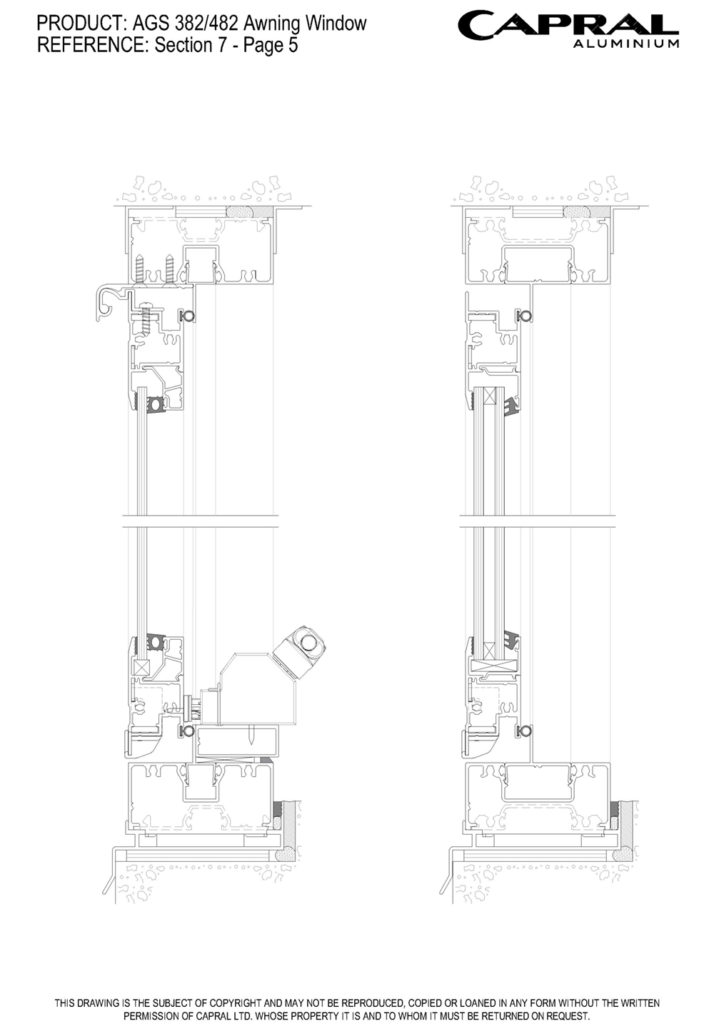

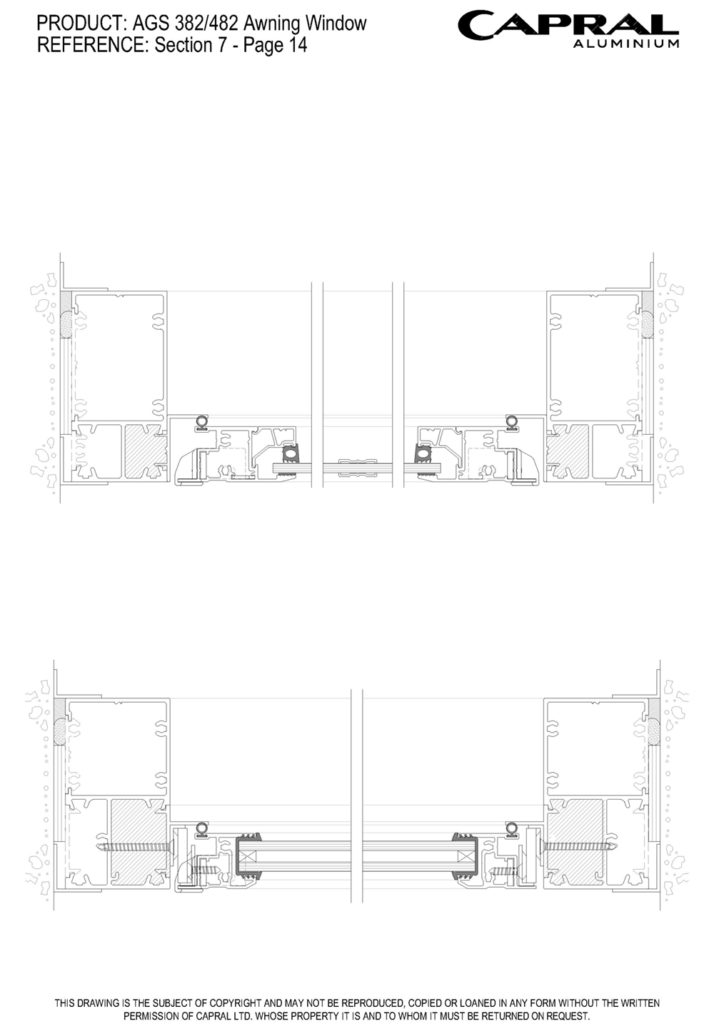

    • Channel and beaded sash options
    • Urban 282 & AGS 482 perimeter frame variations available
    • A variety of lockable hardware is available

    The 382 Awning Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 300/325 framing systems.
    They are particularly suited to residential or architectural applications where a more substantial, commercial appearance is desired.

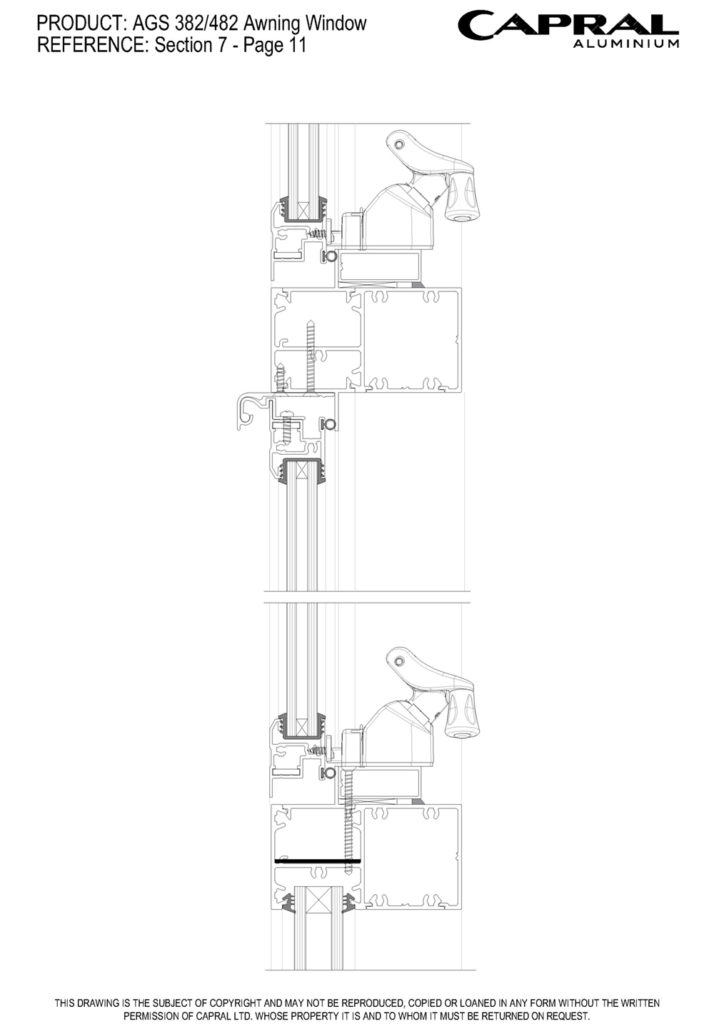

    The 382 Awning windows can be double-glazed to offer enhanced thermal comfort and performance and deliver awning sash functionality in a modern and bold external framing system.

    Download Brochure

    Details

    Product Specs
    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 1500
    Panel Width (mm) 1210
    Panel Weight (kg) 60
    Panel Area (m2) 1.5

    Frame Dimensions (mm)

    Frame depth (mm) 76

    Sash dimensions are 29mm x 41mm Beaded Sash is 29mm x 62mm

    Maximum Product Performance

    SLS (Pa) 2500
    ULS (Pa) 2700
    WATER (Pa) 1000

    Glazing Details

    Single Glazed 3 - 10
    Double Glazed 12 - 18

    Energy Performance

    Uw Range 5.30 - 6.60
    SHGC Range 0.27 - 0.59
    Tvw Range 0.06 - 0.58
    Air infiltration 0.17 - 0.17
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual AGS 382/482 Awning Window
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS Projecting Windows
    Extrusion Wall Chart AGS Speciality Sub Frames
    Extrusion Wall Chart AGS Sub Framing
    Extrusion Wall Chart Capral Screening
    BIM Files
    Revit AGS Commercial 382 Awning Window
    Revit Capral Subframes
    CAD Files
    CAD File AGS 382/482 Awning Window
    CAD Files AGS Sub Frames
    CAD Files Capral Screening
    CAD Wall Chart AGS Sub Framing
    Bulletins
    PB300 - AGS Hollow Sub Heads
    Other
    Capral AGS 382-482 Awning Window Brochure Specification AGS 382 482 Awning Window Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
