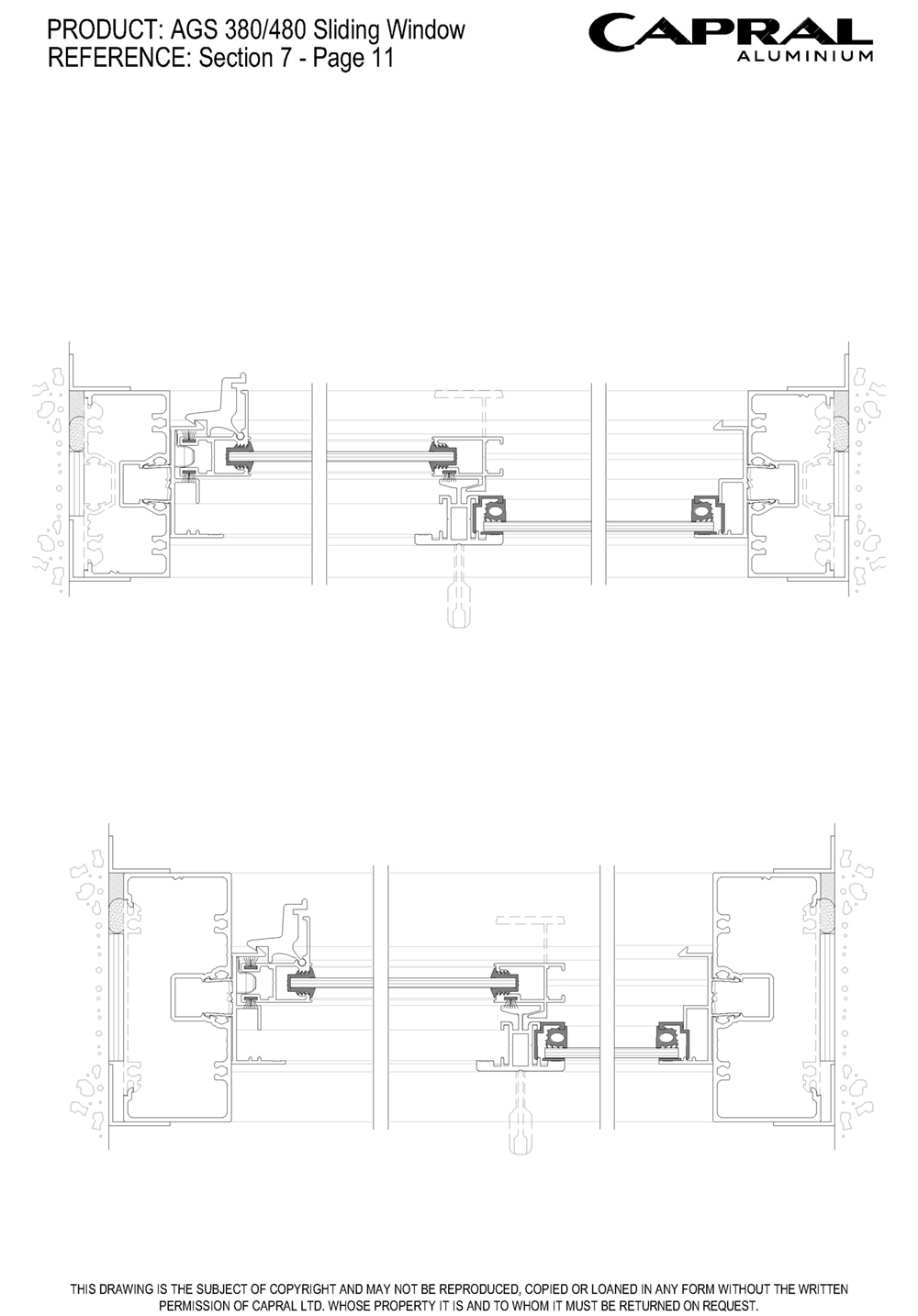

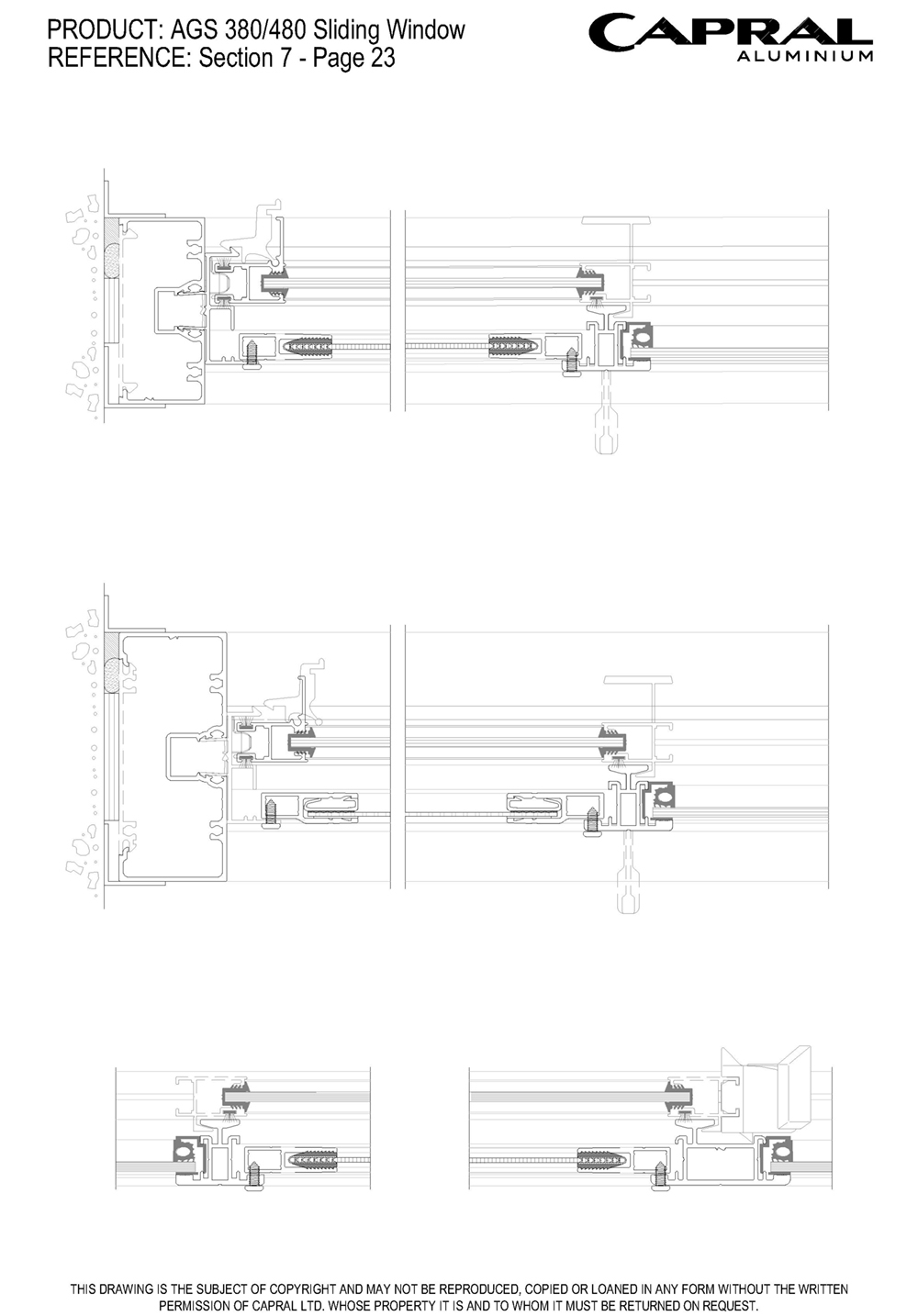

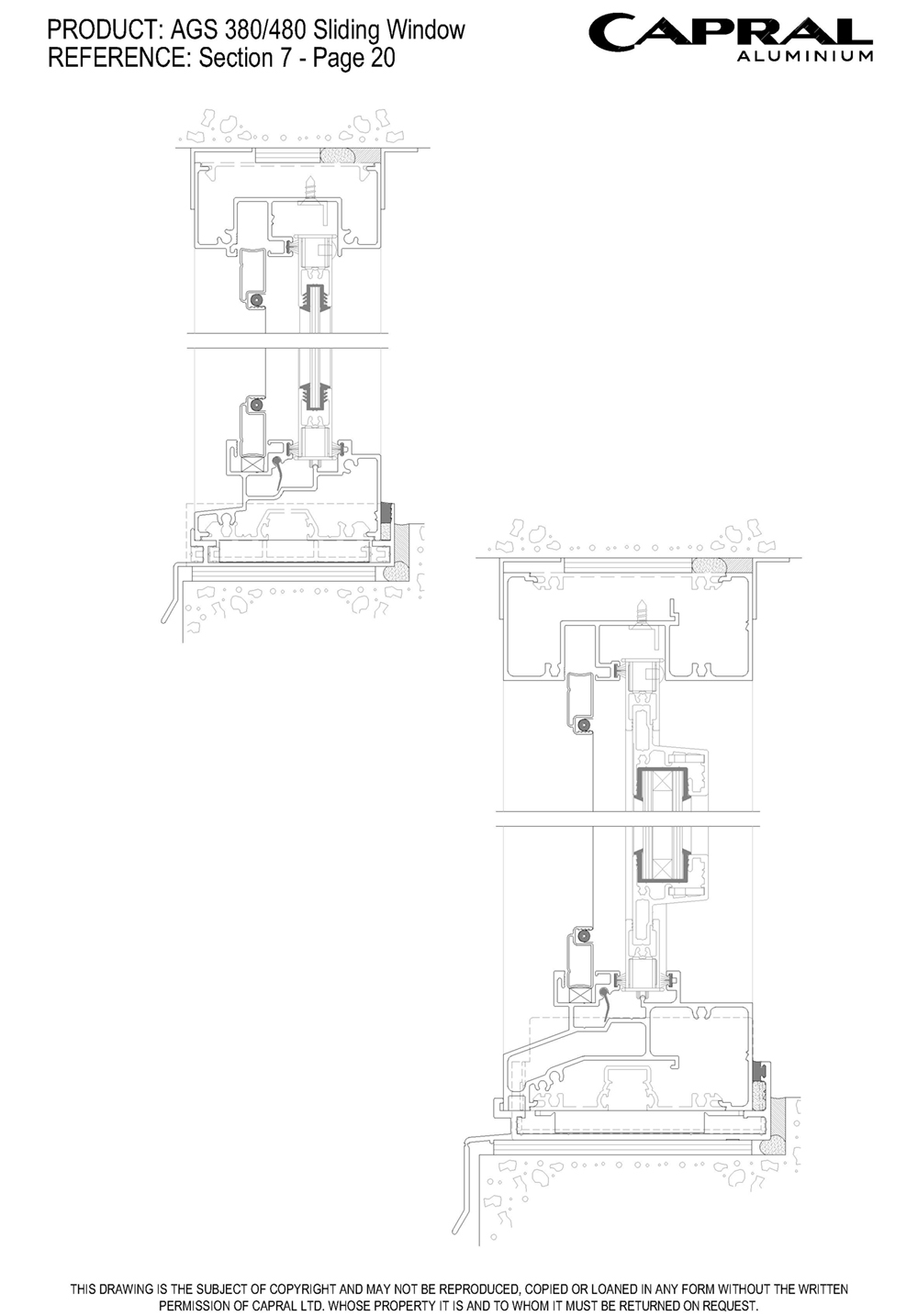

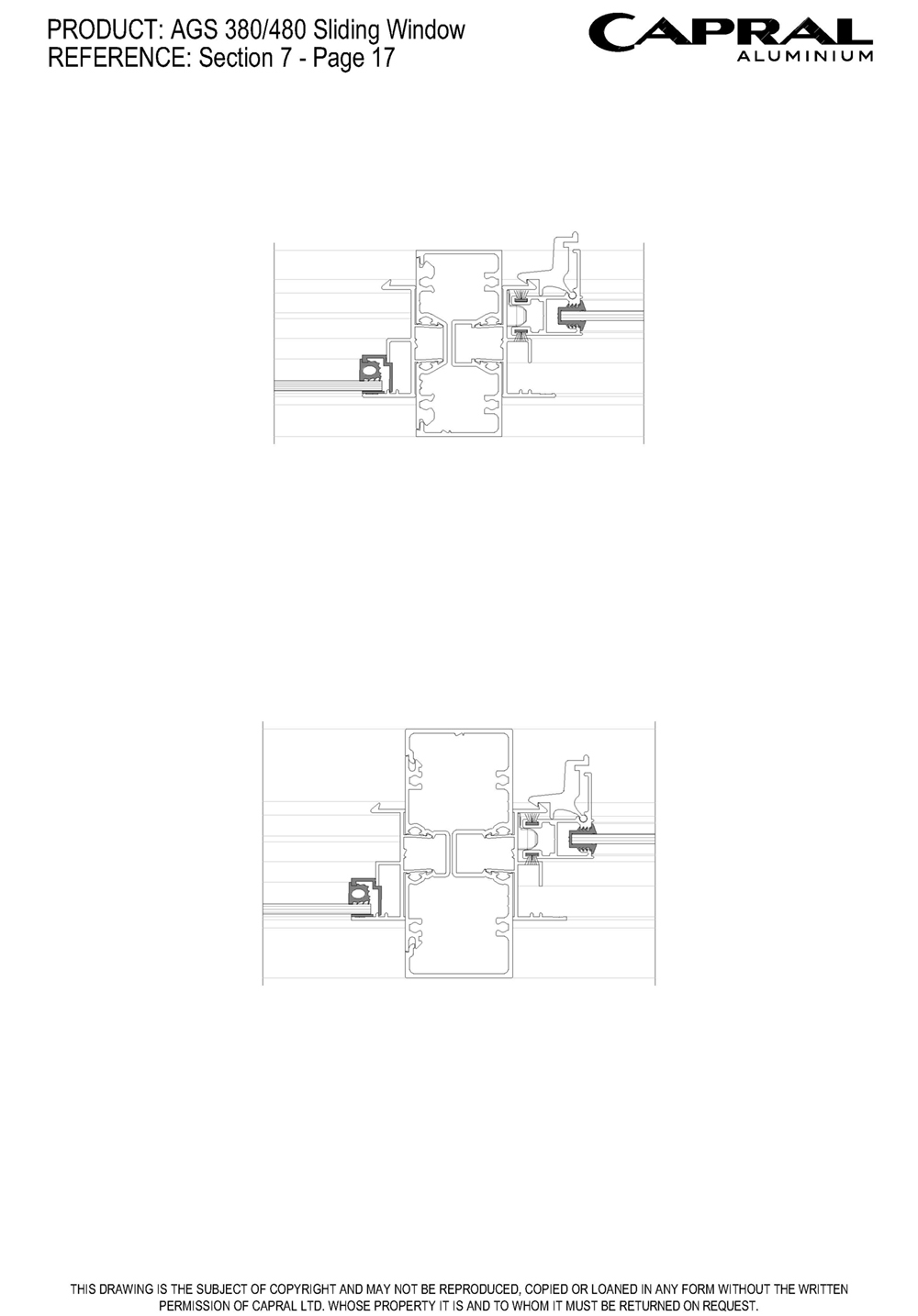

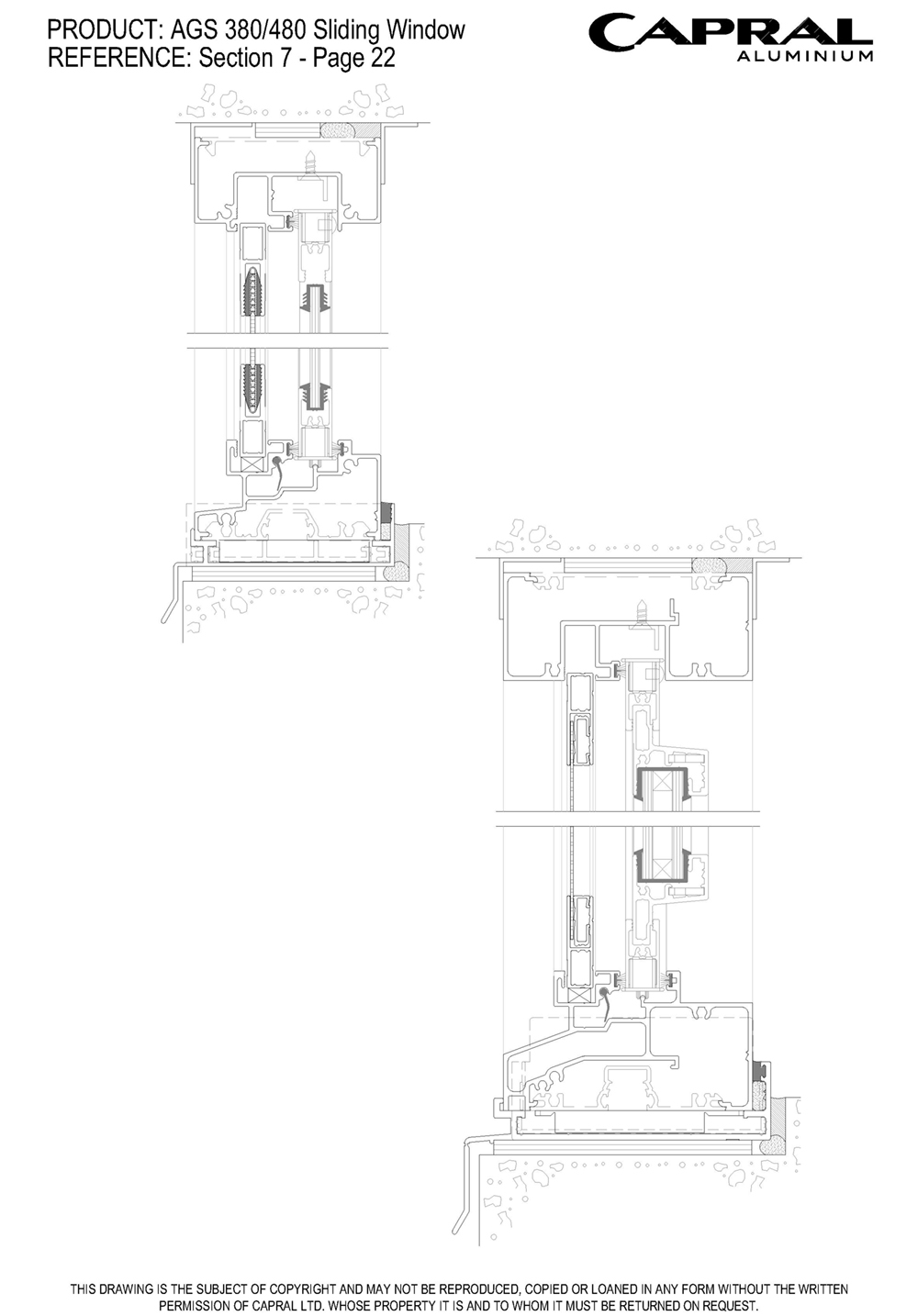

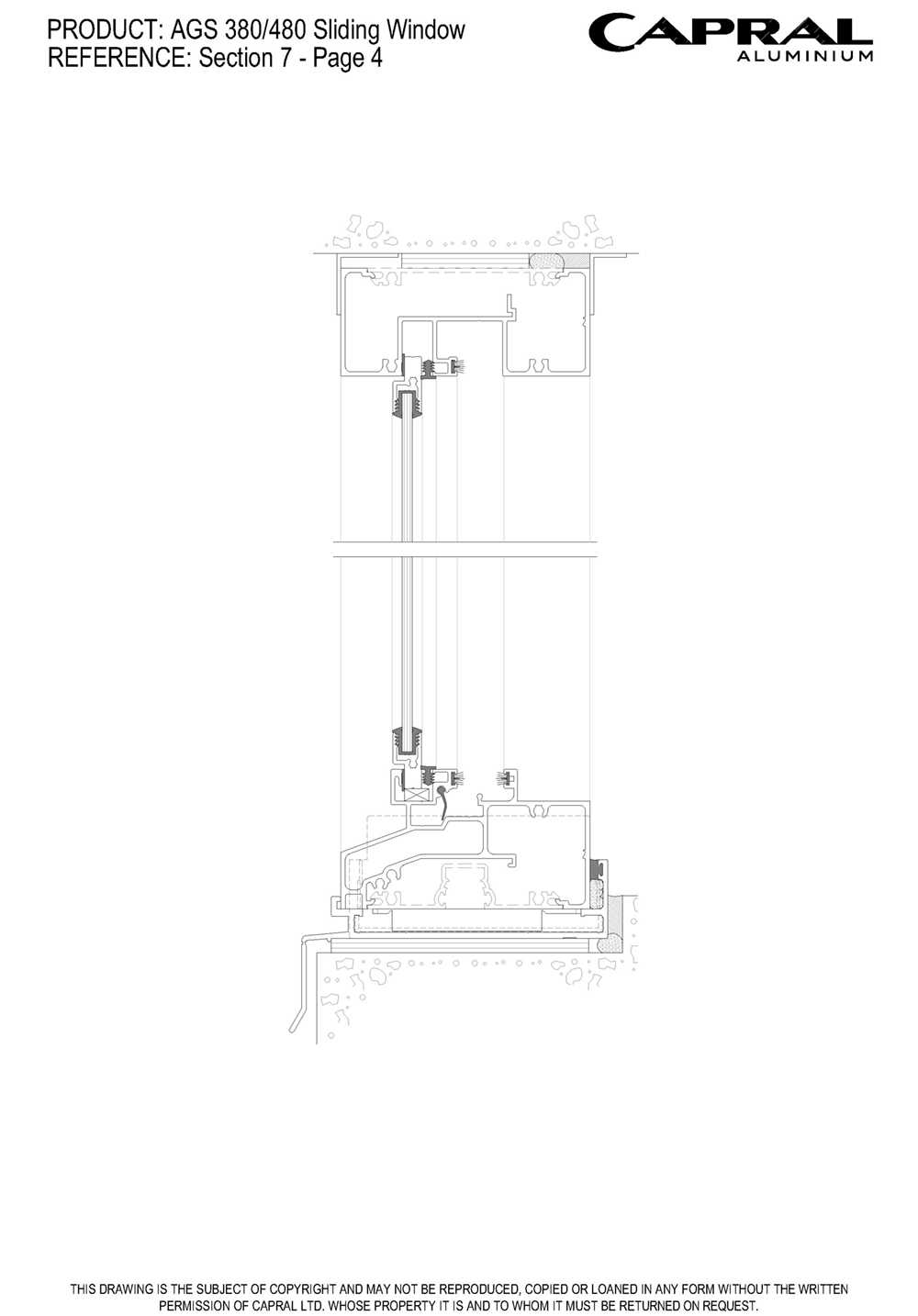

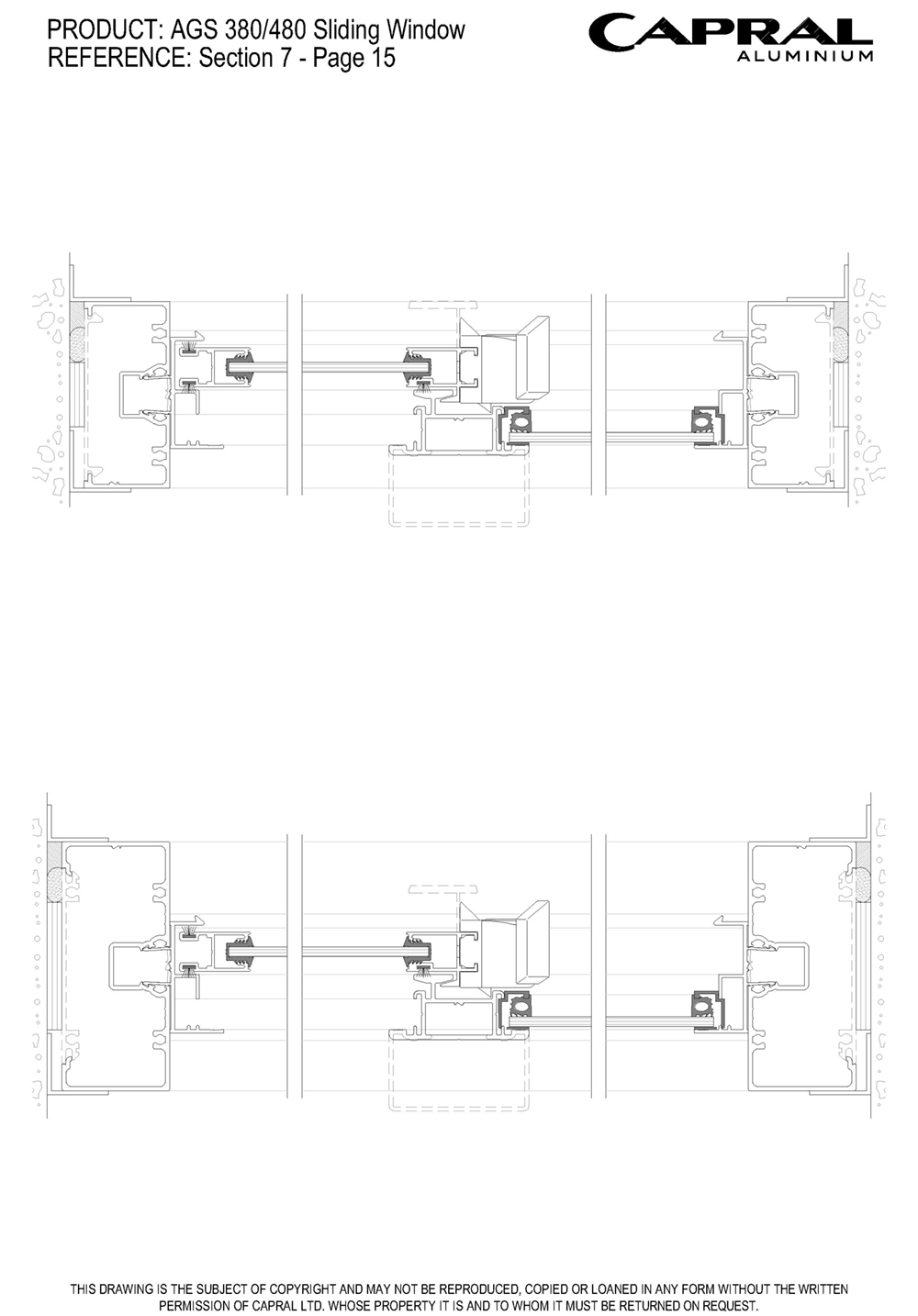

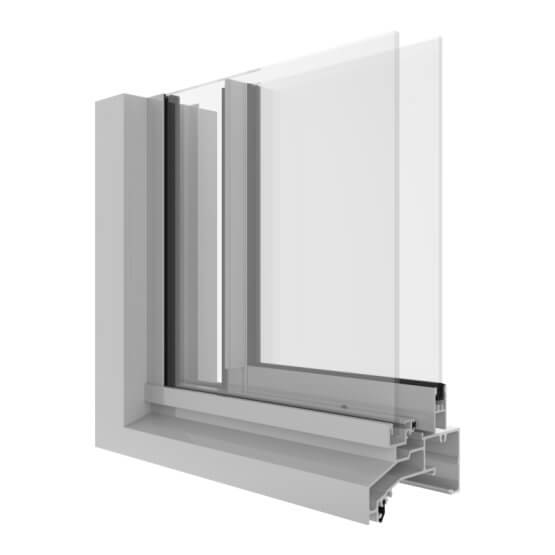

AGS Commercial 480 Sliding Window (101.6mm)
The AGS 480 Sliding Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400/425 Narrowline framing systems.
Certified
Rated
Key features
- 101.6mm Narrowline outer frames for residential, commercial and
- architectural applications
- Single and double glazed sash options
- Slider-over-slider functionality
- Integrated head and sill design for neat, clean appearance
- Adjustable rollers and height adjustable lockable latching option

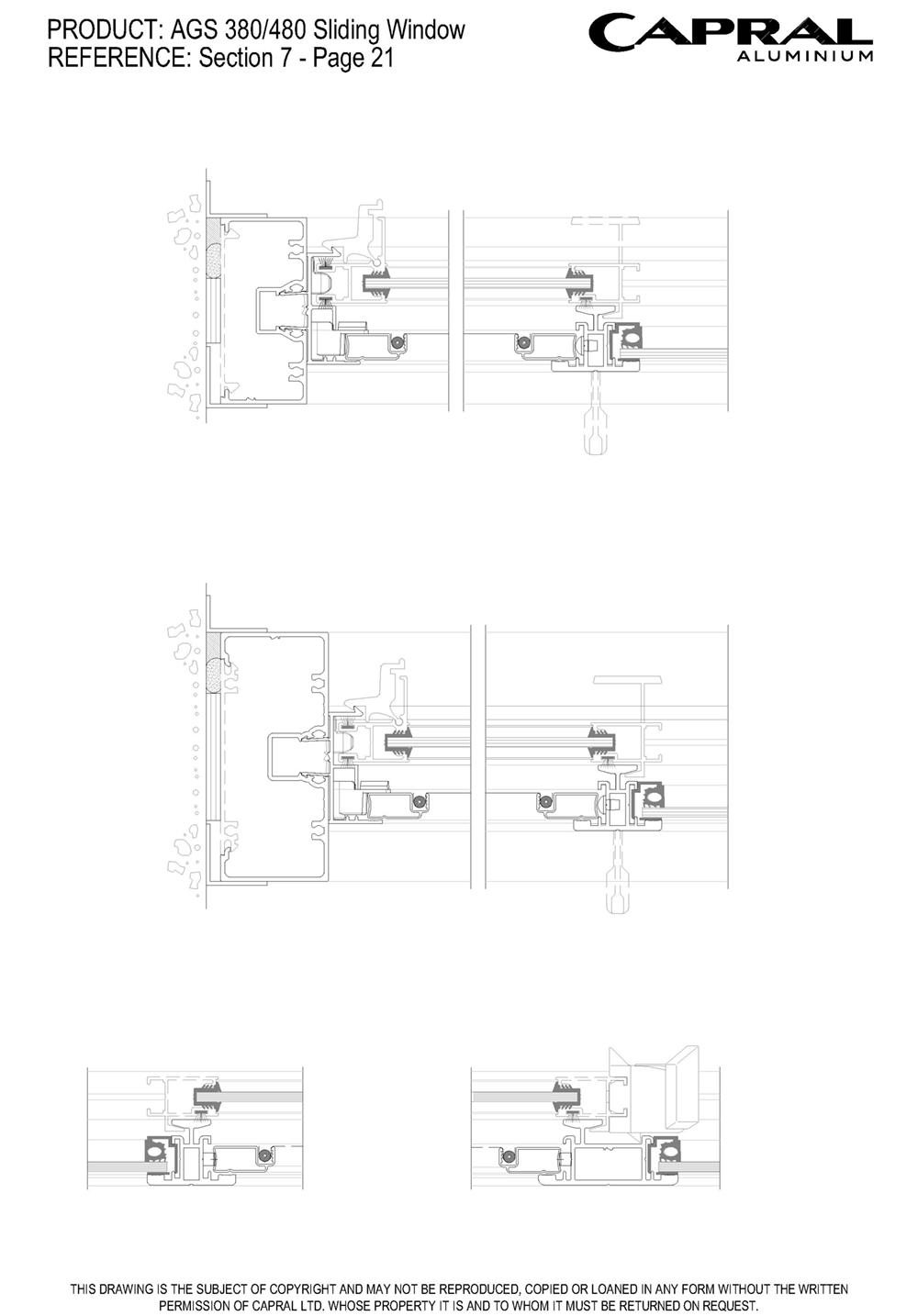

- Integrated insect and security screening options
- Compatible with AGS 400/425 Narrowline suites
- Urban 280 & AGS 380 perimeter frames also available
- Lockable hardware options.
The 480 Sliding Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400/425 Narrowline framing systems. It is particularly suited to architectural applications where a more substantial, commercial appearance is desired.
The AGS 480 Sliding Windows deliver a neat, streamlined appearance with its squared mullions and glazing beads. With adaptors this sliding window can be double-glazed to offer enhanced thermal comfort and performance.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1500
Panel Width (mm)
1200
Panel Weight (kg)
42
Frame Dimensions (mm)
Frame depth (mm)
101.6
Acoustic Rating
Rw (C;Ctr)
33 (0;-2)
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
11200
WATER (Pa)
450
Glazing Details
Single Glazed
3 - 6
Double Glazed
10,16 - 18
Energy Performance
Uw Range
3.84 - 6.93
SHGC Range
0.21 - 0.69
Tvw Range
0.07 - 0.71
Air infiltration
0.61 - 0.61
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 380/480 Sliding Window
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS Glazing Adaptors, Sliding & Double Hung Windows
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
Revit AGS Commercial 480 Sliding Window (101.6mm)
CAD Files
CAD Files AGS 380/480 Sliding Window
CAD Files AGS Sub Frames
CAD Files Capral Screening
CAD Wall Chart AGS Sub Framing
CAD Wall Chart Capral Screening
Bulletins
PB300 - AGS Hollow Sub Heads
Other
Capral AGS 380 480 Sliding Window Brochure
Specification AGS 380 480 Sliding Window
Architectural Series White paper
Capral Installation Details
Environmental Protection Declaration (EPDs)
Compatible Products
AGS Commercial 400 Narrowline Single Glazed (101.6mm)The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.
AGS Commercial 425 Narrowline Double Glazed (101.6mm)The AGS 425 Narrowline framing system was developed specifically to cater for the growing requirement for energy-efficient double glazing.
AGS Commercial 225 Hinged DoorThe AGS 225 Hinged Door is a 46mm pocket glazed commercial door panel capable of delivering flexibility, performance and ease of assembly in mind.
AGS Commercial 215 Hinged DoorThe AGS 215 Door is a 36mm pocket glazed hinged door panel designed to meet the market demand for a cost-effective hinge door while still having the key attributes of a commercial hinged door
More products from this range
AGS Commercial 900 High Performance Sliding DoorA true commercial sliding door designed for high-traffic areas delivering bold panel sizes and exceptional performance.
AGS Commercial 619 Single Glazed (150mm)Flushline AGS619 is the new name for the product formerly known as Flushline 419SG 150mm x 50mm. The AGS 619 Flushline offers a clean and modern external appearance.
AGS Commercial 215 Hinged DoorThe AGS 215 Door is a 36mm pocket glazed hinged door panel designed to meet the market demand for a cost-effective hinge door while still having the key attributes of a commercial hinged door
AGS Commercial 482 Awning WindowThe 482 Awning Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400/425 Narrowline framing systems and 100mm Flushline framing systems.
AGS Commercial 601 Narrowline Offset Single Glazed (150mm)The AGS 601 Narrowline framing system delivers increased structural performance with the 150mm frame depth while maintaining a typical external appearance.
AGS Commercial 419 Flushline Single Glazed (100mm)The AGS 419 Flushline is a 100mm, single glazed, flush-glazed framing system offering a clean and modern external appearance.
AGS Commercial 629 Flushline Double Glazed (150mm)Flushline AGS629 is the new name for the product formerly known as Flushline 419DG 150mm x 55mm. This system was developed to accommodate both internal and external glazing.
AGS Commercial 380 Sliding Window (76mm)The AGS 380 Sliding Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 300/325 Narrowline framing systems.
Not quite what you’re looking for? Consider...
AGS Commercial 380 Sliding Window (76mm)The AGS 380 Sliding Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 300/325 Narrowline framing systems.
AGS Commercial 950 Sliding WindowThe AGS 950 Sliding Window system has been engineered to deliver high strength and performance. It has been tested to cyclonic requirements and can have large sash sizes and numerous configurations.
Futureline Horizontal Sashless WindowThe Futureline Horizontal Sashless Window is a sleek, modern take on the traditional sliding window.
Urban Plus 390 Sliding WindowThe Urban Plus Sliding window delivers contemporary styling, strength, and performance, making it an ideal solution for high-end architectural applications.
Urban 280 Sliding WindowThe Urban Sliding Window suite offers a neat, streamlined appearance with its squared mullions and glazing beads. Ideal for use in residential building projects.
Projects that use this system

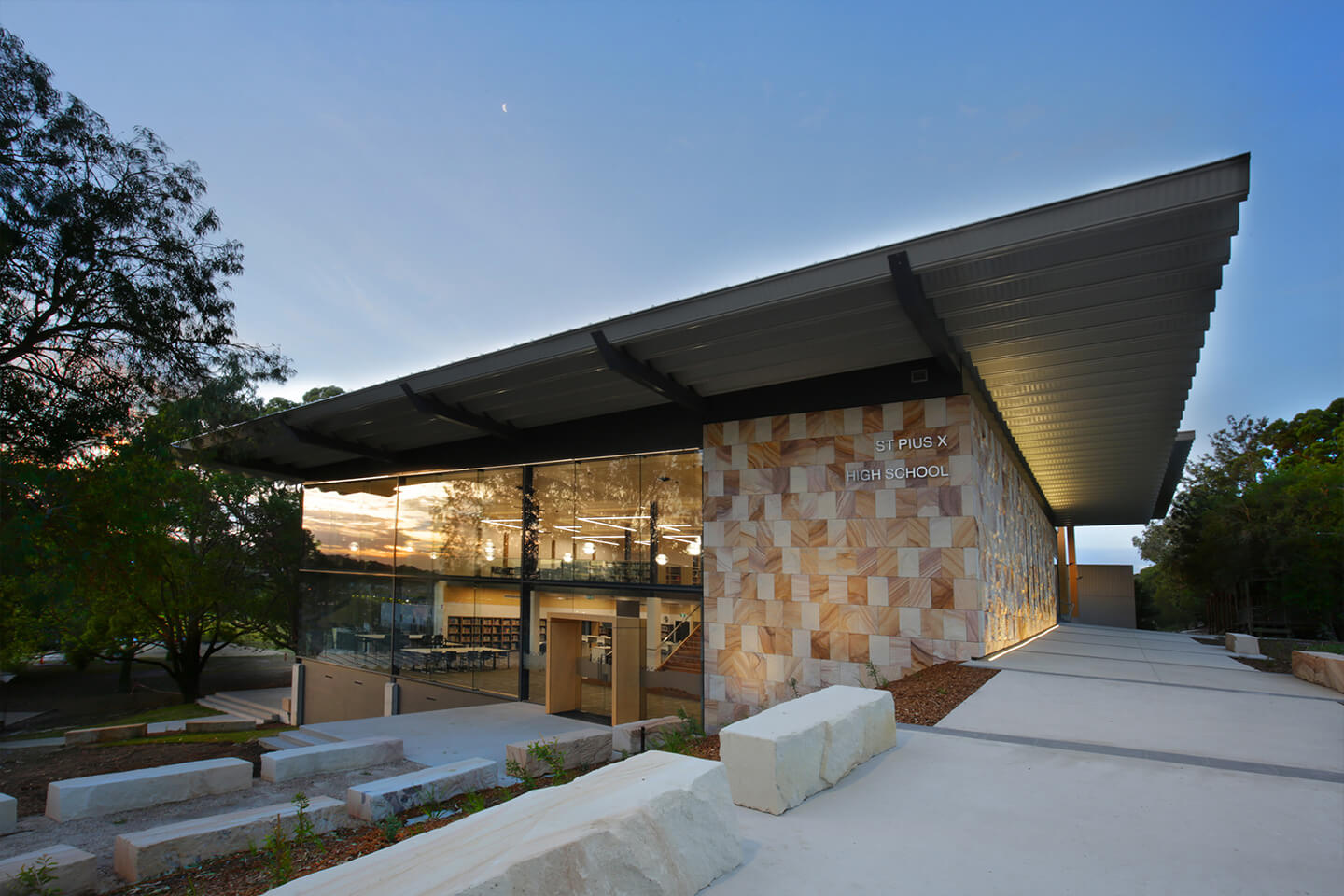

St Pius X High School
