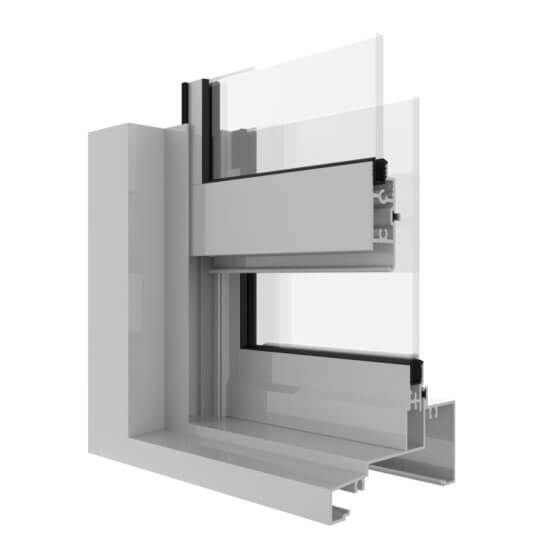

AGS Commercial 481 Double Hung Window
The AGS 481 Double Hung window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400 Narrowline framing system.
Certified
Rated
Key features
- Bold 101.6mm outer frame for commercial and architectural applications
- Integrated head and sill design for neat, clean appearance
- Lockable hardware options
- Continuous integrated finger pulls for ease of operation
- Compatible with a range of AGS suites
The AGS 481 Double Hung window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400 Narrowline framing system.
The AGS 481 Double Hung is particularly suited to architectural applications where a more substantial, commercial appearance is desired. Featuring a 200 Pascal water performance and accepting single glazing up to 6.38mm, the AGS 481 Double Hung also incorporates standard features such as full-width integrated finger pulls on the upper and lower sashes, which aid the ease of operation and delivers double sash functionality in a modern and bold external framing system.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1200
Panel Width (mm)
1200
Panel Weight (kg)
22
Frame Dimensions (mm)
Frame depth (mm)
101.6
Acoustic Rating
Rw (C;Ctr)
31(-1;1)
Maximum Product Performance
SLS (Pa)
3000
ULS (Pa)
4500
WATER (Pa)
200
Based on 481 & 281 test data
Glazing Details
Single Glazed
3 - 6
Double Glazed
10,16 - 18
Energy Performance
Uw Range
3.68 - 6.52
SHGC Range
0.23 - 0.67
Tvw Range
0.07 - 0.67
Air infiltration
0.39 - 0.61
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 481 Double Hung Window
Technical Manual SGS 400 Narrowline
Technical Manual AGS Sub Frames
Technical Manual Futureline Sub Framing
Wall Charts
Extrusion Wall Chart SGS 100mm Frame & Hinged Door
Extrusion Wall Chart AGS Glazing Adaptors, Sliding & Double Hung Windows
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
Extrusion Wall Chart Capral Screening
Revit AGS Commercial 481 Double Hung Window
CAD Files

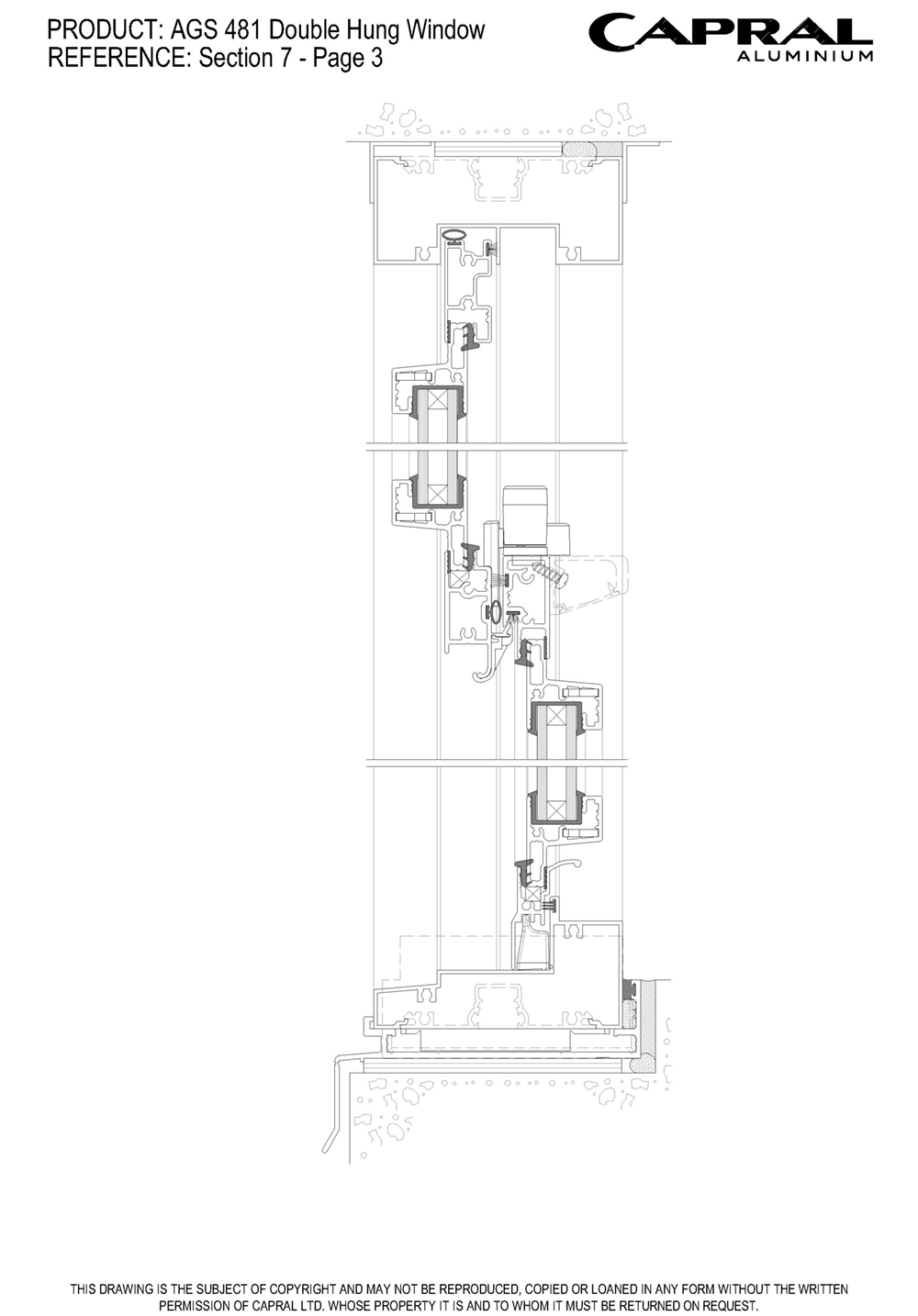

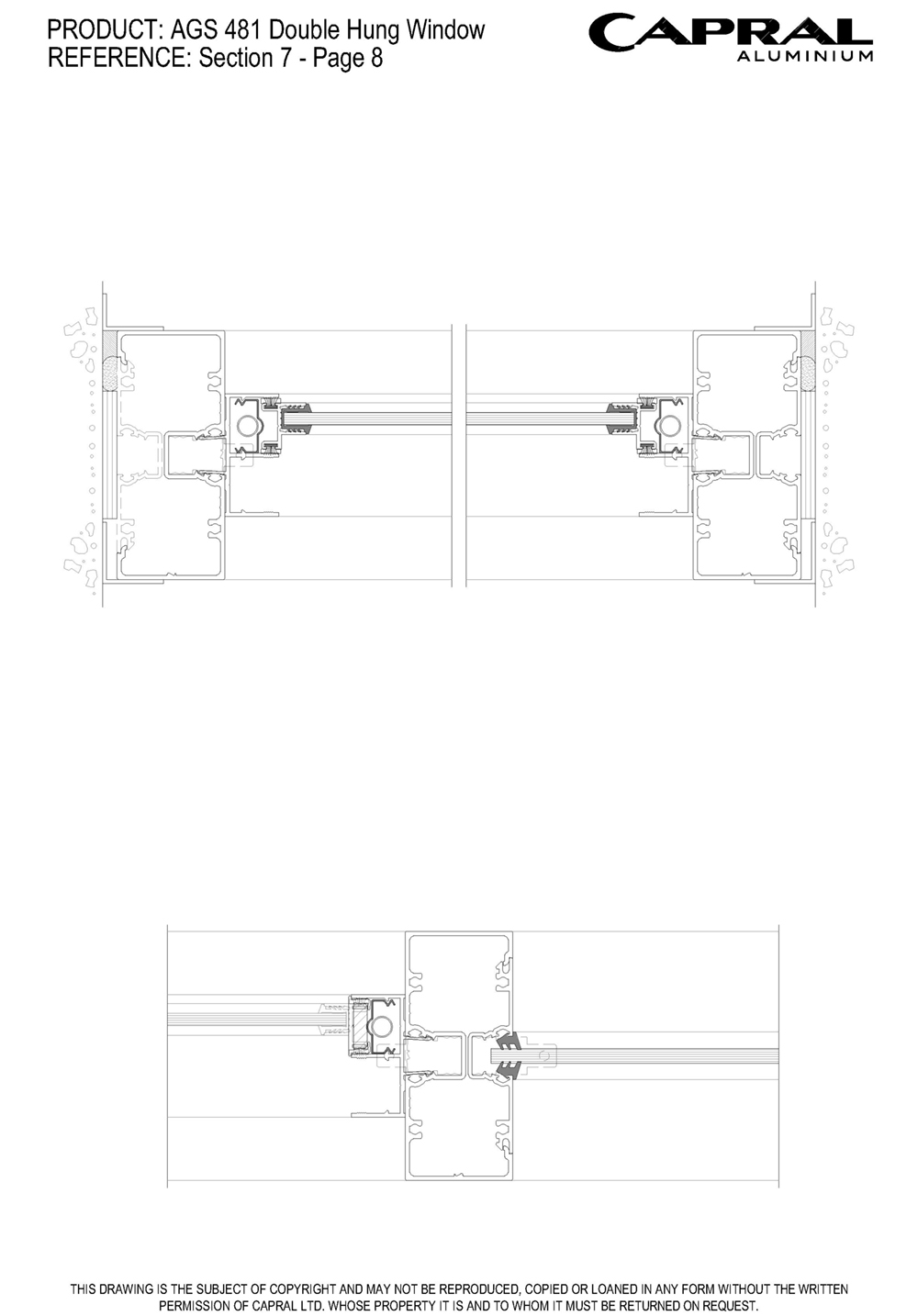

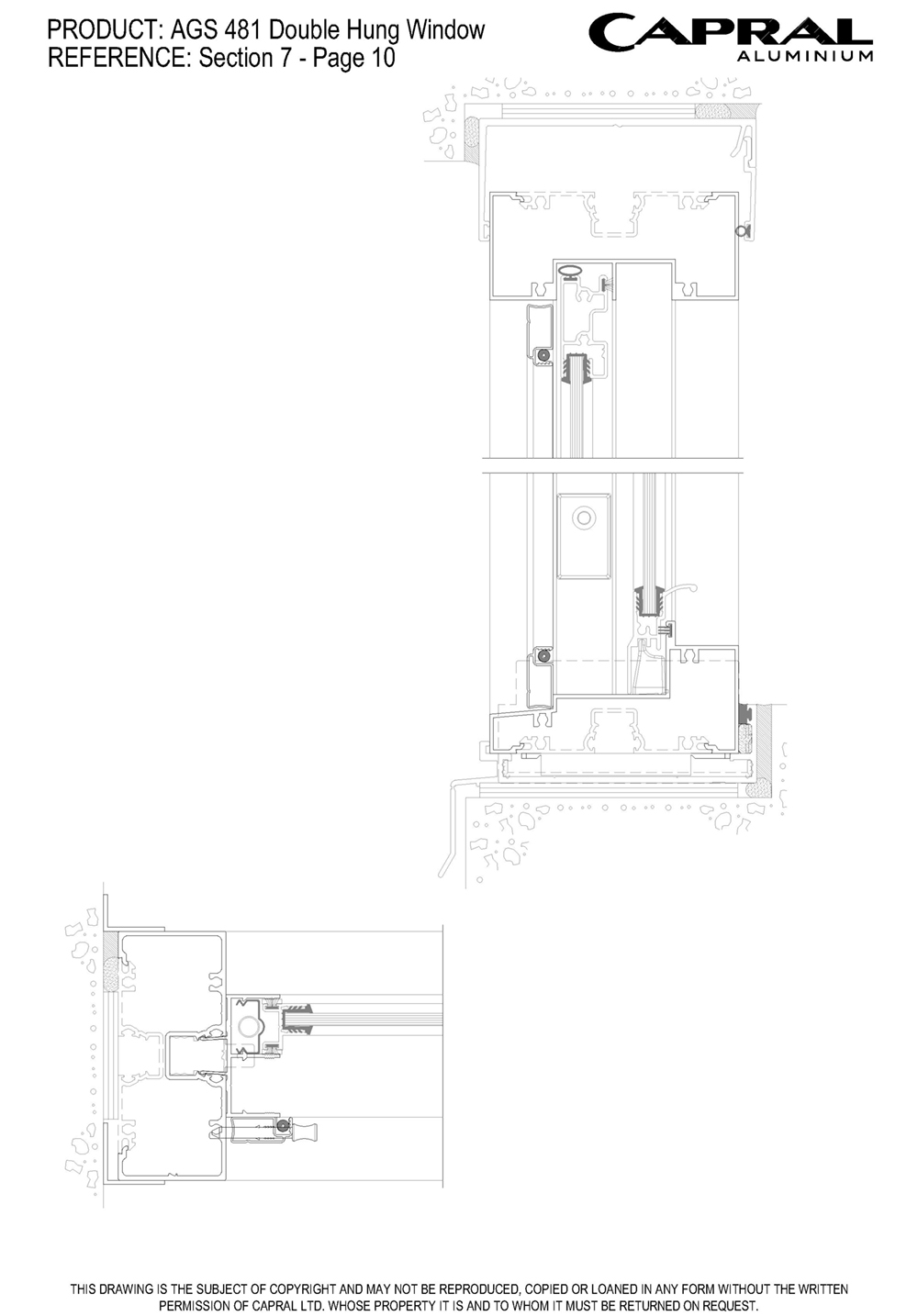

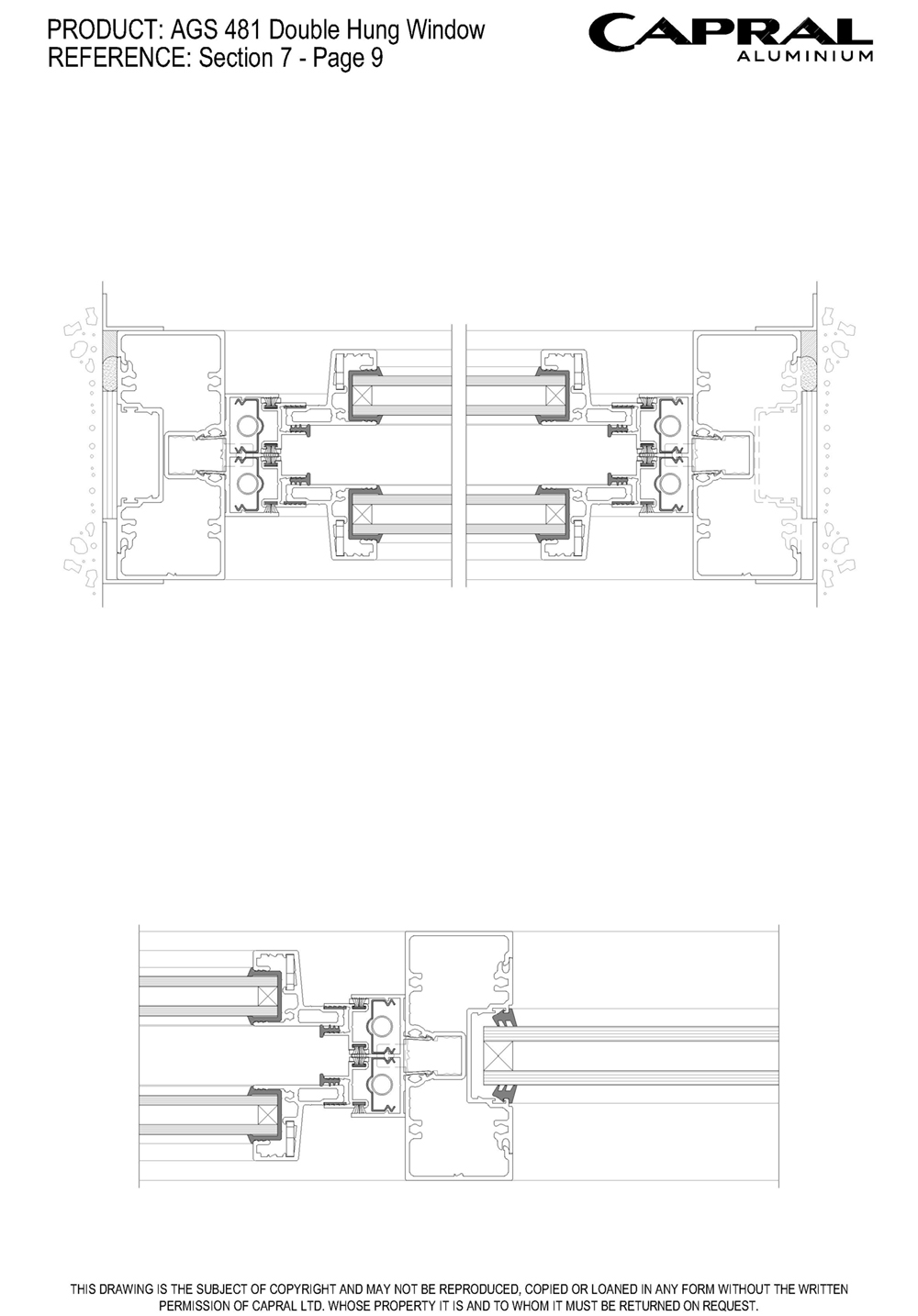

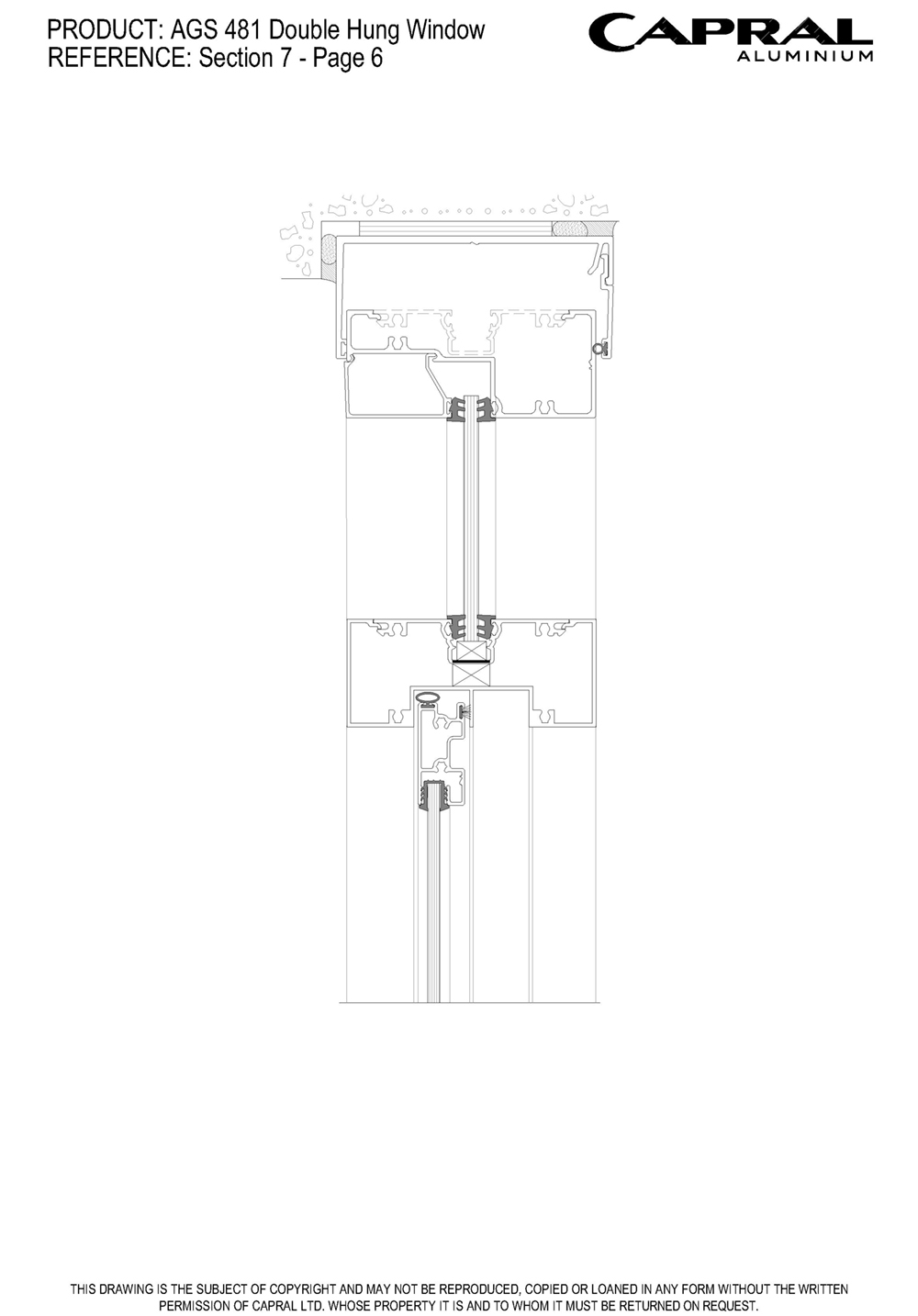

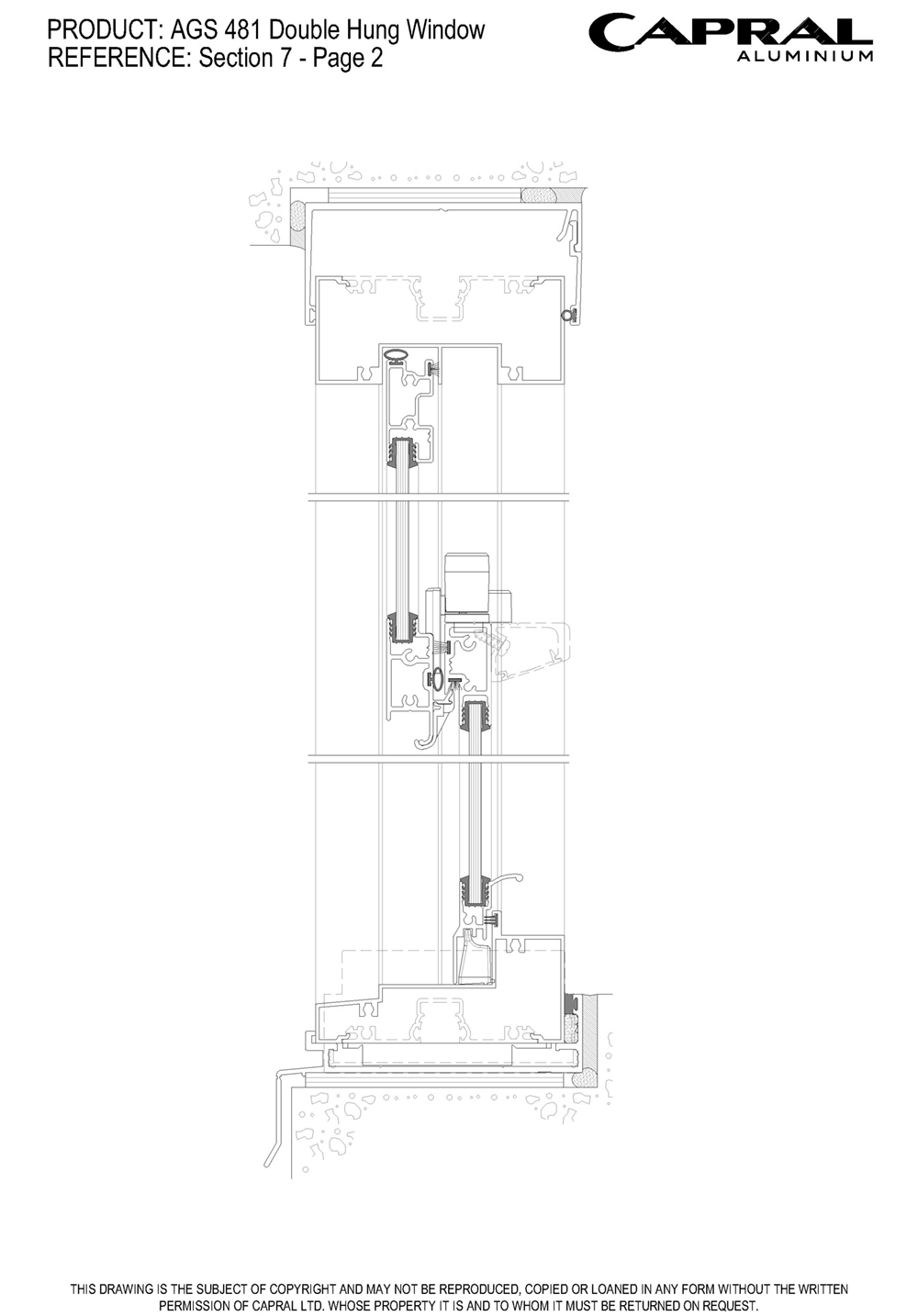

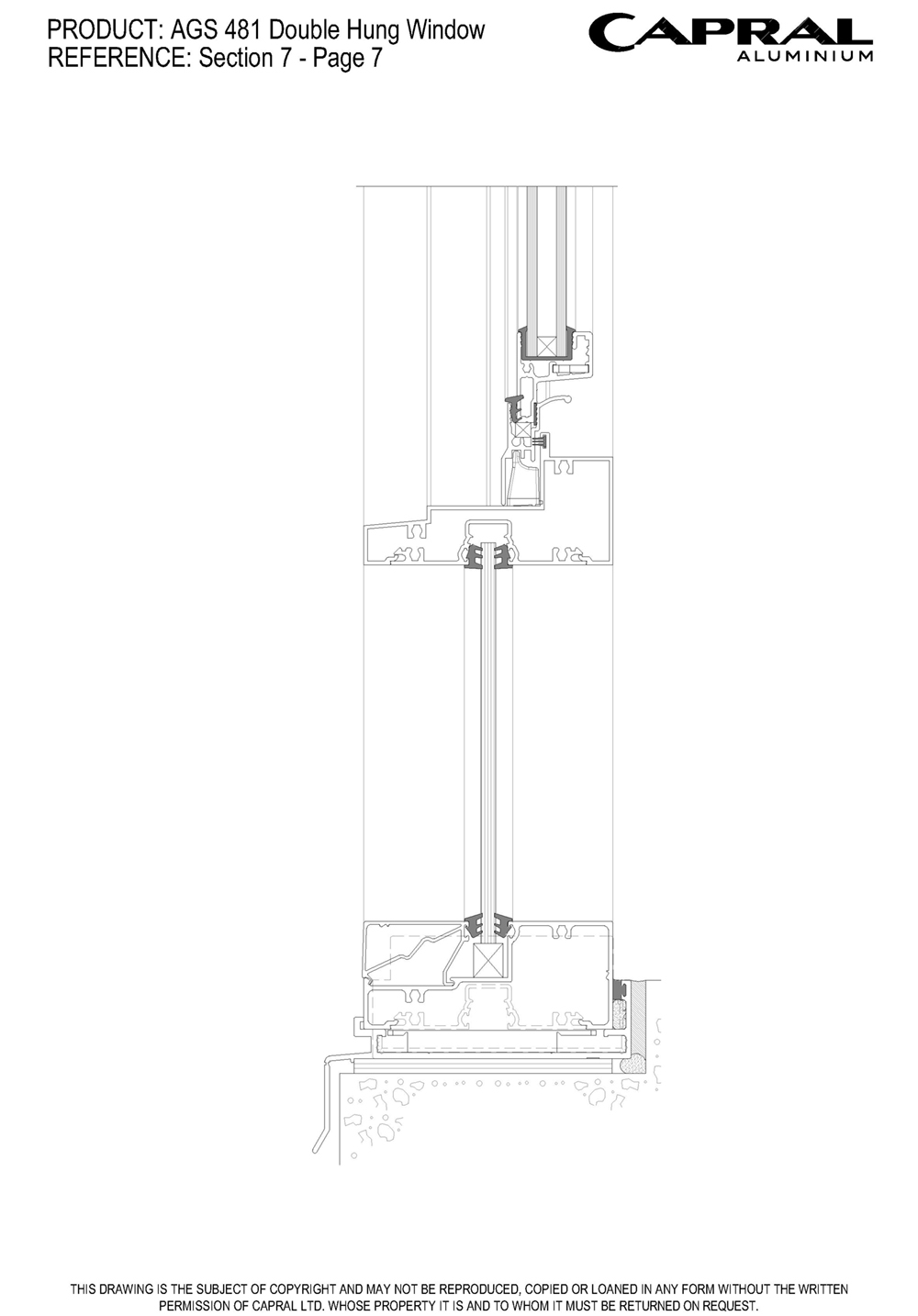

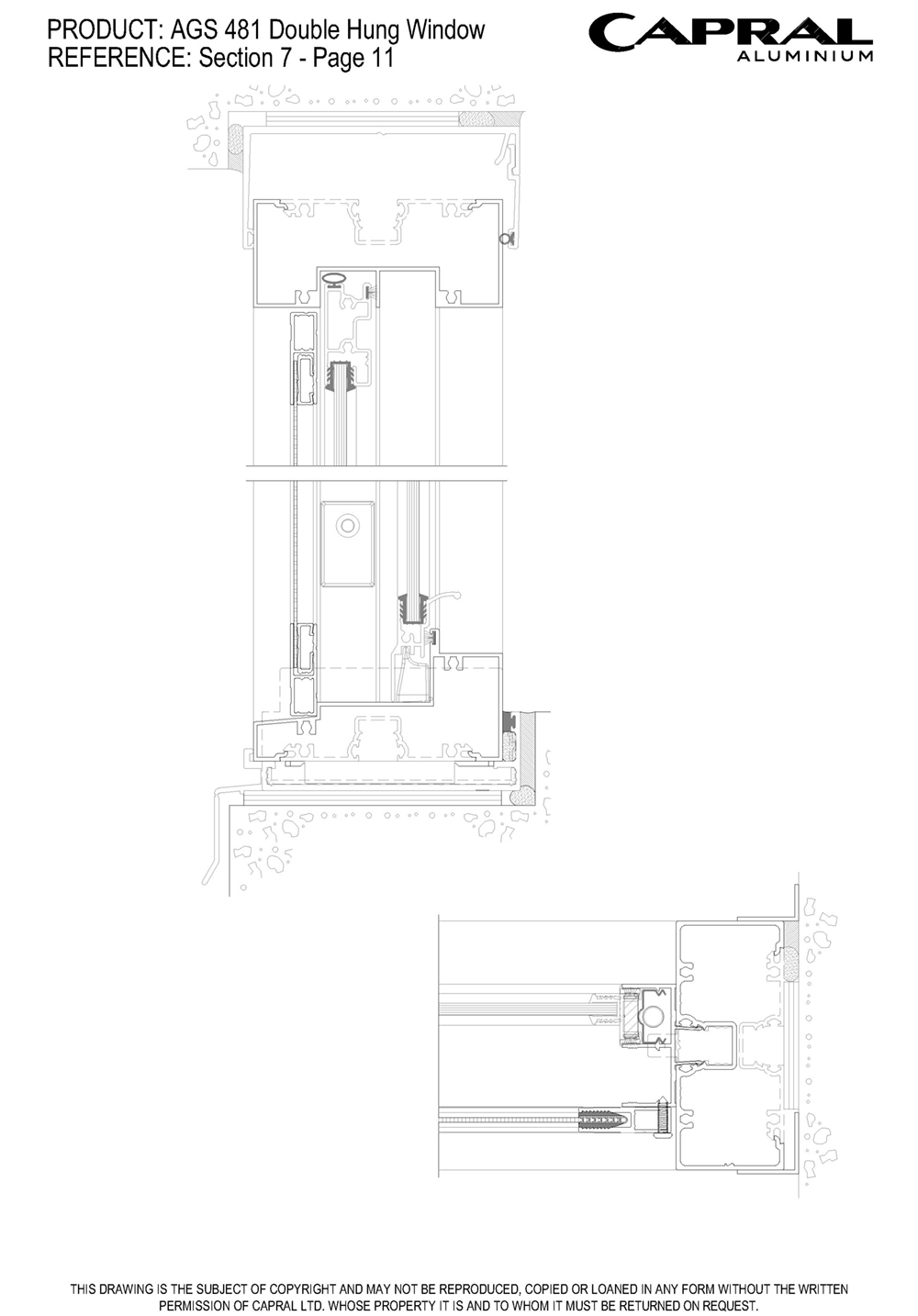

CAD Files AGS 481 Double Hung Window
CAD Files SGS 400 Narrowline
CAD Wall Chart SGS 100mm Frame & Hinged Door
CAD Files AGS Sub Frames
CAD Files Capral Screening
CAD Files Futureline Sub Frames & Adapors
CAD Wall Chart AGS Sub Framing
CAD Wall Chart Capral Screening
Bulletins
PBJ1010 - SGS 400 Narrowline Framing
PB300 - AGS Hollow Sub Heads
Other
Capral SGS 400 Narrowline Brochure
Capral AGS 481 Double Hung_Brochure
Capral AGS 481 Double Hung Brochure
Specification AGS 481 Double Hung Window
Capral Installation Details
Environmental Protection Declaration (EPDs)
Compatible Products
AGS Commercial 400 Narrowline Single Glazed (101.6mm)The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.
AGS Commercial 425 Narrowline Double Glazed (101.6mm)The AGS 425 Narrowline framing system was developed specifically to cater for the growing requirement for energy-efficient double glazing.
More products from this range
AGS Commercial 400 Narrowline Single Glazed (101.6mm)The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.
AGS Commercial 50 Multi-point AwningA high-performance commercial awning window with integrated multi-point locking.
AGS Commercial 325 Narrowline Double Glazed (76mm)The AGS 325 Narrowline double-glazed aluminium framing system's slimline frame depth and ability to accommodate a captive glazing wedge make it an economical option for architectural projects.
AGS Commercial 619 Single Glazed (150mm)Flushline AGS619 is the new name for the product formerly known as Flushline 419SG 150mm x 50mm. The AGS 619 Flushline offers a clean and modern external appearance.
AGS Commercial 429 Flushline Double Glazed (100mm)Flushline AGS429 is the new name for the product formerly known as Flushline 419DG 100mm x 55mm. This commercial framing system has been developed to accommodate internal and external glazing techniques.
AGS Commercial 625 Narrowline Double Glazed (150mm)The AGS 625 Narrowline offers an increased level of structural performance than the AGS 425 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
AGS Commercial 629 Flushline Double Glazed (150mm)Flushline AGS629 is the new name for the product formerly known as Flushline 419DG 150mm x 55mm. This system was developed to accommodate both internal and external glazing.
AGS Commercial 419 Flushline Single Glazed (100mm)The AGS 419 Flushline is a 100mm, single glazed, flush-glazed framing system offering a clean and modern external appearance.
Not quite what you’re looking for? Consider...
Urban 281 Double Hung WindowThe Urban Double Hung Window delivers a clean appearance that blends effortlessly with various architectural styles. Ideal for use in residential building applications.
AGS Commercial 491 Double Hung WindowThe AGS 491 Double Hung window features a substantial outer frame that provides a modern aesthetic for residential, architectural and commercial applications.
Futureline Vertical Sashless WindowThe Futureline Vertical Sashless Window is a sleek, modern take on the traditional double-hung window.
Urban Plus 391 Double Hung WindowThe Urban Plus Double Hung window features a substantial outer frame allowing for large configurations with a modern architectural aesthetic. Ideal for high-end homes and architectural applications.
Artisan 991 Double Hung WindowThe Artisan Architectural 991 is a premium double hung window combining ease of use, high performance and a classic style into a bold 100mm frame.
Projects that use this system
DEFS Collie Multipurpose Facility
The DFES Collie Multipurpose Facility is a purpose-built, sustainable emergency management hub in Western Australia’s South-West.
Fire Attenuation

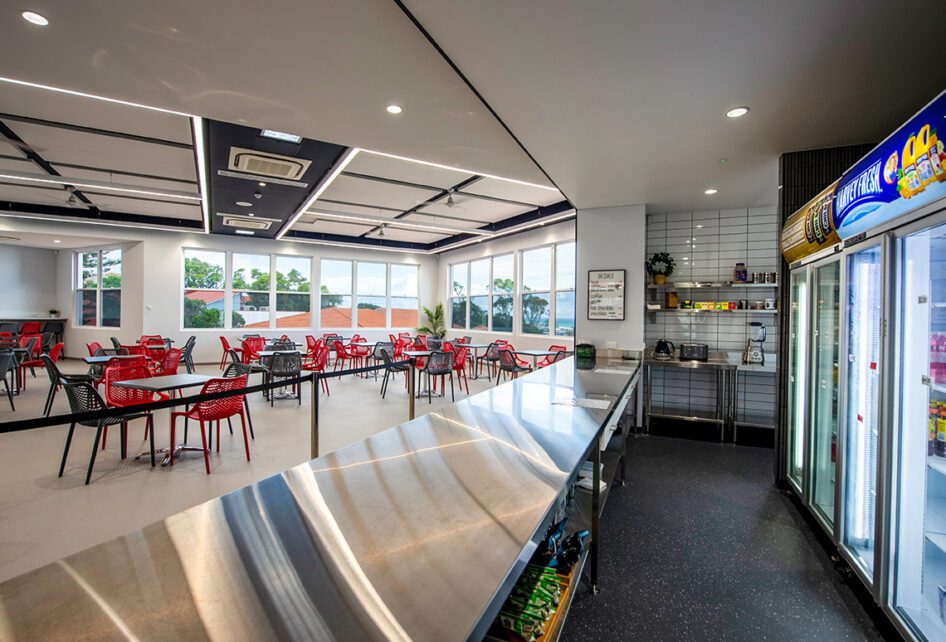

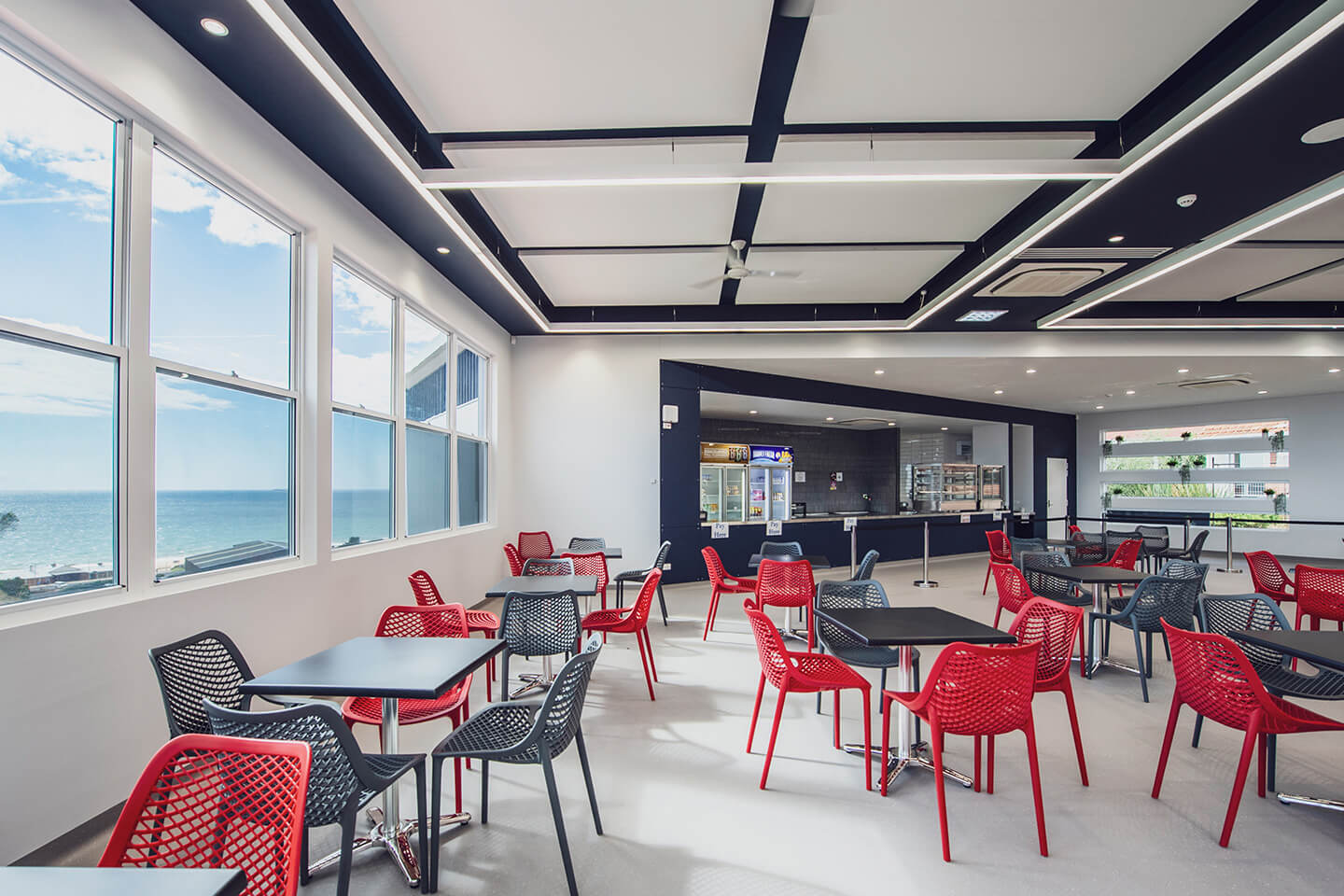

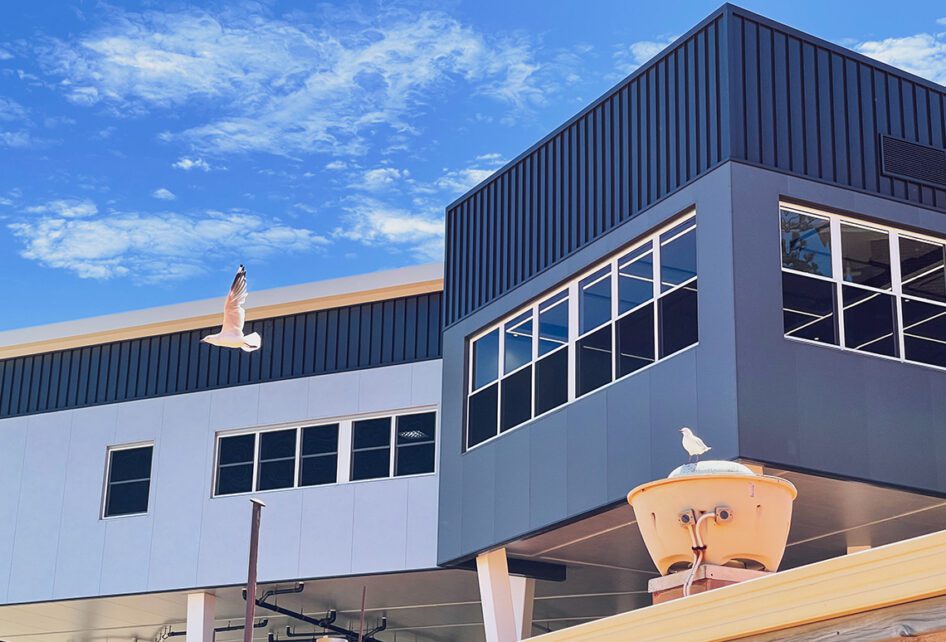

Bunbury Senior High School Cafeteria
