AGS Commercial 482 Awning Window
The 482 Awning Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400/425 Narrowline framing systems and 100mm Flushline framing systems.
Certified
Key features
- 101.6mm Narrowline or 100mm Flushline outer frames for residential, commercial and architectural applications
- Single and double-glazed options

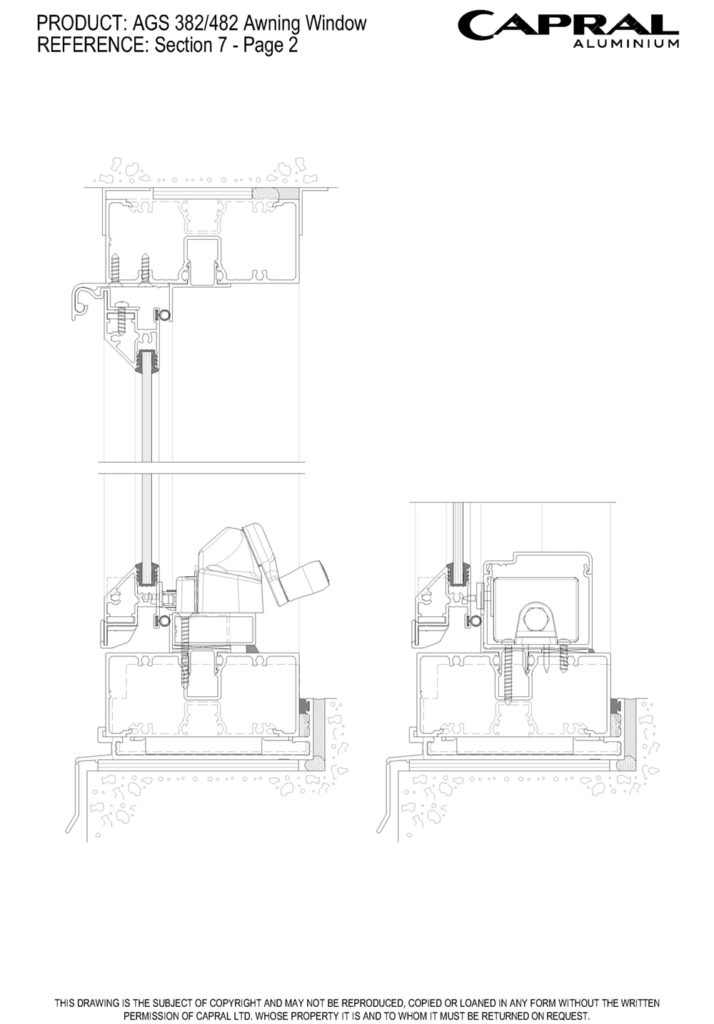

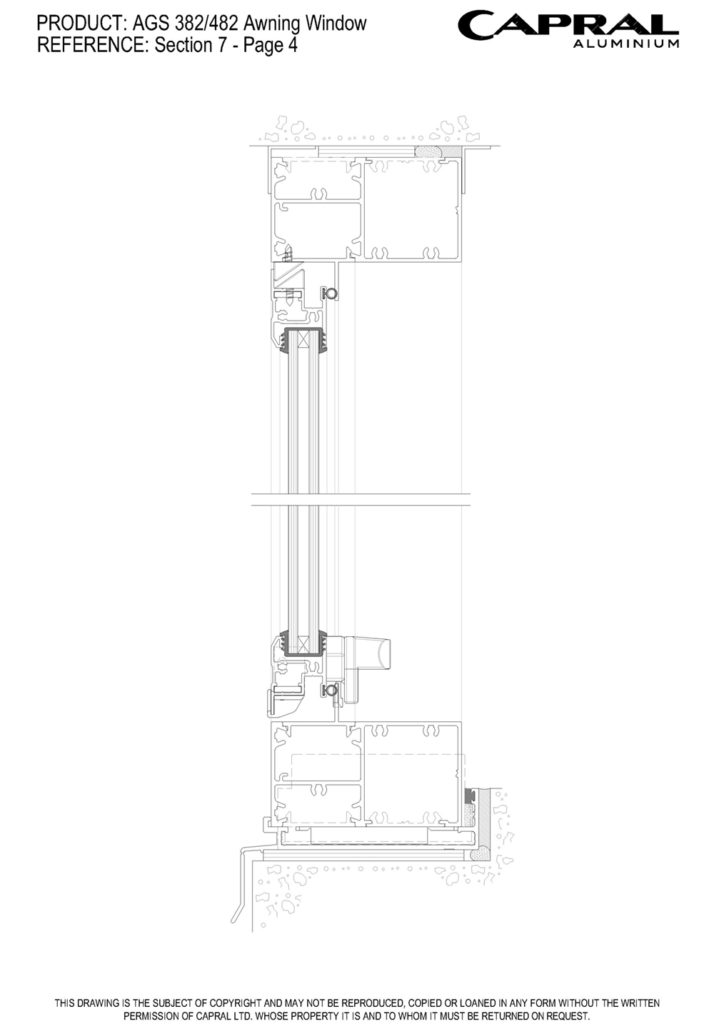

- Hook hinge & Stay hardware options
- Electric Awning hardware options are available

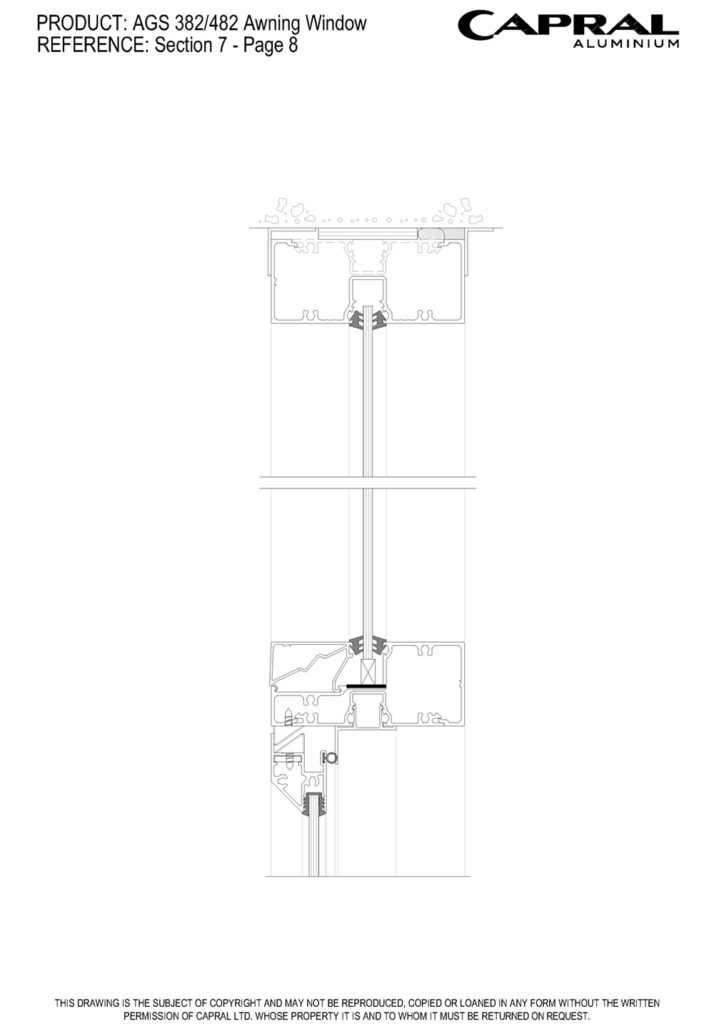

- Lowlight, sidelight and highlight options are available

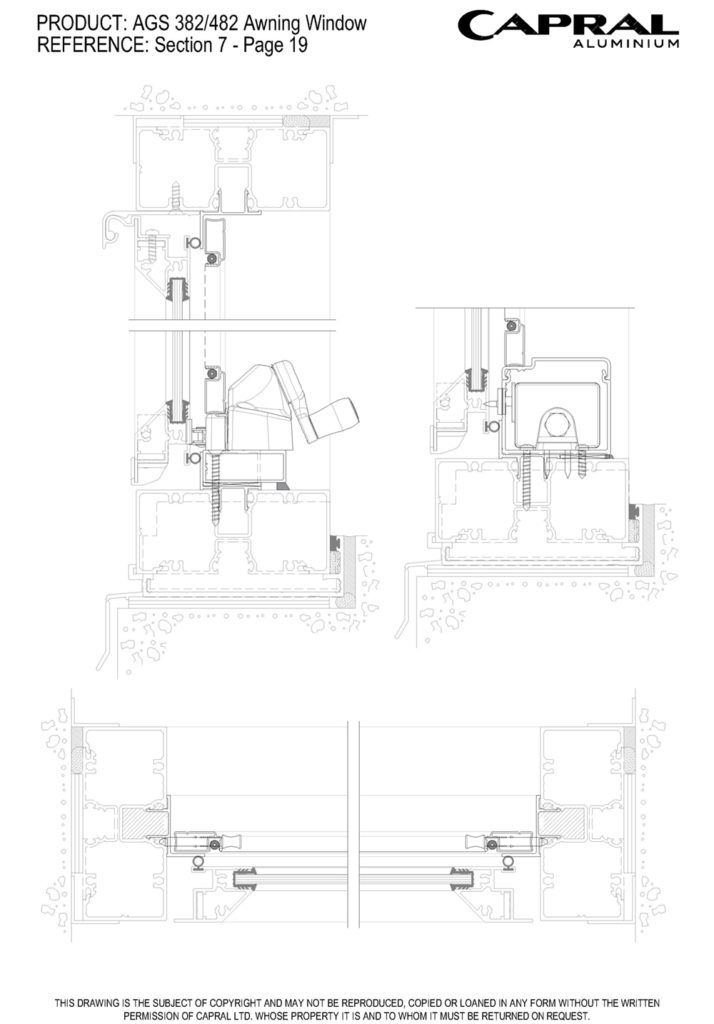

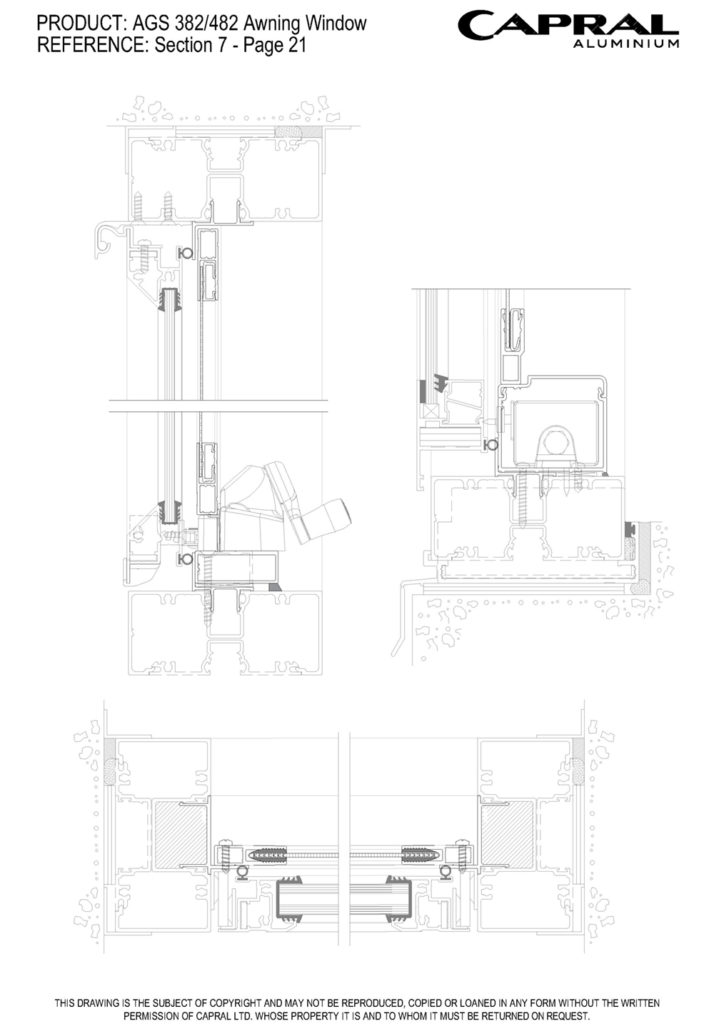

- Integrated insect and security screening options
- Exclusively designed components to improve the performance and function of the system

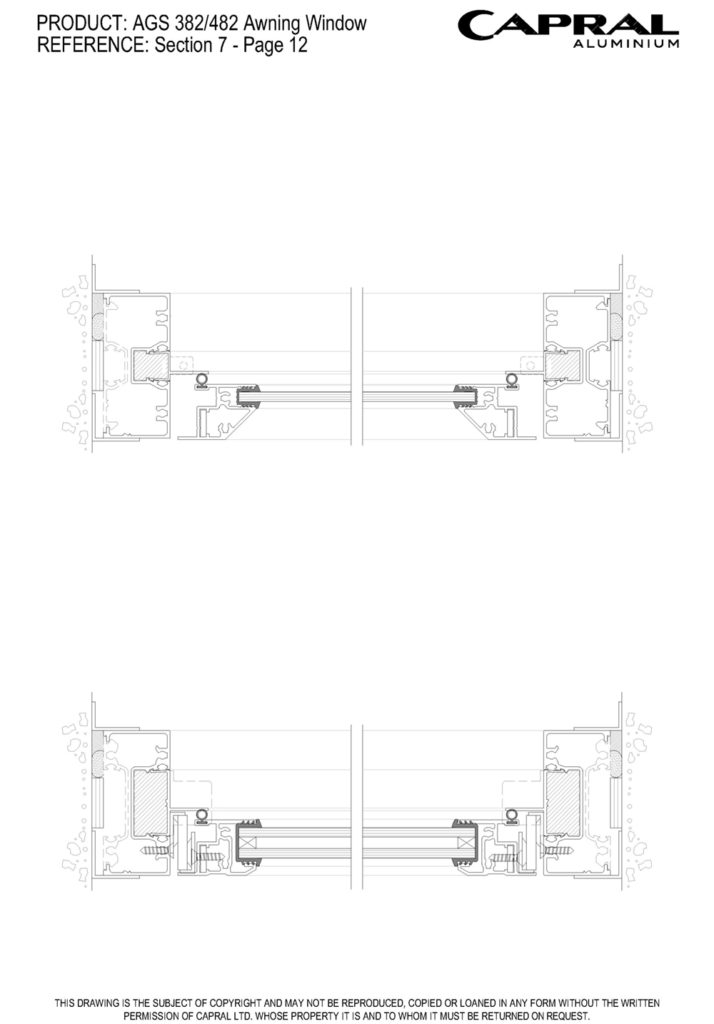

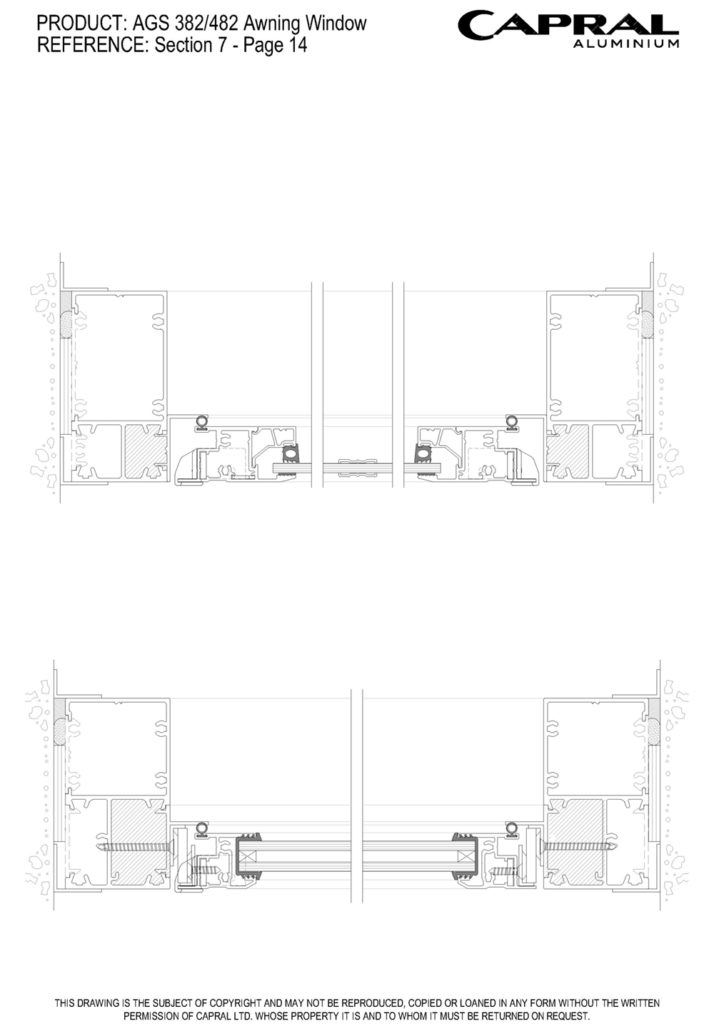

- Channel and beaded sash options
- Urban 282 & AGS 382 perimeter frame variations available
- A variety of lockable hardware is available
The 482 Awning Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400 & 425 Narrowline framing systems and 100mm Flushline framing systems. It is particularly suited to residential or architectural applications where a more substantial, commercial appearance is desired.
The 482 Awning windows can be double-glazed to offer enhanced thermal comfort and performance and deliver awning sash functionality in a modern and bold external framing system.
Download BrochureDetails
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1550
Panel Width (mm)
1210
Panel Weight (kg)
60
Panel Area (m2)
1.5
Frame Dimensions (mm)
Frame depth (mm)
76mm

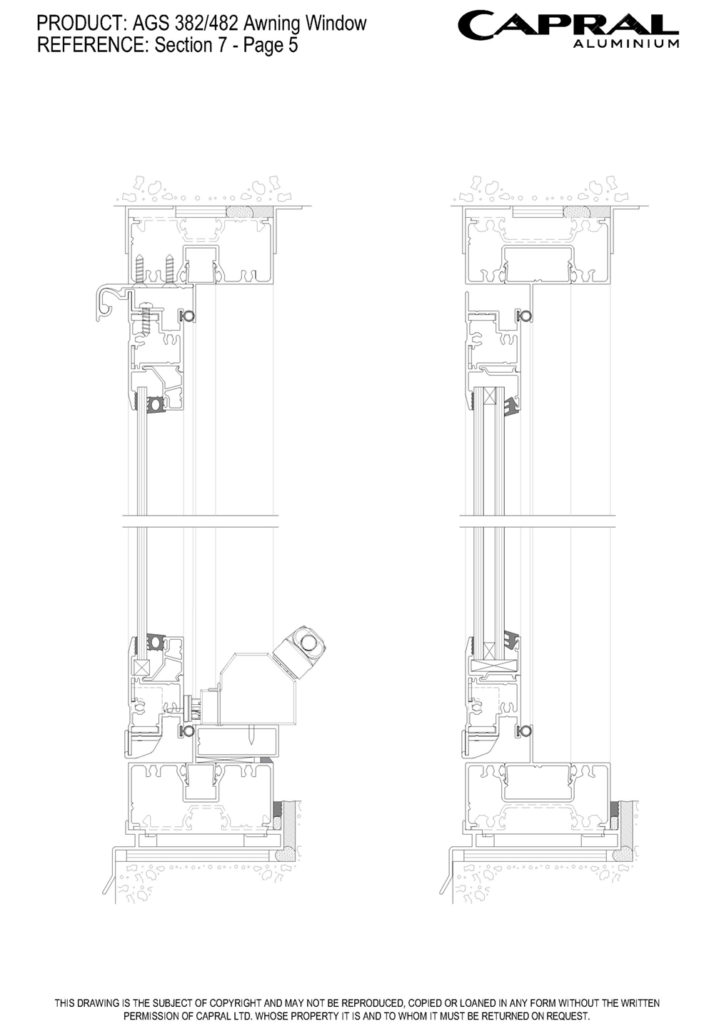

Sash dimensions are 29mm x 41mm Beaded Sash is 29mm x 62mm
Maximum Product Performance
SLS (Pa)
2500
ULS (Pa)
3500
WATER (Pa)
1000
Theoretical water rating derived from 382 Awning Window test result
Glazing Details
Single Glazed
3 - 10
Double Glazed
12 - 18
Energy Performance
Uw Range
5.60 - 6.80
SHGC Range
0.26 - 0.57
Tvw Range
0.05 - 0.55
Air infiltration
0.17 - 0.17
