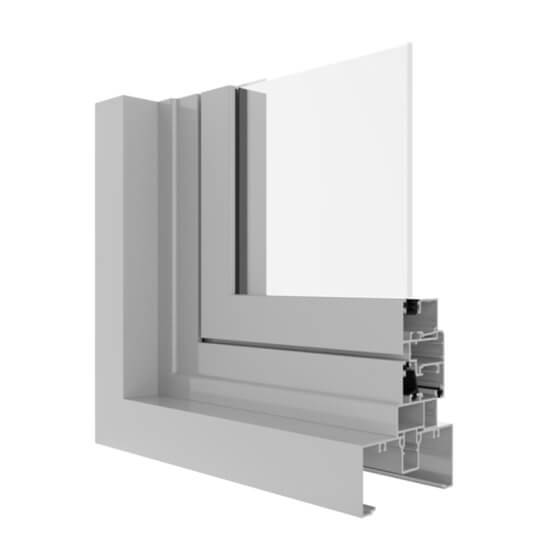

AGS Commercial 488 Tilt-and-Turn Window Corner Image.
Commercial

AGS Commercial 488 Tilt-and-Turn Window

The AGS Tilt & Turn window is flexible in form and function and compatible with our AGS Narrowline range of commercial framing products.

Declare Label
Certified
Acoustic
Rated
Jump to:
Select
Key features
  • Single and double-glazed options (up to 26mm)
  • Standard and high-performance configurations using the sub-frame system
  • European-designed components and hardware
  • Multiple and adjustable locking points ensure the product’s structural integrity is maintained even in high-wind cyclonic areas.
  • The turn function can be restricted using a key override.
  • Optional plant on screening adaptor
  • The inward opening allows for ease of cleaning.
  • Operable with a single handle

The AGS Tilt & Turn window is flexible in both form and function. It is compatible with our AGS Narrowline range of commercial framing products, making it a tremendous solution-focused addition to residential and commercial projects such as apartment complexes and hotels.
With the turn of a handle, the AGS Tilt & Turn shows its capabilities. In tilt mode, the window opens inward from the top to provide a safe and secure source of ventilation. When the key is inserted, and the handle is rotated, the window opens from the side for directed airflow, cleaning or a simple escape route when a dangerous situation arises.

Download Brochure

Details

Product Specs
Configurations
Arrangements

Maximum Product Sizes

Panel Height (mm) 2100
Panel Width (mm) 1300
Panel Weight (kg) 80

Frame Dimensions (mm)

Sash is compatible with Narroline Frames

Acoustic Rating

Rw (C;Ctr) 38 (-1;-3)

Maximum Product Performance

SLS (Pa) 4500
ULS (Pa) 4500
WATER (Pa) 600

Glazing Details

Single Glazed 4 - 12
Double Glazed 23 - 26
Thick Glazed 14 - 18

Energy Performance

Uw Range 4.49 - 6.52
SHGC Range 0.14 - 0.43
Tvw Range 0.04 - 0.41
Air infiltration 0.58 - 0.58

Downloads

Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 488 Tilt and Turn Window
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS Projecting Windows
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
Extrusion Wall Chart Capral Screening
CAD Files
CAD Files AGS 488 Tilt and Turn Window
CAD Files AGS Sub Frames
CAD Files Capral Screening
CAD Wall Chart AGS Sub Framing
Bulletins
PB344 - AGS & Artisan Tilt & Turn Window Relaunch
