AGS Commercial 491 Double Hung Window

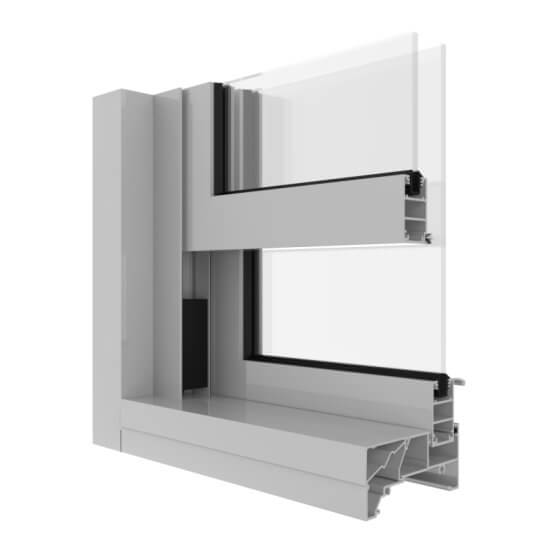

The AGS 491 Double Hung window features a substantial outer frame that provides a modern aesthetic for residential, architectural and commercial applications.
Certified
Rated
Key features
- Bold 101.6mm outer frame for commercial and architectural applications
- Integrated head and sill design for neat, clean appearance
- Lockable hardware options
- Continuous integrated finger pulls for ease of operation
- Compatible with a range of AGS Narrowline suites
- Alternative perimeter frames are available for residential (Urban Plus 391) and architectural (Artisan 991) applications
- Sash restriction is available
- Highlights and lowlights are available
- Flyscreen or Security Screen options
The AGS 491 Double Hung window features a substantial outer frame that provides a modern aesthetic for residential, architectural and commercial applications. It is compatible with a range of the AGS Narrowline commercial framing suites.
The square cut frame offers simplicity and style in both look and performance. High-quality operating hardware and a simple sash release system allow easy cleaning from within the building, making it an excellent option in elevated applications.
This system incorporates integrated finger pulls and high-quality latch hardware to further enhance the functionality of this modern take on a classic window style.
Download BrochureDetails
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1200
Panel Width (mm)
1200
Panel Weight (kg)
20.4
Frame Dimensions (mm)
Frame depth (mm)
101.6
Acoustic Rating
Rw (C;Ctr)
34(0;-2)
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
13000
WATER (Pa)
500
Glazing Details
Single Glazed
4 - 10
Double Glazed
10,16 - 18
Energy Performance
Uw Range
3.70 - 6.40
SHGC Range
0.22 - 0.61
Tvw Range
0.06 - 0.62
Air infiltration
0.86 - 0.86
