AGS Commercial Louvre Adaptor

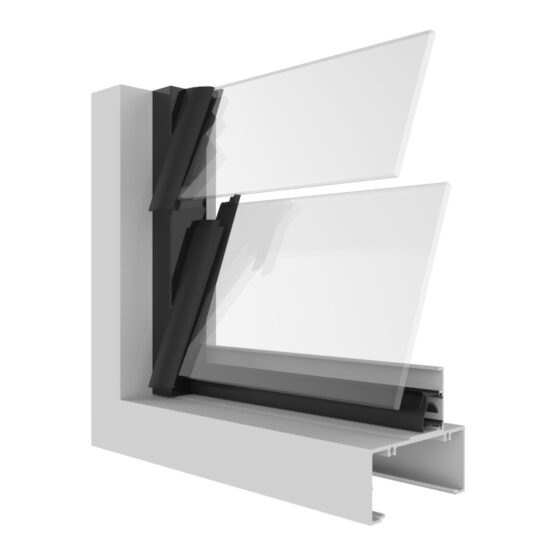

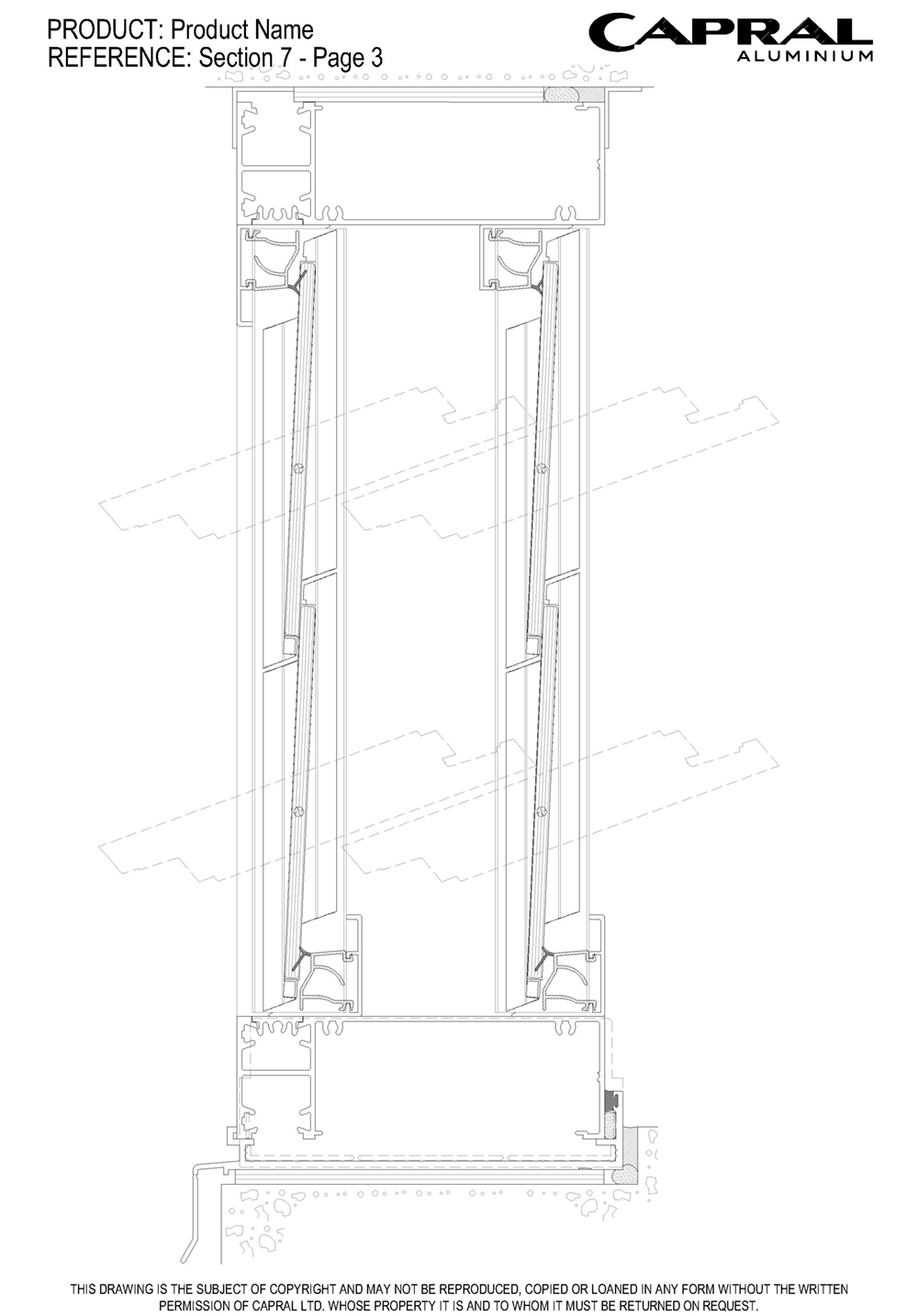

The AGS Commercial Louvre Adaptor gives you the flexibility you need to create a high-performance louvre window with a clean architectural finish.
Key features
- An extremely simple system consisting of two extrusions
- Extrusions can be fitted to any of Capral’s commercial framing systems, converting the configuration to a louvre window

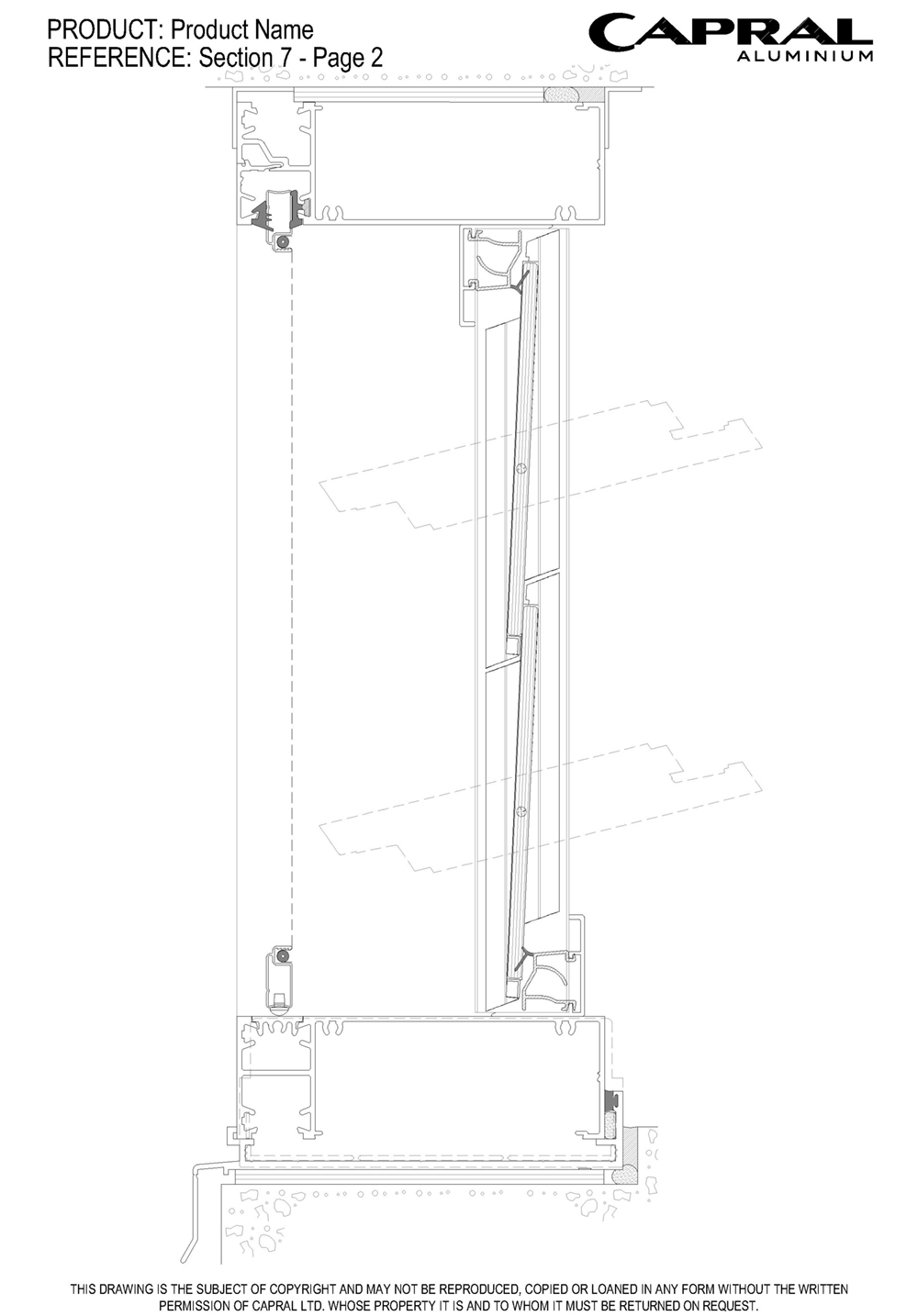

- When paired with the AGS 419 Flushline 150mm Single Glazed range, the result is a very clean architectural style window, which provides clearance to fully open the 152mm louvre blades behind the fully integrated fly/security screen
- Adaptors are compatible with the full range of Ventus Louvre Galleries
The AGS Commercial Louvre Adaptor gives you the flexibility you need to create a high-performance louvre window with a clean architectural finish.
Simply pair the AGS Commercial Louvre Adaptor with any AGS Commercial framing system to convert it into a louvre window with ease.
Once installed, framing systems are compatible with both our manual and automatic louvre gallery variants, allowing you to choose between multiple blade, handle style and screening options to suit your requirements.
Details
Product Specs

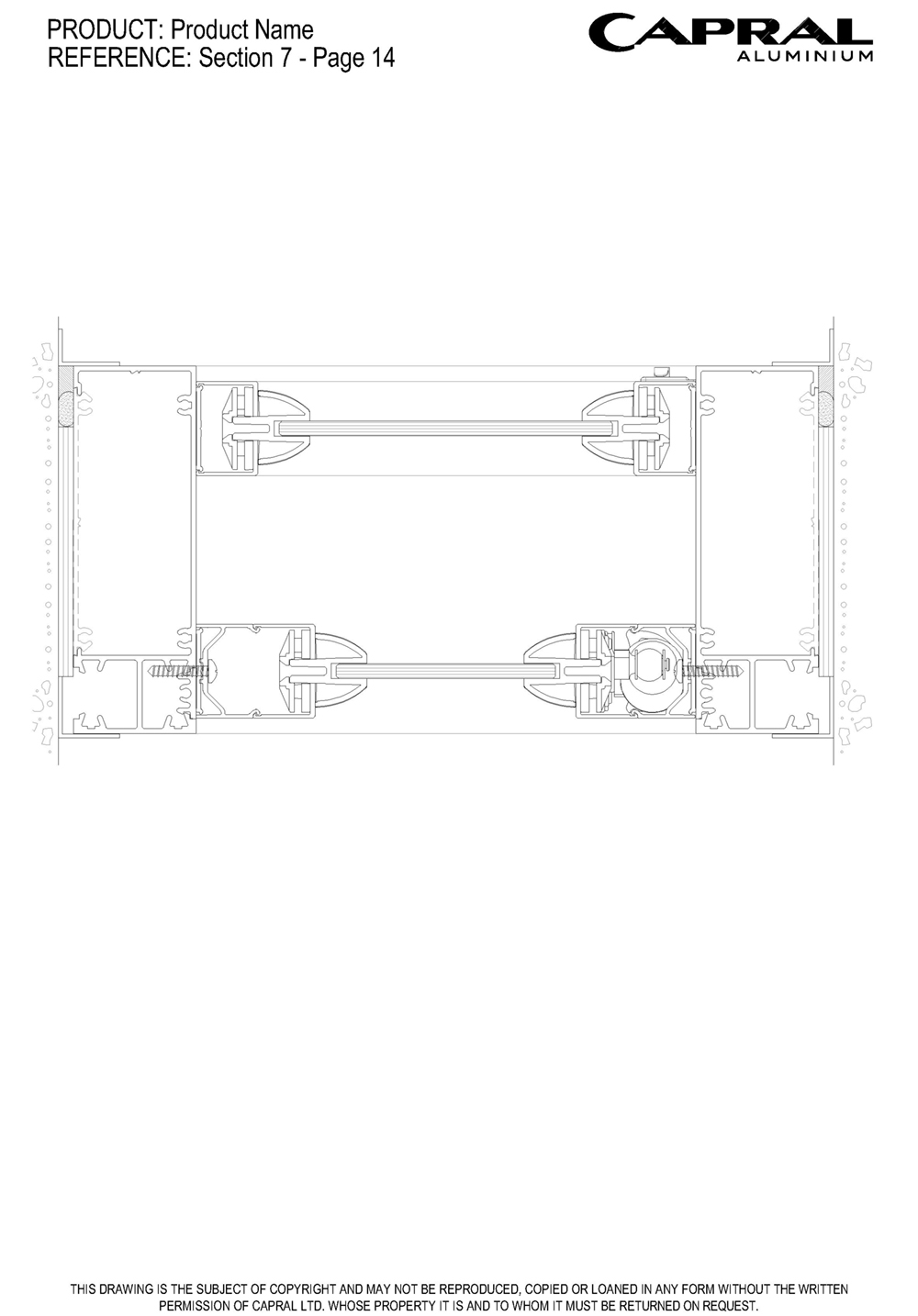

Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
2980
Panel Width (mm)
900

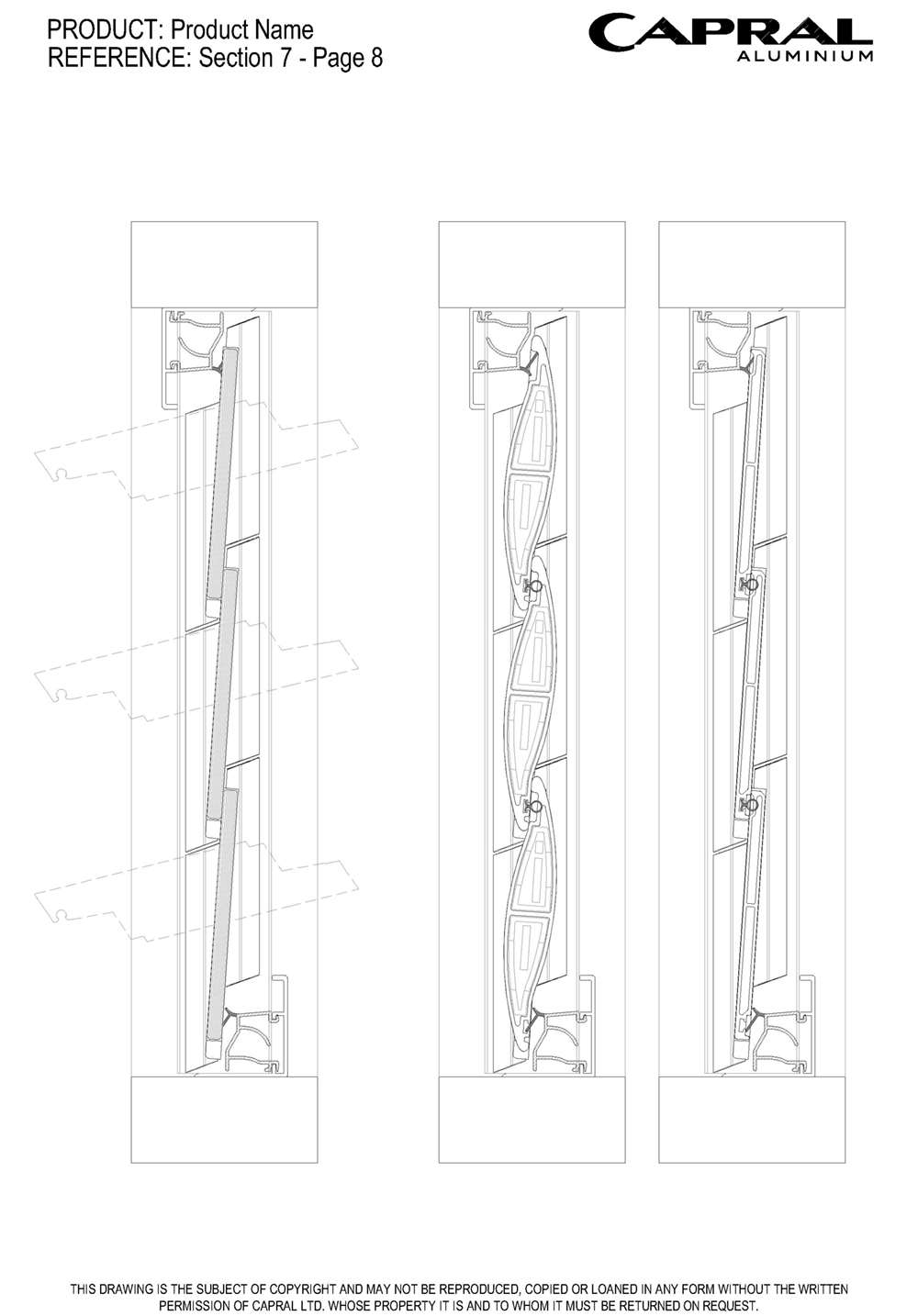

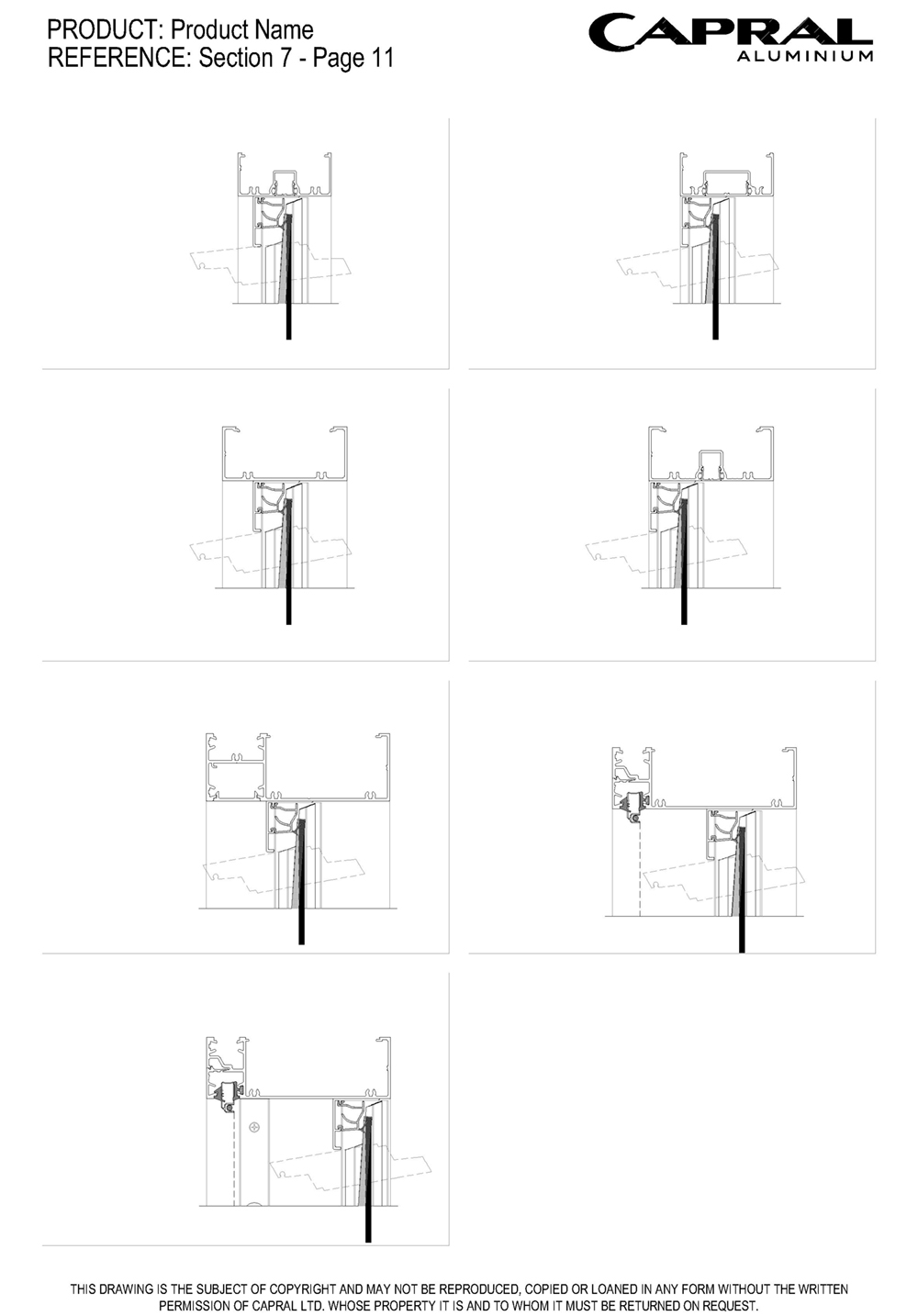

Maximum sizes are based on 152mm louvre blade, where 102mm louvre blade is used maximum height is 2831mm
Frame Dimensions (mm)

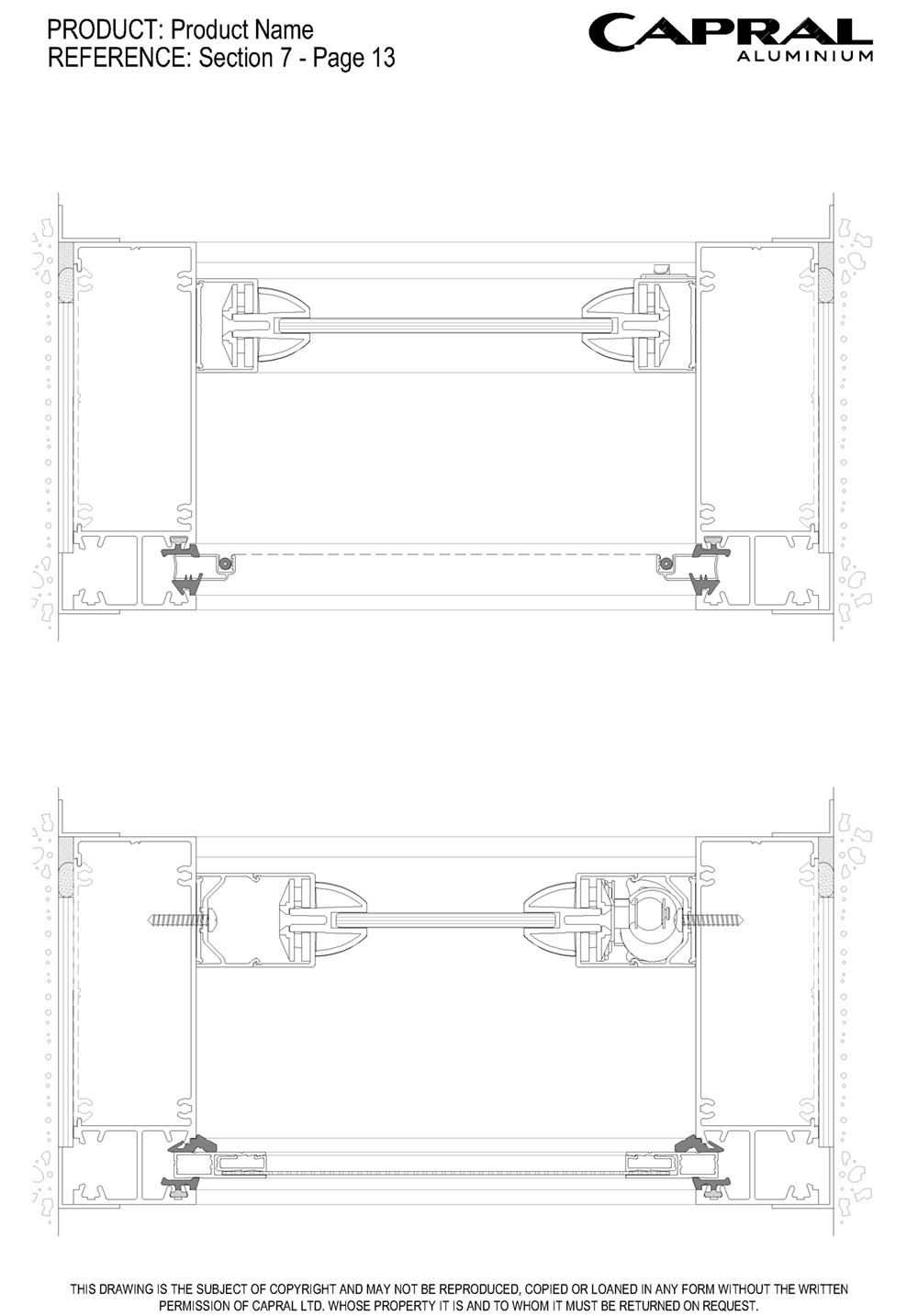

Integrated Screens
150
Narrowline
76, 101.6 or 150
Flushline
100, 150, or 250
Other Structure
Project Specific
Maximum Product Performance
ULS (Pa)
8000
WATER (Pa)
250
Refer to relevant commercial framing system manual for serviceability pressure performance
Glazing Details
Single Glazed
6 - 6

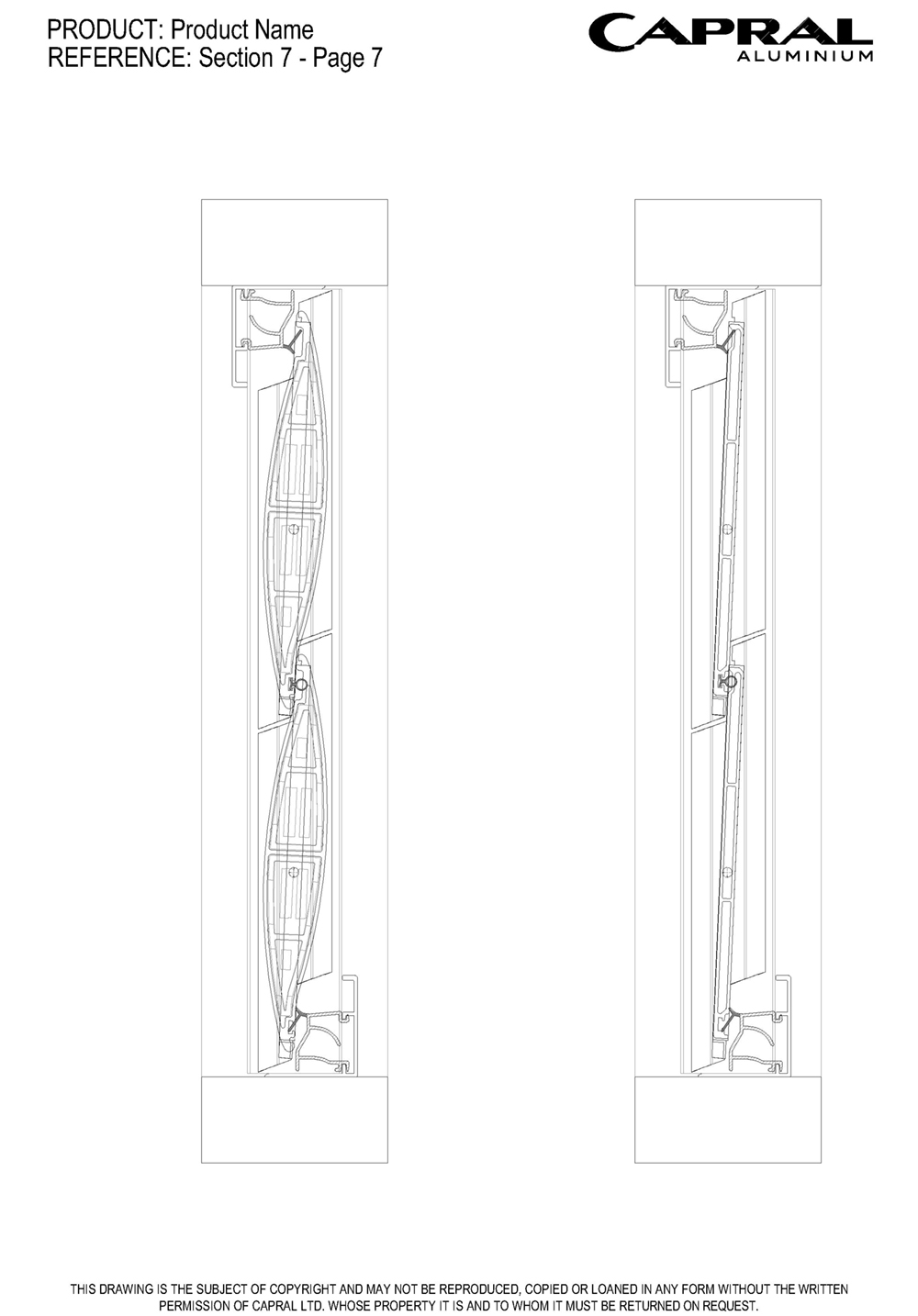

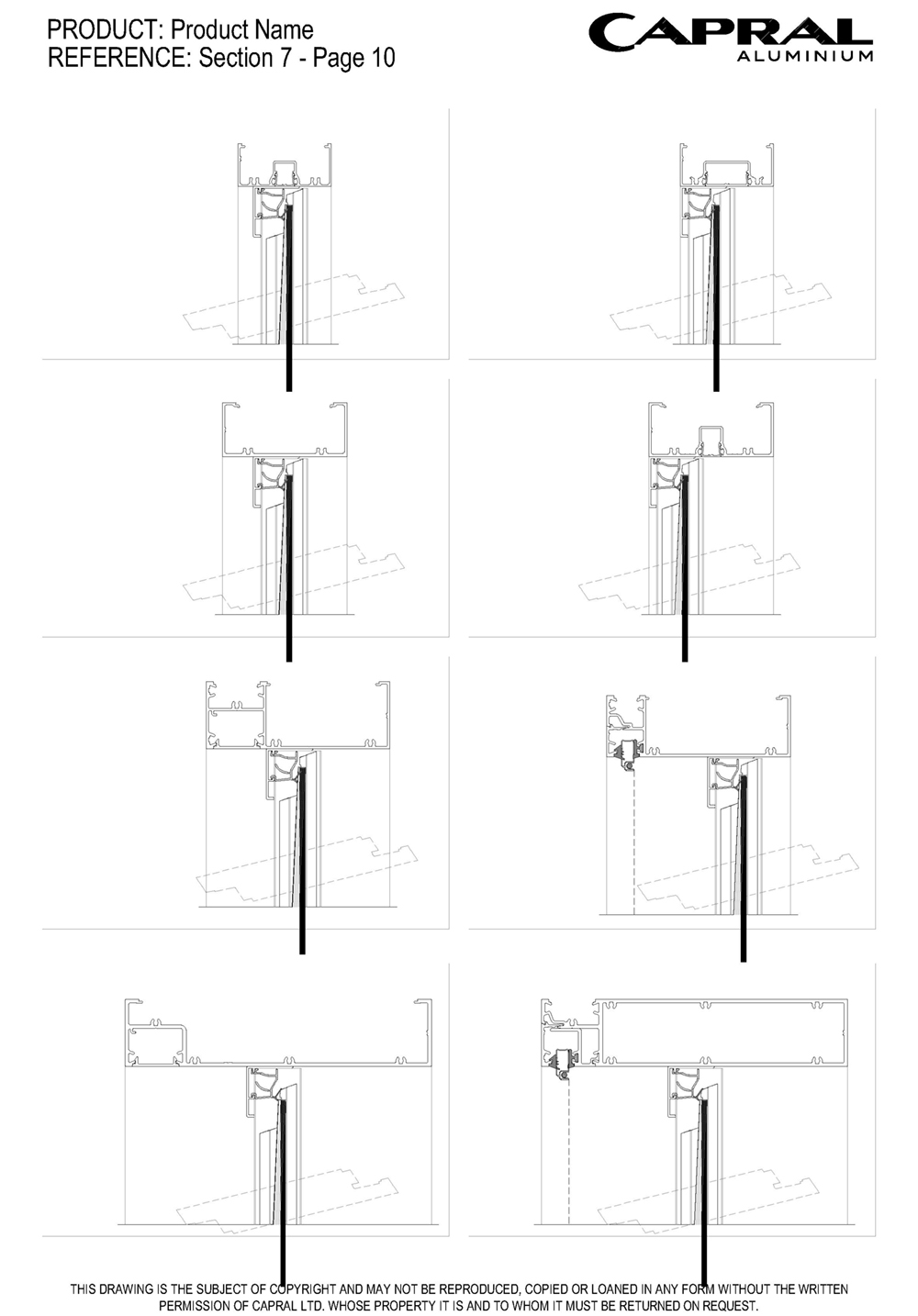

152mm & 102mm Galleries available including Elliptical and Flat Aluminium louvre blade options
Energy Performance
Uw Range
4.92 - 6.20
SHGC Range
0.30 - 0.51
Tvw Range
0.24 - 0.53
Air infiltration
2.78 - 2.78
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS Commercial Louvre Adaptor
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS Louvre Adaptor & Extruded Louvres
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart Capral Screening
Revit AGS Commercial Louvre Adaptor
CAD Files
CAD Files AGS Commercial Louvre Adaptor
CAD Files AGS Sub Frames
CAD Files Capral Screening
CAD Wall Chart AGS Louvres
CAD Wall Chart AGS Sub Framing
Bulletins
PB439 - BL45 Elliptical Bullnose
PB443 - AGS Extruded Louvres – 150mm Plain Louvre Frame

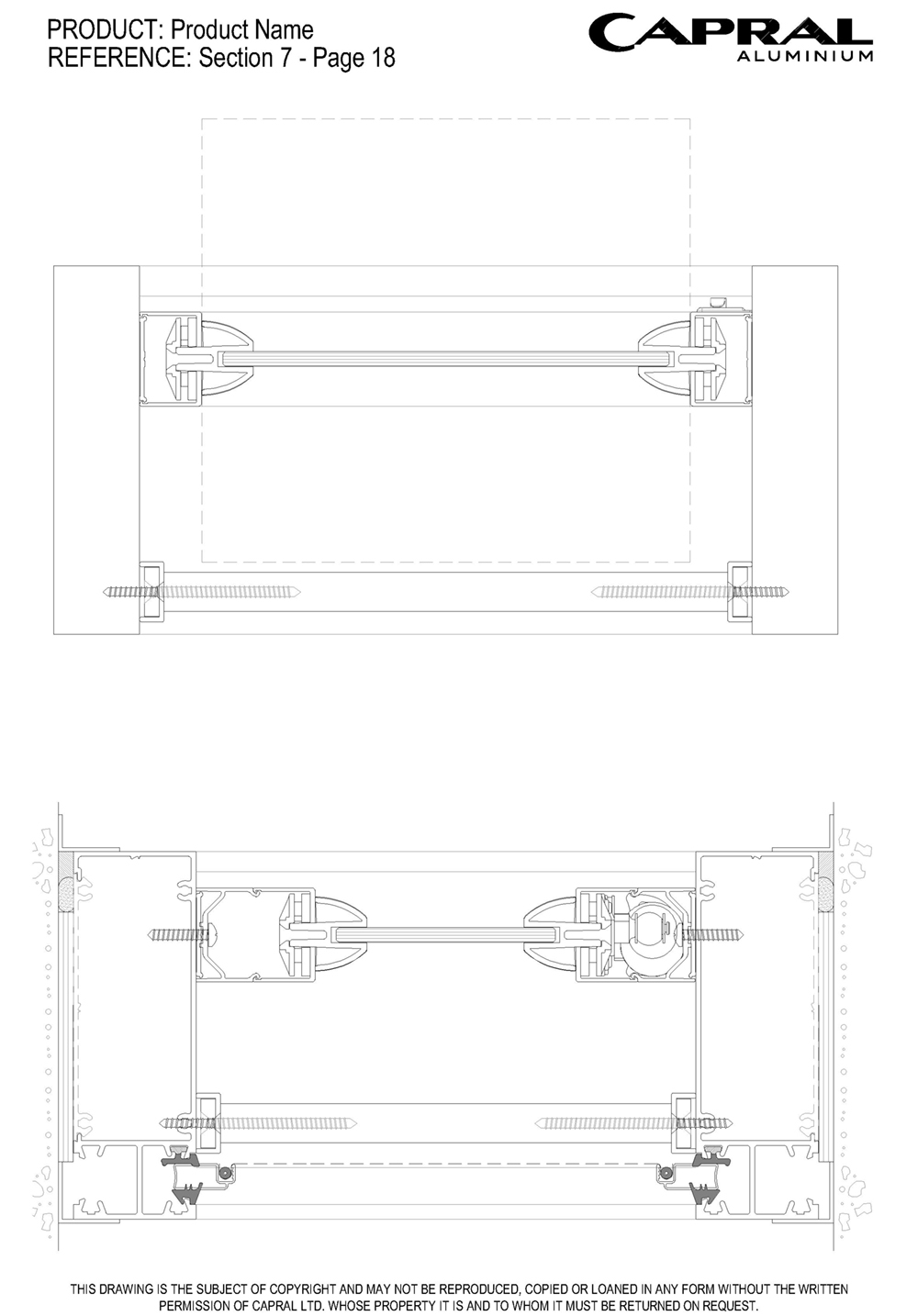

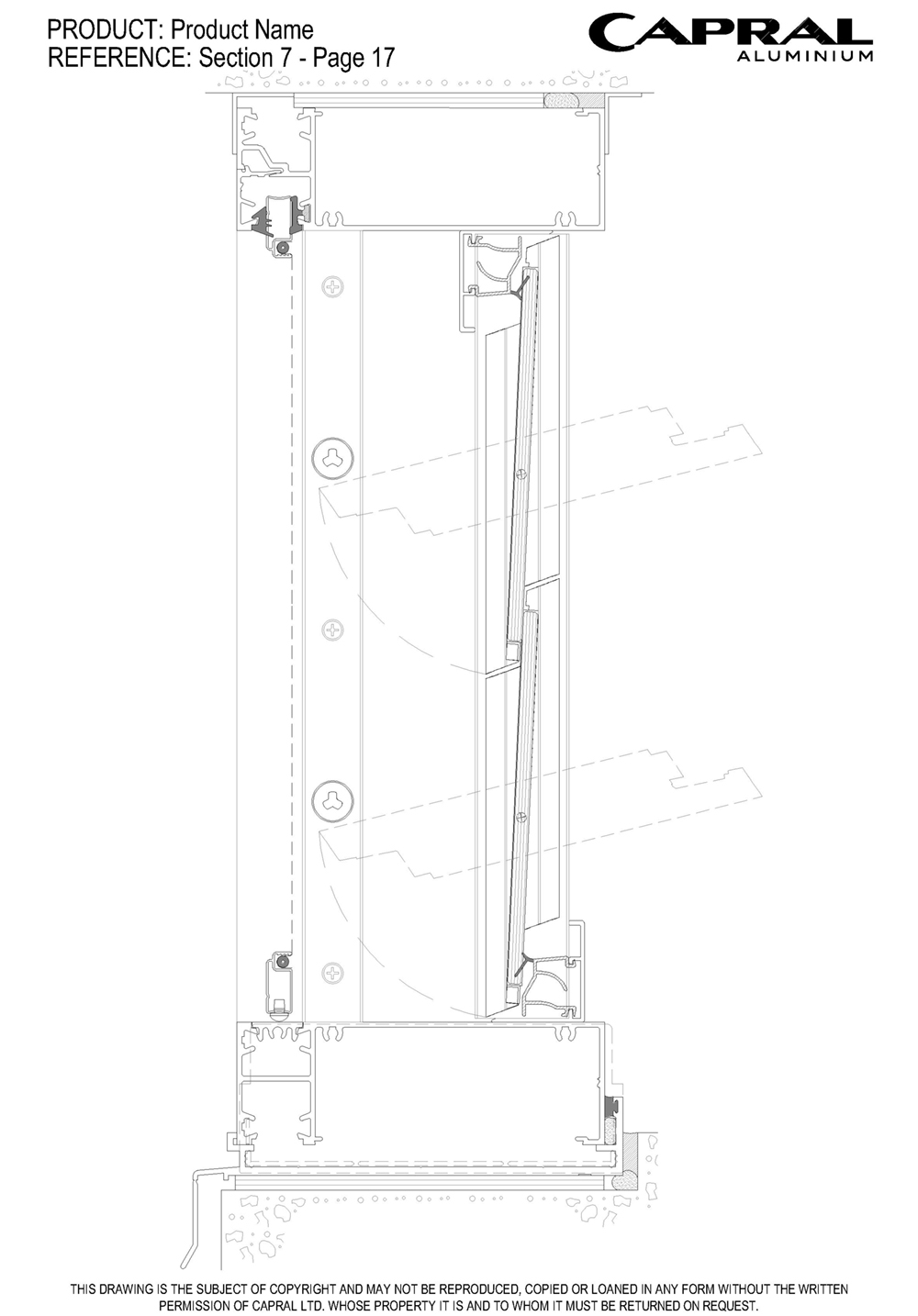

PB368 - Louvre Security Bar and Channel
PB327 - AGS Structural Louvre Bracket
PB263 - Urban Plus 393 Louvre Commercial Louvre Adaptor Release
Other
Compatible Products
Ventus Louvre GalleryThe ideal window solution to maximise ventilation, Ventus louvre galleries provide a 100% opening for louvre windows
AGS Commercial 400 Narrowline Single Glazed (101.6mm)The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.
AGS Commercial 629 Flushline Double Glazed (150mm)Flushline AGS629 is the new name for the product formerly known as Flushline 419DG 150mm x 55mm. This system was developed to accommodate both internal and external glazing.
AGS Commercial 659 Flushline Wide Pocket (150mm)The AGS 659 150mm wide glazed commercial Flushline framing system has been developed to accommodate both internal and external glazing techniques.
AGS Commercial 1029 Flushline Double Glazed (250mm)Flushline AGS1029 is the new name for the product formerly known as Flushline419DG 250mm * 55mm
AGS Commercial 425 Narrowline Double Glazed (101.6mm)The AGS 425 Narrowline framing system was developed specifically to cater for the growing requirement for energy-efficient double glazing.
AGS Commercial 450 Narrowline Wide Pocket (101.6mm)The AGS 450 Narrowline has been designed with extra wide glazing pockets to accept double-glazed units with internal Venetian blinds
AGS Commercial 601 Narrowline Offset Single Glazed (150mm)The AGS 601 Narrowline framing system delivers increased structural performance with the 150mm frame depth while maintaining a typical external appearance.
AGS Commercial 625 Narrowline Double Glazed (150mm)The AGS 625 Narrowline offers an increased level of structural performance than the AGS 425 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
SGS Commercial 400 Narrowline Single Glazed (100mm) (QLD Only)The SGS 400 Narrowline framing system redefines the standard for centre-glazed framing.
More products from this range
AGS Commercial 429 Flushline Double Glazed (100mm)Flushline AGS429 is the new name for the product formerly known as Flushline 419DG 100mm x 55mm. This commercial framing system has been developed to accommodate internal and external glazing techniques.
AGS Commercial 215 Hinged DoorThe AGS 215 Door is a 36mm pocket glazed hinged door panel designed to meet the market demand for a cost-effective hinge door while still having the key attributes of a commercial hinged door
AGS Commercial 35 Hook Hinge Awning SashThis AGS Commercial Awning Window with Hook Hinge is an operable window sash available for use with AGS commercial framing.
AGS Commercial 625 Narrowline Double Glazed (150mm)The AGS 625 Narrowline offers an increased level of structural performance than the AGS 425 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
AGS Commercial 380 Sliding Window (76mm)The AGS 380 Sliding Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 300/325 Narrowline framing systems.
AGS Commercial 325 Narrowline Double Glazed (76mm)The AGS 325 Narrowline double-glazed aluminium framing system's slimline frame depth and ability to accommodate a captive glazing wedge make it an economical option for architectural projects.
AGS Commercial 499 Strut WindowThe AGS 499 Gas Strut Window is ideal in servery applications, designed to maximise functionality, airflow and convenience.
AGS Commercial 225 Sliding DoorThe AGS 225 Sliding Door is a 46mm pocket glazed commercial door panel capable of delivering flexibility, performance and ease of assembly in mind.
Not quite what you’re looking for? Consider...
Urban 283 Louvre WindowDesigned to deliver a stylish natural ventilation solution, the Urban Louvre window gives you complete control over the airflow in your living space.
Urban Plus 393 Louvre WindowDesigned to deliver a stylish natural ventilation solution, the Urban Plus Louvre window gives you complete control over the airflow in your living space.
Projects that use this system
Collie Health Services Stage 2 Redevelopment
The Collie Health Services Stage 2 Redevelopment marked a significant milestone in modernising healthcare facilities in regional Western Australia.
Healthcare

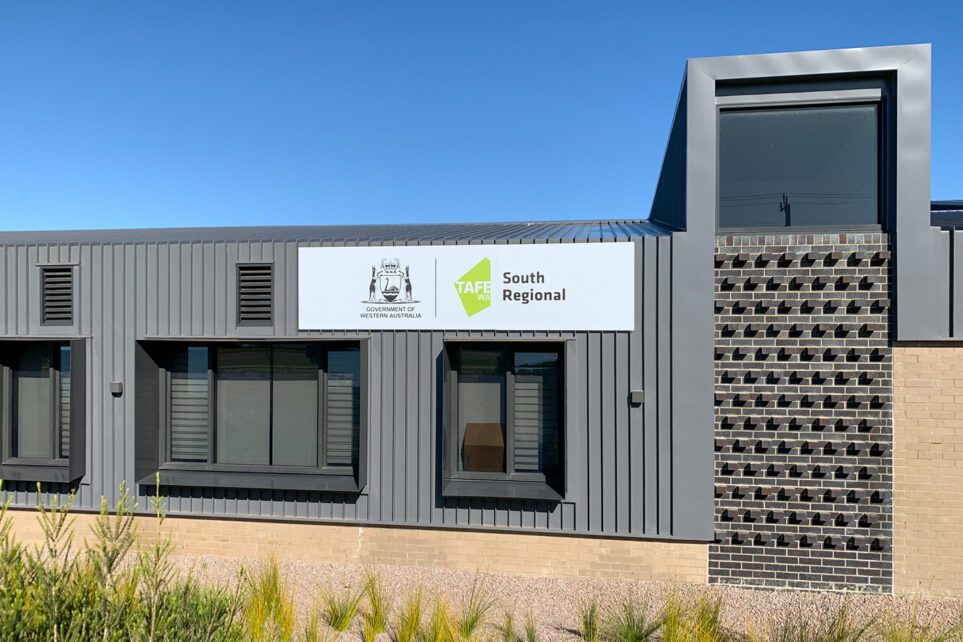

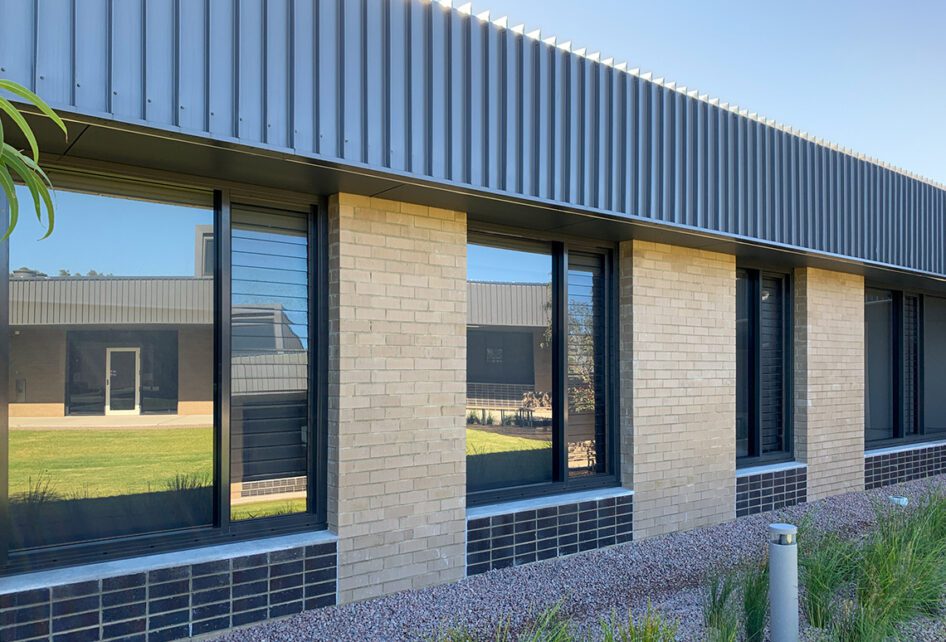

Esperance TAFE Campus Maximises Light For Learning
