AGS Commercial 50 Casement Sash
The AGS 50 Series window is a high-performance commercial casement window compatible with AGS framing.
Certified
Rated
Key features
- Range of framing options
- Single, thick and double-glazing options
- Incorporates rain-screen design principles for improved performance
- A high degree of design flexibility
- Compatible with a range of AGS Commercial and Artisan Architectural suites
The AGS 50 Series window is a high-performance commercial casement window compatible with AGS framing systems.

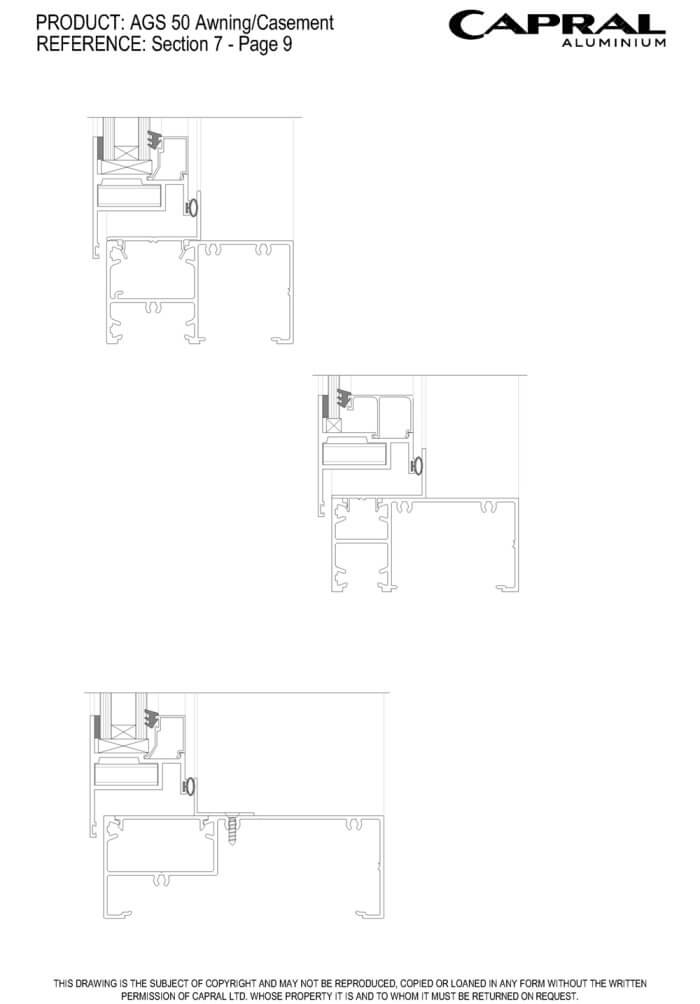

The AGS 50 Series window may be fabricated into several different frame types, allowing for various applications.
The 50 Series window accepts thick and double-glazing options up to 38mm for enhanced thermal comfort and performance.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1500
Panel Width (mm)
900
Panel Weight (kg)
40
Panel Area (m2)
1.5
Frame Dimensions (mm)
Narrowline
76, 101.6 or 150
Flushline
100, 150 or 250
Acoustic Rating
Rw (C;Ctr)
41 (-1;-5)
Maximum Product Performance
SLS (Pa)
1500
ULS (Pa)
2700
WATER (Pa)
600
Glazing Details
Single Glazed
4 - 12
Double Glazed
24 - 40
Single glazed Jockey Sash option available accepting 5mm & 6mm glass
Energy Performance
Uw Range
4.2 - 7.1
SHGC Range
0.15 - 0.51
Tvw Range
0.05 - 0.5
Air infiltration
0.56 - 0.56
