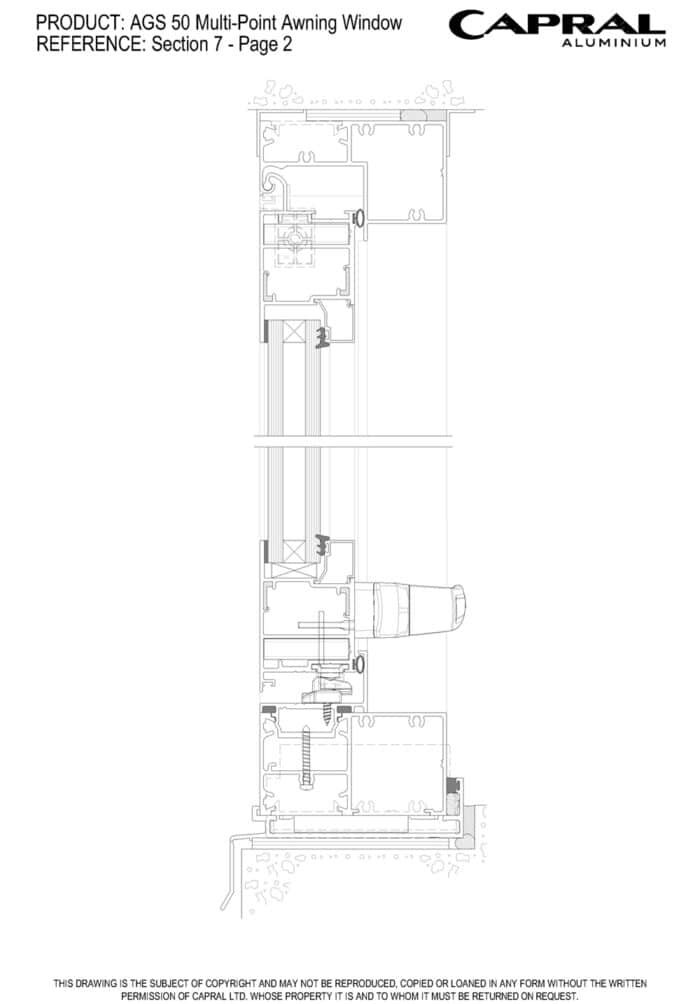

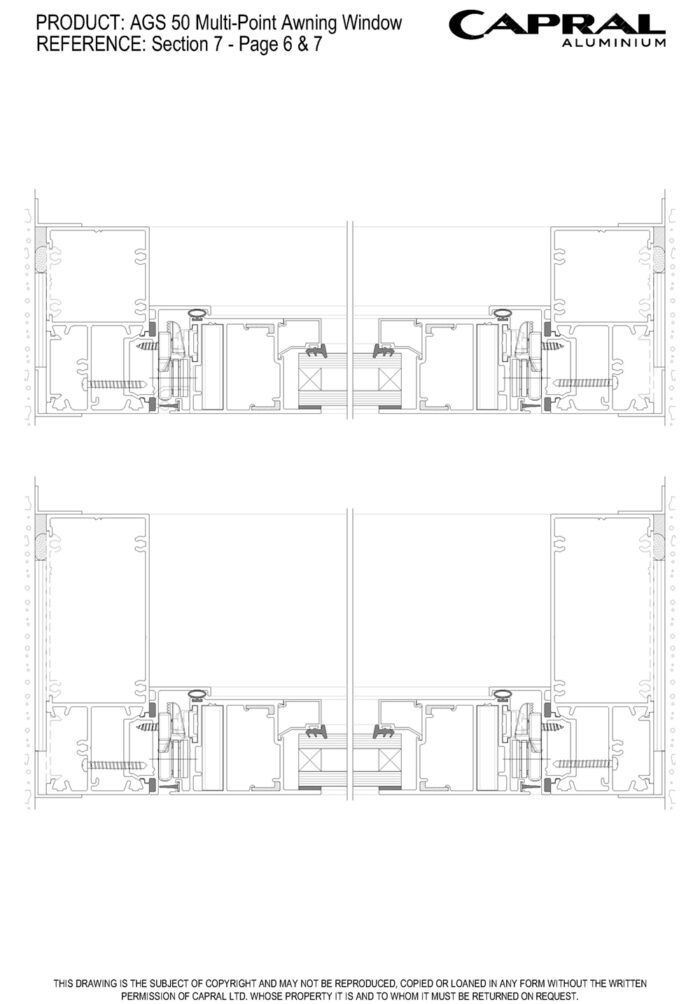

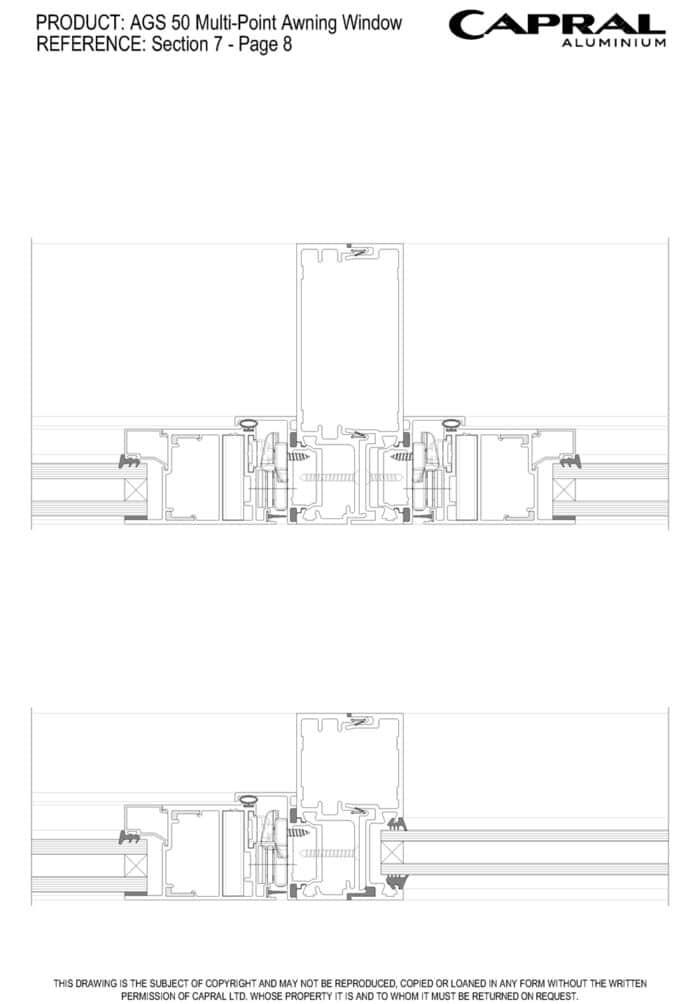

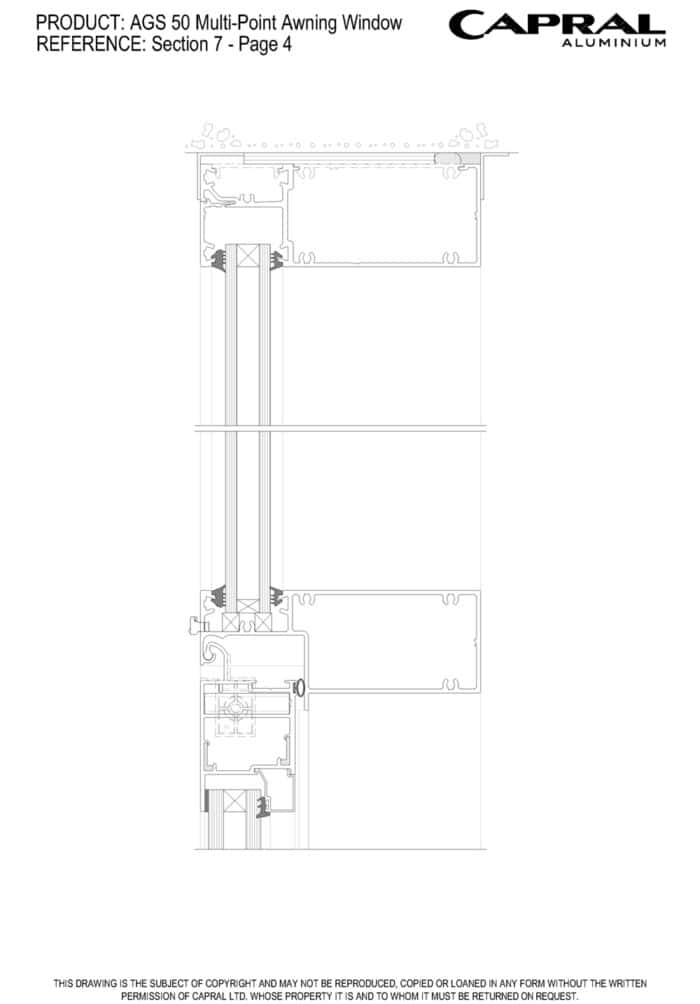

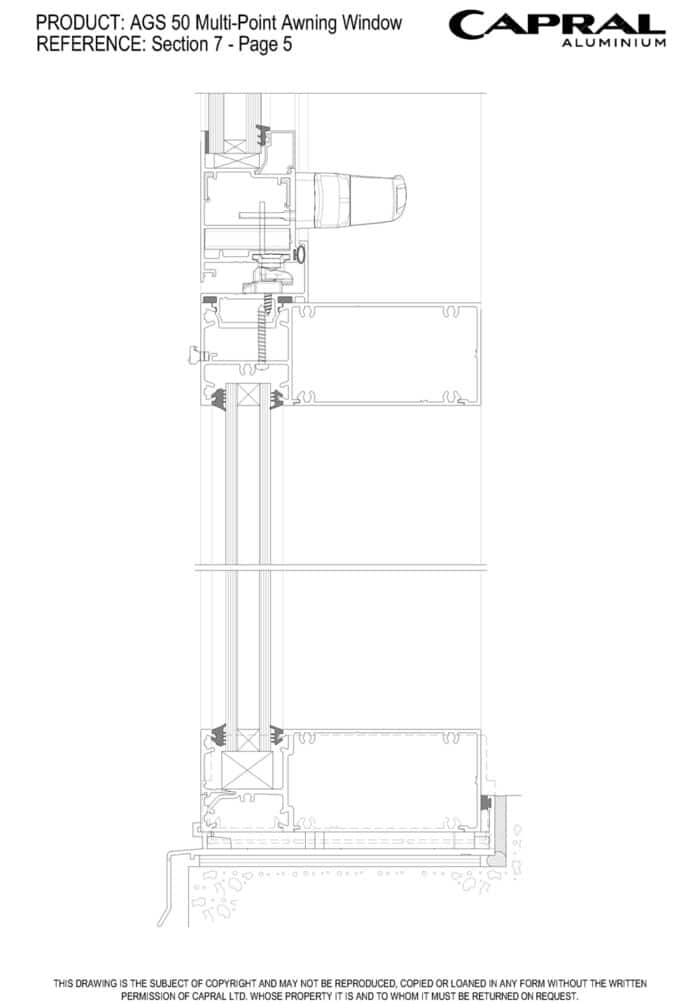

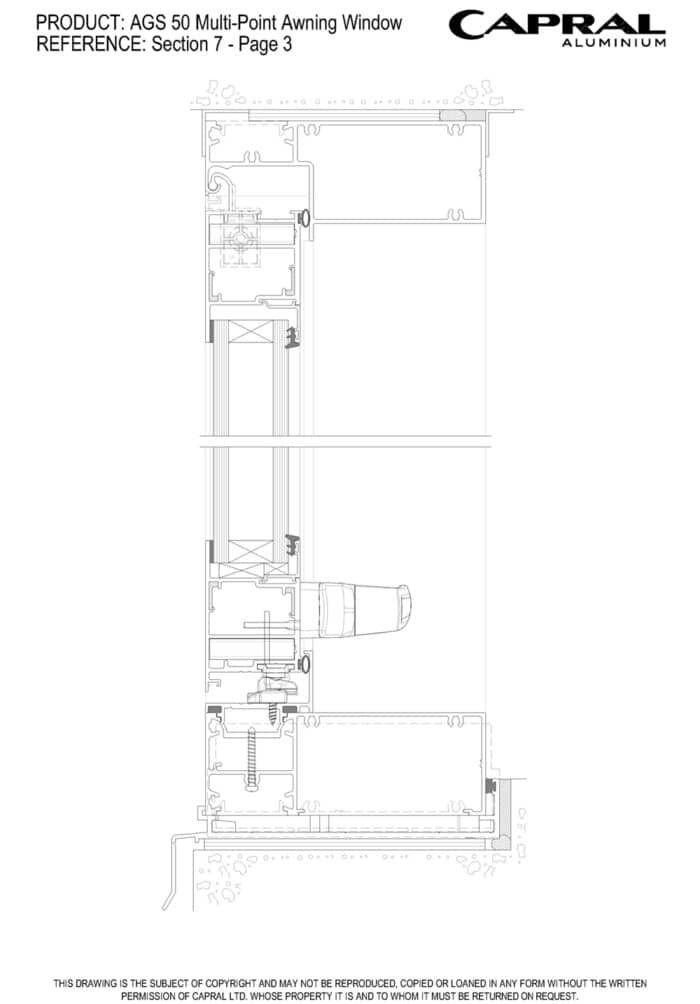

    AGS Commercial 50 Multi-point Awning

    A high-performance commercial awning window with integrated multi-point locking.

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    WERS
    Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select
    Key features
    • Suits most commercial and architectural applications
    • Compatible with a range of AGS 100mm and 150mm double glazed frames
    • Continuous hook hinge or stay hinge method
    • High degree of design flexibility
    • Integrated multi-point locking hardware
    • Range of locking points available

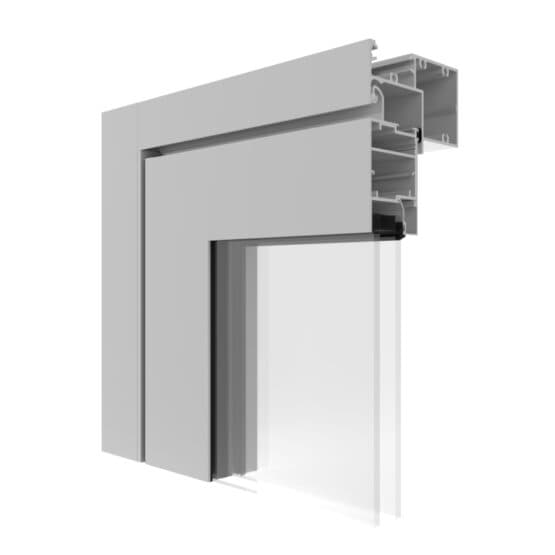

    The AGS 50 Commercial Multi-Point Awning Window provides high-performance in a clean commercial frame. The panel’s integrated multi-point locking provides significantly increased strength and security, ideal for use in high-rise buildings.

    The system is compatible with both AGS Narrowline and Futureline framing systems to maximise compatibility and visual consistency across any project.

    Download Brochure

    Details

    Product Specs
    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 2000
    Panel Width (mm) 1300
    Panel Weight (kg) 60
    Panel Area (m2) 2.5

    Frame Dimensions (mm)

    429 Flushline Frame 100mm
    629 Flushline Flushline 150mm

    Maximum Product Performance

    SLS (Pa) 2500
    ULS (Pa) 4500
    WATER (Pa) 600

    Glazing Details

    Double Glazed 24 - 40
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual AGS 50 Multi-Point Awning Window
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS Projecting Windows
    Extrusion Wall Chart AGS Speciality Sub Frames
    Extrusion Wall Chart AGS Sub Framing
    BIM Files
    CAD Files
    CAD Files AGS 50 Multi-Point Awning Window
    CAD Files AGS Sub Frames
    CAD Wall Chart AGS Sub Framing
    CAD Wall Chart Capral Screening
    Bulletins
    PBJ1022 - AGS 50 Multi-Point Awning Window
    Other
    Capral AGS 50 Multi-Point Awning Window
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
