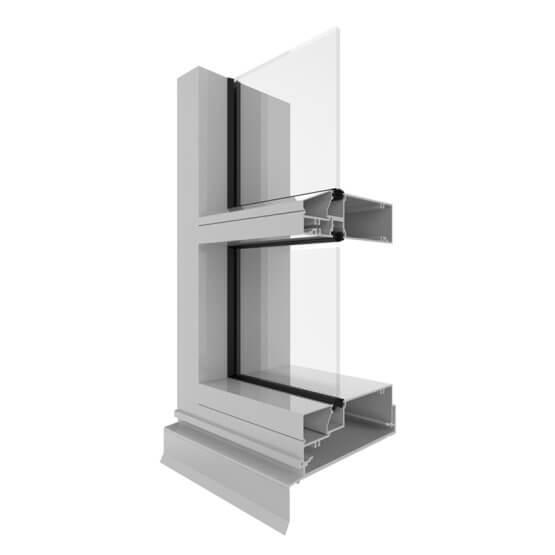

AGS Commercial 601 Narrowline Offset Single Glazed (150mm)
The AGS 601 Narrowline framing system delivers increased structural performance with the 150mm frame depth while maintaining a typical external appearance.
Certified
Key features
- 150mm x 44mm offset pocket framing system
- It suits most commercial applications requiring more strength than the AGS 400 Narrowline but with the same look and product compatibility
- Crisp, unbroken lines for clean aesthetics
- Designed to match the external appearance of AGS 400 Narrowline
- Mullion options for design flexibility
- Captive glazing wedge options for easier on-site glazing
- Compatible door and window suites are available
- Internal and externally beaded options
- Sub-frame options
Modelled on the highly successful AGS 400 Narrowline framing system, the AGS 601 Narrowline framing system delivers increased structural performance with the 150mm frame depth while maintaining a typical external appearance by matching its 44mm face dimension and glass set-back.
The offset glazing pocket allows the AGS 601 & AGS 400 Narrowline framing systems to be easily combined on various elevations. Also, it will enable the AGS 601 Narrowline to incorporate all AGS 400 Narrowline sash and door options.
Details
Product Specs

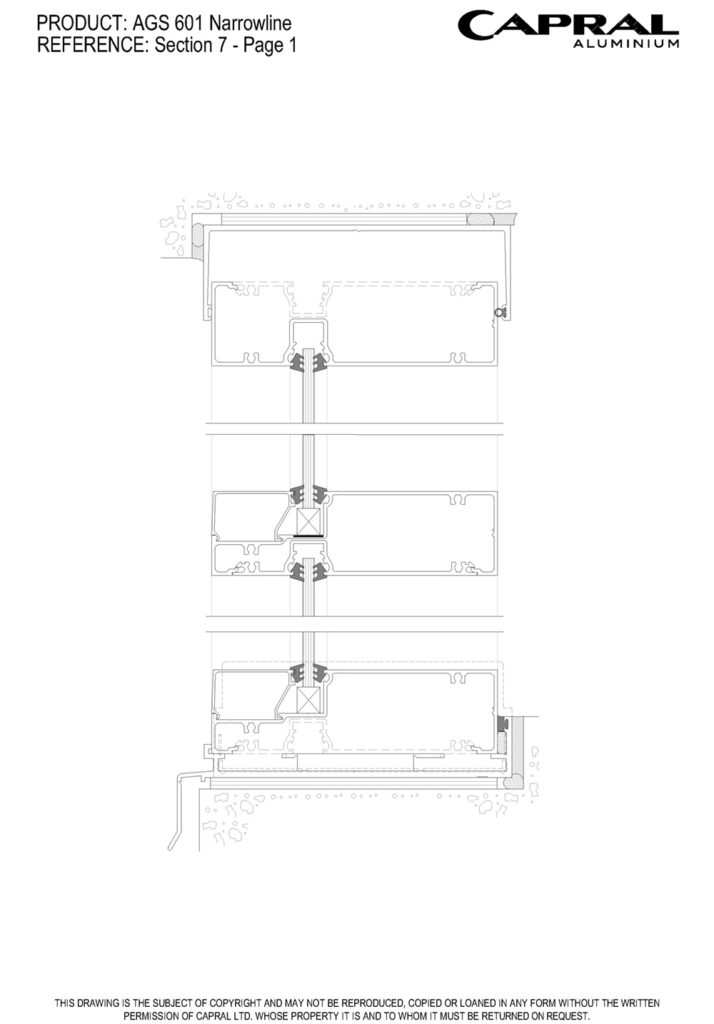

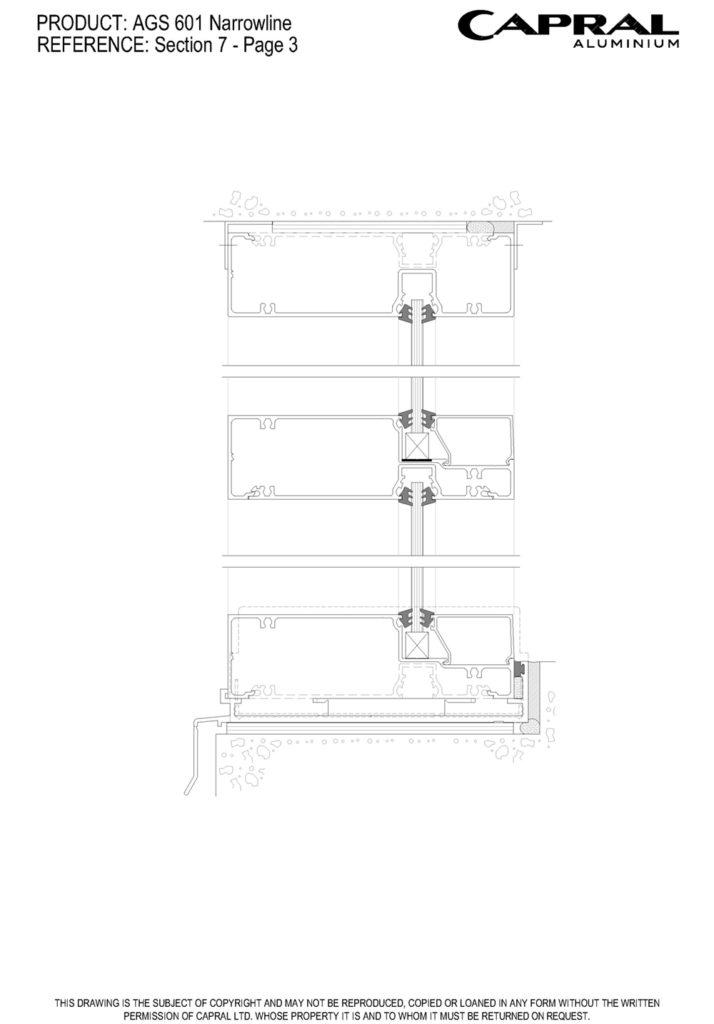

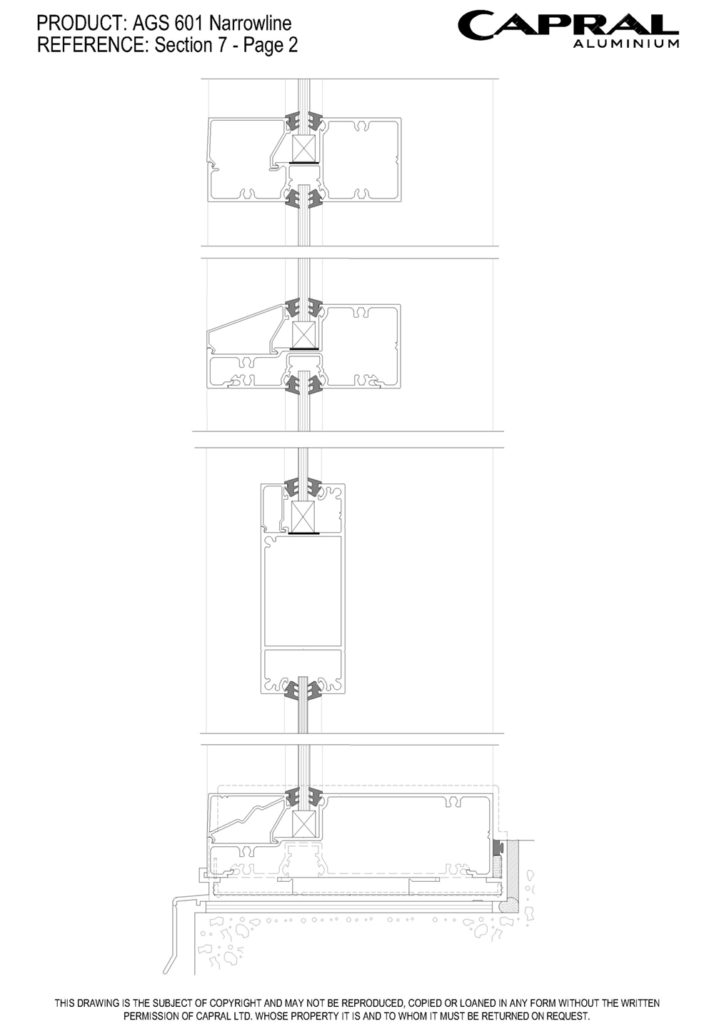

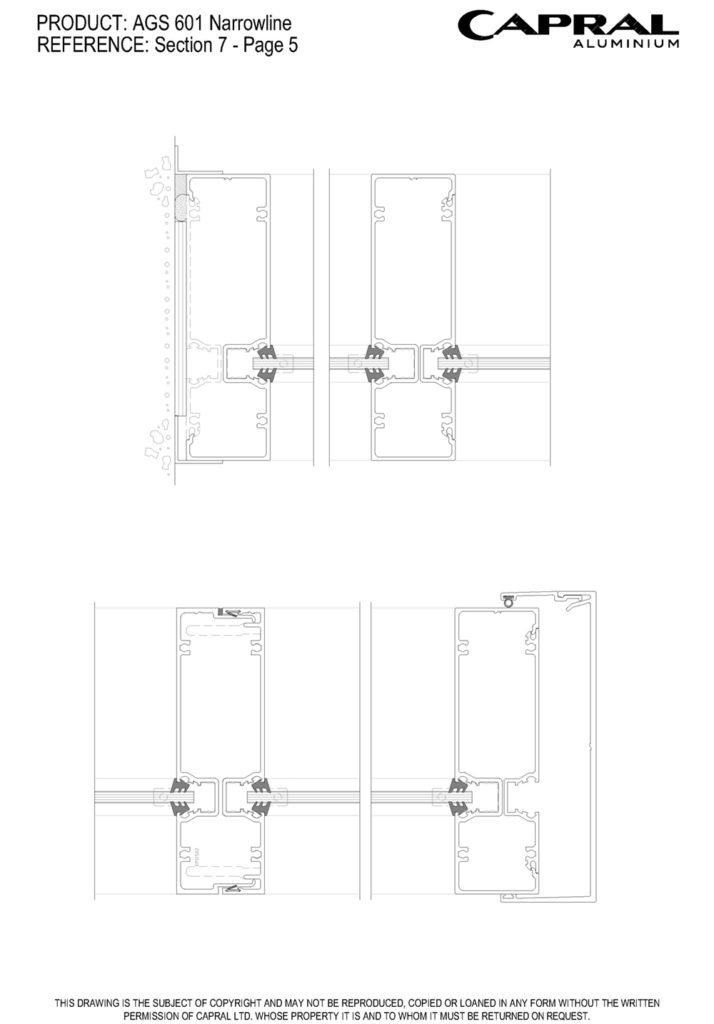

Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
5000
Panel Width (mm)
2200
Frame Dimensions (mm)
Frame depth (mm)
150
Face Width (mm)
44
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
1100
WATER (Pa)
900
Glazing Details
Single Glazed
4 - 10
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 601 Narrowline
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS Narrowline Framing Systems
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
Revit AGS Narrowline Framing
CAD Files
CAD-Files_AGS-601-Offset-Narrowline_Capral_R2504
CAD Files AGS Sub Frames
CAD Wall Chart AGS Narrowline Framing
CAD Wall Chart AGS Sub Framing
Bulletins
PB337 - AGS Narrowline Relaunch
Other
Compatible Products
