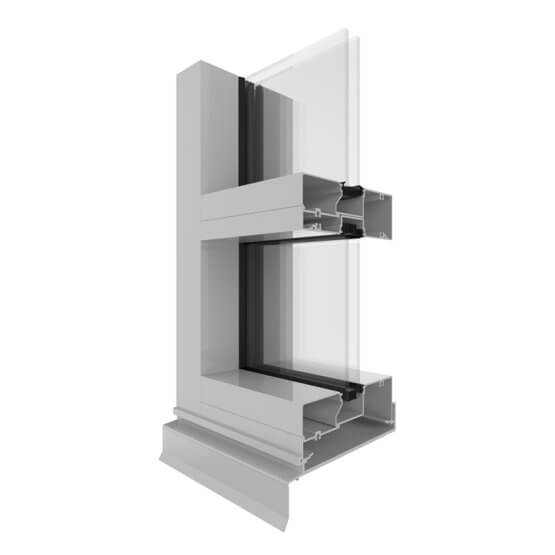

AGS Commercial 625 Narrowline Double Glazed (150mm)
The AGS 625 Narrowline offers an increased level of structural performance than the AGS 425 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
Certified
Key features
- Dedicated double-glazed 150 x 50mm centre pocket frame
- It suits most commercial applications requiring improved thermal characteristics and more strength than the AGS 425 Narrowline
- Crisp, unbroken lines for clean aesthetics
- Accepts double-glazed units up to 28mm in thickness
- Supports thick glass with the use of an adapter
- Compatible AGS door suites are available
- Supports various glass thicknesses with the use of an adaptor
- Sub-frame options
- Compatible door and window suites are available
- Internal and externally beaded options
- Captive glazing wedge options for more accessible on-site glazing
The AGS 625 Narrowline offers more structural performance than the AGS 425 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
The dedicated double-glazed centre pocketed framing system delivers enhanced thermal performance over the AGS 600 Narrowline. It can accommodate insulated glass units of up to 28mm in width.
The AGS 625 Narrowline framing system offers several hinged and pivot door options.
Details
Product Specs
Configurations

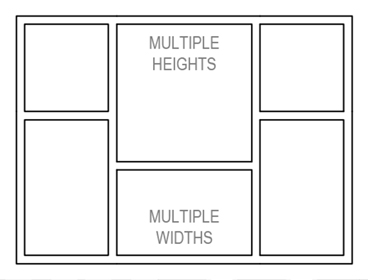

Arrangements
Maximum Product Sizes
Panel Height (mm)
4400
Panel Width (mm)
2200

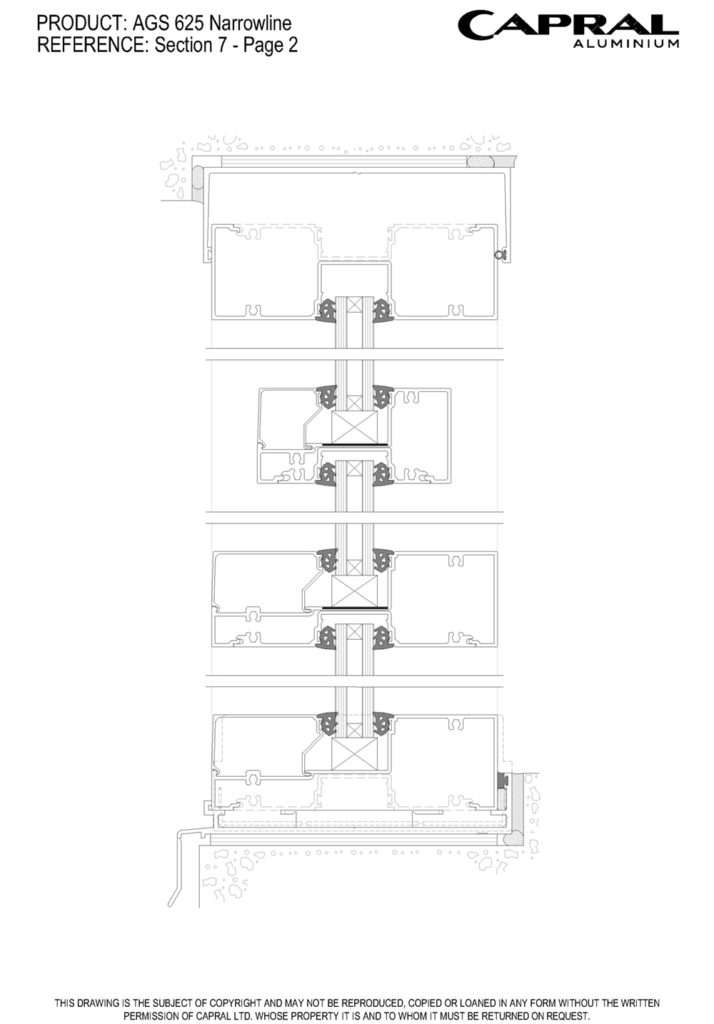

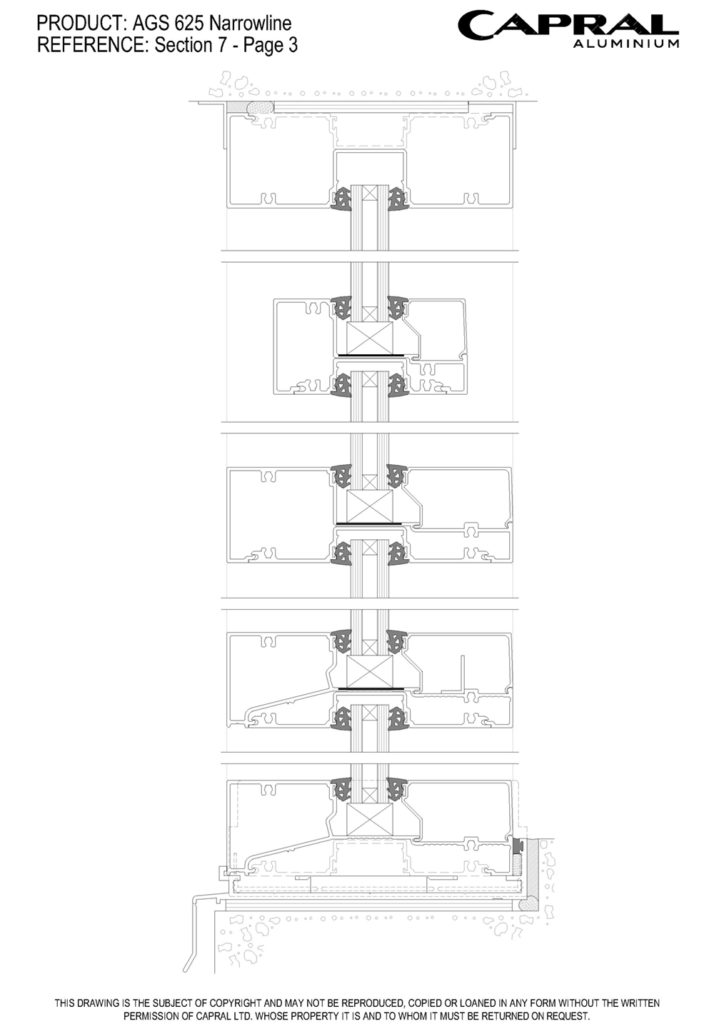

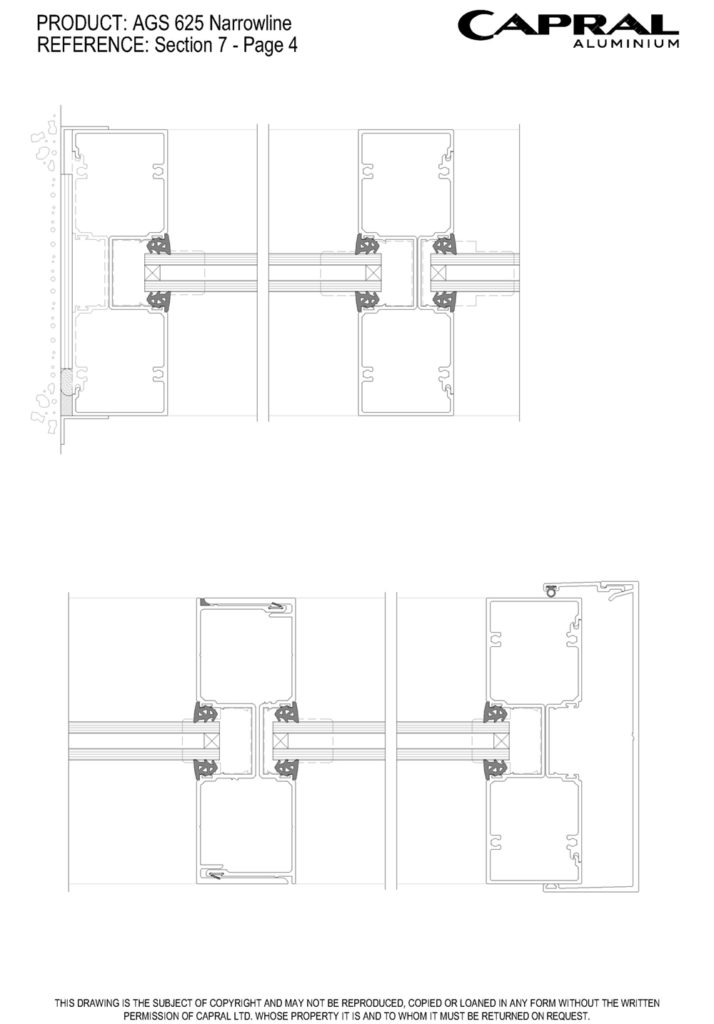

Frame Dimensions (mm)
Frame depth (mm)
150
Face Width (mm)
50
Maximum Product Performance
SLS (Pa)
9300
ULS (Pa)
10600
WATER (Pa)
1500
Glazing Details
Single Glazed
4 - 10
Double Glazed
18 - 28
Thick Glazed
10 - 16
Single and thick glazed options use glazing adaptors
Energy Performance
Uw Range
2.56 - 5.79
SHGC Range
0.14 - 0.69
Tvw Range
0.06 - 0.78
Air infiltration
0.2 - 0.2
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 625 Narrowline
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS Narrowline Framing Systems
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
Revit AGS Narrowline Framing
CAD Files
CAD Files AGS 625 Narrowline
CAD Files AGS Sub Frames
CAD Wall Chart AGS Narrowline Framing
CAD Wall Chart AGS Sub Framing
Bulletins
PB337 - AGS Narrowline Relaunch
PB257 - 9mm Glazing Wedge
Other
Compatible Products
