AGS Commercial 650 Narrowline Wide Pocket (150mm)
The AGS 650 Narrowline framing boasts extra-wide glazing pockets, making it ideal for various applications.
Key features
- Dedicated wide pocket double glazed 150mm x 55mm centre glazed frame
- Ideal for health projects where double-glazed venetians have been specified
- Captive glazing wedge options for easier on-site glazing
- Supports various glass thicknesses with the use of an adaptor
- Full sub-frame options are available
- Compatible door and window suites available
- Internal and externally beaded options

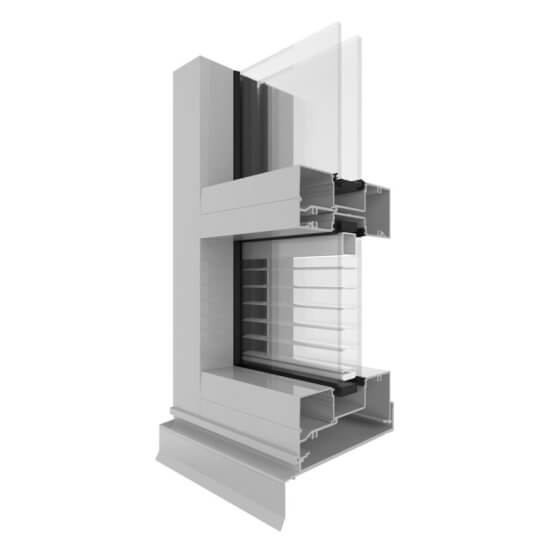

The AGS 650 Narrowline framing boasts extra-wide glazing pockets, making it ideal for various applications. It can effortlessly accommodate double glazed units with internal Venetian blinds, a common choice in healthcare projects.
Additionally, it’s suitable for situations requiring extra-thick glazing to meet cyclonic impact standards or triple-glazing for enhanced energy efficiency. With its versatile design, the AGS 650 Narrowline can accept glazing ranging
from an impressive 44mm width to a standard 12mm by using inlay beads. This adaptability ensures it can meet your specific project requirements with ease.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
4400
Panel Width (mm)
2000
Frame Dimensions (mm)
Frame depth (mm)
150
Maximum Product Performance
SLS (Pa)
3000
ULS (Pa)
4500
WATER (Pa)
9008
* Based on theoretical performance

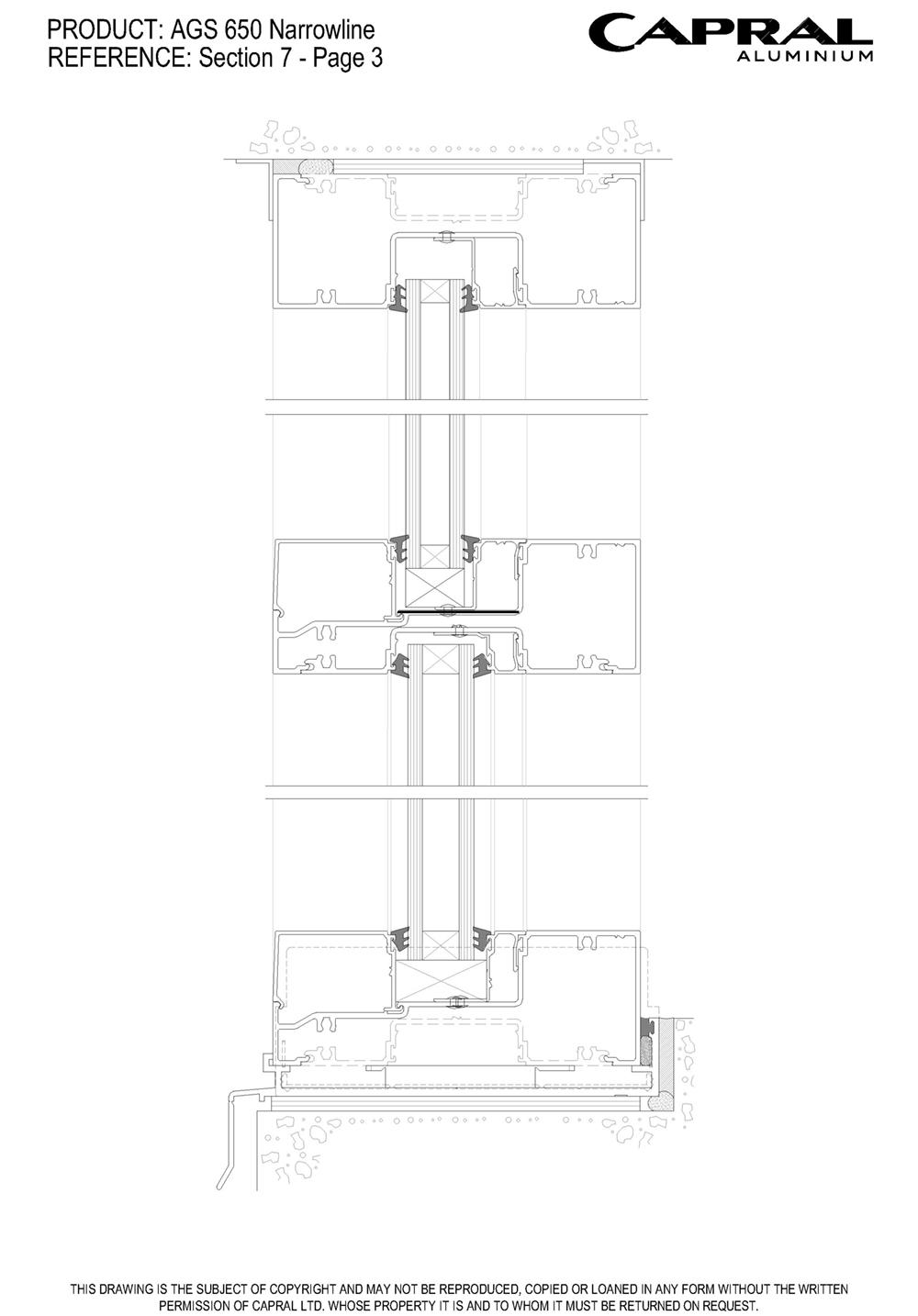

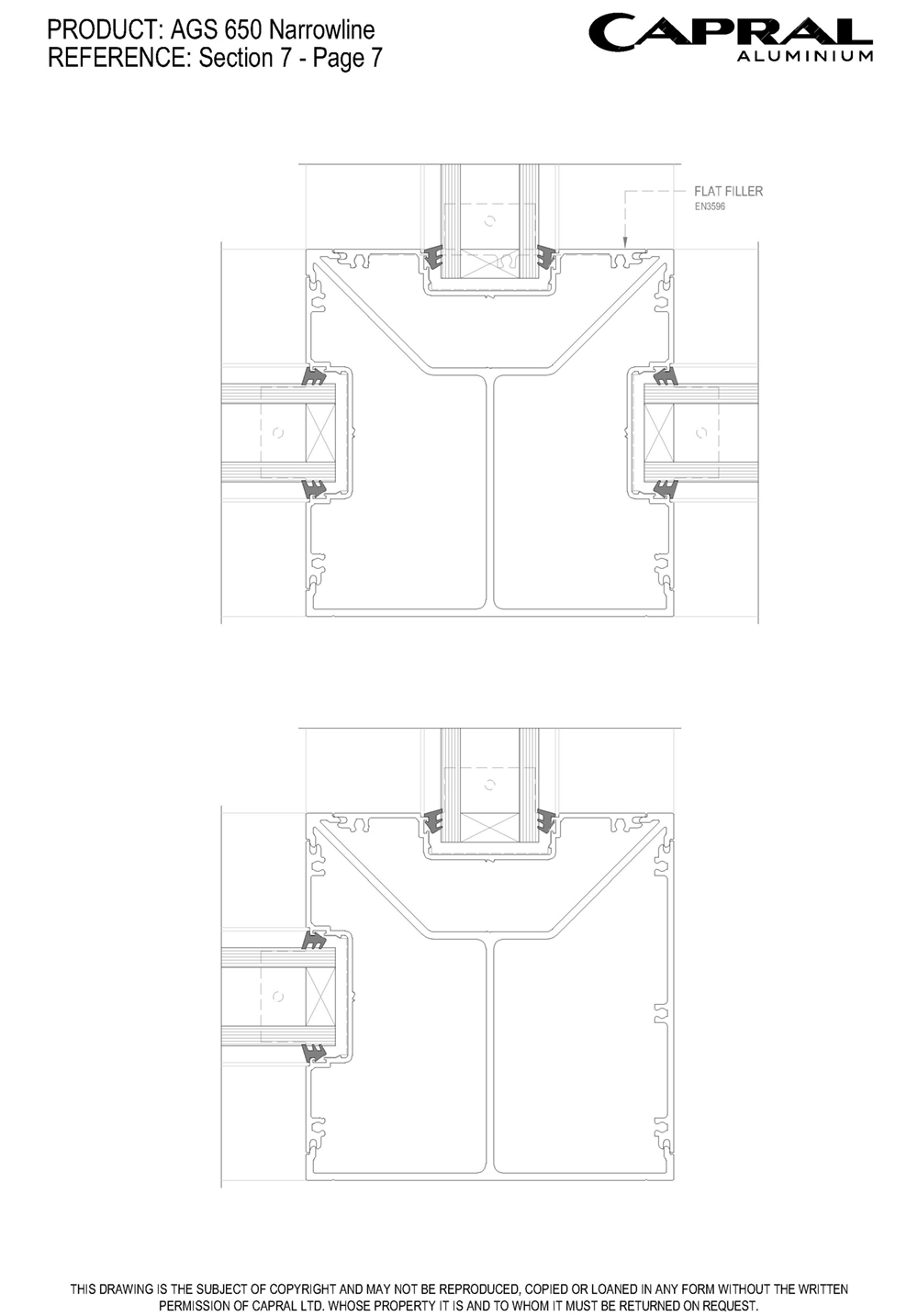

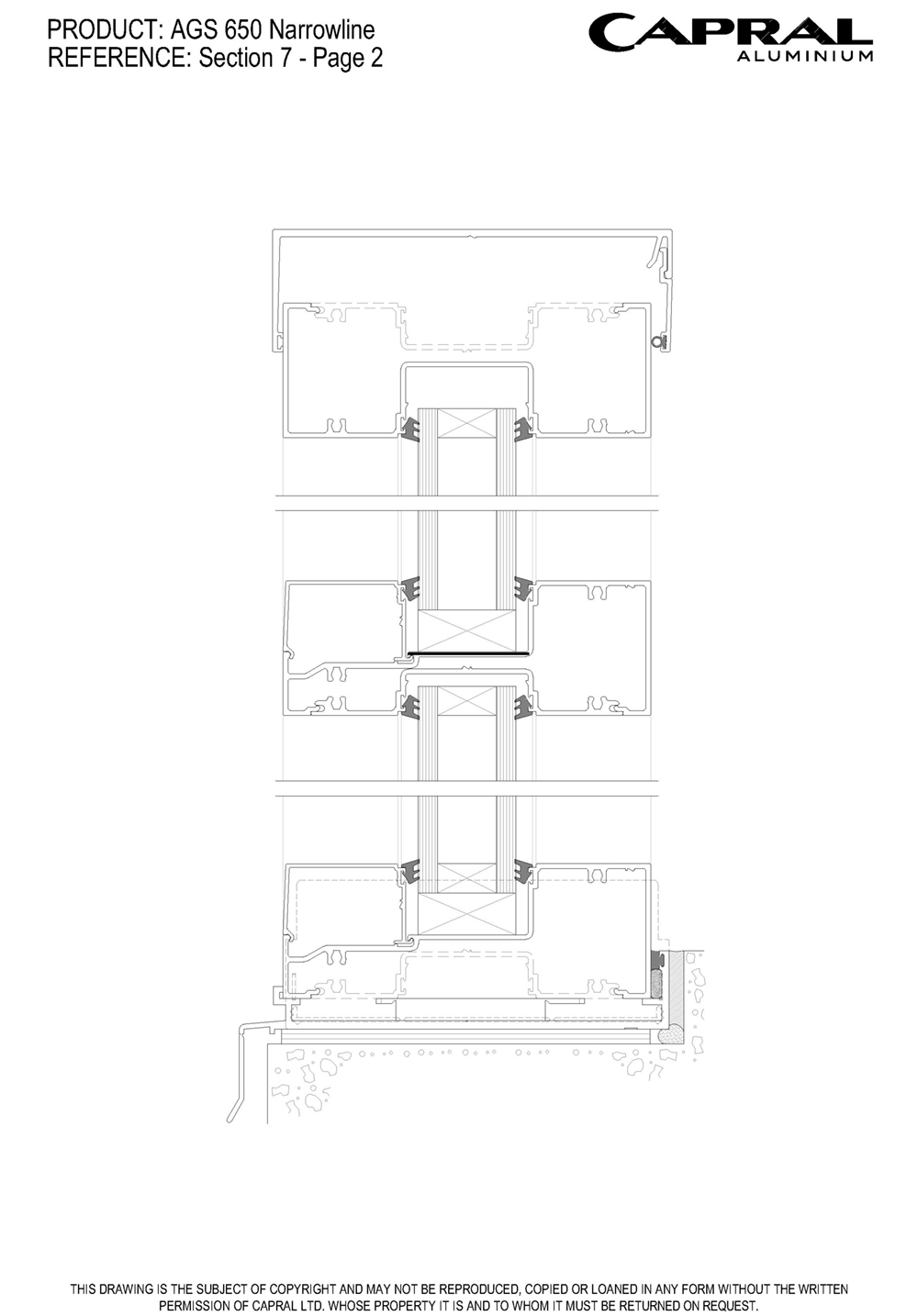

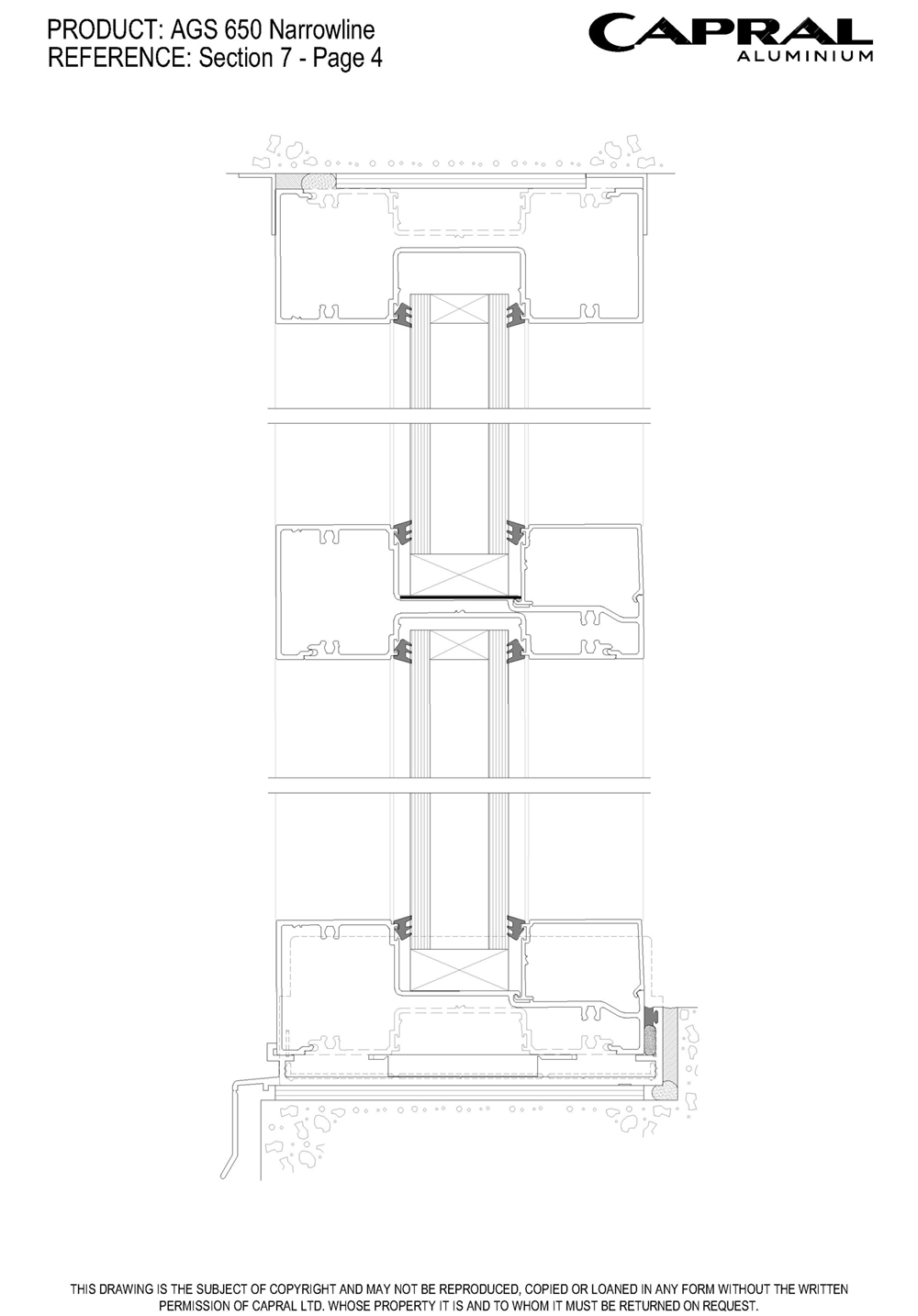

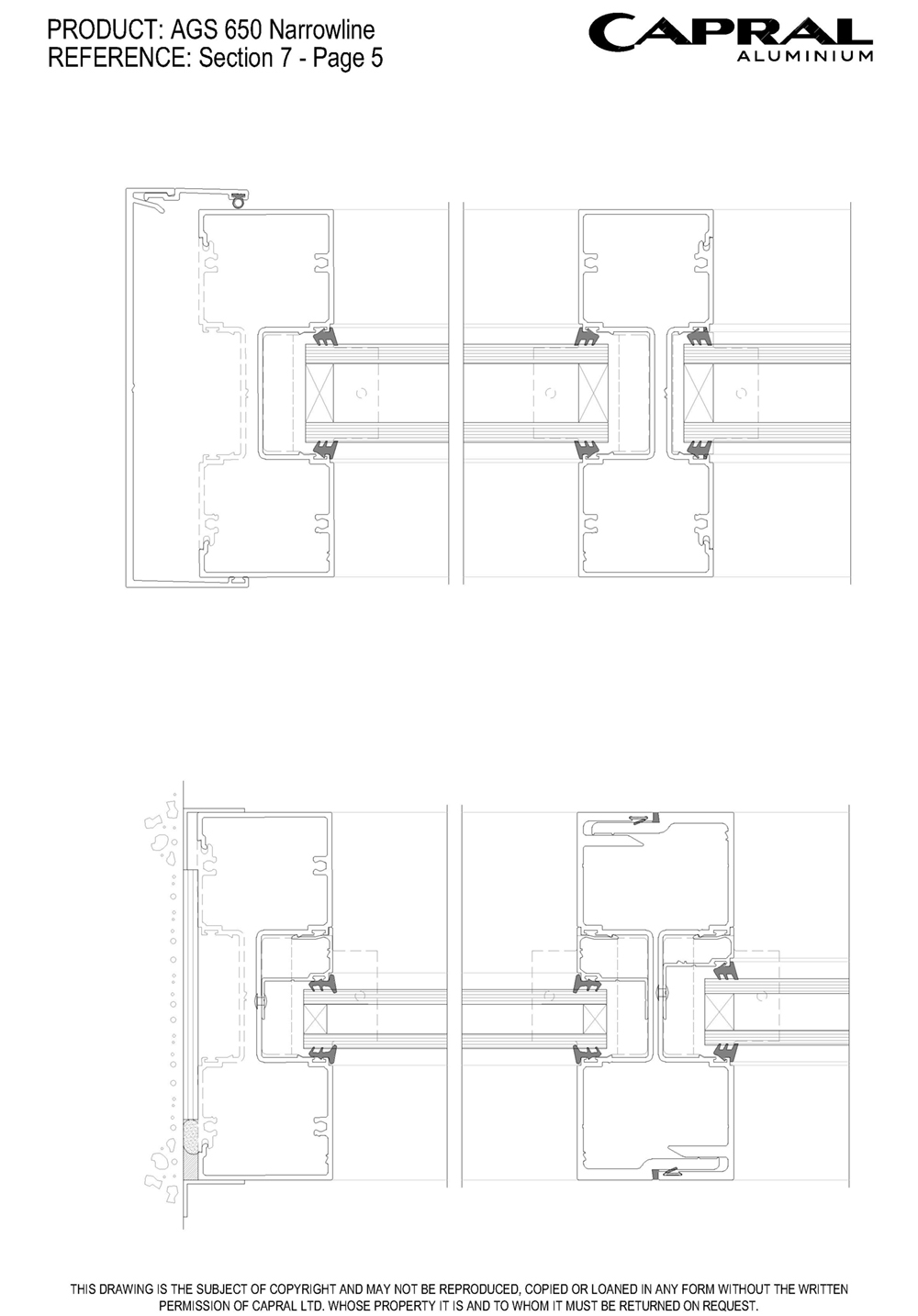

Glazing Details
Double Glazed
18 - 30*
Thick Glazed
12 - 25*
Triple Glazed
44 - 44
*with the use of adaptors
