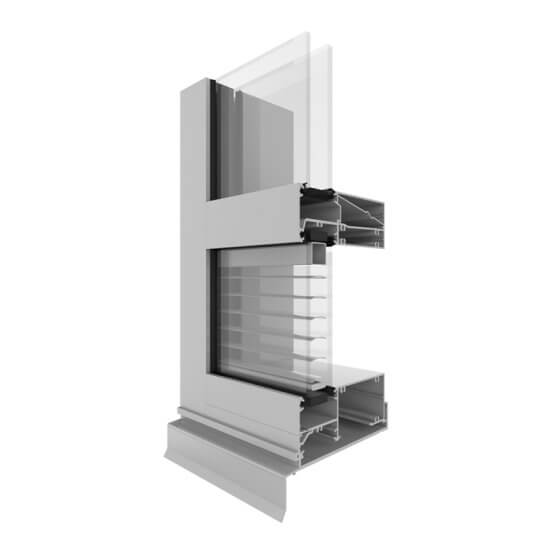

AGS Commercial 659 Flushline Wide Pocket (150mm)
The AGS 659 150mm wide glazed commercial Flushline framing system has been developed to accommodate both internal and external glazing techniques.
Certified
Key features
- 150x55mm double-glazed frame options

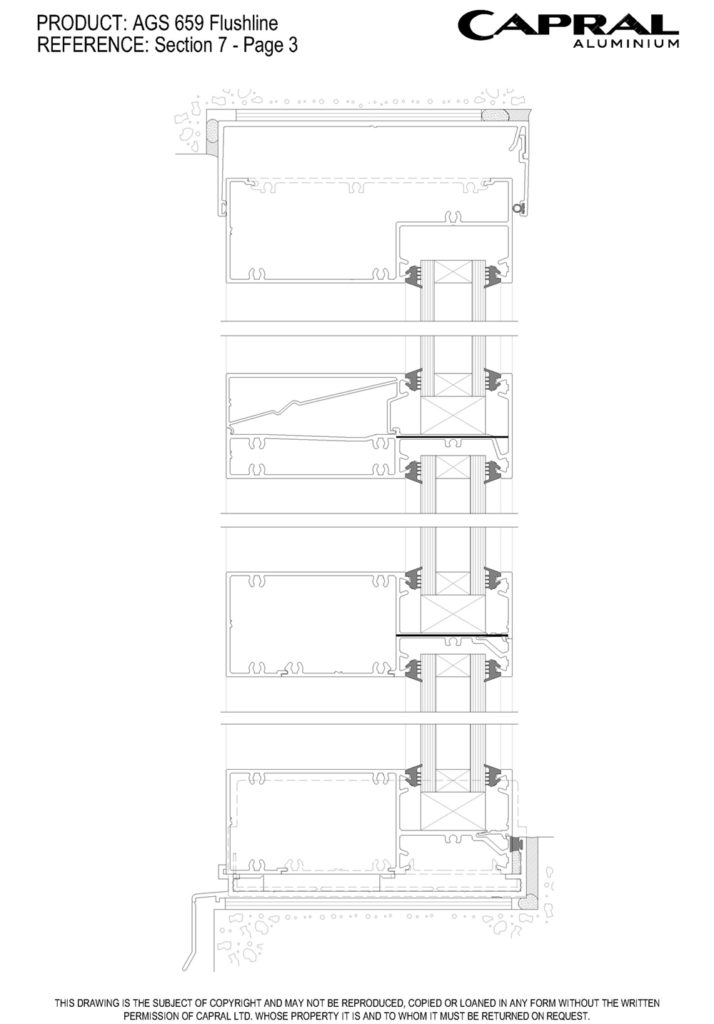

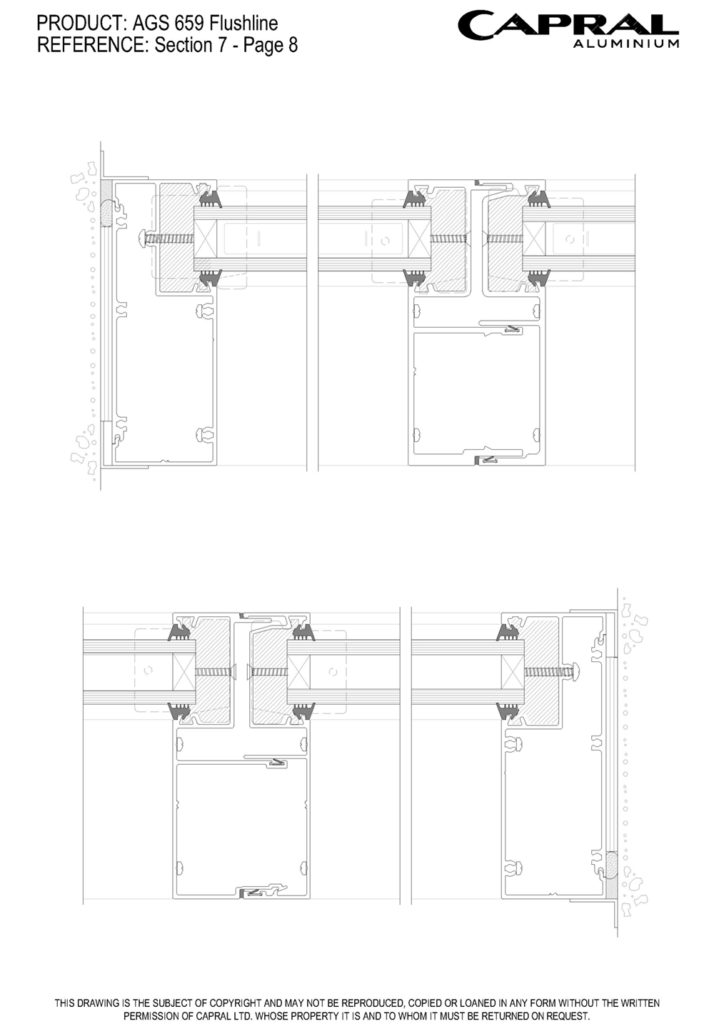

- Forward-positioned glazing pocket for flush external finish or reverse installation possible for expressed mullions
- Captive glazing wedge options for easier on-site glazing

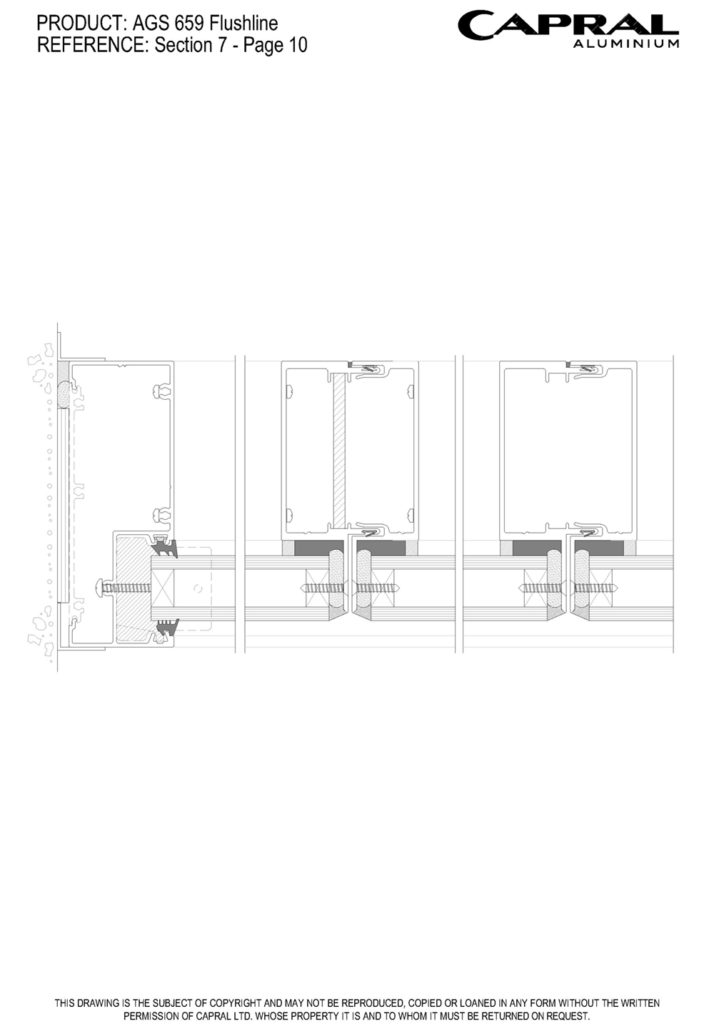

- Structurally glazed mullion and or transom options
- Compatible door and window suites are available
- Supports various glass thicknesses with the use of an adaptor
- Sub frame including spandrel subframe available
- Internal and externally beaded options
The AGS 659 150mm wide pocket commercial Flushline framing system has been developed to accommodate both internal and external glazing techniques. Its front glazed arrangement has been designed to maximise internal areas whilst achieving a clean and modern outward appearance.
The AGS 659 Flushline system accepts a variety of glass thicknesses, incorporates optional structurally glazed mullion profiles and offers several operable door and window options.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
5000
Panel Width (mm)
2400
Frame Dimensions (mm)
Frame depth (mm)
150
Face Width (mm)
55
Acoustic Rating
Rw (C;Ctr)
42(-2;-5)*
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
11000
WATER (Pa)
1200
*Acoustic opinion based on AGS 629 Flusgline
Glazing Details
Single Glazed
5 - 12
Double Glazed
34 - 41
Single glazed with the use of glazing adaptors
Energy Performance
Uw Range
2.80 - 3.69
SHGC Range
0.21 - 0.54
Tvw Range
0.18 - 0.70
Air infiltration
0.02 - 0.02
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 659 Flushline
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS 150mm Flushline Framing Systems
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
Revit AGS Flushline Framing
CAD Files
CAD Files AGS 659 Flushline
CAD Files AGS Sub Frames
CAD Wall Chart AGS Flushline Framing
CAD Wall Chart AGS Sub Framing
Bulletins
PB343 - AGS Flushline Relaunch
Other
Compatible Products
Artisan 998 Tilt-and-Turn WindowThe Artisan Architectural Tilt & Turn is a multi-functional window and is compatible with the AGS Flushline range of commercial framing products.
Artisan 999 Auto Strut WindowThe Artisan Architectural Automated Strut window is ideal in servery applications with large sashes that open fully to a 90 degree angle.
AGS Commercial 50 Awning SashThe AGS 50 Series window is a high-performance commercial awning window compatible with AGS framing.
AGS Commercial 35 Awning SashThis AGS Commercial Awning Window is an operable window sash available for use with AGS commercial framing.
AGS Commercial 35 Casement SashThis AGS Commercial Casement Window is an operable window sash available for use with AGS commercial framing.
AGS Commercial 50 Casement SashThe AGS 50 Series window is a high-performance commercial casement window compatible with AGS framing.
AGS Commercial 900 High Performance Sliding DoorA true commercial sliding door designed for high-traffic areas delivering bold panel sizes and exceptional performance.
AGS Commercial Louvre AdaptorThe AGS Commercial Louvre Adaptor gives you the flexibility you need to create a high-performance louvre window with a clean architectural finish.
More products from this range
AGS Commercial CW175 175mm Curtain WallThe CW175 is targeted at projects where large expanses of glass or high wind loads are demanded
AGS Commercial 491 Double Hung WindowThe AGS 491 Double Hung window features a substantial outer frame that provides a modern aesthetic for residential, architectural and commercial applications.
AGS Commercial 481 Double Hung WindowThe AGS 481 Double Hung window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400 Narrowline framing system.
AGS Commercial 50 Multi-point AwningA high-performance commercial awning window with integrated multi-point locking.
AGS Commercial 480 Sliding Window (101.6mm)The AGS 480 Sliding Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400/425 Narrowline framing systems.
AGS Commercial 425 Narrowline Double Glazed (101.6mm)The AGS 425 Narrowline framing system was developed specifically to cater for the growing requirement for energy-efficient double glazing.
AGS Commercial 225 Sliding DoorThe AGS 225 Sliding Door is a 46mm pocket glazed commercial door panel capable of delivering flexibility, performance and ease of assembly in mind.
AGS Commercial 300 Narrowline Single Glazed (76mm)The AGS 300 Narrowline’s slimline frame depth makes it ideal for lowrise commercial applications
Not quite what you’re looking for? Consider...
AGS Commercial 419 Flushline Single Glazed (100mm)The AGS 419 Flushline is a 100mm, single glazed, flush-glazed framing system offering a clean and modern external appearance.
AGS Commercial 619 Single Glazed (150mm)Flushline AGS619 is the new name for the product formerly known as Flushline 419SG 150mm x 50mm. The AGS 619 Flushline offers a clean and modern external appearance.
AGS Commercial 429 Flushline Double Glazed (100mm)Flushline AGS429 is the new name for the product formerly known as Flushline 419DG 100mm x 55mm. This commercial framing system has been developed to accommodate internal and external glazing techniques.
AGS Commercial 1029 Flushline Double Glazed (250mm)Flushline AGS1029 is the new name for the product formerly known as Flushline419DG 250mm * 55mm
AGS 419 & 619 Flushline Acoustic FramingThe AGS 419 & 619 Flushline Acoustic framing systems have been developed to provide a product where acoustic performance is paramount.
AGS Commercial 629 Flushline Double Glazed (150mm)Flushline AGS629 is the new name for the product formerly known as Flushline 419DG 150mm x 55mm. This system was developed to accommodate both internal and external glazing.
Projects that use this system

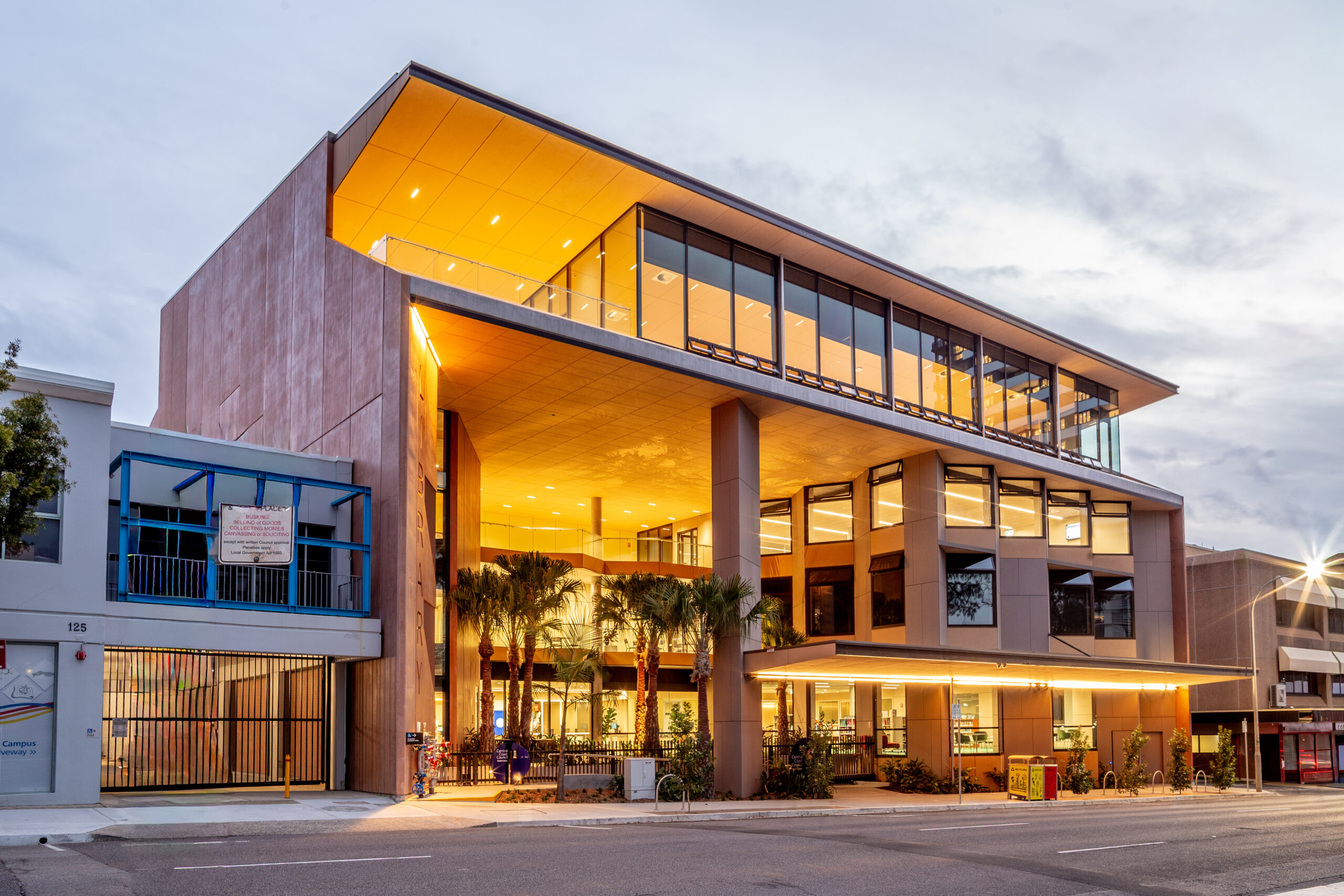

Chalmers Ave Mascot
