    AGS Commercial 900 High Performance Sliding Door

    A true commercial sliding door designed for high-traffic areas delivering bold panel sizes and exceptional performance.

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    Acoustic
    Rated
    Cyclone Impact
    Tested
    BAL 40
    Tested
    Disability
    Access
    WERS
    Automation
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select

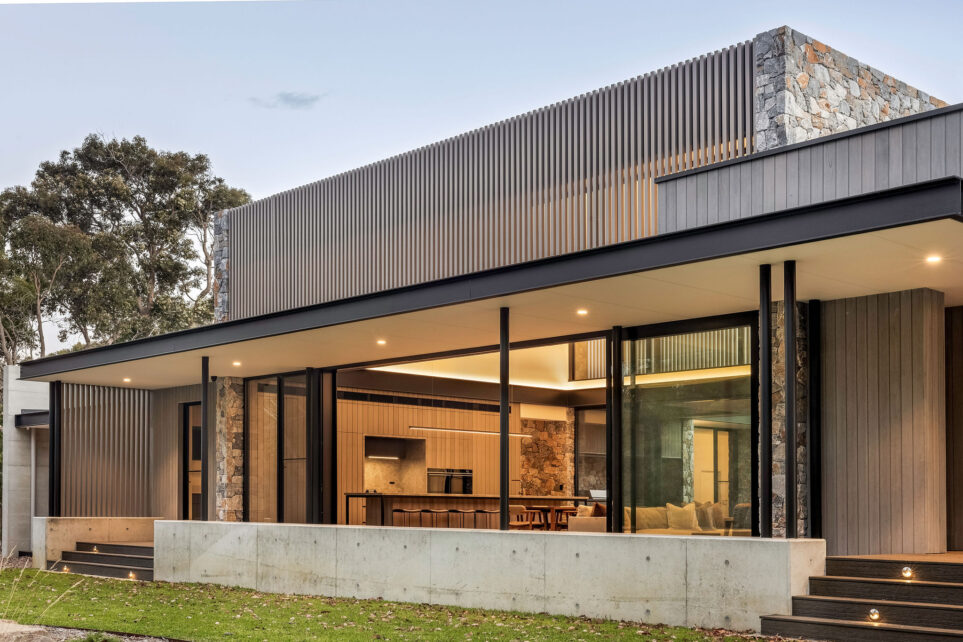

    Caves external
    Capral Tarrigal Glen featuring capral window and door systems bedroom
    Capral Tarrigal Glen featuring capral window and door systems Balcony
    Boon Residence | Capral Aluminium Dining/Kitchen
    Boon Residence | Capral Aluminium Pool Area
    Grays Point Kitchen/ Dining Room
    Grays Point Lounge Room
    A photo of Australind Senior High School featuring Capral's Windows

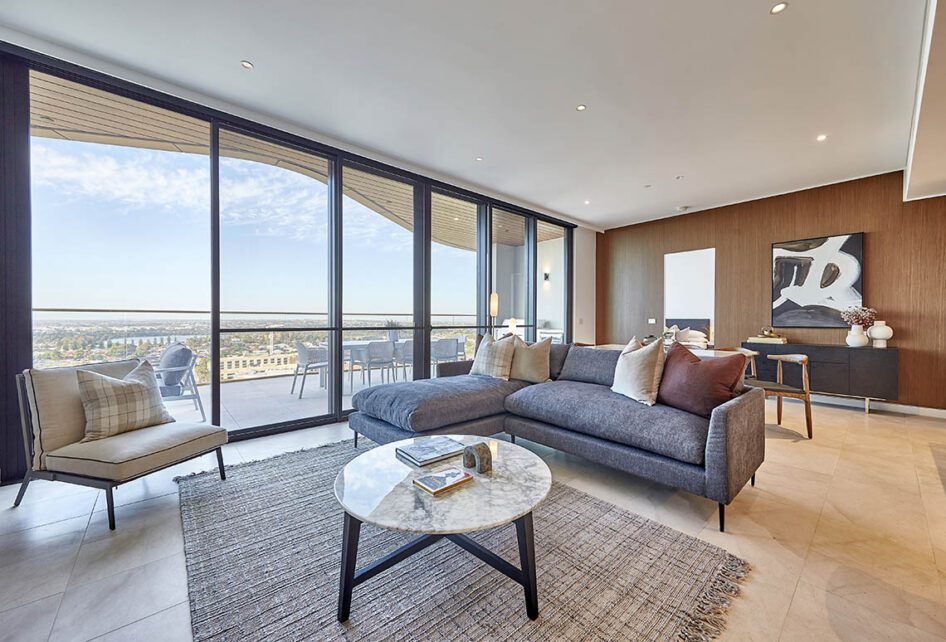

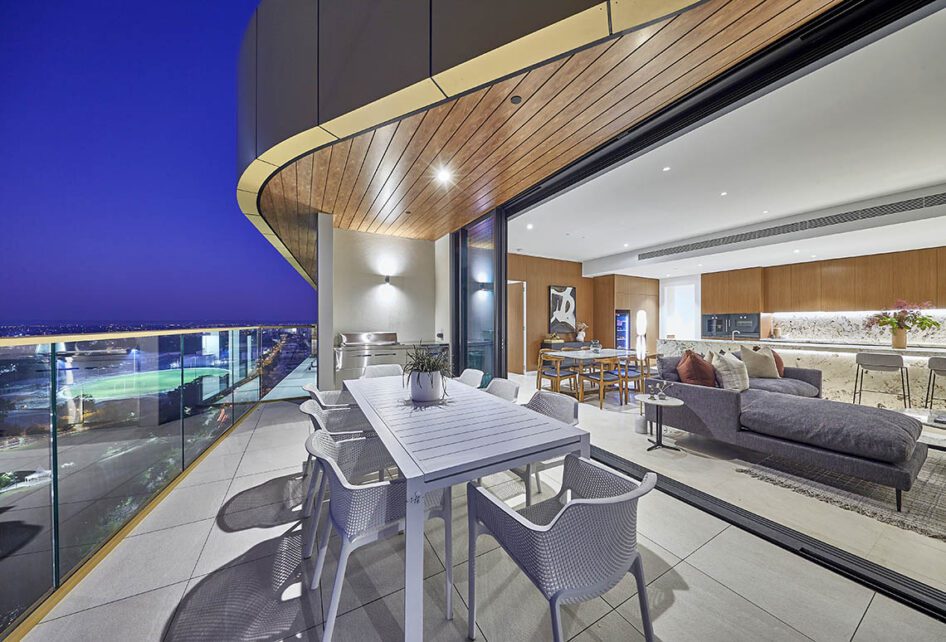

    Capral's Project One Subiaco using Capral window and building systems.
    Capral's Project One Subiaco using Capral window and building systems.
    Capral's Project One Subiaco using Capral window and building systems.
    Capral's Project One Subiaco using Capral window and building systems.

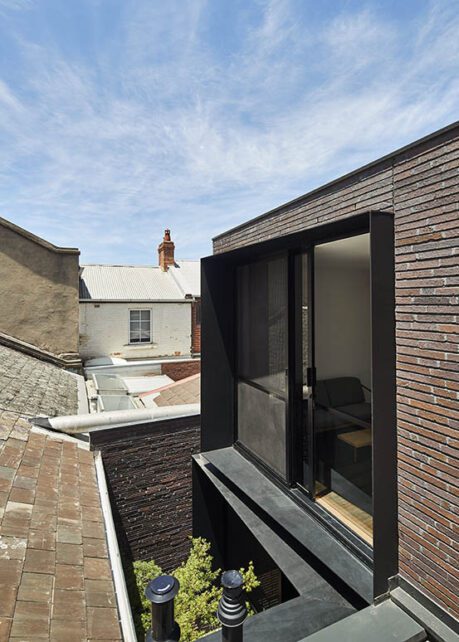

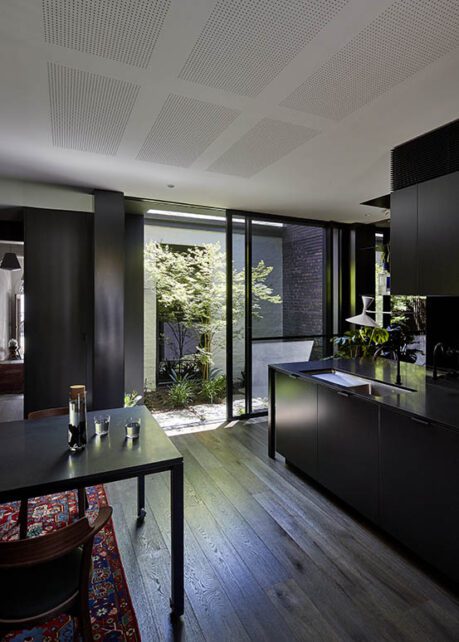

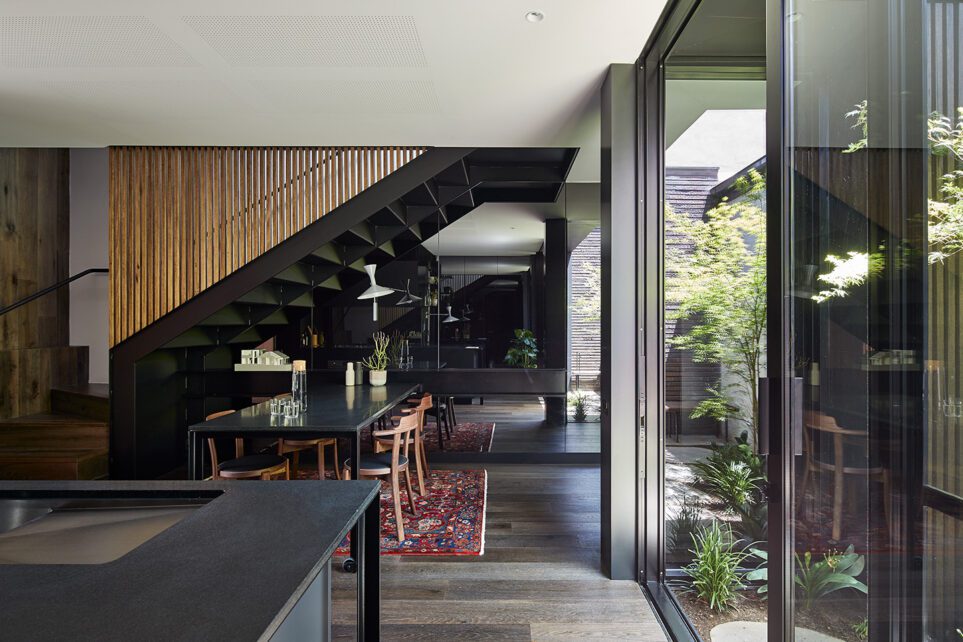

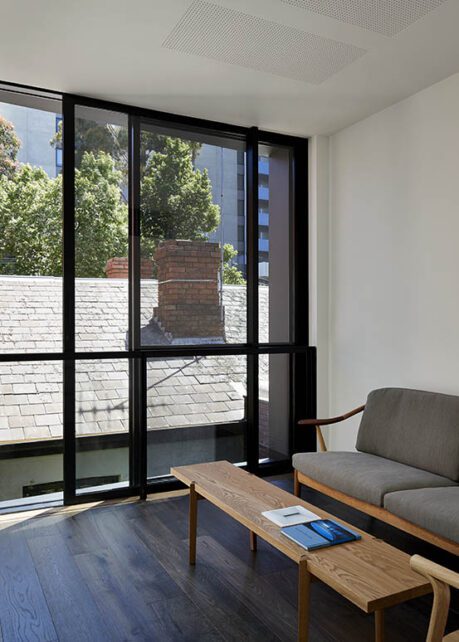

    Capral's Project Elgin Street Residence using Capral window and building systems.
    Capral's Project Elgin Street Residence using Capral window and building systems.
    Capral's Project Elgin Street Residence using Capral window and building systems.
    Capral's Project Centre House using Capral window and building systems.
    Capral's Project Sarah Sands using Capral window and building systems.
    Capral's Project Sarah Sands using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.

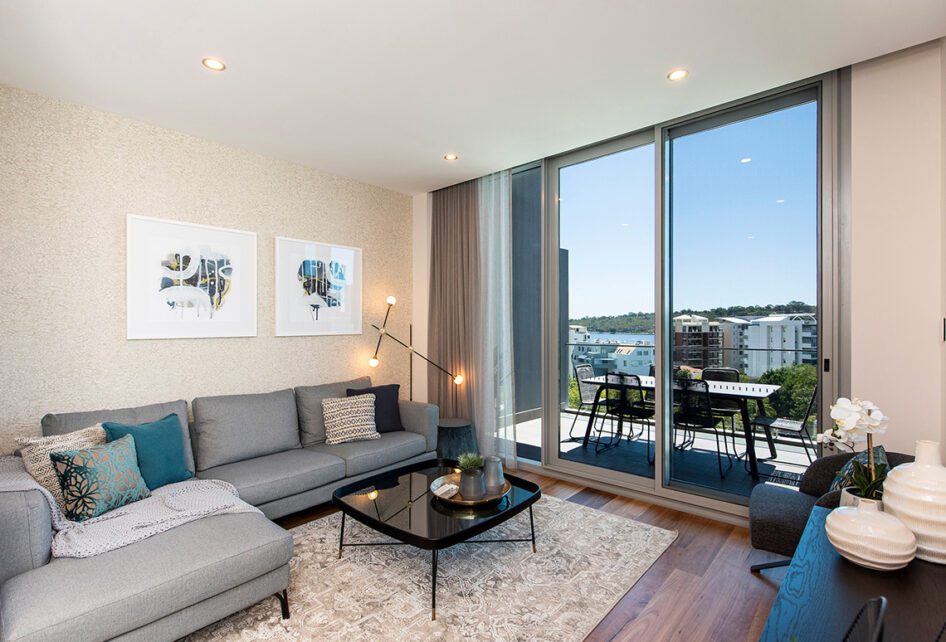

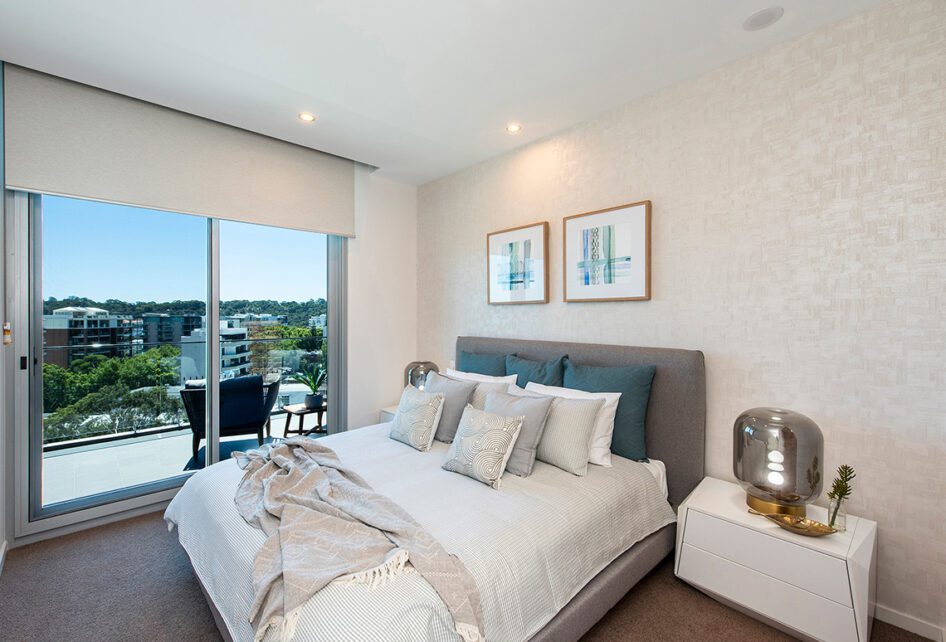

    Capral's Project Reva Apartments using Capral window and building systems.
    Capral's Project Elgin Street Residence using Capral window and building systems.

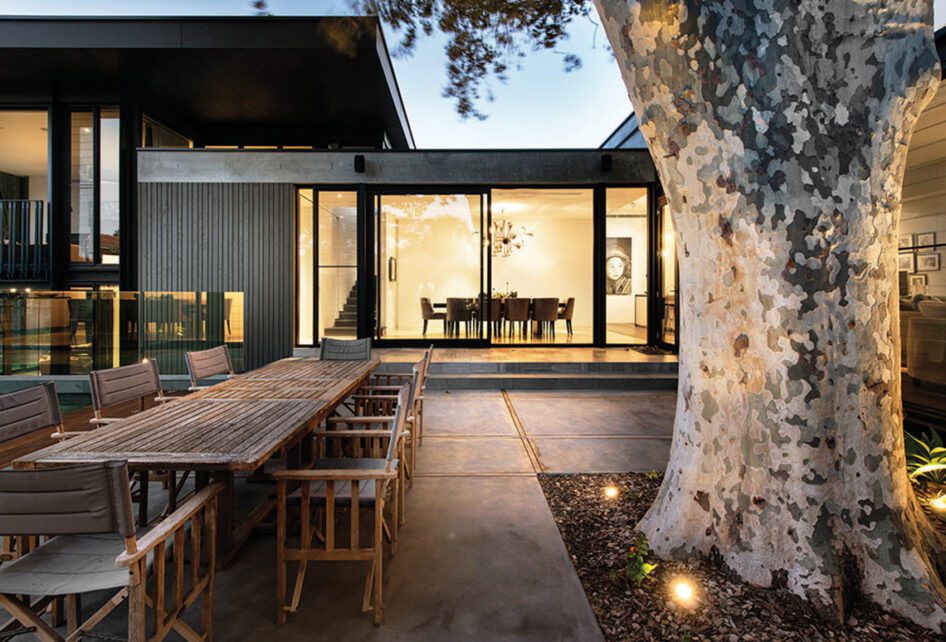

    Capral's Project Peppermint Grove Residence using Capral window and building systems.
    Capral's Project Peppermint Grove Residence using Capral window and building systems.
    Capral's Project Peppermint Grove Residence using Capral window and building systems.
    Capral's Project Peppermint Grove Residence using Capral window and building systems.

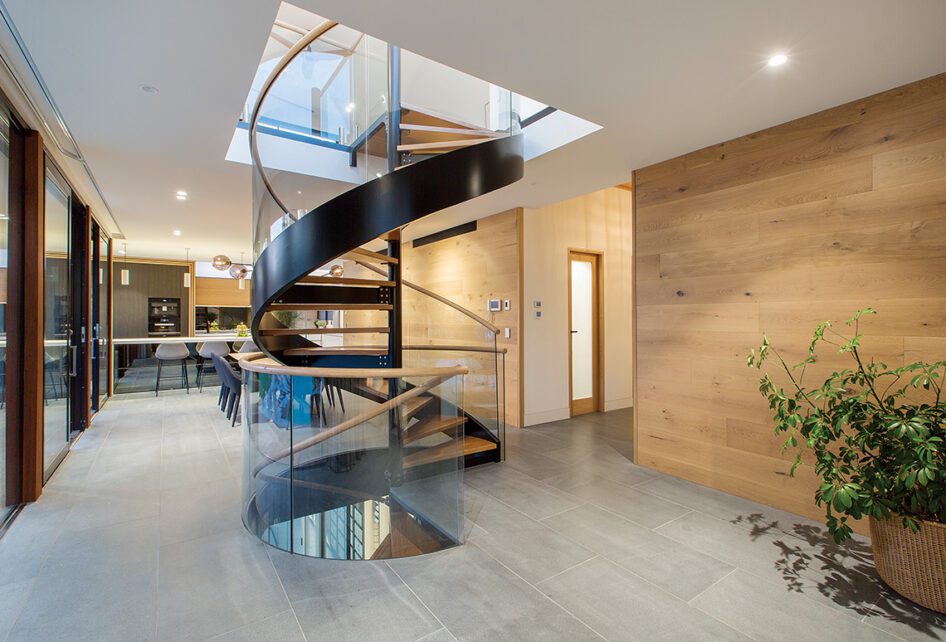

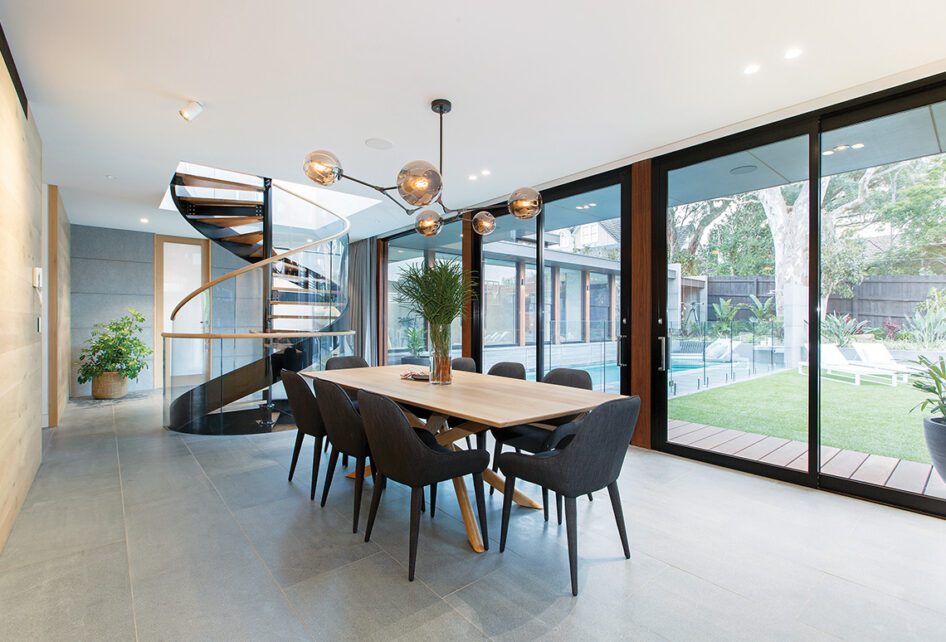

    Capral's Project Glen Iris Residence using Capral window and building systems.
    Capral's Project Glen Iris Residence using Capral window and building systems.
    Capral's Project St. Andrew's Beach House using Capral window and building systems.
    Capral's Project St. Andrew's Beach House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Cape Escape using Capral window and building systems.
    Capral's Project Cape Escape using Capral window and building systems.
    Capral's Project Cape Escape using Capral window and building systems.

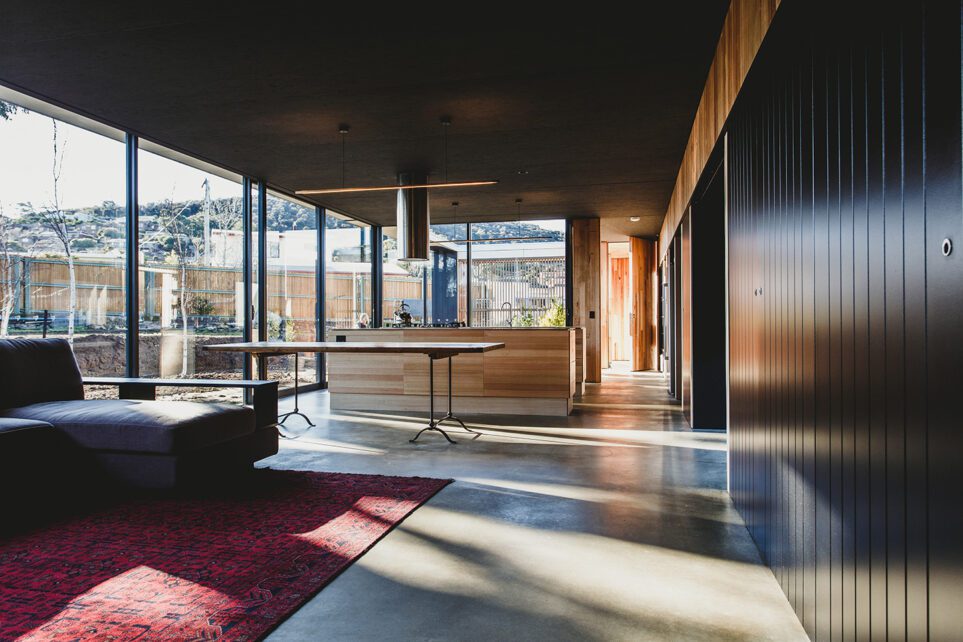

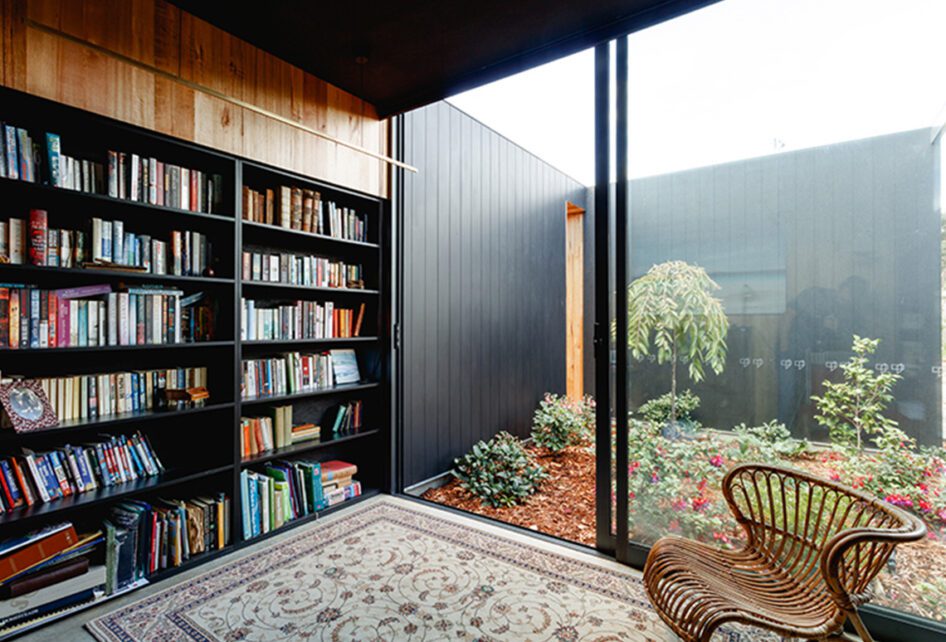

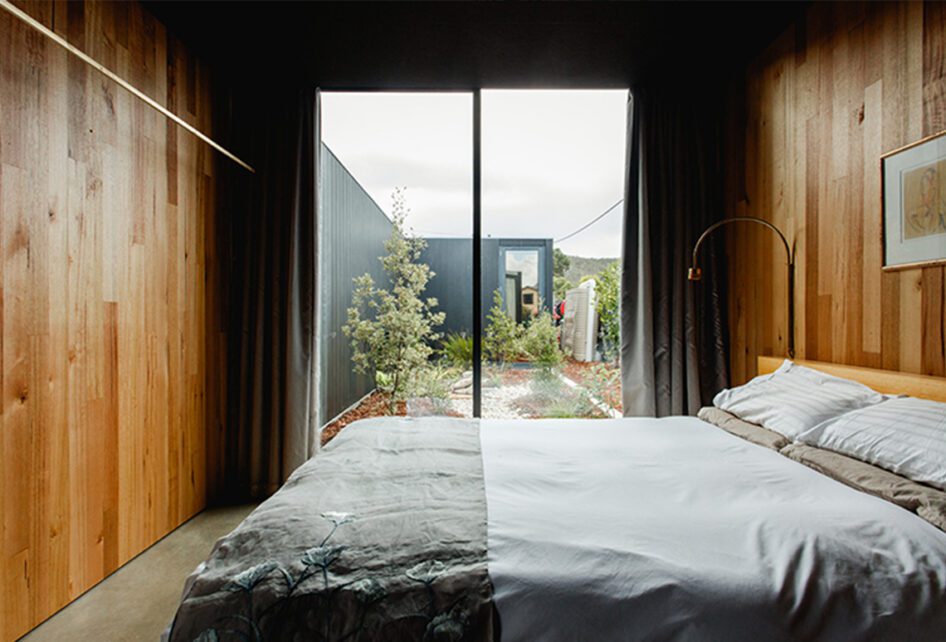

    Capral's Project Five Yards using Capral window and building systems.
    Capral's Project Five Yards using Capral window and building systems.
    Capral's Project Five Yards using Capral window and building systems.
    Capral's Project Five Yards using Capral window and building systems.
    Caves external
    Capral Tarrigal Glen featuring capral window and door systems bedroom
    Capral Tarrigal Glen featuring capral window and door systems Balcony
    Boon Residence | Capral Aluminium Dining/Kitchen
    Boon Residence | Capral Aluminium Pool Area
    Grays Point Kitchen/ Dining Room
    Grays Point Lounge Room
    A photo of Australind Senior High School featuring Capral's Windows
    Capral's Project One Subiaco using Capral window and building systems.
    Capral's Project One Subiaco using Capral window and building systems.
    Capral's Project One Subiaco using Capral window and building systems.
    Capral's Project One Subiaco using Capral window and building systems.
    Capral's Project Elgin Street Residence using Capral window and building systems.
    Capral's Project Elgin Street Residence using Capral window and building systems.
    Capral's Project Elgin Street Residence using Capral window and building systems.
    Capral's Project Centre House using Capral window and building systems.
    Capral's Project Sarah Sands using Capral window and building systems.
    Capral's Project Sarah Sands using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Qube Apartment Complex using Capral window and building systems.
    Capral's Project Reva Apartments using Capral window and building systems.
    Capral's Project Elgin Street Residence using Capral window and building systems.
    Capral's Project Peppermint Grove Residence using Capral window and building systems.
    Capral's Project Peppermint Grove Residence using Capral window and building systems.
    Capral's Project Peppermint Grove Residence using Capral window and building systems.
    Capral's Project Peppermint Grove Residence using Capral window and building systems.
    Capral's Project Glen Iris Residence using Capral window and building systems.
    Capral's Project Glen Iris Residence using Capral window and building systems.
    Capral's Project St. Andrew's Beach House using Capral window and building systems.
    Capral's Project St. Andrew's Beach House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Cape Escape using Capral window and building systems.
    Capral's Project Cape Escape using Capral window and building systems.
    Capral's Project Cape Escape using Capral window and building systems.
    Capral's Project Five Yards using Capral window and building systems.
    Capral's Project Five Yards using Capral window and building systems.
    Capral's Project Five Yards using Capral window and building systems.
    Capral's Project Five Yards using Capral window and building systems.
    Key features
    • Suited to almost any commercial or architectural application
    • Product limitations to suit large configurations and uses

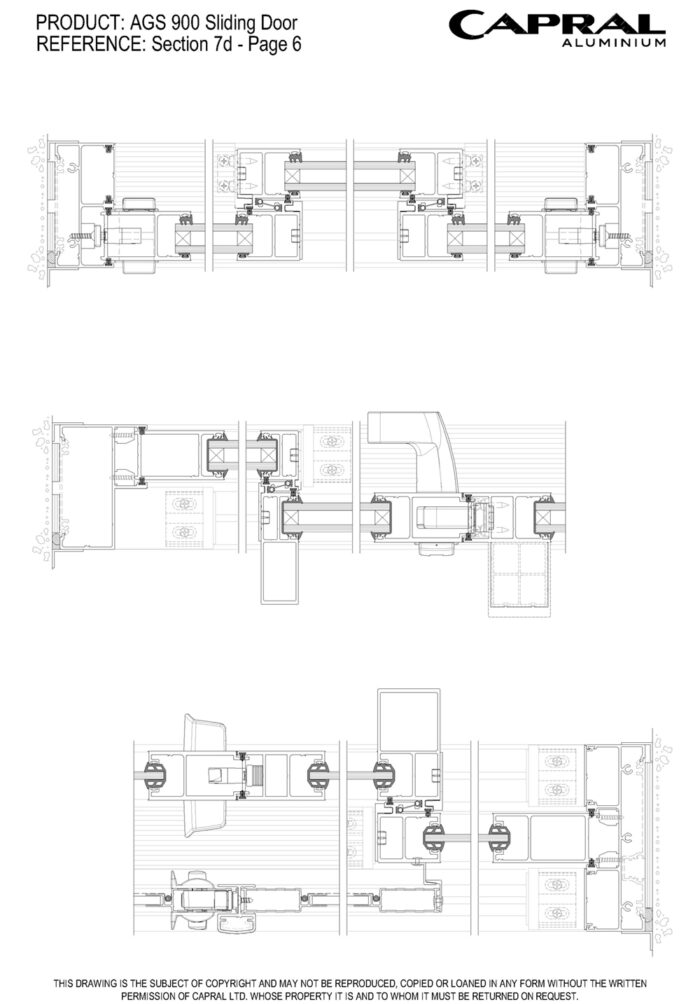

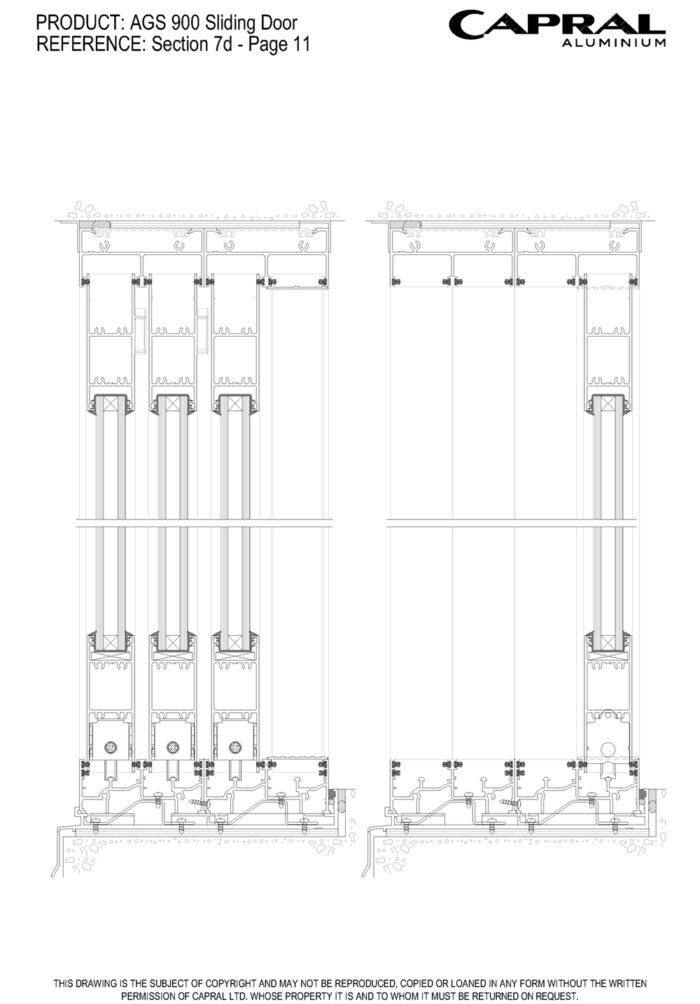

    • Standard and multi-stack configurations

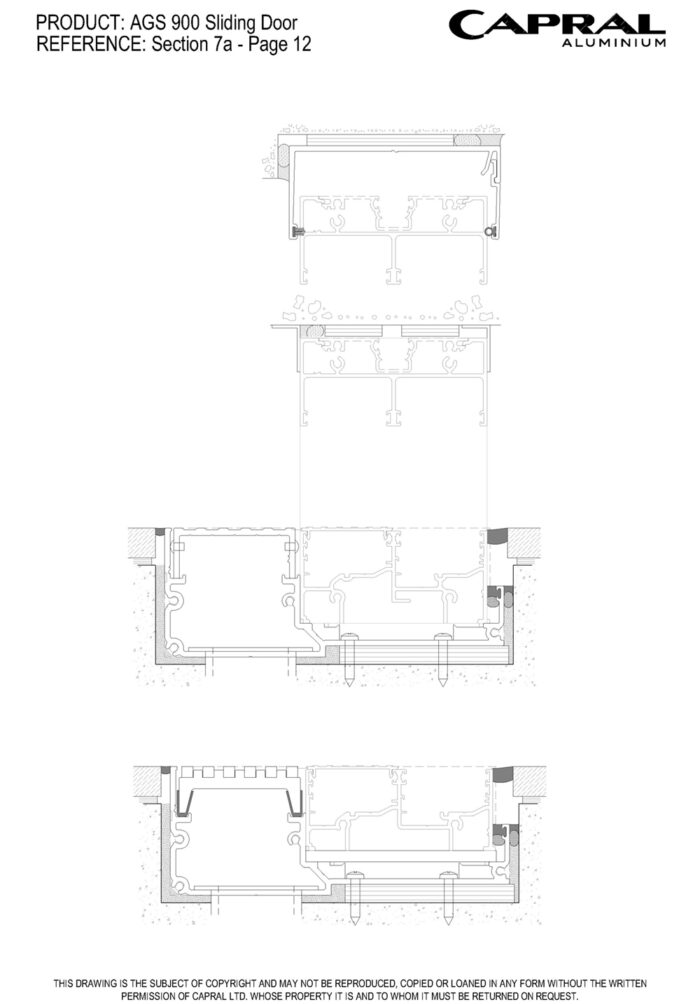

    • Configurable with linear grate drain for either internal and external sliding setups
    • Standard rolling and ZTS rolling options available
    • Optional Volta Power Assist Rollers
    • Compatible with Caprio and Caprice mortice and surface-mounted hardware
    • Available with highlight and sidelight options

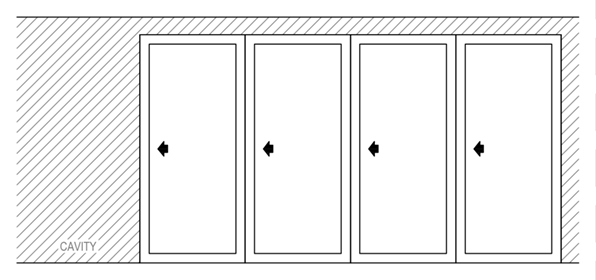

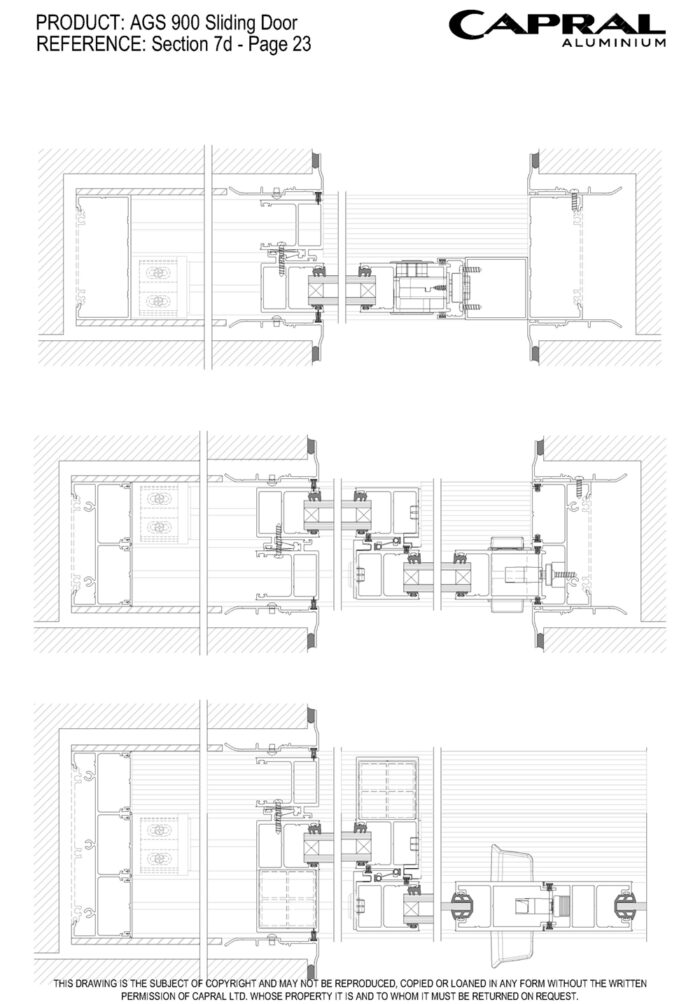

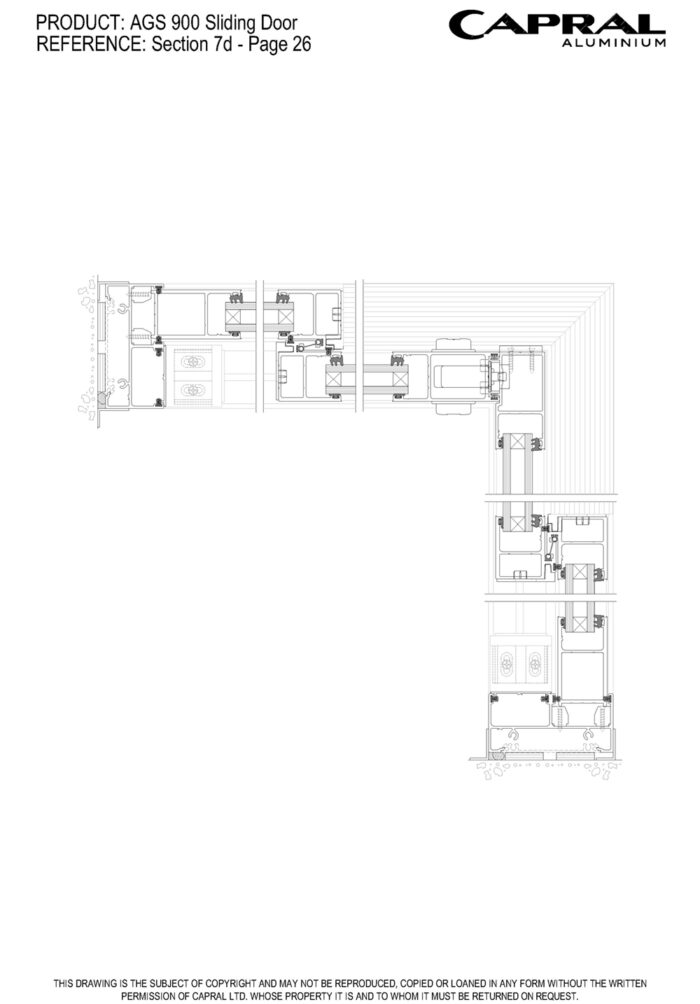

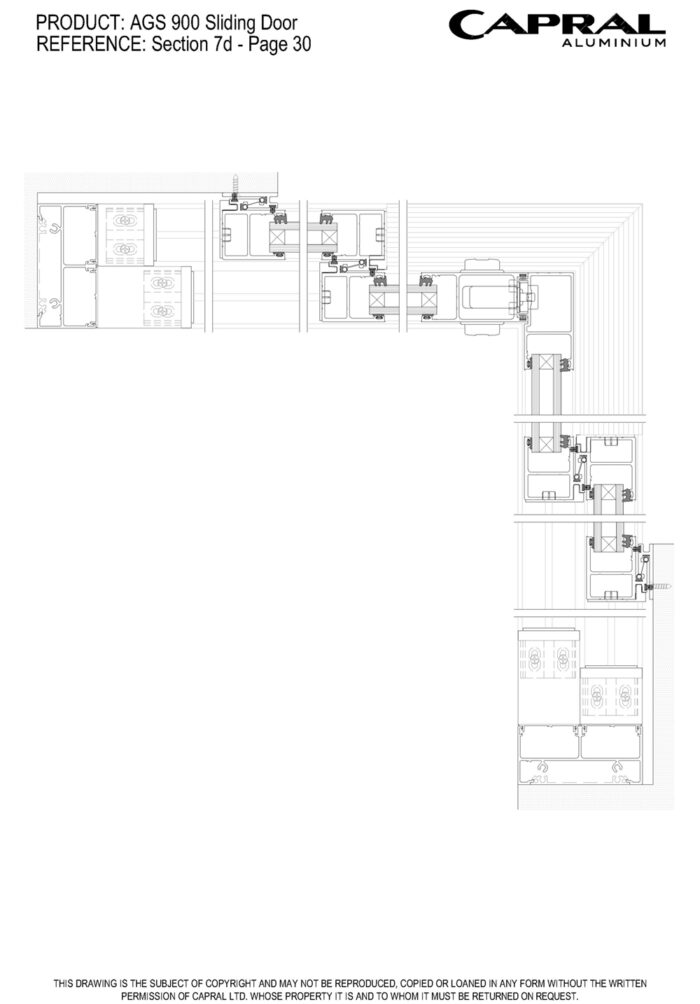

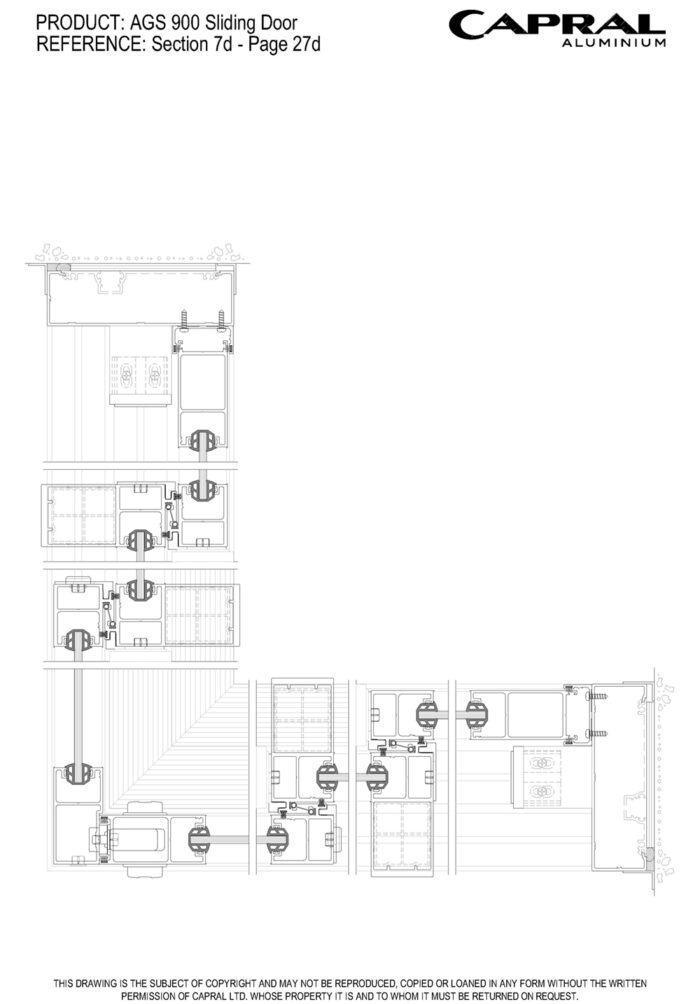

    • Corner, cavity and screen solutions
    • Bushfire rated to BAL-40
    • Tested to AS1170.2 cyclonic debris requirements up to an impact speed of 38m/s
    • Standard and narrow interlocks available

    Specifically designed to deliver unrivalled performance, the AGS Commercial 900 Series Sliding Door is capable of panel sizes up to 3000mm in height and 2500mm in width with multi-stack configurations available to maximise its design flexibility.

    Incorporating high quality hardware including heavy duty double wheel rollers and various locking options, the AGS Commercial 900 Series Sliding Door is built to succeed in both commercial and residential development projects.

    Download Brochure

    Details

    Product Specs

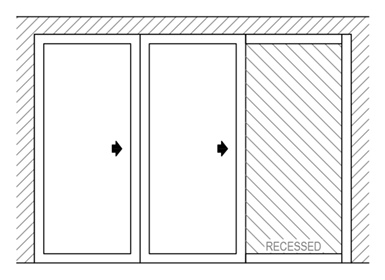

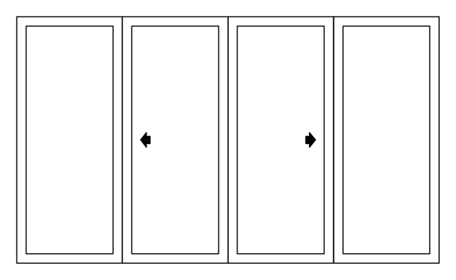

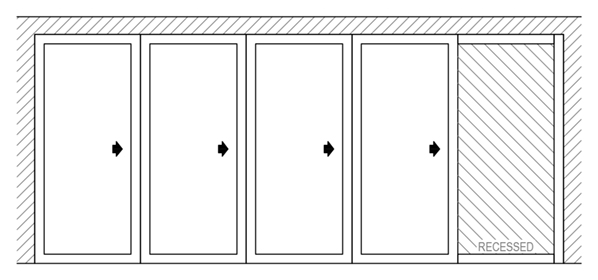

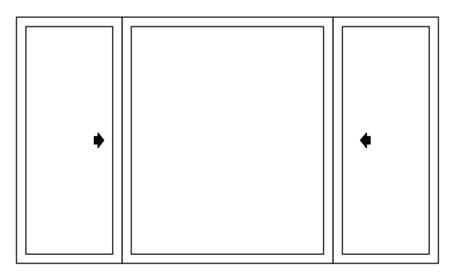

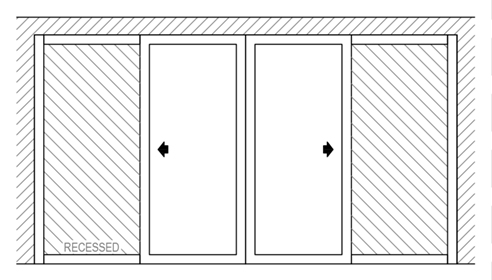

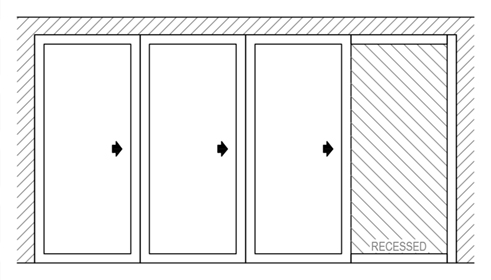

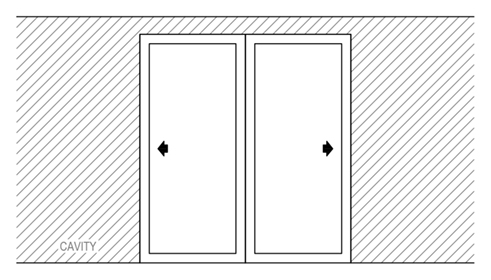

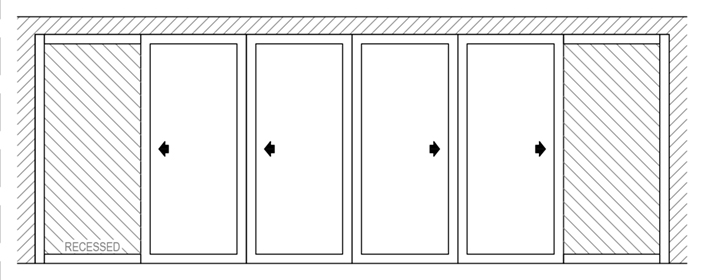

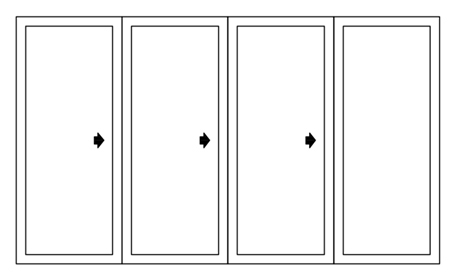

    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 3000
    Panel Width (mm) 2500
    Panel Weight (kg) 300

    2500mm wide panels are achieved using Extended Rails. Standard rail will achieve panel widths of 1750mm

    Frame Dimensions (mm)

    Standard 100
    Multistack 150 & 200

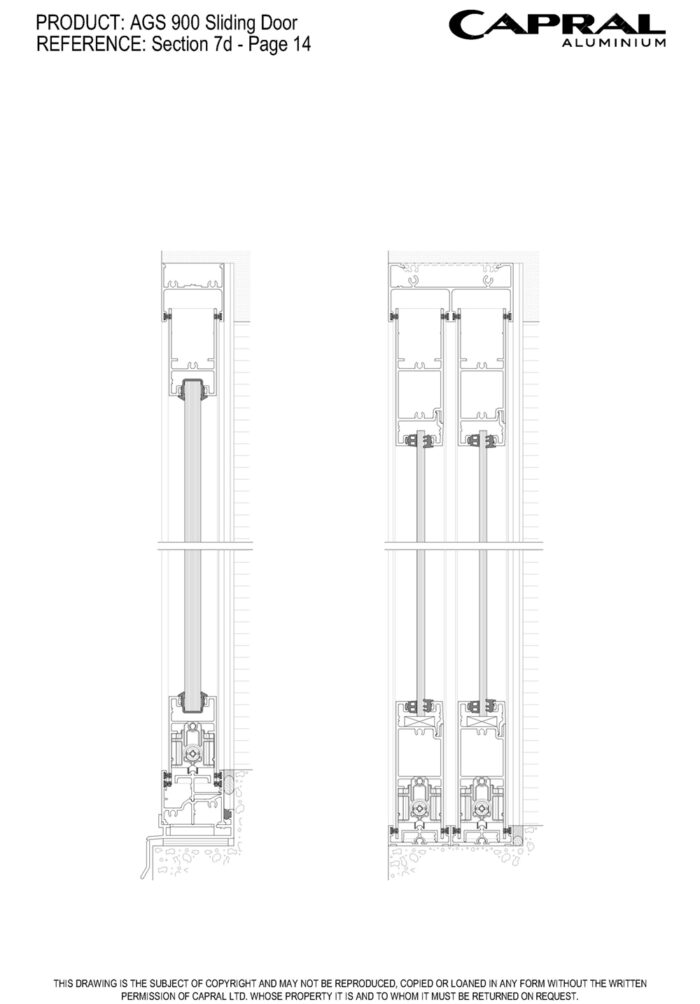

    Recessed 50, 100 & 150

    Acoustic Rating

    Rw (C;Ctr) 49 (-2,-6)

    Bushfire Rating

    BAL 40

    Maximum Product Performance

    SLS (Pa) 6000
    ULS (Pa) 10500
    WATER (Pa) 700

    Glazing Details

    Single Glazed 4 - 13.52
    Double Glazed 19 - 26
    Thick Glazed 14 - 18

    Sill Options

    Option 1 44 & 50 Std Sill
    Option 2 25
    Low Profile Sill
    Option 3 80
    High Performance Sill

    Energy Performance

    Uw Range 2.69 - 6.29
    SHGC Range 0.12 - 0.63
    Tvw Range .03 - .66
    Air infiltration 0.37 - 0.37
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual AGS 900 Sliding Door
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS 900 Sliding Door
    Extrusion Wall Chart AGS Speciality Sub Frames
    Extrusion Wall Chart AGS Sub Framing
    Extrusion Wall Chart Capral Screening
    BIM Files
    Revit AGS Commercial 900 High Performance Sliding Door
    Revit Capral Subframes
    CAD Files
    CAD Files AGS 900 Sliding Door
    CAD Wall Chart AGS 900 Sliding Door
    CAD Files AGS Sub Frames
    CAD Files Capral Screening
    CAD Wall Chart AGS Sub Framing
    CAD Wall Chart Capral Screening
    Bulletins
    PB480 - AGS 900 Sliding Door – High Performance Level Sills
    PB474 - Plant-on Interlock – 900 Sliding Door / 994 TH Sliding Door
    PBJ1020 - AGS 900 HP Sliding Door – Heavy Duty Corner Entry Stiles
    PB457 - 7mm Co-Extruded Backing Gasket
    PB428 - 900 & 994 SD 6, 8, 10 & 12mm Glazing Channels Replacement
    PB423-AGS 900 – Single Piece 4 Track Head, Sill and Flat Filler
    PB403-AGS 900 Sliding Door Narrow Interlocks
    PB376-AGS 900 series sliding door upgrades
    PB402 - AGS 900 Sliding Door Single glazed pocket widening
    PB347 - New 900/994 Sliding Door Roller & Fixed Panel Adjuster
    Pb333 - AGS New Spandrel Sub Heads
    Pb328 - AGS 200mm One Piece Sub Sill
    Other
    Capral AGS 900 Sliding Door Brochure Capral Volta Brochure Specification AGS 900 Sliding Door Architectural Series White paper Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)

    Compatible Products

    Systems
    AGS Commercial 400 Narrowline Single Glazed (100mm) Corner Image. AGS Commercial 400 Narrowline Single Glazed (101.6mm)

    The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.

    AGS Commercial 629 Flushline Double Glazed (150mm) Corner Image. AGS Commercial 629 Flushline Double Glazed (150mm)

    Flushline AGS629 is the new name for the product formerly known as Flushline 419DG 150mm x 55mm. This system was developed to accommodate both internal and external glazing.

    AGS Commercial 659 Flushline Wide Pocket (150mm) Corner Image. AGS Commercial 659 Flushline Wide Pocket (150mm)

    The AGS 659 150mm wide glazed commercial Flushline framing system has been developed to accommodate both internal and external glazing techniques.

    AGS Commercial 425 Narrowline Double Glazed (100mm) Corner Image. AGS Commercial 425 Narrowline Double Glazed (101.6mm)

    The AGS 425 Narrowline framing system was developed specifically to cater for the growing requirement for energy-efficient double glazing.

    AGS Commercial 450 Narrowline Wide Pocket (101.6mm)

    The AGS 450 Narrowline has been designed with extra wide glazing pockets to accept double-glazed units with internal Venetian blinds

    AGS Commercial 601 Narrowline Offset Single Glazed (150mm) Corner Image. AGS Commercial 601 Narrowline Offset Single Glazed (150mm)

    The AGS 601 Narrowline framing system delivers increased structural performance with the 150mm frame depth while maintaining a typical external appearance.

    AGS Commercial 625 Narrowline Double Glazed (150mm) Corner Image. AGS Commercial 625 Narrowline Double Glazed (150mm)

    The AGS 625 Narrowline offers an increased level of structural performance than the AGS 425 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.

    AquaGo Subsill Threshold Drain

    AquaGo is a flush-level sub-sill threshold drain with multiple grate options

    More products from this range

    AGS Commercial 400 Narrowline Single Glazed (100mm) Corner Image. AGS Commercial 400 Narrowline Single Glazed (101.6mm)

    The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.

    AGS Commercial 382 Awning Window

    The 382 Awning Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 300/325 framing systems.

    AGS Commercial 491 Double Hung Window

    The AGS 491 Double Hung window features a substantial outer frame that provides a modern aesthetic for residential, architectural and commercial applications.

    Capral's AGS Commercial 481 Double Hung Window (100mm) Corner Image. AGS Commercial 481 Double Hung Window

    The AGS 481 Double Hung window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400 Narrowline framing system.

    AGS Commercial 1029 Flushline (250mm) Corner Image. AGS Commercial 1029 Flushline Double Glazed (250mm)

    Flushline AGS1029 is the new name for the product formerly known as Flushline419DG 250mm * 55mm

    Capral's AGS Commercial 419 Flushline Slingle Glazed (100mm) Corner Image. AGS Commercial 419 Flushline Single Glazed (100mm)

    The AGS 419 Flushline is a 100mm, single glazed, flush-glazed framing system offering a clean and modern external appearance.

    AGS Commercial 450 Narrowline Wide Pocket (101.6mm)

    The AGS 450 Narrowline has been designed with extra wide glazing pockets to accept double-glazed units with internal Venetian blinds

    AGS Commercial 600 Narrowline Single Glazed (150mm) Corner Image. AGS Commercial 600 Narrowline Single Glazed (150mm)

    The AGS 600 Narrowline offers an increased level of structural Performance than the AGS 400 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.

    Not quite what you’re looking for? Consider...

    Capral's Futureline 994TB Sliding Door Corner Image. Futureline 994TB Sliding Door

    The Futureline 994TB Sliding Door is a premium option for convenience, comfort, and efficiency.

    Capral's Urban 284L Lite Sliding Door Corner Image. Urban 284L Light Sliding Door

    The Urban Light Sliding Door is a high-performing residential non-stacking sliding door system, ideal for residential building applications.

    AGS Commercial 225 Sliding Door Corner Image. AGS Commercial 225 Sliding Door

    The AGS 225 Sliding Door is a 46mm pocket glazed commercial door panel capable of delivering flexibility, performance and ease of assembly in mind.

    Artisan Architectural 934 Panoramic Sliding Door

    Inspired by European design, the Artisan Architectural Panoramic Door pairs minimalist style with robust local engineering.

    Corner Capral Urban 284 Sliding Door Urban 284 Sliding Door

    The Urban Sliding/Stacking Door offers excellent design flexibility and is well suited to residential building applications. It is a perfect door to open homes to outdoor spaces.

    Capral's Artisan 994-TH Sliding Door Top Hung Corner Image. Artisan 994-TH Sliding Door Top Hung

    The Artisan Architectural 994 Top Hung Sliding Door is a stunning inclusion for residential and commercial development projects.

    Capral's Urban Plus 394 Sliding Door Corner Image. Urban Plus 394 Sliding Door

    The Urban Plus sliding door spans wide openings to maximise views. Available in sliding and multi-stack configurations the Urban Plus Sliding is the perfect door for a high end residential project or architectrually deisgned home.

    Urban Comfort 284TB Sliding Door

    Capral's Urban Comfort Thermally Broken Sliding Door is designed for Australian homes with enhanced comfort and thermal efficiency.

    Projects that use this system

    Charlestown Health Facility: Precision Glazing for Specialist Healthcare Design

    The Charlestown Eating Disorder Facility demonstrates how precision glazing and Capral aluminium systems supported a specialist healthcare environment focused on safety, performance and patient wellbeing.


    Healthcare

    CALA House: Bushland Elegance

    Capral aluminium systems support high-performance glazing in a contemporary bushland home.


    Architectural Homes

    Tarragal Glen Independent Living Apartments: Contemporary Retirement Living

    Combining innovative design, accessible living, and high-performance aluminium systems, Tarragal Glen delivers a contemporary retirement community designed for comfort, safety, and longevity.


    Aged Care and Community Living
