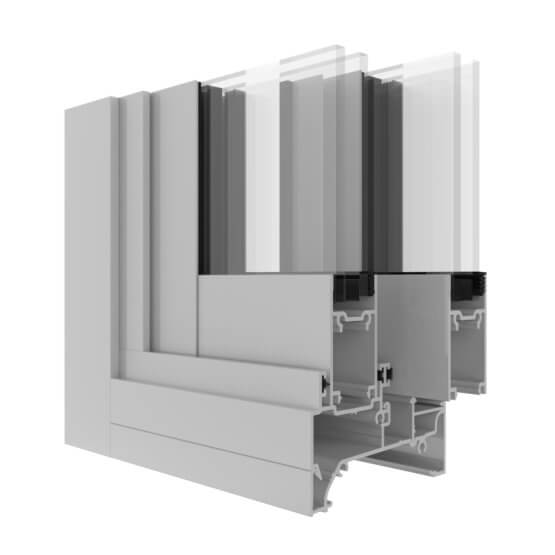

AGS Commercial 950 Sliding Window
The AGS 950 Sliding Window system has been engineered to deliver high strength and performance. It has been tested to cyclonic requirements and can have large sash sizes and numerous configurations.
Certified
Rated
Tested
Tested
Key features
- Ultra high-performance design
- Extended product limitations for large configurations
- Tested to cyclonic requirements
- Tested to BAL-40
- High-performance roller and locking hardware

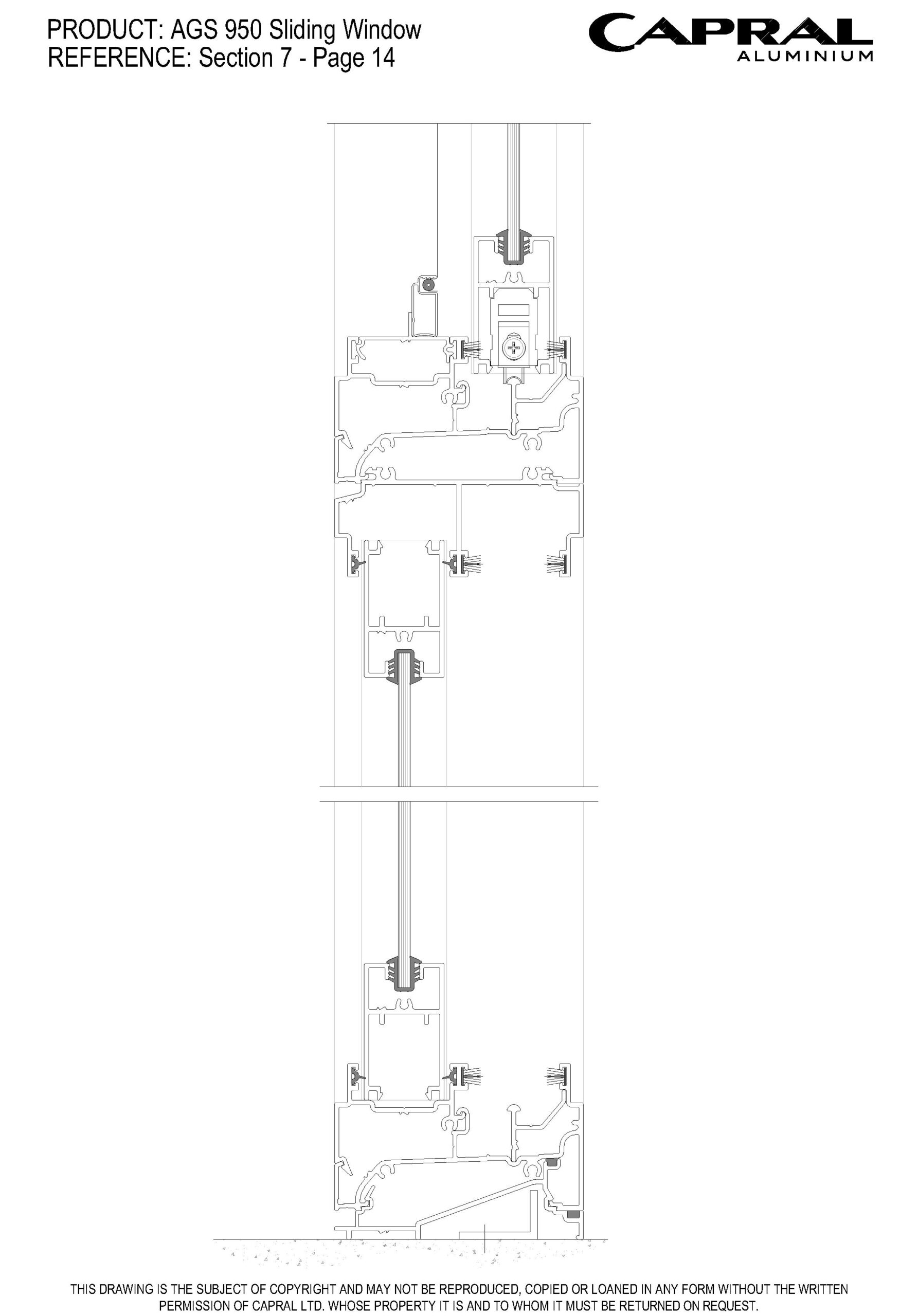

- Slider-over-slider and slide-slide configurations
- Compatible with a range of AGS Commercial and Artisan Architectural suites
- Surface and mortice lock options are available from the Caprice hardware range
The AGS 950 Sliding Window system has been engineered to deliver high strength and performance. It has been tested to cyclonic requirements and can have large sash sizes and numerous configurations. Incorporating heavy-duty roller hardware, twin point locking and integrated insect screening, the AGS 950 Sliding Window is ideally suited to applications where clean, modern aesthetics, high-quality functionality and a range of performance options are demanded.
As expected, with a window system of this calibre, double glazing is also available for improved thermal comfort and performance.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1800
Panel Width (mm)
1200
Panel Weight (kg)
64
Frame Dimensions
Narrowline
101.6
Flushline
100
Wide Flushline
150
Acoustic Rating
Rw (C;Ctr)
36 (-1;-3)
Bushfire Rating
BAL
40
Maximum Product Performance
SLS (Pa)
7000
ULS (Pa)
10000
WATER (Pa)
800
Glazing Details
Single Glazed
4 - 10
Double Glazed
22 - 25
Sill Options
Standard Sill (mm)
44
High Performance Sill (mm)
80
Energy Performance
Uw Range
3.55 - 6.60
SHGC Range
0.17 - 0.65
Tvw Range
0.05 - 0.69
Air infiltration
0.23 - 0.23

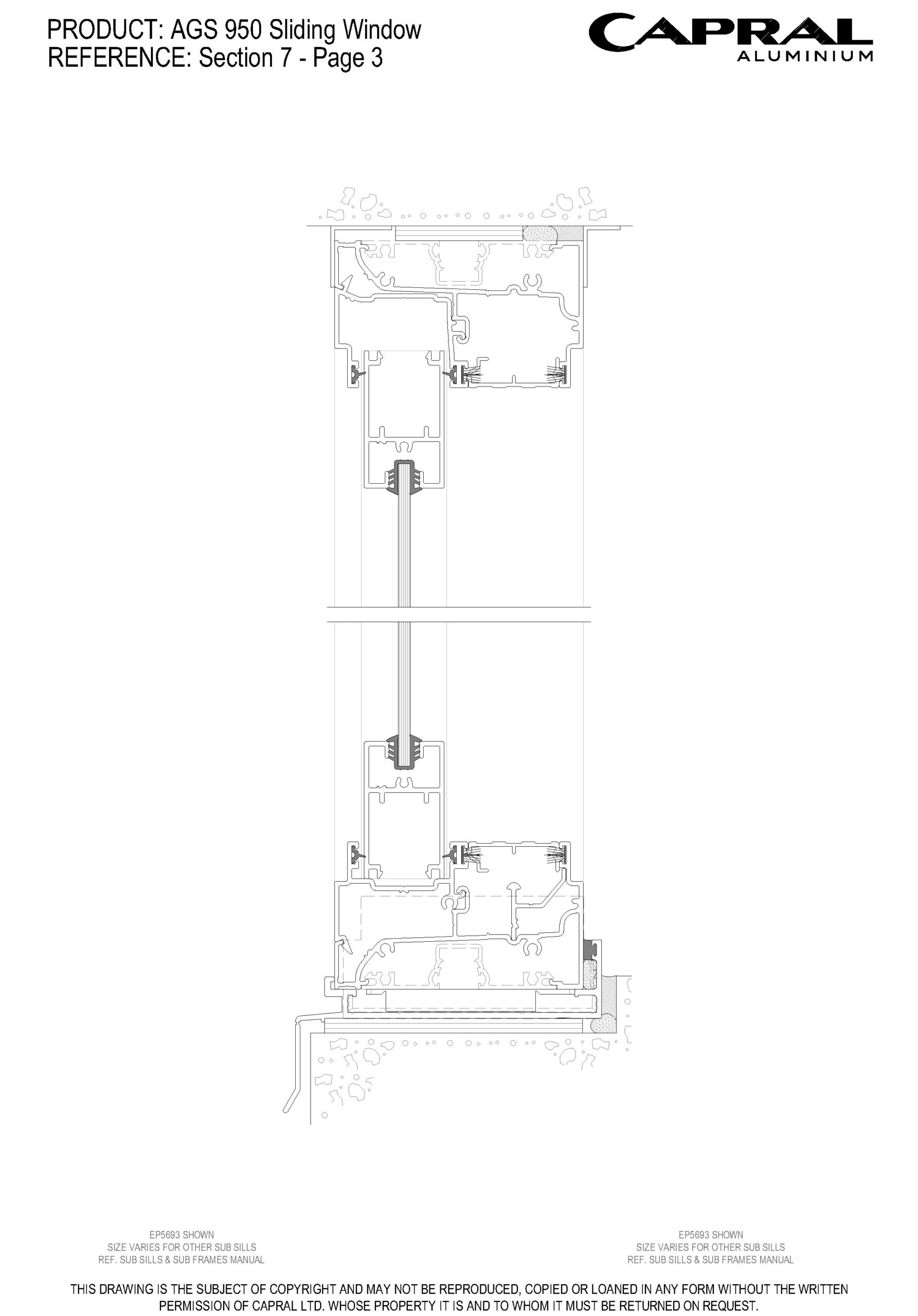

SG Narrowline Fixed Sash (Ver)

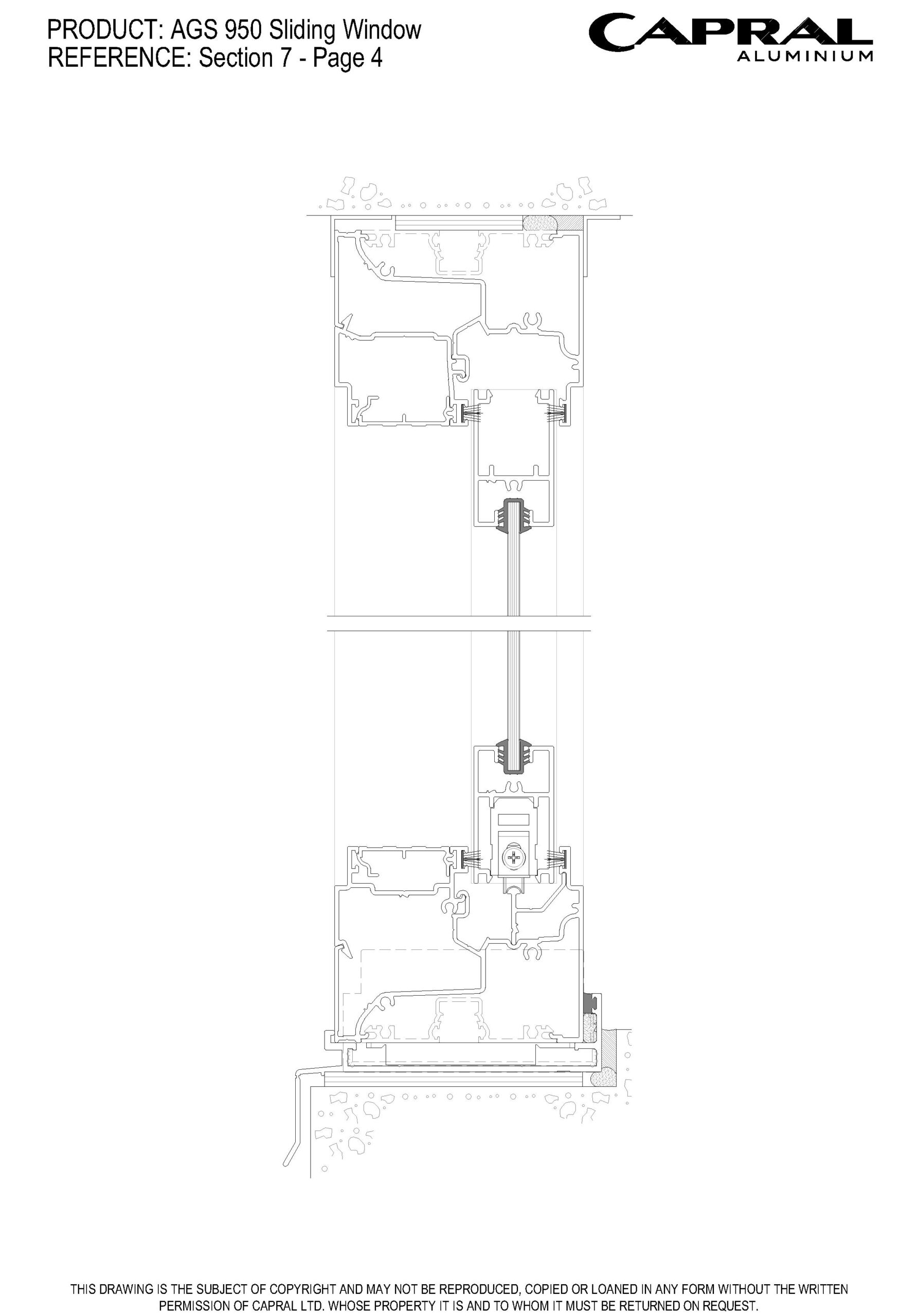

SG Narrowline Sliding Sash (Ver)

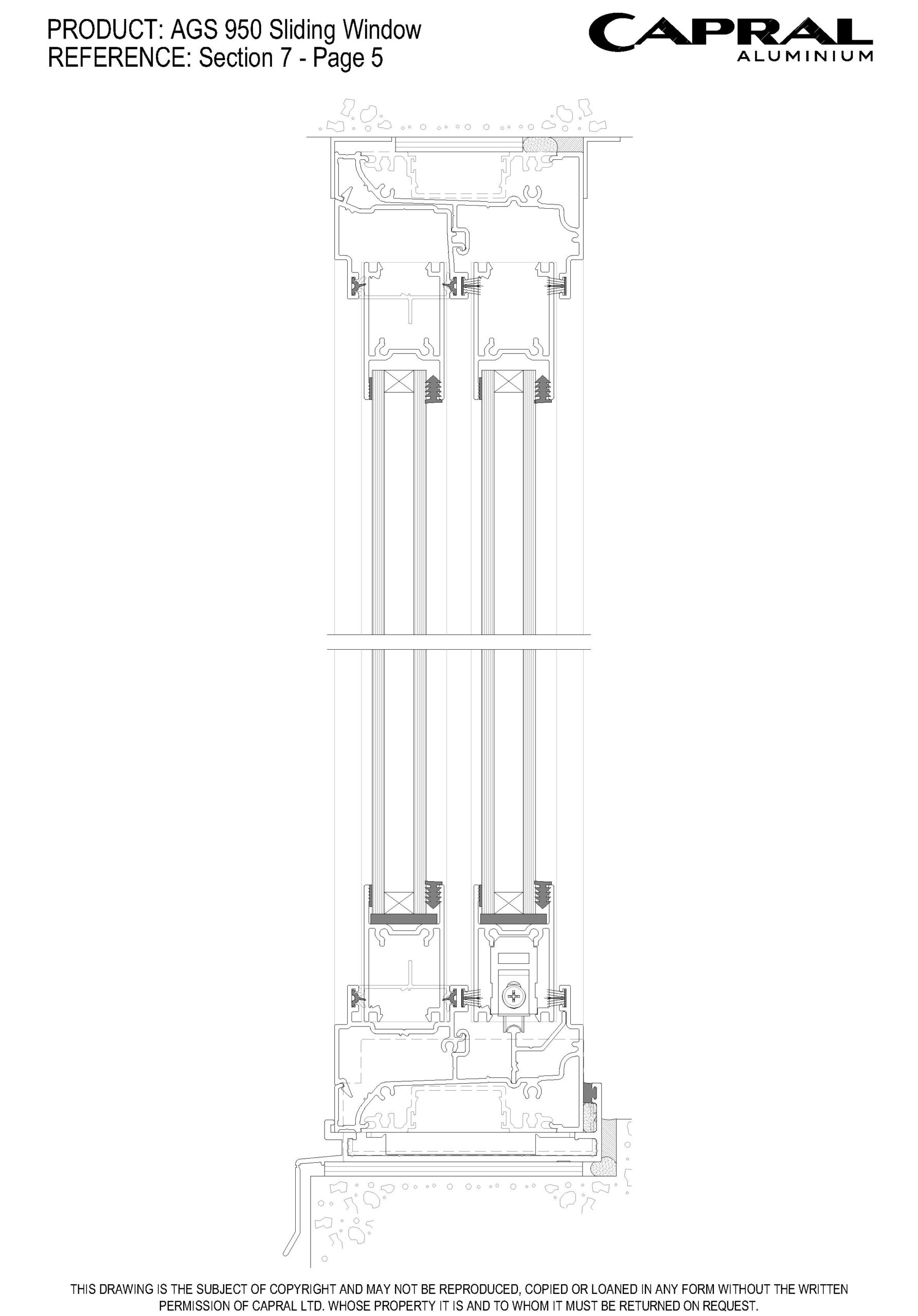

DG Narrowline (Ver)

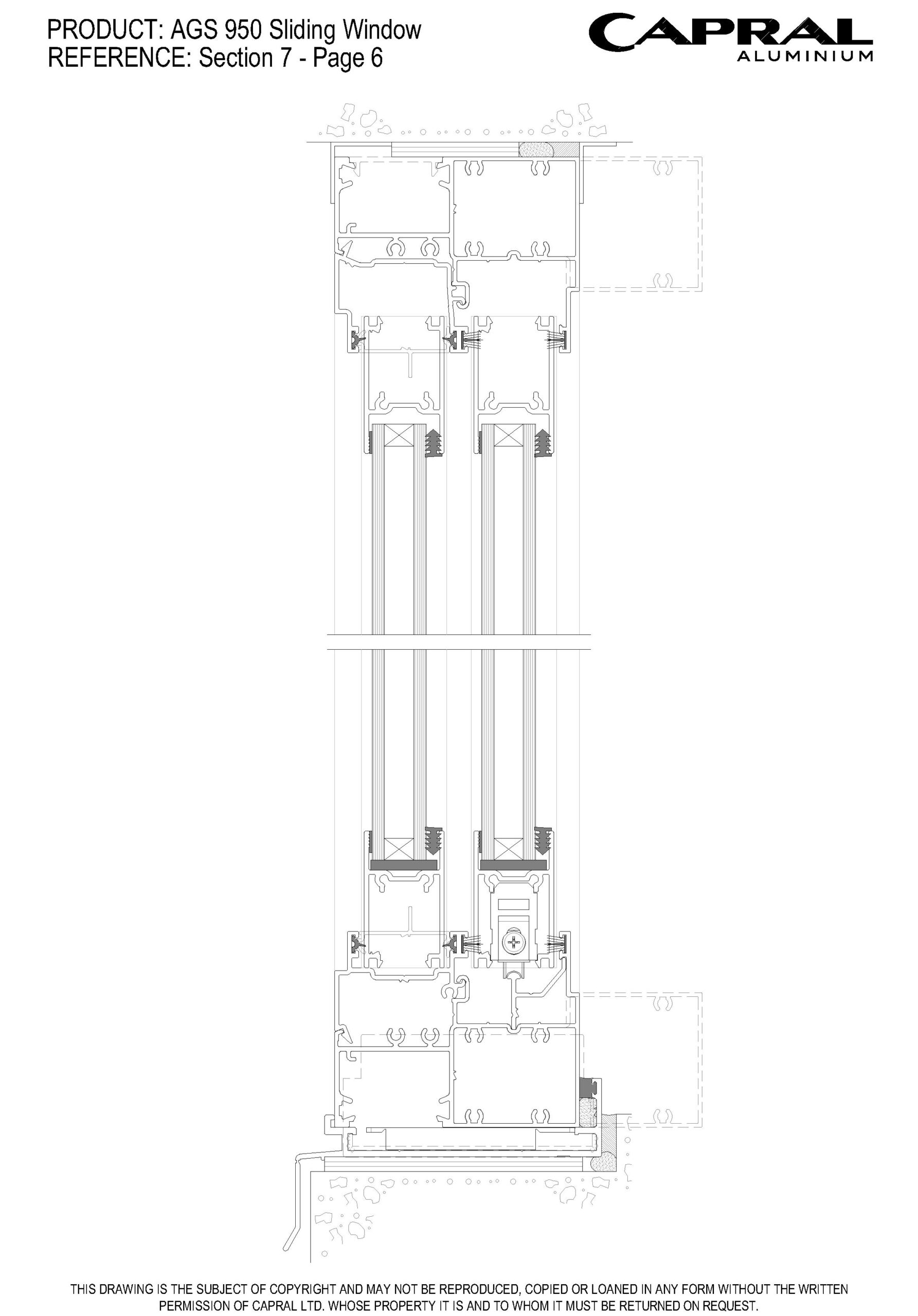

DG Flushline (Ver)

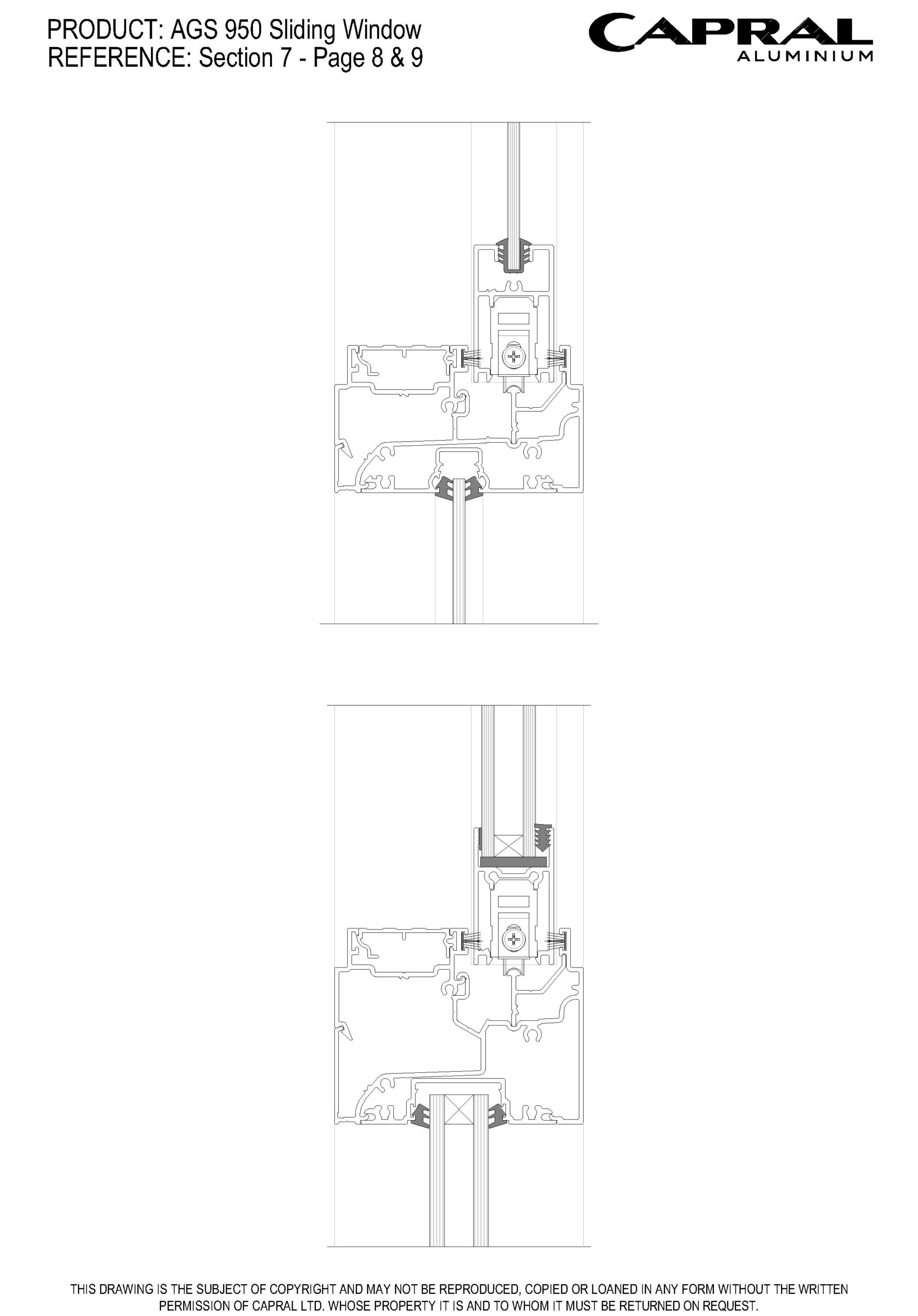

Narrowline Low Lights

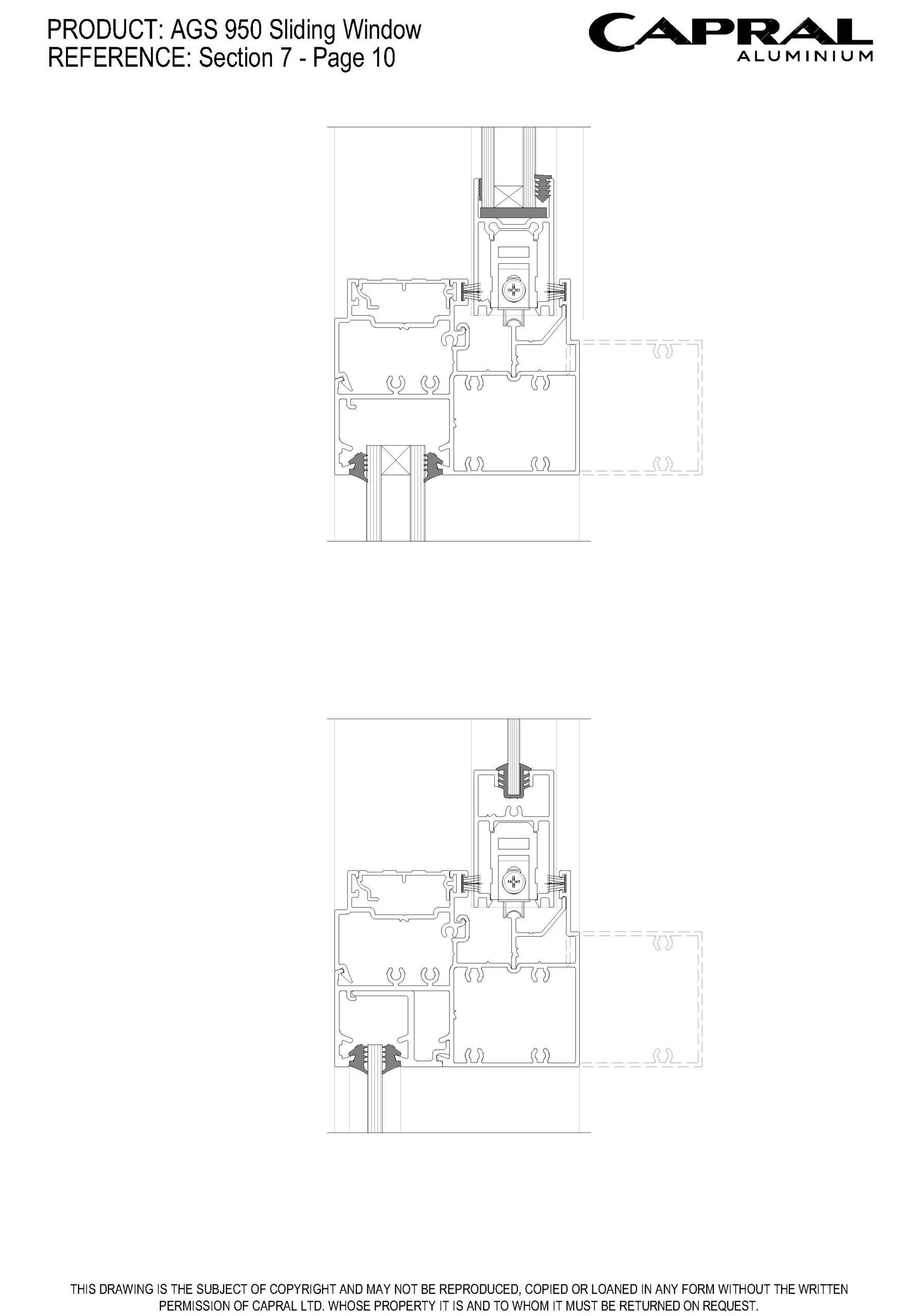

Flushline Low Lights

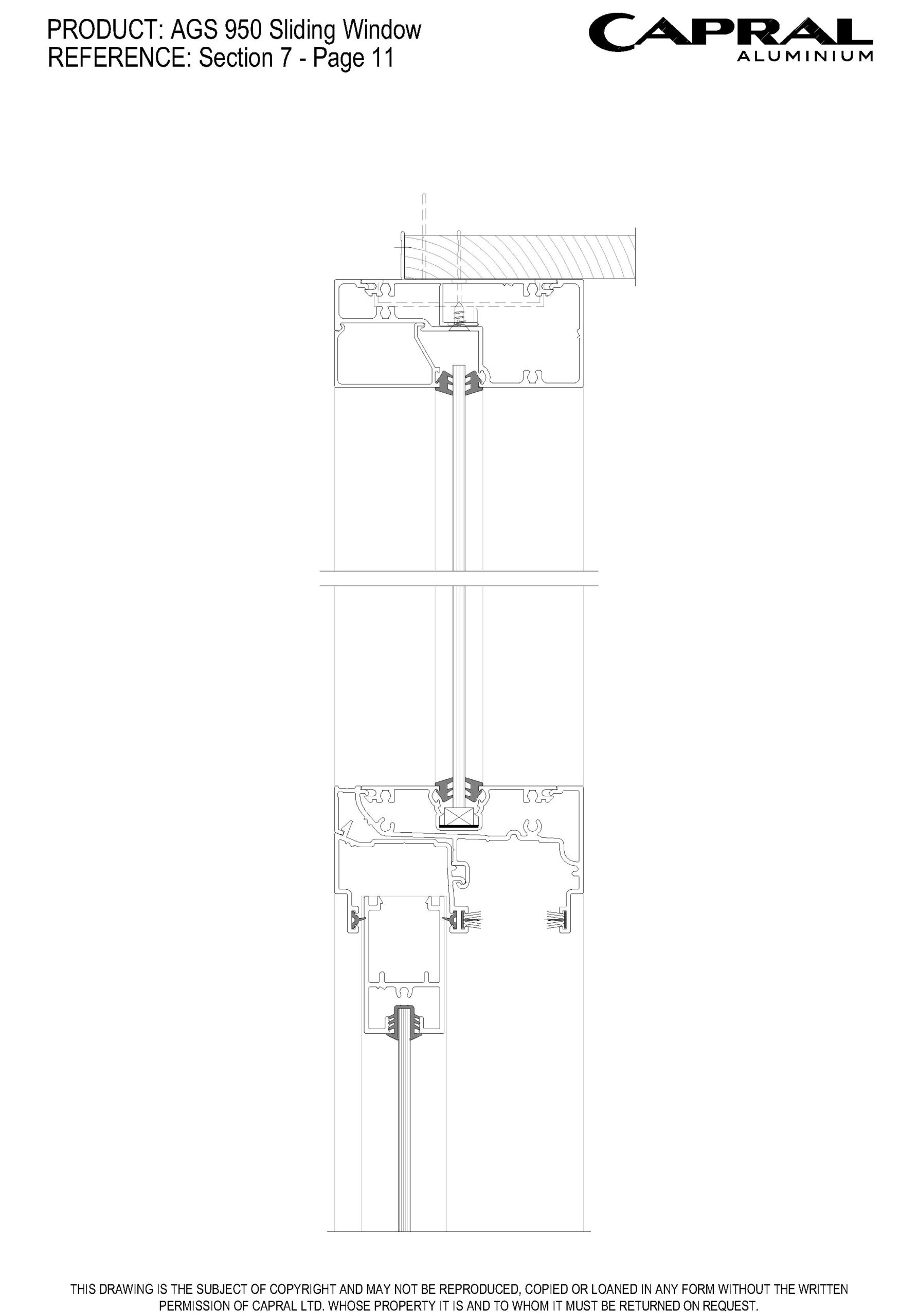

Narrowline High Light

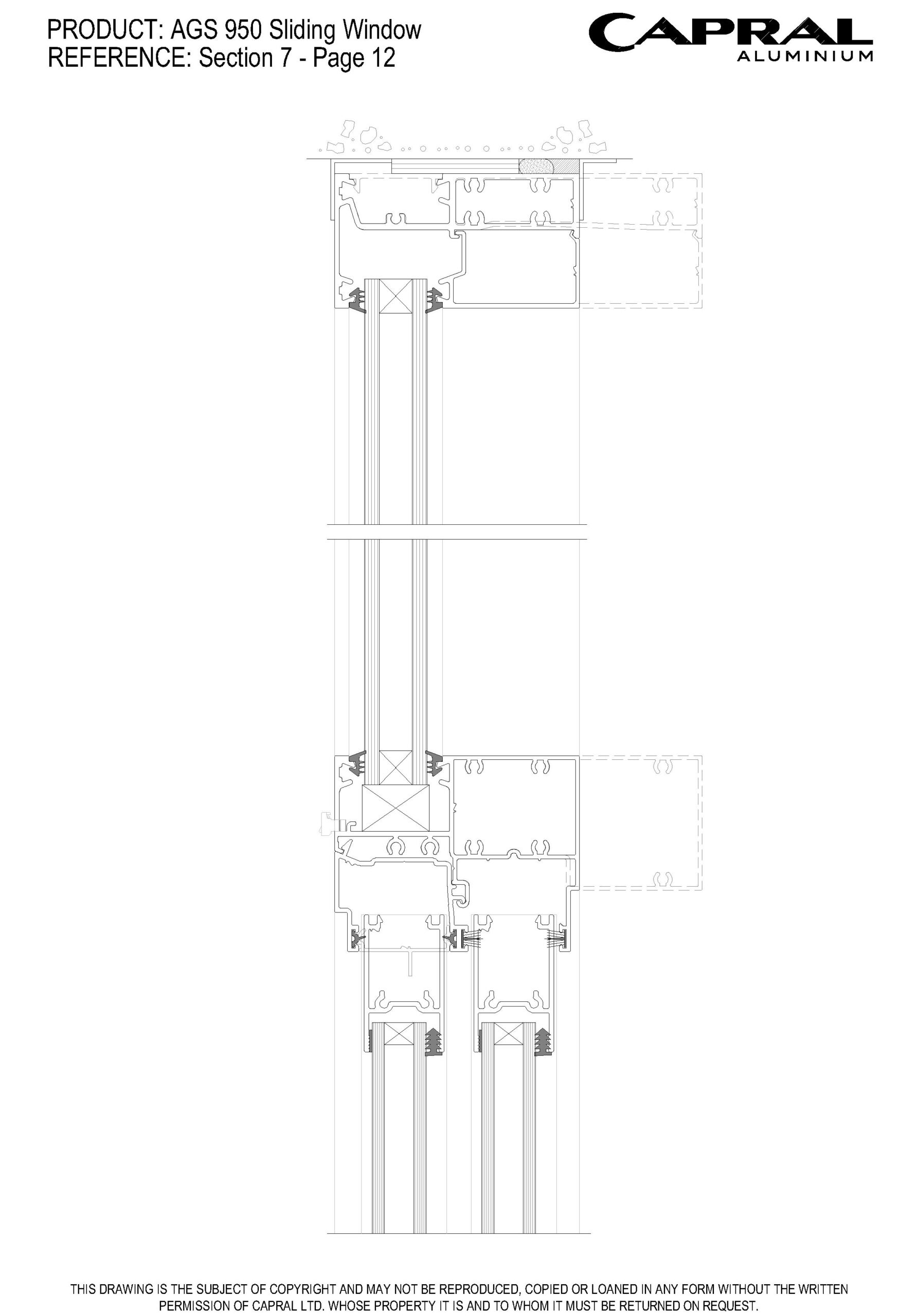

Flushline High Light
Double Height Sliding Transom

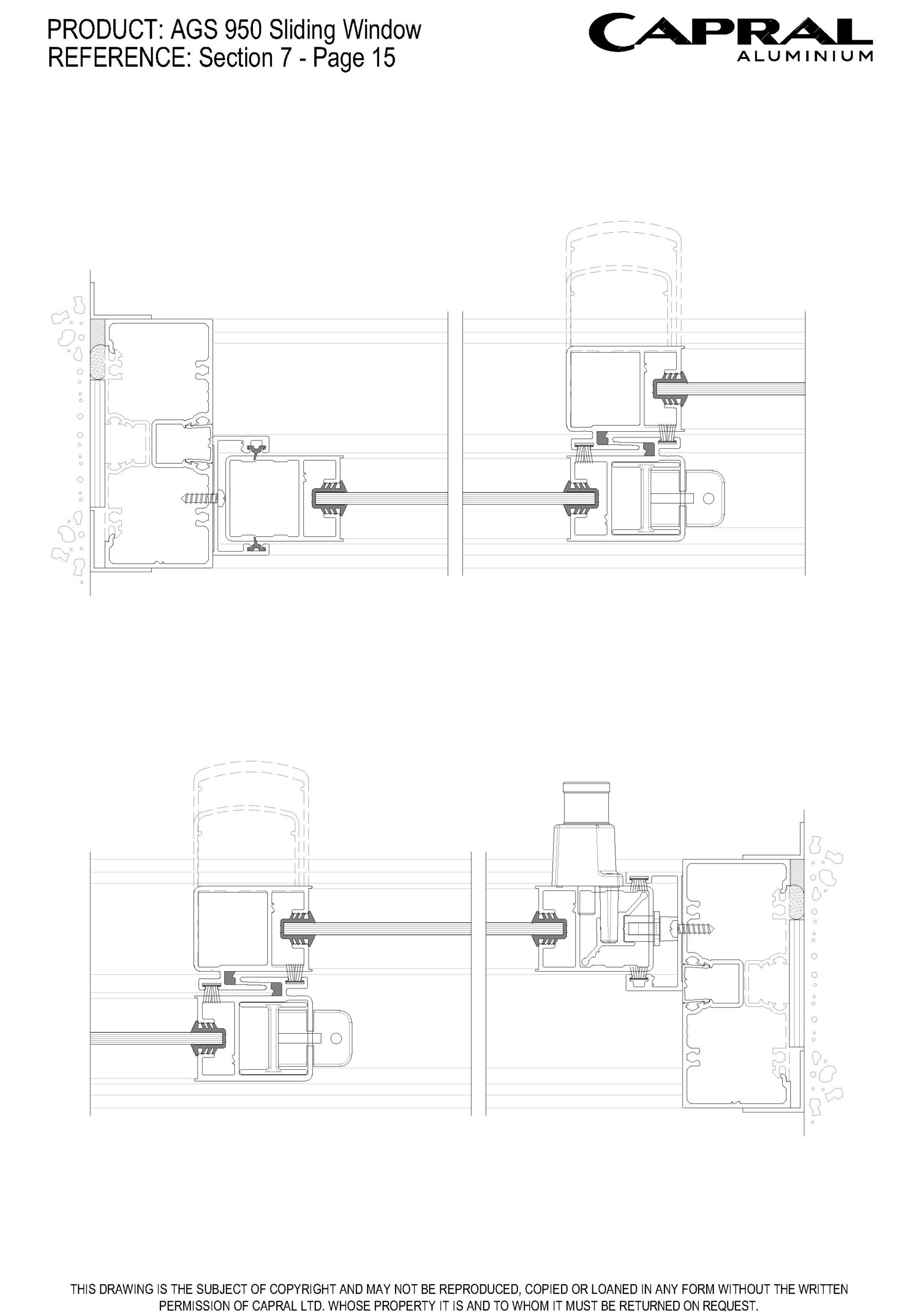

SG Narrowline (Hor)

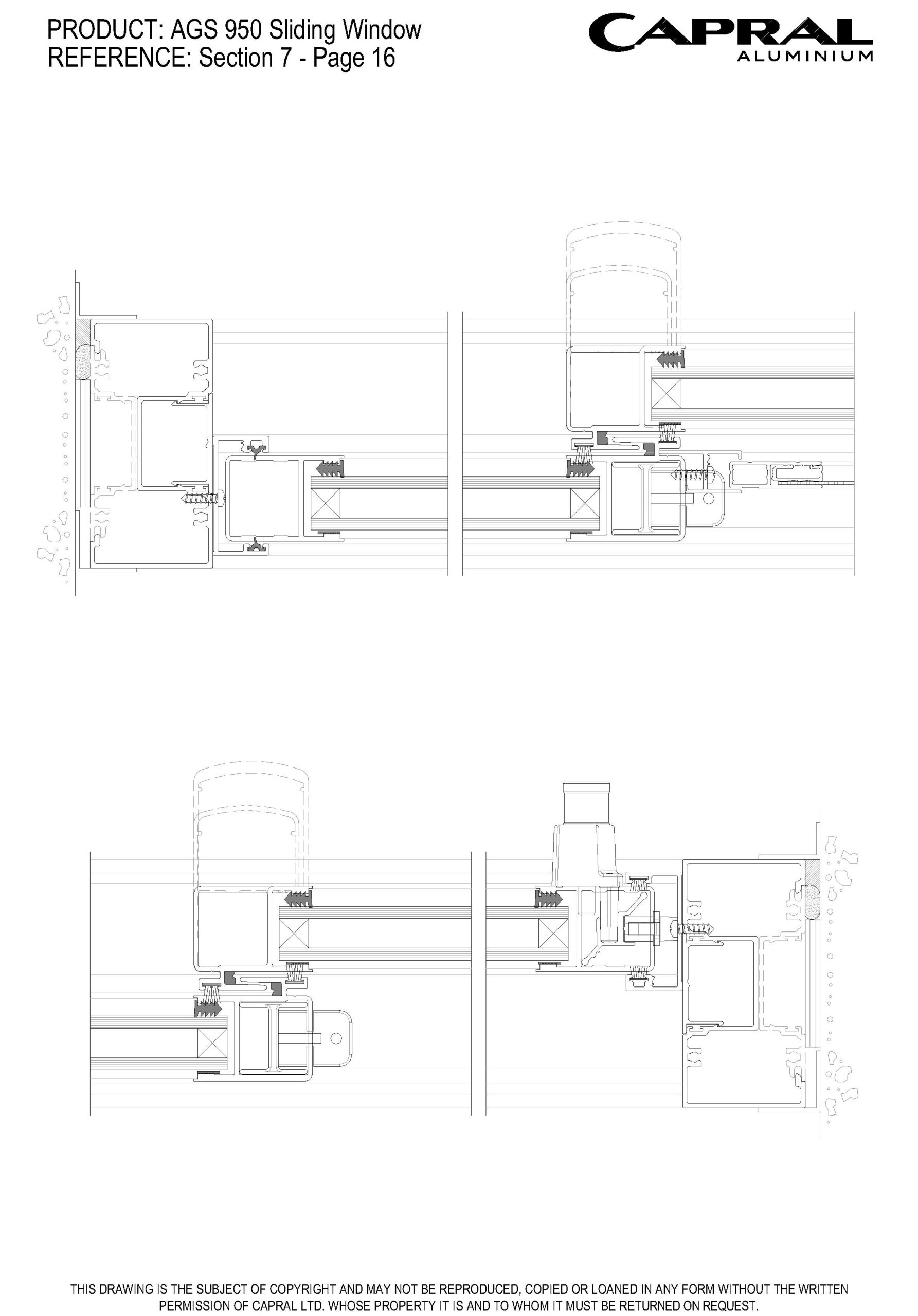

DG Narrowline (Hor)
SG Flushline (Hor)

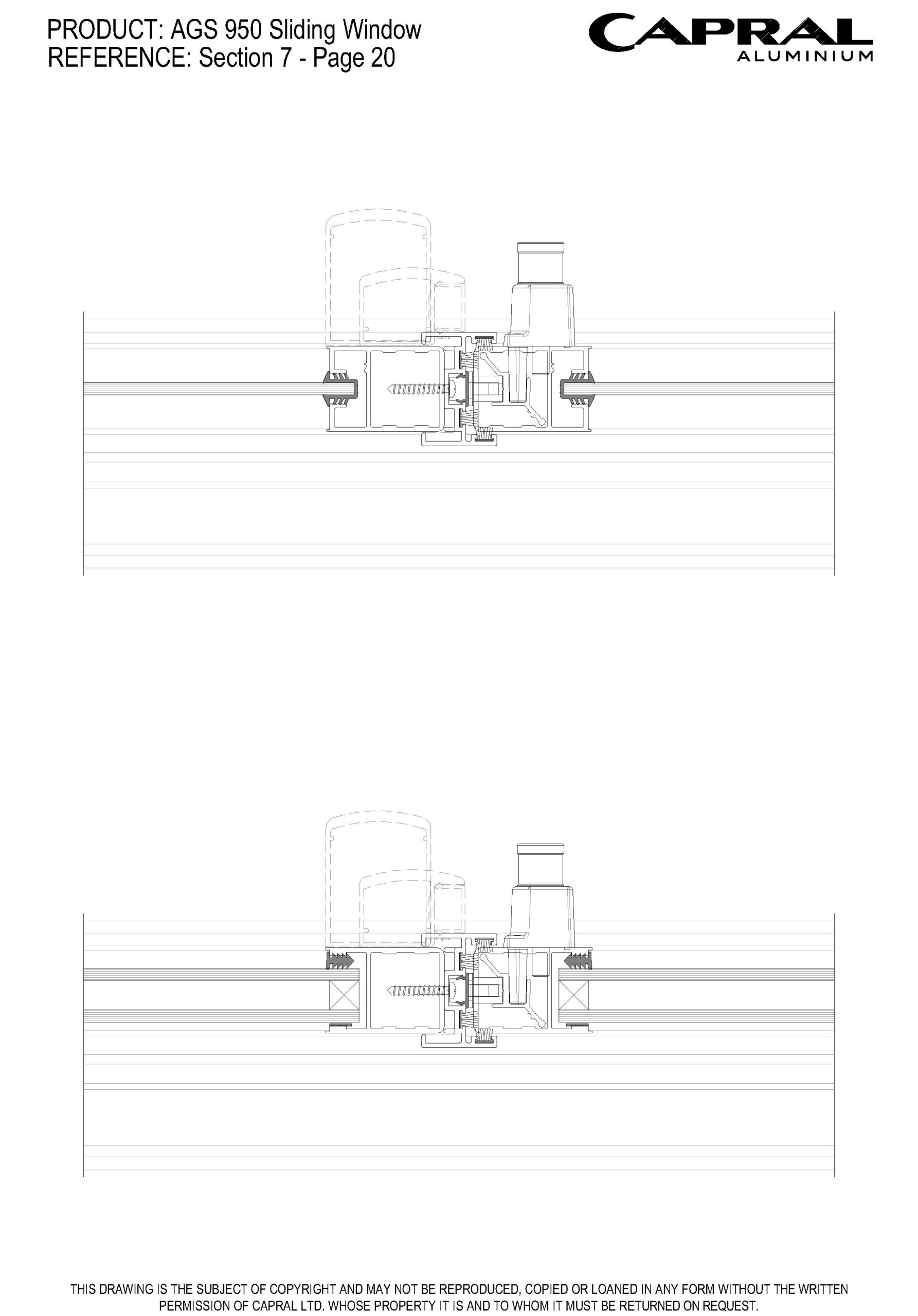

Meeting Stiles

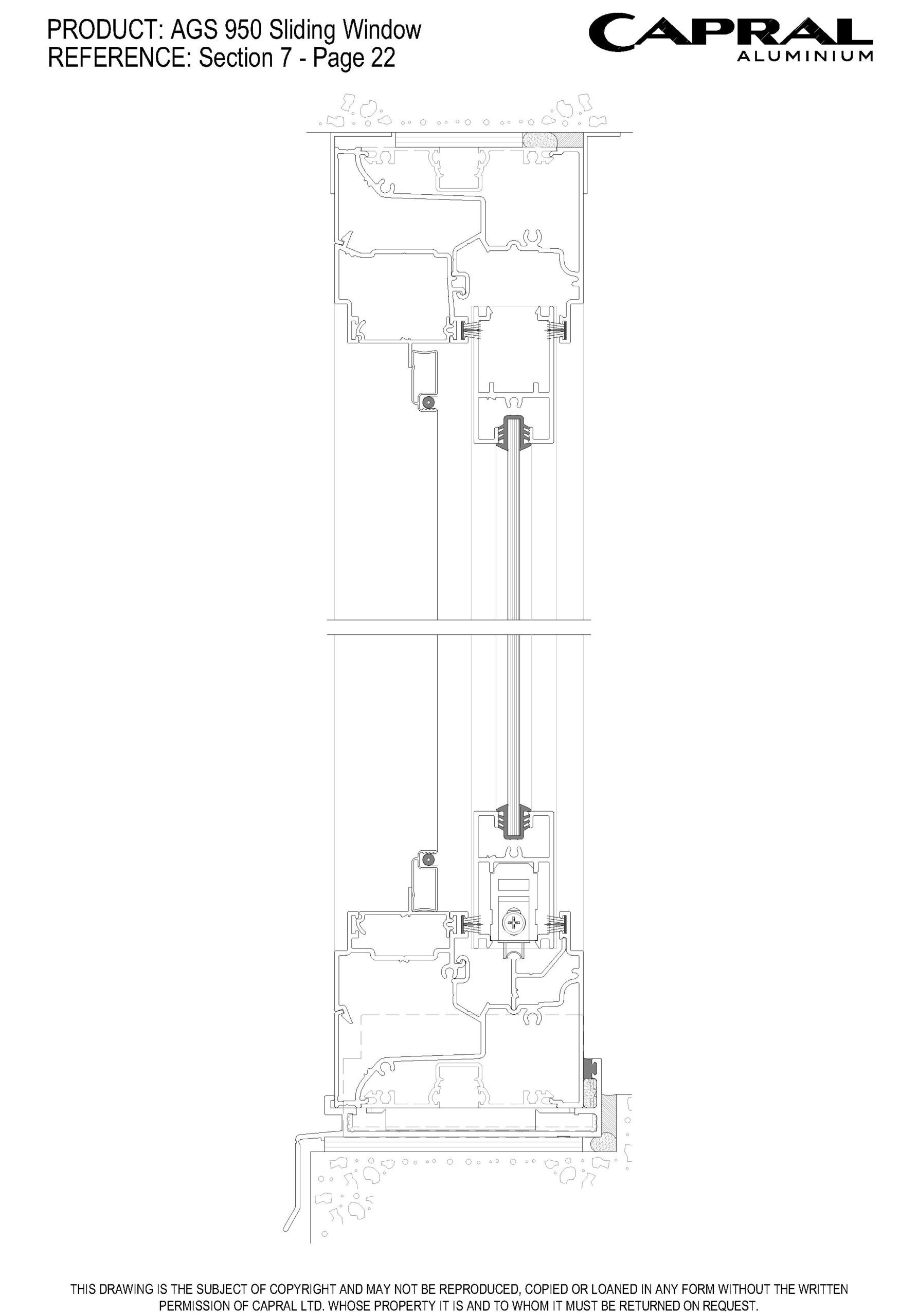

Flyscreen (Ver)

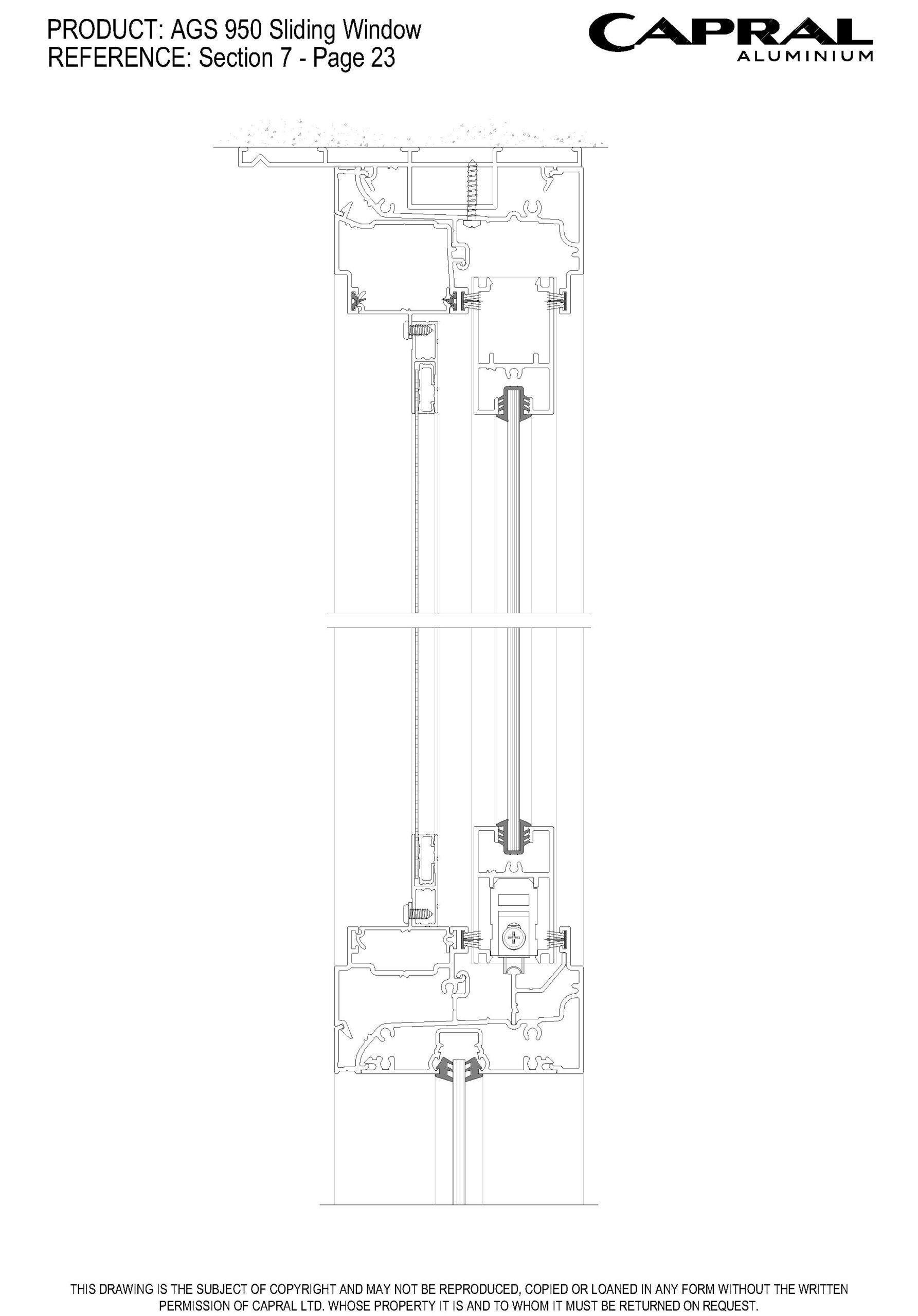

Security Screen (Ver)

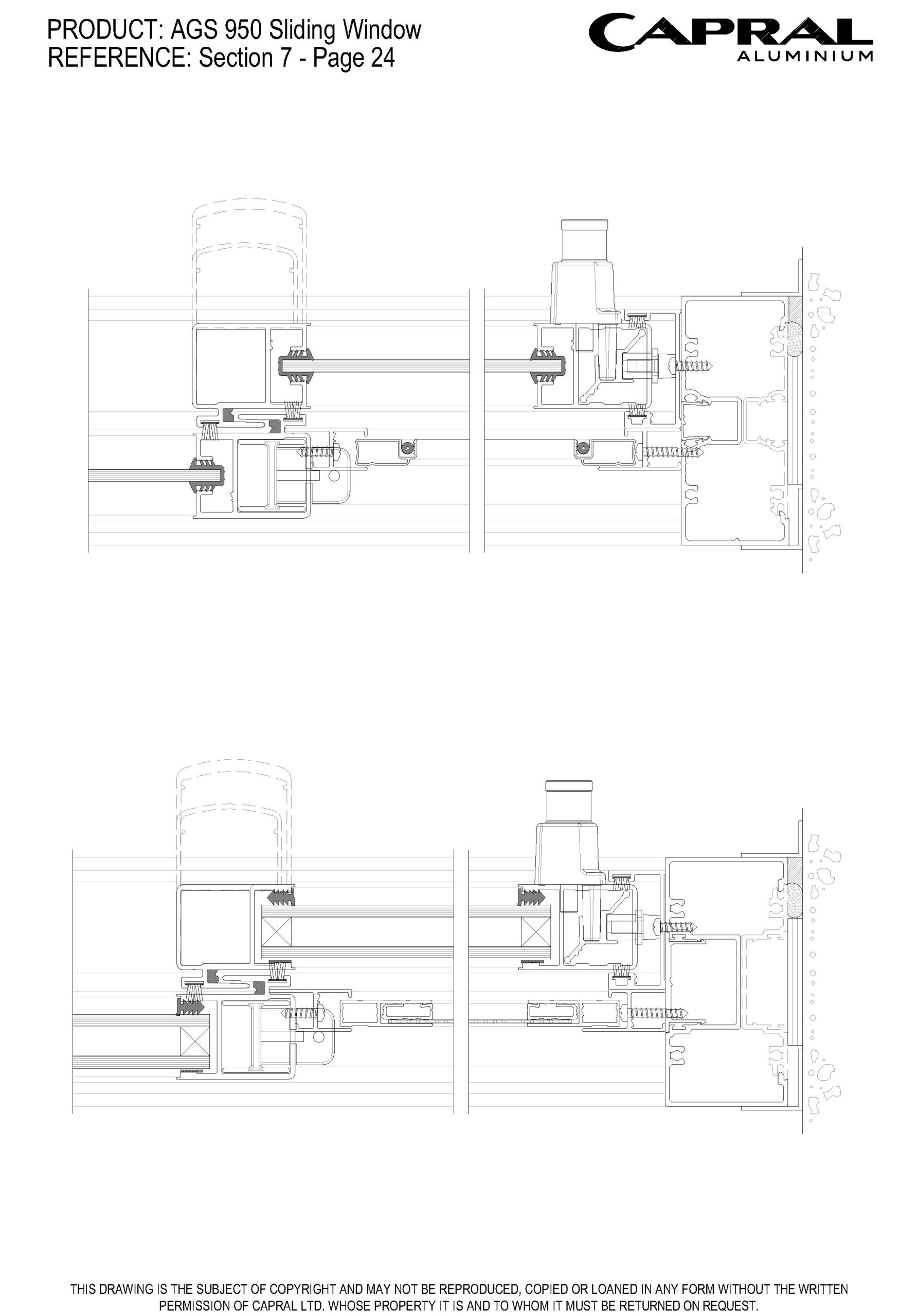

Screens (Hor)
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS 950 Sliding Window
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS Glazing Adaptors, Sliding & Double Hung Windows
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
Extrusion Wall Chart Capral Screening
Revit AGS Commercial 950 Sliding Window
CAD Files
CAD Files AGS 950 Sliding Window
CAD Files AGS Sub Frames
CAD Files Capral Screening
CAD Wall Chart AGS Sub Framing
CAD Wall Chart Capral Screening
Bulletins
PB427 - Heavy Duty (45kg) Single Wheel Roller 336202 & 327607
Other
Capral_ArchitecturalSeries_Whitepaper
Capral AGS 950 Sliding Window Brochure
Specification AGS 950 Sliding Window
Capral Installation Details
Environmental Protection Declaration (EPDs)
Compatible Products
AGS Commercial 400 Narrowline Single Glazed (101.6mm)The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.
AGS Commercial 425 Narrowline Double Glazed (101.6mm)The AGS 425 Narrowline framing system was developed specifically to cater for the growing requirement for energy-efficient double glazing.
AGS Commercial 419 Flushline Single Glazed (100mm)The AGS 419 Flushline is a 100mm, single glazed, flush-glazed framing system offering a clean and modern external appearance.
AGS Commercial 429 Flushline Double Glazed (100mm)Flushline AGS429 is the new name for the product formerly known as Flushline 419DG 100mm x 55mm. This commercial framing system has been developed to accommodate internal and external glazing techniques.
AGS Commercial 619 Single Glazed (150mm)Flushline AGS619 is the new name for the product formerly known as Flushline 419SG 150mm x 50mm. The AGS 619 Flushline offers a clean and modern external appearance.
AGS Commercial 629 Flushline Double Glazed (150mm)Flushline AGS629 is the new name for the product formerly known as Flushline 419DG 150mm x 55mm. This system was developed to accommodate both internal and external glazing.
More products from this range
AGS Commercial 50 Multi-point AwningA high-performance commercial awning window with integrated multi-point locking.
AGS Commercial 482 Awning WindowThe 482 Awning Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400/425 Narrowline framing systems and 100mm Flushline framing systems.
AGS Commercial 380 Sliding Window (76mm)The AGS 380 Sliding Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 300/325 Narrowline framing systems.
AGS Commercial 325 Narrowline Double Glazed (76mm)The AGS 325 Narrowline double-glazed aluminium framing system's slimline frame depth and ability to accommodate a captive glazing wedge make it an economical option for architectural projects.
AGS Commercial 600 Narrowline Single Glazed (150mm)The AGS 600 Narrowline offers an increased level of structural Performance than the AGS 400 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
AGS Commercial 35 Hook Hinge Awning SashThis AGS Commercial Awning Window with Hook Hinge is an operable window sash available for use with AGS commercial framing.
AGS Commercial CW175 175mm Curtain WallThe CW175 is targeted at projects where large expanses of glass or high wind loads are demanded
AGS Commercial CW116 116mm Curtain WallThe Capral CW116 Curtain Wall system has been designed as an economical, four-sided, structurally glazed system suitable for small to mid-sized projects. An evolution of the highly successful CW175 Curtain Wall system, the CW116 shares several of its extrusions and design features.
Not quite what you’re looking for? Consider...
AGS Commercial 480 Sliding Window (101.6mm)The AGS 480 Sliding Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400/425 Narrowline framing systems.
Futureline Horizontal Sashless WindowThe Futureline Horizontal Sashless Window is a sleek, modern take on the traditional sliding window.
Urban 280 Sliding WindowThe Urban Sliding Window suite offers a neat, streamlined appearance with its squared mullions and glazing beads. Ideal for use in residential building projects.
Urban Plus 390 Sliding WindowThe Urban Plus Sliding window delivers contemporary styling, strength, and performance, making it an ideal solution for high-end architectural applications.
AGS Commercial 380 Sliding Window (76mm)The AGS 380 Sliding Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 300/325 Narrowline framing systems.
Projects that use this system

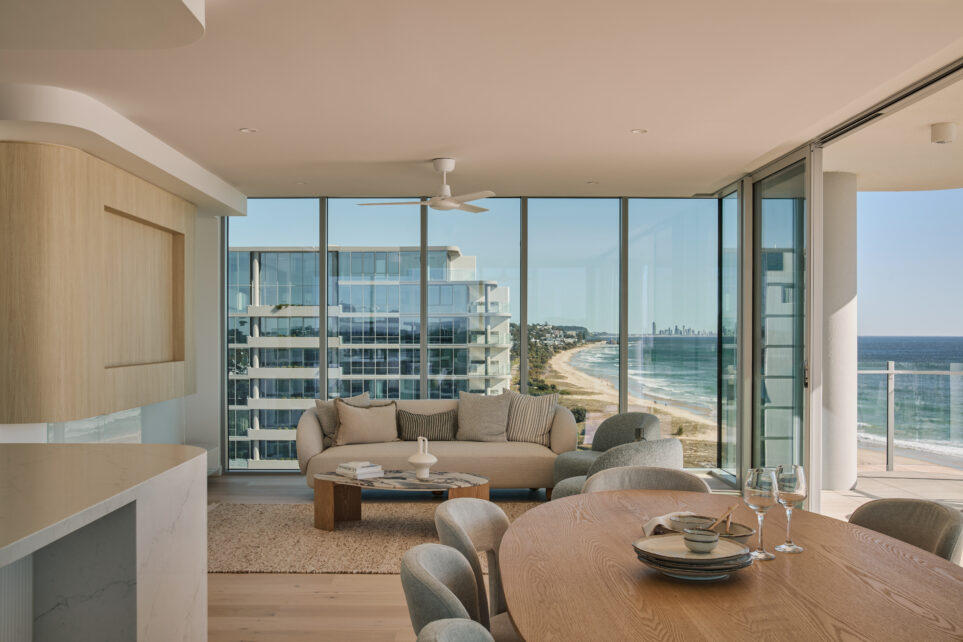

Lana Apartments: Pacific Coast Facades Delivers Acoustic Performance with Capral Aluminium Systems
Lana Apartments in Bilinga combines expansive coastal glazing with acoustic performance to address its beachfront location near Gold Coast Airport.
Apartments and Multi-residential Buildings
Careel Head Road Residence: Elevated Coastal Living
Careel Head Road in Avalon showcased a coastal residence that combined expansive glazing and high-performance materials with seamless indoor-outdoor flow. This maximised natural light, ventilation and views of the Northern Beaches.
Architectural Homes

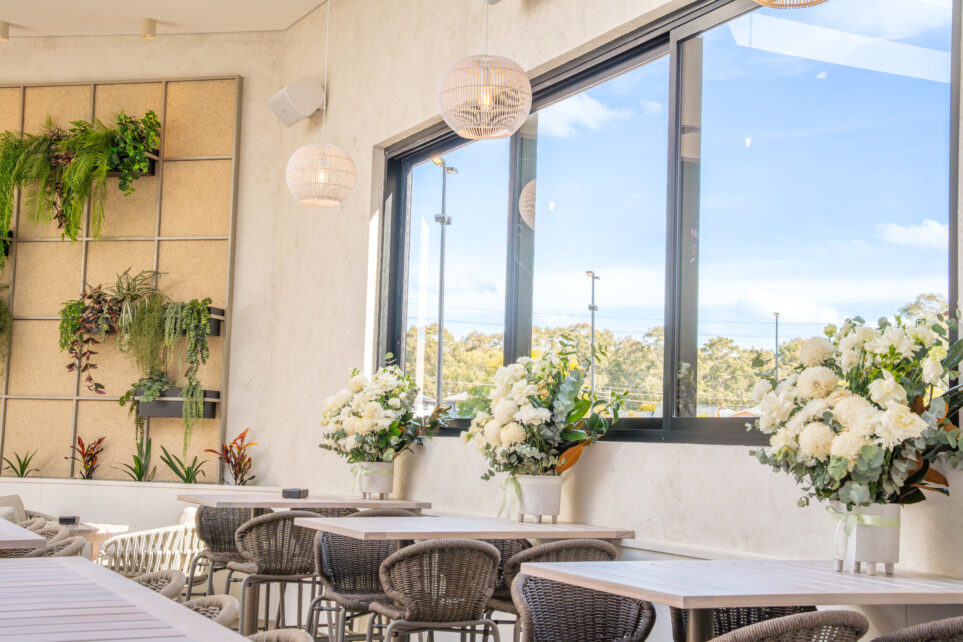

Chipping Norton Hotel: Family-Focused Hospitality with High-Performance Glazing
