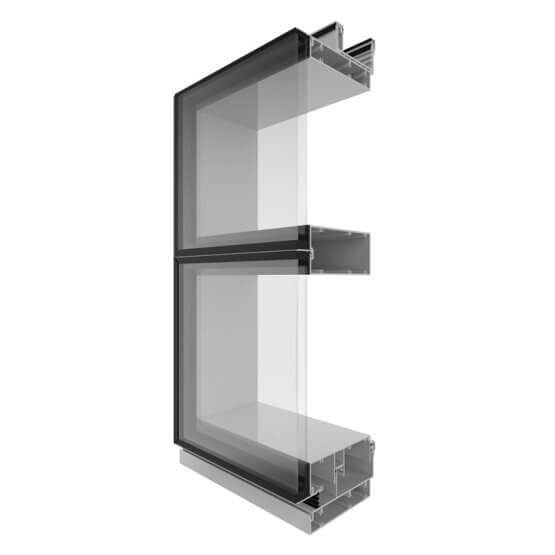

    AGS Commercial CW175 175mm Curtain Wall

    The CW175 is targeted at projects where large expanses of glass or high wind loads are demanded

    Download Brochure WERS Rating
    Commercial
    4284
    WERS
    Image Gallery Key Features Details Downloads More Products
    Jump to:
    Select

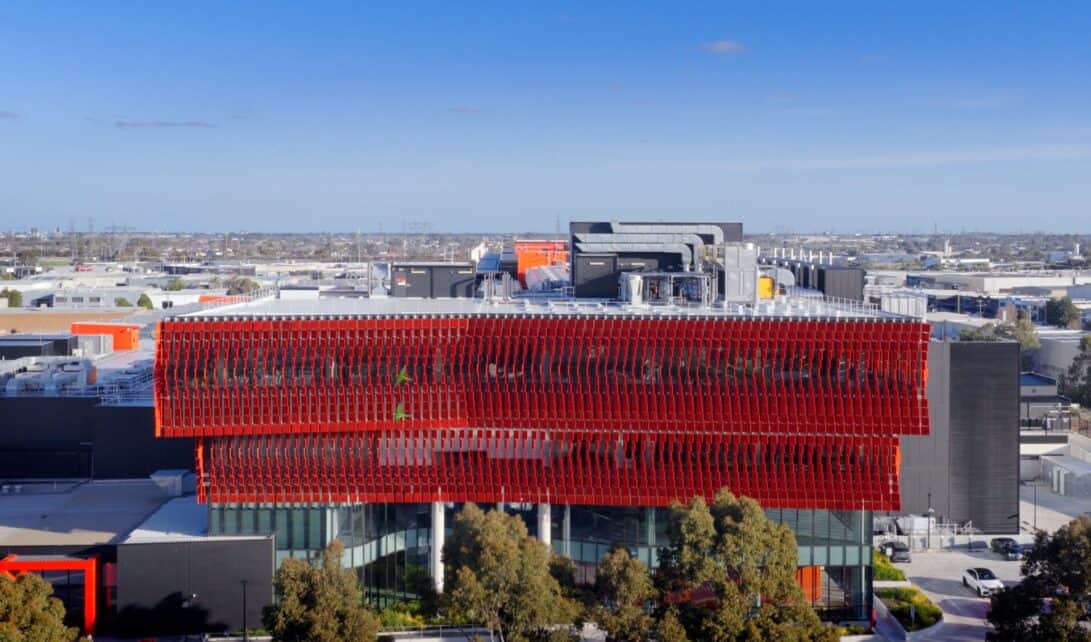

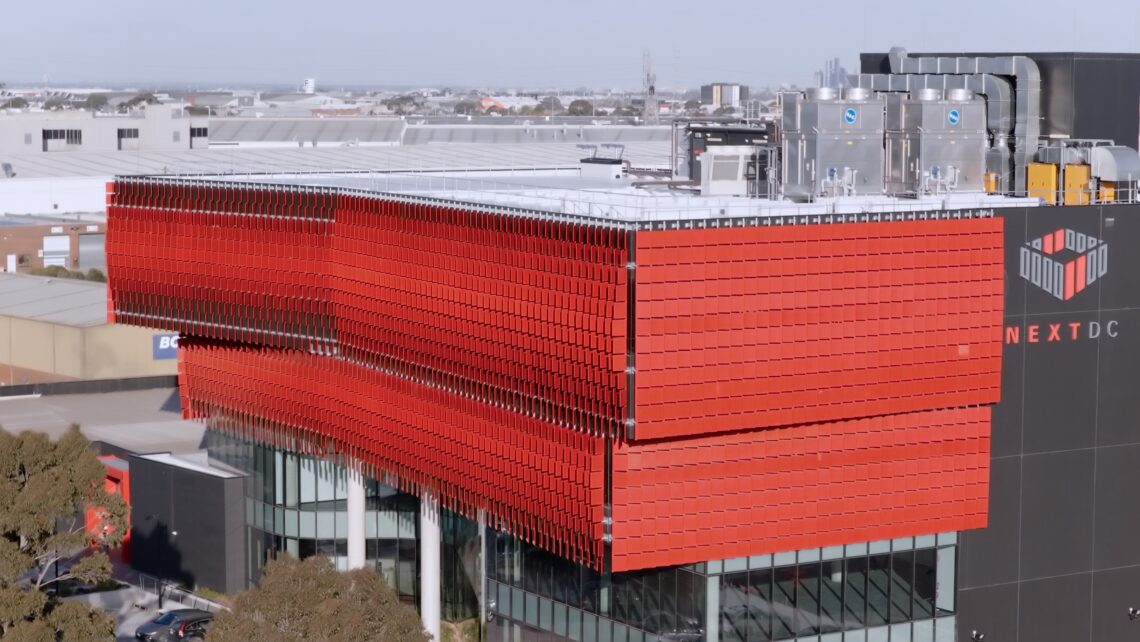

    M2 Melbourne Data Centre - fenestrate

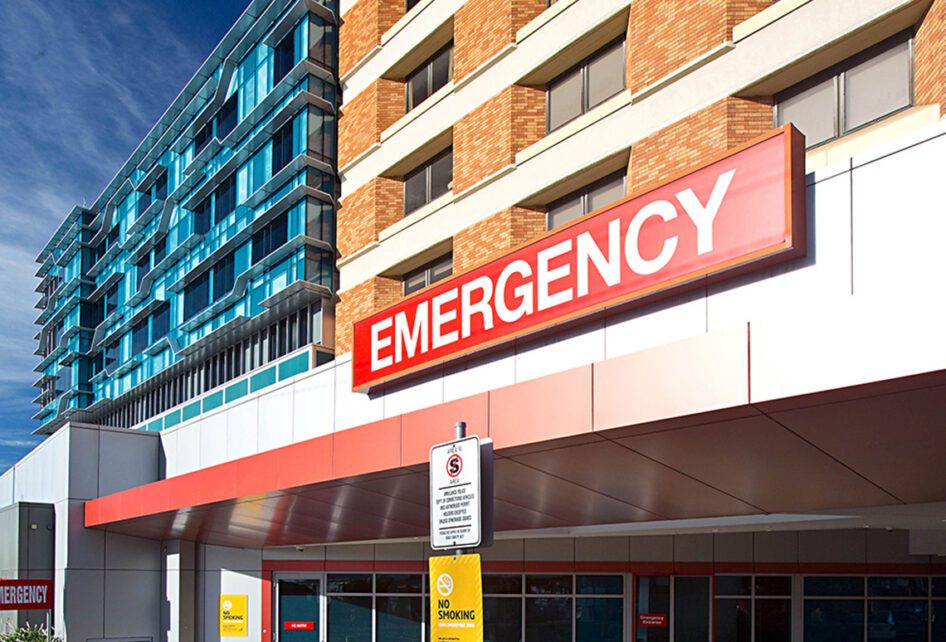

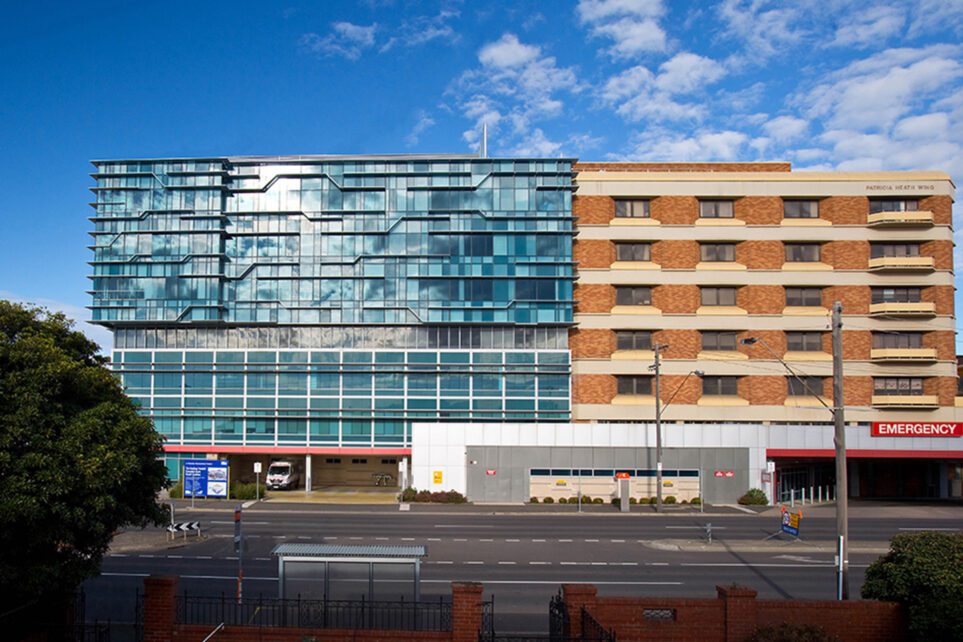

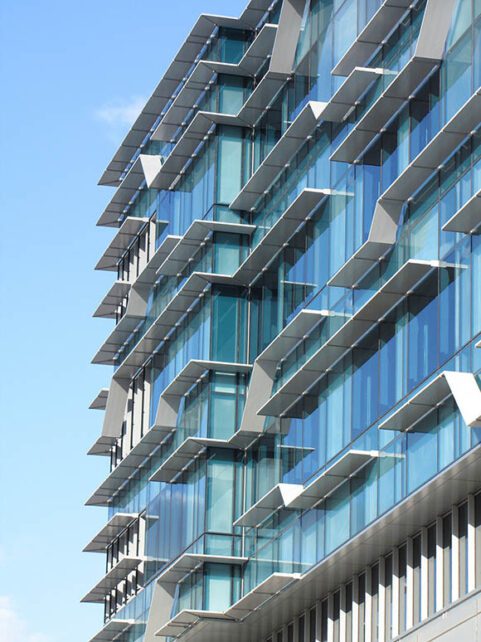

    Capral's Project University Hospital Geelong Expansion using Capral window and building systems.

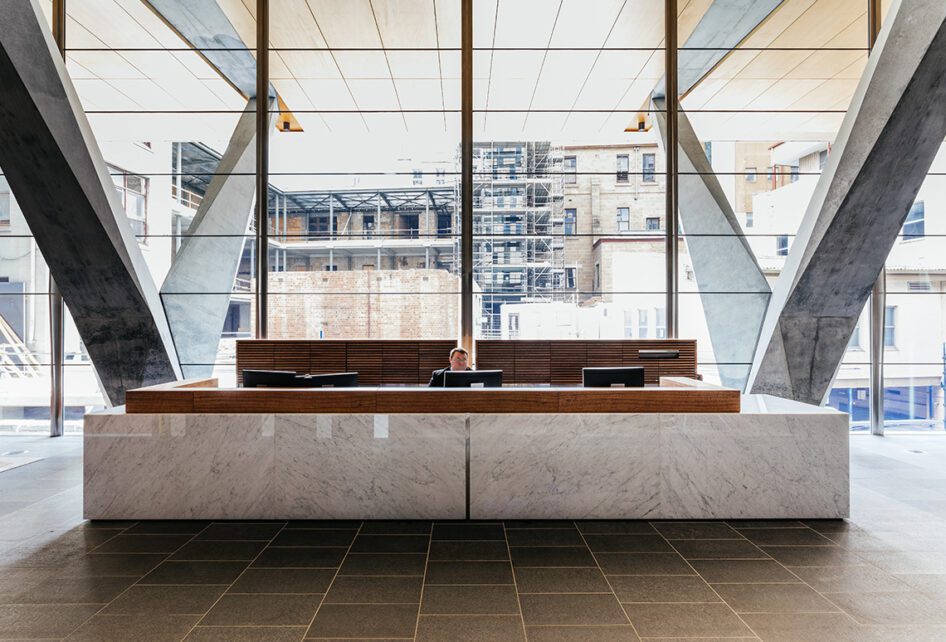

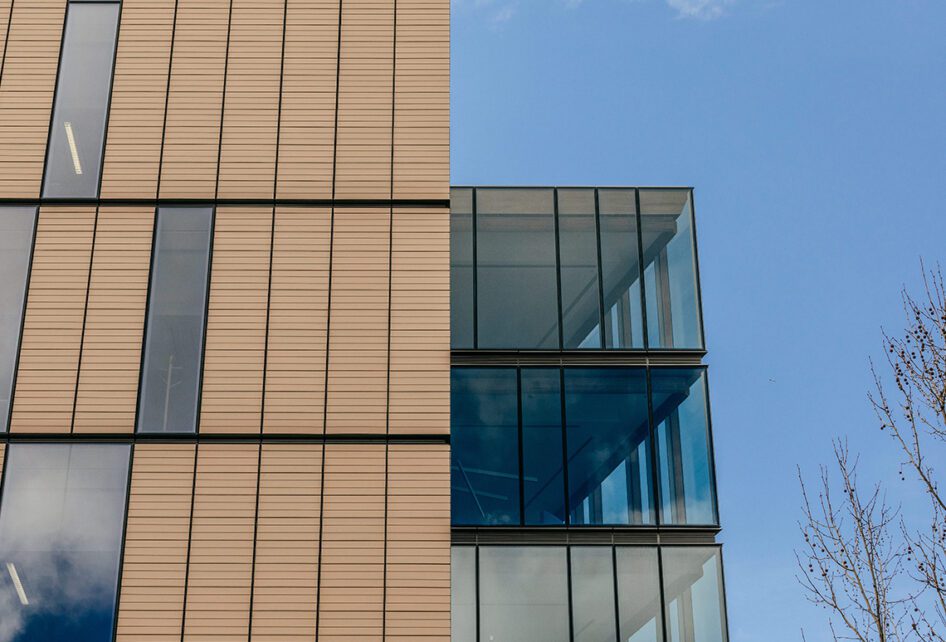

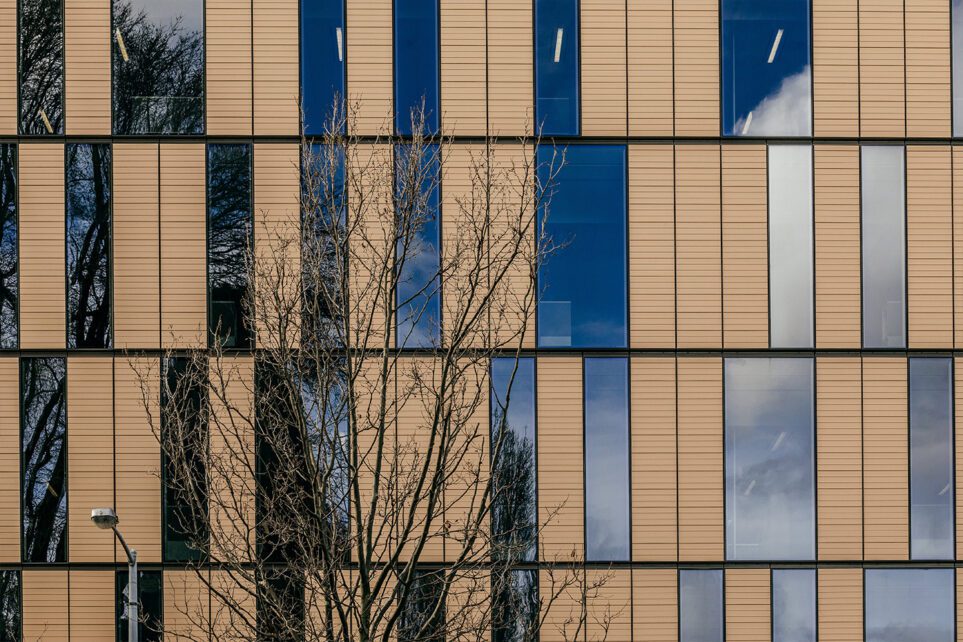

    Capral's Project The Tasman, Parliament Square Hobart using Capral window and building systems.
    Capral's Project The Tasman, Parliament Square Hobart using Capral window and building systems.
    Capral's Project The Tasman, Parliament Square Hobart using Capral window and building systems.

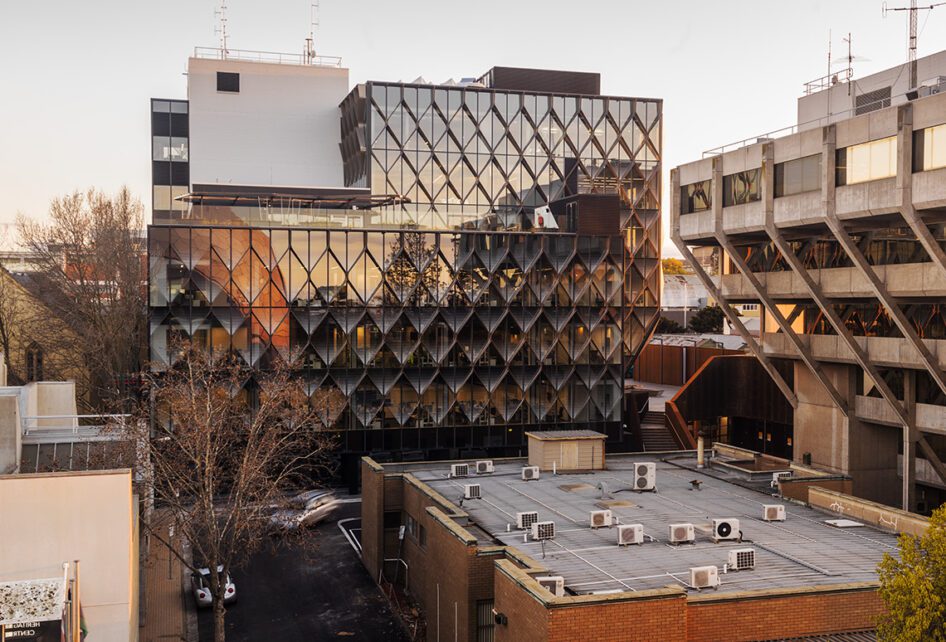

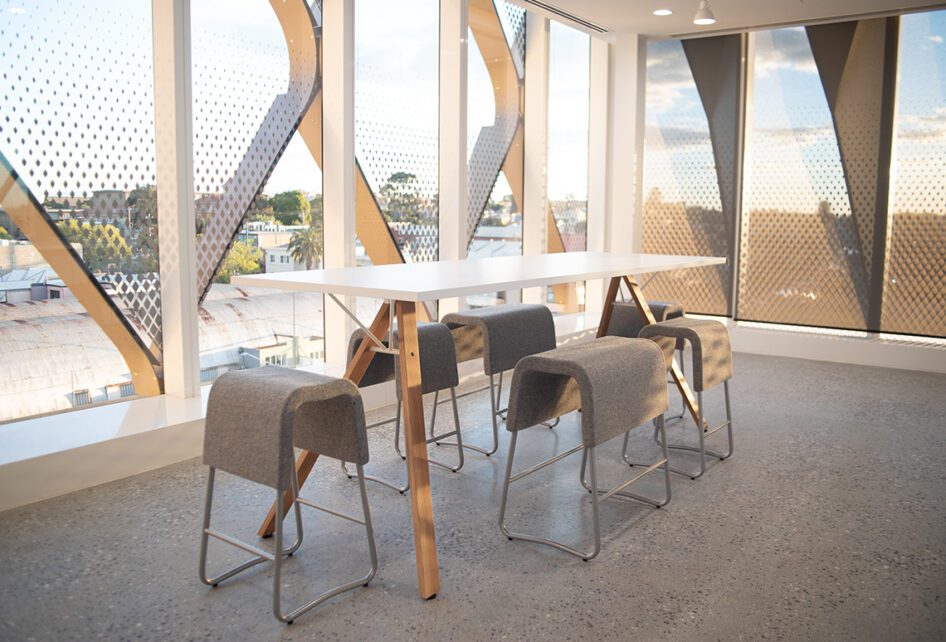

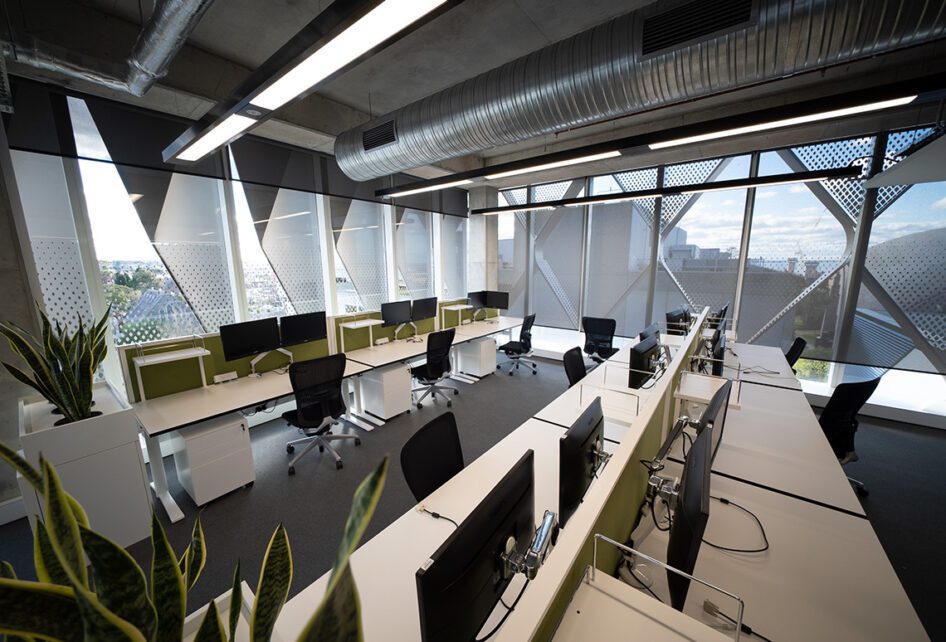

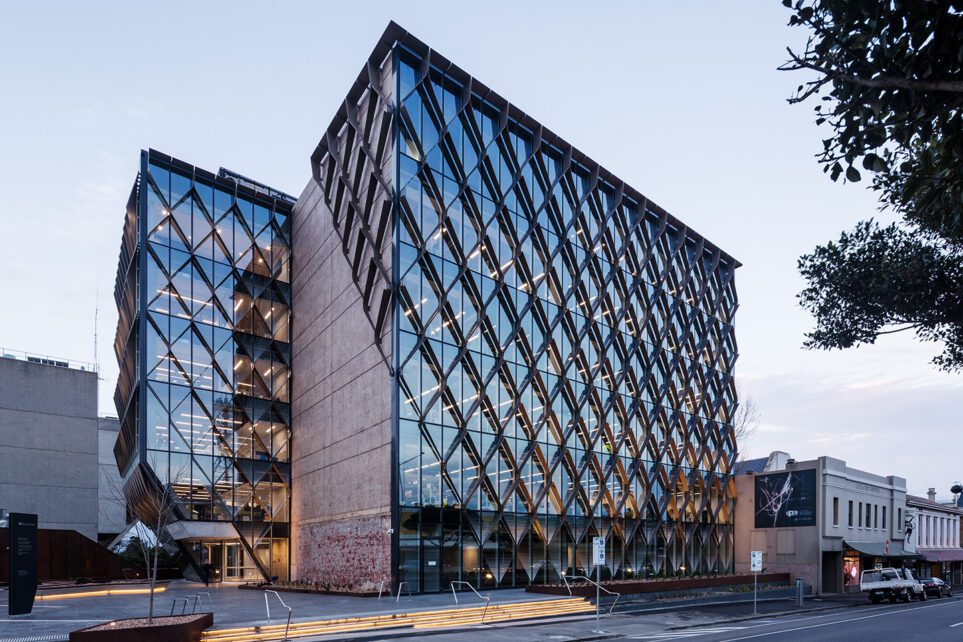

    Capral's Project Barwon Water using Capral window and building systems.
    Capral's Project Barwon Water using Capral window and building systems.
    Capral's Project Barwon Water using Capral window and building systems.
    Capral's Project Barwon Water using Capral window and building systems.

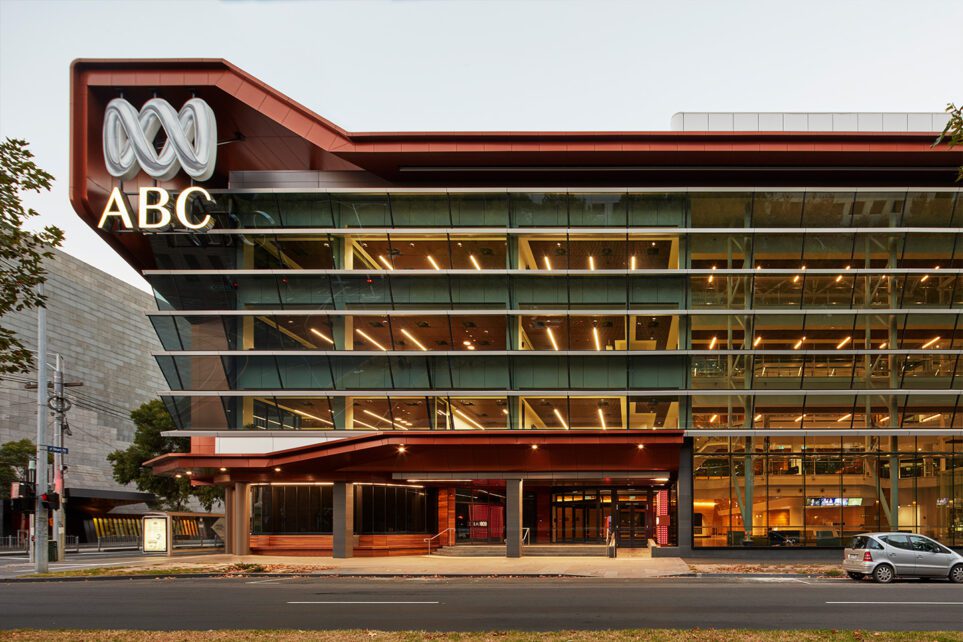

    Capral's Project ABC Melbourne Office using Capral window and building systems.

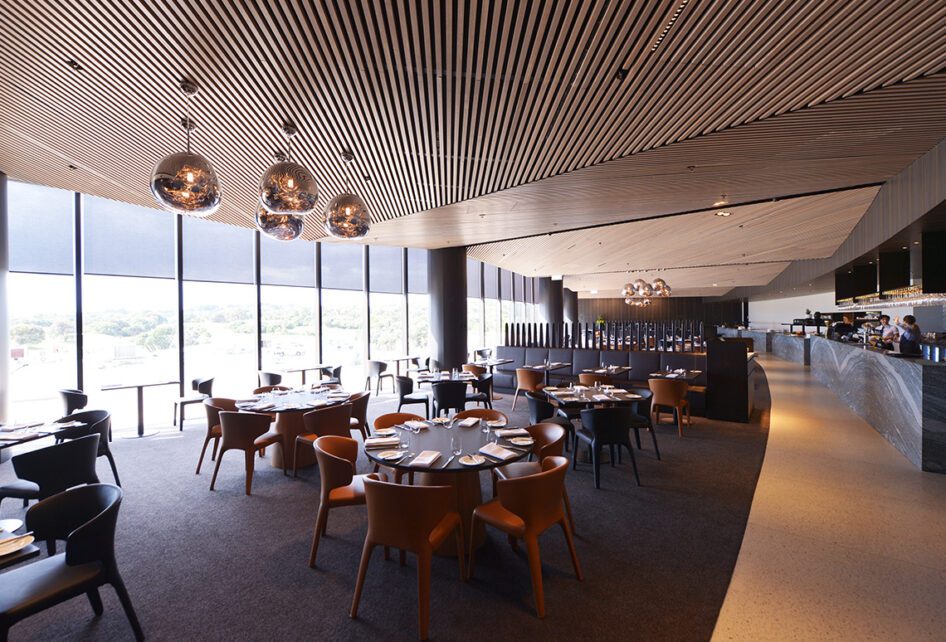

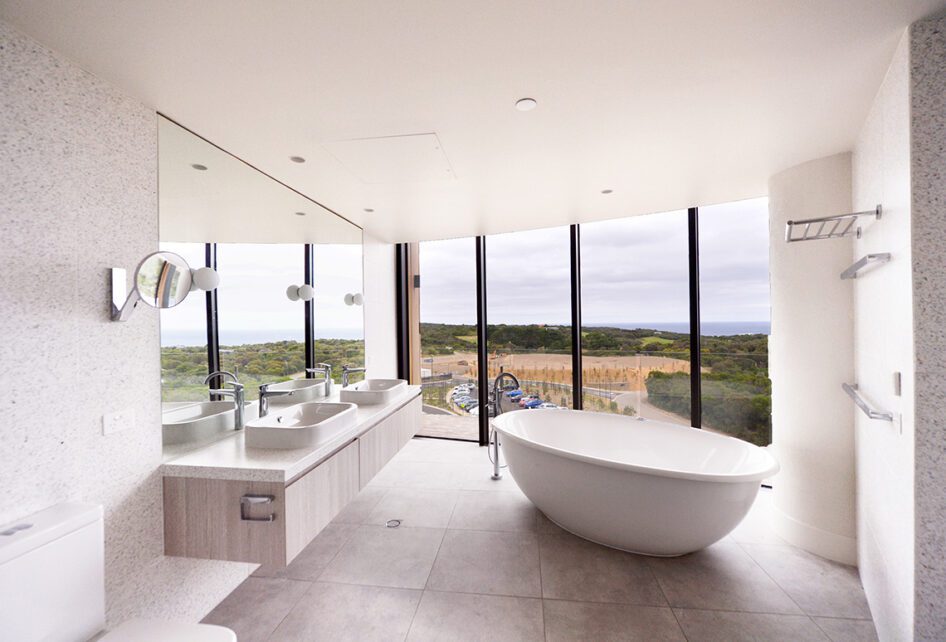

    Capral's Project Cape Schanck Resort using Capral window and building systems.
    Capral's Project Cape Schanck Resort using Capral window and building systems.
    Capral's Project Cape Schanck Resort using Capral window and building systems.
    Capral's Project Cape Schanck Resort using Capral window and building systems.
    Capral's Project University Hospital Geelong Expansion using Capral window and building systems.
    Capral's Project University Hospital Geelong Expansion using Capral window and building systems.
    M2 Melbourne Data Centre - fenestrate
    Capral's Project University Hospital Geelong Expansion using Capral window and building systems.
    Capral's Project The Tasman, Parliament Square Hobart using Capral window and building systems.
    Capral's Project The Tasman, Parliament Square Hobart using Capral window and building systems.
    Capral's Project The Tasman, Parliament Square Hobart using Capral window and building systems.
    Capral's Project Barwon Water using Capral window and building systems.
    Capral's Project Barwon Water using Capral window and building systems.
    Capral's Project Barwon Water using Capral window and building systems.
    Capral's Project Barwon Water using Capral window and building systems.
    Capral's Project ABC Melbourne Office using Capral window and building systems.
    Capral's Project Cape Schanck Resort using Capral window and building systems.
    Capral's Project Cape Schanck Resort using Capral window and building systems.
    Capral's Project Cape Schanck Resort using Capral window and building systems.
    Capral's Project Cape Schanck Resort using Capral window and building systems.
    Capral's Project University Hospital Geelong Expansion using Capral window and building systems.
    Capral's Project University Hospital Geelong Expansion using Capral window and building systems.
    Key features
    • 175mm x 80mm frame

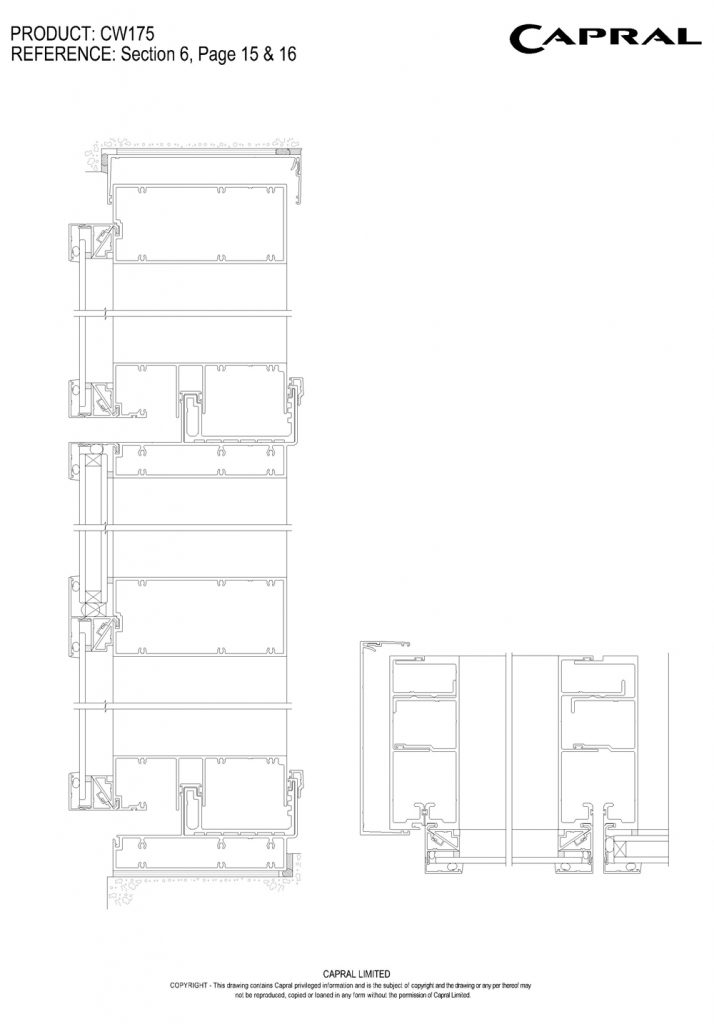

    • The structural glazed system gives the appearance of a frameless glass facade with optional cover beads to add vertical or horizontal aluminium strips.
    • Double-glazed as standard with single-glazed and spandrel options

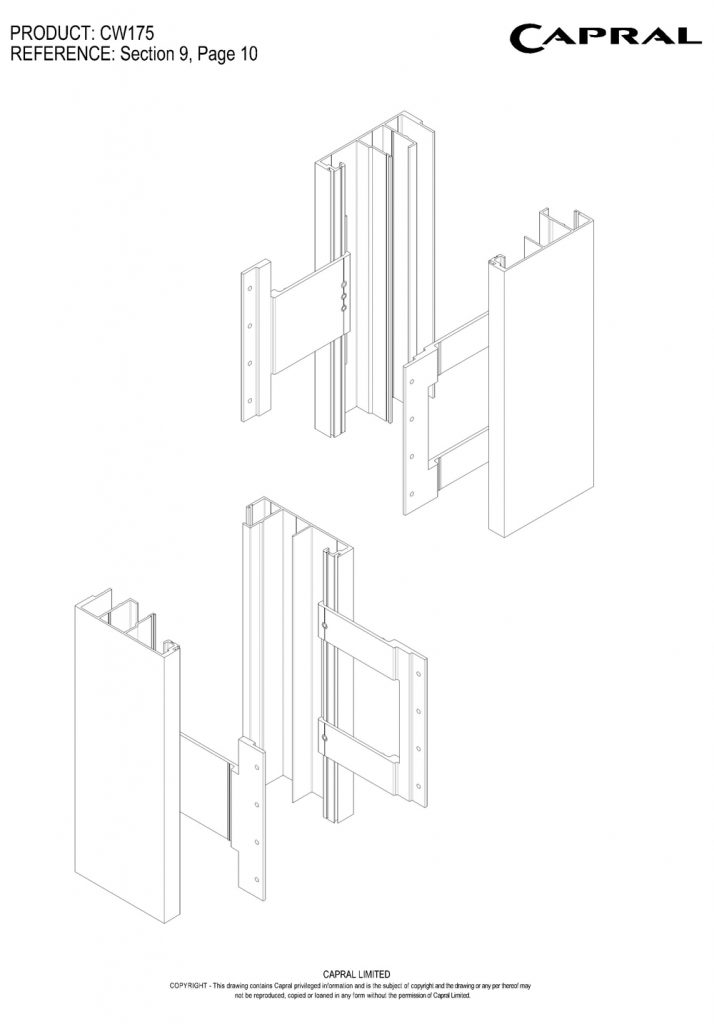

    • The sunshade bracket system allows the fixing of shading products to the frame without sacrificing structural or water performance.

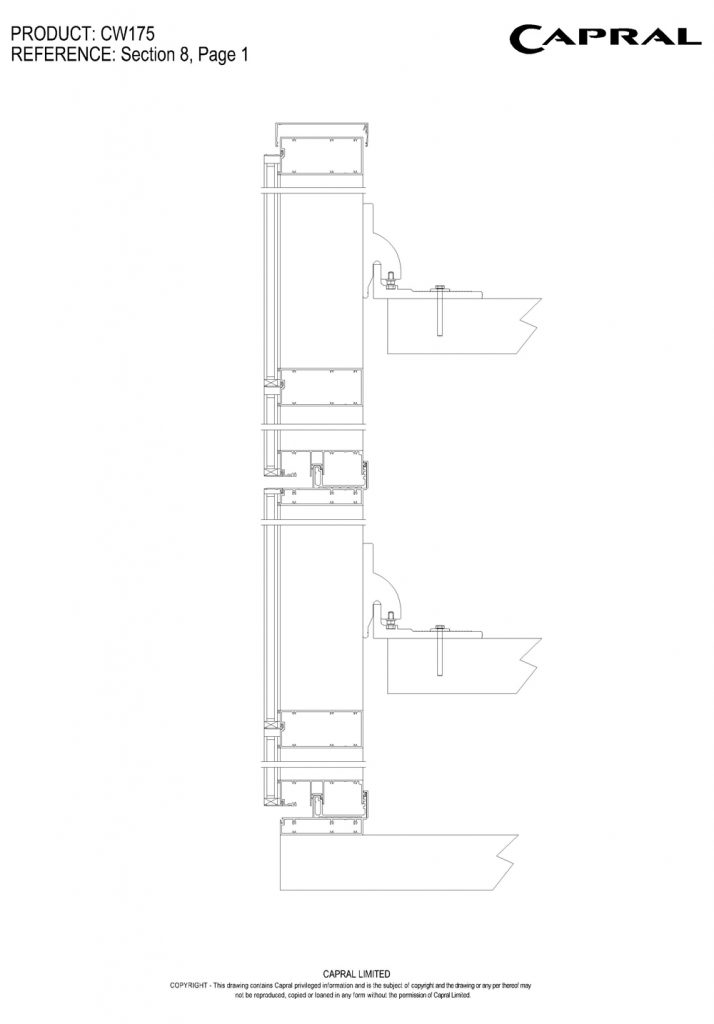

    • Proprietary mullion and building brackets provide a fully tested system.

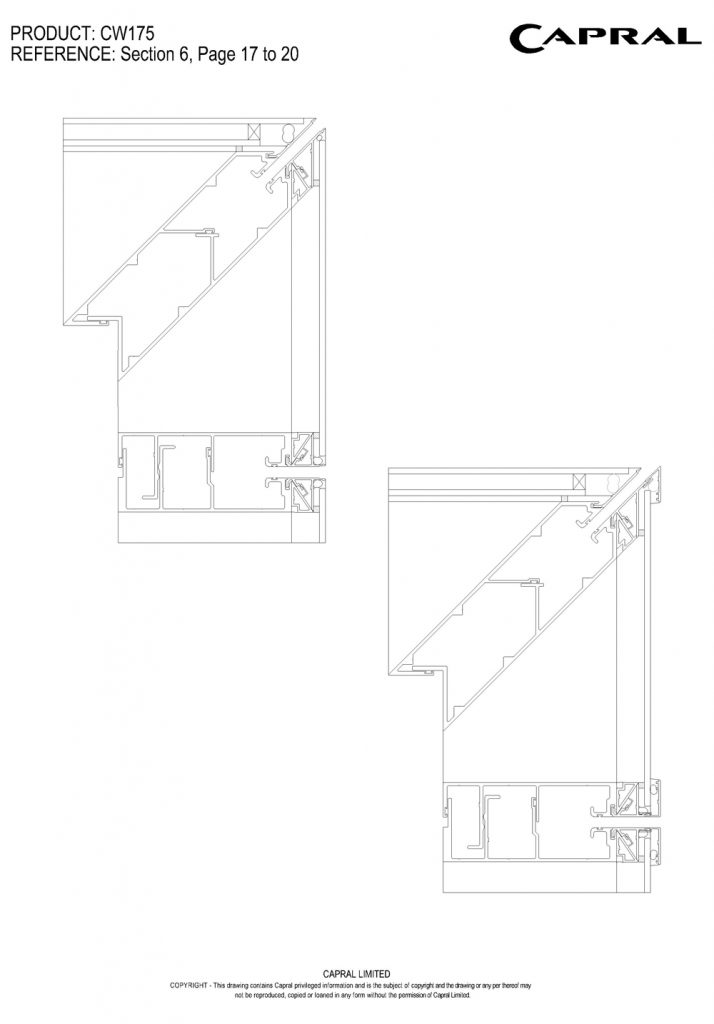

    • 90-corner mullion allows glazing and shade system to run around the corner of the building
    • Designed and tested as a wet-glazed panelised system to AS4284.

    The CW175 Curtain Wall suite has been designed as a logical progression from the CW150 Curtain Wall suite. While both products are targeted at small to mid-sized curtain wall projects, the CW175 offers higher structural performance, greater allowance for building and slab movement and the flexibility to have a whole structurally glazed curtain wall.

    The CW175 is targeted at projects where large expanses of glass or high wind loads are demanded. While also intended for buildings up to a nominal ten stories high, due to its superior design, it may be used on higher projects depending upon wind loads.

    Key features of all Capral products are the technical expertise, thorough testing and a system approach to design; the CW175 is no exception, having undergone a rigorous AS4284 testing regime.

    Other key features include the integration of sun shading directly into the Curtain Wall system without sacrificing structural or water performance, full structural glazing with the ability to install aesthetic external beads and a corner mullion solution.

    Download Brochure

    Details

    Product Specs

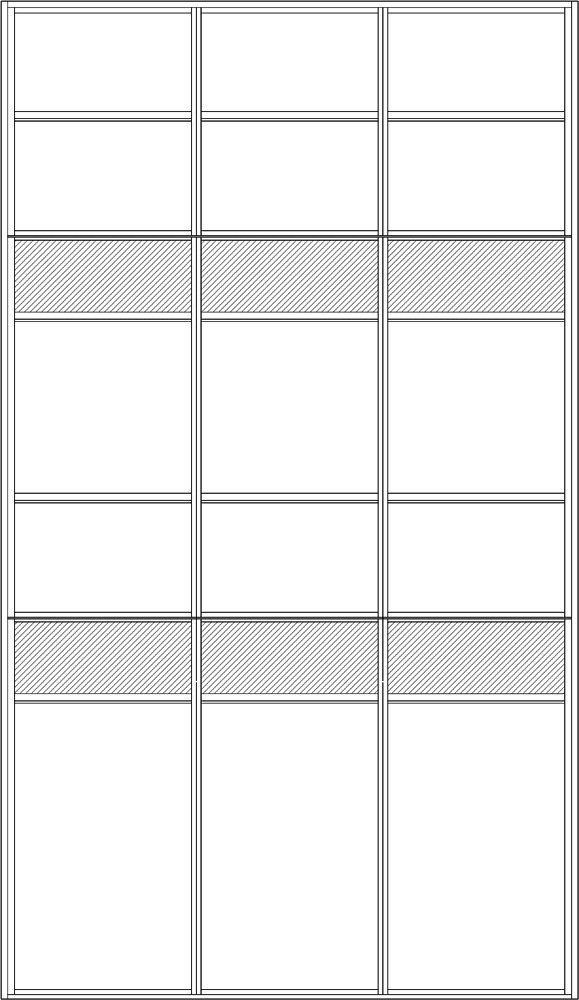

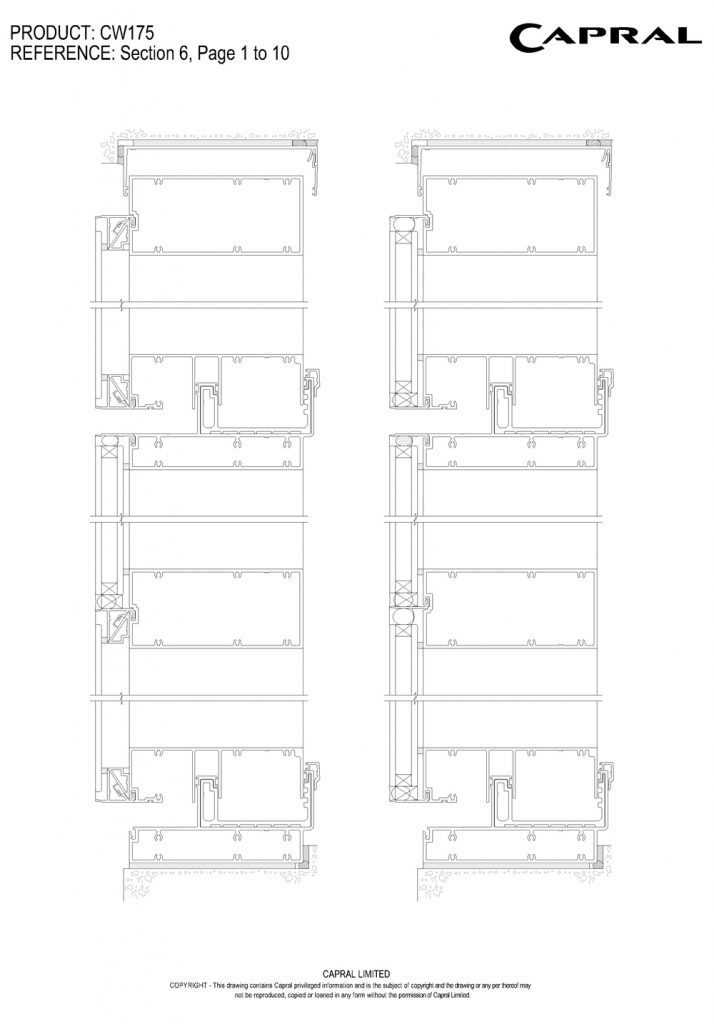

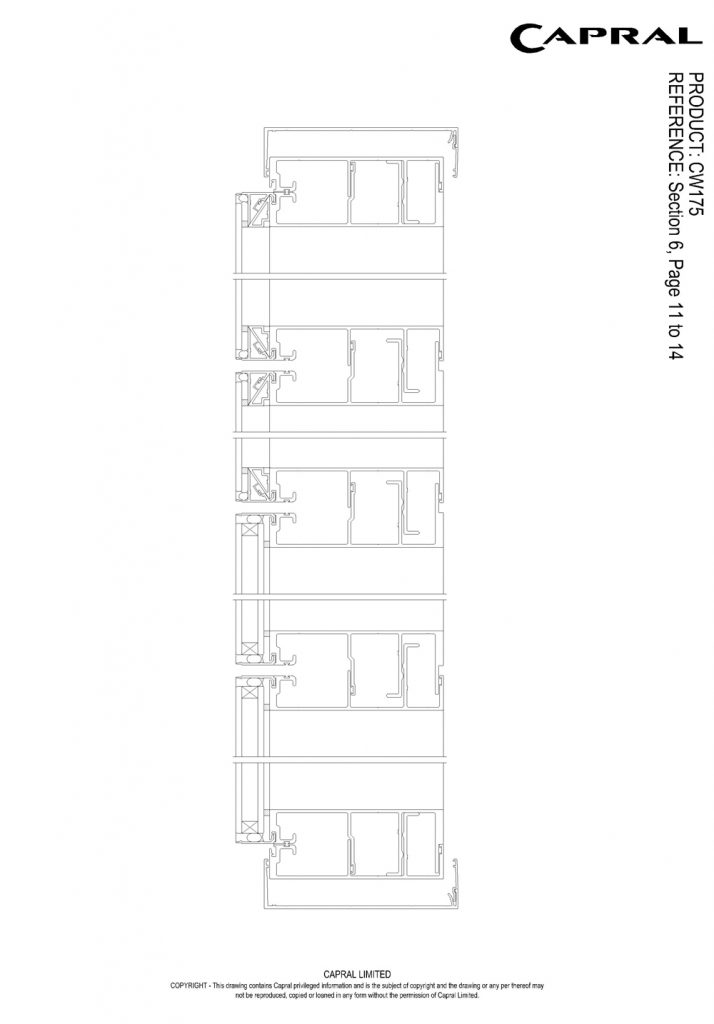

    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 4500
    Panel Width (mm) 1500
    Panel Weight (kg) 210

    Maximum specifications are for standard configurations. Where the requirements are outside these specifications, contact Capral for further assistance.

    Frame Dimensions (mm)

    Frame depth (mm) 175
    Face Width (mm) 80

    Acoustic Rating

    Rw (C;Ctr) 42 (-2;-5)

    Maximum Product Performance

    SLS (Pa) 3000
    ULS (Pa) 5000
    WATER (Pa) 1800

    Max Water performance is 900Pa Static and 1800Pa Cyclic. AS4284, 2008 – Testing of Building Facades is more onerous than AS2047,1999 – Windows in Buildings – Selection and Installation. AS4284 testing also satisfies the requirements of AS2047.

    Glazing Details

    Single Glazed 6 - 12
    Double Glazed 24 - 32

    Energy Performance

    Uw Range 2.8 - 4
    SHGC Range 0.19 - 0.67
    Tvw Range 0.24 - 0.7
    Air infiltration 0.1 - 0.1
    WERS Rating
    Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual AGS CW175 Curtain Wall
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS Curtain Walls
    Extrusion Wall Chart AGS Sub Framing
    BIM Files
    Revit AGS Curtain Walls
    Revit Capral Subframes
    CAD Files
    CAD Files AGS CW175 Curtain Wall
    CAD Files AGS Sub Frames
    CAD Wall Chart AGS Curtain Walls
    CAD Wall Chart AGS Sub Framing
    Revit
    AGS Commercial CW175 175mm Curtain Wall
    Bulletins
    PBJ1033 - AGS CW116 / CW175
    PB422-CW175 Internal Corner Mullion Addition
    Other
    Capral AGS CW175 Curtain Wall Brochure Architectural Series White paper
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)

    More products from this range

    AGS Commercial 659 Flushline Wide Pocket (150mm) Corner Image. AGS Commercial 659 Flushline Wide Pocket (150mm)

    The AGS 659 150mm wide glazed commercial Flushline framing system has been developed to accommodate both internal and external glazing techniques.

    AGS Commercial 1029 Flushline (250mm) Corner Image. AGS Commercial 1029 Flushline Double Glazed (250mm)

    Flushline AGS1029 is the new name for the product formerly known as Flushline419DG 250mm * 55mm

    AGS Commercial 35 Casement Sash Corner Image. AGS Commercial 35 Casement Sash

    This AGS Commercial Casement Window is an operable window sash available for use with AGS commercial framing.

    AGS Commercial CW150 150mm Curtain Wall Corner Image. AGS Commercial CW150 150mm Curtain Wall

    The CW150 Curtain Wall has been developed to provide a robust and flexible Curtain Wall solution for small to mid-sized curtain wall projects.

    AGS 325 Narrowline Double Glazed (76mm) Corner Image. AGS Commercial 325 Narrowline Double Glazed (76mm)

    The AGS 325 Narrowline double-glazed aluminium framing system's slimline frame depth and ability to accommodate a captive glazing wedge make it an economical option for architectural projects.

    AGS Commercial CW116 116mm Curtain Wall Corner Image. AGS Commercial CW116 116mm Curtain Wall

    The Capral CW116 Curtain Wall system has been designed as an economical, four-sided, structurally glazed system suitable for small to mid-sized projects. An evolution of the highly successful CW175 Curtain Wall system, the CW116 shares several of its extrusions and design features.

    AGS Commercial 425 Narrowline Double Glazed (100mm) Corner Image. AGS Commercial 425 Narrowline Double Glazed (101.6mm)

    The AGS 425 Narrowline framing system was developed specifically to cater for the growing requirement for energy-efficient double glazing.

    AGS Commercial 400 Narrowline Single Glazed (100mm) Corner Image. AGS Commercial 400 Narrowline Single Glazed (101.6mm)

    The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.

    Not quite what you’re looking for? Consider...

    Edge MAX SG150 Structural Glazed Curtain Wall

    The Edge MAX Structural Glazed 150mm framing and curtain wall maximises a building's all glass appearance while reducing energy loss.

    AGS Commercial CW116 116mm Curtain Wall Corner Image. AGS Commercial CW116 116mm Curtain Wall

    The Capral CW116 Curtain Wall system has been designed as an economical, four-sided, structurally glazed system suitable for small to mid-sized projects. An evolution of the highly successful CW175 Curtain Wall system, the CW116 shares several of its extrusions and design features.

    Projects that use this system

    Elevating Data Centre Design at M2 Melbourne

    M2 Melbourne Data Centre is a state-of-the-art facility redefining the standards of data centre construction and operation in Australia.


    Built Environment

    Frasers Kemp Creek

    In Western Sydney's industrial area, the Fraser Kemp Creek Industrial development is embracing sustainable design principles. This modern facility, part of The YARDS precinct, thoughtfully combines functionality with aesthetics.


    Commercial

    Gold Coast Airport Expansion

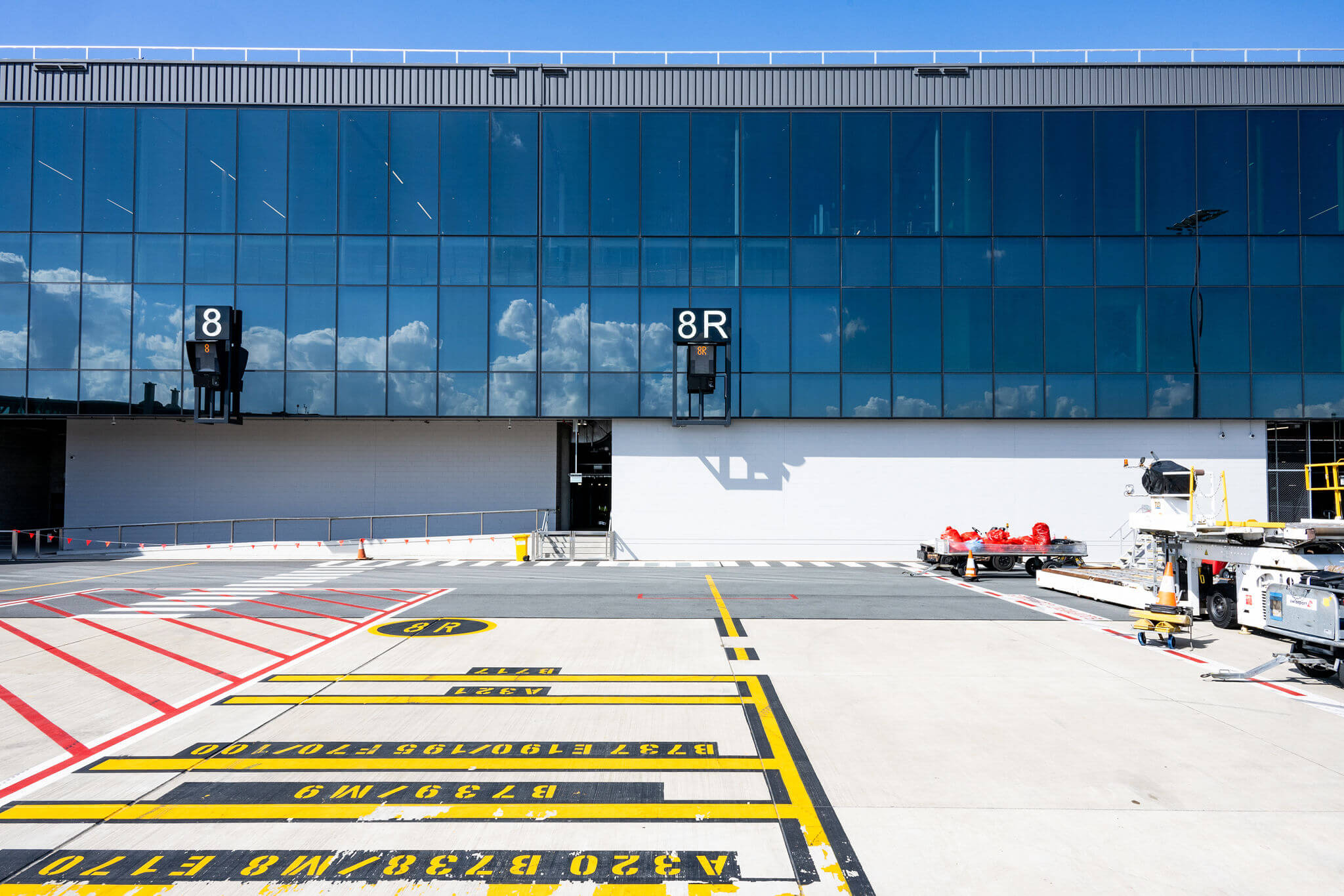

    Australia's premier holiday destination, the Gold Coast, is set to meet rapidly growing demand with the recent completion of its new three-level airport terminal. Capral offered to customise a design to meet the project requirements and allow the architects and builders to source locally rather than go offshore.
