Amplimesh® StormGuard
Using high tensile marine grade Stainless Steel, woven into a fine mesh, Amplimesh® StormGuard® are extremely tough cyclone-tested security screens built for Australia's toughest environments..
Tested
Key features
- Tested to Australian Standard AS5039-2008 for maximum impact and shear resistance
- Enjoy clear unobstructed 160 degree angle of view
- High-tensile marine grade Stainless Steel

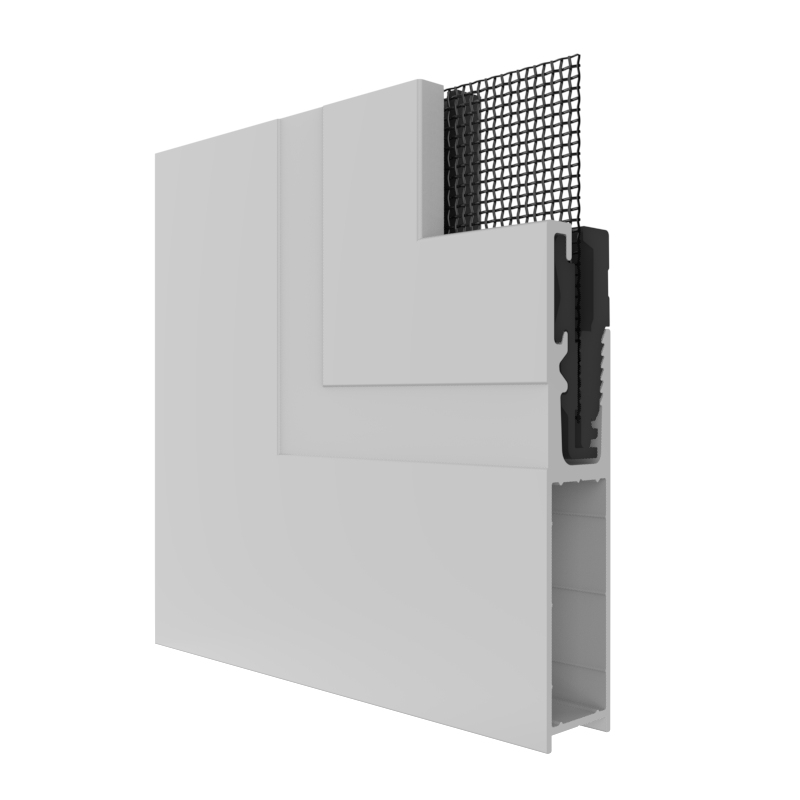

- Frame is crafted from 6061 T6 Structural Aluminium enabling highest possible impact performance
- StormGuard® patented isolated screw clamp
- Protection against flying and crawling insects and pests
- Corrosion resistant
- 16 year StormGuard® warranty
- Available in a range of frame colours
- Includes standard hardware
- Multipoint locking mechanism

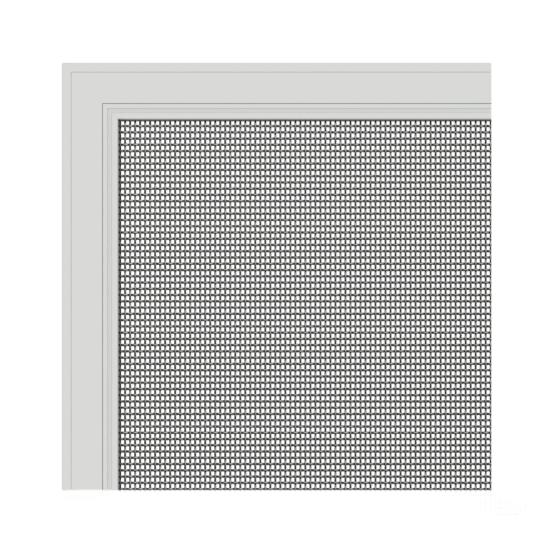

At the centre of every StormGuard® screen is an ultra-high tensile Stainless Steel mesh that offers exceptional strength and corrosion resistance without compromising natural light and ventilation.
StormGuard® cyclone screens have been rigorously tested to meet and exceed Australian standards, including cyclonic impact speeds of up to 44m/s.
We’re so sure of the quality of StormGuard® security doors and window screens that we cover them with a comprehensive 16 year warranty.
To find out more about Australia’s most desirable home security products call 1800 AMPLIMESH or 1800 267 546 to be connected to your local Amplimesh® Trusted Expert. Alternatively, you can get in touch through our Ampliemesh website
Download BrochureDetails
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
3000
Panel Width (mm)
1500
Frame Dimensions (mm)

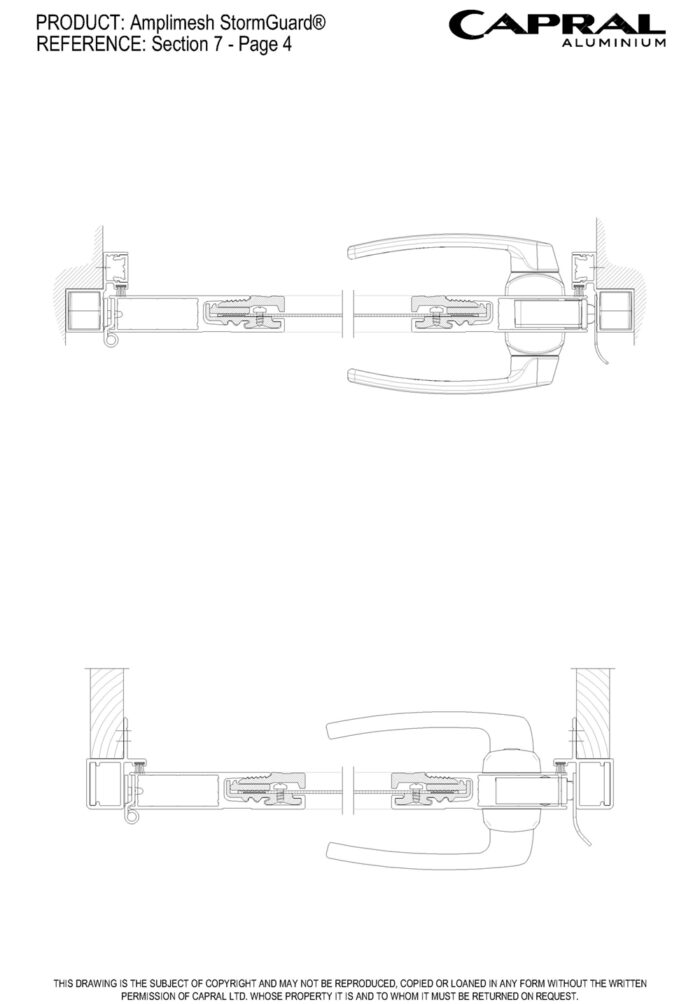

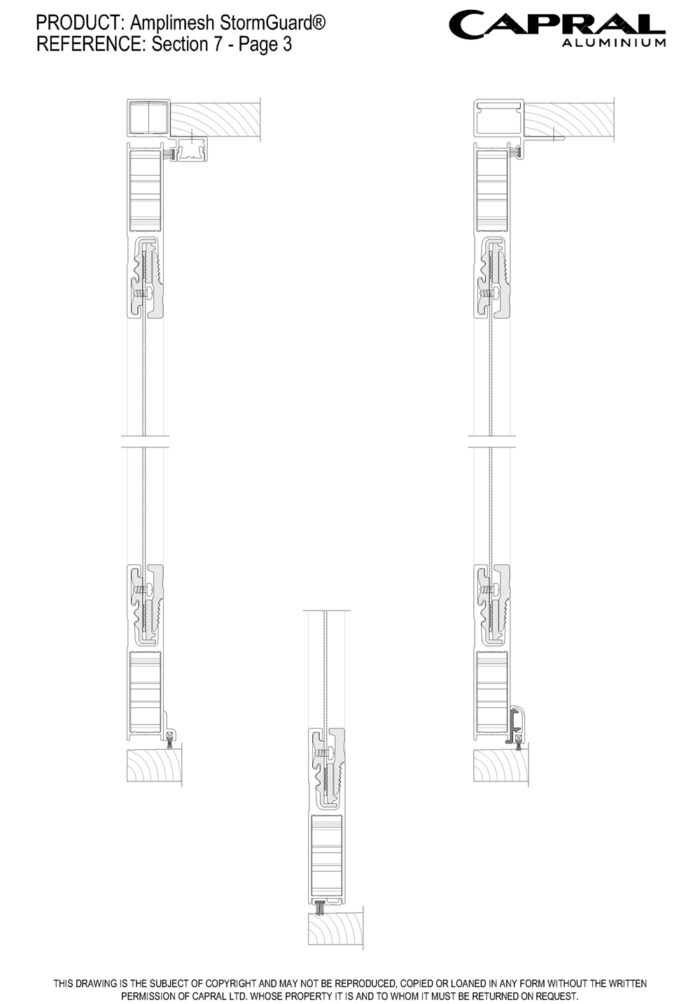

Screen Door
94 x 19.5mm

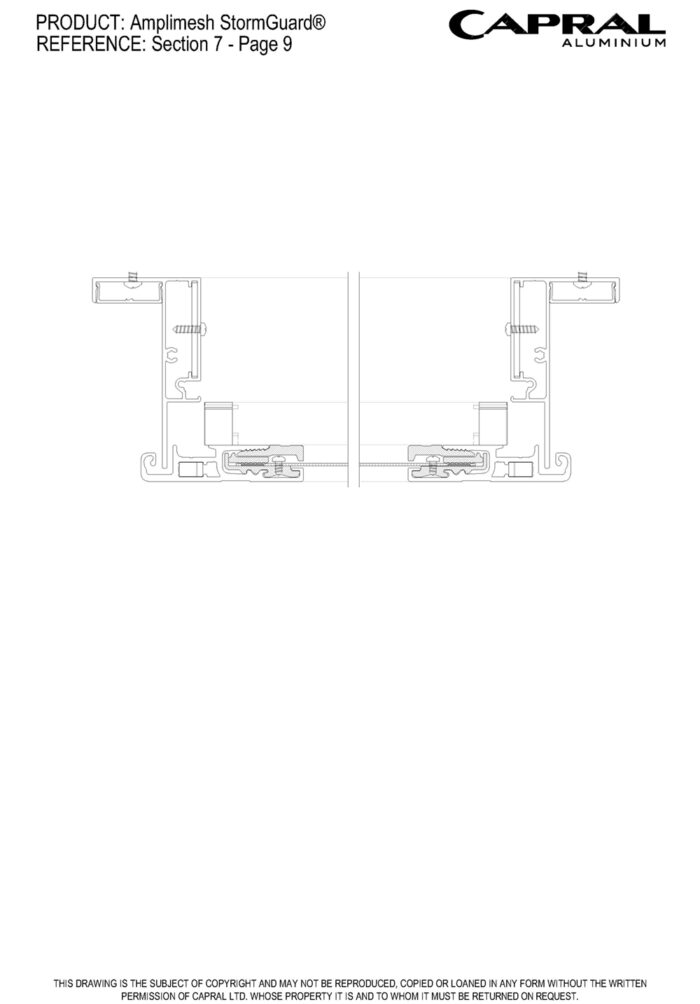

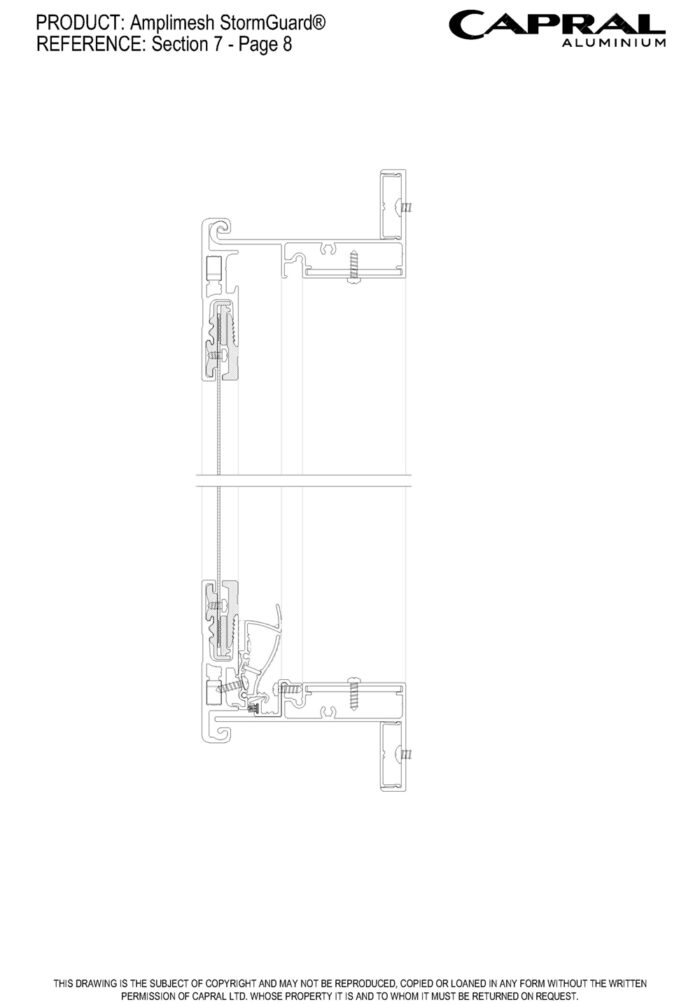

Escape Window Screen
87 x 10.5/19.5mm

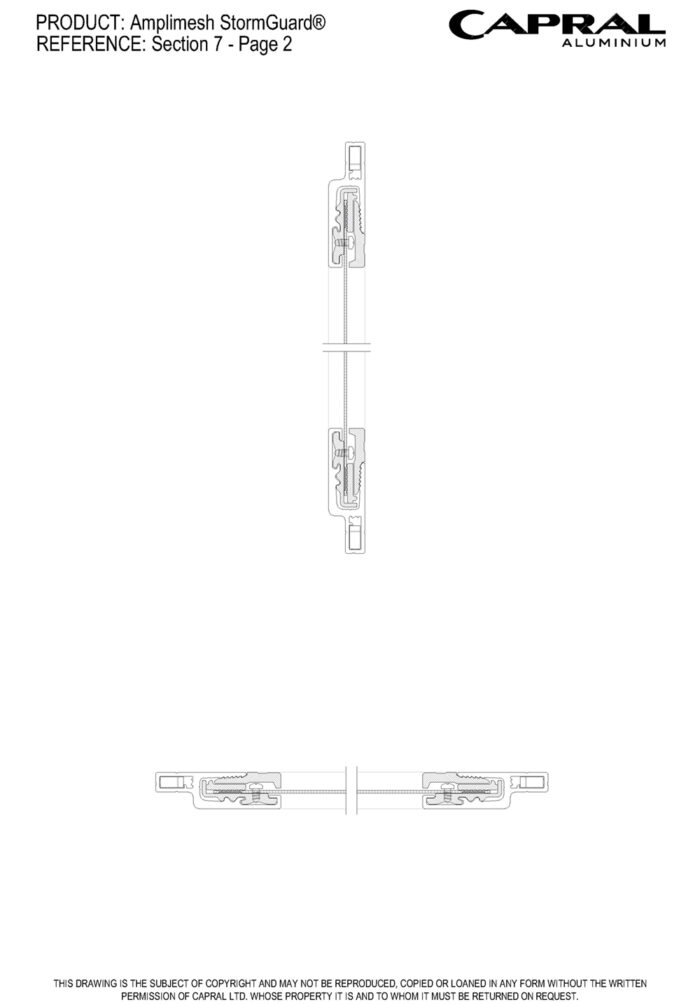

Fixed Window Screen
67 x 19.5mm
Glazing Details
0.8mm & 1.2mm Stainless Steel Mesh
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Amplimesh StormGuard
Wall Charts
Extrusion Wall Chart Amplimesh Security Screening
Extrusion Wall Chart Capral Screening
CAD Files
CAD Files Amplimesh StormGuard
CAD Files Capral Screening
CAD Files Capral Screening
CAD Wall Chart Amplimesh Security Screening
Bulletins
PB479 - Stormguard Mullion
PB409 - StormGuard Cyclonic Security System Release
Other
