Amplimesh® SupaGuard
SupaGuard® screens combine ultra-high tensile stainless steel mesh with a patented screw clamp retention system, ensuring unparalleled strength and security while maintaining natural light and ventilation.
Key features
- Available with 316 Marine Grade Stainless Steel mesh (0.8mm)
- 156 degree viewing angle.
- Integrated multi-point locking system,
- Available in a comprehensive range of colours.
- Patented* isolated screw clamp mesh retention system combines extreme wedge pressure, high-friction materials, and custom engineered screw clamps to efficiently absorb and disperse impact energy equally along the frame.

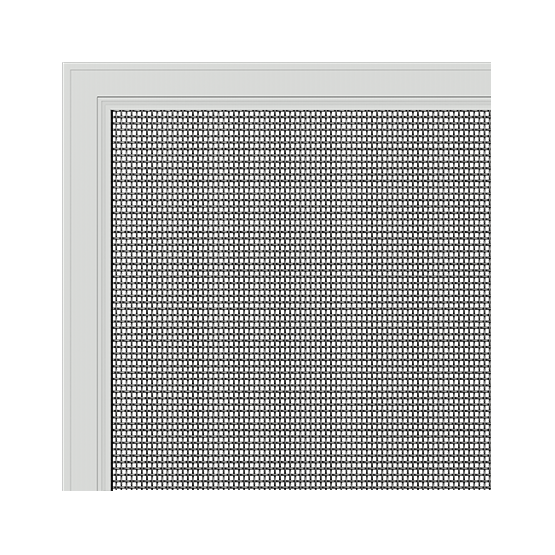

At the center of every SupaGuard® screen, is an ultra high tensile Stainless steel mesh which offers exceptional strength and corrosion resistance without compromising on natural light and ventilation.
The SupaGuard® Security Screen System features our patented isolated screw clamp mesh retention system for maximum strength, security and peace of mind like never before. With SupaGuard®, safeguard your home with confidence. Experience security redefined.
Download BrochureDetails
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
3000
Panel Width (mm)
1500
Frame Dimensions (mm)
Screen Door
80 x 19mm

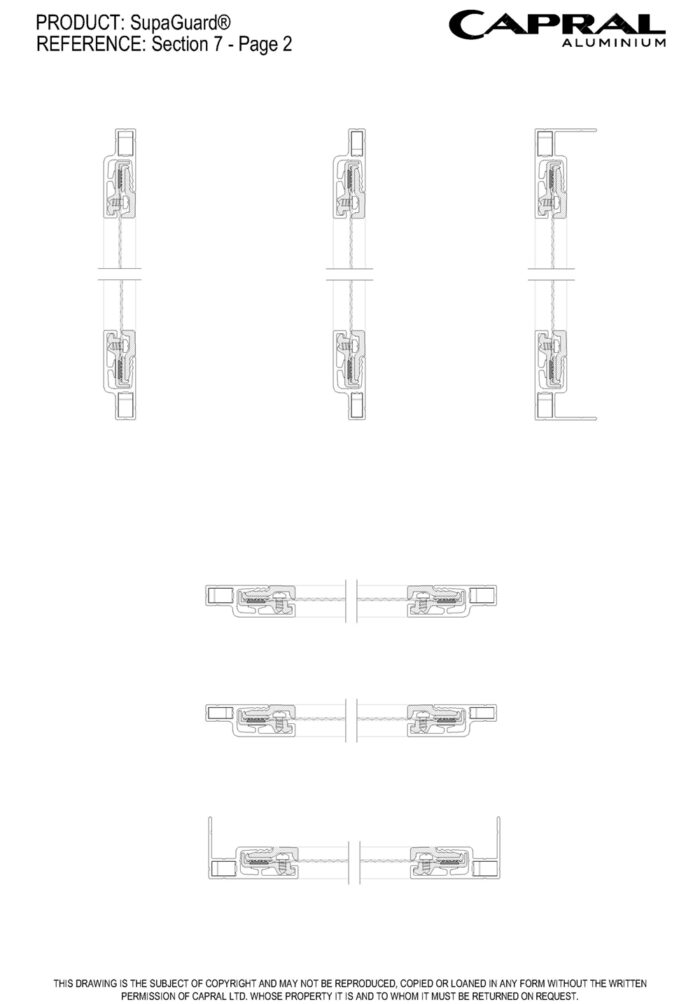

Fixed Window Screen
47.5 x 10.5/17mm
Fixed Window Screen
47.5 x 9/17mm
Glazing Details
0.8mm 316 Marine Grade Stainless Steel Mesh
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Amplimesh SupaGuard
Wall Charts
Extrusion Wall Chart Amplimesh Security Screening
Extrusion Wall Chart Amplimesh SupaGuard Security Screening
Extrusion Wall Chart Capral Screening
CAD Files
CAD Files Amplimesh SupaGuard
CAD Files Capral Screening
CAD Wall Chart Amplimesh Security Screening
Bulletins
PB461 - SupaGuard Escape Screen System
Other
Environmental Protection Declaration (EPDs)
More products from this range
Amplimesh® SupaScreenAmplimesh SupaScreen® security screen doors and windows screens are assembled using a patented “pressure fit” mesh retaining system, eliminating the need for screws, rivets, pins or snap-ins to retain the mesh panel.

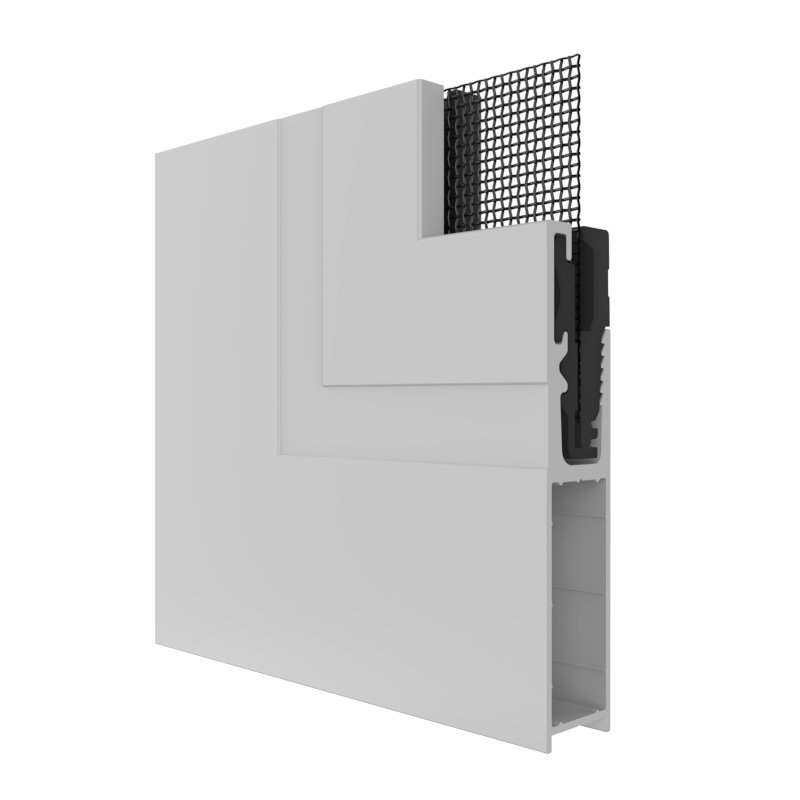

Amplimesh® StormGuardUsing high tensile marine grade Stainless Steel, woven into a fine mesh, Amplimesh® StormGuard® are extremely tough cyclone-tested security screens built for Australia's toughest environments..
