AquaGo Subsill Threshold Drain

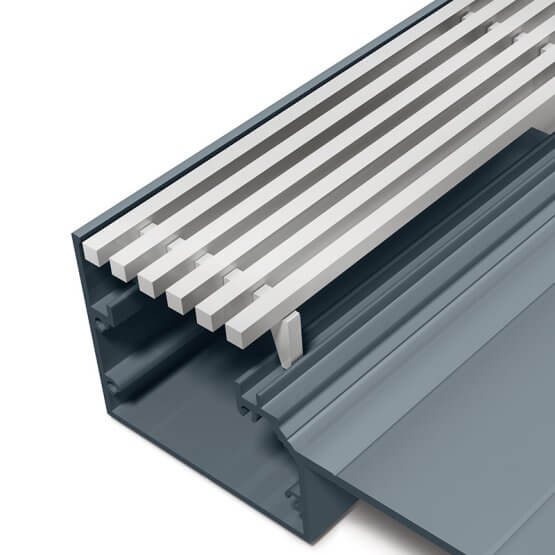

AquaGo is a flush-level sub-sill threshold drain with multiple grate options
Access
Steel
Key features
- Grate available in either stainless steel or anodised aluminium finish
- Slimline, practical design aimed at ease of maintenance
- Six-bar stainless steel or slotted aluminium look
- Rubber leg caps isolate contact between dissimilar metals, reducing the likelihood of a galvanic reaction
- 65mm wide design.
- Allows for standard plumbing fittings
- Available in various lengths
Stainless steel grate option:

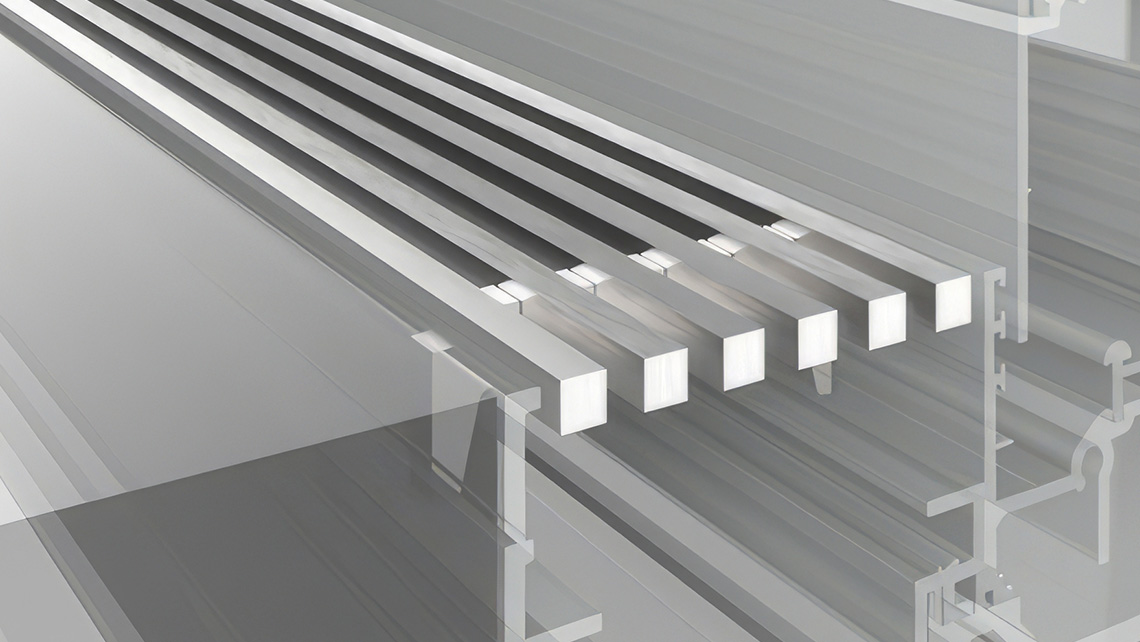

- Uniquely designed Six Bar grate 65mm
- Custom fabricated to complement the most challenging architectural expectations
- Electro-polished to enhance performance, avoid ugly tea staining and maintain an as-new shine
- Premium quality 316 marine grade stainless steel

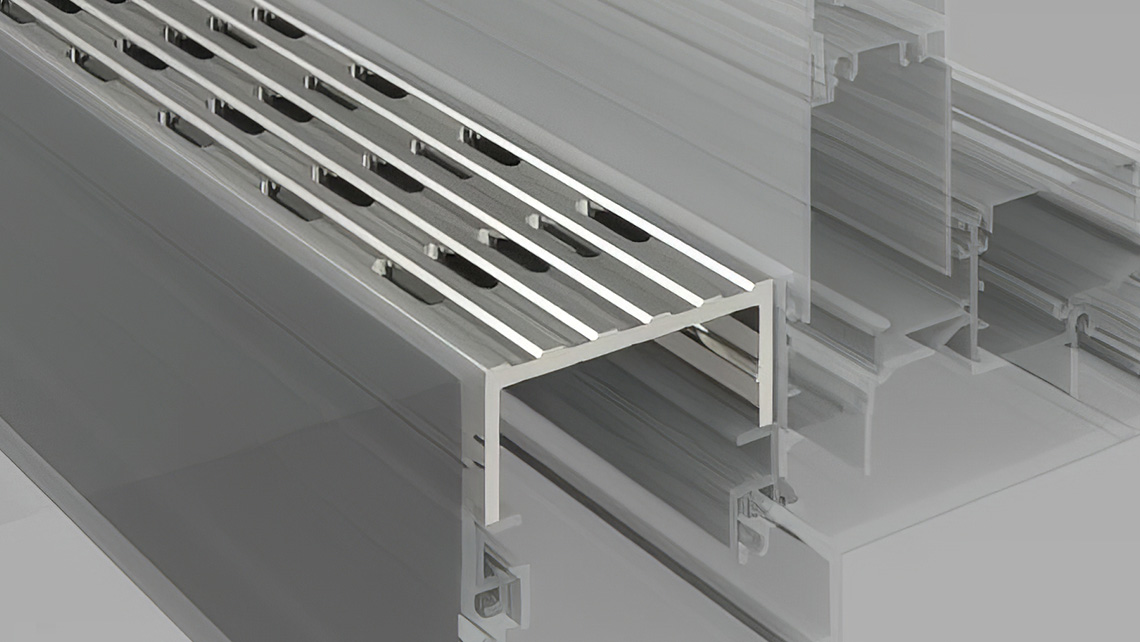

Aluminium grate options:
- Extruded in Australia using 6060 -T5 grade Aluminium
- 3m length reducing visible joins
- 20um clear anodised finish

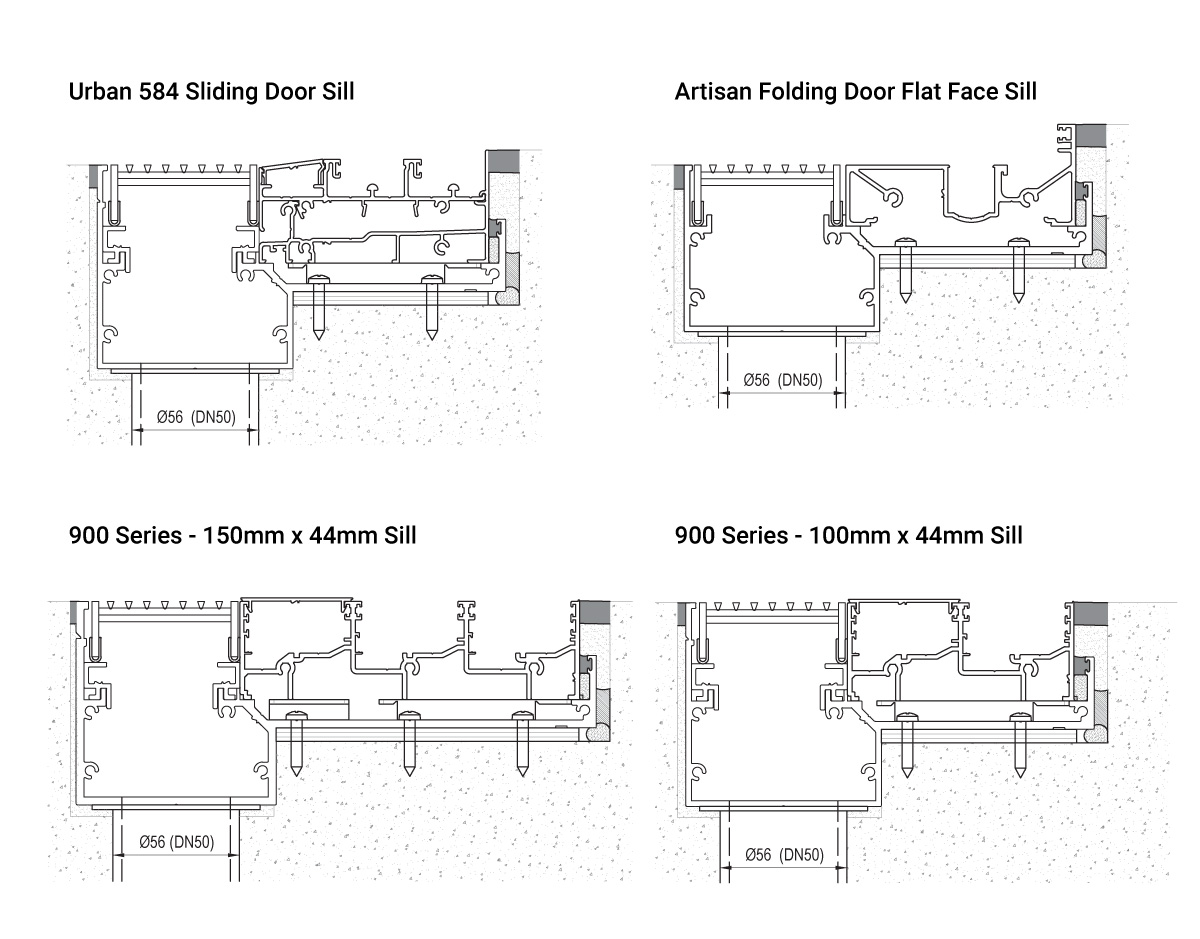

The new Flush Drain solution from Capral incorporates a stainless steel or aluminium grate manufactured exclusively for the AquaGo system and fitted to our custom-extruded aluminium sub-sill threshold drains. This system is designed specifically for the AGS 900 Sliding Door, the Artisan Architectural Folding Door and the Urban 394 Sliding Door.
