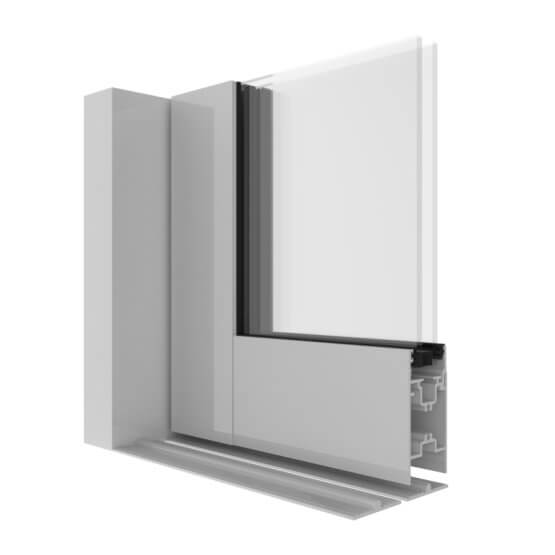

    AGS Commercial 225 Sliding Door Corner Image.
    Architectural

    AGS Commercial 225 Sliding Door

    The AGS 225 Sliding Door is a 46mm pocket glazed commercial door panel capable of delivering flexibility, performance and ease of assembly in mind.

    Download Brochure
    Declare Label
    Certified
    Disability
    Access
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select

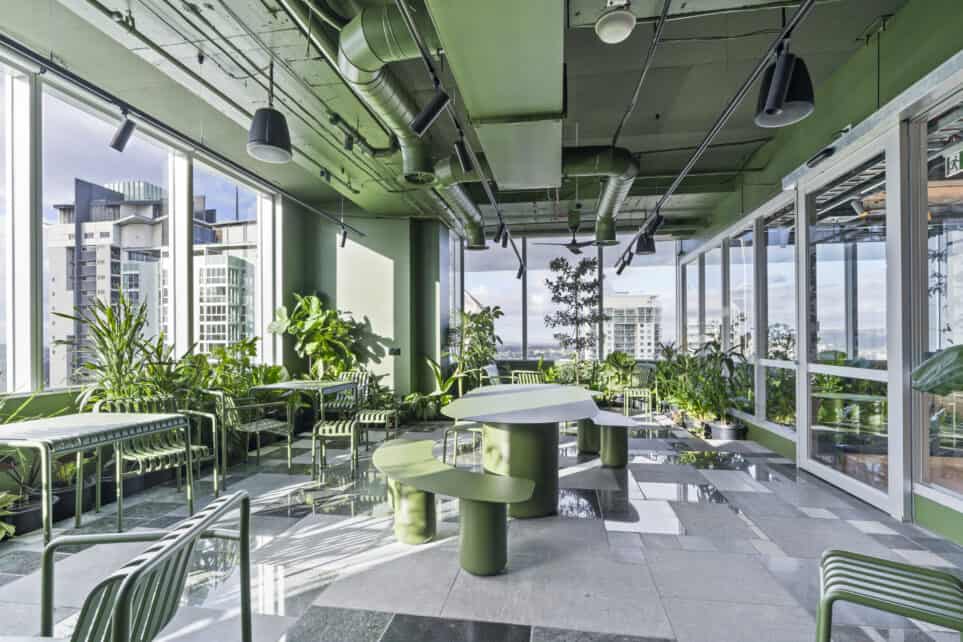

    ARUP Office - Kitchen/ eating area

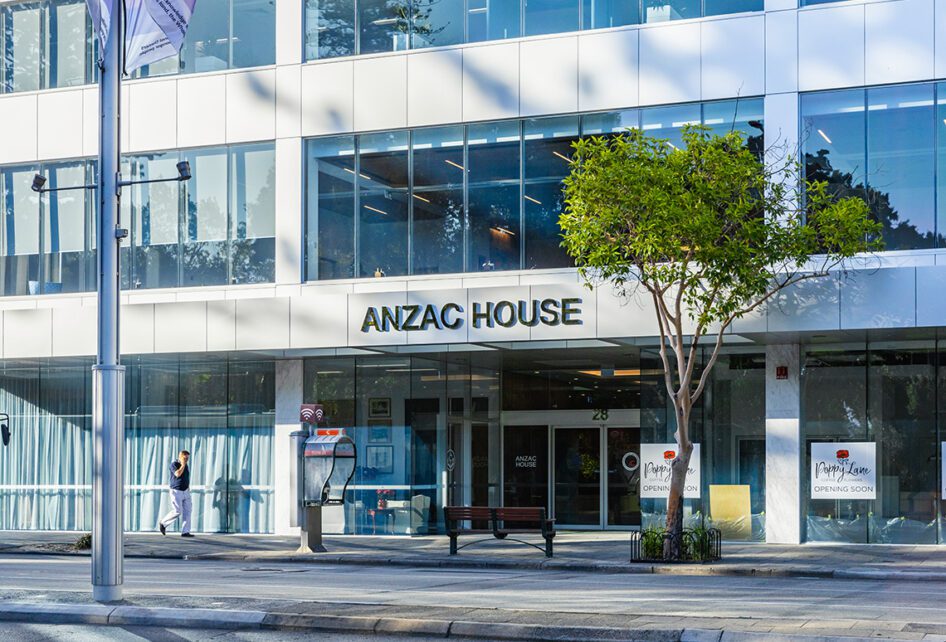

    Capral's Project Perth RSL Offices using Capral window and building systems.

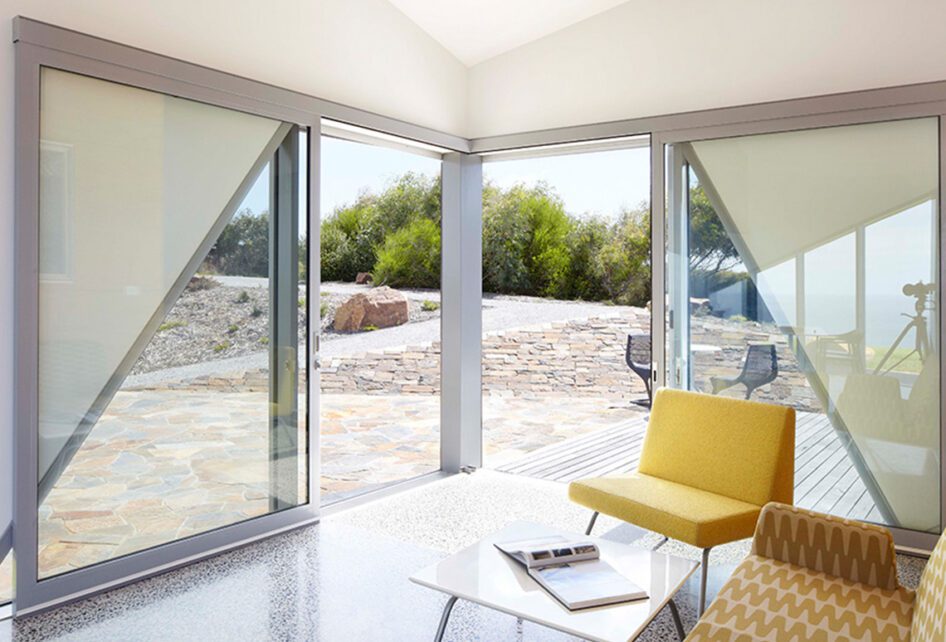

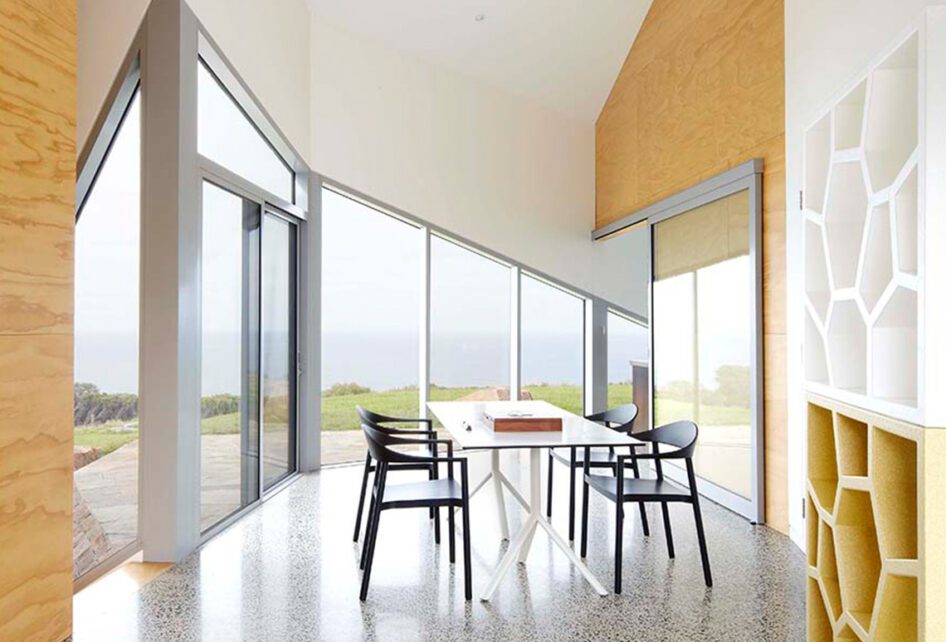

    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    ARUP Office - Kitchen/ eating area
    Capral's Project Perth RSL Offices using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Capral's Project Scape House using Capral window and building systems.
    Key features
    • 46mm Door Panel
    • Narrow and Wide Stile options accommodate a wide range of hardware
    • Shallow rail option
    • Suits both single and double glazing
    • Hinged and pivot door panel configurations also available
    • Suits commercial or architectural applications
    • Compatible with a wide range of framing suites

    The AGS 225 Door has been designed with flexibility, performance and ease of assembly in mind. The AGS 225 Door suits a wide range of applications from architectural entry doors through to commercial shopfronts.
    This door can be fitted with either single or double-glazed units and has the option of standard and wide stiles. It is also compatible with a vast range of commercial and architectural locks and furniture and the full range of Capral framing systems.

    Download Brochure

    Details

    Product Specs
    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 2700
    Panel Width (mm) 1800
    Panel Weight (kg) 300

    Frame Dimensions (mm)

    Door Panel 46mm Depth

    Glazing Details

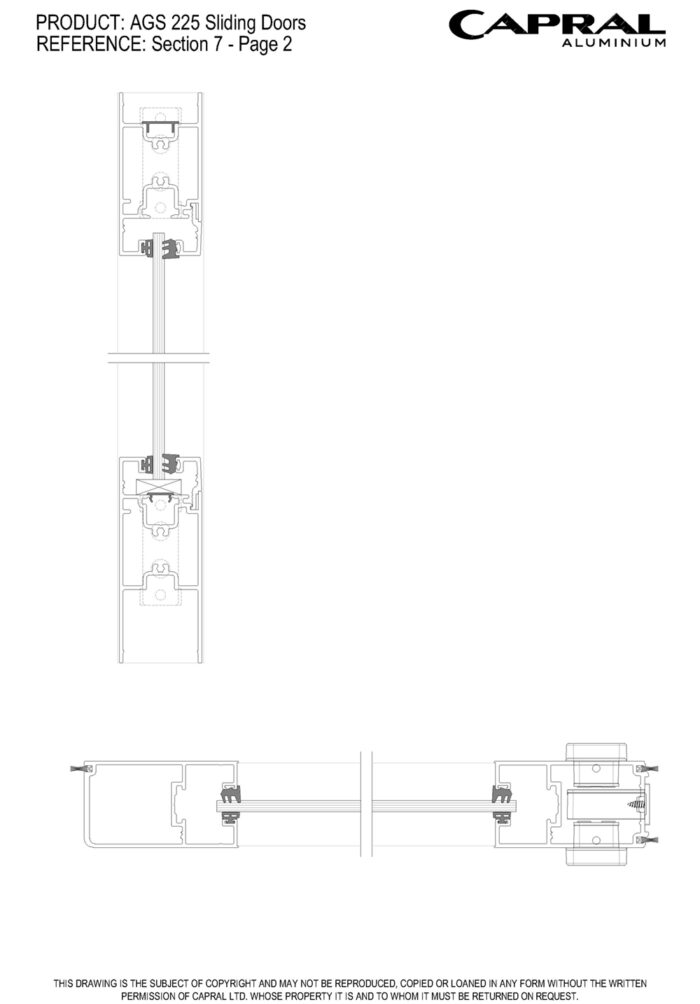

    Single Glazed 4 - 12

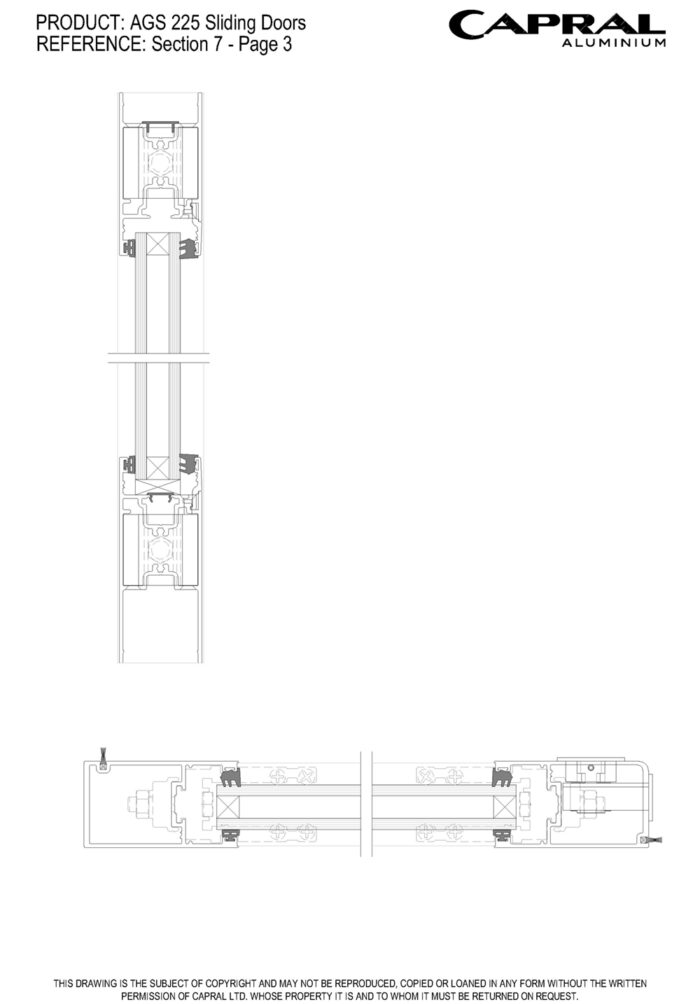

    Double Glazed 19 - 31
    Thick Glazed 14 - 18

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual AGS 225 Sliding Doors
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS 215 & 225 Door Systems
    Extrusion Wall Chart AGS Speciality Sub Frames
    Extrusion Wall Chart AGS Sub Framing
    Extrusion Wall Chart Capral Screening
    BIM Files
    Revit AGS Commercial 225 Sliding Door
    Revit Capral Subframes
    CAD Files
    CAD Files AGS 225 Sliding Doors
    CAD Wall Chart AGS 215 and 225 Doors
    CAD Files AGS Sub Frames
    CAD Files Capral Screening
    CAD Wall Chart AGS Sub Framing
    Bulletins
    PB445 - 300677 1030 Slider Cushion Stop Package
    PB451 - AGS 225 Series – Low Profile, Two-Piece Bottom Roller Door Track
    PB445 - 300677 1030 Slider Cushion Stop Package
    PB318 - AGS 225 Sliding Door Track Additions
    PB299 - AGS Hinged Door Threshold Additions
    PB300 - AGS Hollow Sub Heads
    Other
    Capral AGS 225 Commercial Sliding Door Brochure Architectural Series White paper Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
