Artisan 991 Double Hung Window

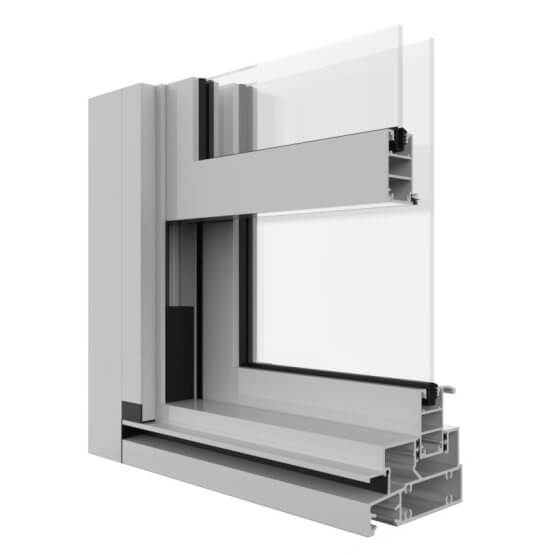

The Artisan Architectural 991 is a premium double hung window combining ease of use, high performance and a classic style into a bold 100mm frame.
Certified
Key features
- Premium quality 100mm single and double glazed architectural framing systems
- Large capacity single and double glazing options

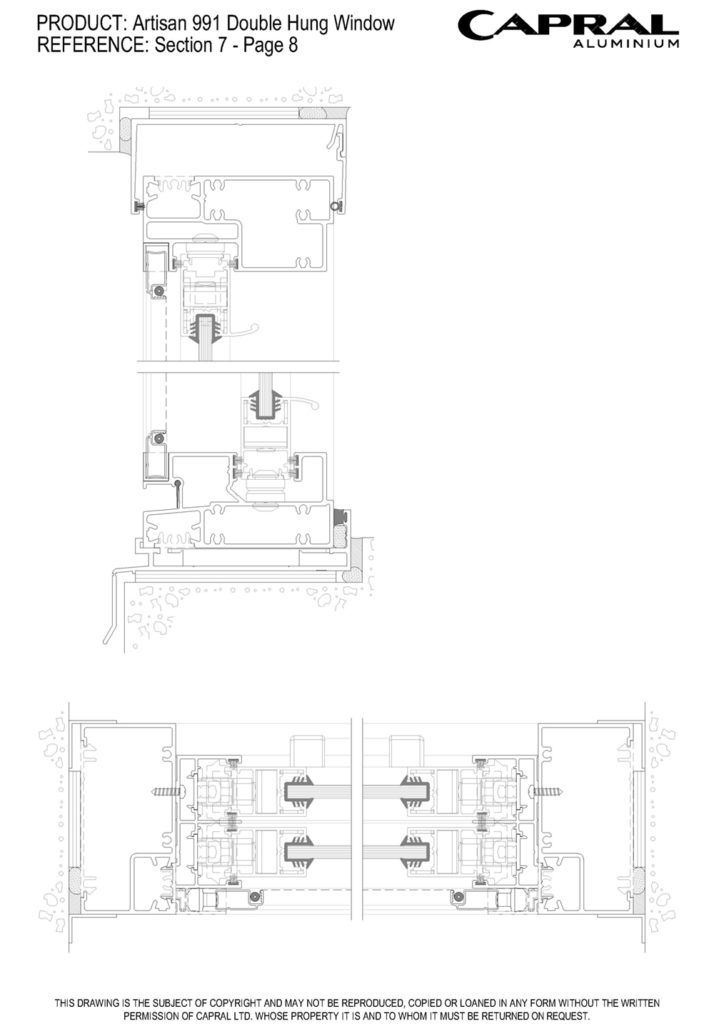

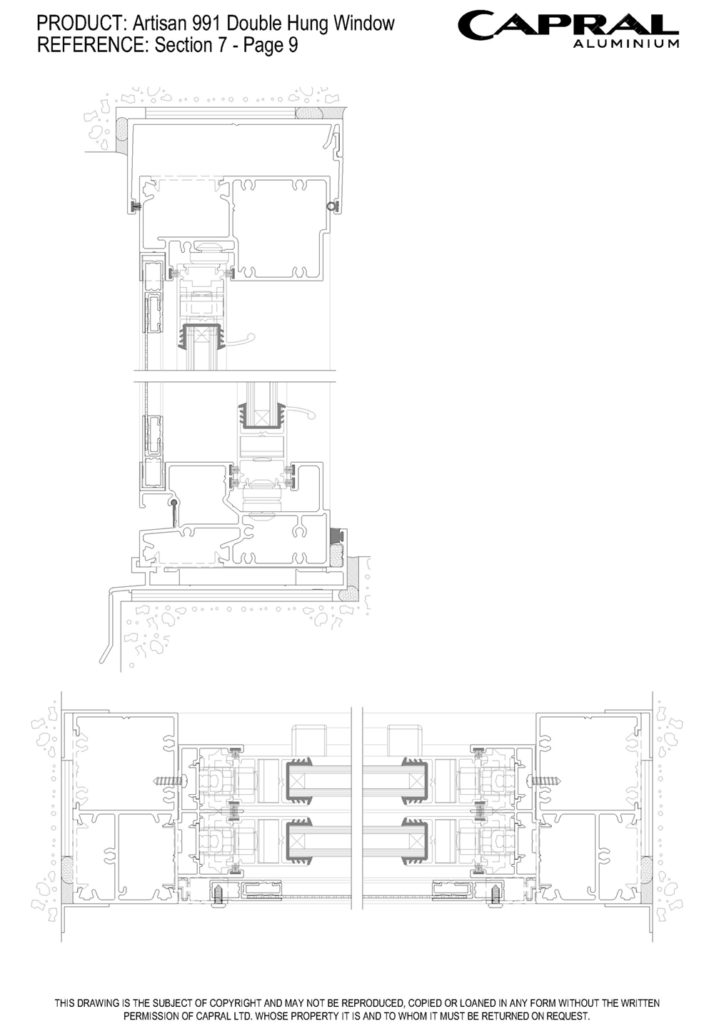

- Integrated insect and security screening options
- Exclusively designed components to improve the system’s performance and function

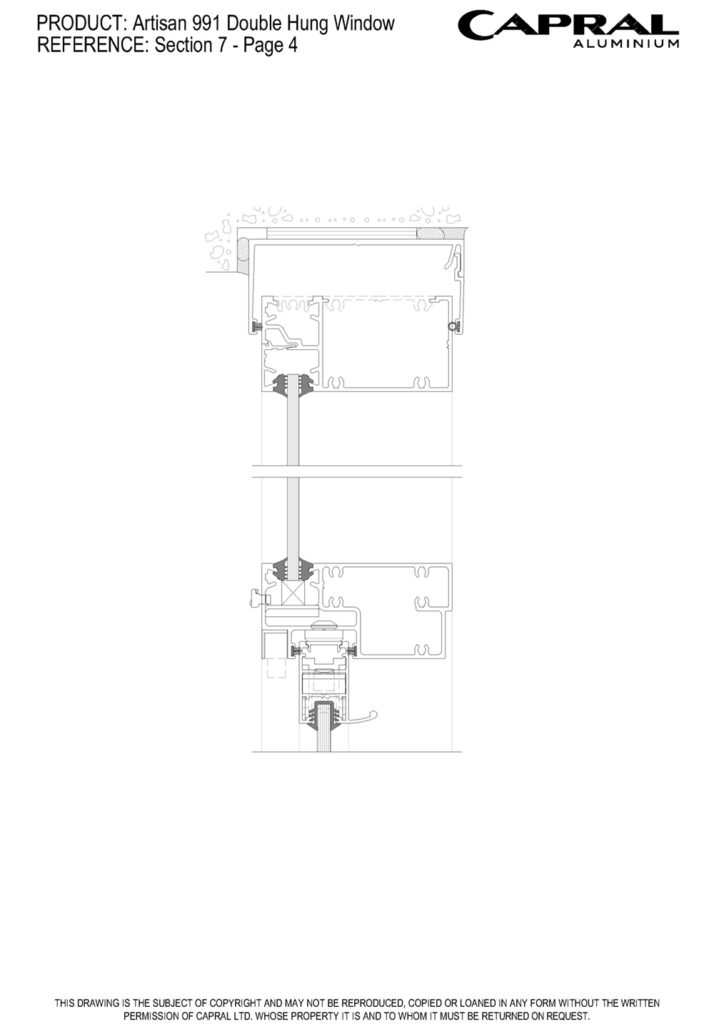

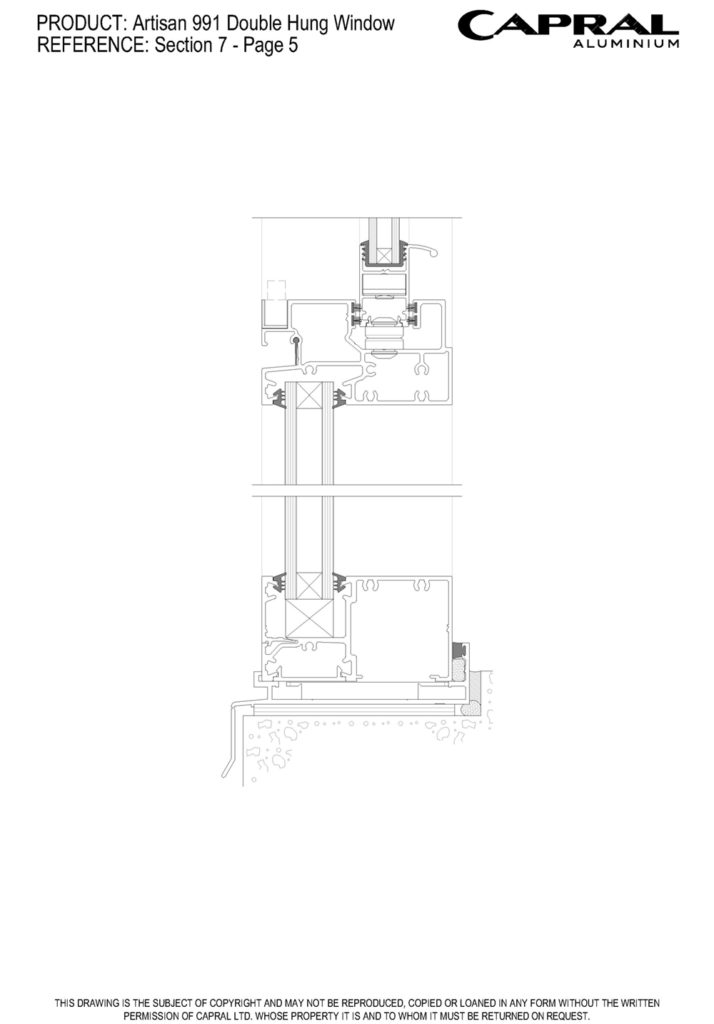

- Provision for High, Low and Side Lights
- AGS 419/429 Flushline compatible for seamless integration
- Compatible with the full range of Artisan Architectural window suites
The Artisan Architectural 991 is a premium double hung window combining ease of use, high performance and a classic style into a bold 100mm frame. It incorporates a sash release system allowing easy cleaning from the inside – making it perfect for elevated applications.
Quality hardware and a sleek square cut frame make this the perfect choice, both now and for years to come. It is fully compatible and cohesive with our range of Artisan Architectural windows for a consistent architectural aesthetic.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1200
Panel Width (mm)
1500
Panel Weight (kg)
20.4
Frame Dimensions (mm)
Frame depth (mm)
100
Maximum Product Performance
SLS (Pa)
2200
ULS (Pa)
6000
WATER (Pa)
300
Glazing Details

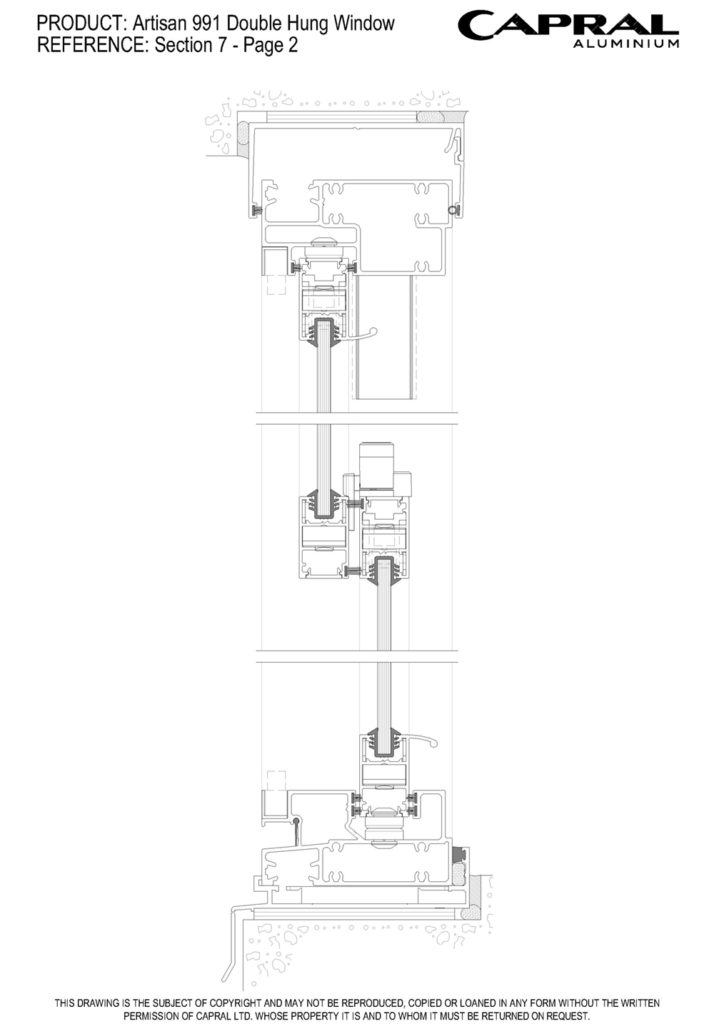

Single Glazed
4 - 10

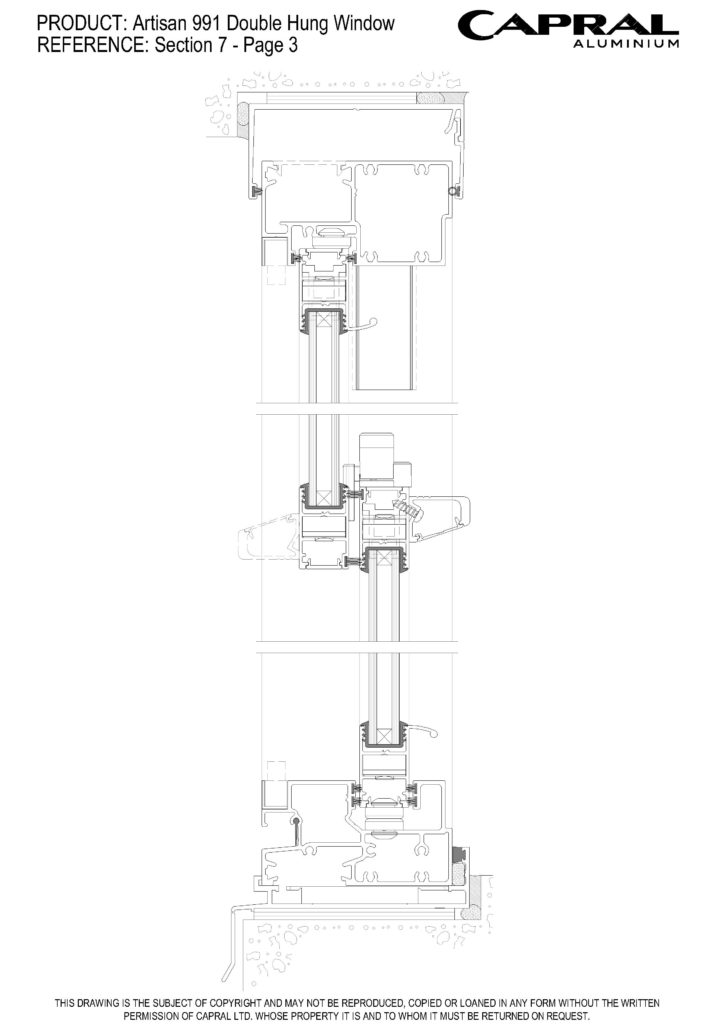

Double Glazed
10, 16 - 18
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Artisan 991 Double Hung Window
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart Artisan Windows
Extrusion Wall Chart Capral Screening
BIM Files
Capral Futureline 991TB
CAD Files
CAD Files Artisan 991 Double Hung Window
CAD Files AGS Sub Frames
CAD Files Capral Screening
CAD Wall Chart AGS Sub Framing
CAD Wall Chart Artisan Windows & Doors
Bulletins
PBJ1096 - Artisan 991 Double Hung Window – DG Adaptor Die Modification
PB429 - 391 & 991 Double Hung Components Update
PB353 - 991 Double Hung Window Release
