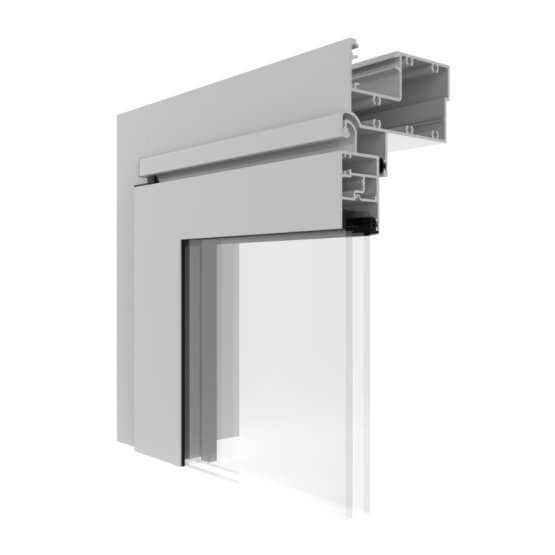

    Capral's Artisan 992 Awning and Casement Window Corner Image.
    Architectural

    Artisan 992 Awning Window

    The smooth-opening Artisan Architectural 992 Awning Window is configurable to meet your needs.

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select

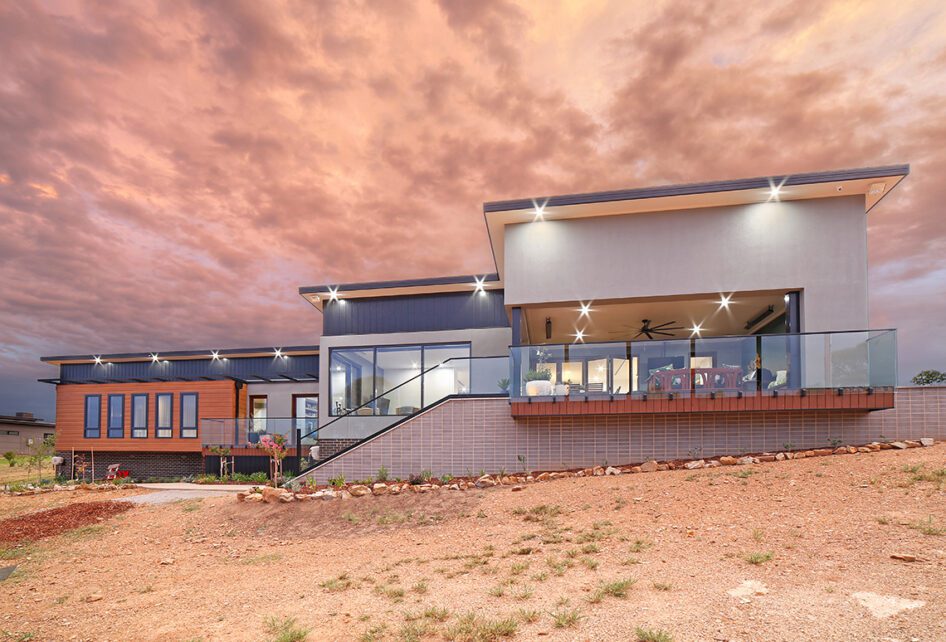

    Capral's Project Kunzea Estate using Capral window and building systems.
    Capral's Project Kunzea Estate using Capral window and building systems.
    Key features
    • Accepts double glazing up to 26mm alongside standard single glazing options
    • Custom designed hardware options

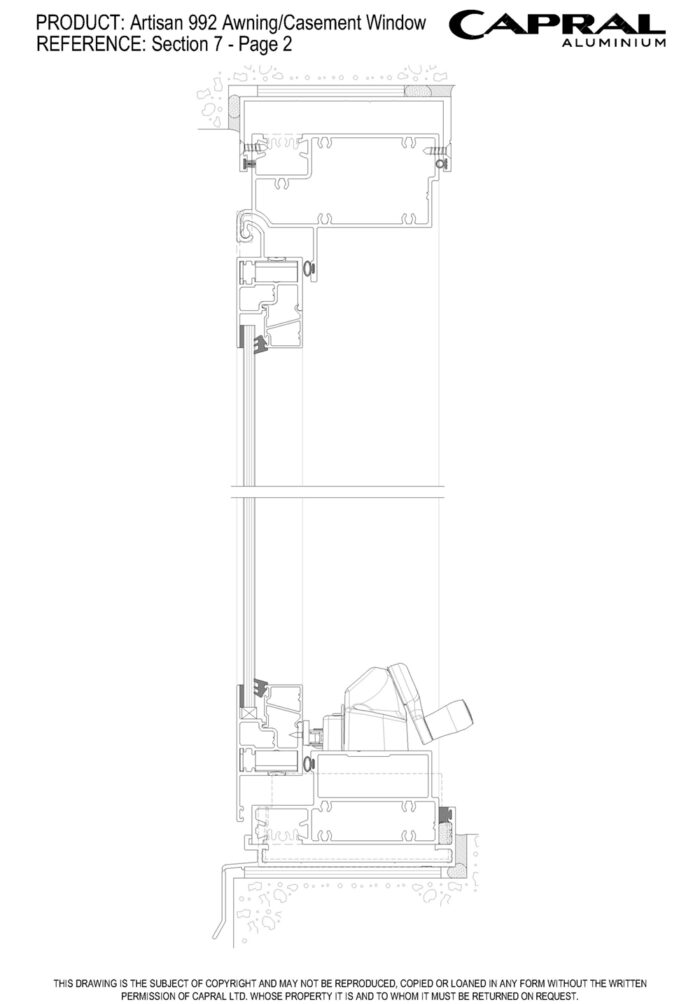

    • Awning configurations incorporate an integrated hook hinge at the head for strength
    • Casement configurations also available
    • Optional Caprice side latches to ensure security and performance on large sashes
    • Integrated insect and security screening options for a modern, tidy aesthetic
    • AGS 419, 429 & 629 Flushline compatible for seamless integration
    • Compatible with the full range of Artisan Architectural window suites

    The Artisan Architectural 992 Awning Window can be personalized to suit your requirements. Its effortless functionality, sleek 100mm or 150mm outer frame, and the availability of bespoke hardware choices combine to create an exceptional, high-end offering.

    This modern window is fully compatible and visually cohesive with the other windows in our Artisan Architectural range, ensuring a clean look and a premium feel.

    Download Brochure

    Details

    Product Specs
    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 2600
    Panel Width (mm) 2600
    Panel Weight (kg) 106
    Panel Area (m2) 3.24

    Shown dimension apply to Hinge Awning with Twin Chain Winders.

    Frame Dimensions (mm)

    Frame depth (mm) 100 & 150

    Maximum Product Performance

    SLS (Pa) 3000
    ULS (Pa) 4500
    WATER (Pa) 900

    Glazing Details

    Single Glazed 4 - 8
    Double Glazed 12 - 26
    Thick Glazed 8 - 14

    Energy Performance

    Uw Range 4.54 - 6.93
    SHGC Range 0.33 - 0.51
    Tvw Range 0.21 - 0.49
    Air infiltration 0.97 - 0.97
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual Artisan 992 Awning & Casement Window
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS Speciality Sub Frames
    Extrusion Wall Chart Artisan Windows
    Extrusion Wall Chart Capral Screening
    BIM Files
    Revit Artisan 992 Awning Window
    Revit Capral Subframes
    CAD Files
    CAD Files Artisan 992 Awning & Casement
    CAD Files AGS Sub Frames
    CAD Files Capral Screening
    CAD Wall Chart AGS Sub Framing
    CAD Wall Chart Artisan Windows & Doors
    Bulletins
    PB426 - Artisan 992 Awning 150mm Hook Hinge Head and Sill
    PB354 - 992 Awning & Casement Window Release
    Other
    Capral Artisan Brochure Capral Artisan 992 Awning Casement Brochure Specification Artisan 992 Awning Casement Window Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
