Artisan 992 Casement Window
The Artisan Architectural 992 Casement Window swings outward with effortless ease and can be tailored to meet your needs.
Certified
Key features
- Accepts double glazing up to 26mm alongside standard single glazing options
- Custom designed hardware options
- Awning configurations also available
- Optional Caprice side latches to ensure security and performance on large sashes
- Integrated insect and security screening options for a modern, tidy aesthetic
- AGS 419/429 Flushline compatible for seamless integration
- Compatible with the full range of Artisan Architectural window suites

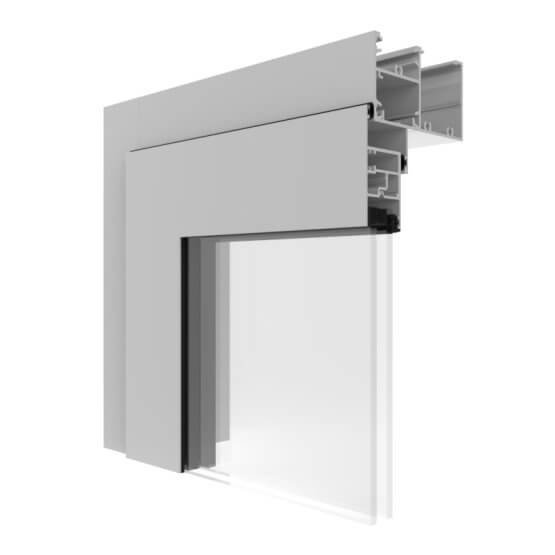

The Artisan Architectural 992 Casement Window opens smoothly from its clean 100mm outer frame, and offers custom hardware options that combine to make this a premium package.
This modern window is fully compatible and visually cohesive with the other windows in our Artisan Architectural range, ensuring a clean look and a premium feel.
Download BrochureDetails
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
2100
Panel Width (mm)
900
Panel Weight (kg)
54.4
Panel Area (m2)
1.9
Frame Dimensions (mm)
Frame depth (mm)
100
Maximum Product Performance
SLS (Pa)
3000
ULS (Pa)
4500
WATER (Pa)
900
Results taken from Awning configurations
Glazing Details
Single Glazed
4 - 8
Double Glazed
12 - 26
Thick Glazed
8 - 14
Energy Performance
Uw Range
4.54 - 6.93
SHGC Range
0.33 - 0.51
Tvw Range
0.21 - 0.49
Air infiltration
0.97 - 0.97
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Artisan 992 Awning & Casement Window
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart Artisan Windows
Revit Artisan 992 Casement Window
CAD Files
CAD Files Artisan 992 Awning & Casement
CAD Files AGS Sub Frames
CAD Wall Chart AGS Sub Framing
CAD Wall Chart Artisan Windows & Doors
Bulletins
PB354 - 992 Awning & Casement Window Release
Other
Capral Artisan Brochure
Capral Artisan 992 Awning Casement Brochure
Specification Artisan 992 Awning Casement Window
Capral Installation Details
Environmental Protection Declaration (EPDs)
