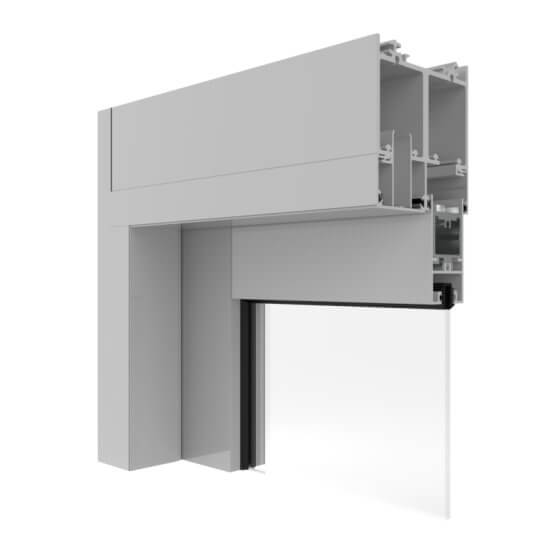

Artisan 994-TH Sliding Door Top Hung
The Artisan Architectural 994 Top Hung Sliding Door is a stunning inclusion for residential and commercial development projects.
Certified
Access
Key features
- Suited to almost any commercial or architectural application
- Top rolling capability reduces the operating force required to move the door

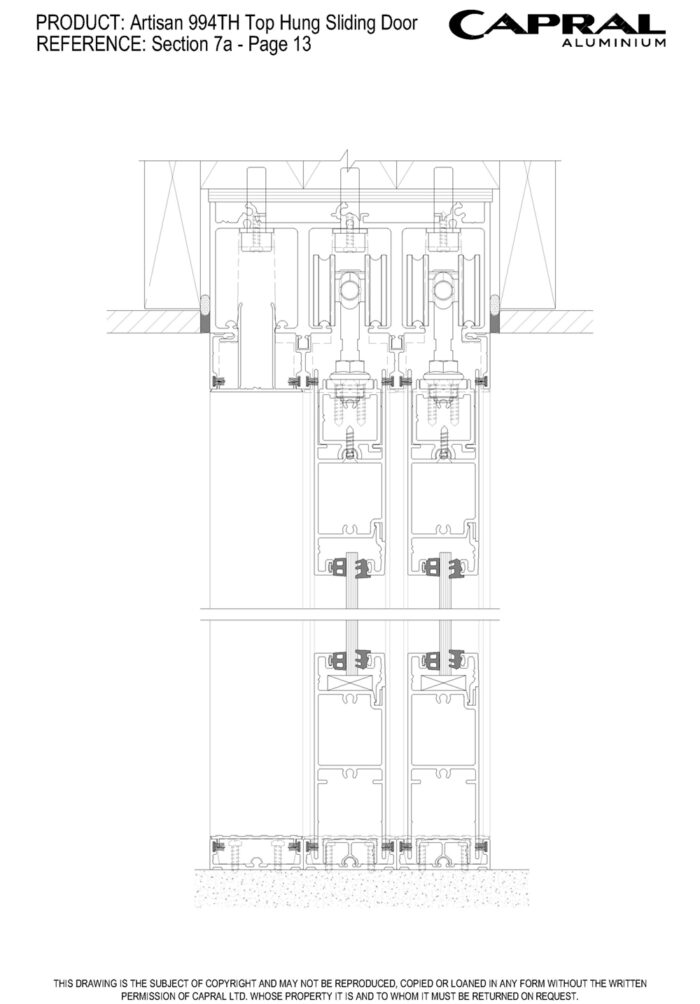

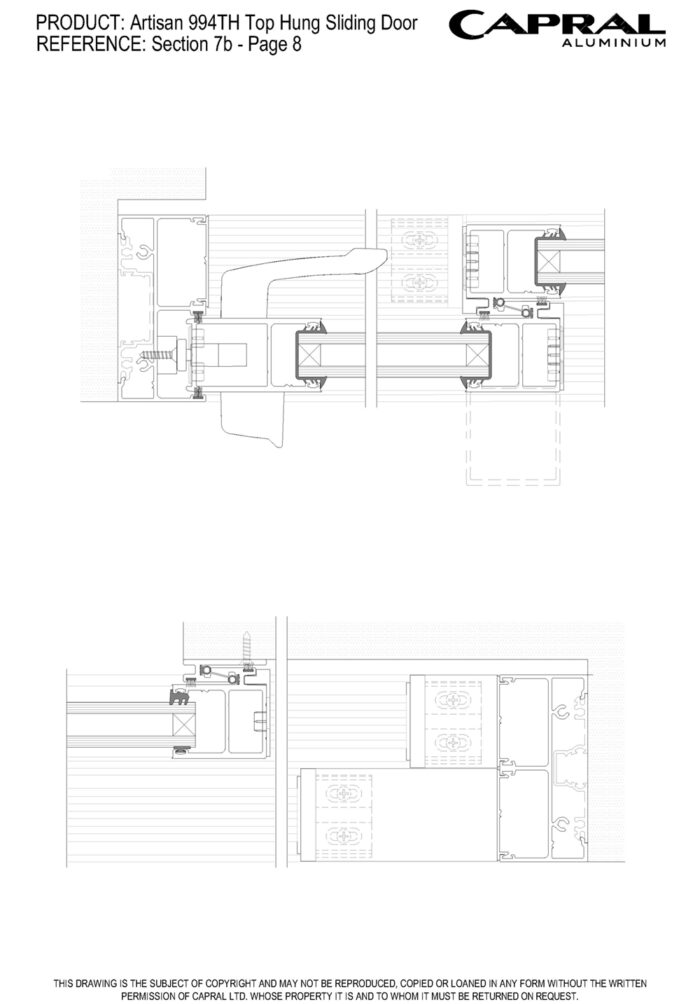

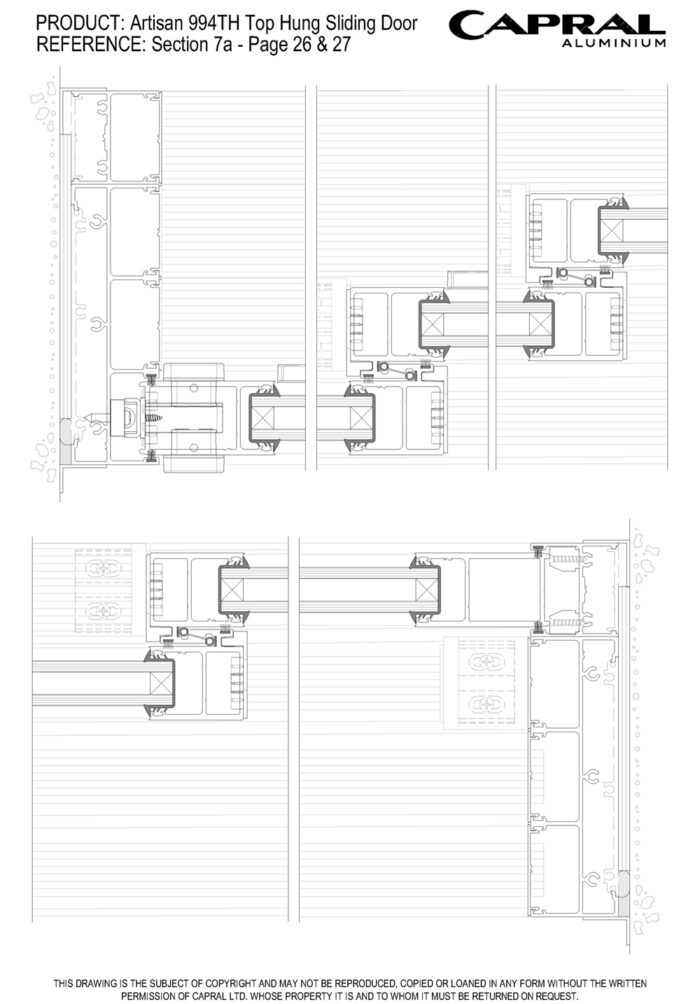

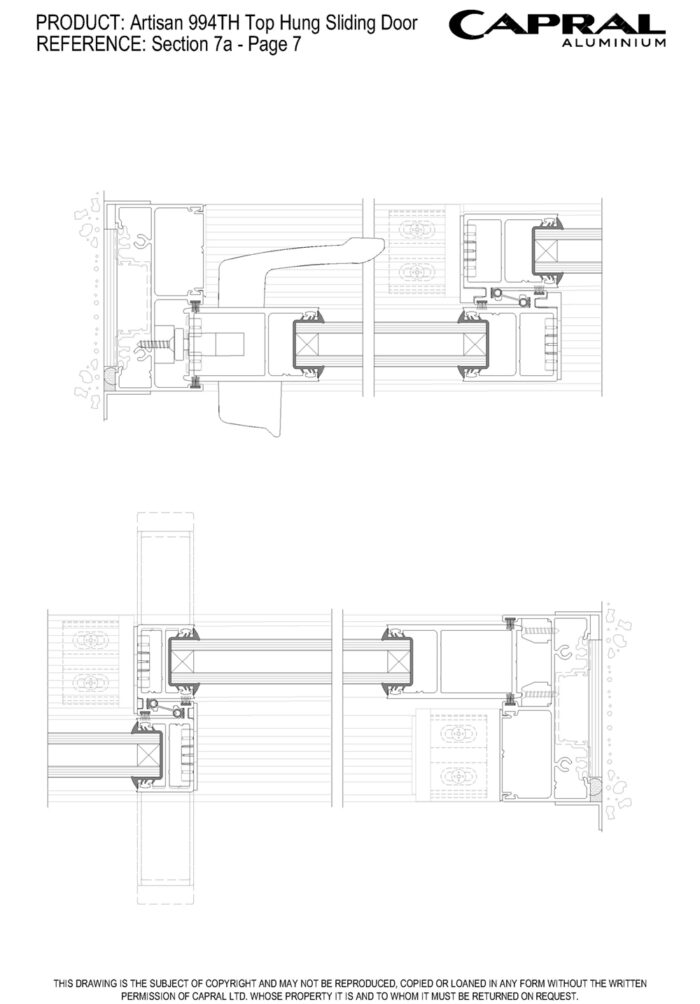

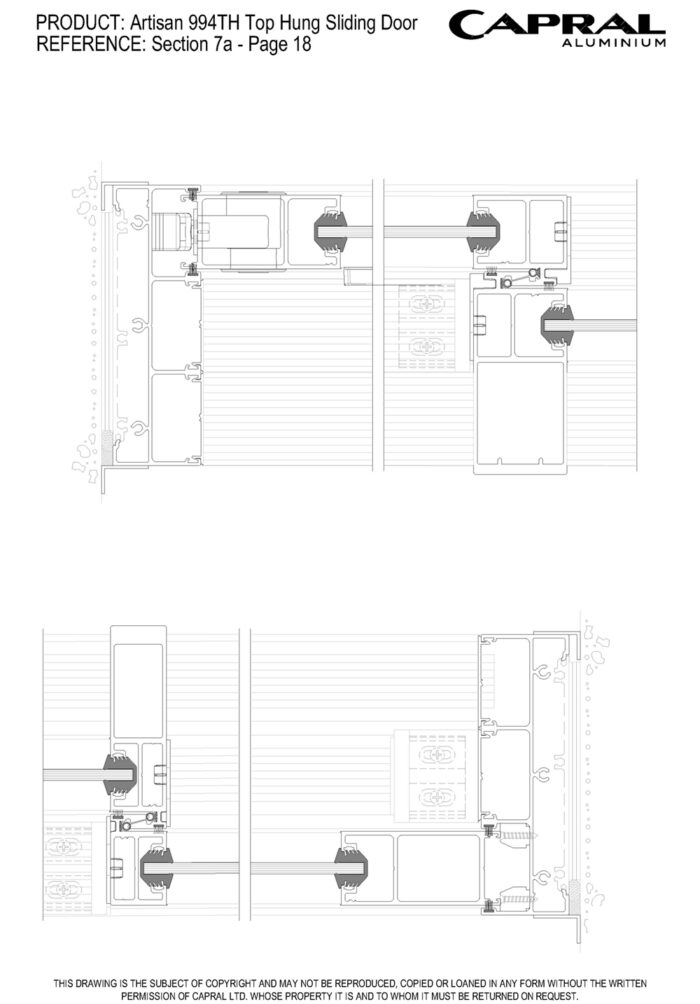

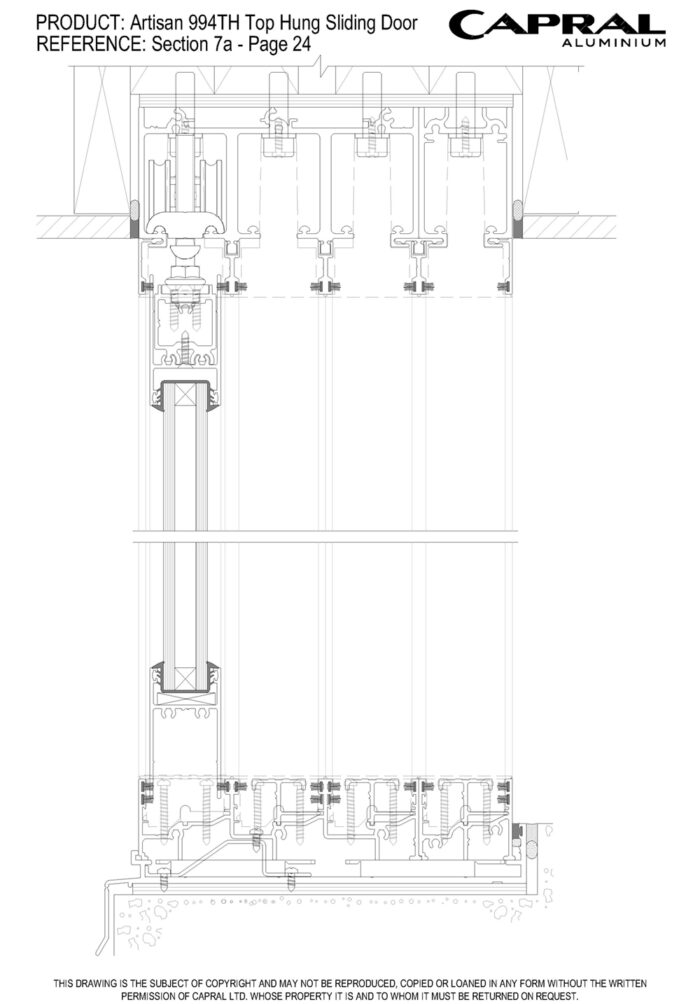

- Single, double, triple and quad-track configurations available

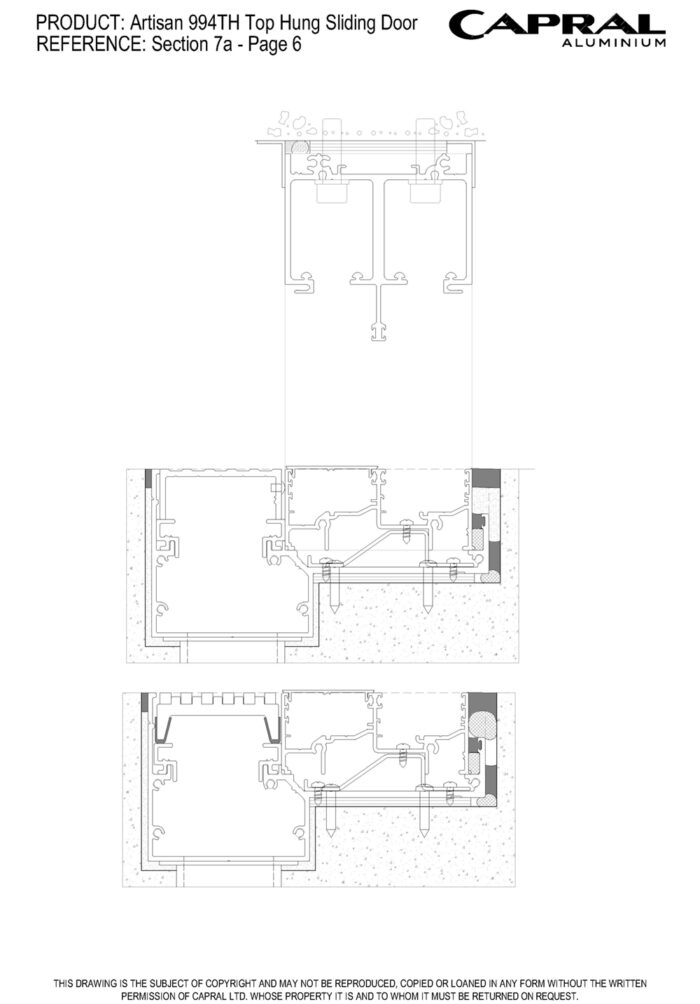

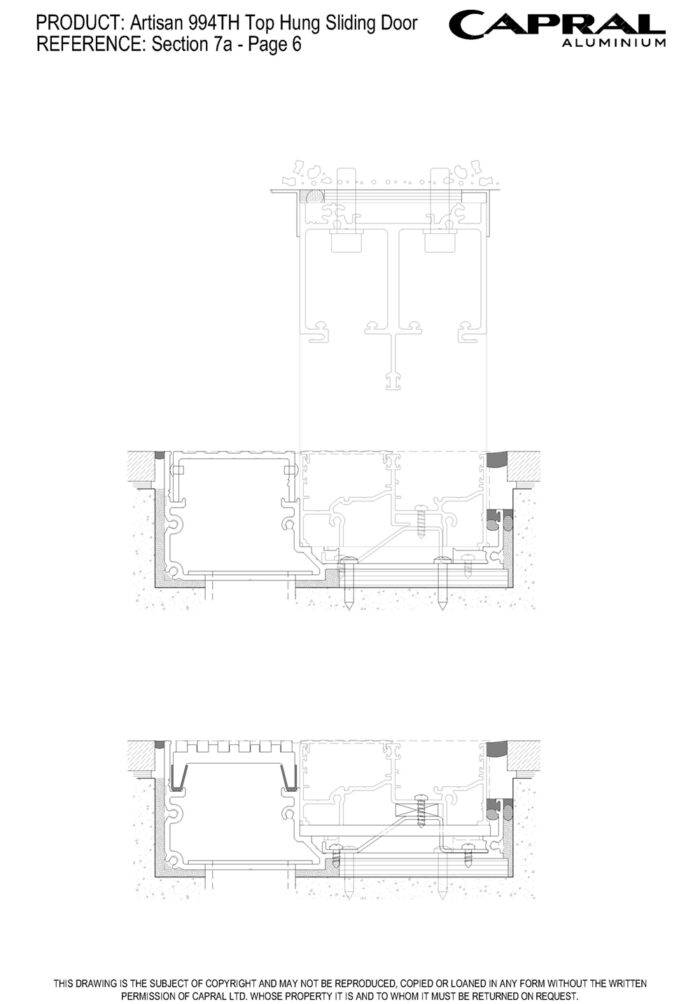

- Fully compatible with Aquago linear grate solution
- Flat thresholds and track infills provide a flat sill option
- Infill thresholds and linear grate covers which allow timber or tile inserts
- Low profile non-water-rated sill can be used for internal applications

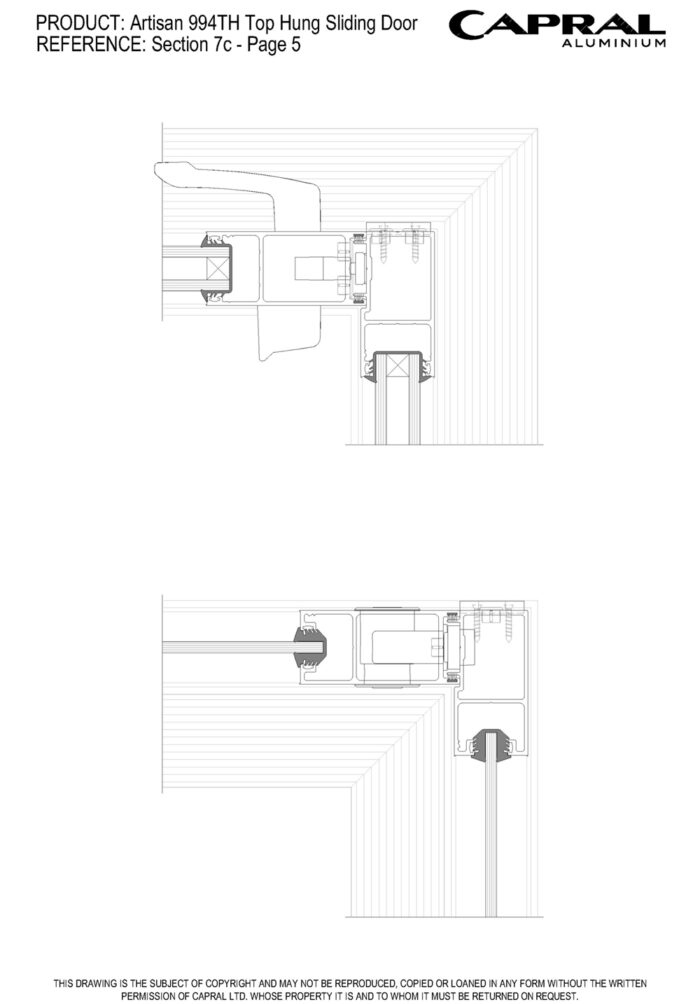

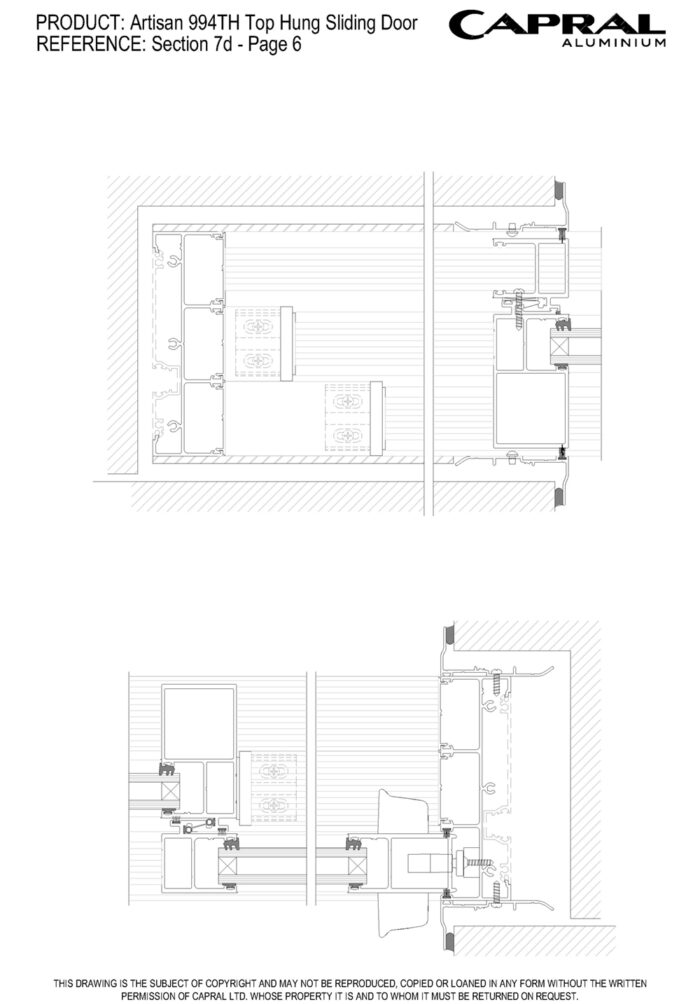

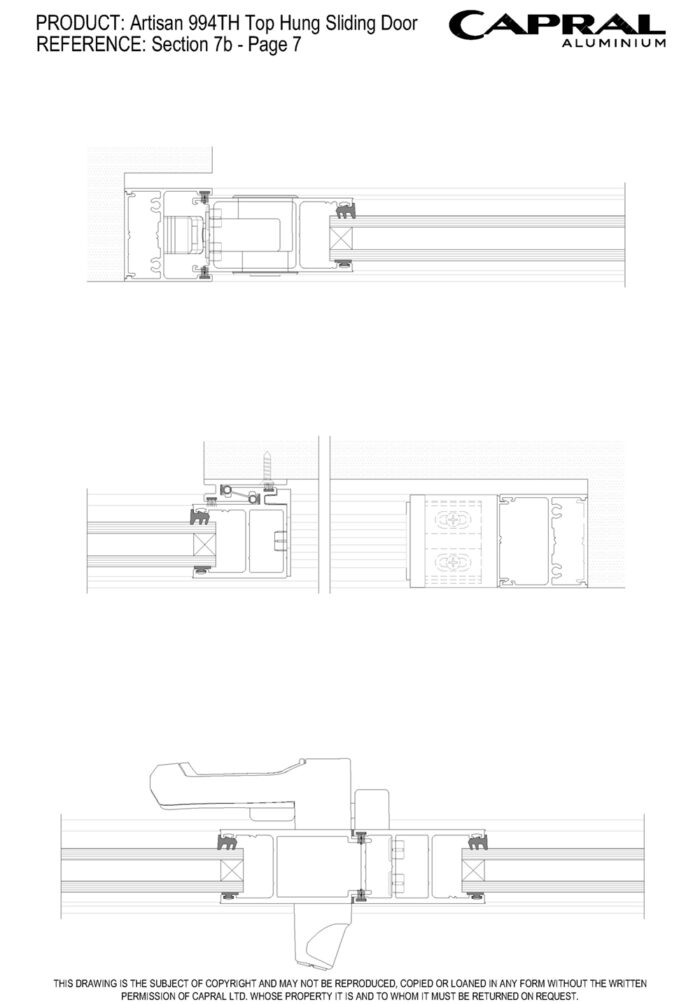

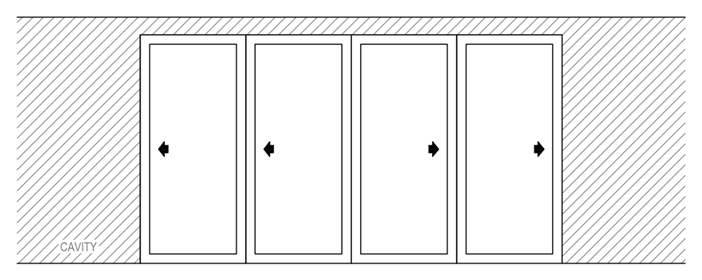

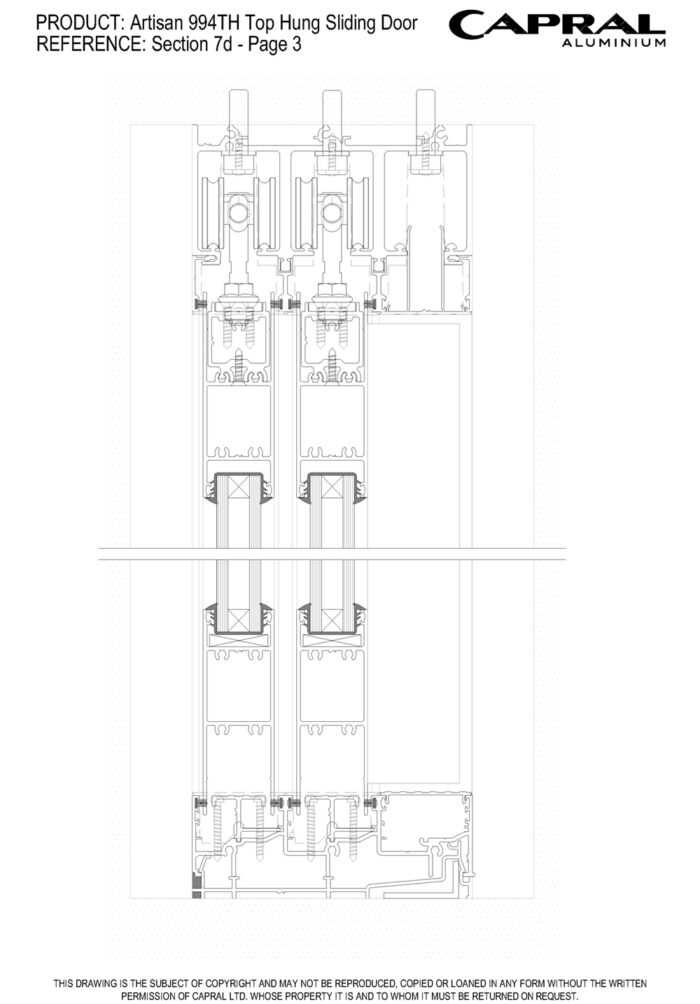

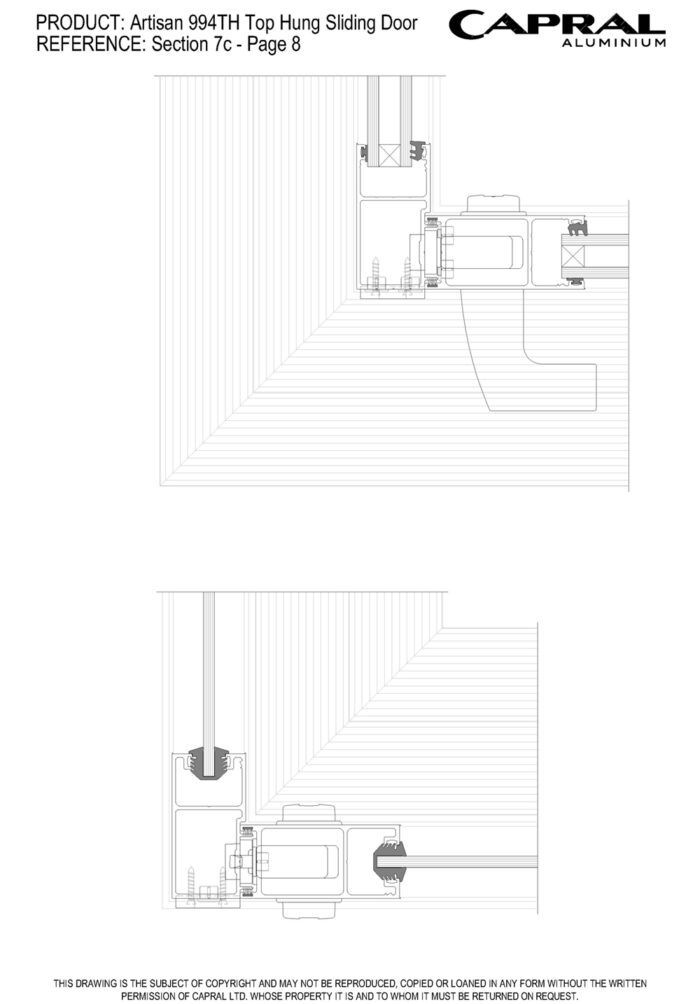

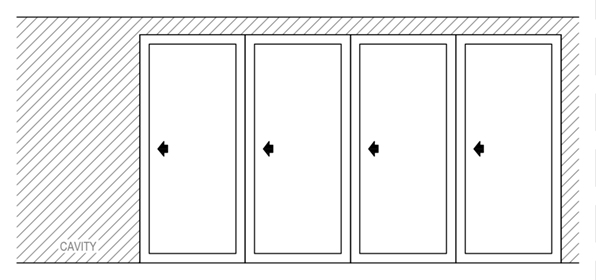

- Corner and cavity configurations are available
- Top rolling hardware is easily adjusted and concealed with pelmet beads
- Compatible with Caprio and Caprice mortice and surface-mounted hardware

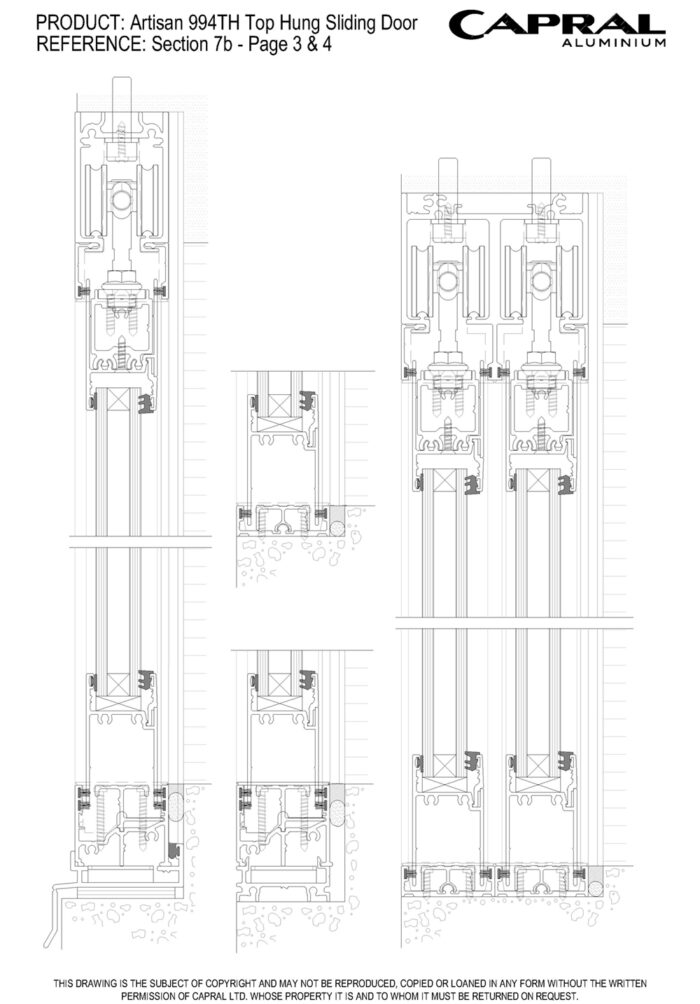

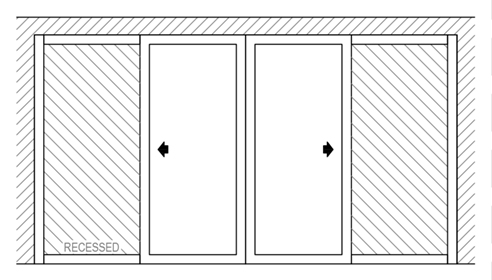

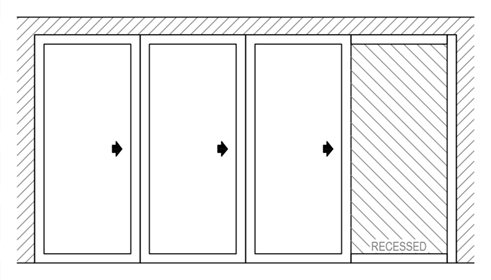

The Artisan Architectural 994 Top Hung Sliding Door is designed to succeed in residential and commercial development projects. It is available as a one, two, three or four-track door in recessed, corner, and cavity configurations.
The Artisan Architectural 994 Top Hung Sliding Door’s top rolling hardware enhances its smooth operation. The system is compatible with Caprice and Caprio mortice and surface-mounted hardware
Details
Product Specs

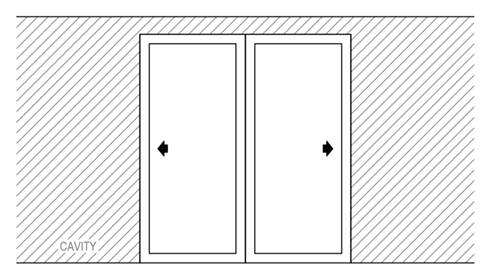

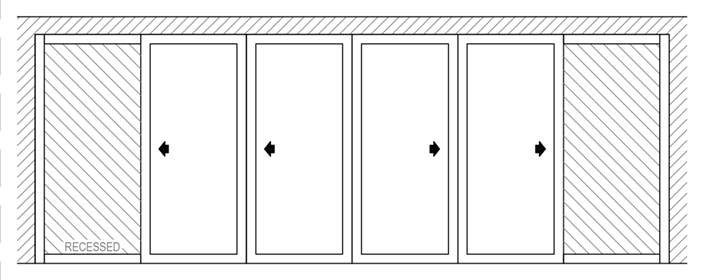

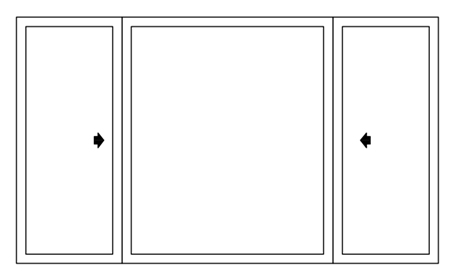

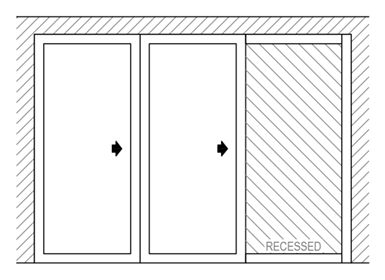

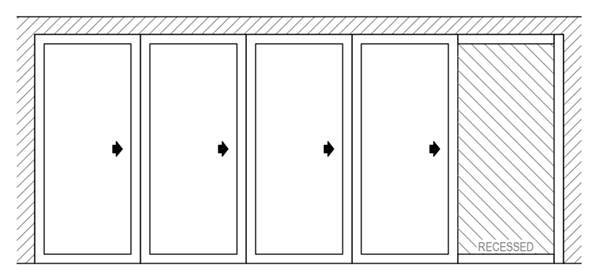

Configurations

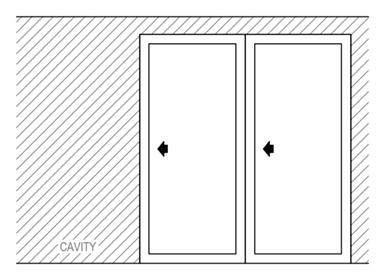

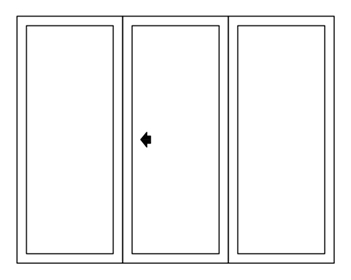

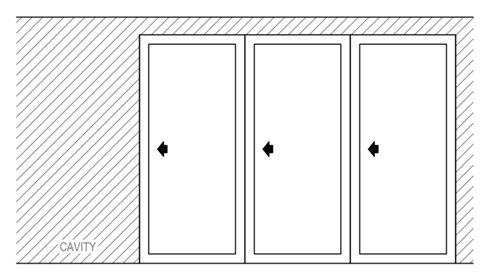

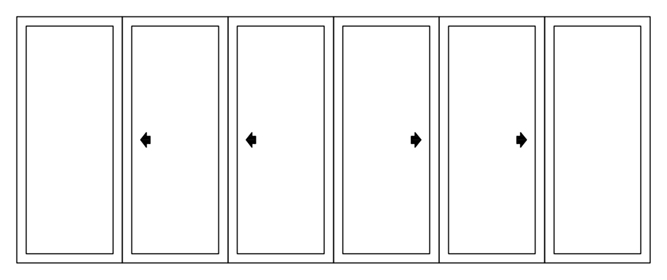

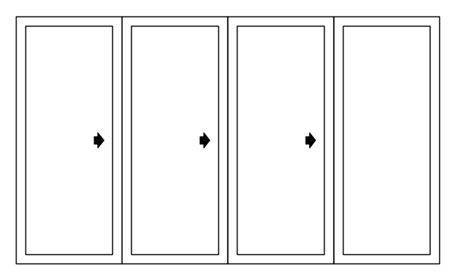

Arrangements
Maximum Product Sizes
Panel Height (mm)
3000
Panel Width (mm)
2250
Panel Weight (kg)
250
Frame Dimensions (mm)

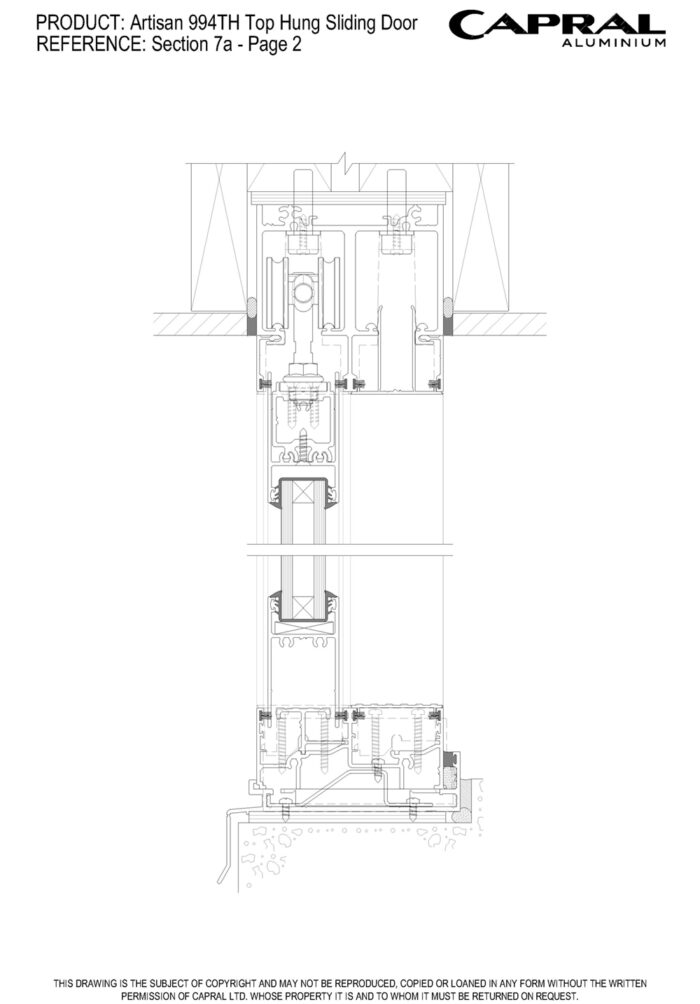

Single Track
50
Double Track
100
Multistack
150 - 250
Acoustic Rating
Rw (C;Ctr)
37 (-1;-3)
Maximum Product Performance
SLS (Pa)
1500
ULS (Pa)
3000
WATER (Pa)
300
Glazing Details
Single Glazed
4 - 10
Double Glazed
19 - 26
Thick Glazed
10 - 15
Sill Options
Option 1
44 Std Sill
Option 2
16.5
Low Profile Sill
Low Profile Sill
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Artisan 994TH Top Hung Sliding Door
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart Artisan 994 Top Hung Sliding Door
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart Capral Screening
Revit Artisan 994-TH Sliding Door Top Hung
CAD Files
CAD Files Artisan 994TH Top Hung Sliding Door
CAD Files AGS Sub Frames
CAD Files Capral Screening
CAD Wall Chart AGS Sub Framing
CAD Wall Chart Artisan Windows & Doors
Bulletins
PB474 - Plant-on Interlock – 900 Sliding Door / 994 TH Sliding Door
PB473 - Artisan 994 TH Sliding Door – Fixed Panel Bracket
PB457 - 7mm Co-Extruded Backing Gasket
PB428 - 900 & 994 SD 6, 8, 10 & 12mm Glazing Channels Replacement
PB364 - Artisan Architectural 994TH (Top Hung) Sliding Door
PB339 - Volta Power Assist Roller Release
Other
Compatible Products
AquaGo Subsill Threshold DrainAquaGo is a flush-level sub-sill threshold drain with multiple grate options
More products from this range
Artisan 996 Quik Folding DoorThe Artisan Architectural Quik Folding Door has smooth top rolling panels and allows for convenient use of floor space - open wide for uninhibited access when entertaining and close for protection from the elements.
Artisan 995 Folding WindowThe Artisan Architectural Folding Servery Window is a premium bi-fold option with a simple and smooth top-rolling action for easy access and simple operation.
Artisan 998 Tilt-and-Turn WindowThe Artisan Architectural Tilt & Turn is a multi-functional window and is compatible with the AGS Flushline range of commercial framing products.
Artisan 991 Double Hung WindowThe Artisan Architectural 991 is a premium double hung window combining ease of use, high performance and a classic style into a bold 100mm frame.
Artisan 999 Auto Strut WindowThe Artisan Architectural Automated Strut window is ideal in servery applications with large sashes that open fully to a 90 degree angle.
Artisan 992 Awning WindowThe smooth-opening Artisan Architectural 992 Awning Window is configurable to meet your needs.
Artisan 992 Casement WindowThe Artisan Architectural 992 Casement Window swings outward with effortless ease and can be tailored to meet your needs.
Artisan Architectural 934 Panoramic Sliding DoorInspired by European design, the Artisan Architectural Panoramic Door pairs minimalist style with robust local engineering.
Not quite what you’re looking for? Consider...
AGS Commercial 900 High Performance Sliding DoorA true commercial sliding door designed for high-traffic areas delivering bold panel sizes and exceptional performance.
Urban 284L Light Sliding DoorThe Urban Light Sliding Door is a high-performing residential non-stacking sliding door system, ideal for residential building applications.
AGS Commercial 225 Sliding DoorThe AGS 225 Sliding Door is a 46mm pocket glazed commercial door panel capable of delivering flexibility, performance and ease of assembly in mind.
Urban Plus 394 Sliding DoorThe Urban Plus sliding door spans wide openings to maximise views. Available in sliding and multi-stack configurations the Urban Plus Sliding is the perfect door for a high end residential project or architectrually deisgned home.
Futureline 994TB Sliding DoorThe Futureline 994TB Sliding Door is a premium option for convenience, comfort, and efficiency.
Urban Comfort 284TB Sliding DoorCapral's Urban Comfort Thermally Broken Sliding Door is designed for Australian homes with enhanced comfort and thermal efficiency.
Artisan Architectural 934 Panoramic Sliding DoorInspired by European design, the Artisan Architectural Panoramic Door pairs minimalist style with robust local engineering.
Urban 284 Sliding DoorThe Urban Sliding/Stacking Door offers excellent design flexibility and is well suited to residential building applications. It is a perfect door to open homes to outdoor spaces.

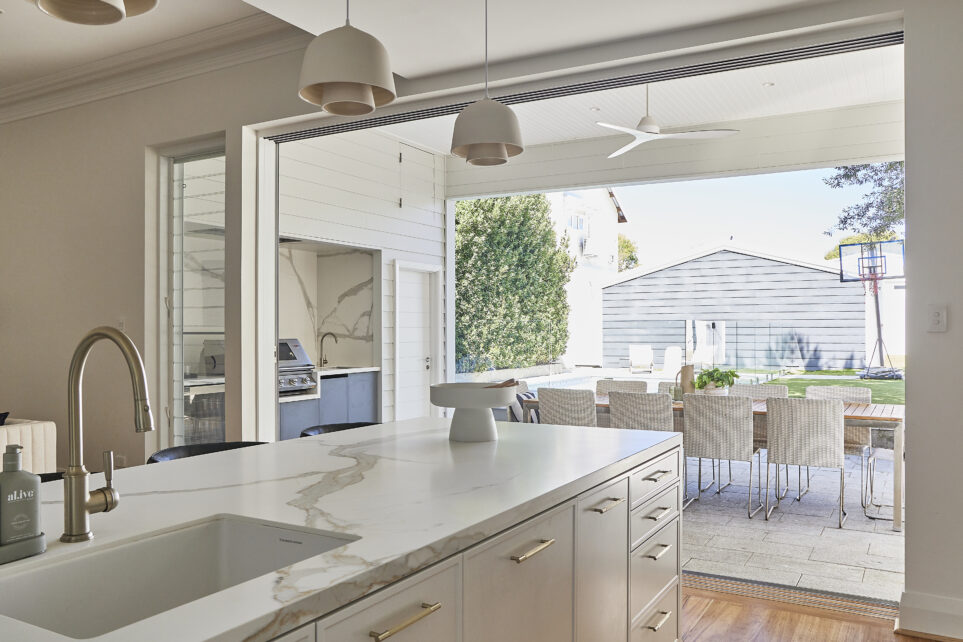

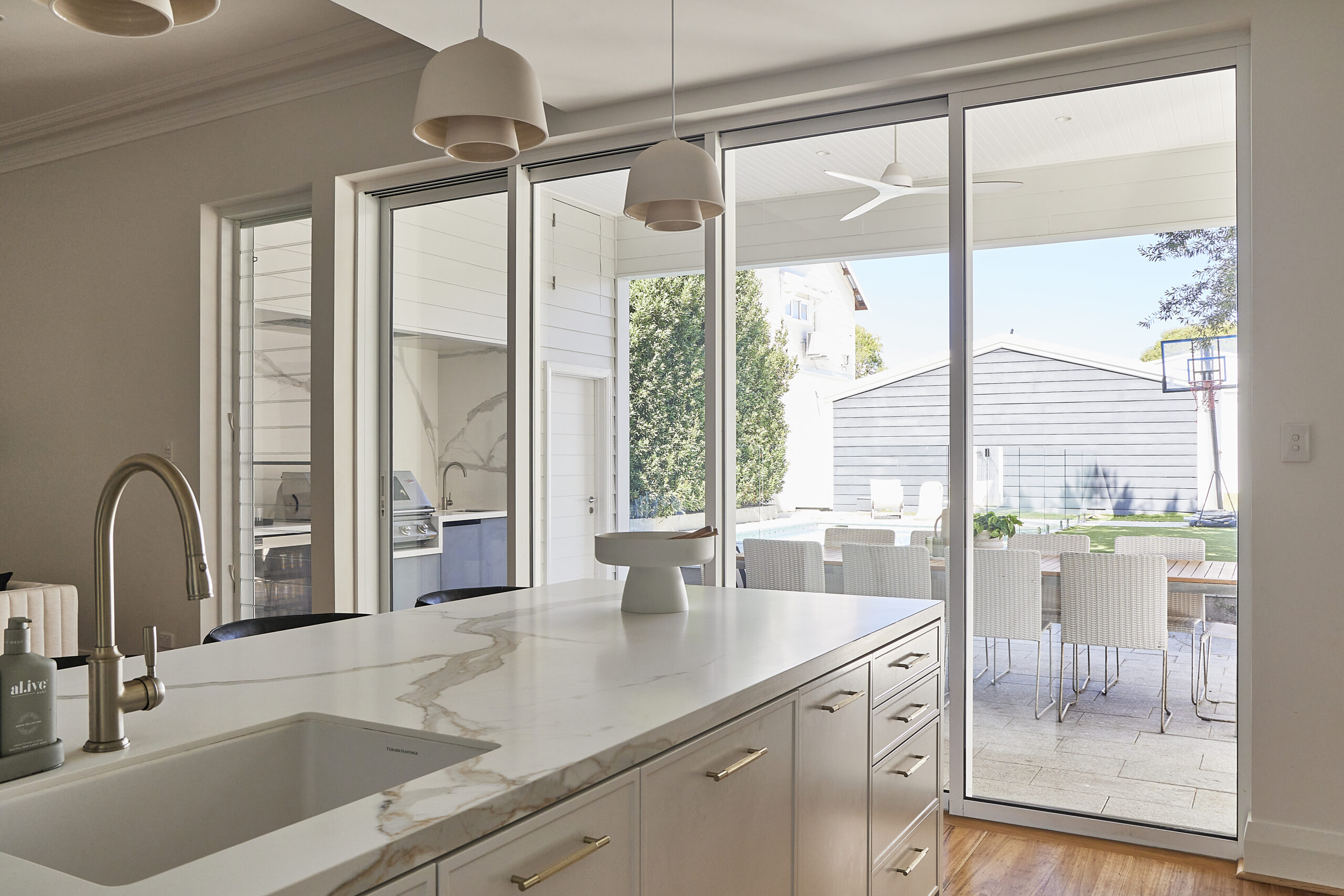

Projects that use this system
