    Home Our Systems Windows Folding Artisan 995 Folding Window

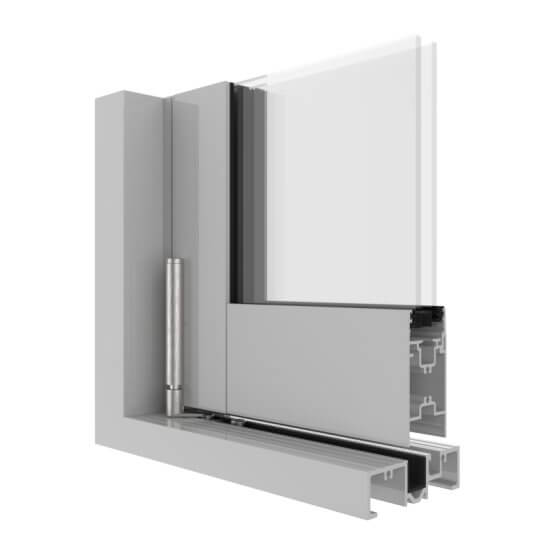

    Capral's Artisan 995 Folding Window Corner Image.
    Architectural

    Artisan 995 Folding Window

    The Artisan Architectural Folding Servery Window is a premium bi-fold option with a simple and smooth top-rolling action for easy access and simple operation.

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select

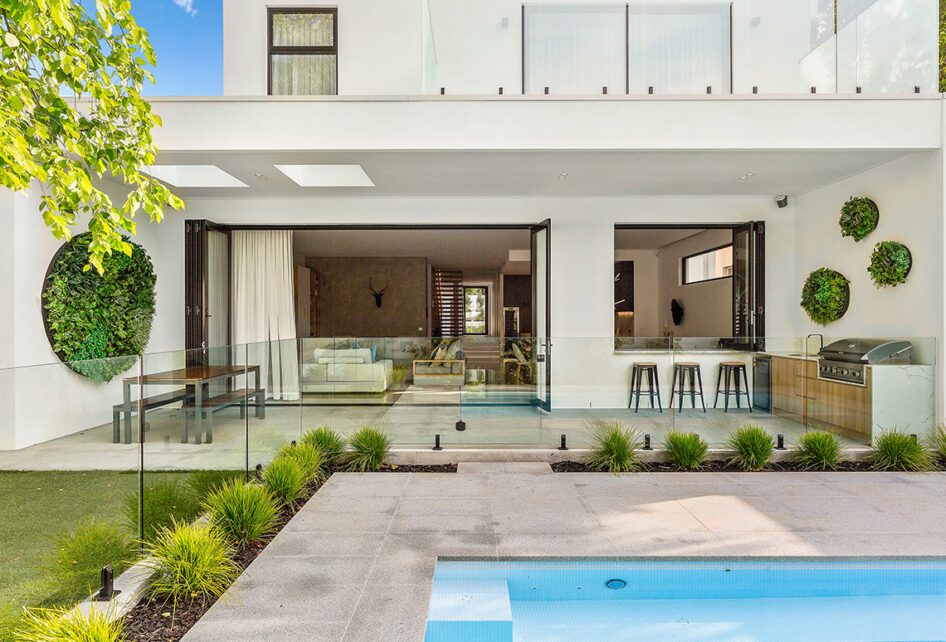

    Capral's Project Centre House using Capral window and building systems.

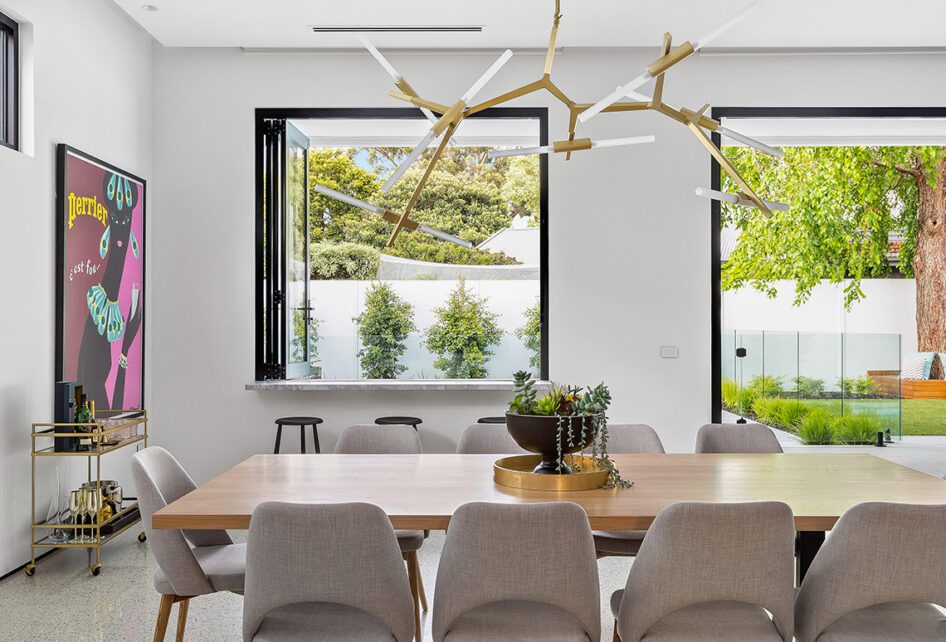

    Capral's Project Centre House using Capral window and building systems.

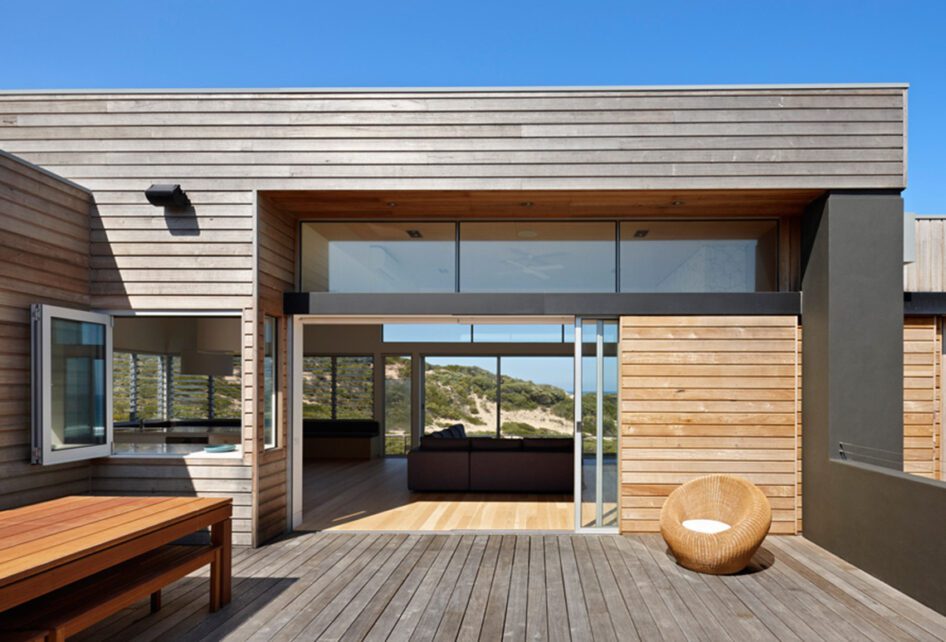

    Capral's Project St. Andrew's Beach House using Capral window and building systems.
    Capral's Project Centre House using Capral window and building systems.
    Capral's Project Centre House using Capral window and building systems.
    Capral's Project St. Andrew's Beach House using Capral window and building systems.
    Key features
    • Single and double glazed options (up to 31mm)
    • Top rolling system for smooth operation

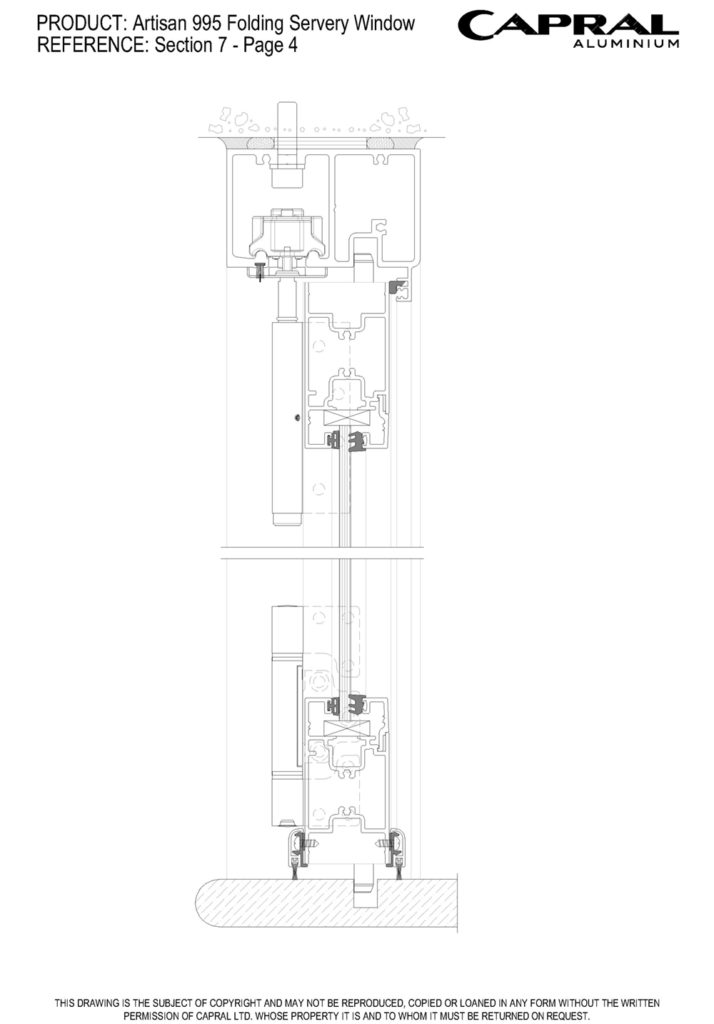

    • Sill-less design suits servery window
    • Fully adjustable, including both horizontal and vertical
    • Accepts double glazing providing excellent energy efficiency
    • Complementary hardware from the Caprice range
    • Euro spigot connectors save factory fabrication time
    • Incorporates Stainless Steel hinges, rollers and flush-bolts

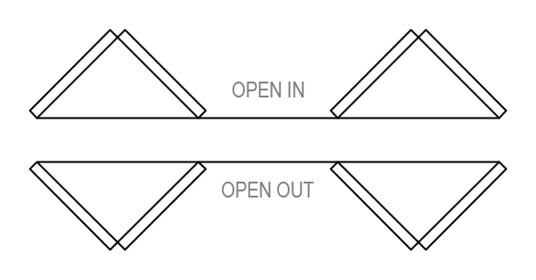

    • Available in open in and open out configurations

    The Artisan Architectural Folding Servery Window is a premium bi-fold option with a simple and smooth top-rolling action for easy access and simple operation. It’s available in either single or double-glazed configurations with durable stainless steel hardware.
    The sill-less design is perfect for use as a servery window, allowing clear views and convenient access. Open it fully to maximise airflow and access for entertaining or have just one panel open to let in a cool breeze — it’s your choice!

    Download Brochure

    Details

    Product Specs
    Configurations

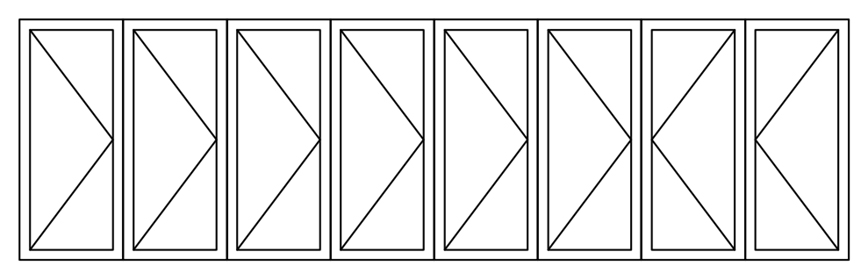

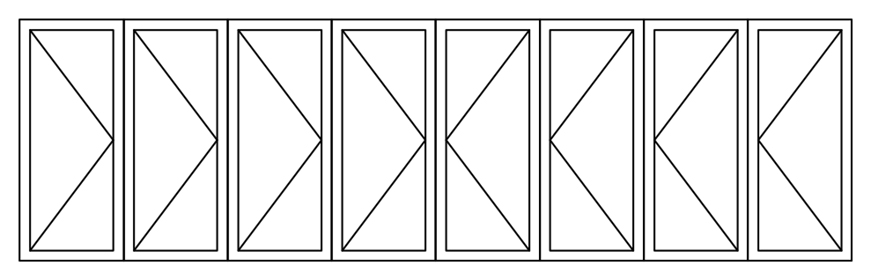

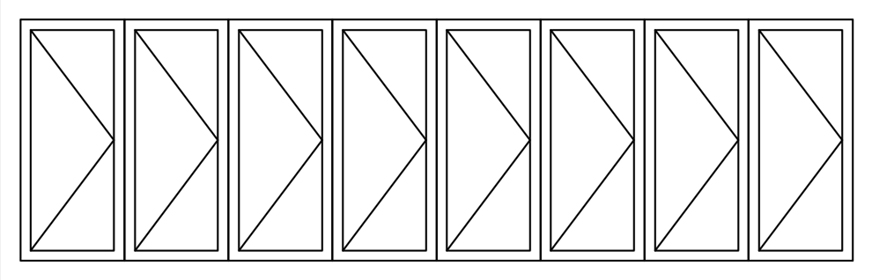

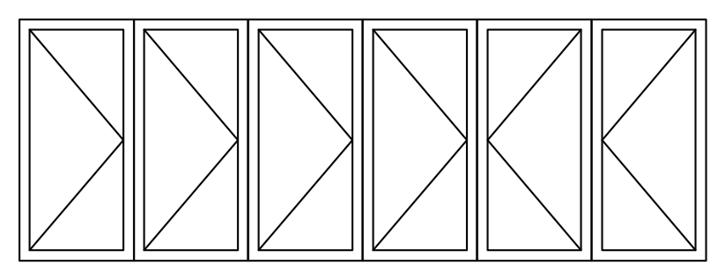

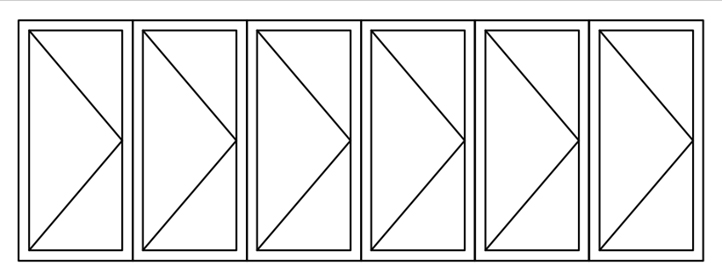

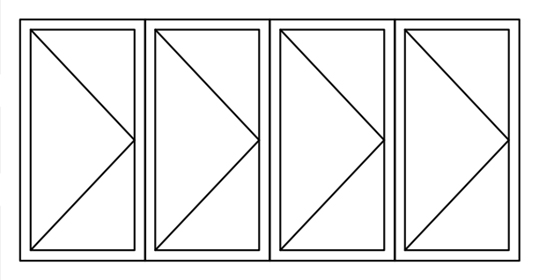

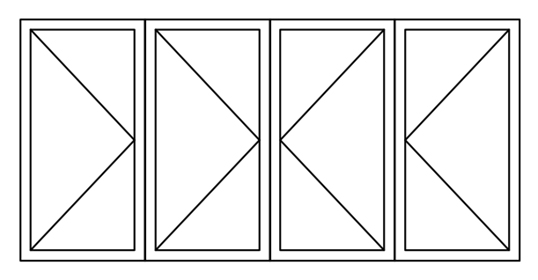

    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 2100
    Panel Width (mm) 900
    Panel Weight (kg) 80

    Frame Dimensions (mm)

    Frame depth (mm) 101.6

    Maximum Product Performance

    SLS (Pa) 2400
    ULS (Pa) 5600

    Glazing Details

    Single Glazed 4 - 12
    Double Glazed 19 - 21
    Thick Glazed 14 - 18
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual Artisan 995 Folding Servery Window
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS Speciality Sub Frames
    Extrusion Wall Chart Artisan Windows
    BIM Files
    Revit Artisan 995 Folding Window
    Revit Capral Subframes
    CAD Files
    CAD Files Artisan 995 Folding Window
    CAD Files AGS Sub Frames
    CAD Wall Chart AGS Sub Framing
    CAD Wall Chart Artisan Windows & Doors
    Bulletins
    PB351 - 995 Folding Servery Window Release
    Other
    Capral Artisan Brochure Capral Artisan 995 Folding Window Brochure Specification Artisan 995 Folding Window Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)

    Compatible Products

    Hardware
    Hardware Caprice Bi-Fold Hardware Hero Image. Caprice Bi-fold Hardware

    A stylish and functional operator for bi-fold doors.

    Caprio Bi-fold Actuator Hero Image. Caprio Bi-fold Actuator

    Simple. Minimal. Elegant. Three words that come to mind when describing the Caprio Bi-fold actuator.

    More products from this range

    Capral's Artisan 992 Awning and Casement Window Corner Image. Artisan 992 Awning Window

    The smooth-opening Artisan Architectural 992 Awning Window is configurable to meet your needs.

    Capral's Artisan 998 Tilt Turn Window Corner Image. Artisan 998 Tilt-and-Turn Window

    The Artisan Architectural Tilt & Turn is a multi-functional window and is compatible with the AGS Flushline range of commercial framing products.

    Capral's Artisan 994-TH Sliding Door Top Hung Corner Image. Artisan 994-TH Sliding Door Top Hung

    The Artisan Architectural 994 Top Hung Sliding Door is a stunning inclusion for residential and commercial development projects.

    Artisan 996 Quik Folding Door

    The Artisan Architectural Quik Folding Door has smooth top rolling panels and allows for convenient use of floor space - open wide for uninhibited access when entertaining and close for protection from the elements.

    Artisan 991 Double Hung Window

    The Artisan Architectural 991 is a premium double hung window combining ease of use, high performance and a classic style into a bold 100mm frame.

    Artisan 996 Folding Door Corner Image. Artisan 996 Folding Door

    The Artisan aluminium folding door incorporates a technologically advanced folding door system that surpasses that of ordinary aluminium folding doors.

    Artisan 999 Auto Strut Window

    The Artisan Architectural Automated Strut window is ideal in servery applications with large sashes that open fully to a 90 degree angle.

    Artisan 992 Casement Window Corner Image. Artisan 992 Casement Window

    The Artisan Architectural 992 Casement Window swings outward with effortless ease and can be tailored to meet your needs.

    Not quite what you’re looking for? Consider...

    Capral's Urban Plus 395 Folding Window Corner Image. Urban Plus 395 Folding Window

    The Urban Plus Folding window delivers seamless operation, classic style and excellent flexibility for residential or commercial applications. Incorporating an innovative bottom rolling mechanism ensuring that even double glazed panels glide effortlessly.

    Projects that use this system

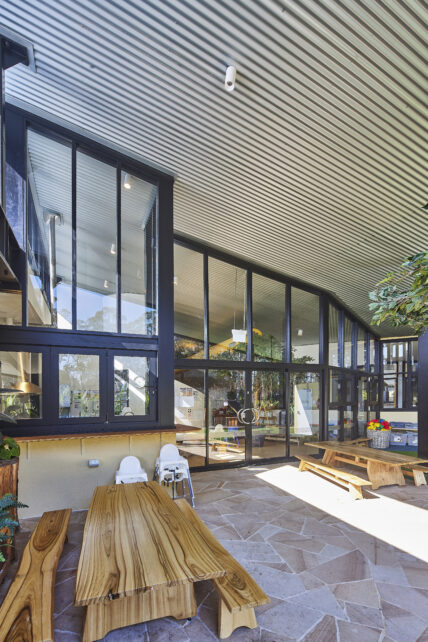

    Kinderlin
