    Home Our Systems Doors Folding Artisan 996 Folding Door

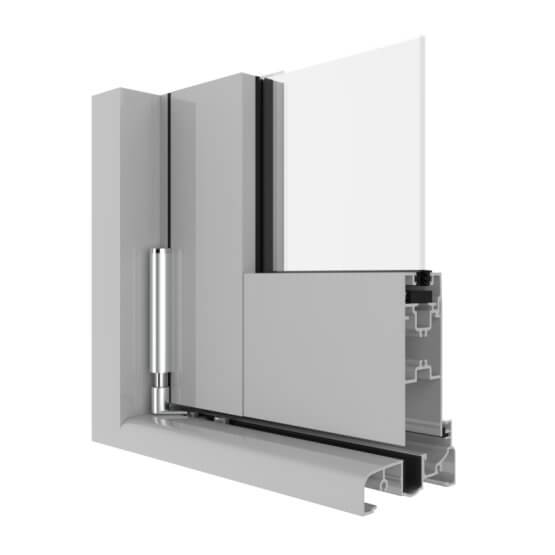

    Artisan 996 Folding Door Corner Image.
    Architectural

    Artisan 996 Folding Door

    The Artisan aluminium folding door incorporates a technologically advanced folding door system that surpasses that of ordinary aluminium folding doors.

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    Acoustic
    Rated
    BAL 40
    Tested
    Disability
    Access
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select

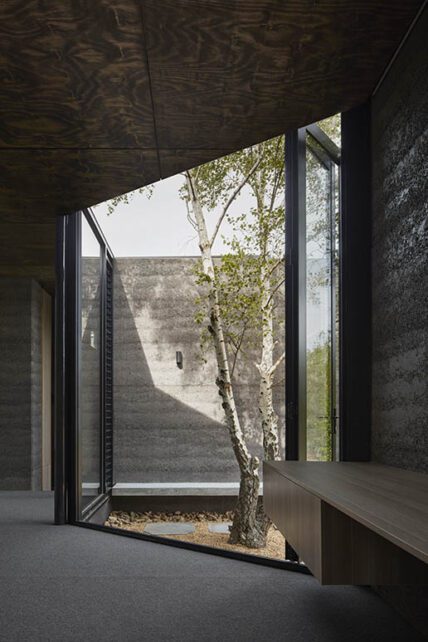

    Capral's Project A Pavilion Between Trees using Capral window and building systems.

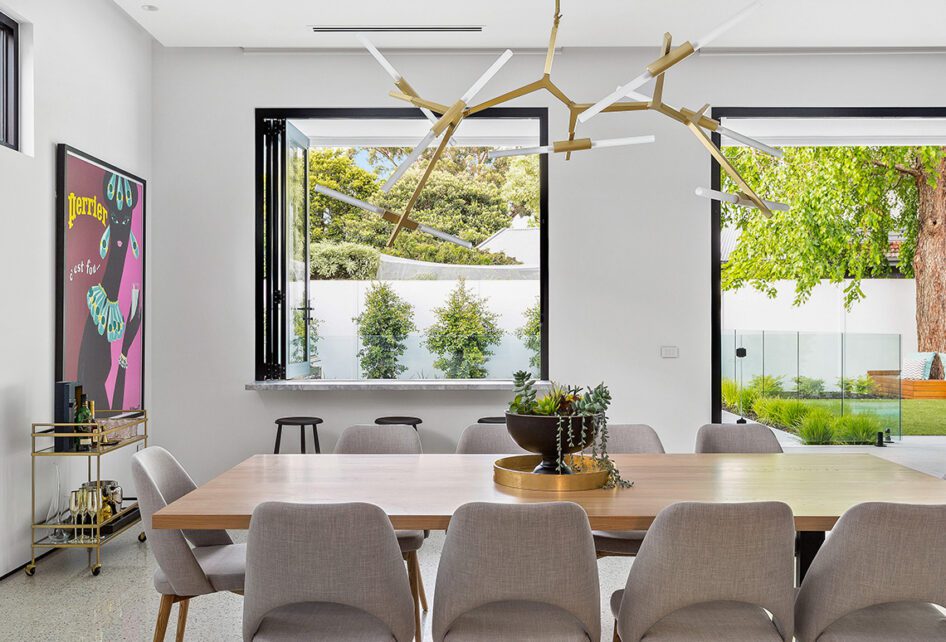

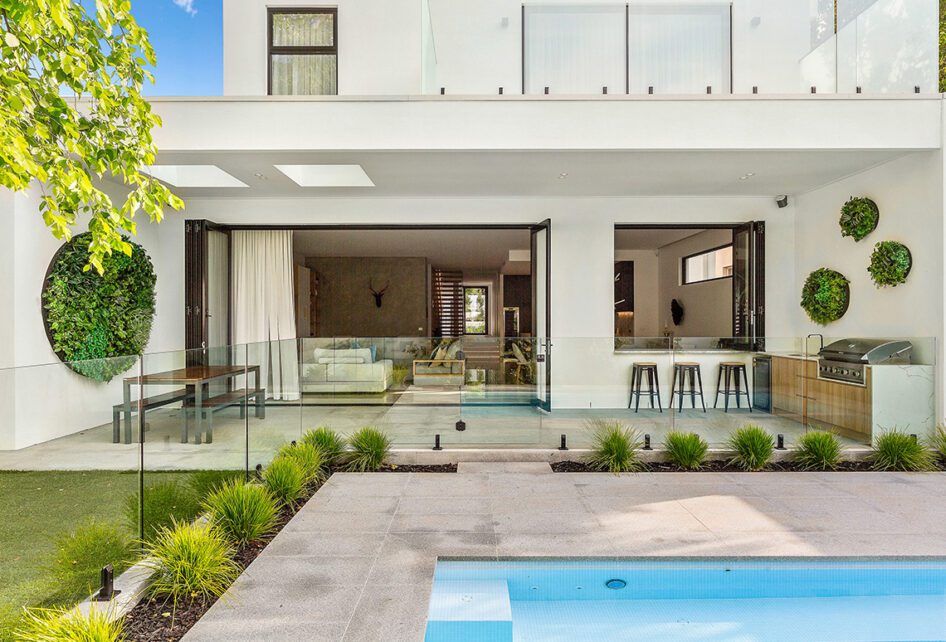

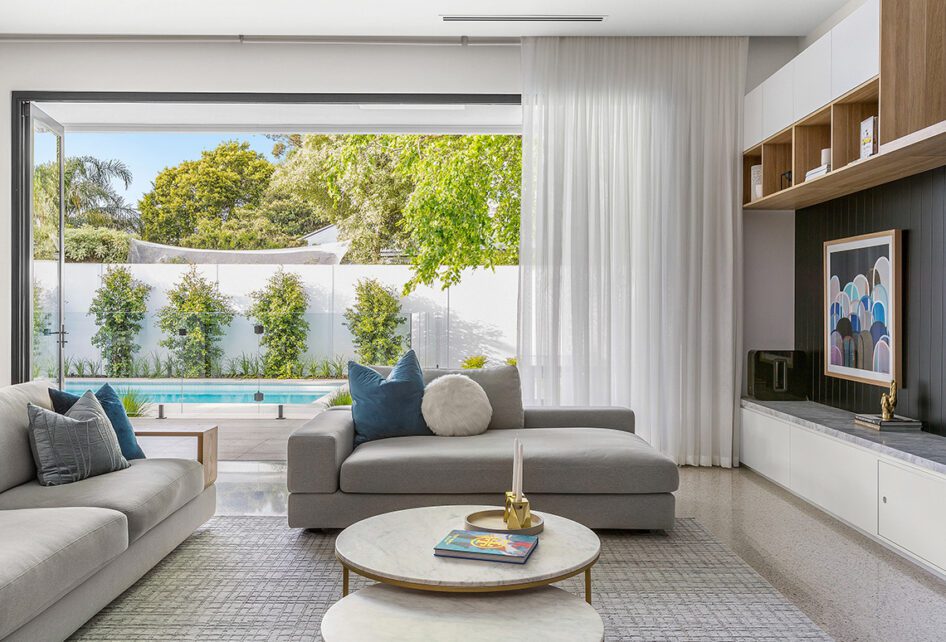

    Capral's Project Centre House using Capral window and building systems.
    Capral's Project Centre House using Capral window and building systems.
    Capral's Project Centre House using Capral window and building systems.

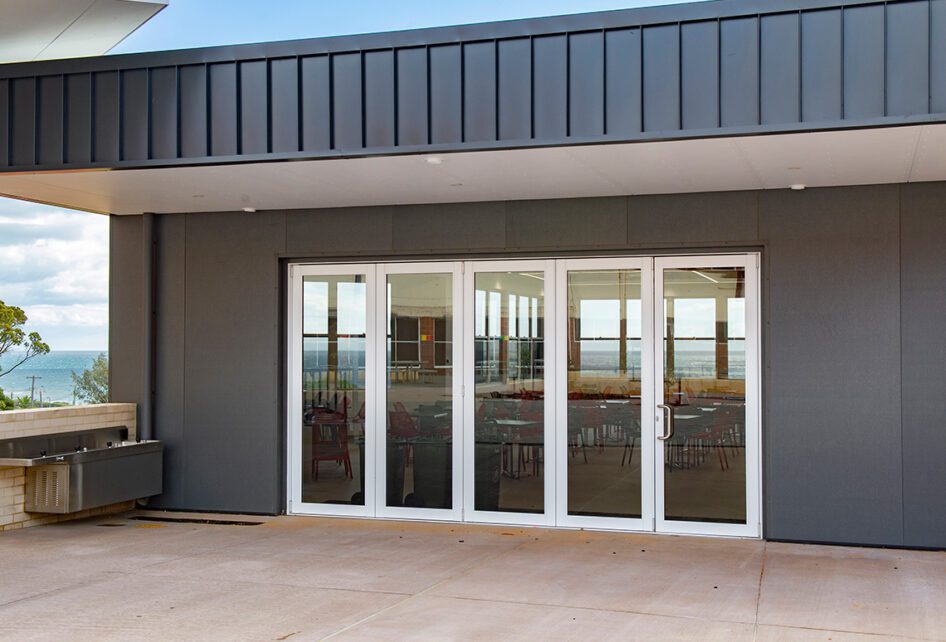

    Capral's Project Bunbury Senior High School Cafeteria using Capral window and building systems.

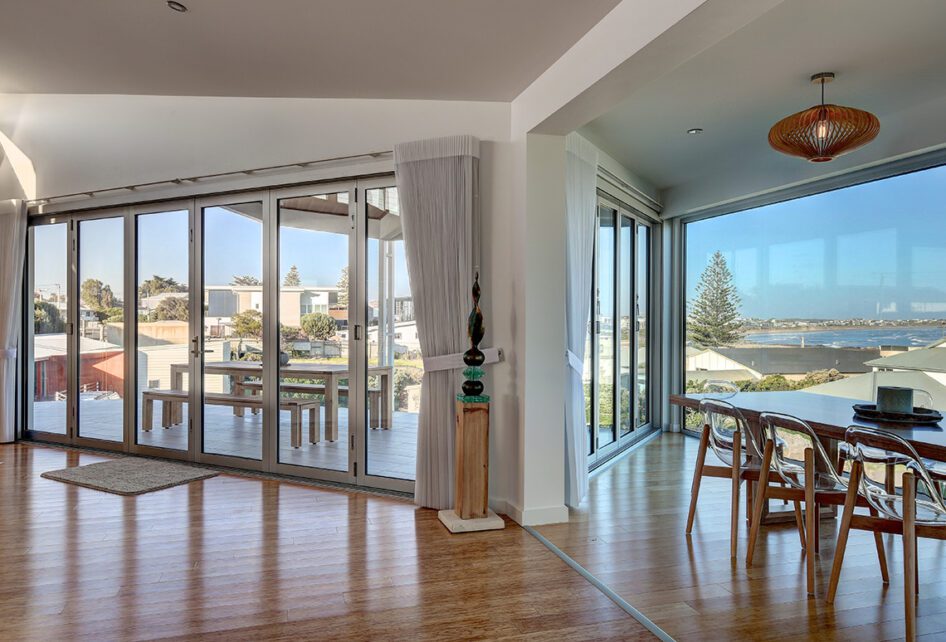

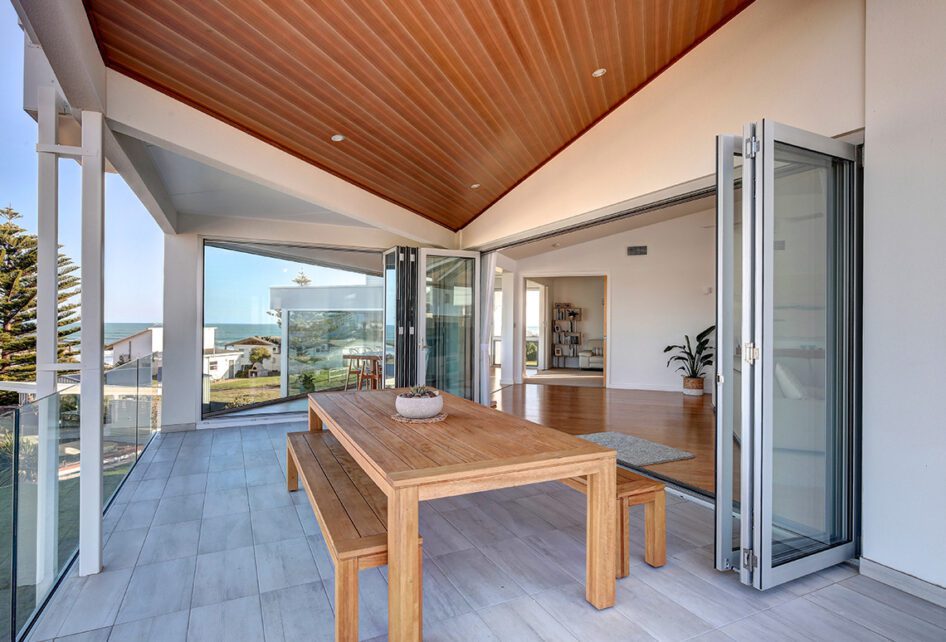

    Capral's Project Middleton Residence using Capral window and building systems.
    Capral's Project Middleton Residence using Capral window and building systems.

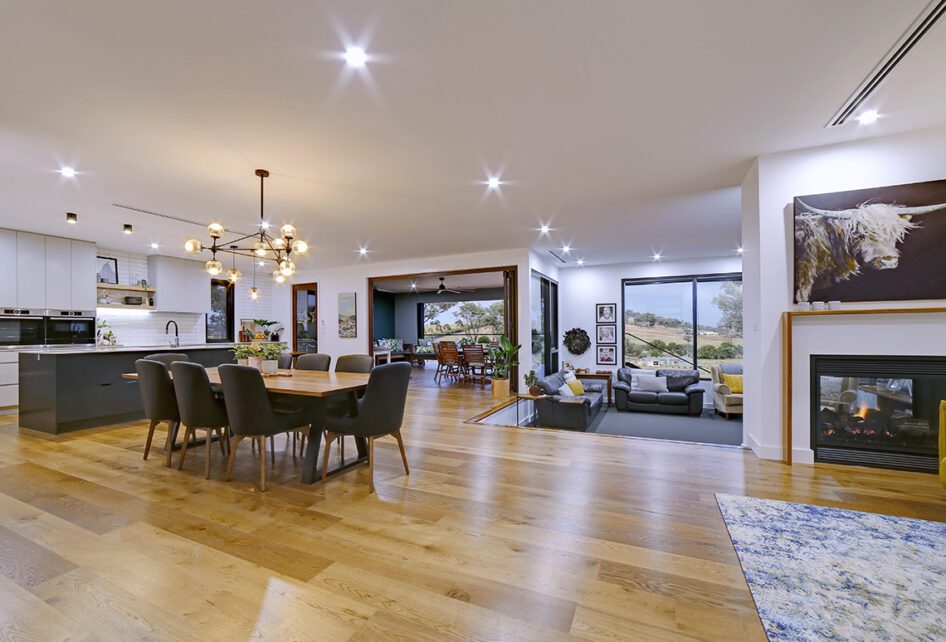

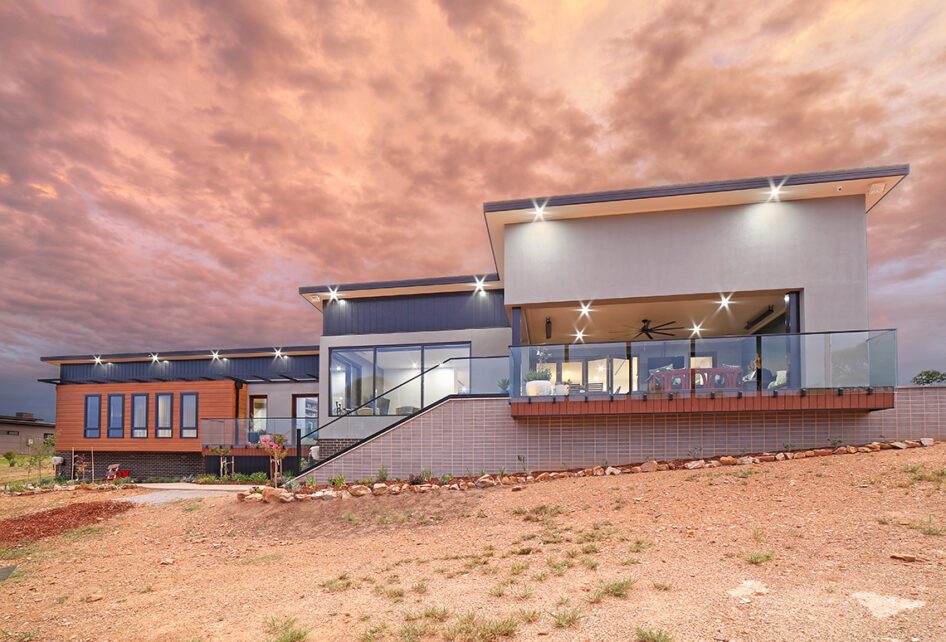

    Capral's Project Kunzea Estate using Capral window and building systems.
    Capral's Project Kunzea Estate using Capral window and building systems.

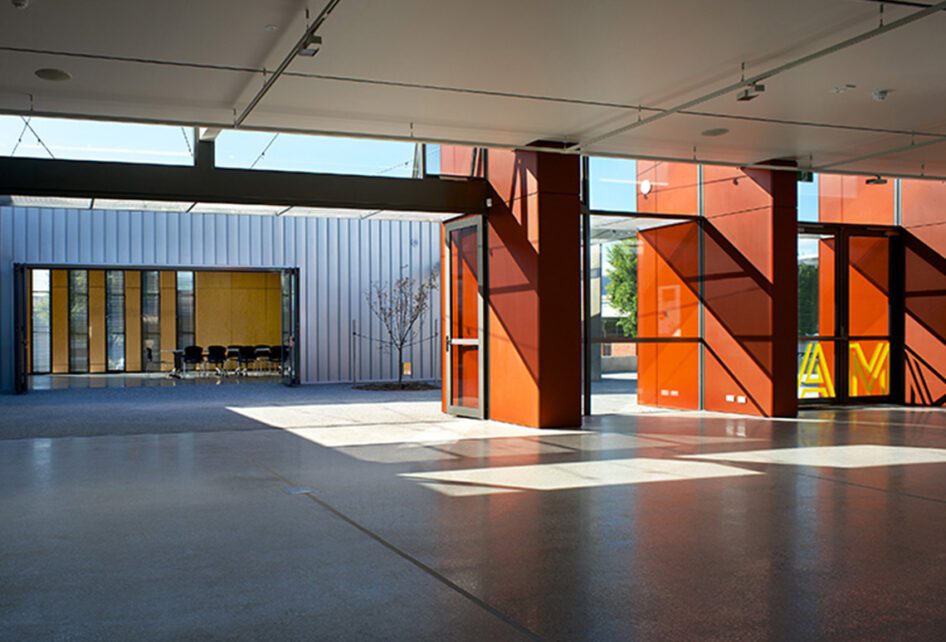

    Moonah Art Centre containing Capral window and building systems

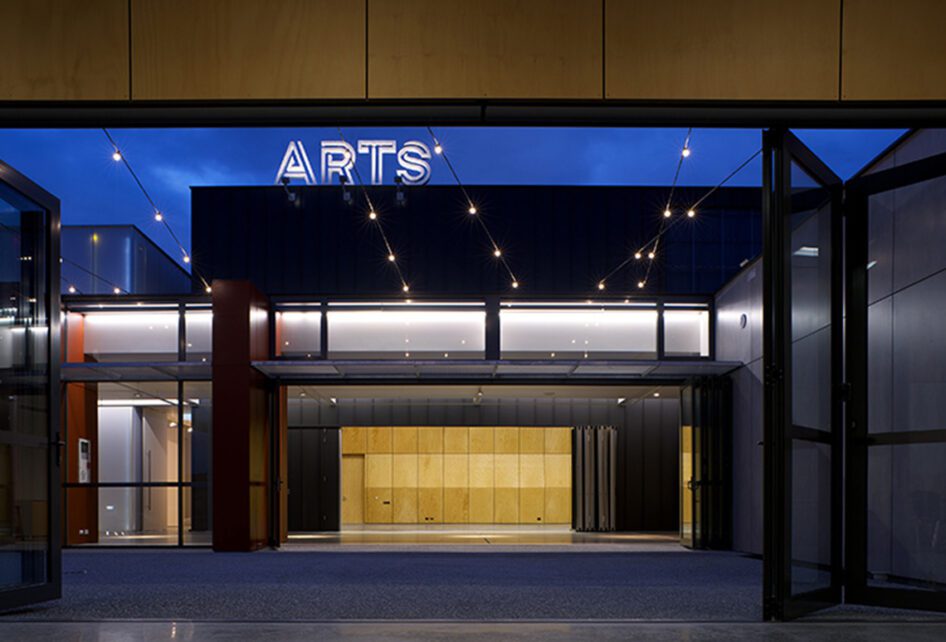

    Moonah Art Centre containing Capral window and building systems at night
    Capral's Project A Pavilion Between Trees using Capral window and building systems.
    Capral's Project Centre House using Capral window and building systems.
    Capral's Project Centre House using Capral window and building systems.
    Capral's Project Centre House using Capral window and building systems.
    Capral's Project Bunbury Senior High School Cafeteria using Capral window and building systems.
    Capral's Project Middleton Residence using Capral window and building systems.
    Capral's Project Middleton Residence using Capral window and building systems.
    Capral's Project Kunzea Estate using Capral window and building systems.
    Capral's Project Kunzea Estate using Capral window and building systems.
    Moonah Art Centre containing Capral window and building systems
    Moonah Art Centre containing Capral window and building systems at night
    Key features
    • Incorporating AGS ‘Smart Groove’ technology for superior fabrication
    • Heavy duty rollers, capable of taking 100kg load per panel
    • Tested water performance for both inward and outward opening configurations
    • AGS SmartHinge™ using marine grade stainless steel
    • Effortless Motion Technology (EMT™) for flawless operation
    • Top rolling system for smooth operation
    • Australian Window Association 2017 Highly Commended Design Award – Euro spigot connectors that save factory fabrication time

    Using Effortless Motion Technology (EMT), Artisan simply leaves other bi-folds in the shade. They move and feel like no other, smooth and responsive. It’s no wonder then that Artisan EMT bi-folds are turning up on more and more prestige residential and commercial building projects all over Australia.

    It’s not just about EMT though. Artisan also incorporates Capral’s AGS ‘smart hinge’ and ‘Easy Gliding’ channel to make Artisan quietly the best and smoothest door on the market. Designed and tested to comply with Australian Standard AS2047, Artisan folding doors will open up an almost limitless range of possibilities for efficient and flexible use of floor space allowing home and commercial environments to function at peak performance.

    With slim lines, various sill options and panel configurations, plus a variety of popular colours suitable for domestic and the high demands of commercial applications, and any traditional or contemporary décor, makes Artisan the ideal choice for homeowners, builders, designers and architects alike.

    Download Brochure

    Details

    Product Specs

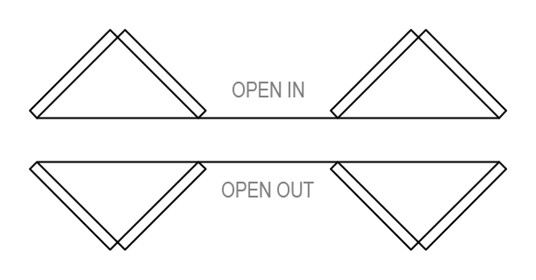

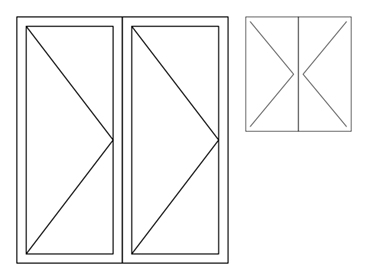

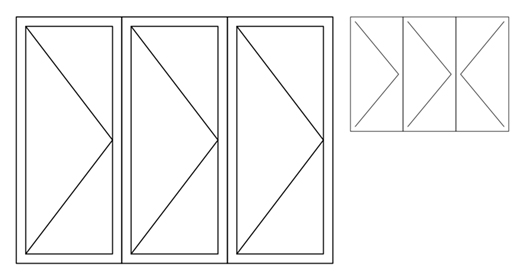

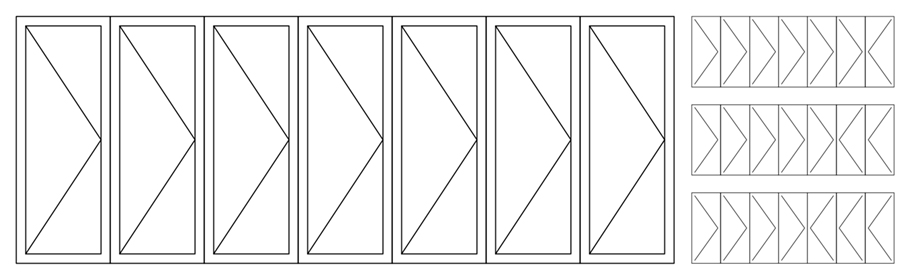

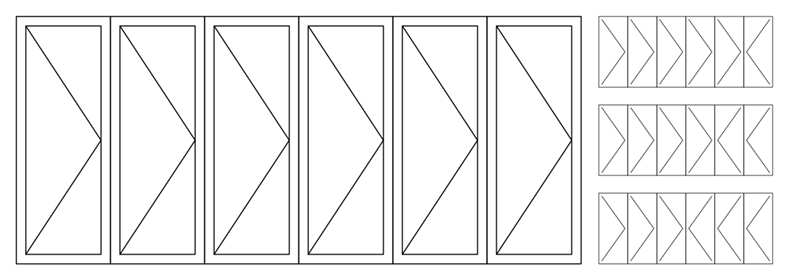

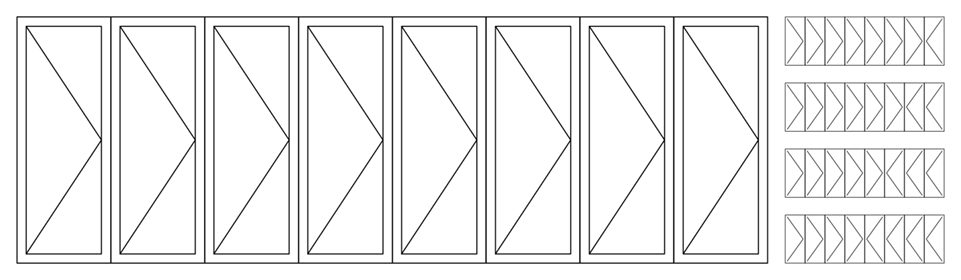

    Configurations

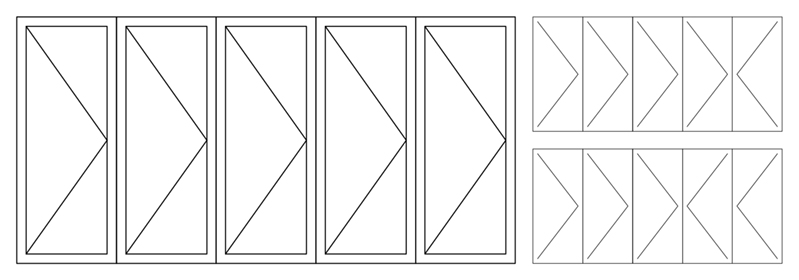

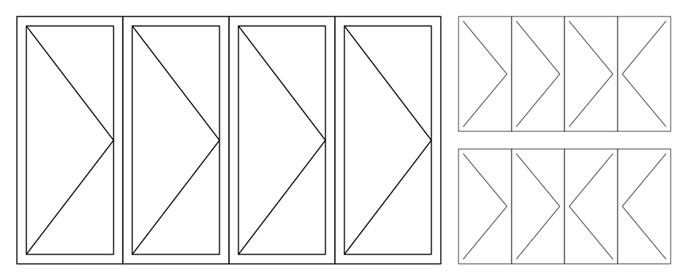

    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 3000
    Panel Width (mm) 1000
    Panel Weight (kg) 100

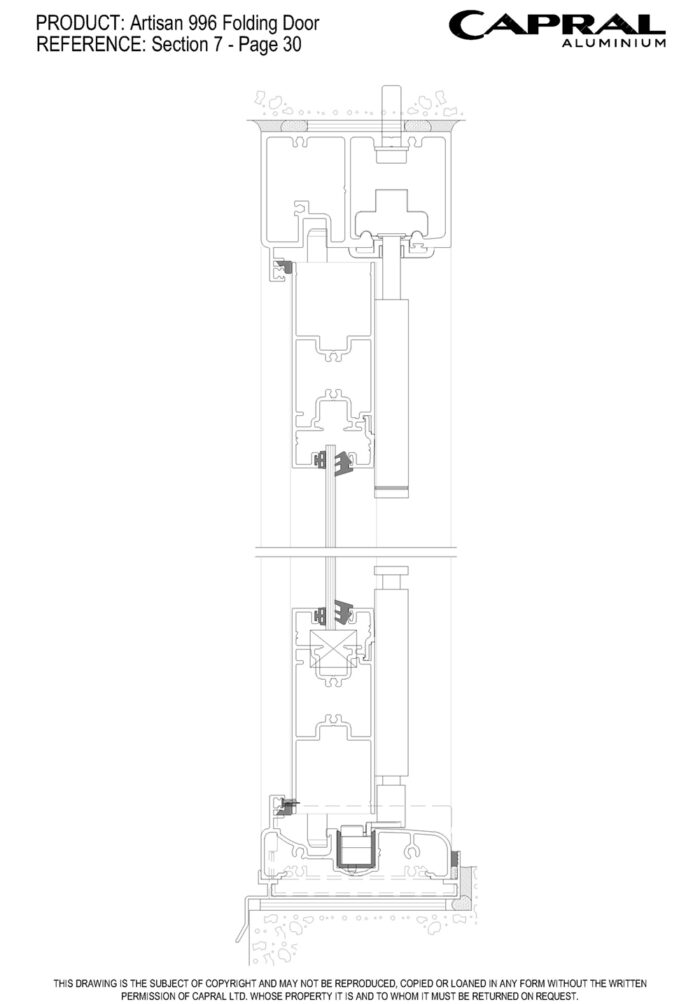

    Frame Dimensions (mm)

    Frame depth (mm) 101.6

    Acoustic Rating

    Rw (C;Ctr) 36(-1;-2)

    Bushfire Rating

    BAL 40

    Maximum Product Performance

    SLS (Pa) 3000
    ULS (Pa) 8000
    WATER (Pa) 450

    Glazing Details

    Single Glazed 4 - 12
    Double Glazed 19 - 31
    Thick Glazed 14 - 18

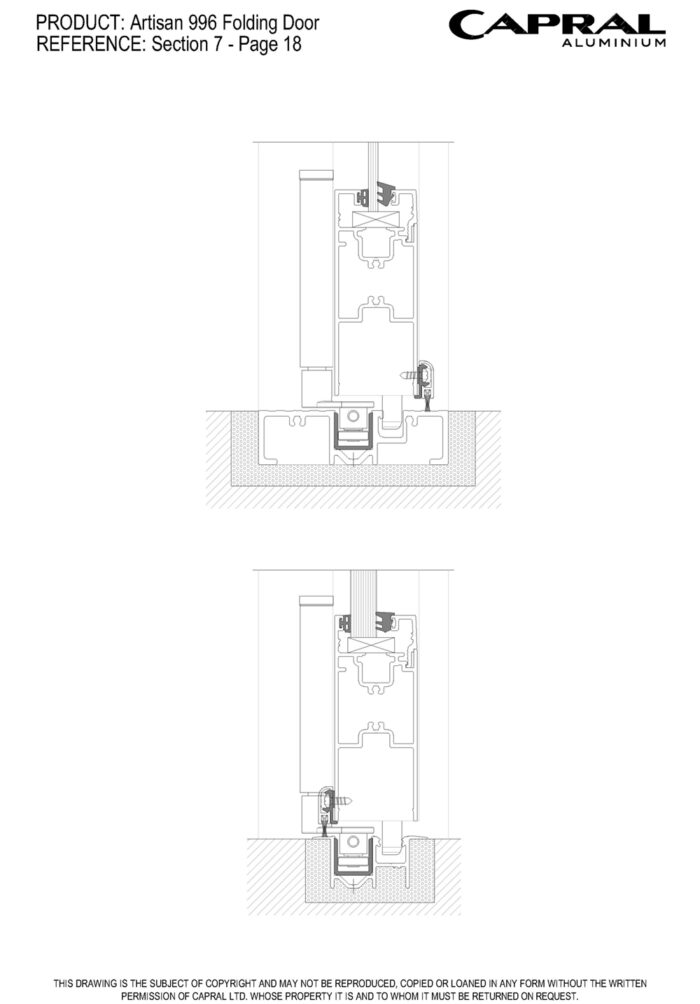

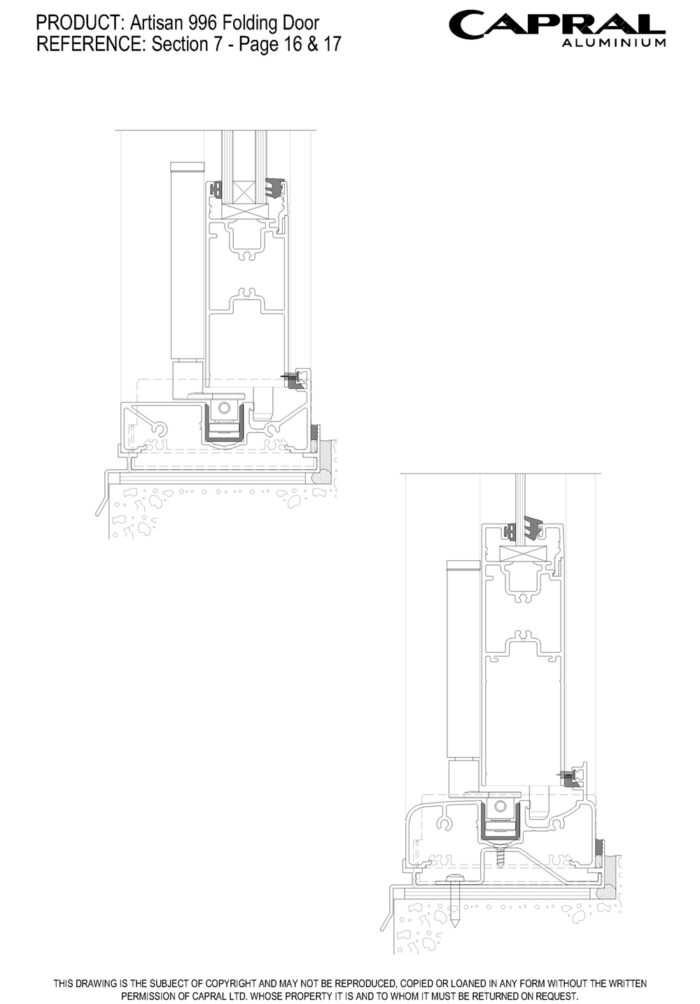

    Sill Options

    Option 1 45 Std Sill
    Option 2 0-2
    Low Profile Sill
    Option 3 57
    High Performance Sill

    Energy Performance

    Uw Range 3.35 - 6.00
    SHGC Range 0.17 - 0.56
    Tvw Range 0.06 - 0.57
    Air infiltration 0.33 - 0.33
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual Artisan 996 Folding Door
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS Speciality Sub Frames
    Extrusion Wall Chart Artisan Folding & Panoramic Doors
    BIM Files
    Revit Artisan 996 Folding Door
    Revit Capral Subframes
    CAD Files
    CAD Files Artisan 996 Folding Door
    CAD Files AGS Sub Frames
    CAD Wall Chart AGS Sub Framing
    CAD Wall Chart Artisan Windows & Doors
    Bulletins
    PBJ1125 - Artisan 996 Folding Door – Stile Modification
    Other
    Capral Artisan Brochure Capral Artisan 996 V2 Folding Door Brochure Specification Artisan 996 Folding Door Architectural Series White paper Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)

    Compatible Products

    Systems
    AGS Commercial 400 Narrowline Single Glazed (100mm) Corner Image. AGS Commercial 400 Narrowline Single Glazed (101.6mm)

    The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.

    AGS Commercial 425 Narrowline Double Glazed (100mm) Corner Image. AGS Commercial 425 Narrowline Double Glazed (101.6mm)

    The AGS 425 Narrowline framing system was developed specifically to cater for the growing requirement for energy-efficient double glazing.

    AGS Commercial 450 Narrowline Wide Pocket (101.6mm)

    The AGS 450 Narrowline has been designed with extra wide glazing pockets to accept double-glazed units with internal Venetian blinds

    Artisan 996 Quik Folding Door

    The Artisan Architectural Quik Folding Door has smooth top rolling panels and allows for convenient use of floor space - open wide for uninhibited access when entertaining and close for protection from the elements.

    SGS Commercial 400 Narrowline Single Glazed (100mm) (QLD Only)

    The SGS 400 Narrowline framing system redefines the standard for centre-glazed framing.

    More products from this range

    Artisan 999 Auto Strut Window

    The Artisan Architectural Automated Strut window is ideal in servery applications with large sashes that open fully to a 90 degree angle.

    Artisan 996 Quik Folding Door

    The Artisan Architectural Quik Folding Door has smooth top rolling panels and allows for convenient use of floor space - open wide for uninhibited access when entertaining and close for protection from the elements.

    Capral's Artisan 995 Folding Window Corner Image. Artisan 995 Folding Window

    The Artisan Architectural Folding Servery Window is a premium bi-fold option with a simple and smooth top-rolling action for easy access and simple operation.

    Capral's Artisan 992 Awning and Casement Window Corner Image. Artisan 992 Awning Window

    The smooth-opening Artisan Architectural 992 Awning Window is configurable to meet your needs.

    Artisan Architectural 934 Panoramic Sliding Door

    Inspired by European design, the Artisan Architectural Panoramic Door pairs minimalist style with robust local engineering.

    Capral's Artisan 998 Tilt Turn Window Corner Image. Artisan 998 Tilt-and-Turn Window

    The Artisan Architectural Tilt & Turn is a multi-functional window and is compatible with the AGS Flushline range of commercial framing products.

    Artisan 991 Double Hung Window

    The Artisan Architectural 991 is a premium double hung window combining ease of use, high performance and a classic style into a bold 100mm frame.

    Capral's Artisan 994-TH Sliding Door Top Hung Corner Image. Artisan 994-TH Sliding Door Top Hung

    The Artisan Architectural 994 Top Hung Sliding Door is a stunning inclusion for residential and commercial development projects.

    Not quite what you’re looking for? Consider...

    Urban Plus 396 Folding Door

    The Urban Plus Folding door is a perfect solution to open your living spaces to the great outdoors. With clean bold styling and stainless-steel hardware the Urban Plus Folding Door is sure to deliver satisfaction for generations

    Artisan 996 Quik Folding Door

    The Artisan Architectural Quik Folding Door has smooth top rolling panels and allows for convenient use of floor space - open wide for uninhibited access when entertaining and close for protection from the elements.

    Projects that use this system

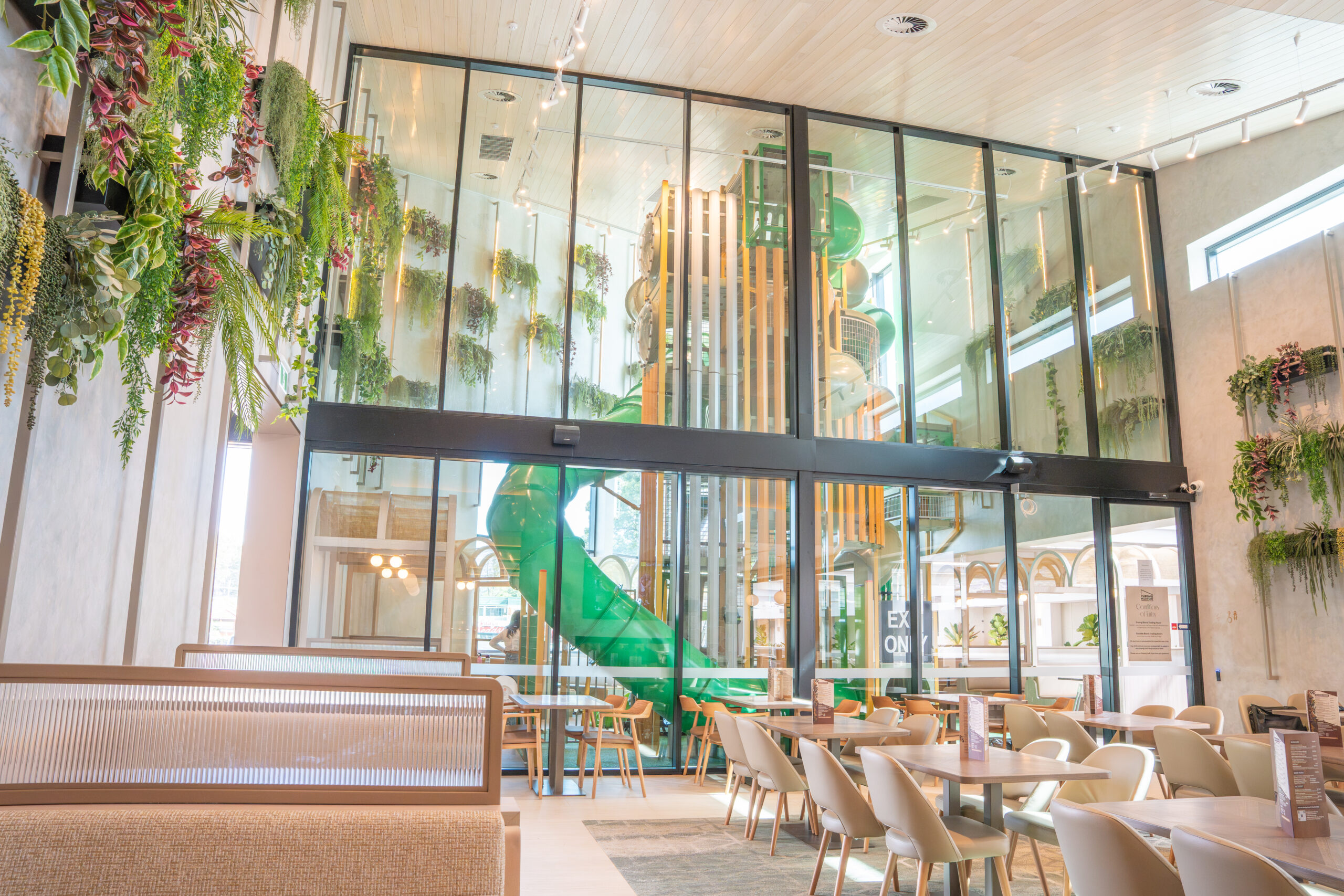

    Chipping Norton Hotel: Family-Focused Hospitality with High-Performance Glazing

    The Chipping Norton Hotel showcases contemporary hospitality design, featuring open, family-friendly spaces enhanced by high-performance Capral aluminium systems that deliver durability, visibility and seamless functionality in a busy commercial environment.


    Commercial

    Dunn Bay: Southcamp

    Southcamp is a coastal mixed-use development in Dunsborough that combines industrial design with relaxed charm, brought to life using Capral’s window and door systems.


    Built Environment

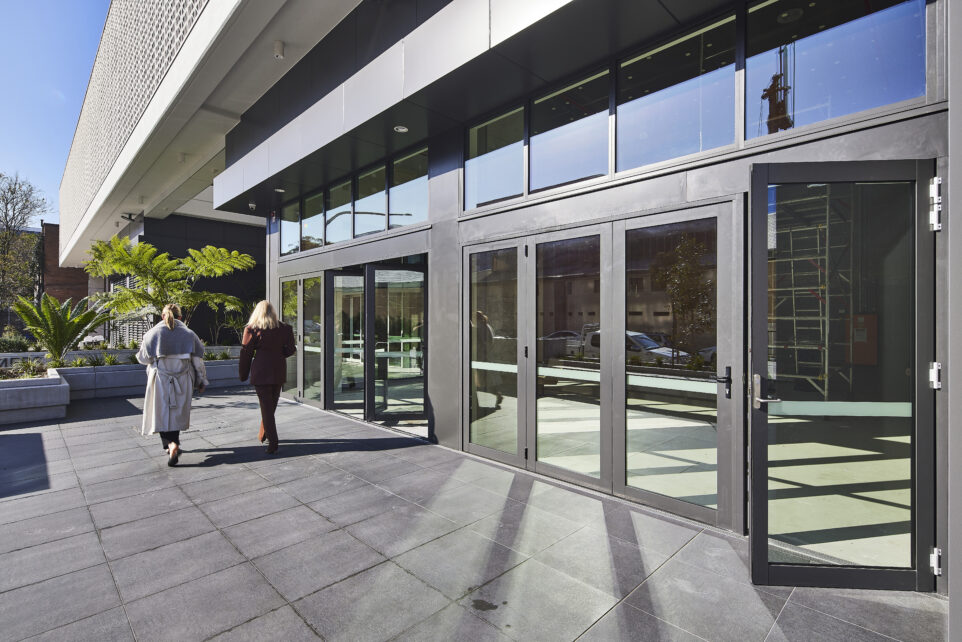

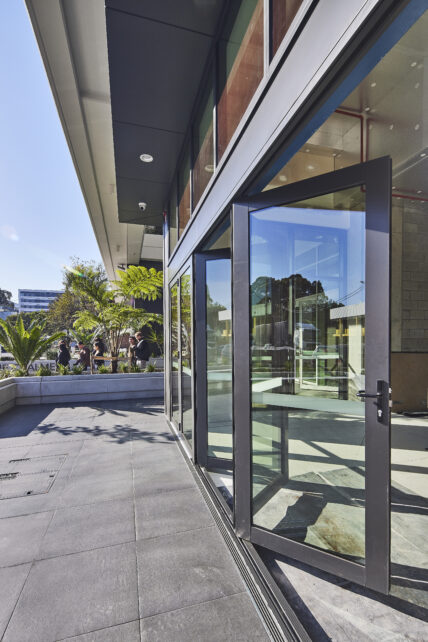

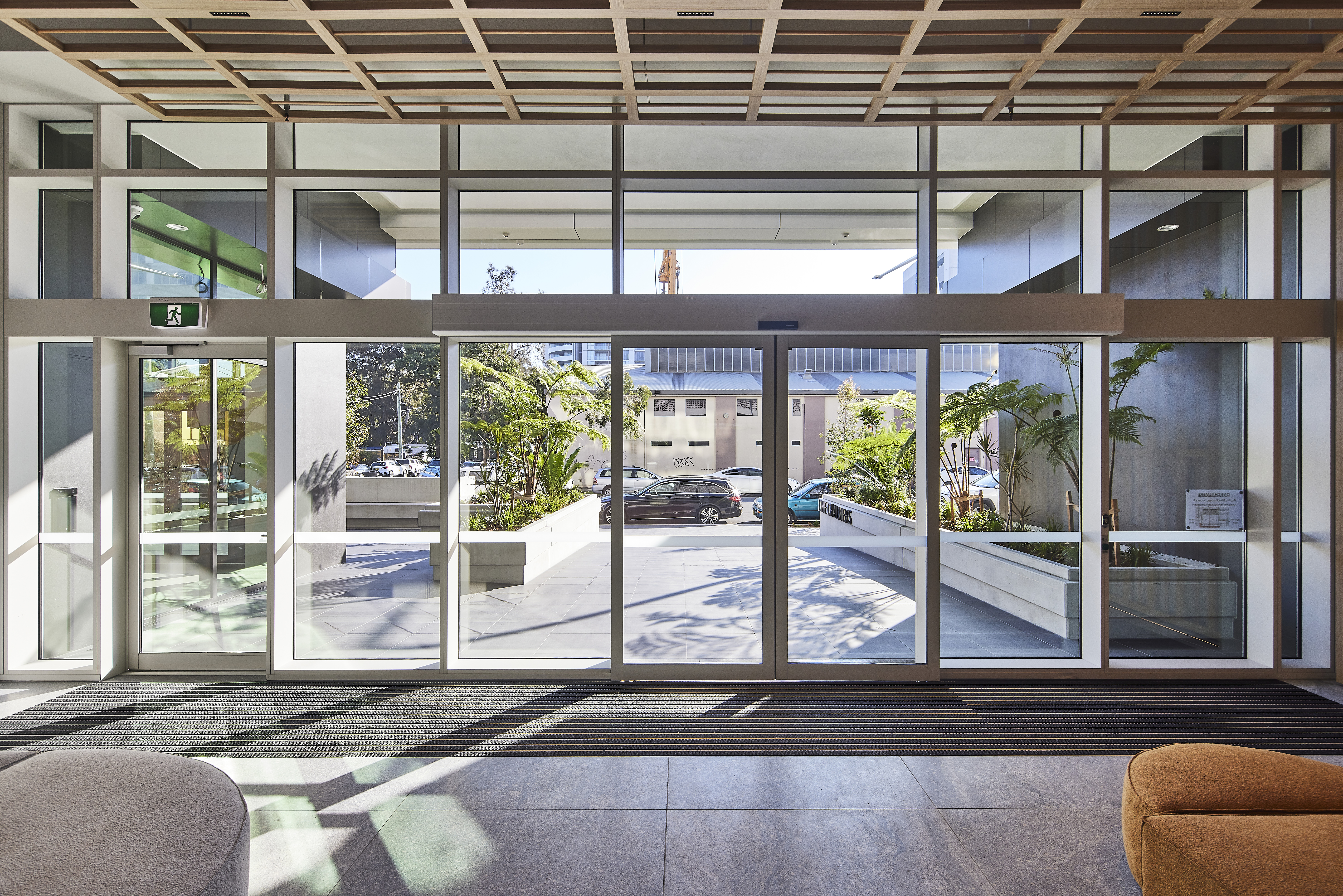

    Chalmers Ave Mascot
