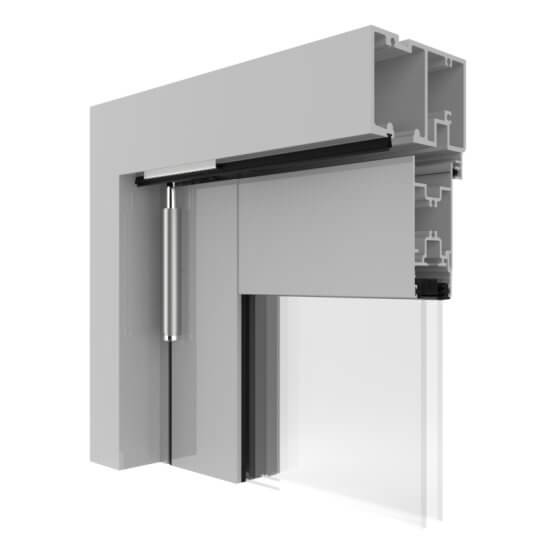

Artisan 996 Quik Folding Door
The Artisan Architectural Quik Folding Door has smooth top rolling panels and allows for convenient use of floor space - open wide for uninhibited access when entertaining and close for protection from the elements.
Certified
Access
Key features
- Top rolling hardware for ease of operation
- Water rated and non-water rated sills
- Compatible with the Aquago Linear Grate Sill
- Quick fit stainless steel hardware
- Multiple rail and midrail heights available
- Euro and commercial corner cleat assembly methods
- Large range of open-in and open-out configurations
- Fast Fix Hinge screw on hardware for ease of install
- Dedicated lock and cover stiles suit a large variety of hardware including Capral’s Caprice and Caprio range
The Artisan Quik Architectural Folding Door has smooth top rolling panels and allows for convenient use of floor space – open wide for uninhibited access when entertaining and close for protection from the elements. An ideal choice when you are looking to create flexible living areas.
Artisan Architectural Folding Doors suit a wide range of hardware and are configurable with sill and sill-less options to suit your climate and lifestyle.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
2700
Panel Width (mm)
900
Panel Weight (kg)
80
Frame Dimensions (mm)
Frame depth (mm)
101.6
Maximum Product Performance
SLS (Pa)
3000
ULS (Pa)
5300
WATER (Pa)
450
Glazing Details
Single Glazed
4 - 12
Double Glazed
19 - 31
Thick Glazed
14 - 18
Sill Options
Option 1
45 Std Sill
Option 2
0-2
Low Profile Sill
Low Profile Sill
Option 3
57
High Performance Sill
High Performance Sill
Energy Performance
Uw Range
3.35 - 6.00
SHGC Range
0.17 - 0.56
Tvw Range
0.06 - 0.57
Air infiltration
0.33 - 0.33

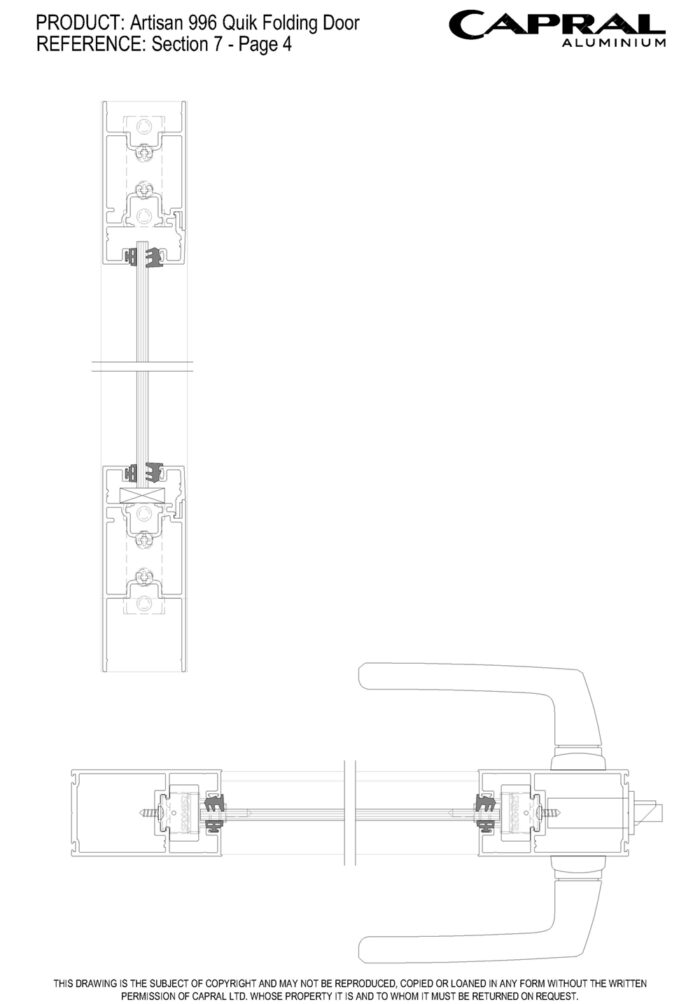

Single Glazed Panel

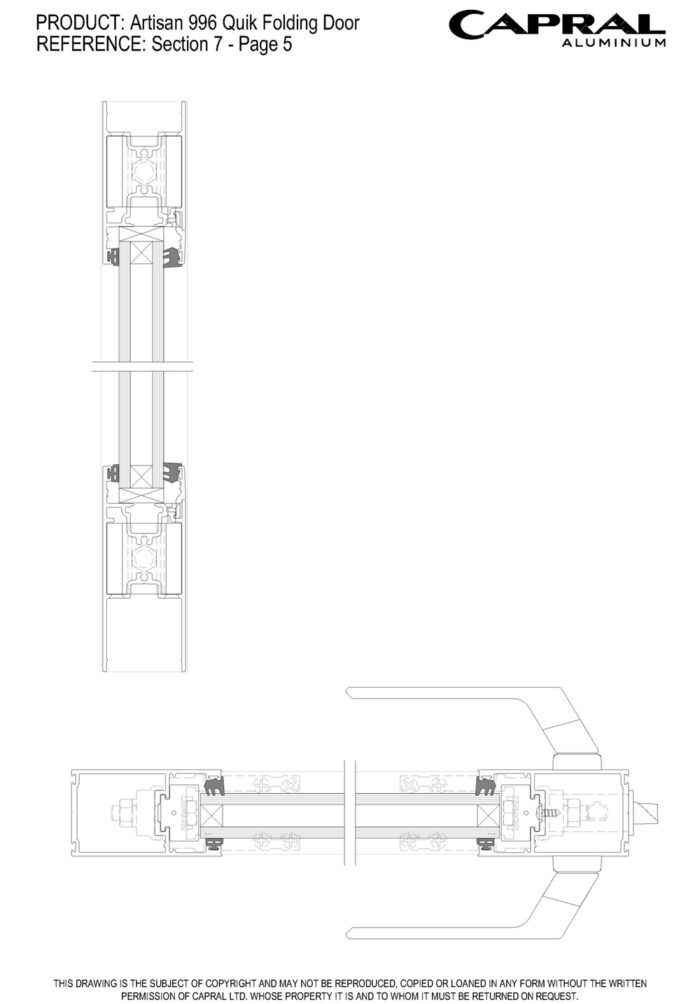

Double Glazed Panel

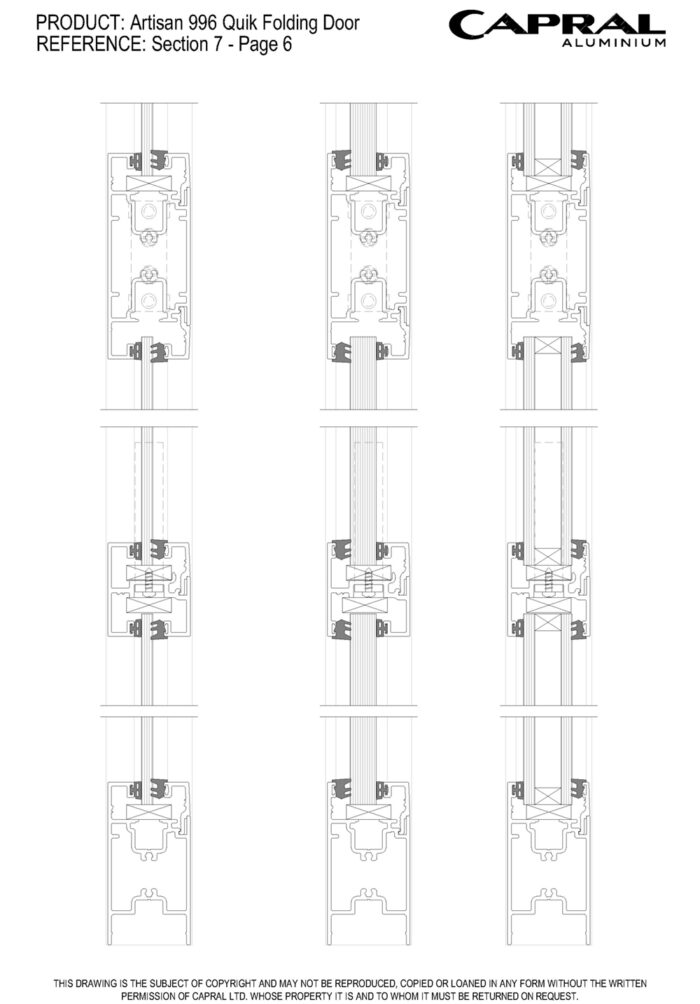

Midrails

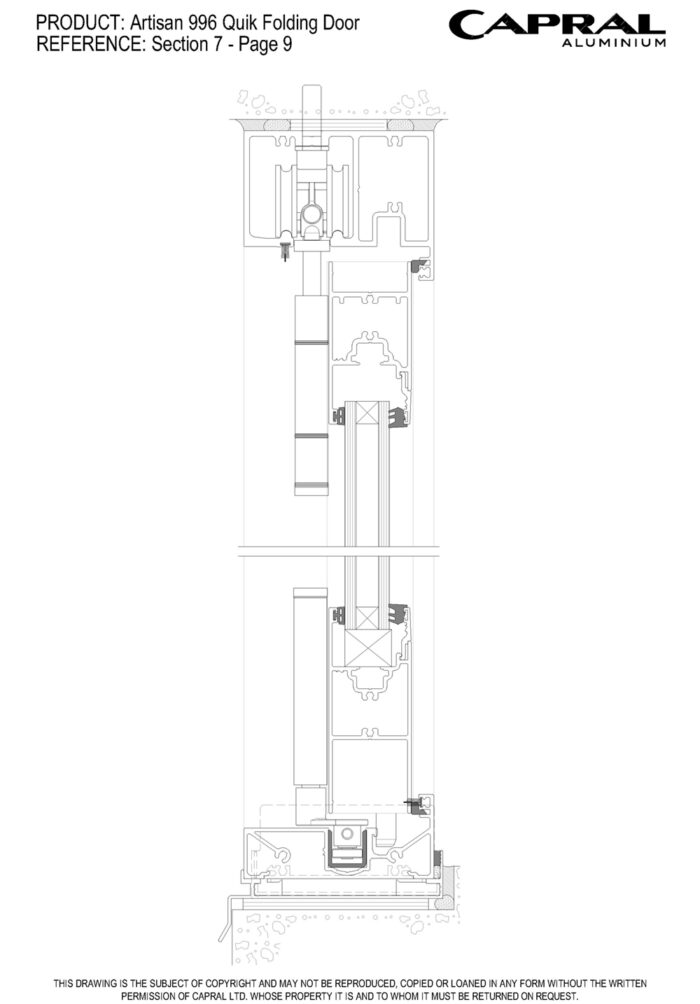

Open Out(Vertical)

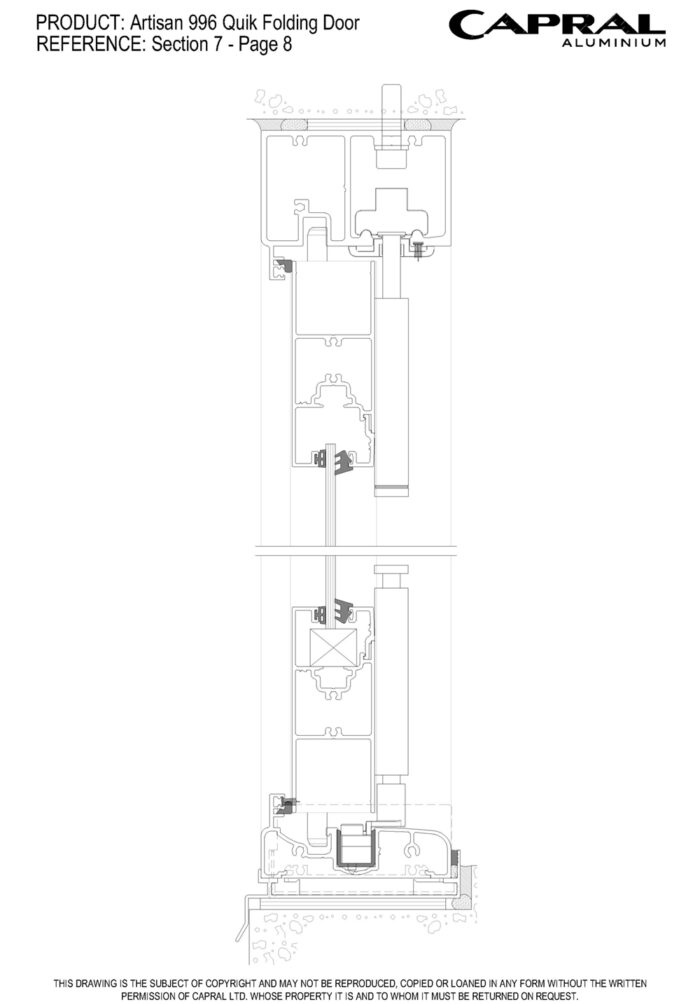

Open In (Vertical)

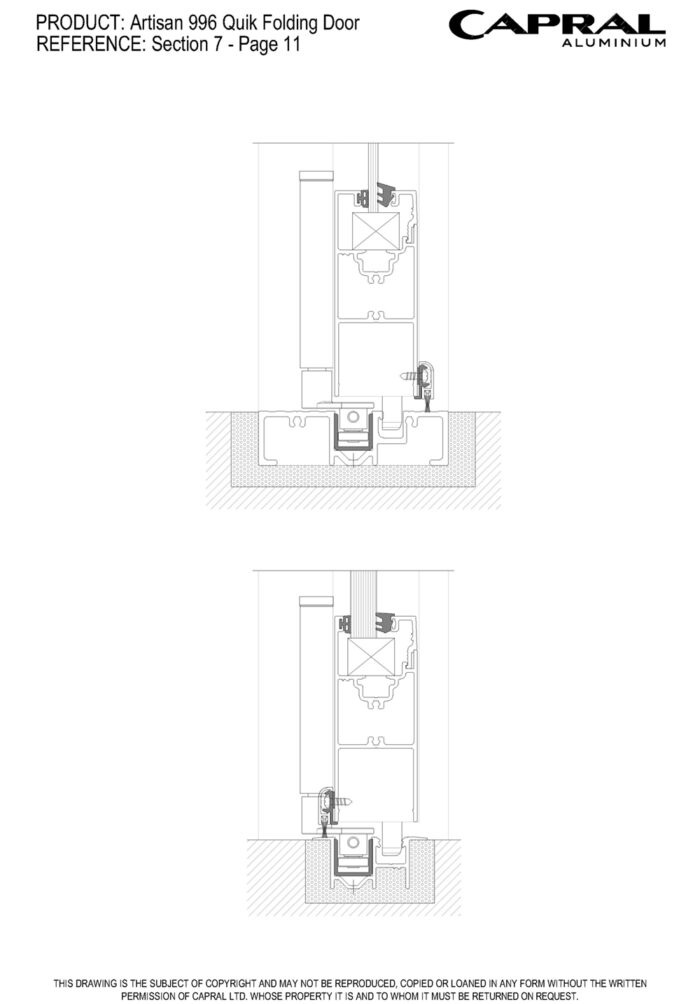

Recessed Sills

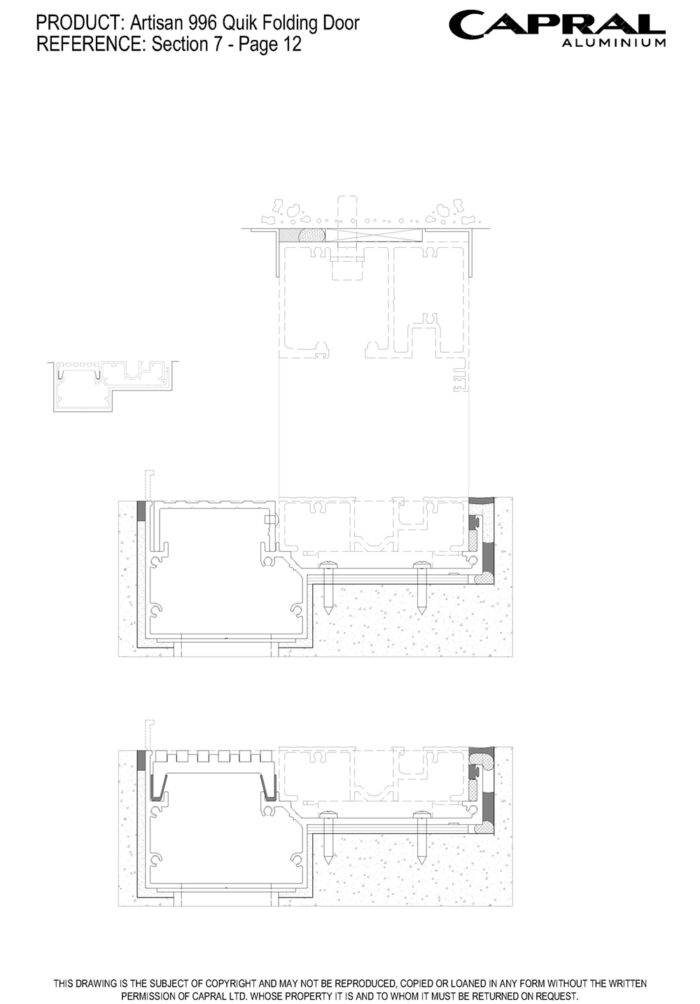

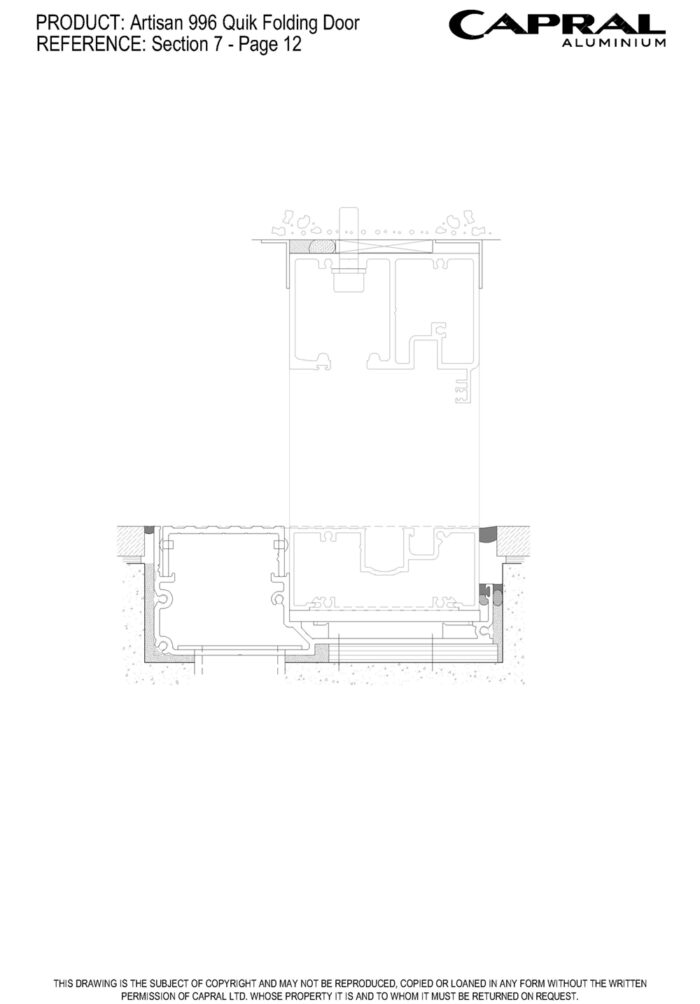

Aquago Sills

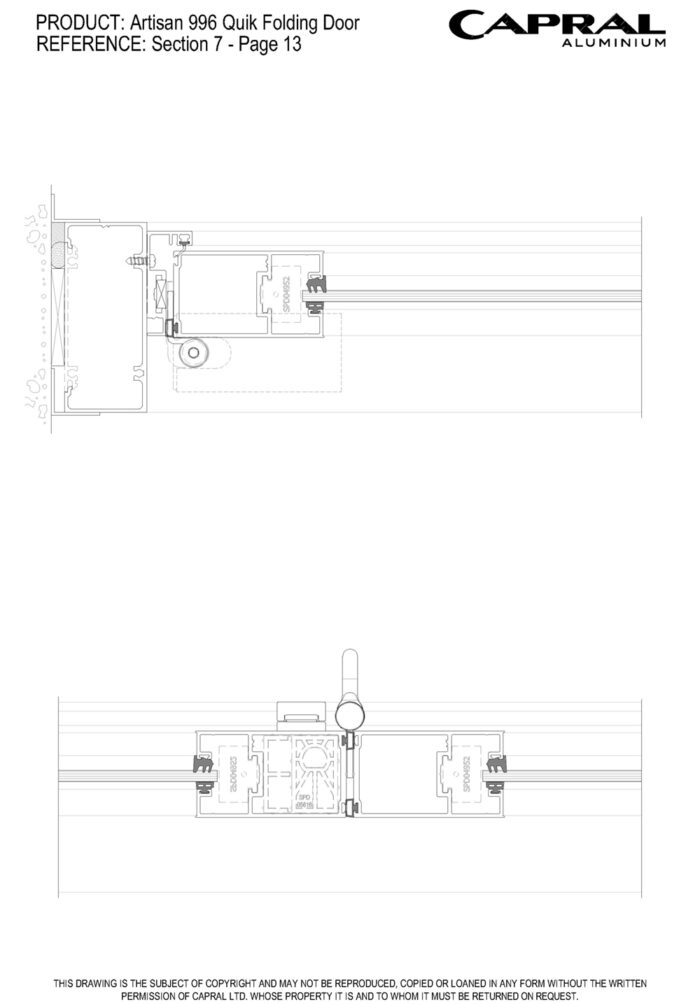

Open Out Pivot Jamb & Hinge Stiles

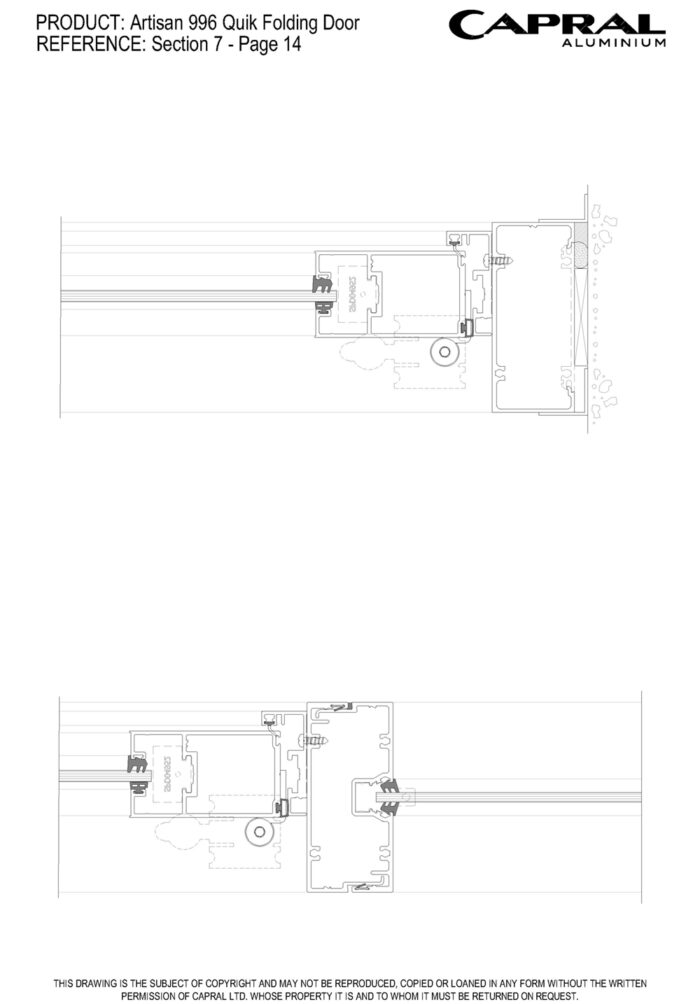

Open Out Hanger Jamb & Side Light Mullion
Open Out Lock Jamb

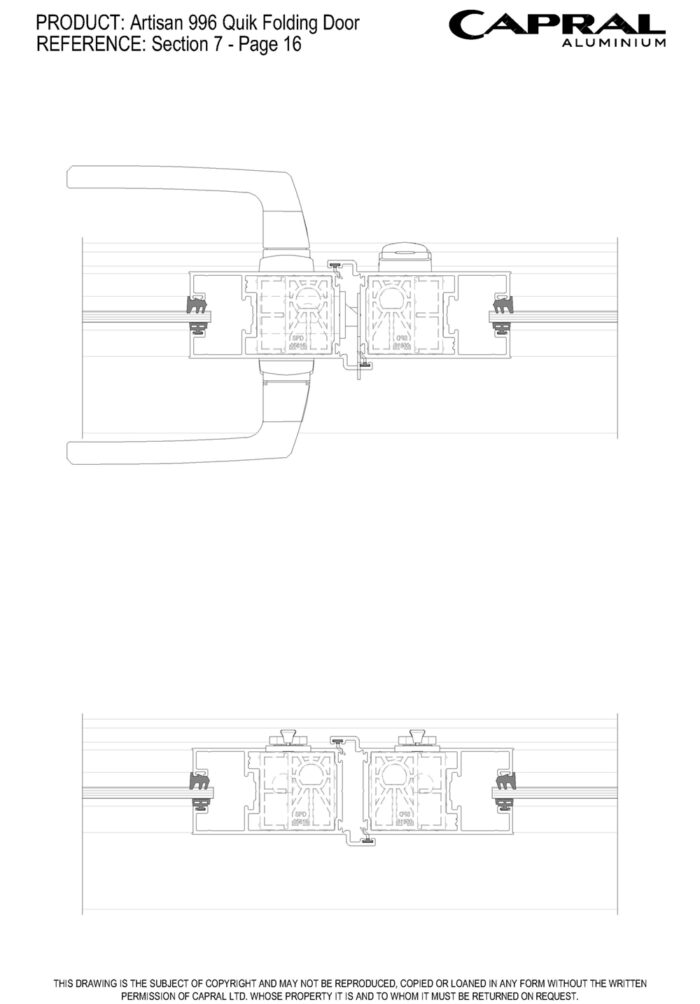

Open Out Meeting Stiles
Open Out Access Meeting Stiles

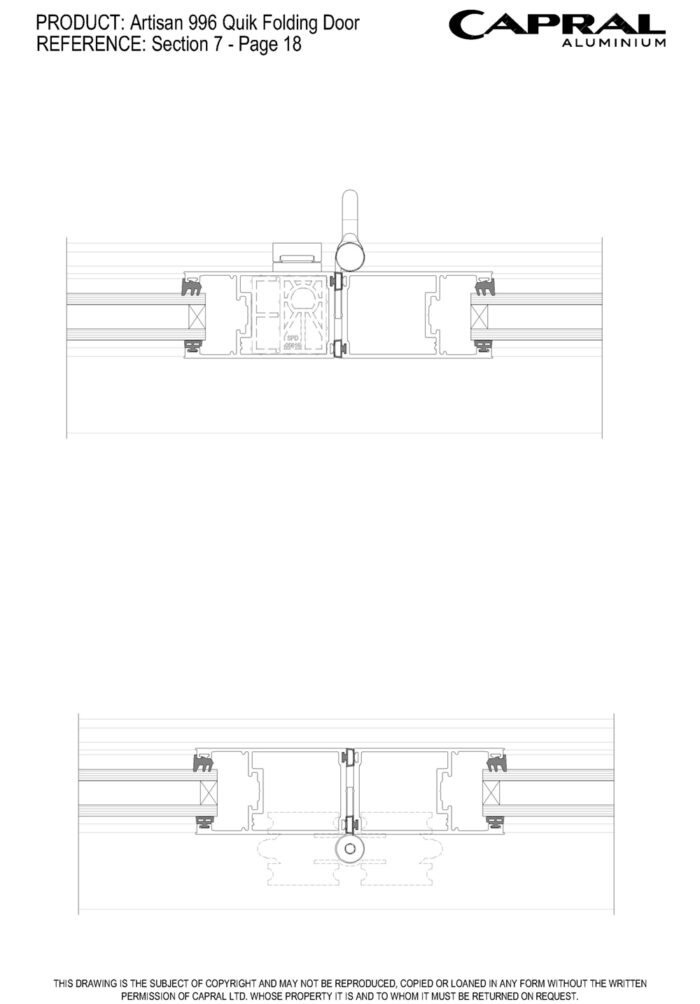

Offset Hinge & Intermediate Roller Stiles

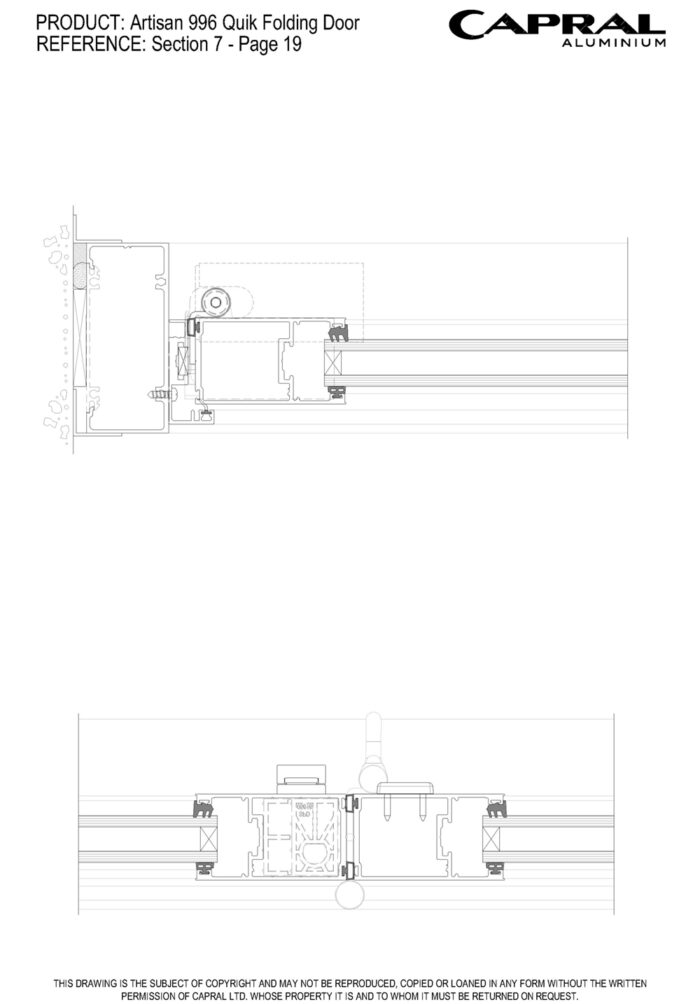

Open In Pivot Jamb

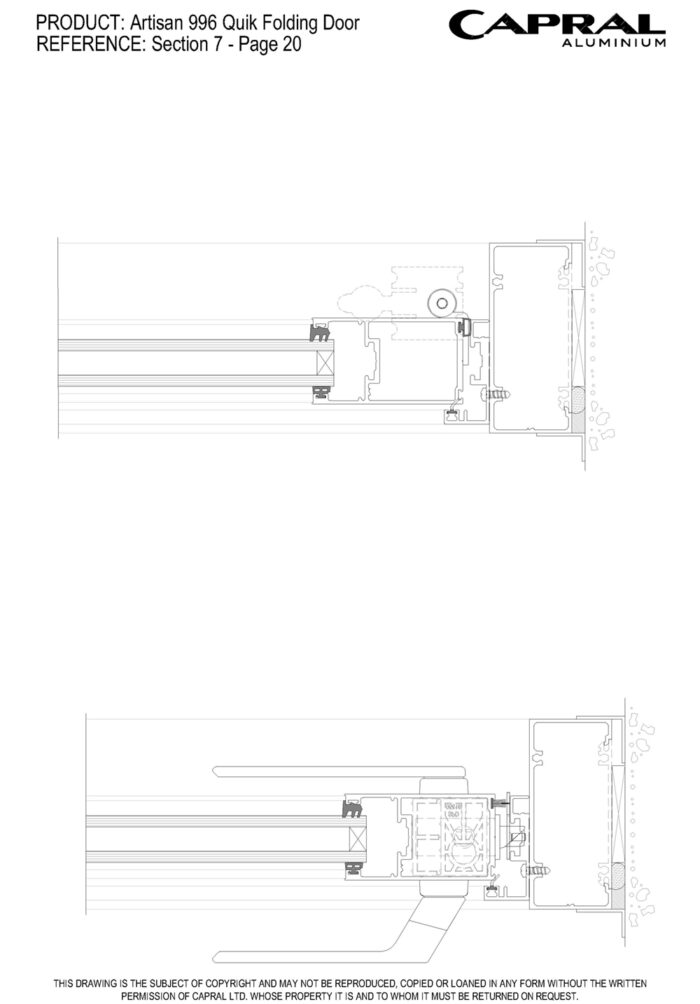

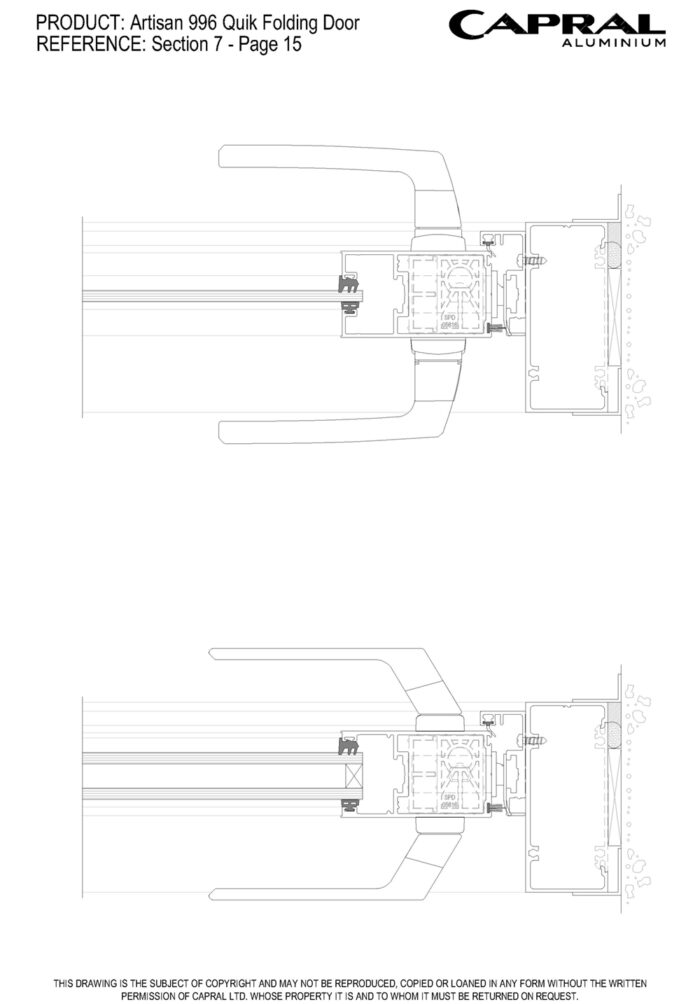

Open In Hanger & Lock Jambs

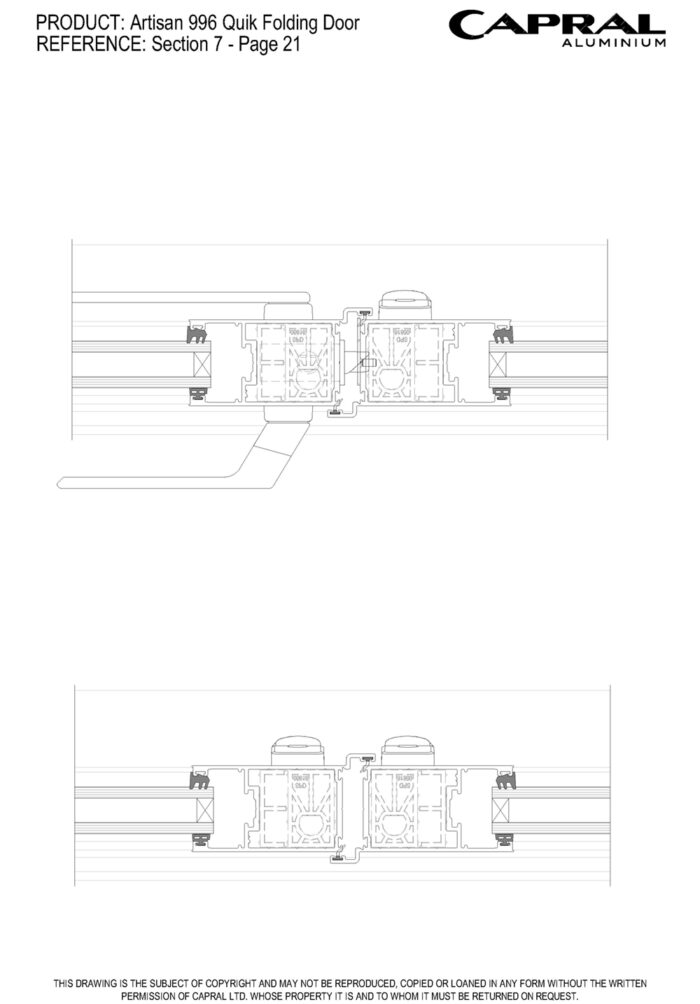

Open in Meeting Stiles

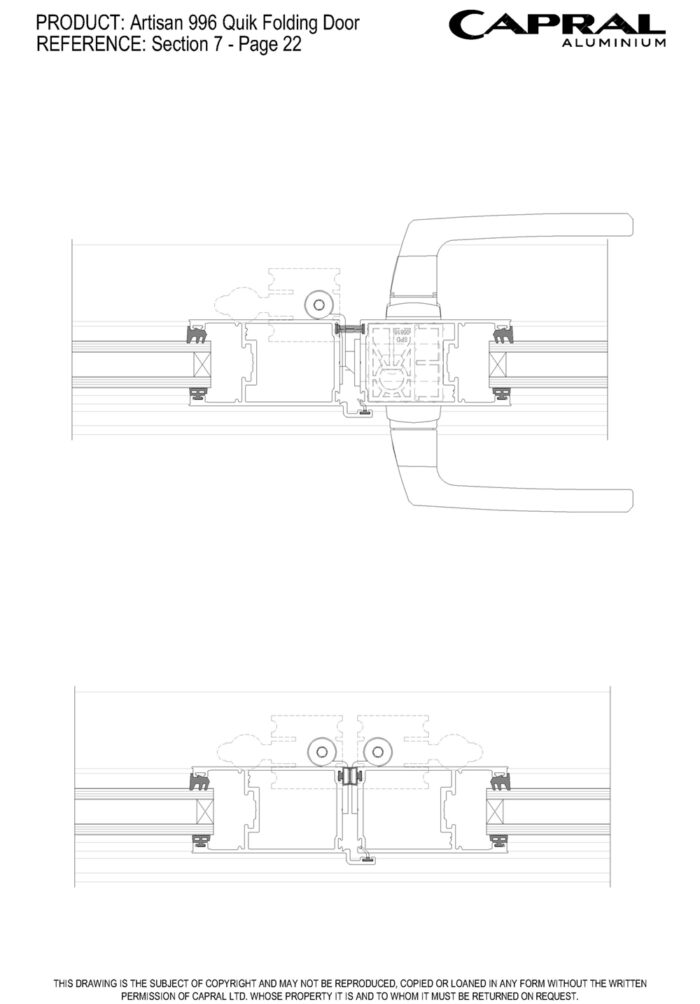

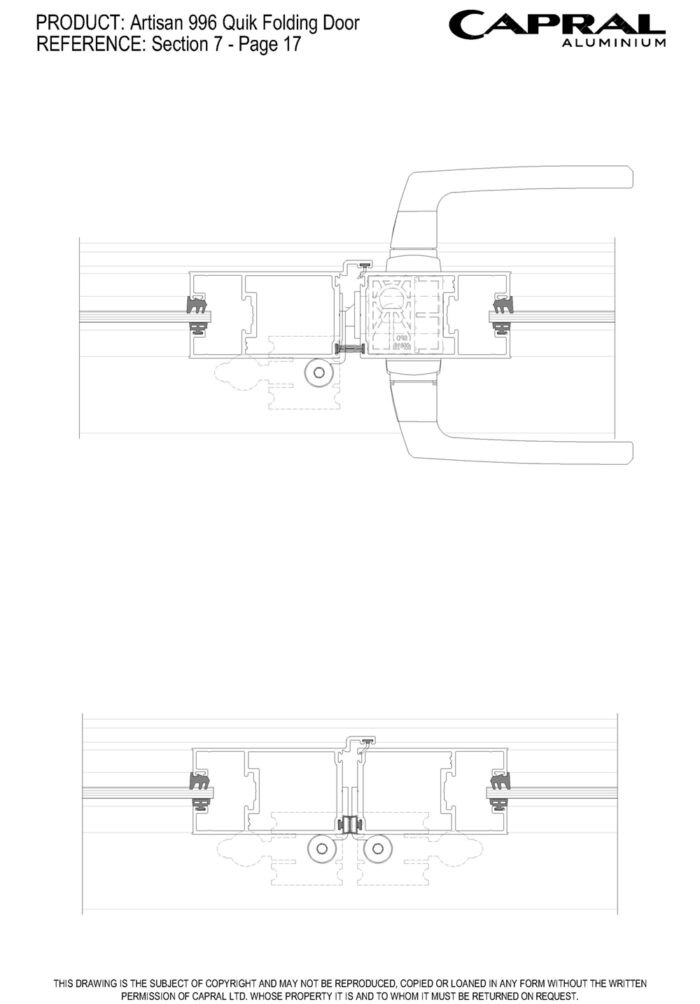

Open In Access & End Hanger Meeting Stiles

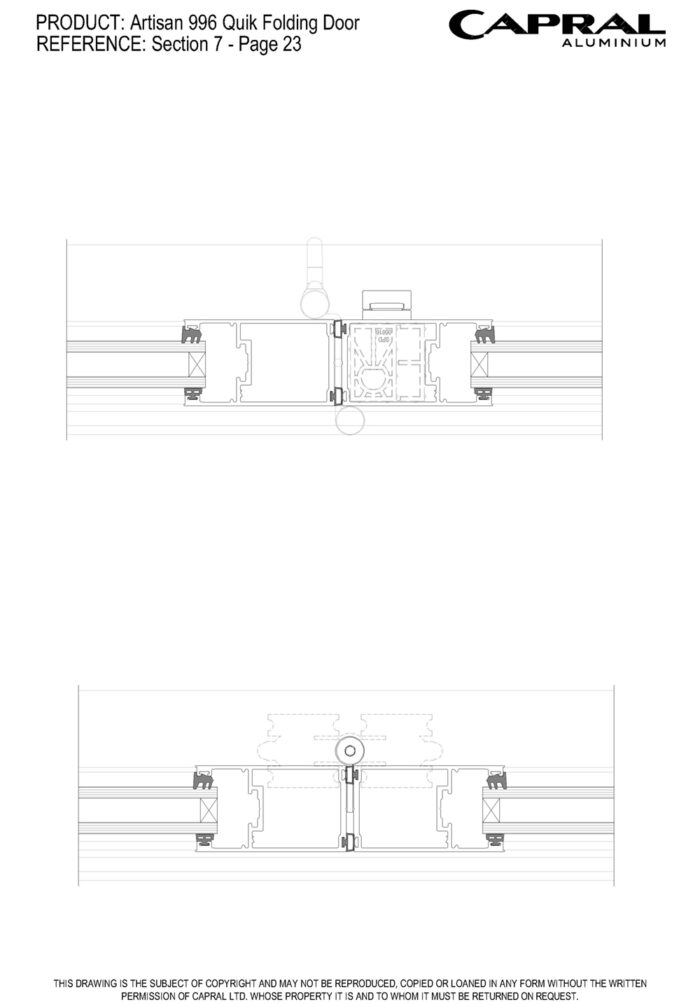

Open In Offset Hinge & Intermediate Hanger Stiles
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Artisan 996 Quik Folding Door
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart Artisan Folding & Panoramic Doors
CAD Files
CAD Files Artisan 996 Quik Folding Door
CAD Files AGS Sub Frames
CAD Wall Chart AGS Sub Framing
CAD Wall Chart Artisan Windows and Doors
Bulletins
PB356 - 996 Folding Door Volume 2 Release
