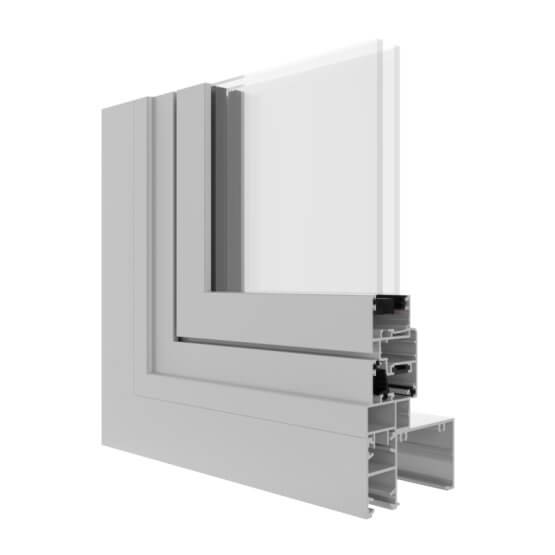

Artisan 998 Tilt-and-Turn Window
The Artisan Architectural Tilt & Turn is a multi-functional window and is compatible with the AGS Flushline range of commercial framing products.
Certified
Rated
Tested
Key features
- Single and double glazed options (up to 26mm)
- Standard and high performance configurations using sub frame system
- European designed components and hardware
- Multiple and adjustable locking points ensure structural integrity of the product is maintained even in high wind cyclonic areas
- Operable with a single handle with turn function restricted using a key override
- Inward opening allows for ease of cleaning
- An optional plant on screening adaptor
- Cyclonic debris impact resistance up to 15m/s
The Artisan Architectural Tilt & Turn is a multi-functional window and is compatible with the AGS Flushline range of commercial framing products. The tilt option opens the window inwards at the top, allowing it to be left open for ventilation whilst being safe from children climbing out and intruders entering. Once the key is inserted, a turn of the handle opens the window from the side, giving you the ability to direct airflow, clean
windows safely from the inside and providing a quick escape in case of emergencies.
The Artisan Architectural Tilt & Turn Window is an ideal solution to common problems in residential and commercial applications such as multi-storey apartments and hotel complexes. The multi-point locking system also provides excellent structural and water performance making it suitable for use in high wind cyclonic areas.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
2100
Panel Width (mm)
1300
Panel Weight (kg)
80
Frame Dimensions (mm)
Frame depth (mm)
100
Also compatible with 150mm Framing Systems
Acoustic Rating
Rw (C;Ctr)
38(-1;-3)
Maximum Product Performance
SLS (Pa)
3000
ULS (Pa)
8000
WATER (Pa)
700
Glazing Details
Single Glazed
4 - 12
Double Glazed
23 - 26
Thick Glazed
14 - 18
Energy Performance
Uw Range
4.79 - 6.74
SHGC Range
0.15 - .43
Tvw Range
0.04 - 0.39
Air infiltration
0.12 - 0.12
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Artisan 998 Tilt and Turn Window
Technical Manual AGS Sub Frames
Wall Charts
Extrusion Wall Chart Artisan Windows
Extrusion Wall Chart Capral Screening
CAD Files
CAD Files Artisan 998 Tilt and Turn Window
CAD Files AGS Sub Frames
CAD Files Capral Screening
CAD Wall Chart AGS Sub Framing
CAD Wall Chart Artisan Windows & Doors
Bulletins
PB344 - AGS & Artisan Tilt & Turn Window Relaunch
Other
Capral Artisan Brochure
Capral Artisan 998 Tilt & Turn Brochure
Specification Artisan 998 TIlt and Turn Window
Capral Installation Details
NATSPEC Branded Work Section
Environmental Protection Declaration (EPDs)
