    Home Our Systems Windows Strut Artisan 999 Auto Strut Window
    Architectural

    Artisan 999 Auto Strut Window

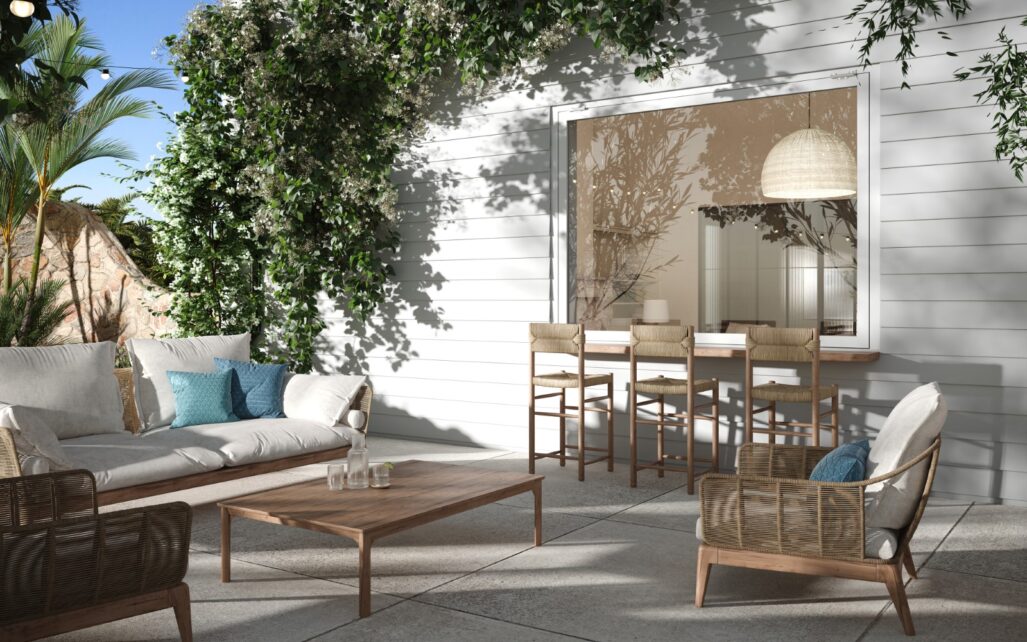

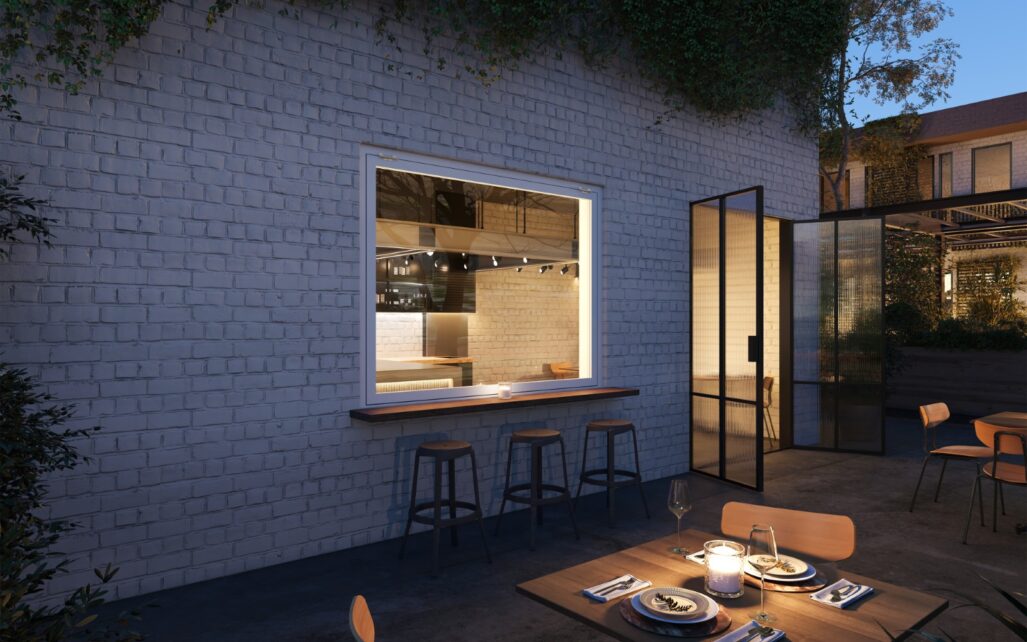

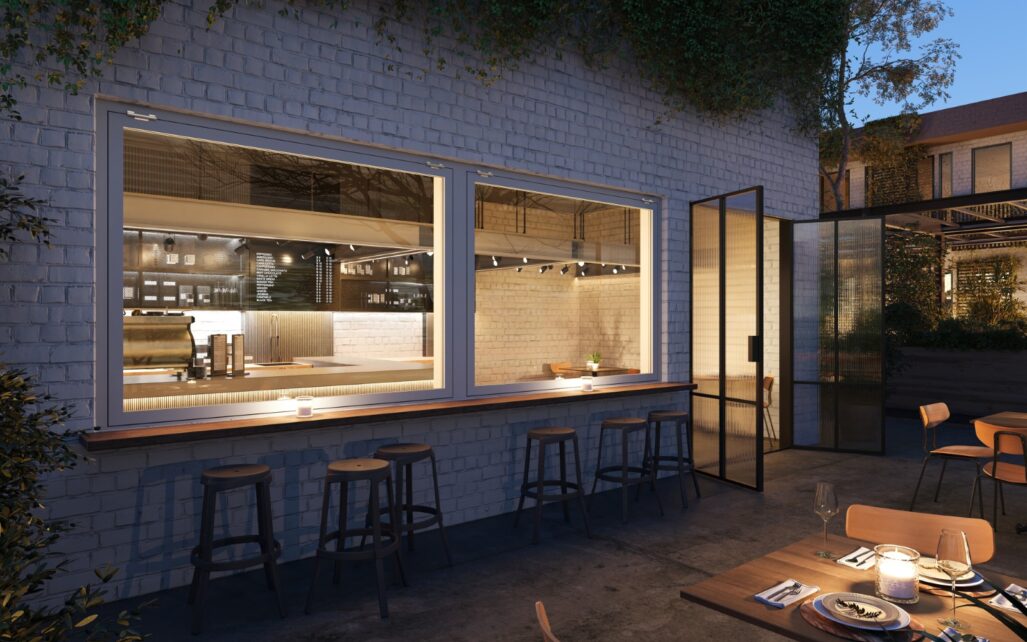

    The Artisan Architectural Automated Strut window is ideal in servery applications with large sashes that open fully to a 90 degree angle.

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    Automation
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select
    Key features
    • Opening and closing functionality is fully automated
    • Integratable with the AGS Series 619 and 629 Flushline framing system
    • Features a mitred sash with no hiding spots for spiders
    • Available with a water-rated threshold or non-water-rated silless design

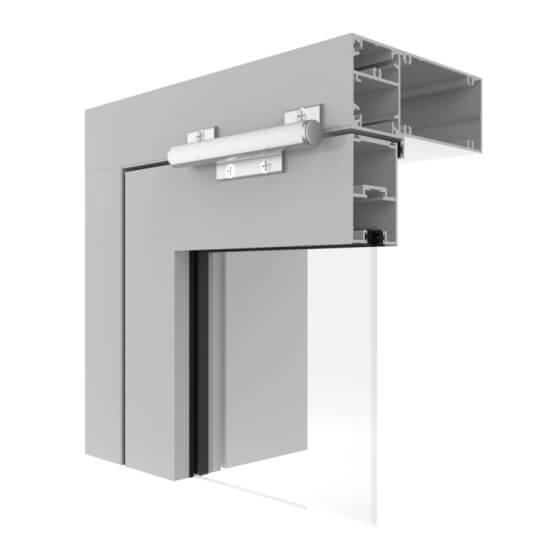

    • Operating hardware is concealed within the custom pelmet
    • Integrated self-latching mechanism

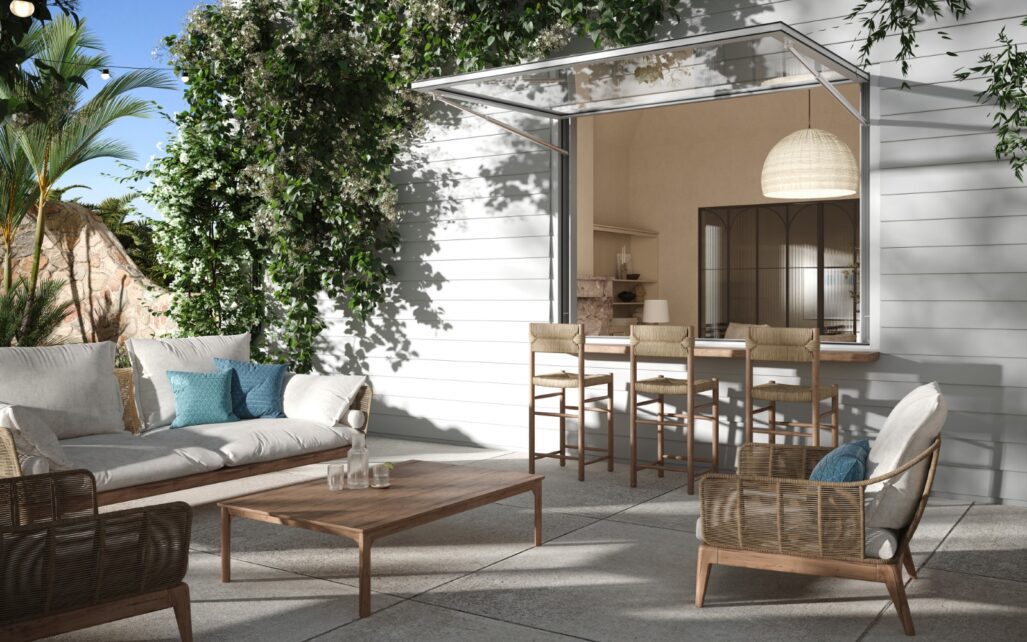

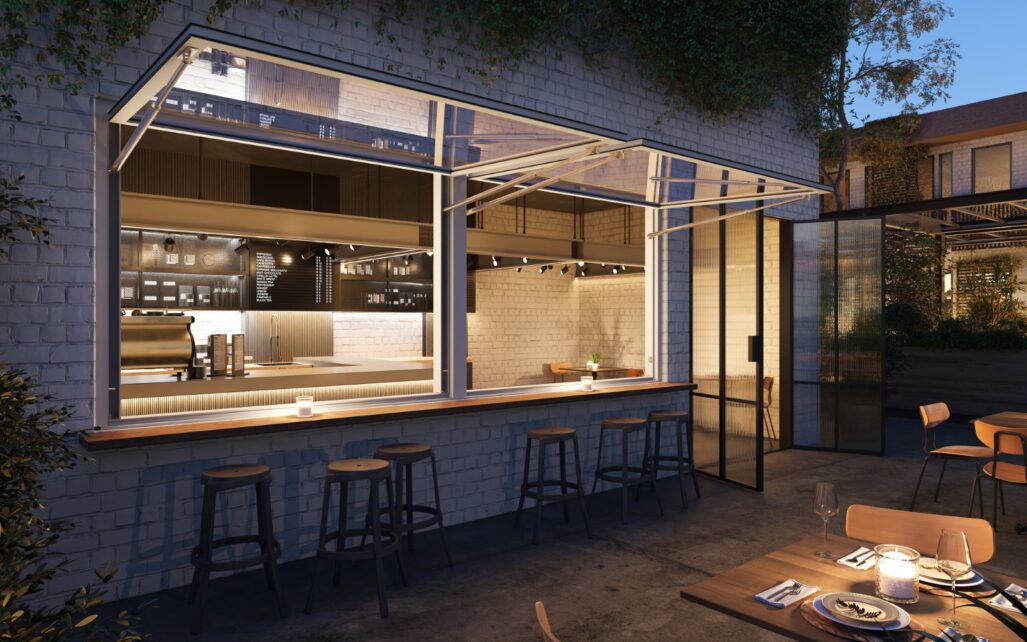

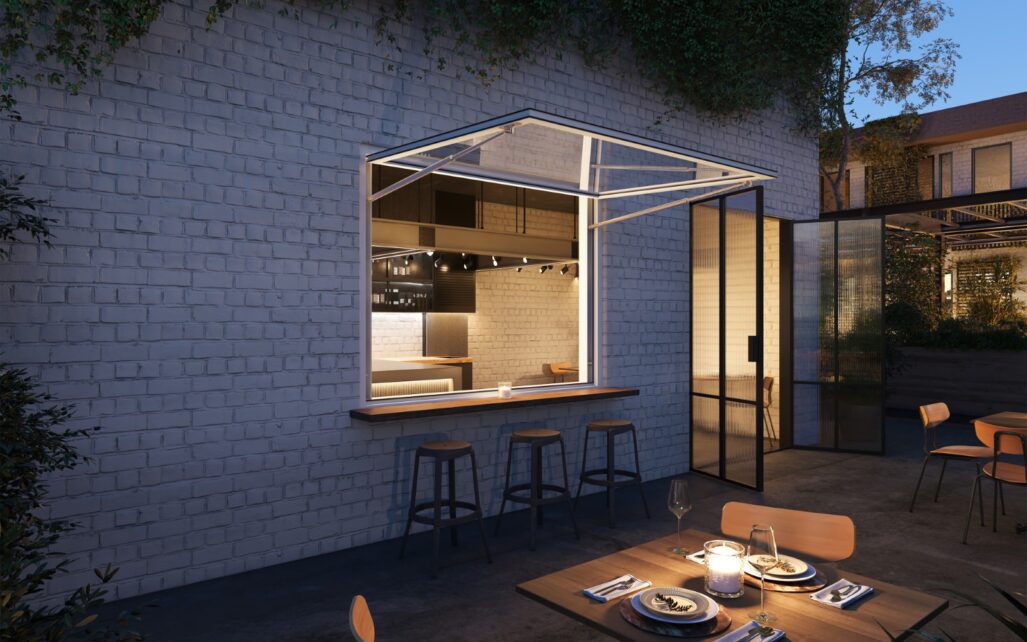

    The Artisan Architectural Automated Strut window is ideal in servery applications, allowing for large openings that conveniently stay out of the way when fully open at a 90 degree angle.
    Operating hardware is concealed for a clean look and feel and the window is available with or without a sill. Integration to the Capral AGS 619 and 629 Flushline framing systems allows you flexibility in design while maintaining a uniform appearance.

    Download Brochure

    Details

    Product Specs

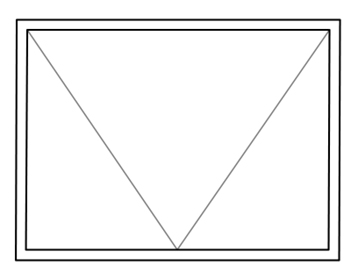

    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 1700
    Panel Width (mm) 2100
    Panel Weight (kg) 65

    Frame Dimensions (mm)

    Frame depth (mm) 150

    Maximum Product Performance

    SLS (Pa) 800
    ULS (Pa) 2400
    WATER (Pa) 597

    Glazing Details

    Single Glazed 4 - 12
    Double Glazed 19 - 31
    Thick Glazed 14 - 18

    Energy Performance

    Uw Range 4.29 - 6.66
    SHGC Range 0.33 - 0.51
    Tvw Range 0.22 - 0.5
    Air infiltration 2.24 - 2.24
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual Artisan 999 Automated Strut Window
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS Speciality Sub Frames
    Extrusion Wall Chart Artisan Windows
    CAD Files
    CAD Files Artisan 999 Automated Strut Window
    CAD Files AGS Sub Frames
    CAD Wall Chart AGS Sub Framing
    CAD Wall Chart Artisan Windows & Doors
    Bulletins
    PB357 - Artisan Architectural 999 Automated Strut Window
    Other
    Capral Artisan Brochure Capral Artisan 999 Automated Strut Window Brochure Specification Artisan 999 Automated Strut Window Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
