    Artisan Architectural 934 Panoramic Sliding Door

    Inspired by European design, the Artisan Architectural Panoramic Door pairs minimalist style with robust local engineering.

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    Disability
    Access
    WERS
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select
    Key features
    • Australian-designed and tested for local conditions
    • Manufactured from Australian-made, LocAl® lower-carbon aluminium extrusions

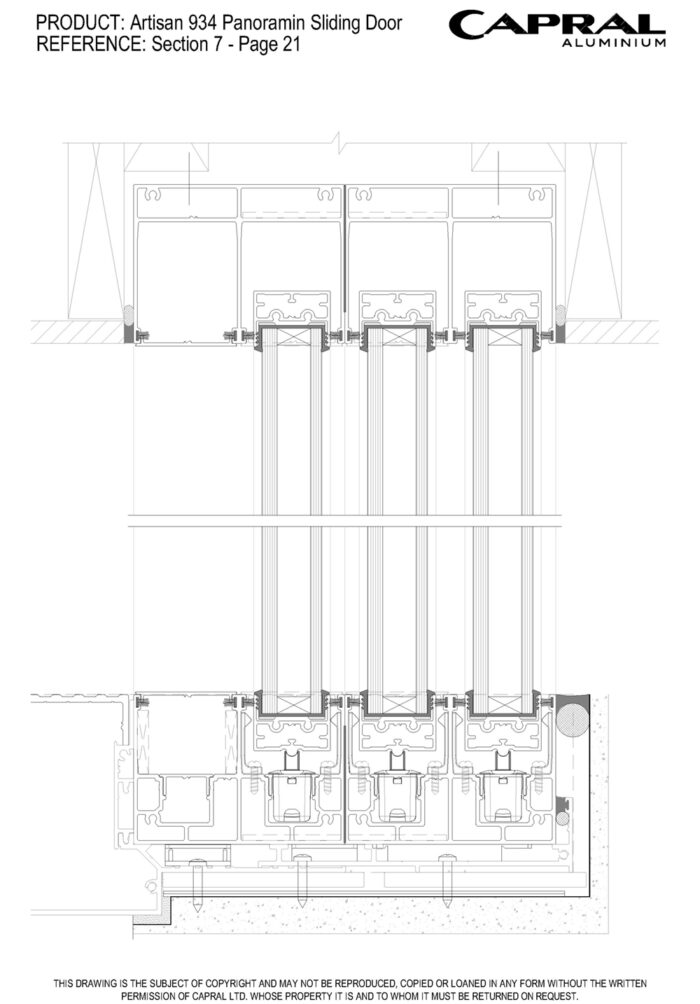

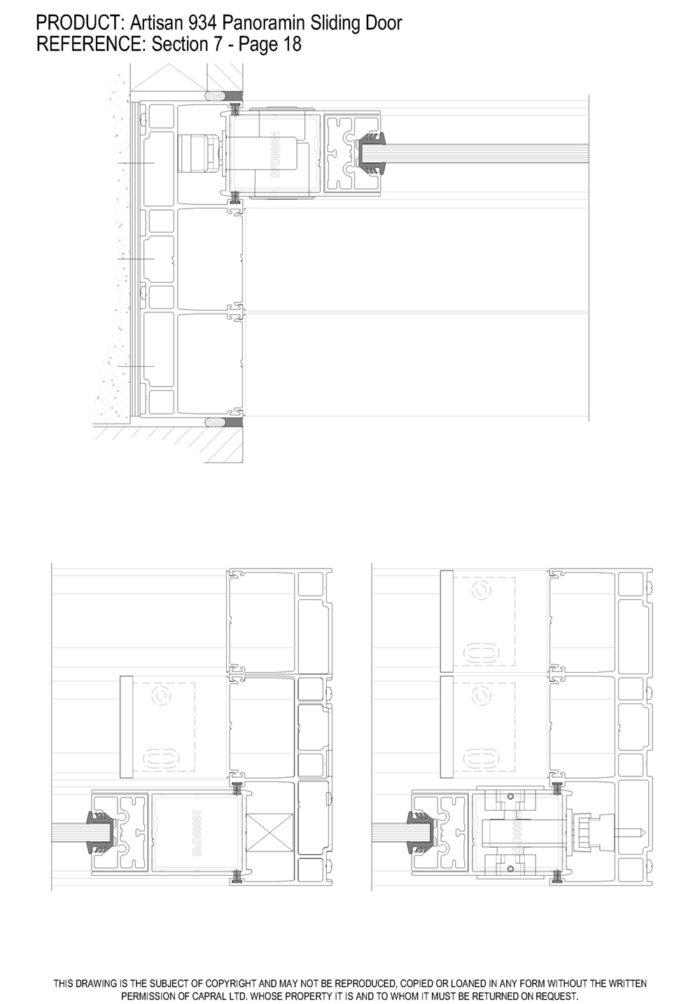

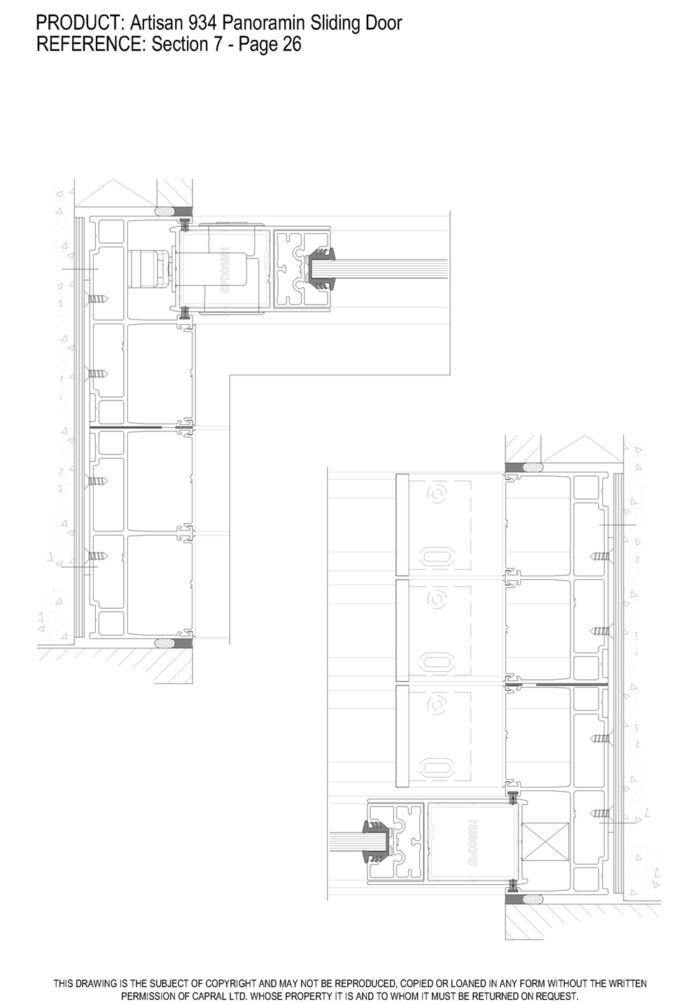

    • Available in double and triple track outer frame options
    • Exclusively designed components enhance performance and functionality
    • Handle-free system for a clean, minimalist aesthetic

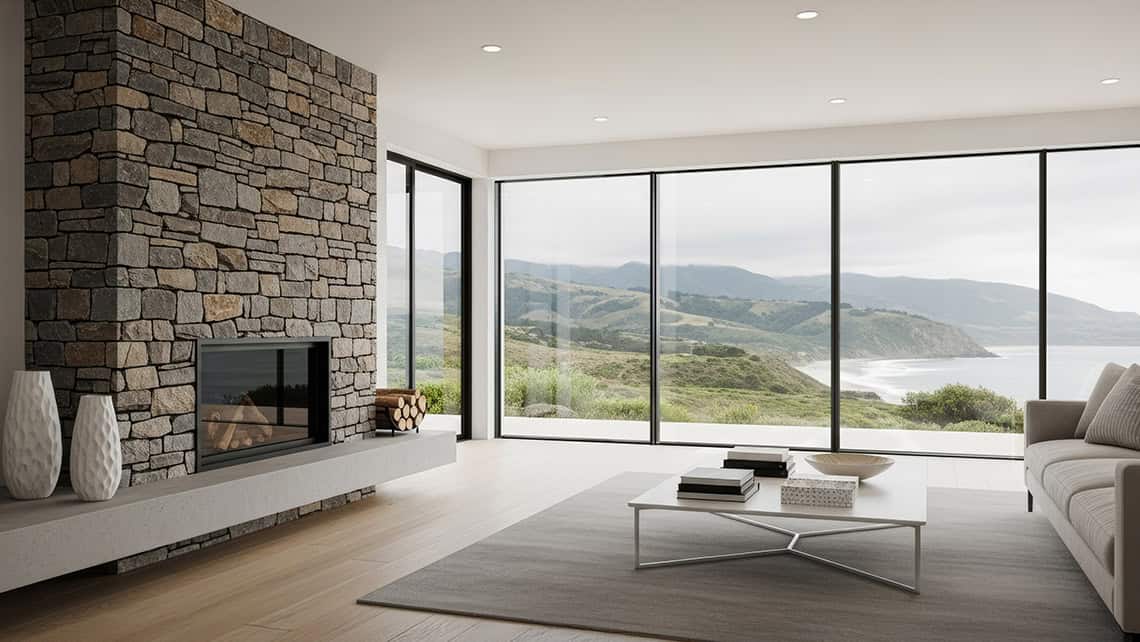

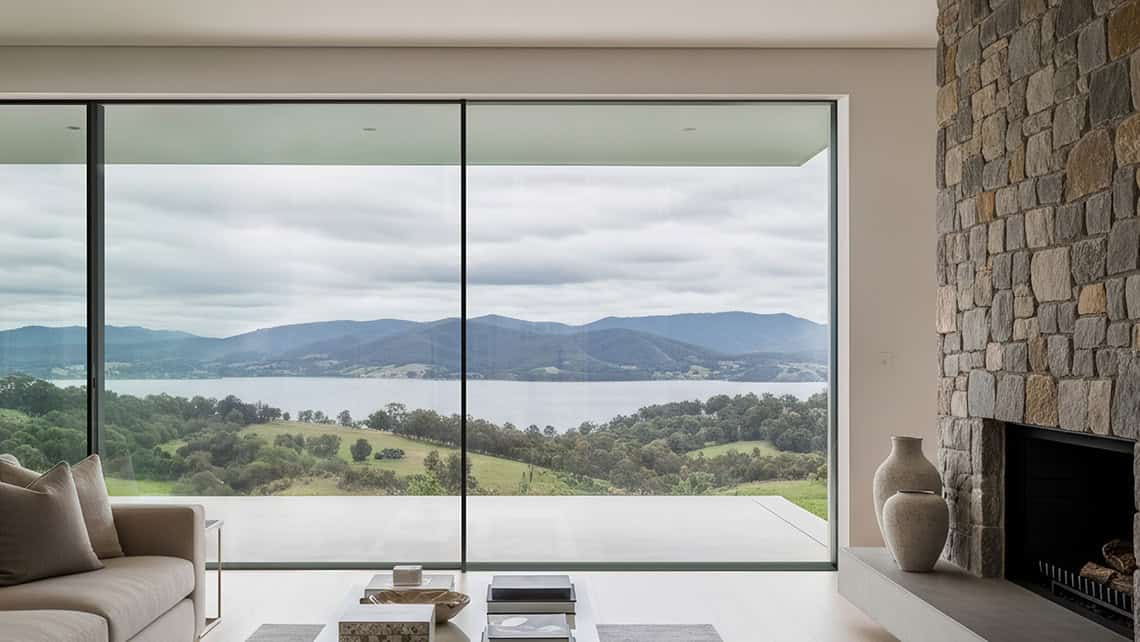

    • Floor-to-ceiling glazing units maximise transparency and visual appeal
    • Easy roller maintenance—no need to remove door panels
    • Integrated recessed sill and Aquago Drain System for smooth water management
    • Full sub-frame available for flexible installation

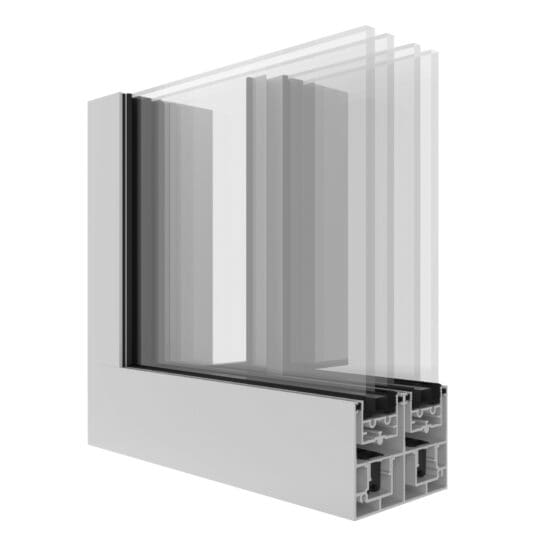

    • Wrap-around channel glazing with integral glass support blocks for a streamlined manufacturing and finish

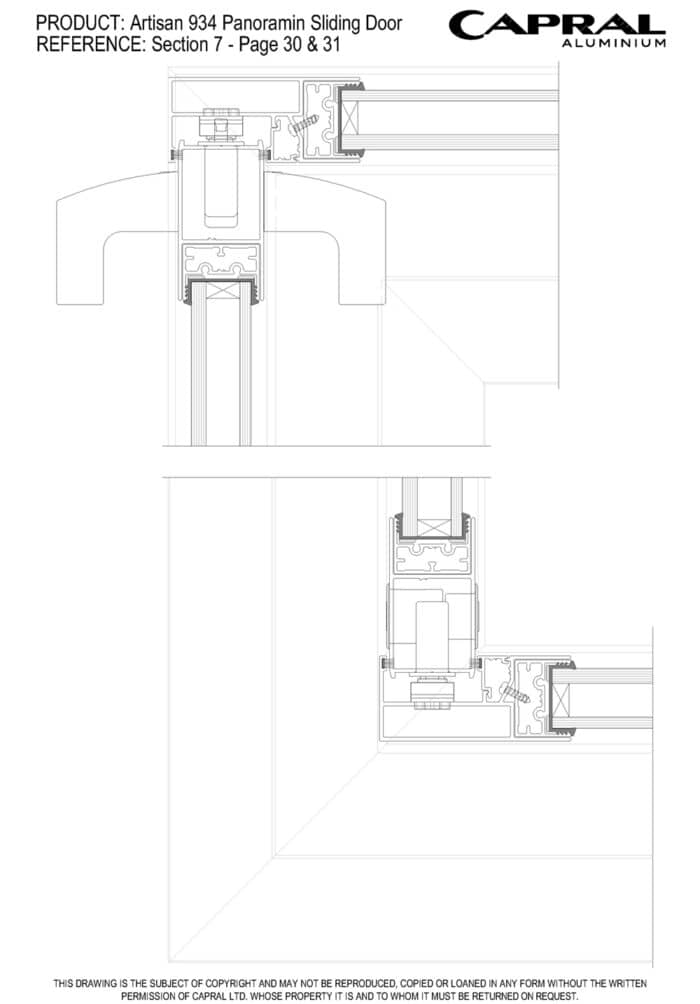

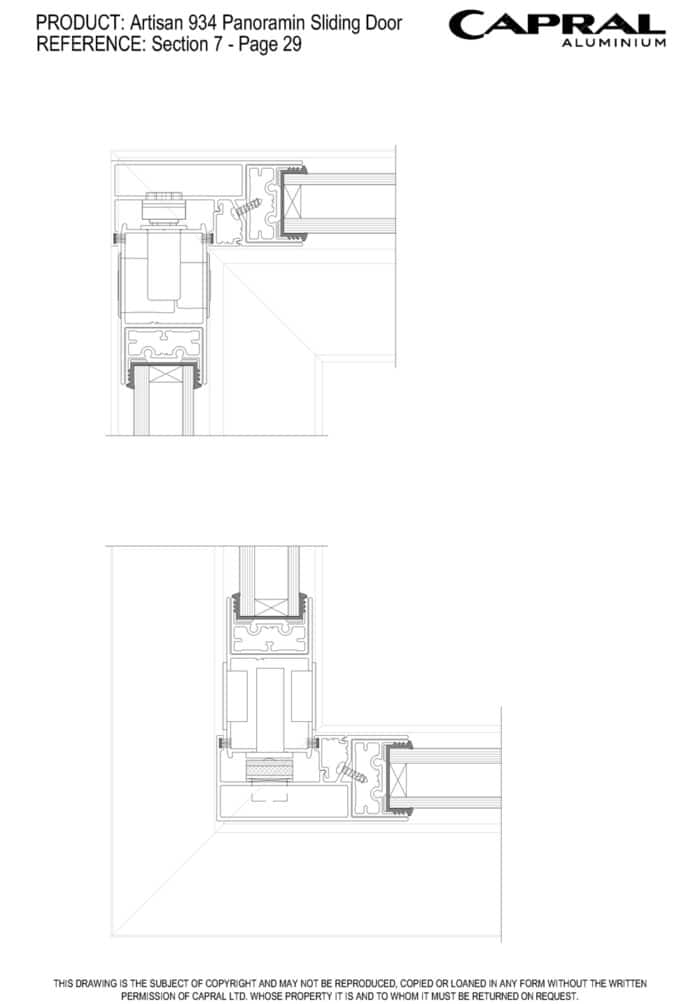

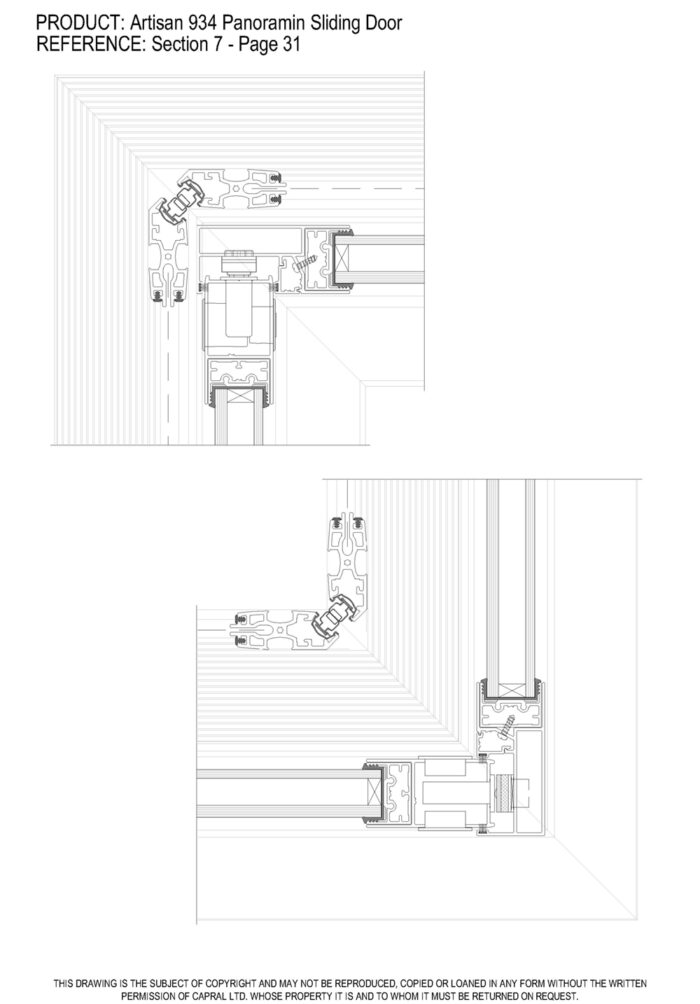

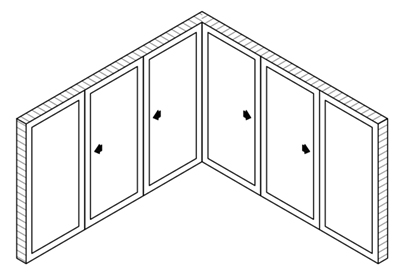

    • Corner entry configurations and traditional lock options available

    Inspired by European design, the Artisan Architectural Panoramic Door pairs minimalist style with robust local engineering. Featuring floor-to-ceiling glazing, handle-free function, recessed sill options, and exclusive high-performance components, it offers a seamless indoor-outdoor flow.

    Proudly Australian Designed and rigorously tested specifically for Australian conditions, it uses lower-carbon LocAl® aluminium and meets AS2047 standards. With double and triple track options and easy maintenance features, the Artisan Panoramic Door is a refined, high-performance solution for premium residential and architectural projects.

    Download Brochure

    Details

    Product Specs

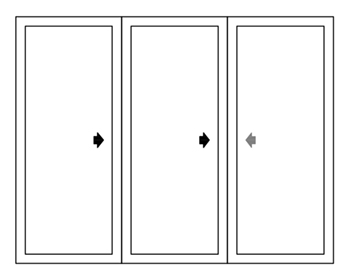

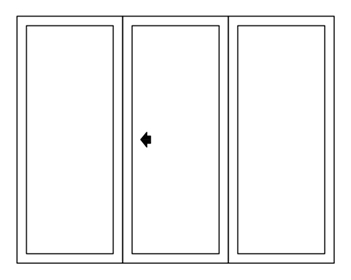

    Configurations

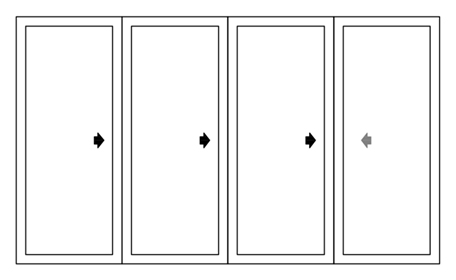

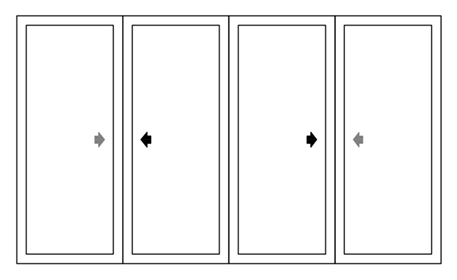

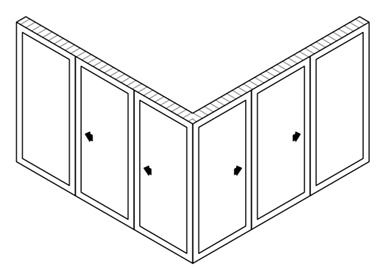

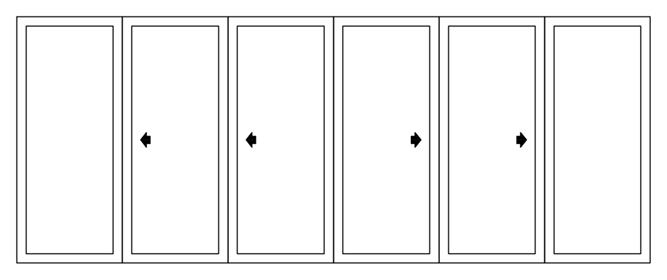

    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 3500
    Panel Width (mm) 2400
    Panel Weight (kg) 320
    Maximum Overall Width 6500

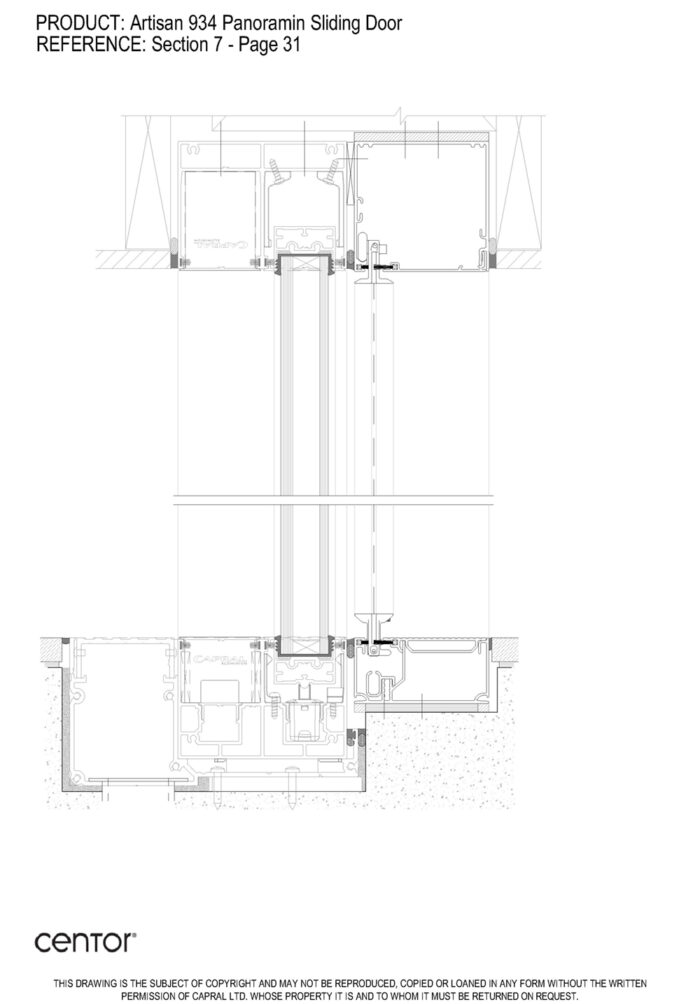

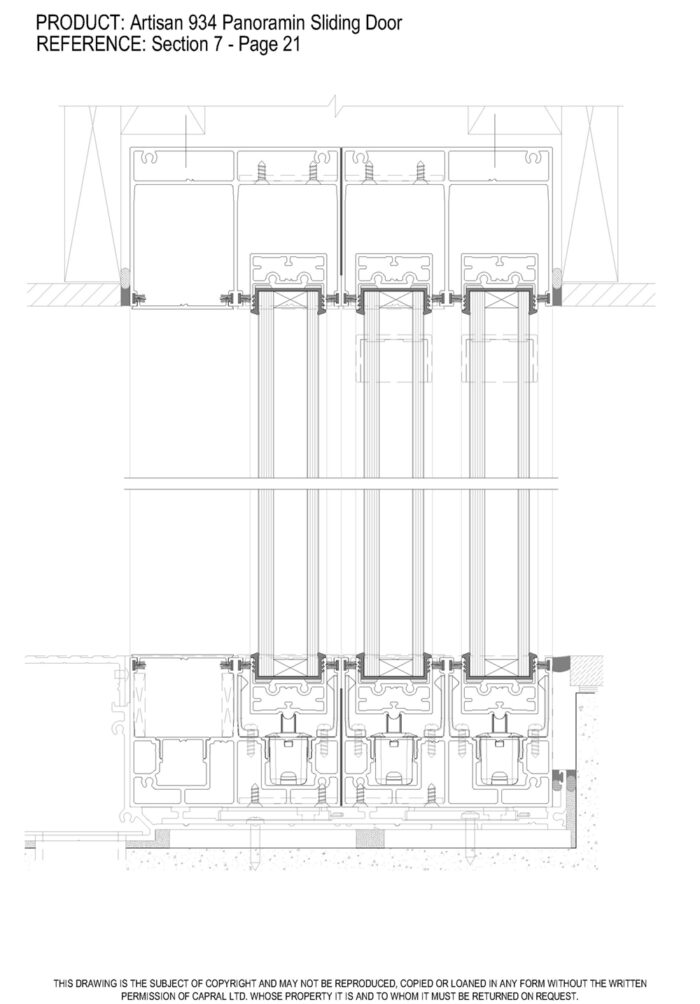

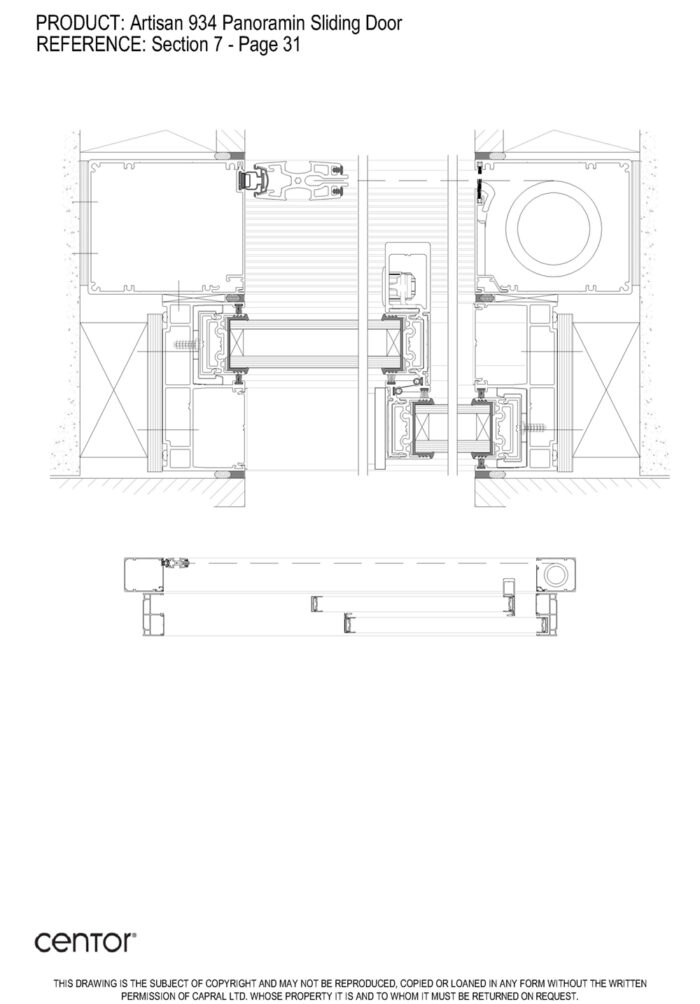

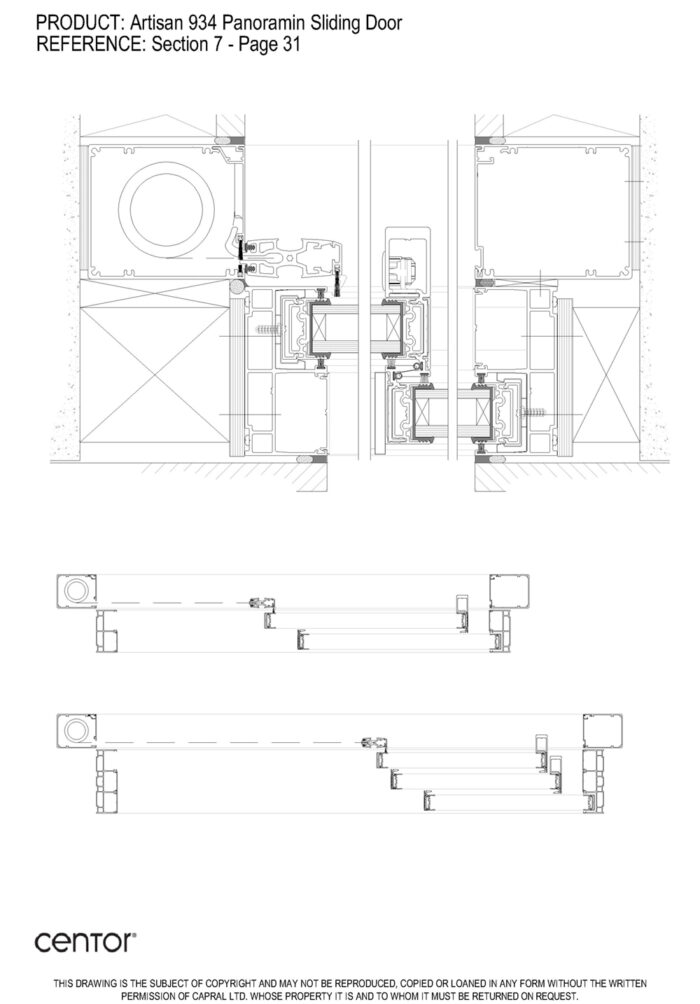

    Frame Dimensions (mm)

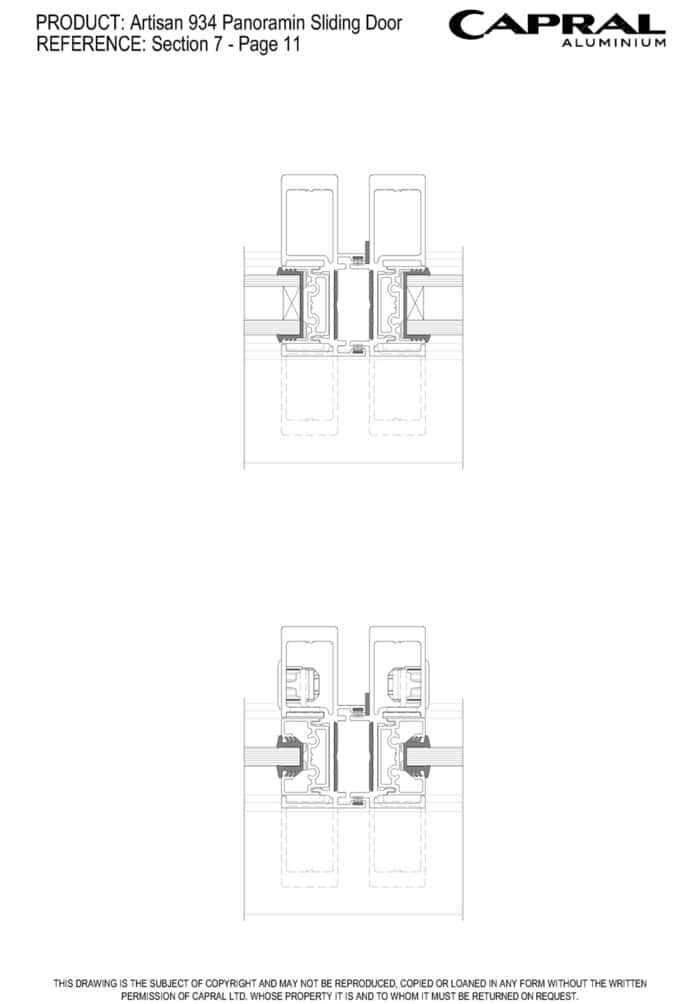

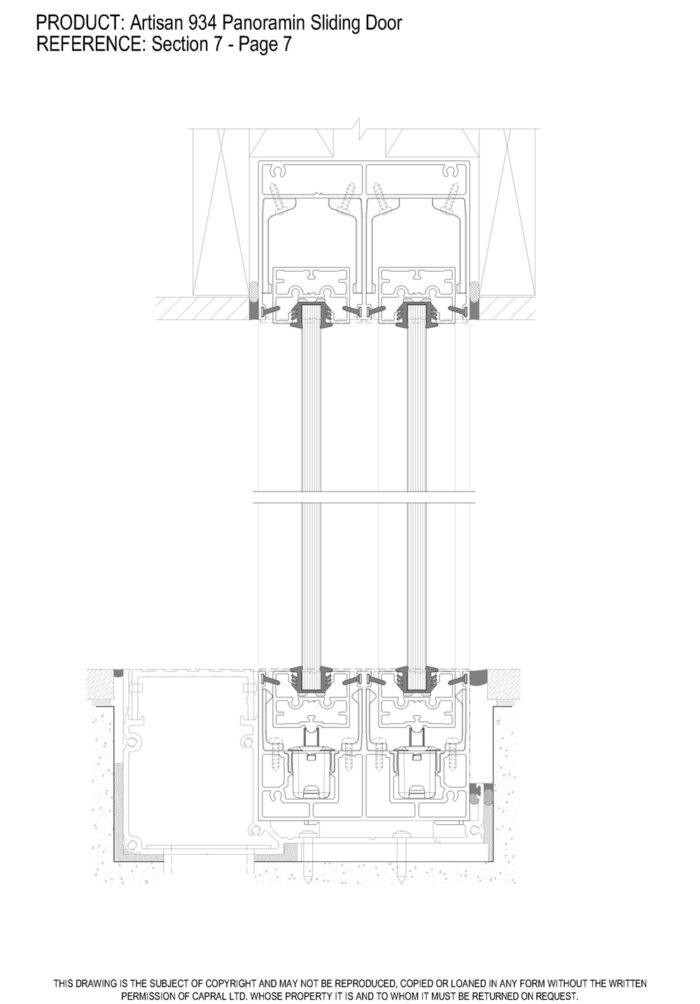

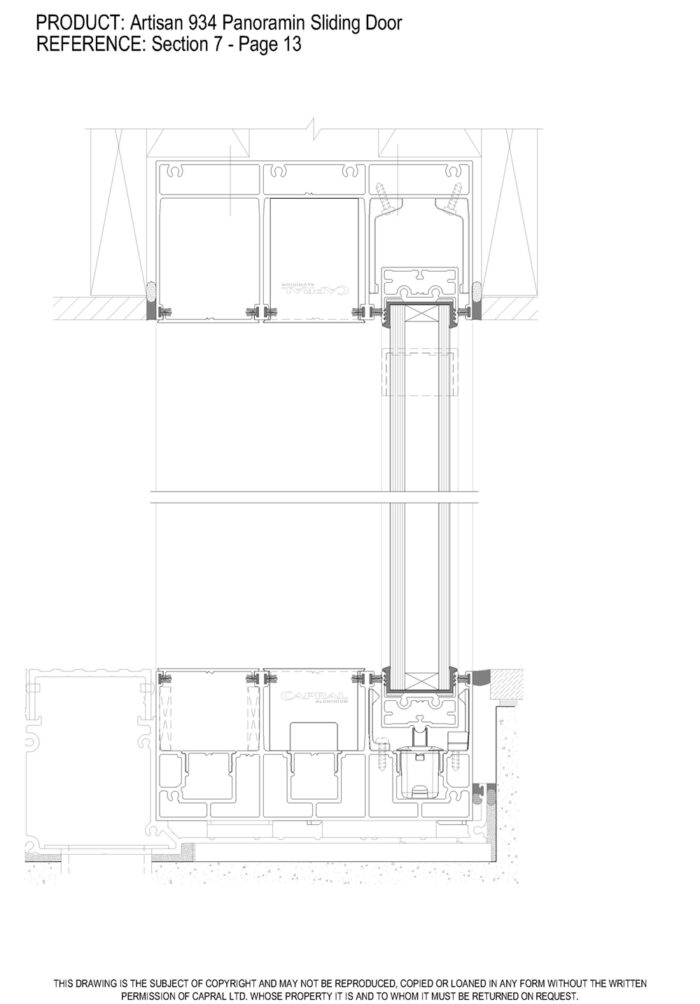

    2 Track Frame 113

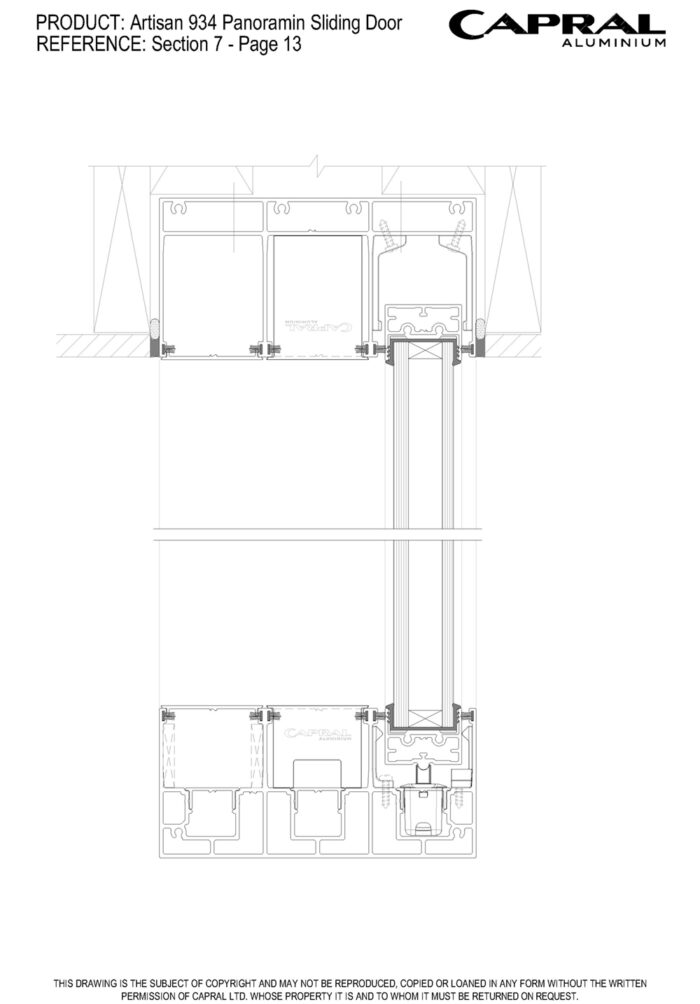

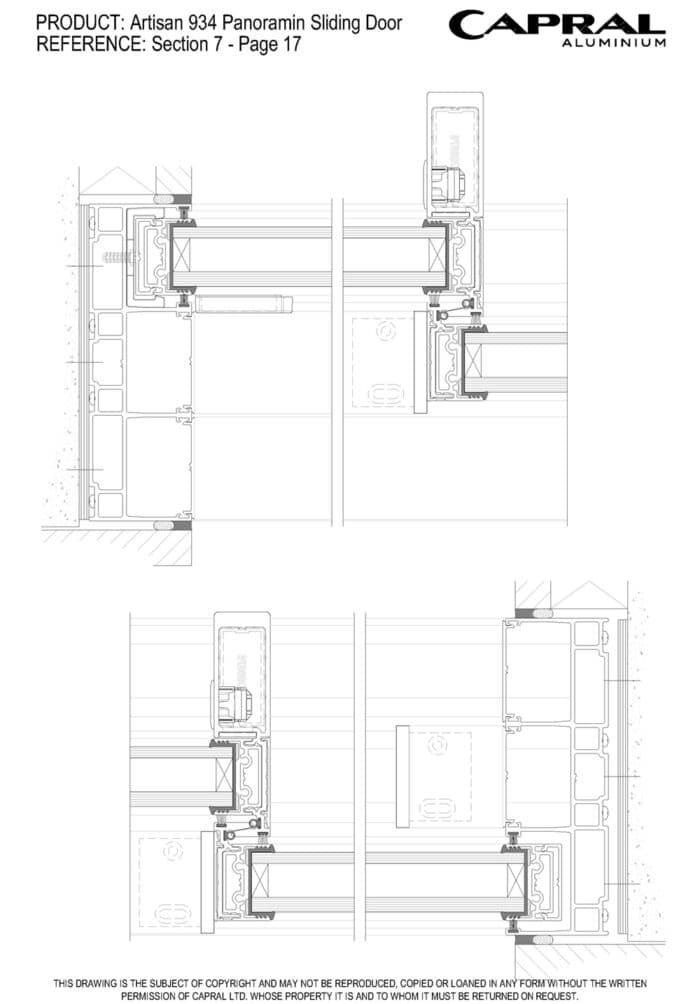

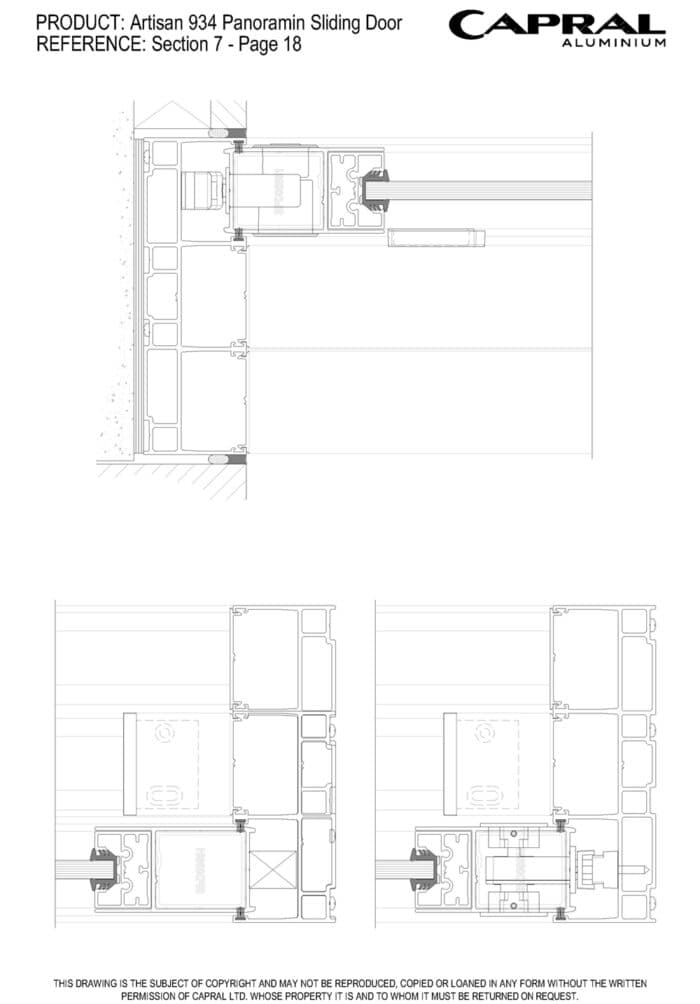

    3 Track Frame 169.5

    Maximum Product Performance

    SLS (Pa) 4100
    ULS (Pa) 6000
    WATER (Pa) 600

    Glazing Details

    Single Glazed 6 - 12
    Double Glazed 24 - 32

    Energy Performance

    Uw Range 2.70 - 6.20
    SHGC Range 0.20 - 0.71
    Tvw Range 0.33 - 0.75
    Air infiltration 0.2 - 0.2
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual Artisan 934 Panoramic Sliding Door
    Technical Manual AGS Sub Frames
    Wall Charts
    Extrusion Wall Chart AGS Speciality Sub Frames
    Extrusion Wall Chart Artisan Folding & Panoramic Doors
    CAD Files
    CAD Files Artisan 934 Panoramic Sliding Door
    CAD Files AGS Sub Frames
    CAD Wall Chart AGS Sub Framing
    CAD Wall Chart Artisan Windows and Doors
    Bulletins
    PBJ1127 - Artisan 934 Panoramic Sliding Door – Sill Threshold Tile Insert
    PBJ1102 - Artisan 934 Panoramic Sliding Door Stage 2
    PBJ1008 - Artisan 934 Panoramic Sliding Door
    Other
    Capral Artisan 934 Panoramic Sliding Door Brochure
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
