Edge MAX SG150 Structural Glazed Curtain Wall

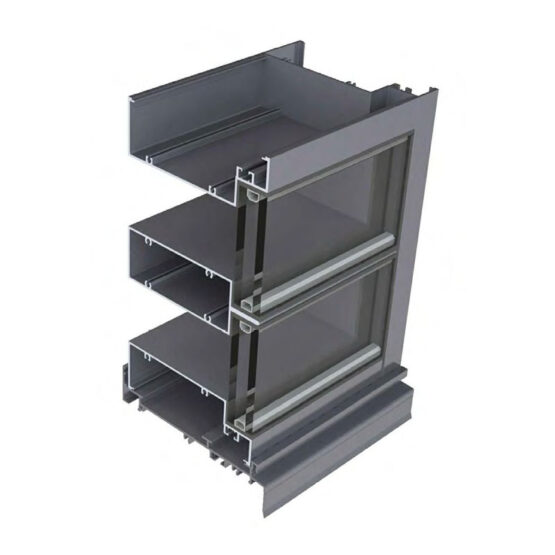

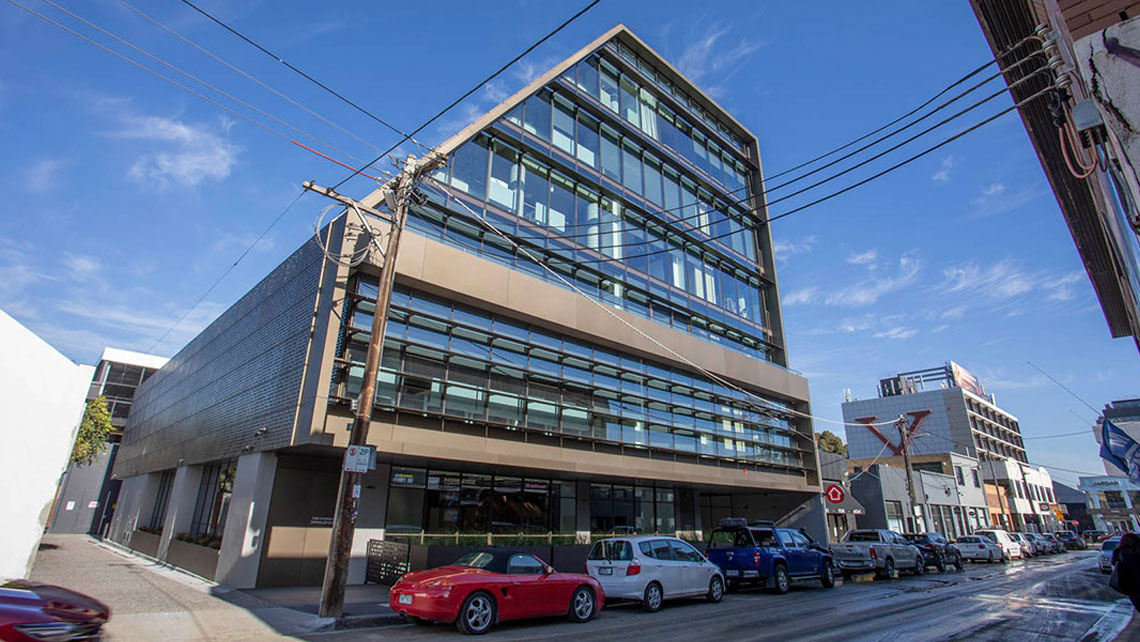

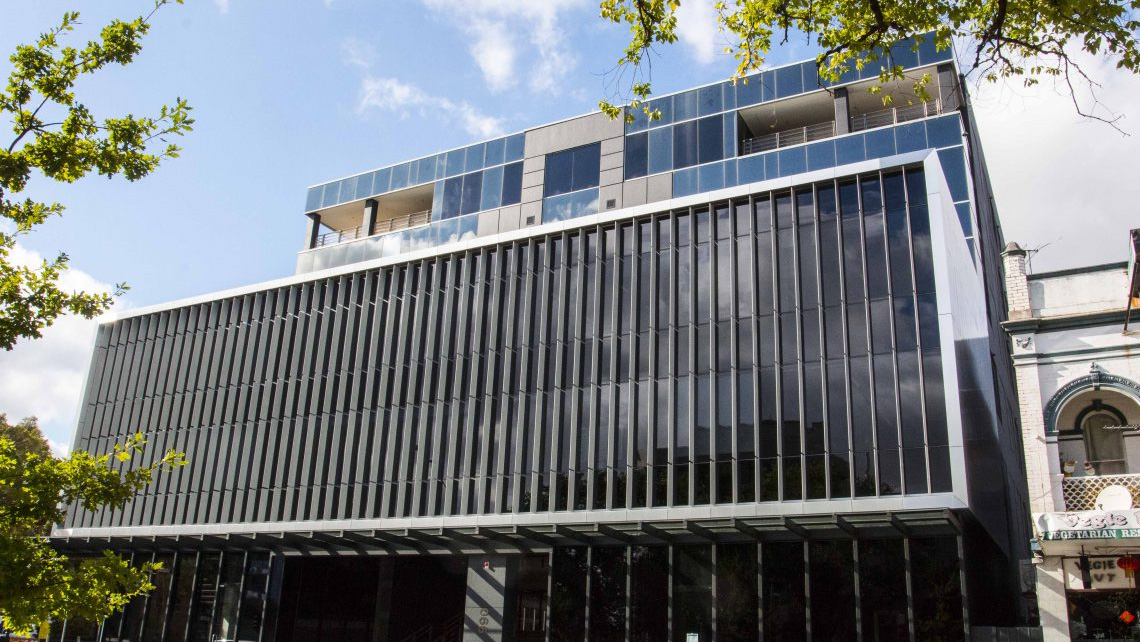

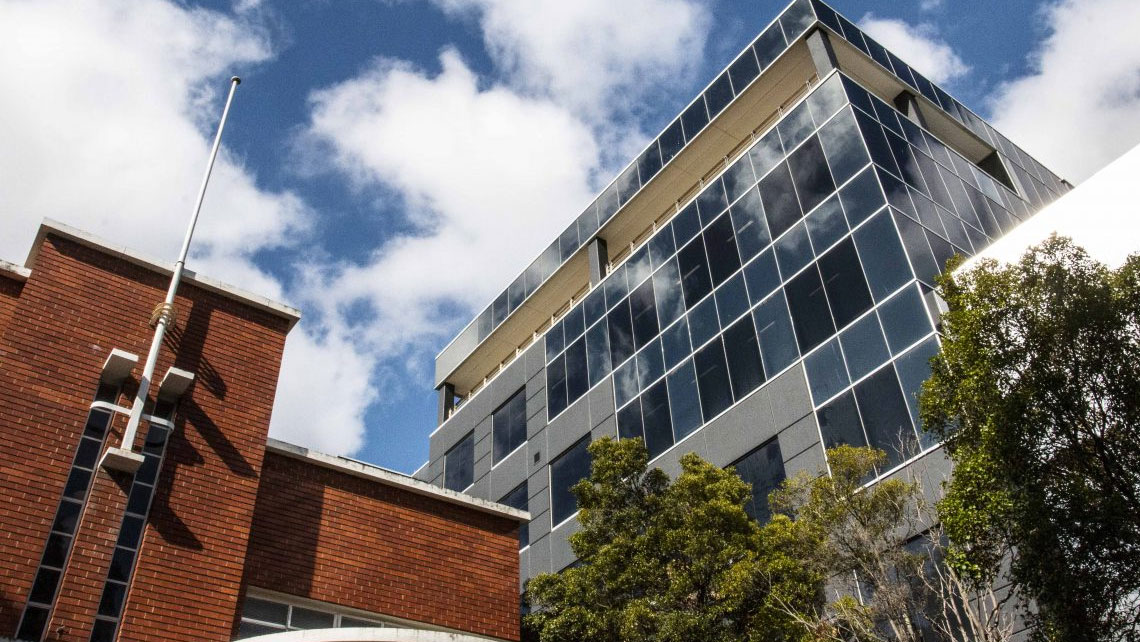

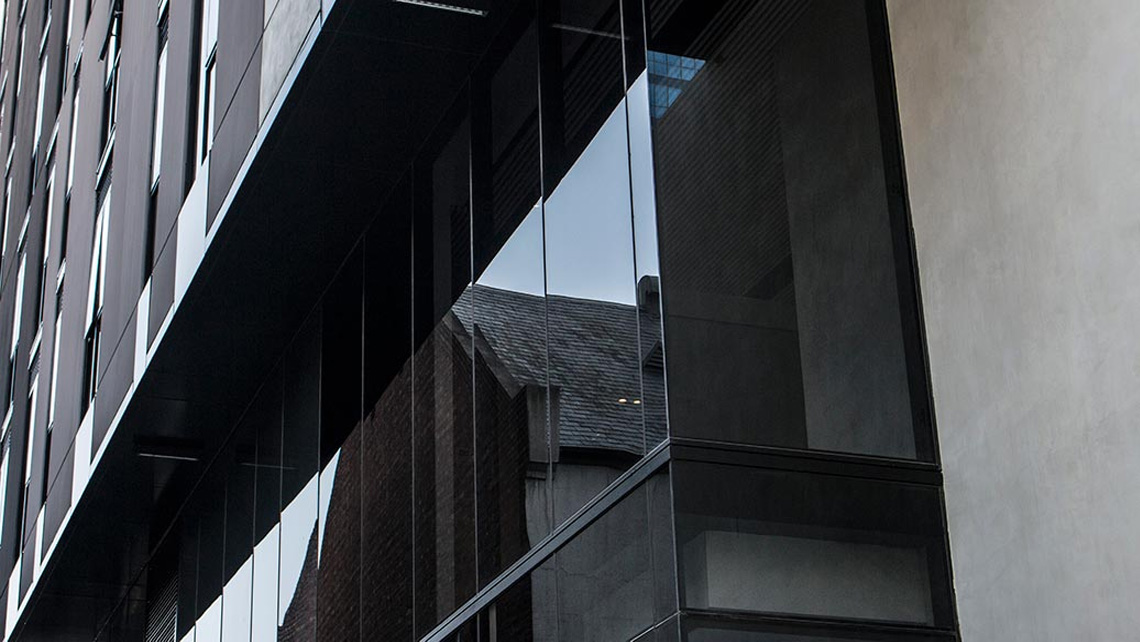

The Edge MAX Structural Glazed 150mm framing and curtain wall maximises a building's all glass appearance while reducing energy loss.
Key features
- 150mm frame depth (119.7mm “Box”)
- Front face glass plane
- Stack joint for curtain wall
- External glazed only
- Accepts 24mm to 28mm IGU’s
- 50mm face dimensions on mullions and transoms
- Reduced head and sill sight lines to maximize the “all glass” appearance
- Accepts Standard Structural Tape or 3M VHB structural glazing tape
- Dedicated curtain wall stack joint
- Designed for factory glazing and easy site installation
- Minimal external face, reduces energy loss
- Can be installed from inside or outside the building
- Structural glazed multi-locking sash option
- Concealed motorised winder box option
The Edge MAX Structural Glazed 150mm suite features reduced head and sill sight lines to maximise the all-glass appearance and reduces energy loss with a minimal external face.
The dedicated curtain wall stack joint is specifically engineered for efficient factory glazing and simplified on-site installation processes from either inside or outside the building.
Details
Product Specs
Frame Dimensions (mm)
Frame depth (mm)
150
Face Width (mm)
50
Glazing Details
Double Glazed
24 - 28
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual EDGE MAX 150
CAD Files
Cad FIles MAX SG150
Other
Environmental Protection Declaration (EPDs)
