Edge U-MAX SG150 Structural Glazed Framing

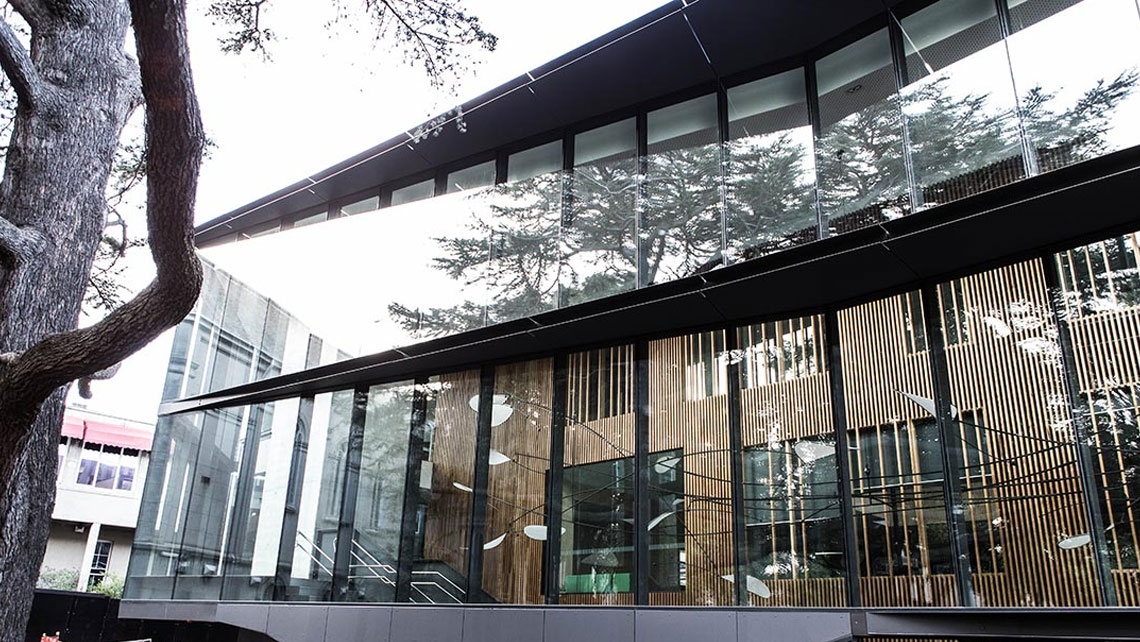

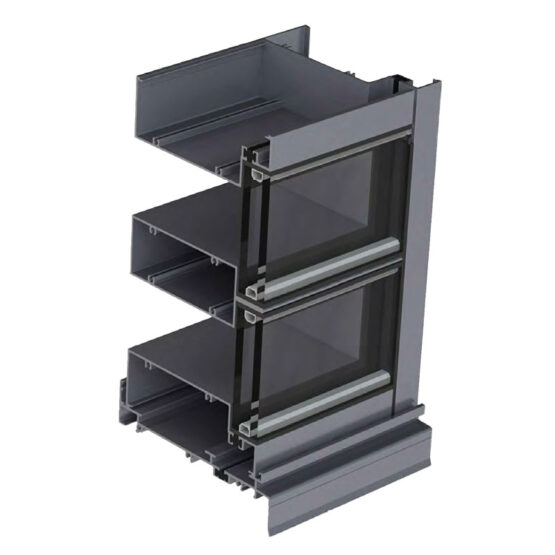

Edge U-MAX Structural Glazed 150mm framing gives architects design freedom from a thermally efficient system.
Key features
- 150mm frame depth (119.7mm “Box”)
- Front face glass plane
- Stack joint for curtain wall
- External glazed only
- Accepts 24mm to 28mm IGU’s
- 50mm face dimensions on mullions and transoms
- Reduced head and sill sight lines to maximize the “all glass” appearance
- Accepts Standard Structural Tape or 3M VHB structural glazing tape
- Dedicated curtain wall stack joint
- Designed for factory glazing and easy site installation
- Minimal external face, reduces energy loss
- Can be installed from inside or outside the building
- Structural glazed multi-locking sash option
- Concealed motorised winder box option
The U-MAX Structural Glazed 150mm Framing boasts a sleek external profile, strategically minimizing energy loss.
Its reduced head and sill sight lines seamlessly give an impression of expansive glass, maximising its “all glass” appearance.
Details
Product Specs
Frame Dimensions (mm)
Frame depth (mm)
150
Face Width (mm)
50
Glazing Details
Double Glazed
24 - 28
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual EDGE U-MAX SG150
CAD Files
CAD Files U-MAX SG150
Other
Environmental Protection Declaration (EPDs)
More products from this range
Edge MAX SG150 Structural Glazed Curtain WallThe Edge MAX Structural Glazed 150mm framing and curtain wall maximises a building's all glass appearance while reducing energy loss.
Not quite what you’re looking for? Consider...
Futureline 1029TB Front Glazed Framing System (250mm)Thermally-broken double-glazed aluminium framing combining both high performance and the sleek, precise profile of a commercial system.
Urban Comfort 282TB Fixed Light WindowThe Urban Comfort Thermally Broken Fixed Light Window combines sleek design with outstanding thermal performance, tailored for Australian residential applications.
Futureline 429TB Front Glazed Framing System (100mm)The Capral Futureline 429TB framing system incorporates the glazing capacity to accommodate high-performance double-glazed units up to 34mm while retaining the crisp, clean profiles typically associated with commercial glazing systems.
Futureline 425TB Centre Glazed Framing System (100mm)The Capral Futureline 425TB centre glazed framing system incorporates the glazing capacity to accommodate high performance double glazed units up to 34mm while retaining crisp, clean profiles typically associated with the commercial glazing system.
Futureline 629TB Front Glazed Framing System (150mm)The Capral Futureline 629TB framing system incorporates the glazing capacity to accommodate high-performance double-glazed units up to 34mm while retaining the crisp, clean profiles typically associated with commercial glazing systems.
Projects that use this system

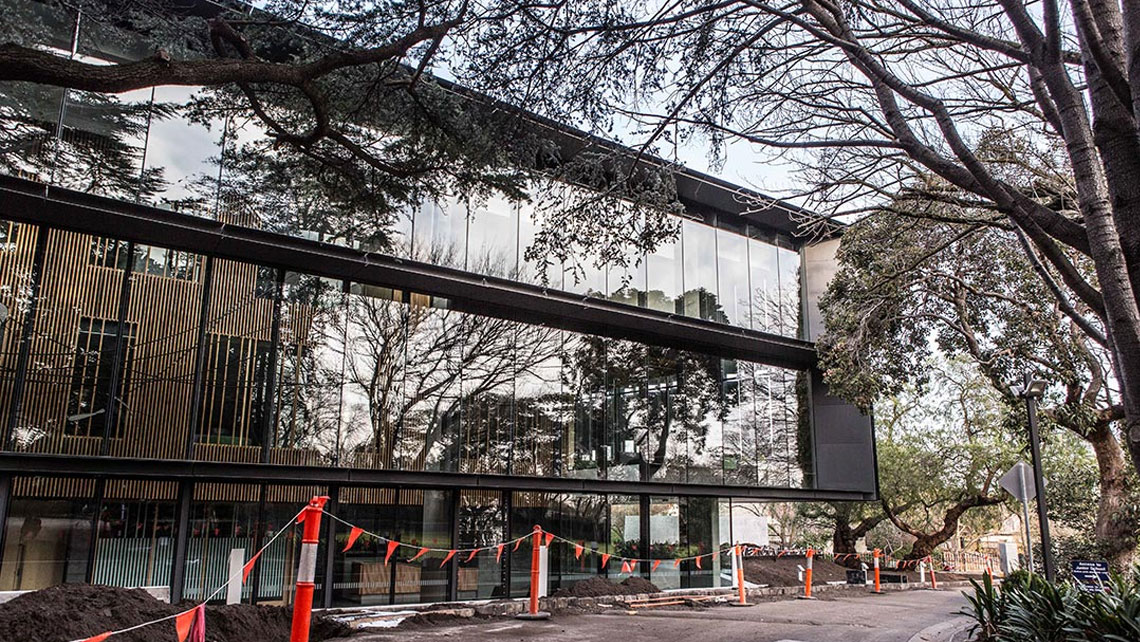

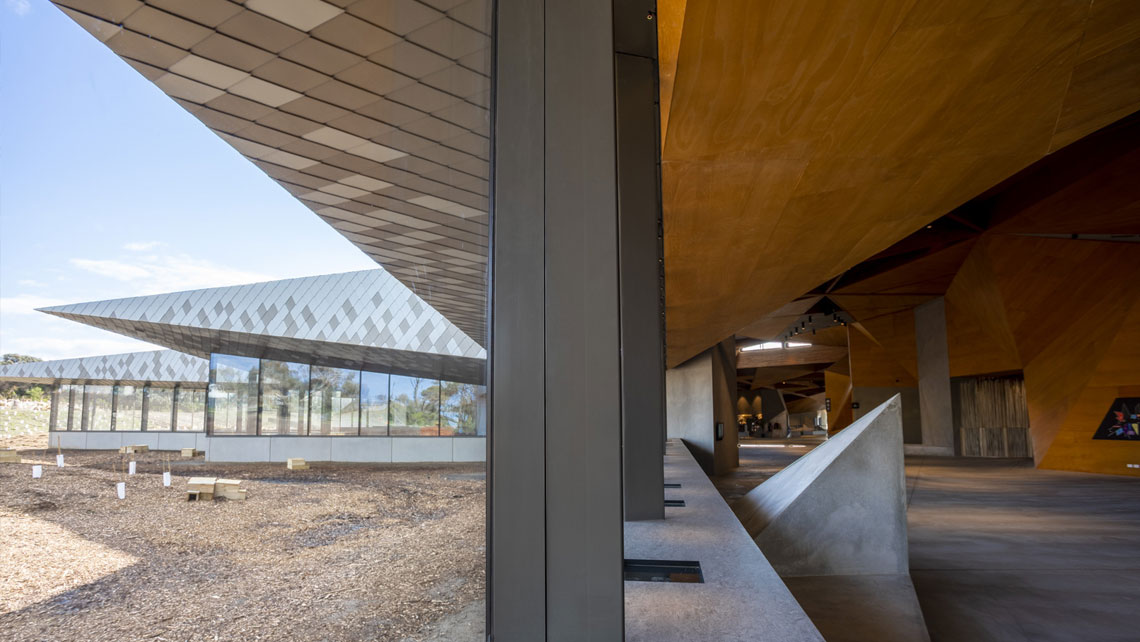

La Trobe Institute of Molecular Sciences
