Residential

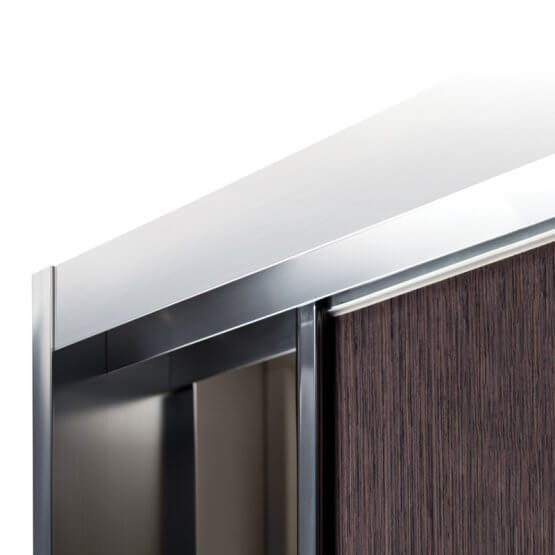

Elegance Wardrobe
The Elegance Wardrobe System is the essence of simplicity, functionality and versatility. It is designed to look equally at home in a traditional or modern interior.
Key features
- The door panel can be glazed with a solid panel, assembled around a plasterboard panel or have a mirror applied to the outside surface to create a semi-frameless appearance.
- Purpose-designed Guide/Bumper component aligns the door panel within the Head Track and provides a door stop feature when positioned accordingly.
- Head and Sill End Cap components have been designed to neatly finish the installed system. All exposed components are colour matched to various aluminium extrusion finishes.
- Two, three, four and five-panel door configurations are achievable in double track and three and six-panel door configurations for the triple track.
- Finger pull detail has been designed into the Panel Stile extrusion for door panels glazed with a solid or plasterboard panel.
- Bumper Strips fit into the Panel Stile, providing a bumper to cushion the panel upon closing.
- Frame joint assembly is achieved using specially designed components and rollers. Screw fixings are concealed on the inside of the wardrobe panel.
- Panels can be fitted with a Soft Close Kit for superior functionality.
The Elegance Wardrobe System is the essence of simplicity, functionality and versatility. It is designed to look equally at home in a traditional or modern interior and is characterised by sleek lines and refined finishes. This system has been intuitively engineered for the demands of daily family use. Featuring high-quality rollers for smooth operation, strong aluminium framing to make countless size panels possible and a specially designed tracking system for many door configuration options. Create a wardrobe that says a lot about you.
Download BrochureDetails
Product Specs

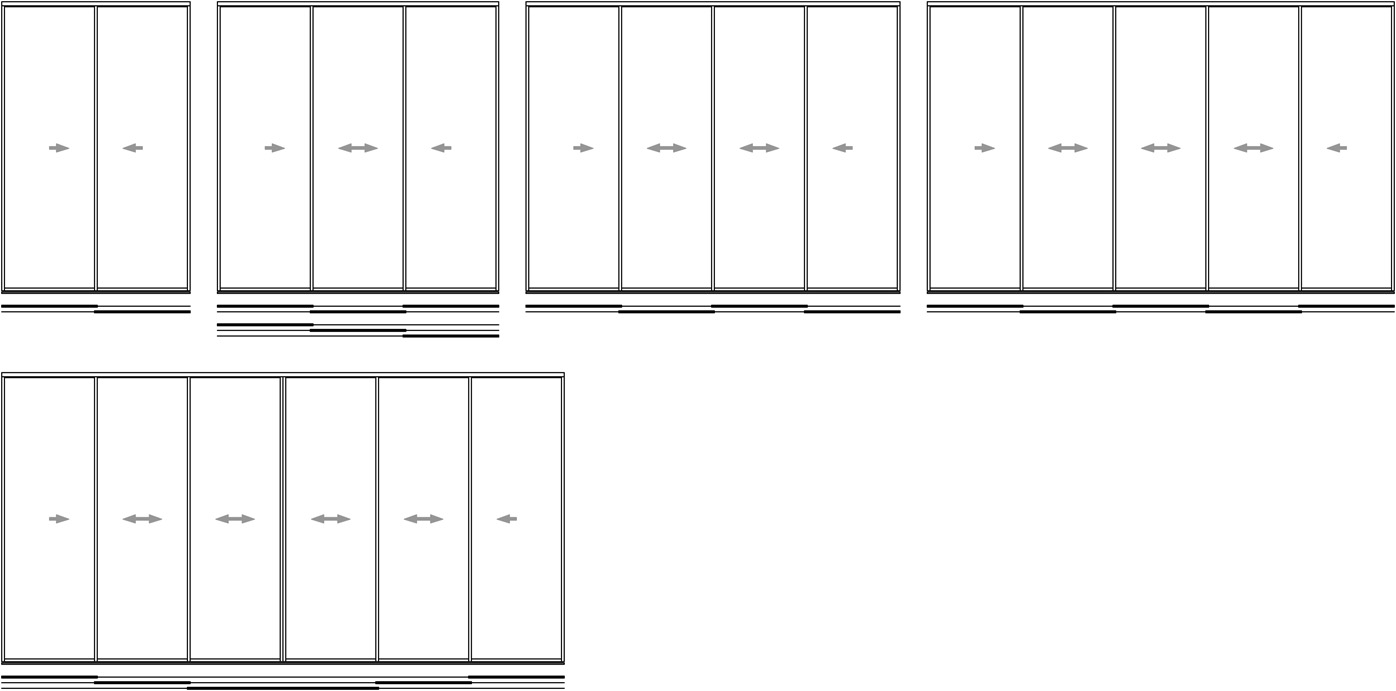

Configurations
Maximum Product Sizes
Panel Height (mm)
2100
Panel Width (mm)
900
Panel Weight (kg)
50
For panel height over 2400, use or a midrail may be required
Frame Dimensions (mm)
Double Track
83.5
Triple track
125
Maximum Product Performance
NA
Glazing Details
Single Glazed
4 - 9
Also accepts 10mm plasterboard
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Elegance Wardrobe
Other
Environmental Protection Declaration (EPDs)
