Extruded Louvre

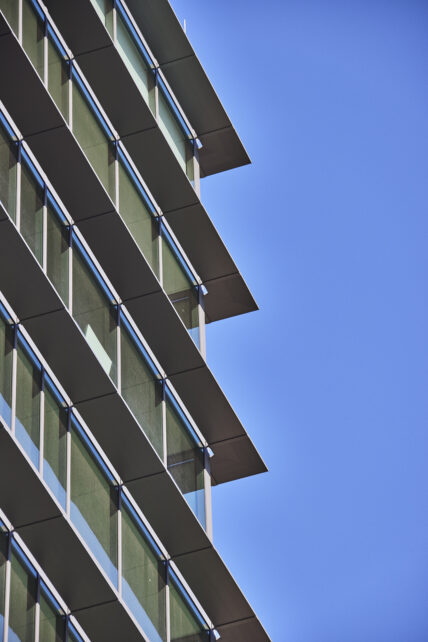

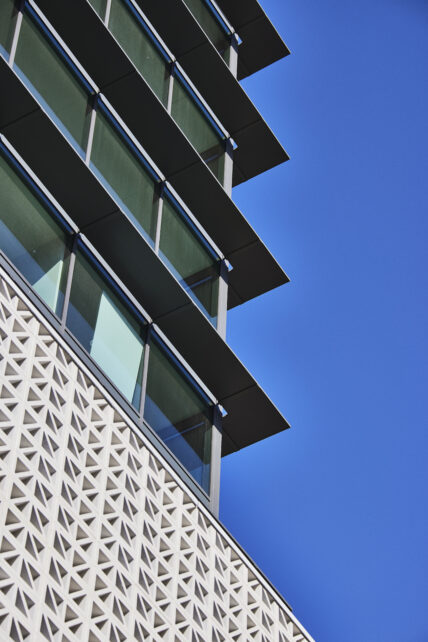

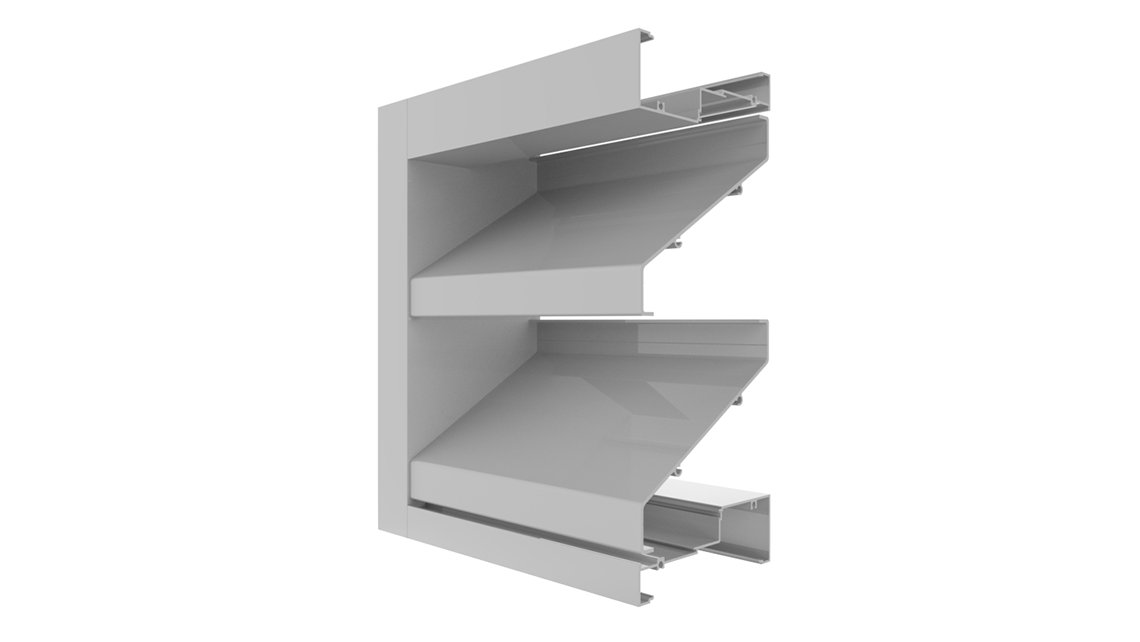

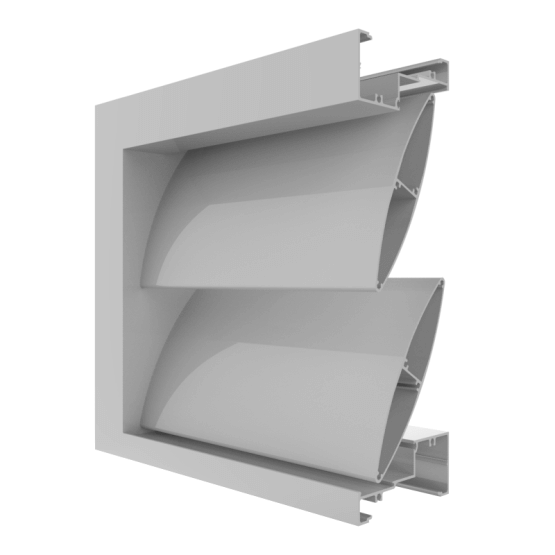

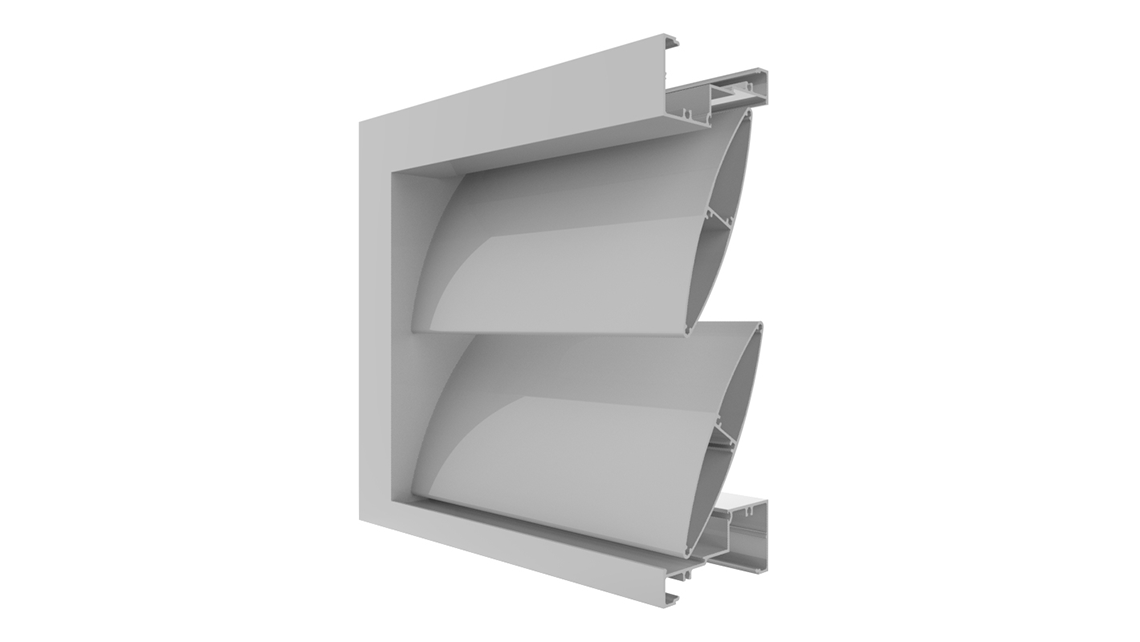

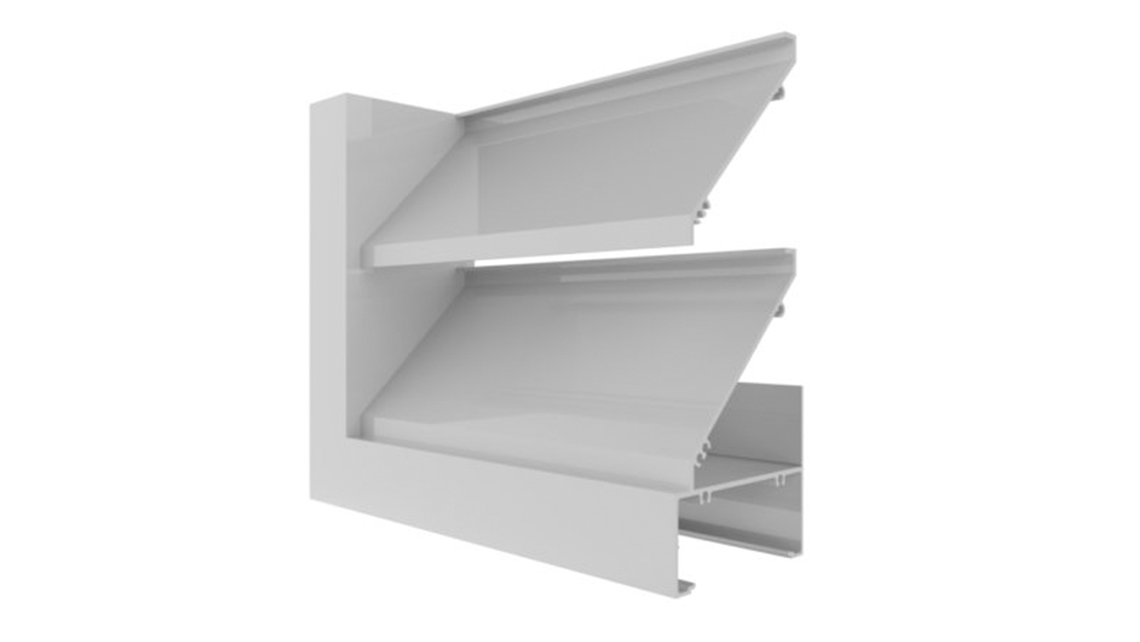

An extensive range of extruded louvre blades are available from Capral to cater for various ventilation, shading and aesthetic requirements
Key features
- Extensive range of louvre blades in a variety of sizes and configurations
- Various frame sizes and bracket options to suit your installation requirements
Airflow calculations, recommended spans and installation details are contained in our technical data manual to enable simple selection
An extensive range of extruded louvre blades are available from Capral to cater for a variety of ventilation, shading and aesthetic requirements.
Supported by a number of different frame and bracket options, Capral’s extruded louvre range can either be built into walls, similar to glazed systems, or alternatively fixed to the outside of the building structure.
Extruded Louvre Options
Blade Height
- Straight Blades from 36mm up to 209mm
- Throated Blades from 62mm up to 134mm
- Elliptical Louvres from 67mm up to 300mm
- Boxed Louvres various
Blade Depth
- Straight Blades from 25mm up to 146mm
- Throated Blades from 48mm up to 95mm
- Elliptical Louvres from 15mm up to 50mm
- Boxed Louvres from 40mm, 45mm or 75mm
Frame and Bracket Options
- Frame Depths 65mm, 76mm, 100mm, 101.6mm (4″),125mm & 150mm (6″)
- Various Frame Heights
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS Extruded Louvres
Wall Charts
Extrusion Wall Chart AGS Louvre Adaptor & Extruded Louvres
CAD Files

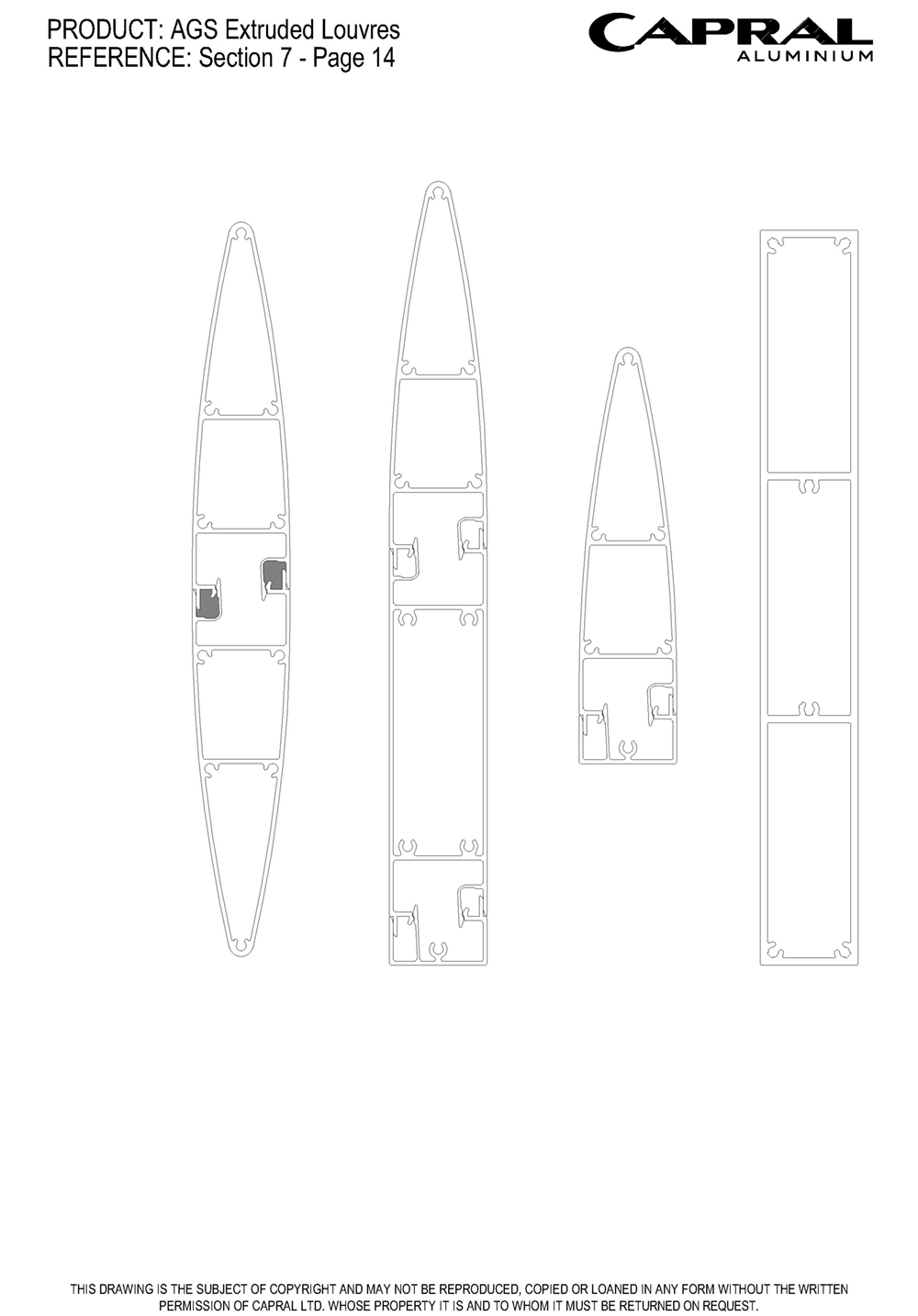

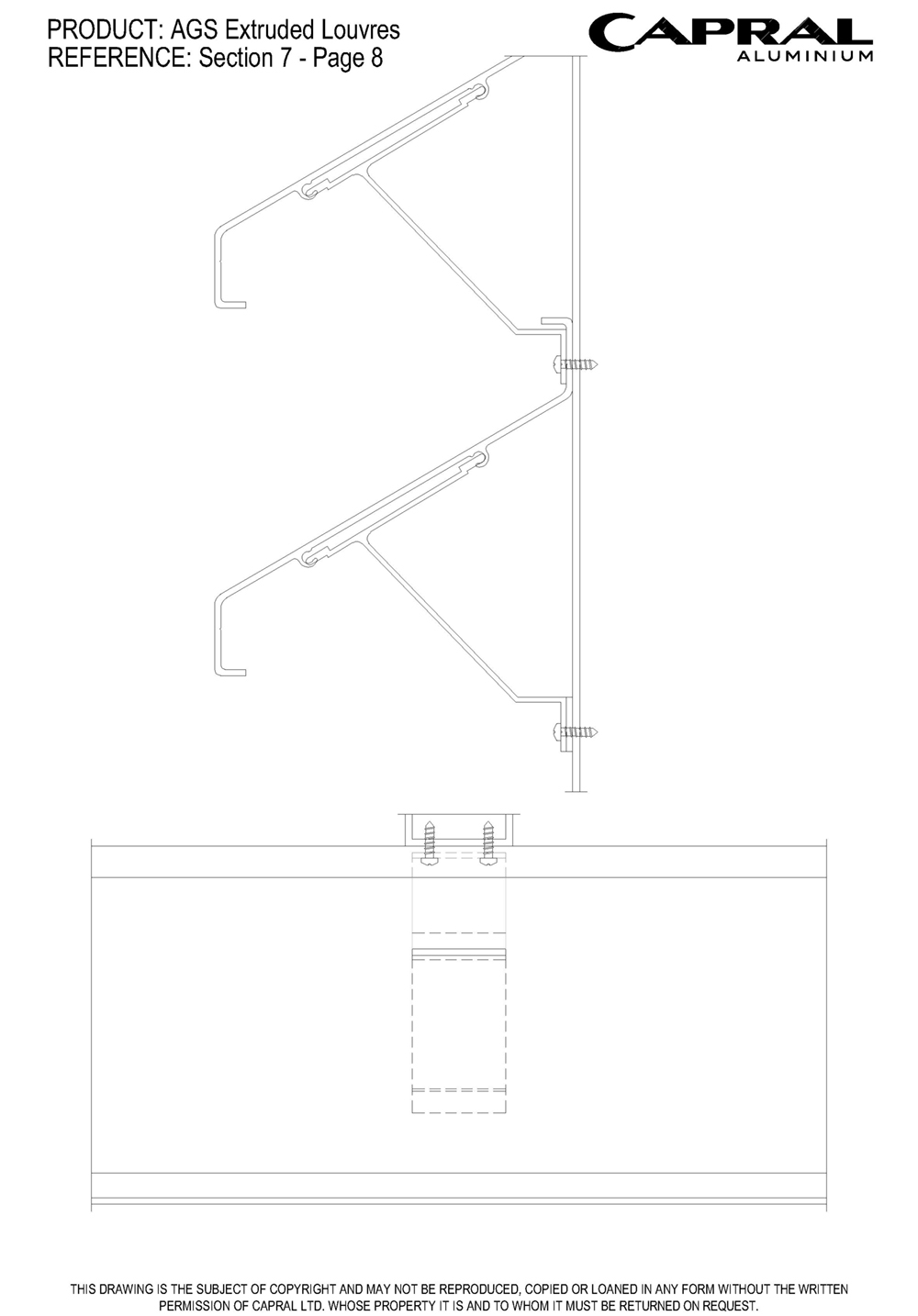

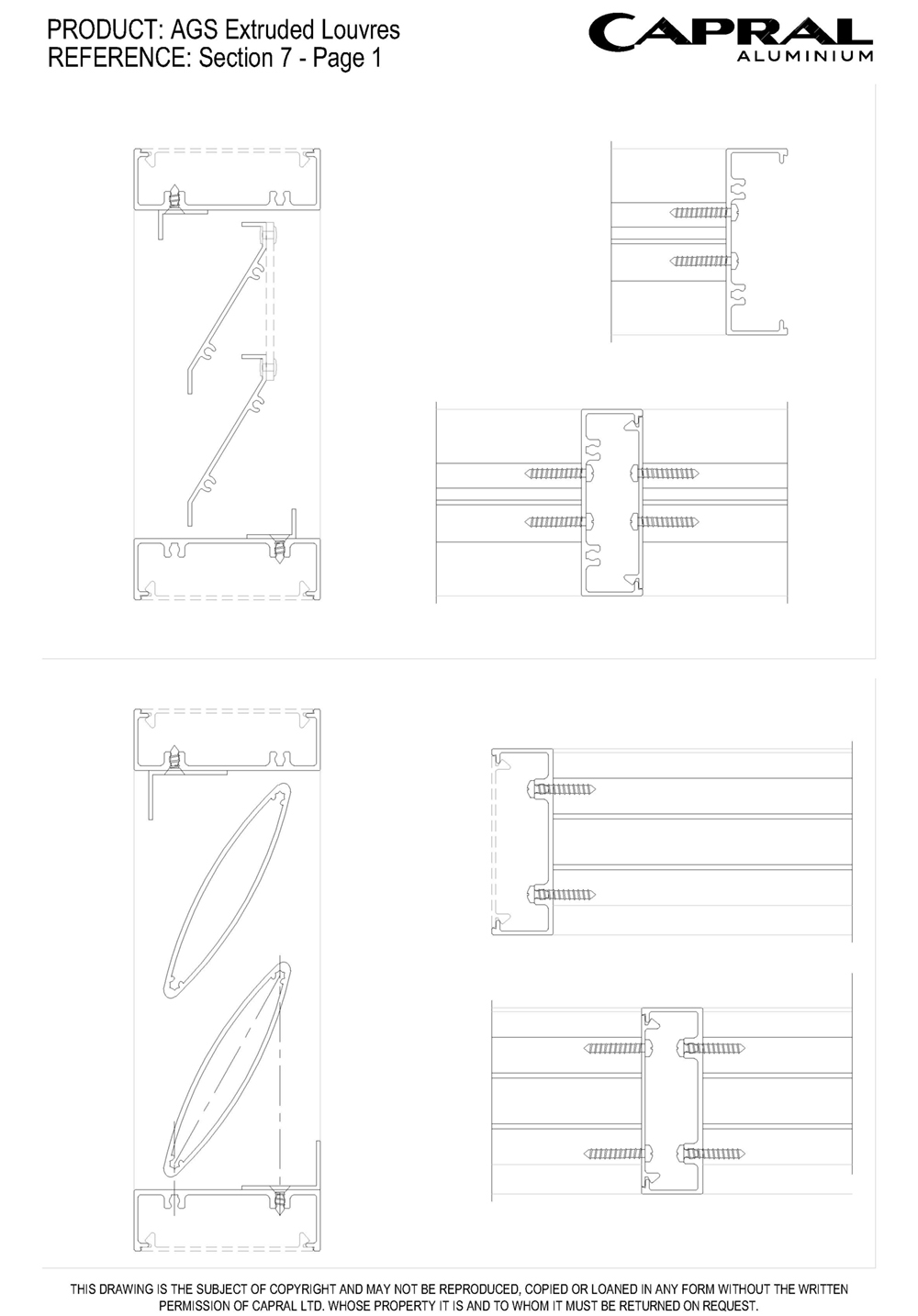

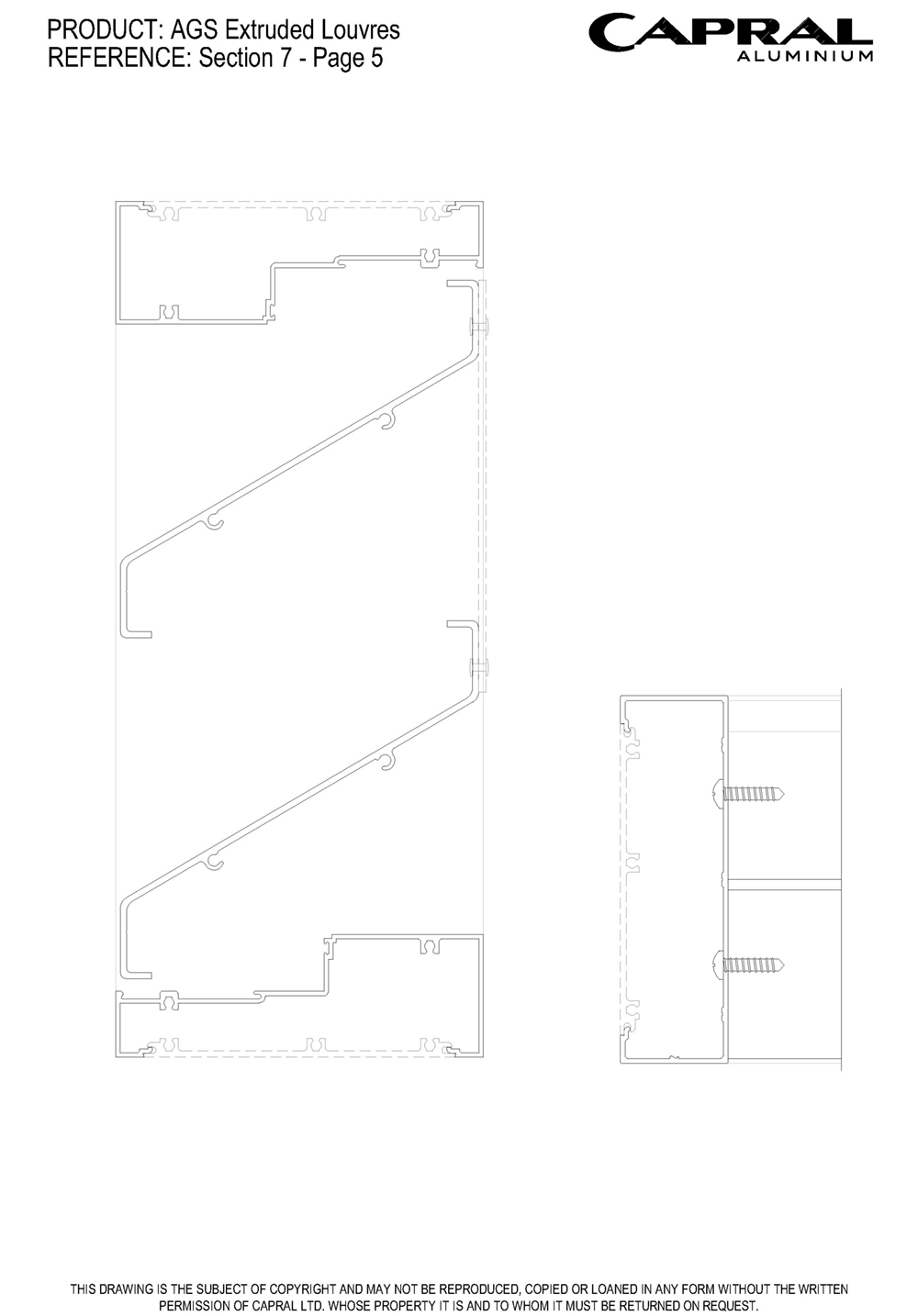

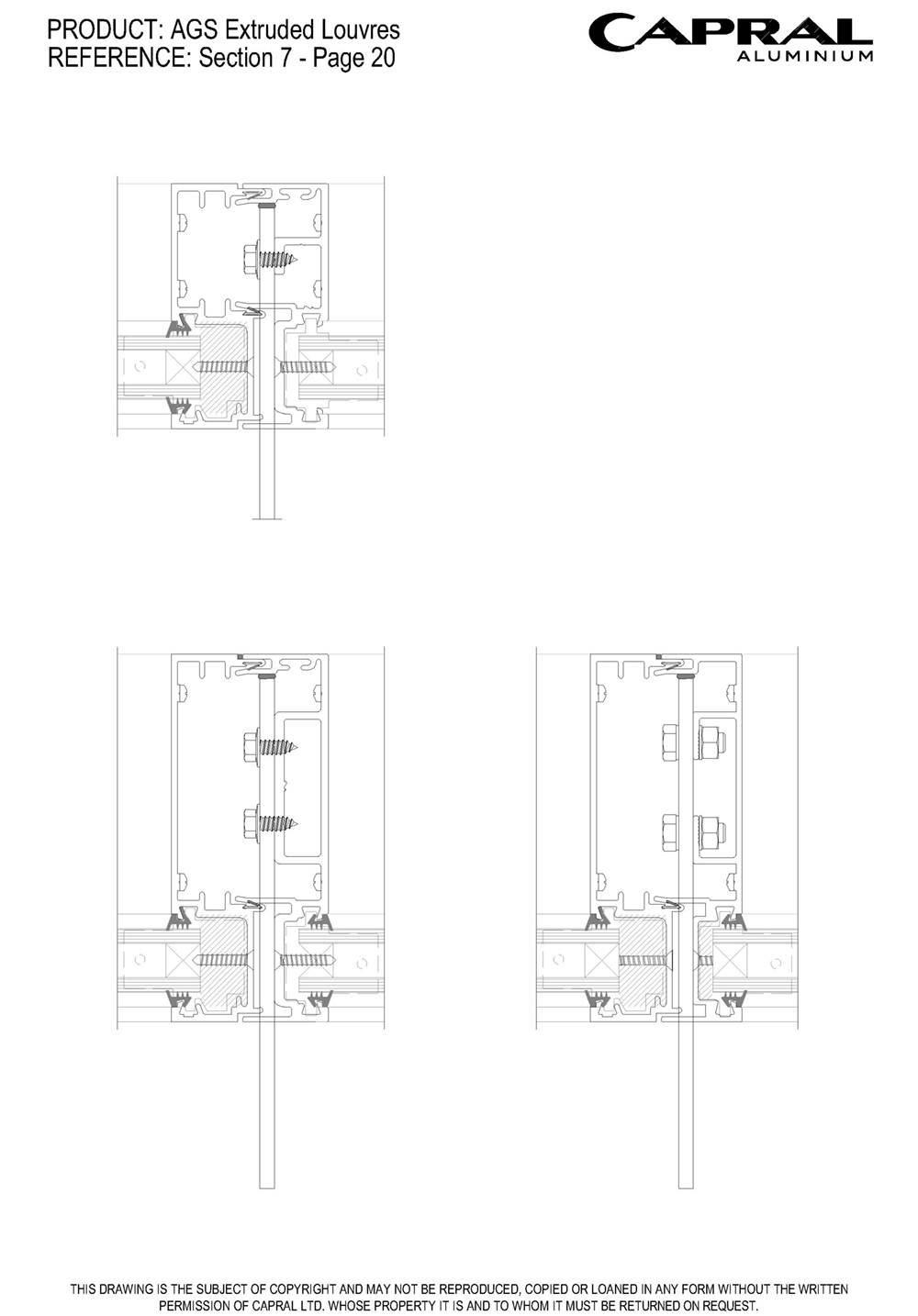

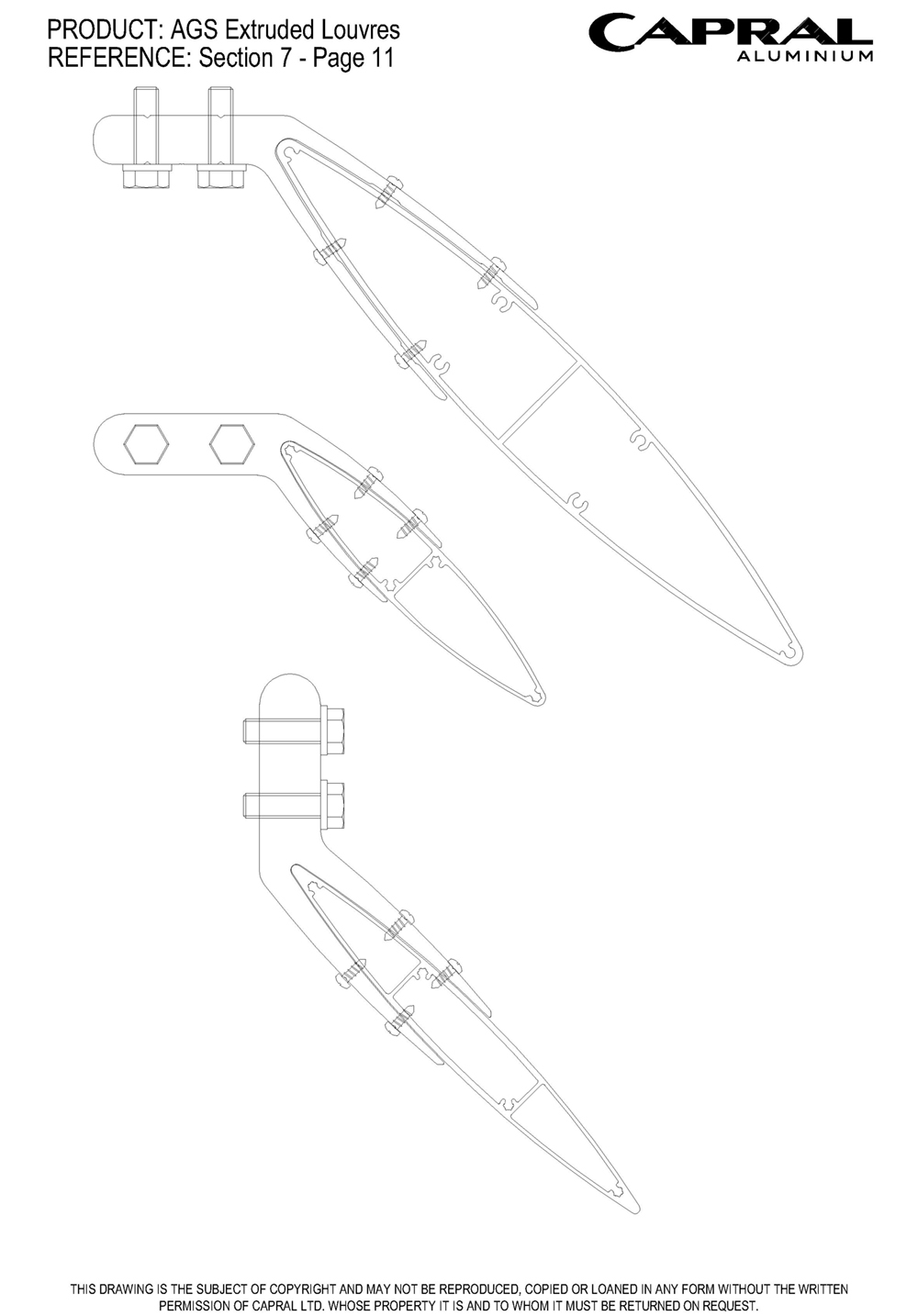

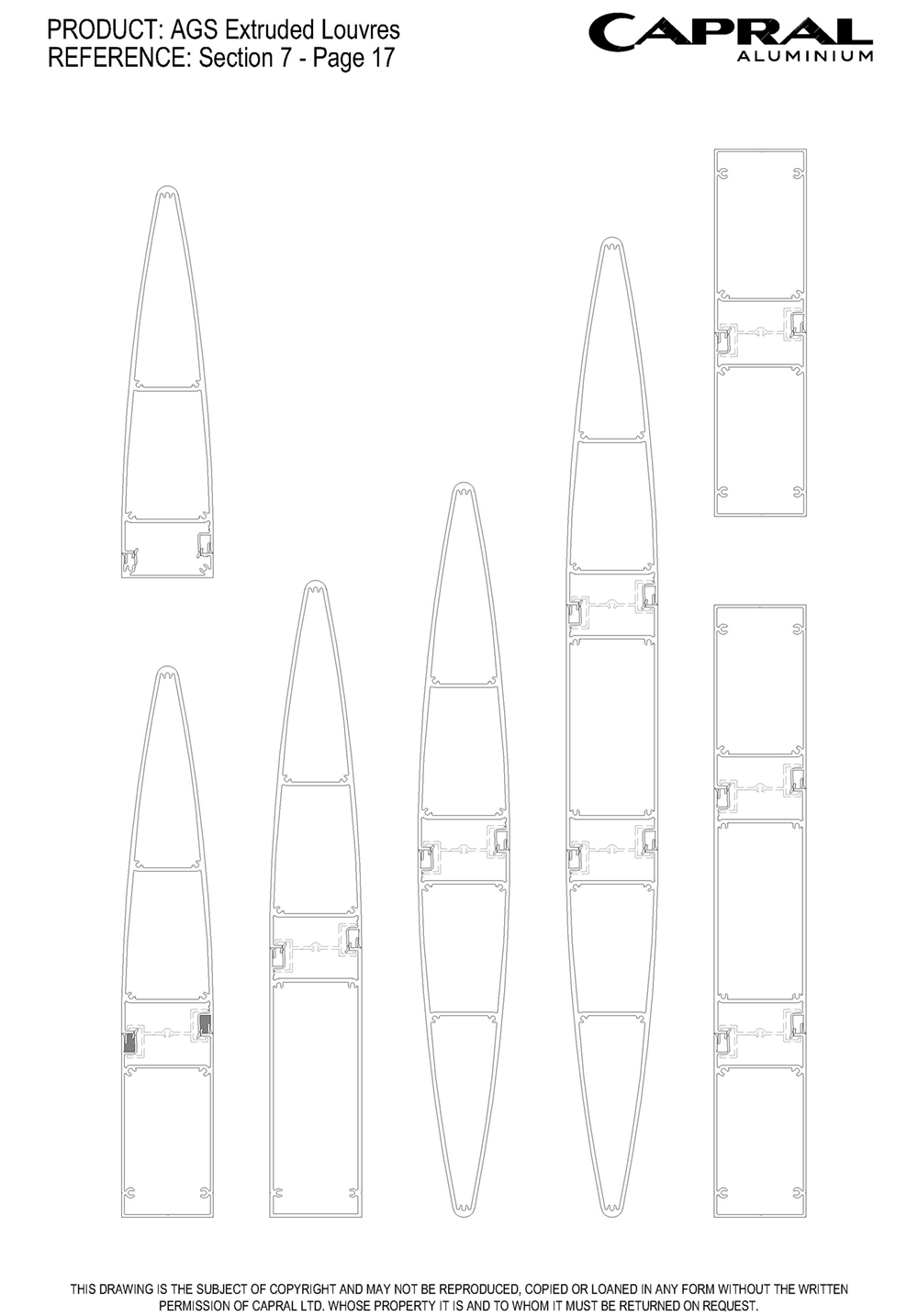

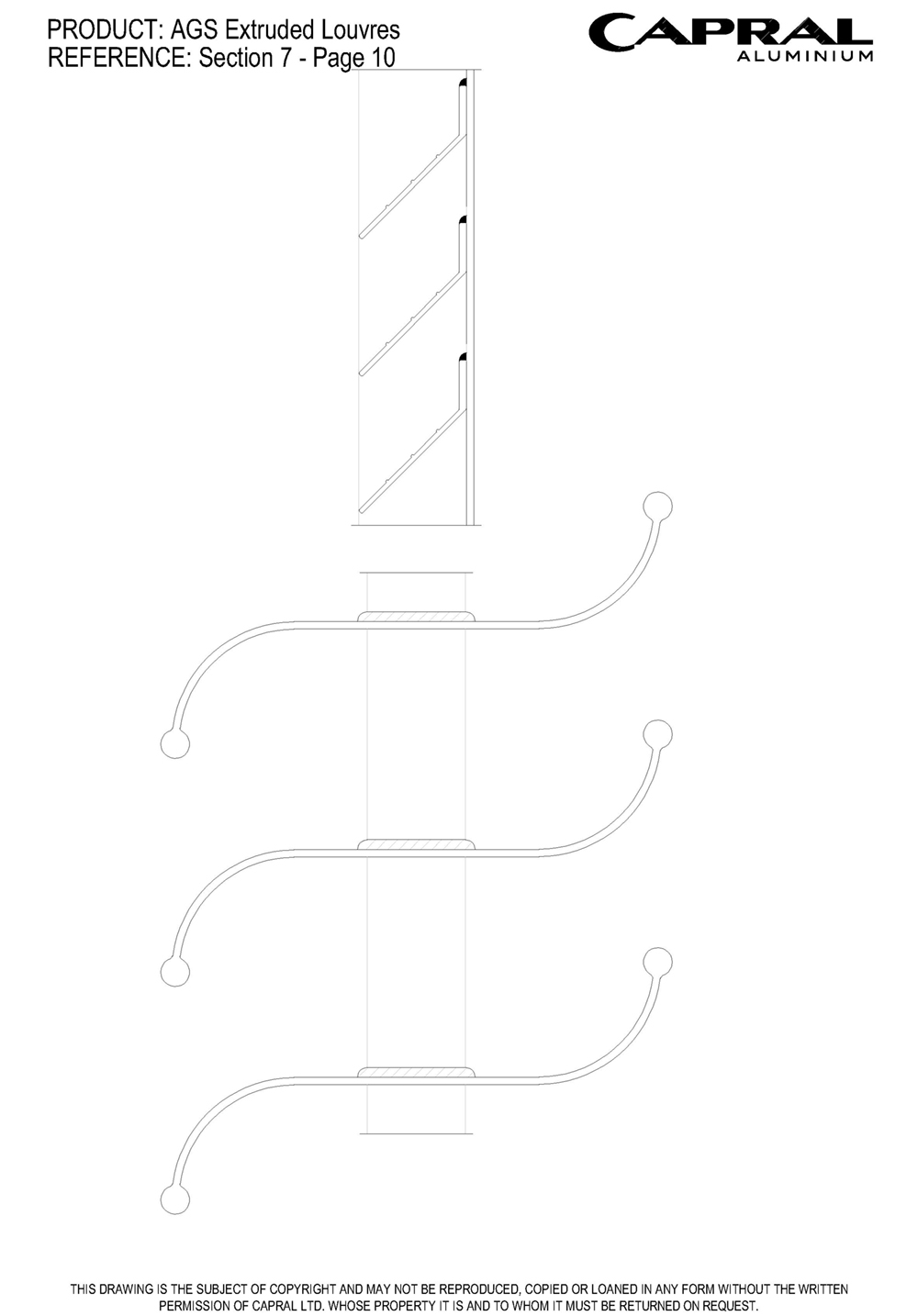

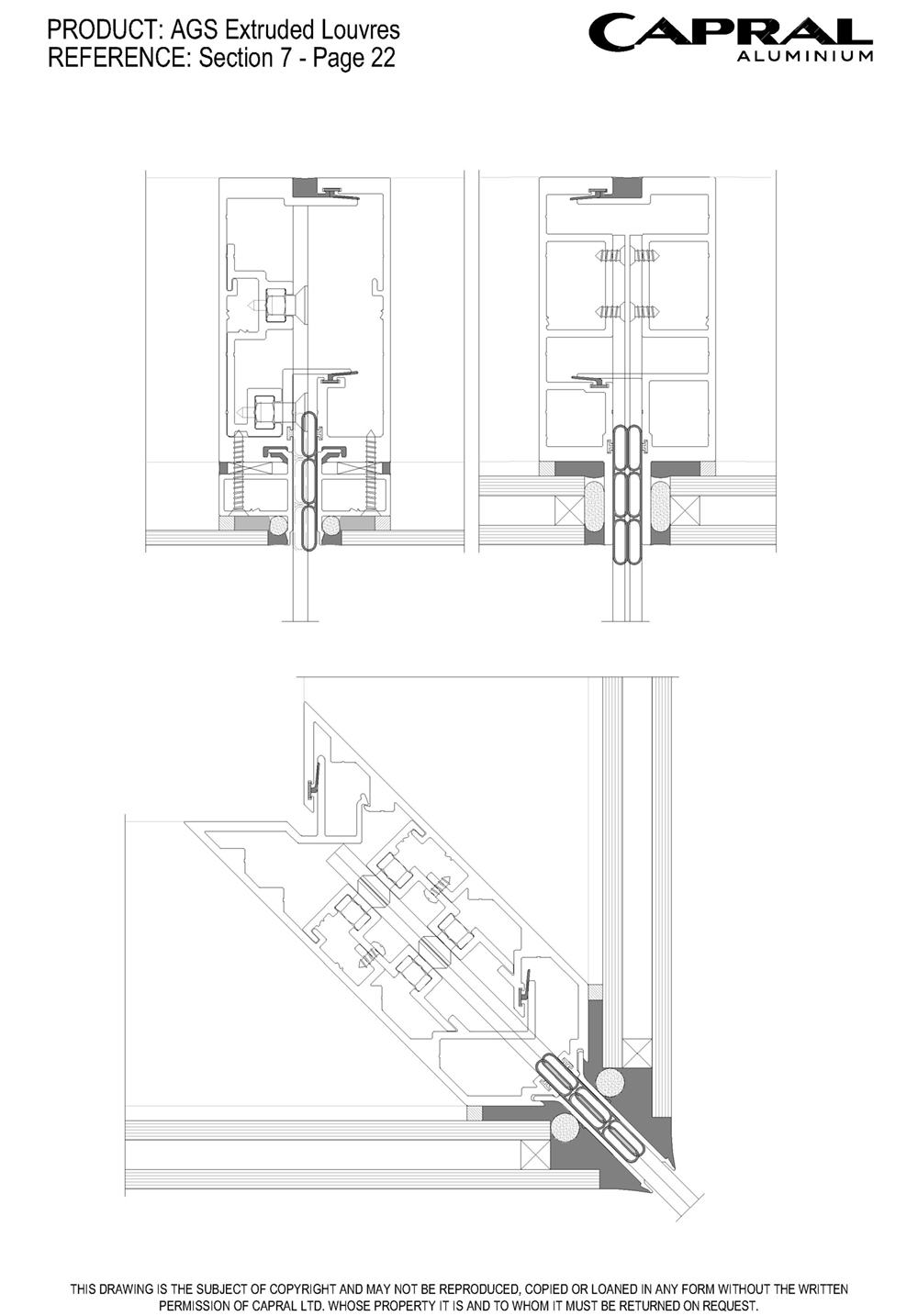

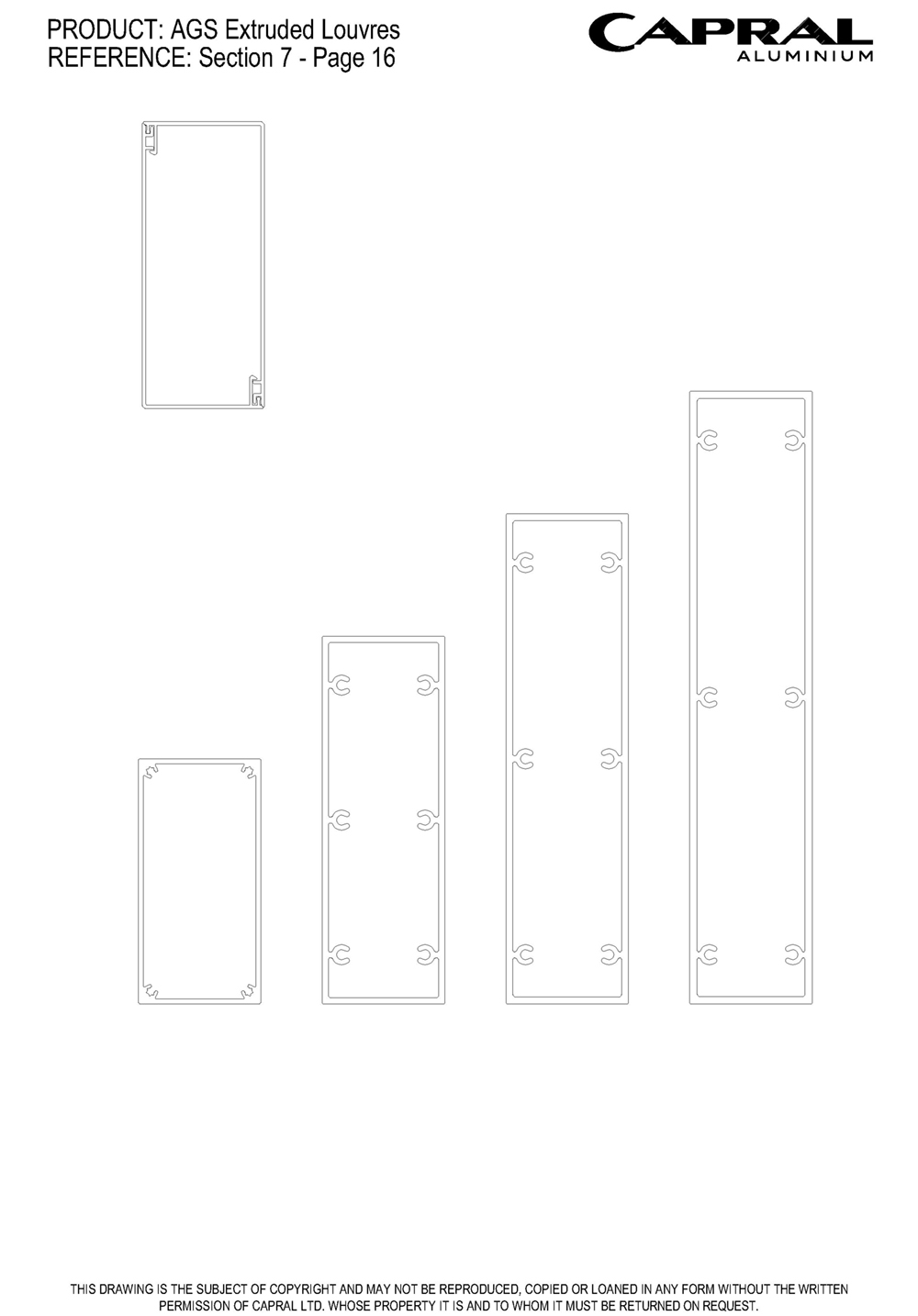

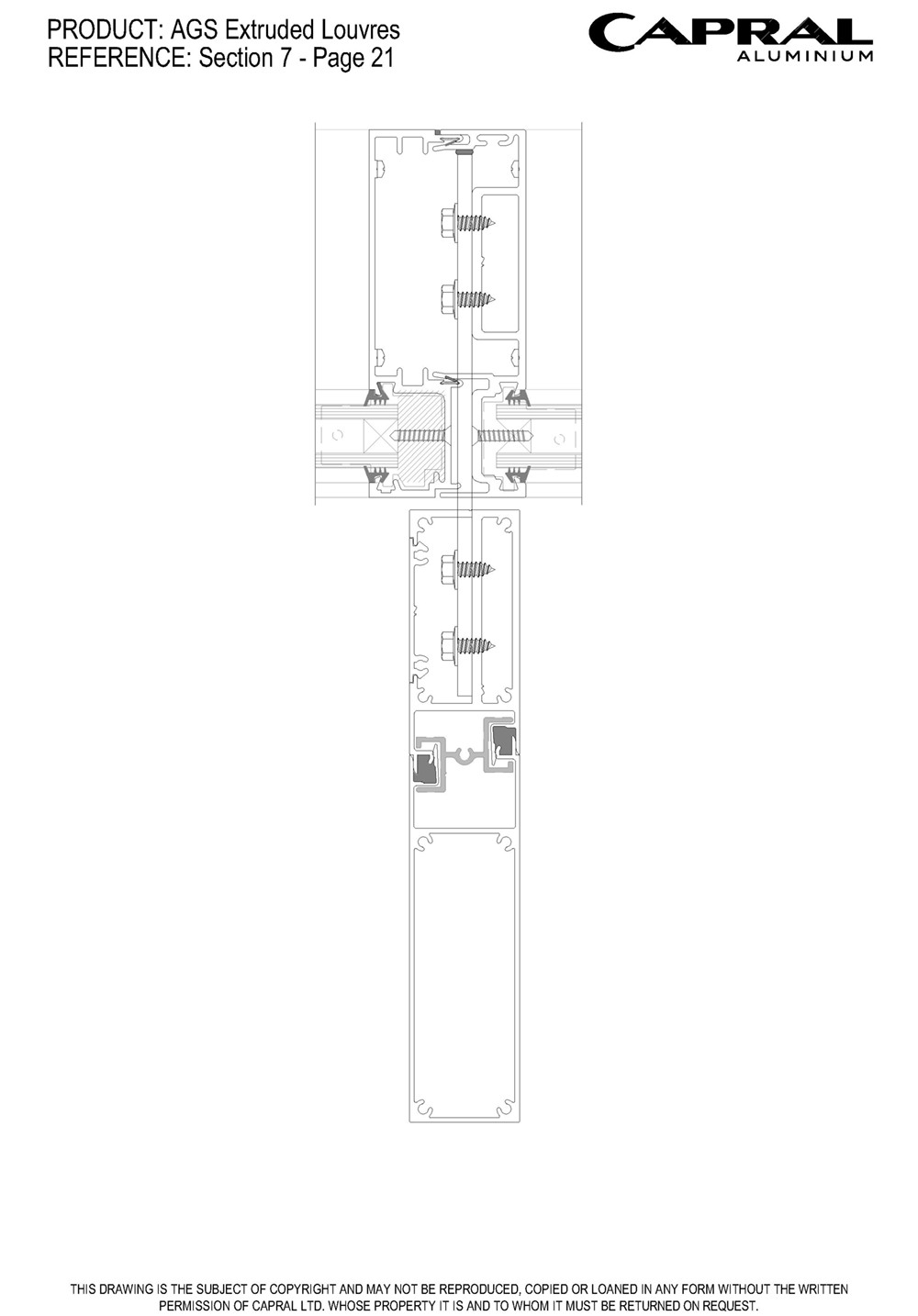

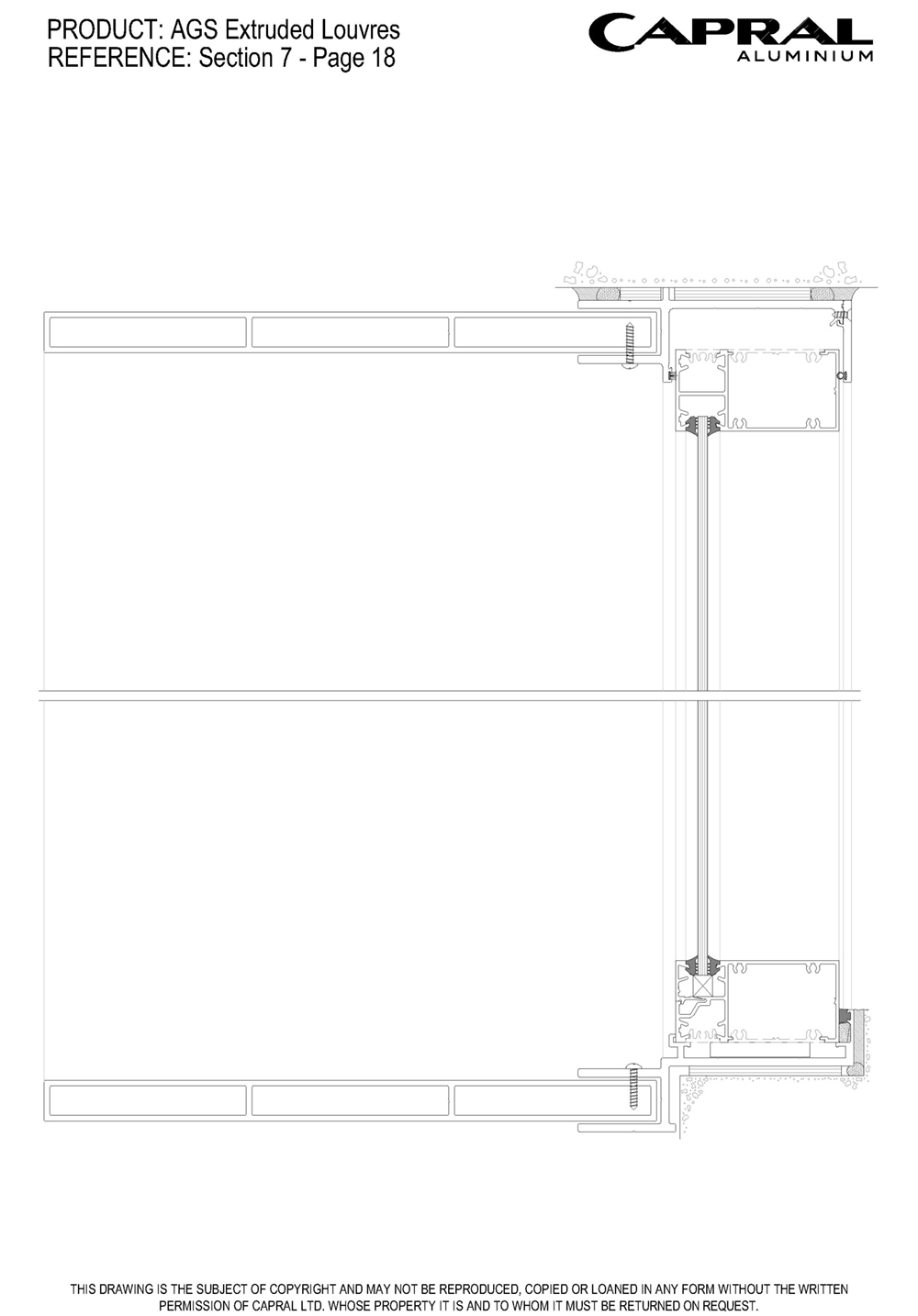

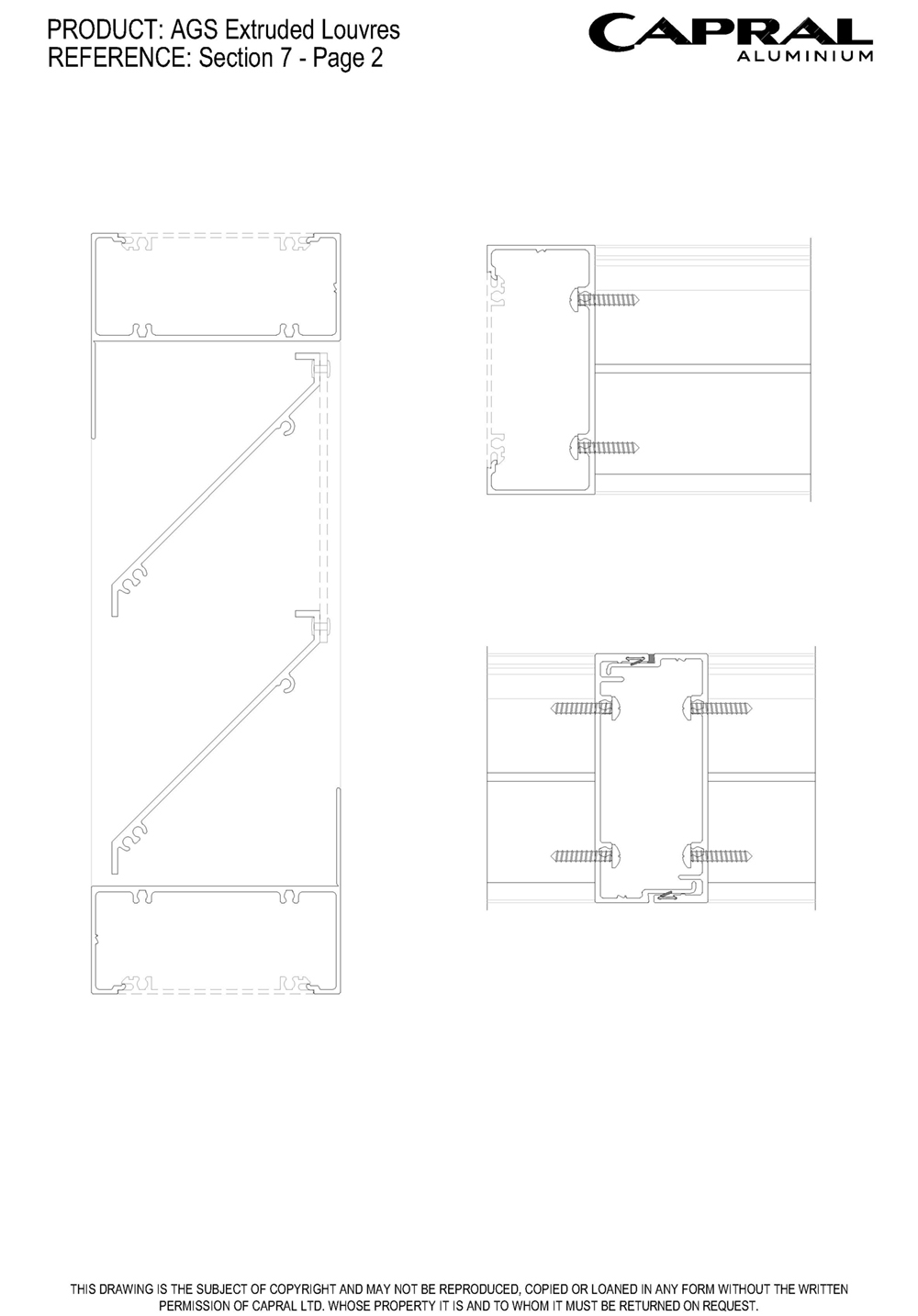

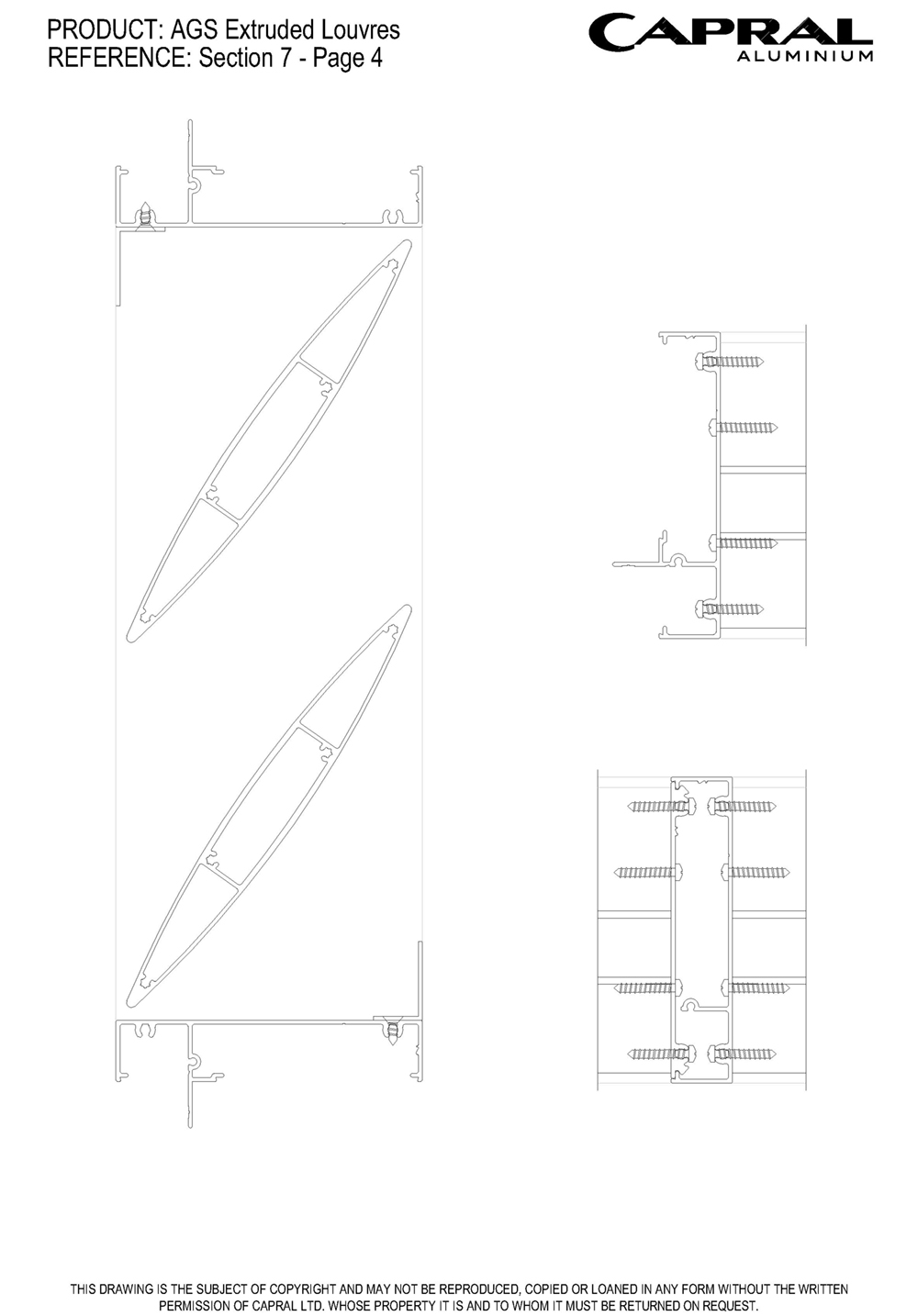

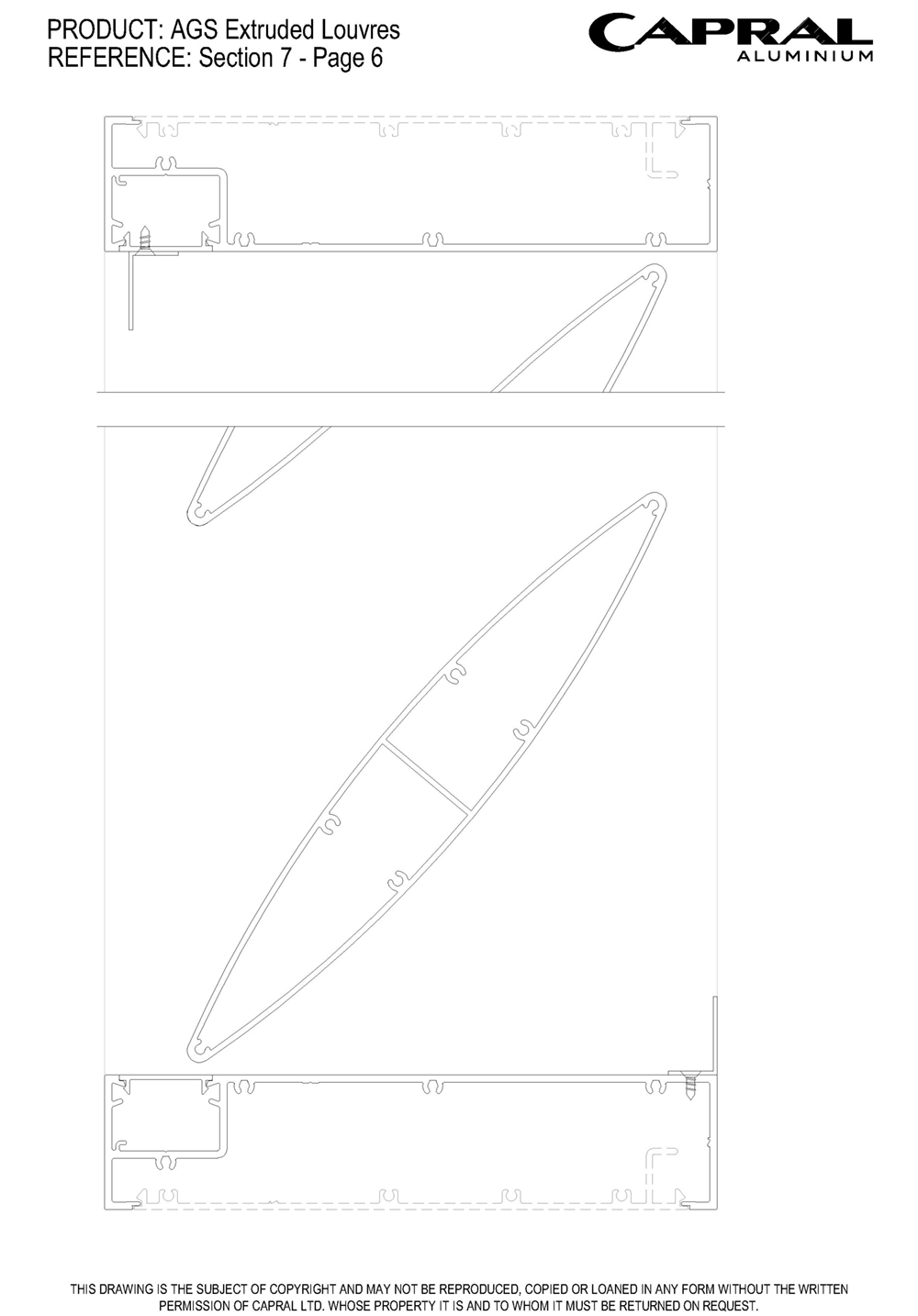

CAD Files AGS Extruded Louvres
CAD Wall Chart AGS Louvres
Bulletins
PB410 - Extruded Louvre 250mm x 25mm
PB391 - 2 Stage Louvre Blade & AS4740 Simulation Data
PB384 - AGS Extruded Louvre Update
Other
Environmental Protection Declaration (EPDs)
Compatible Products
AGS Commercial 300 Narrowline Single Glazed (76mm)The AGS 300 Narrowline’s slimline frame depth makes it ideal for lowrise commercial applications
AGS Commercial 325 Narrowline Double Glazed (76mm)The AGS 325 Narrowline double-glazed aluminium framing system's slimline frame depth and ability to accommodate a captive glazing wedge make it an economical option for architectural projects.
AGS Commercial 400 Narrowline Single Glazed (101.6mm)The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.
AGS Commercial 425 Narrowline Double Glazed (101.6mm)The AGS 425 Narrowline framing system was developed specifically to cater for the growing requirement for energy-efficient double glazing.
SGS Commercial 400 Narrowline Single Glazed (100mm) (QLD Only)The SGS 400 Narrowline framing system redefines the standard for centre-glazed framing.
More products from this range
AGS Commercial 225 Pivot DoorThe AGS 225 Pivot Door is a 46mm pocket glazed commercial door panel capable of delivering flexibility, performance and ease of assembly in mind.
AGS Commercial 300 Narrowline Single Glazed (76mm)The AGS 300 Narrowline’s slimline frame depth makes it ideal for lowrise commercial applications
AGS Commercial 400 Narrowline Single Glazed (101.6mm)The AGS 400 Narrowline framing system has set the standard for centre-glazed framing for over two decades.
AGS Commercial 382 Awning WindowThe 382 Awning Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 300/325 framing systems.
AGS Commercial 600 Narrowline Single Glazed (150mm)The AGS 600 Narrowline offers an increased level of structural Performance than the AGS 400 Narrowline with its bolder 150mm frame depth and increased 50mm face dimension.
AGS Commercial 950 Sliding WindowThe AGS 950 Sliding Window system has been engineered to deliver high strength and performance. It has been tested to cyclonic requirements and can have large sash sizes and numerous configurations.
AGS Commercial 419 Flushline Single Glazed (100mm)The AGS 419 Flushline is a 100mm, single glazed, flush-glazed framing system offering a clean and modern external appearance.
AGS Commercial 480 Sliding Window (101.6mm)The AGS 480 Sliding Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400/425 Narrowline framing systems.
Projects that use this system
Tarragal Glen Independent Living Apartments: Contemporary Retirement Living
Combining innovative design, accessible living, and high-performance aluminium systems, Tarragal Glen delivers a contemporary retirement community designed for comfort, safety, and longevity.
Aged Care and Community Living

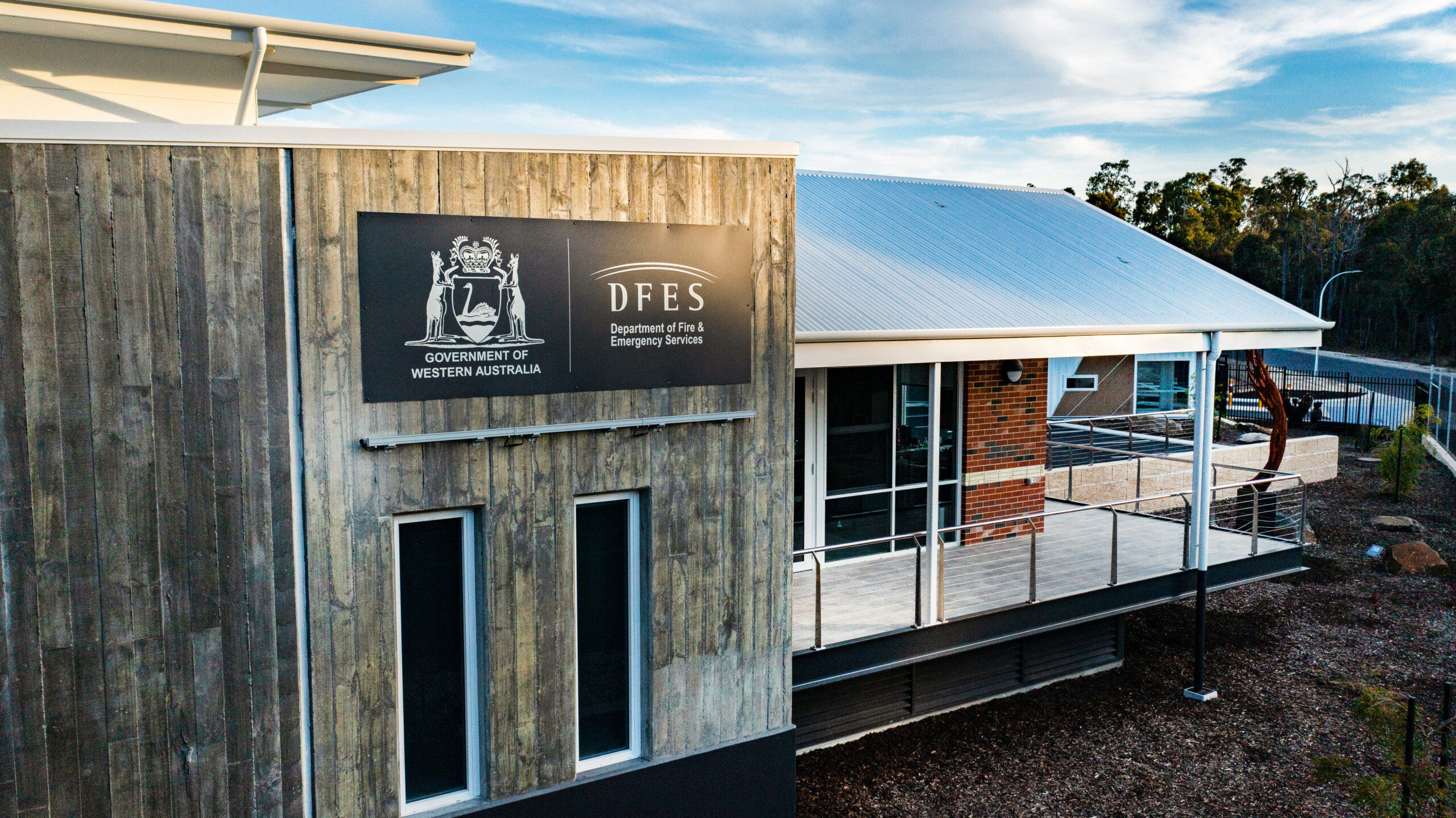

DEFS Collie Multipurpose Facility
The DFES Collie Multipurpose Facility is a purpose-built, sustainable emergency management hub in Western Australia’s South-West.
Fire Attenuation

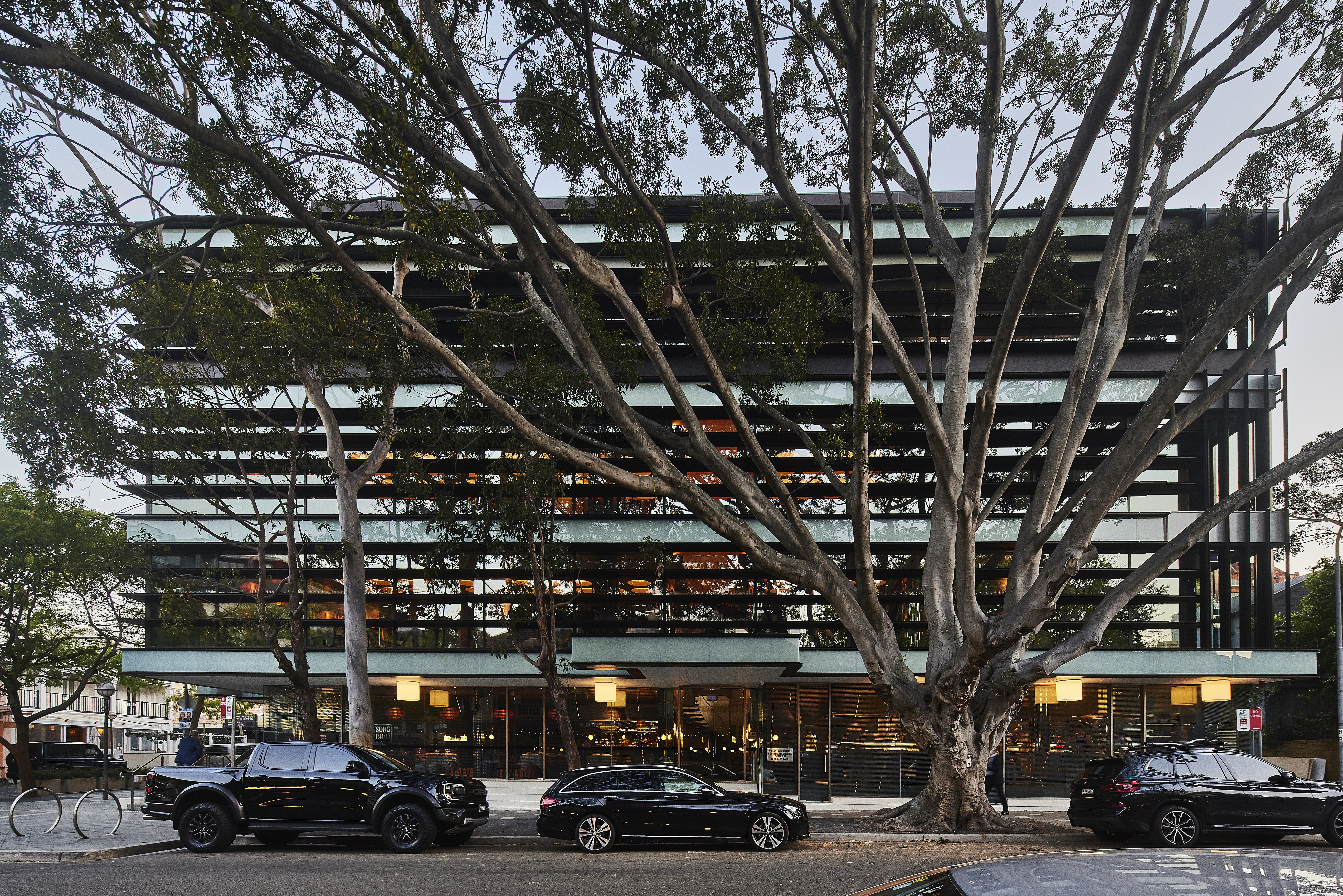

Neil Perry’s Song Bird with Capral: A Double Bay Culinary Masterpiece
