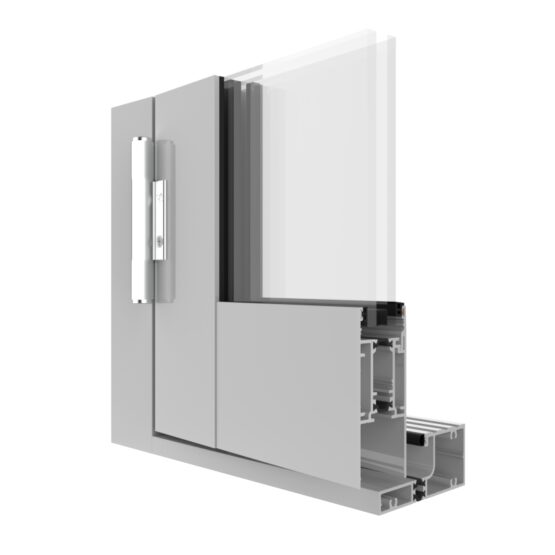

Futureline 225TB Hinged & Pivot Door
The Futureline Thermal Architectural 225TB is a high-performance thermally broken door engineered for versatility, precision, and efficiency.
Certified
Rated
Access
Key features
- 46mm door panel
- Narrow and wide stile options accommodate a range of hardware & locking mechanisms
- Patented Click2Fit colour-coded roll-in wedge options for simple and easy glazing
- Shallow, standard, and tall rail options
- Suits commercial or architectural applications and is compatible with a range of thermally broken and non-thermally broken framing suites
- Open in and open out configurations
- Quik spigot and glass support block to improve panel assembly and glazing
The Futureline 225TB is a high-performance thermally broken commercial door system engineered for versatility, precision, and thermal efficiency. Available in both hinged and pivot configurations, the combination of double glazing and the integrated thermal break provides excellent energy performance.
The 225TB suits applications ranging from architectural entry statements to commercial shopfronts and offers both standard and wide stile options. The door panel is compatible with both thermally broken and non-thermally broken framing systems, allowing a hybrid approach for product selection in reaching energy goals for commercial projects.
Download BrochureDetails
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
3000
Panel Width (mm)
1200
Height and width are interdependent and the maximum glazed area must not exceed 3.8m²
Frame Dimensions (mm)
Door Panel 46mm Depth
Acoustic Rating
Rw (C;Ctr)
35 (-1;-2)
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
8000
WATER (Pa)
600
Open out test results
Glazing Details
Double Glazed
21 - 32
Sill Options
Option 1
44 Std Sill
Option 2
20-25 Flat Sill
Option 3
7-15
Low Profile Sill
Low Profile Sill
Energy Performance
Uw Range
2.60 - 3.80
SHGC Range
0.26 - 0.48
Tvw Range
0.21 - 0.52
Air infiltration
0.96 - 0.96

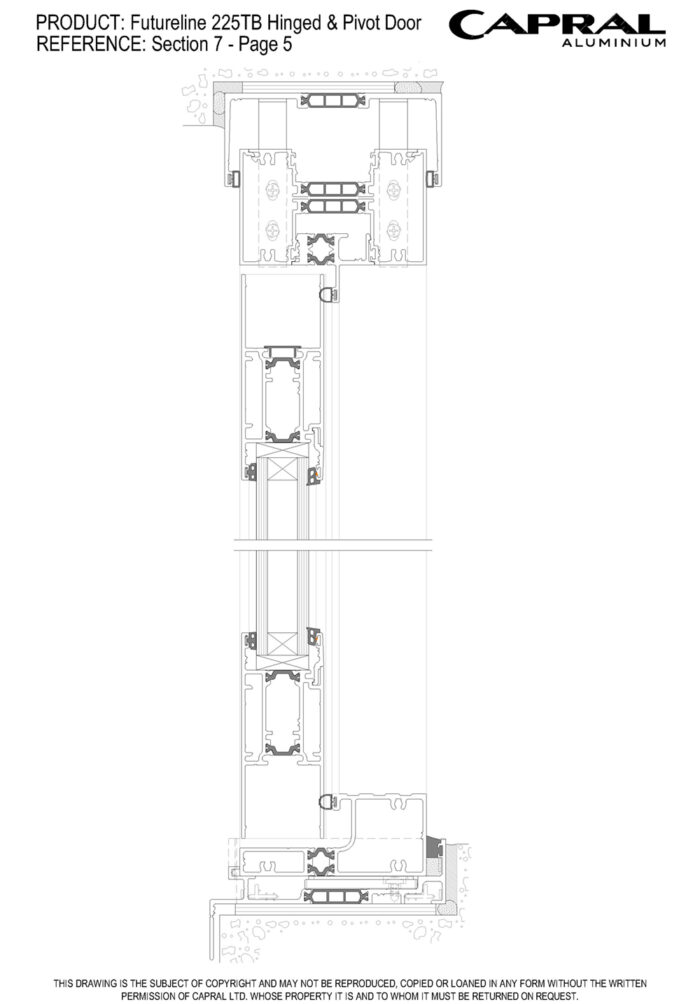

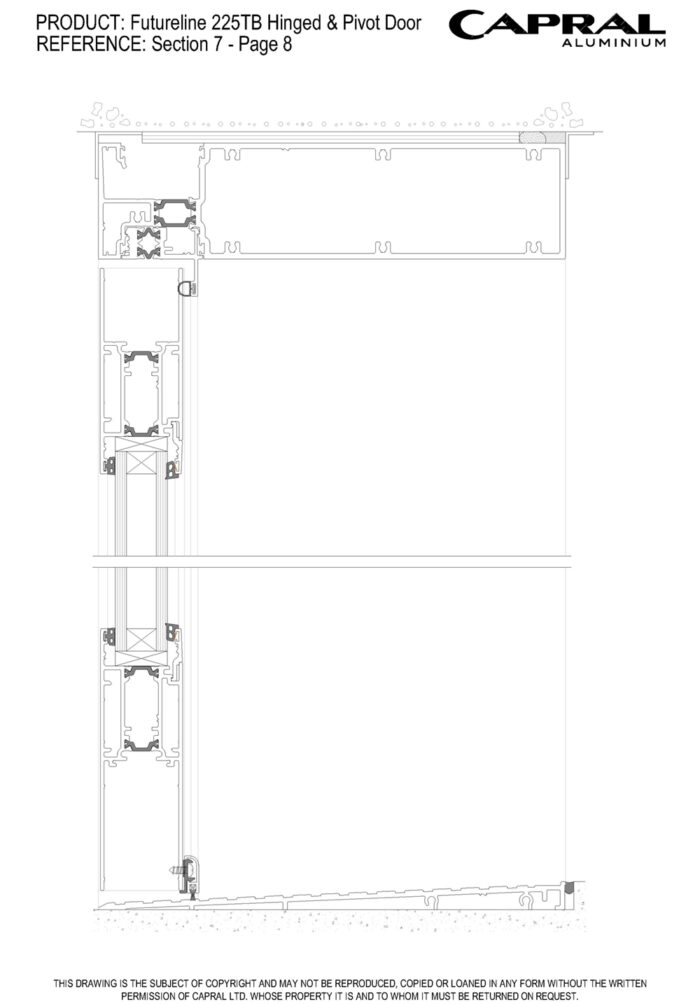

100mm Open Out Door (Vertical)

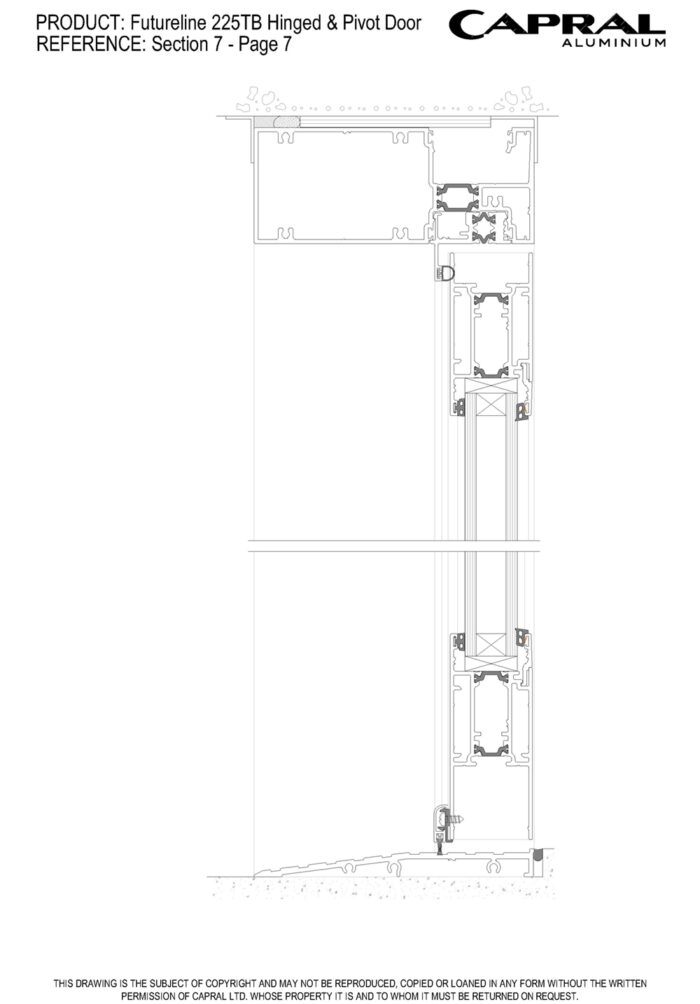

150mm Open In Door (Vertical)
250mm Open In door (Vertical)

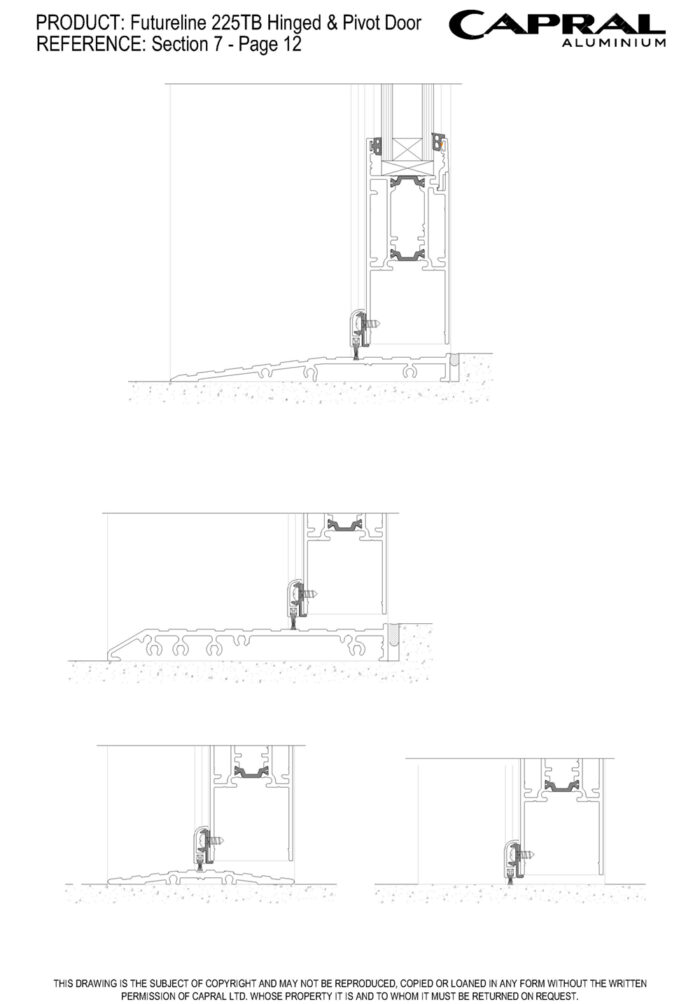

Alternative Thresholds

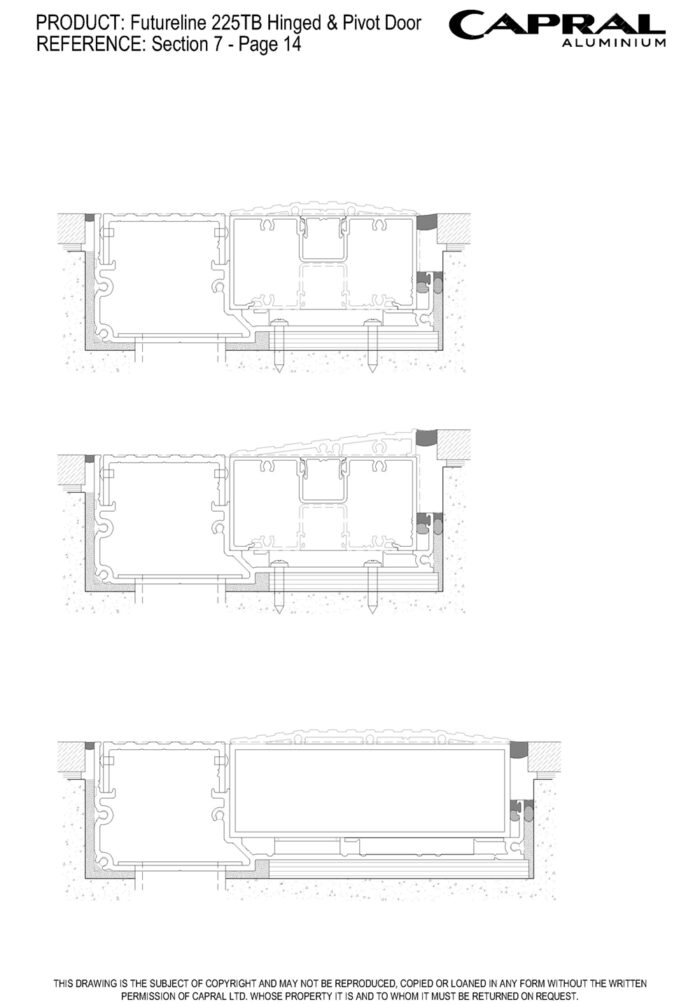

Linear Grate Thresholds

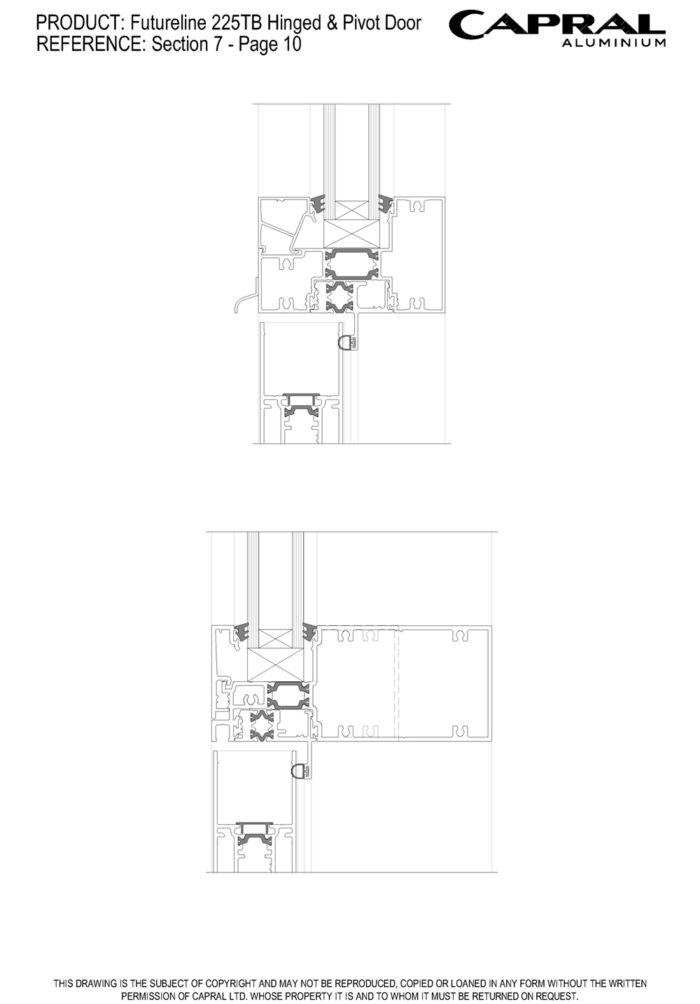

High Light Transoms

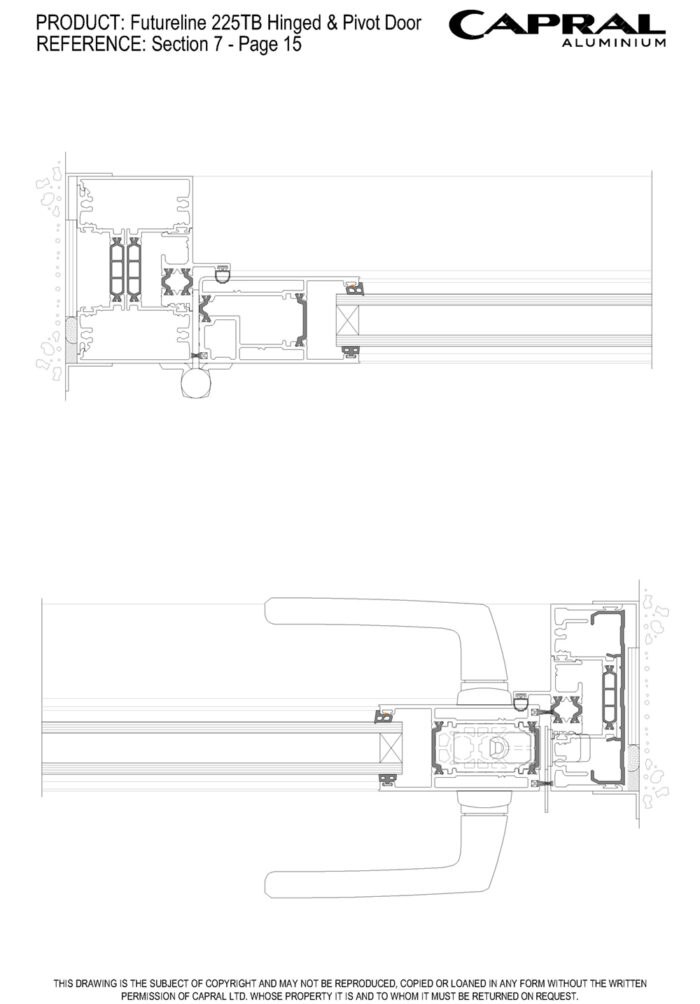

100mm Open Out (Horizontal)

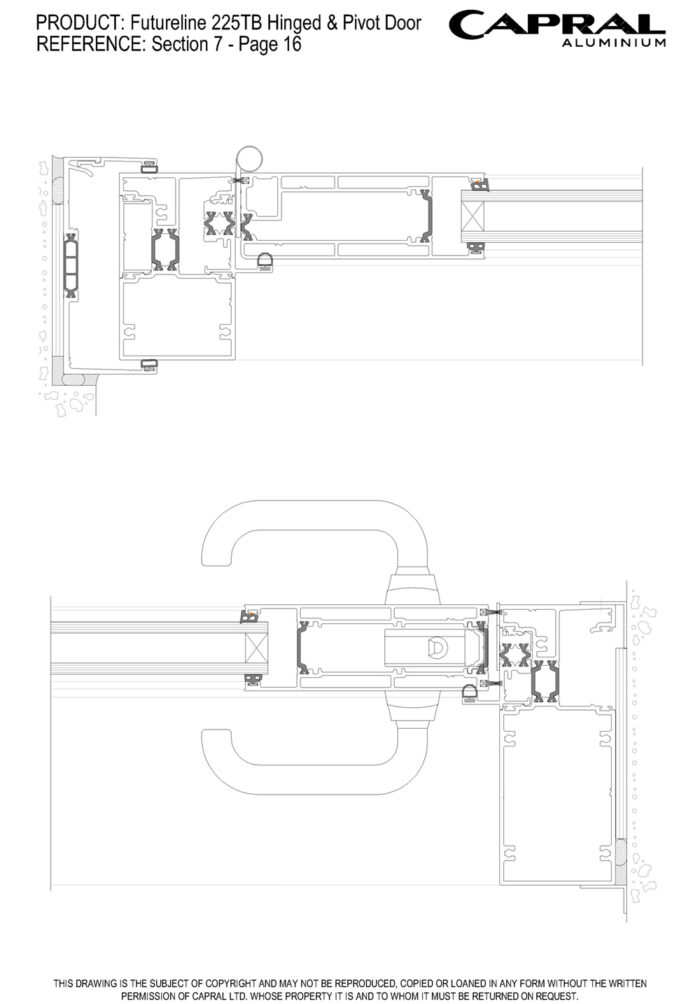

100mm & 150mm Open In (Horizontal)

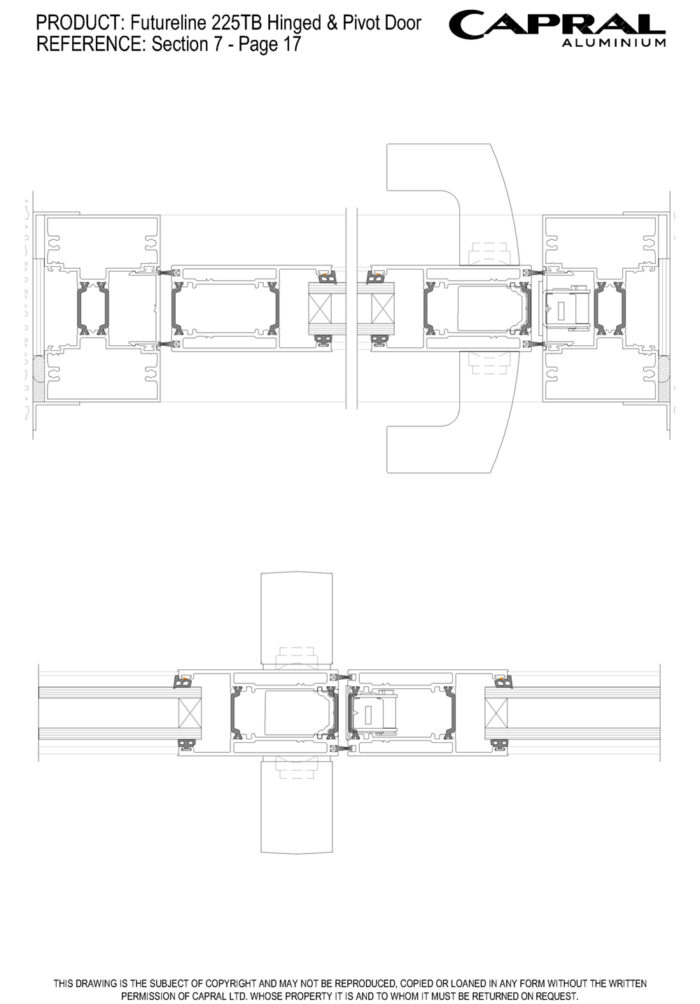

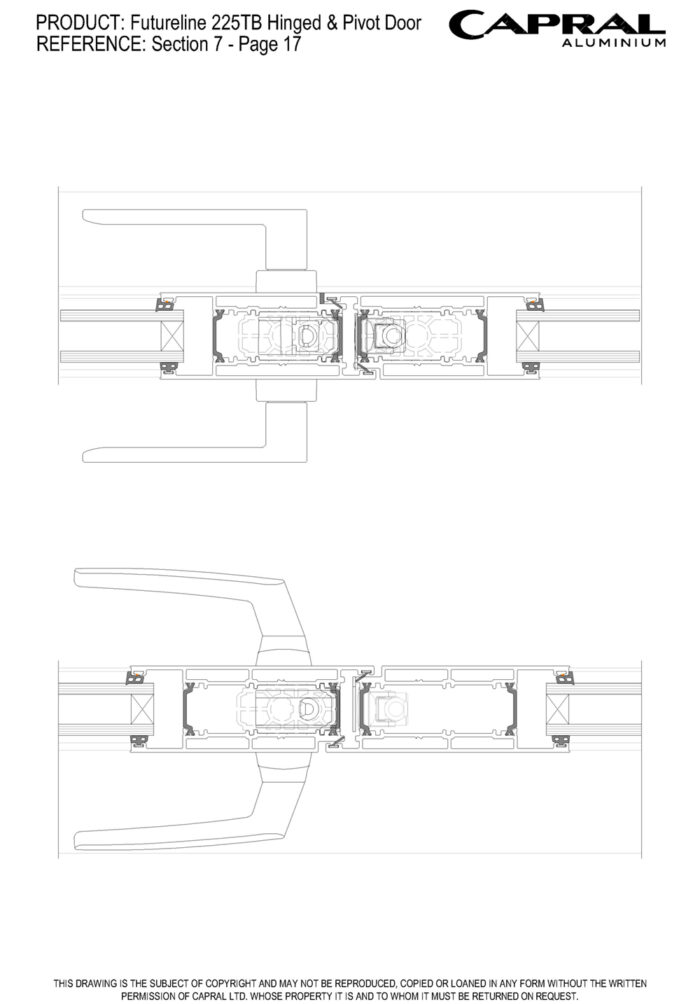

Meeting Stiles

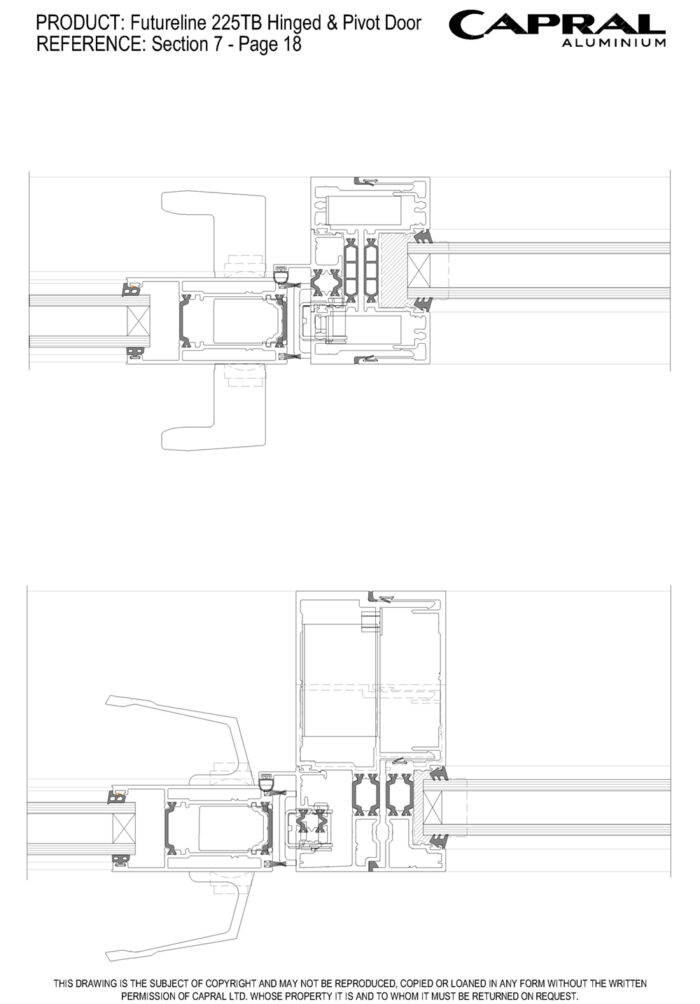

Side Light Mullions

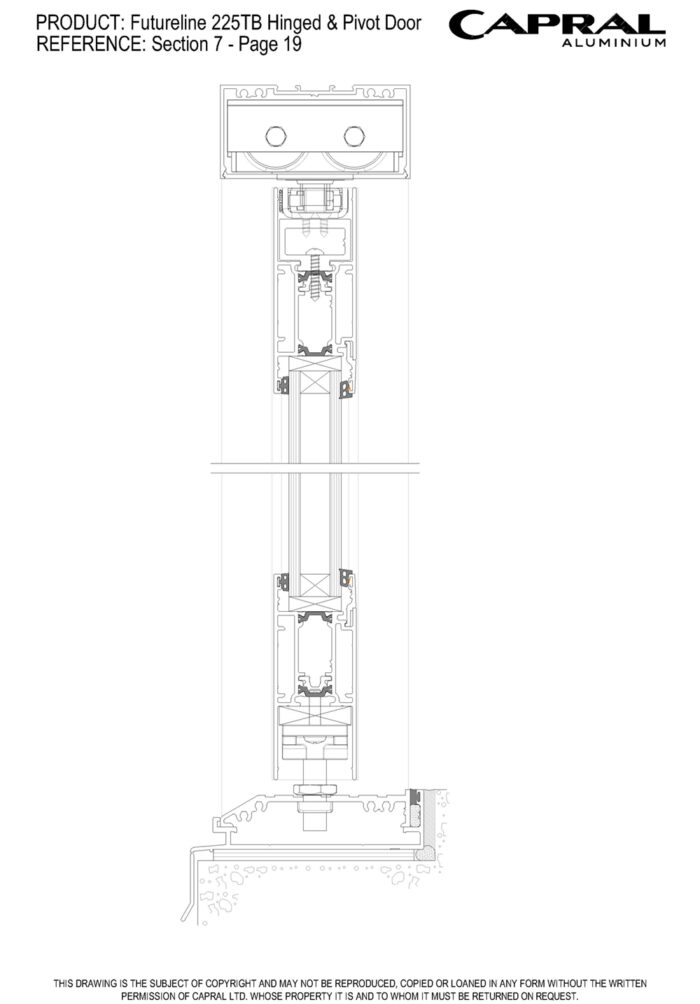

Pivot Door (Vertical)
Pivot Door (Horizontal)
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Futureline 225TB Hinged & Pivot Doors
Wall Charts
Extrusion Wall Chart Futureline Windows & Doors
CAD Files
CAD Files Futureline 225TB Hinged and Pivot Doors
CAD Wall Chart Futureline Framing, Windows and Doors
Revit
Futureline 225TB Hinged & Pivot Door
Bulletins
PBJ1006 - Futureline 225TB Hinge Door & Quik Rail / Spigot
