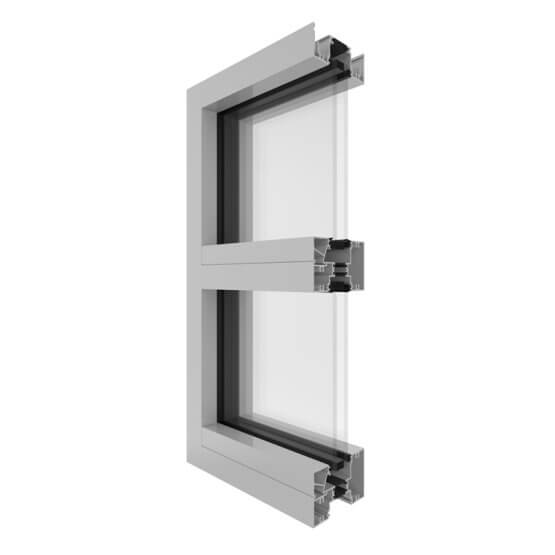

Futureline 425TB Centre Glazed Framing System (100mm)
The Capral Futureline 425TB centre glazed framing system incorporates the glazing capacity to accommodate high performance double glazed units up to 34mm while retaining crisp, clean profiles typically associated with the commercial glazing system.
Broken
Certified
Rated
Tested
Key features
- Centre glazed
- Excellent ‘Uw’ values down to 1.7
- 100mm x 62mm Centre Glazed Framing System
- Crisp, clean square profiles
- Capable of accommodating IGUs up to 34mm
- Thermally broken Sub Frames
- High-Performance Glazing Bead System

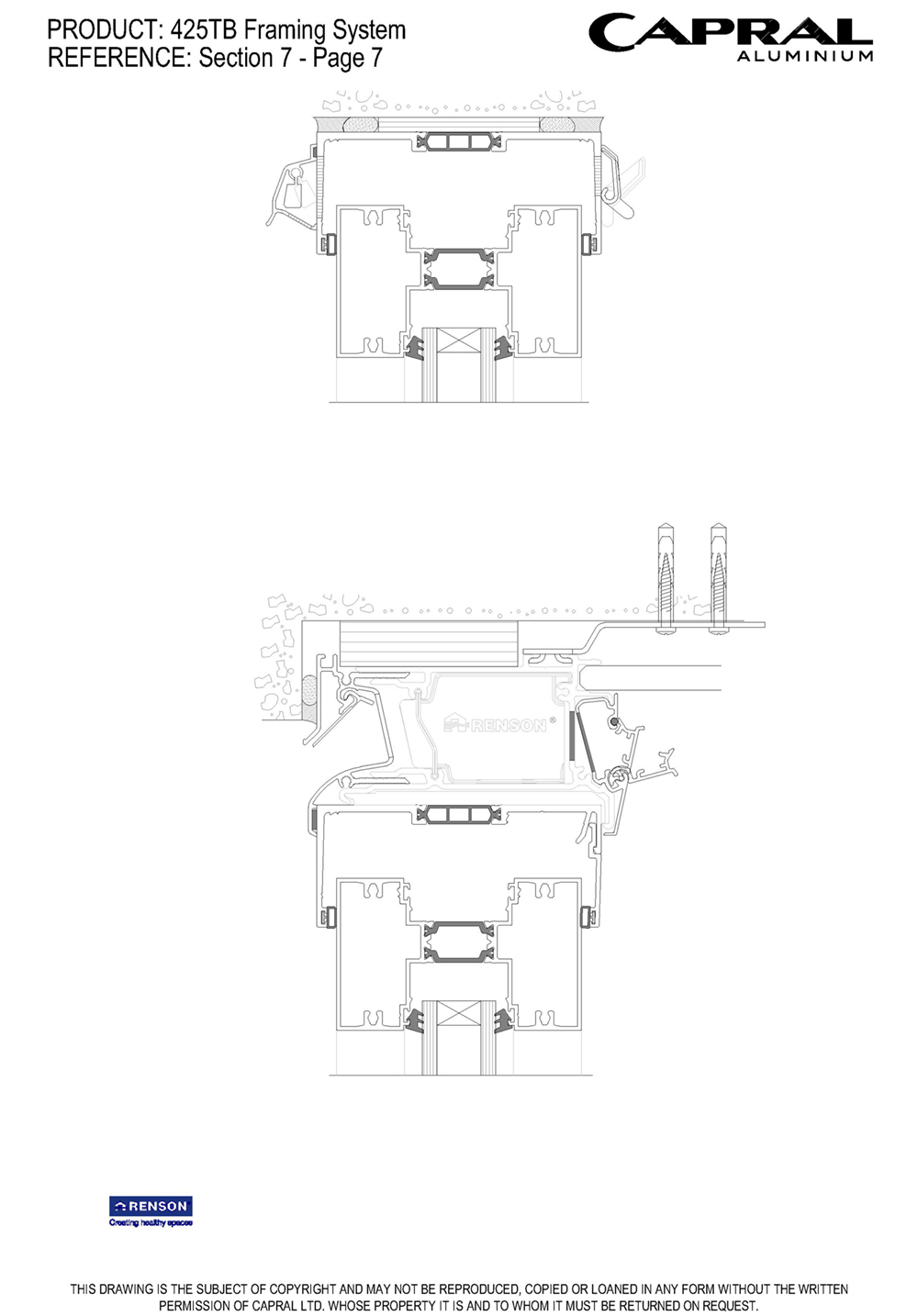

- Trickle Vent available
The Capral Futureline 425TB centre glazed framing system incorporates the glazing capacity to accommodate high-performance double glazed units up to 34mm while retaining crisp, clean profiles typically associated with commercial glazing systems.
The use of the latest thermal break technology, consisting of double-bar polyamide strips, has been incorporated for excellent levels of thermal insulation. The Future line 425TB framing system offers the best of both worlds; a robust architectural aesthetic with a level of thermal efficiency usually associated with narrower, less substantial framing systems.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
4000
Panel Width (mm)
3000
Frame Dimensions (mm)
Frame depth (mm)
100
Face Width (mm)
62
Acoustic Rating
Rw (C;Ctr)
41 (-2;-5)
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
8500
WATER (Pa)
900
Glazing Details
Double Glazed
22 - 34
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Futureline 425TB Framing System
Technical Manual Futureline Sub Framing
Wall Charts
Extrusion Wall Chart Futureline Framing Systems
BIM Files
Revit Capral Futureline Framing
CAD Files
CAD Files Futureline 425TB Framing System
CAD Files Futureline Sub Frames & Adapors
CAD Wall Chart Futureline Framing, Windows & Doors
Bulletins
J1084 - Futureline Reveal Fixing
PB476 - Futureline – 50mm x 39mm TB Glazing Channel
PB411 - Futureline 425TB Low Profile Sill
PB365 - Futureline Framing Systems
Other
Capral Futureline Brochure
Capral Futureline 425TB Brochure
Specification Futureline 425TB
Technical Manual Futureline 425TB Framing System
Capral Installation Details
Environmental Protection Declaration (EPDs)
Compatible Products
Futureline 994TB Sliding DoorThe Futureline 994TB Sliding Door is a premium option for convenience, comfort, and efficiency.
Futureline Horizontal Sashless WindowThe Futureline Horizontal Sashless Window is a sleek, modern take on the traditional sliding window.
Futureline Vertical Sashless WindowThe Futureline Vertical Sashless Window is a sleek, modern take on the traditional double-hung window.
Futureline Awning WindowDesigned to complement the excellent thermal performance of the Futureline 425TB, 429TB & 629TB framing systems, the Futureline Awning window system offers a stylish and functional operable window option.
Futureline Casement WindowDesigned to complement the excellent thermal performance of the Futureline 425TB, 429TB and 629TB framing systems, the Futureline Casement window system offers a stylish and functional operable window option.
Futureline Hinged DoorThe Futureline Hinged Door system fits perfectly with any Futureline framing setup, giving you a top-notch thermally broken hinged door.
Urban Comfort 284TB Sliding DoorCapral's Urban Comfort Thermally Broken Sliding Door is designed for Australian homes with enhanced comfort and thermal efficiency.
More products from this range
Futureline 1029TB Front Glazed Framing System (250mm)Thermally-broken double-glazed aluminium framing combining both high performance and the sleek, precise profile of a commercial system.
Futureline Casement WindowDesigned to complement the excellent thermal performance of the Futureline 425TB, 429TB and 629TB framing systems, the Futureline Casement window system offers a stylish and functional operable window option.
Futureline 429TB Front Glazed Framing System (100mm)The Capral Futureline 429TB framing system incorporates the glazing capacity to accommodate high-performance double-glazed units up to 34mm while retaining the crisp, clean profiles typically associated with commercial glazing systems.
Futureline Horizontal Sashless WindowThe Futureline Horizontal Sashless Window is a sleek, modern take on the traditional sliding window.
Futureline 629TB Front Glazed Framing System (150mm)The Capral Futureline 629TB framing system incorporates the glazing capacity to accommodate high-performance double-glazed units up to 34mm while retaining the crisp, clean profiles typically associated with commercial glazing systems.
Futureline 994TB Sliding DoorThe Futureline 994TB Sliding Door is a premium option for convenience, comfort, and efficiency.
Futureline Vertical Sashless WindowThe Futureline Vertical Sashless Window is a sleek, modern take on the traditional double-hung window.
Futureline Awning WindowDesigned to complement the excellent thermal performance of the Futureline 425TB, 429TB & 629TB framing systems, the Futureline Awning window system offers a stylish and functional operable window option.
Not quite what you’re looking for? Consider...
Futureline 629TB Front Glazed Framing System (150mm)The Capral Futureline 629TB framing system incorporates the glazing capacity to accommodate high-performance double-glazed units up to 34mm while retaining the crisp, clean profiles typically associated with commercial glazing systems.
Futureline 1029TB Front Glazed Framing System (250mm)Thermally-broken double-glazed aluminium framing combining both high performance and the sleek, precise profile of a commercial system.
Urban Comfort 282TB Fixed Light WindowThe Urban Comfort Thermally Broken Fixed Light Window combines sleek design with outstanding thermal performance, tailored for Australian residential applications.
Futureline 429TB Front Glazed Framing System (100mm)The Capral Futureline 429TB framing system incorporates the glazing capacity to accommodate high-performance double-glazed units up to 34mm while retaining the crisp, clean profiles typically associated with commercial glazing systems.
Projects that use this system
Rox Apartments
Discover the Rox Apartments, a modern residential development featuring Capral's innovative window and door systems. Learn how Capral's products contribute to both functionality and visual appeal in this cutting-edge residential project.
Commercial

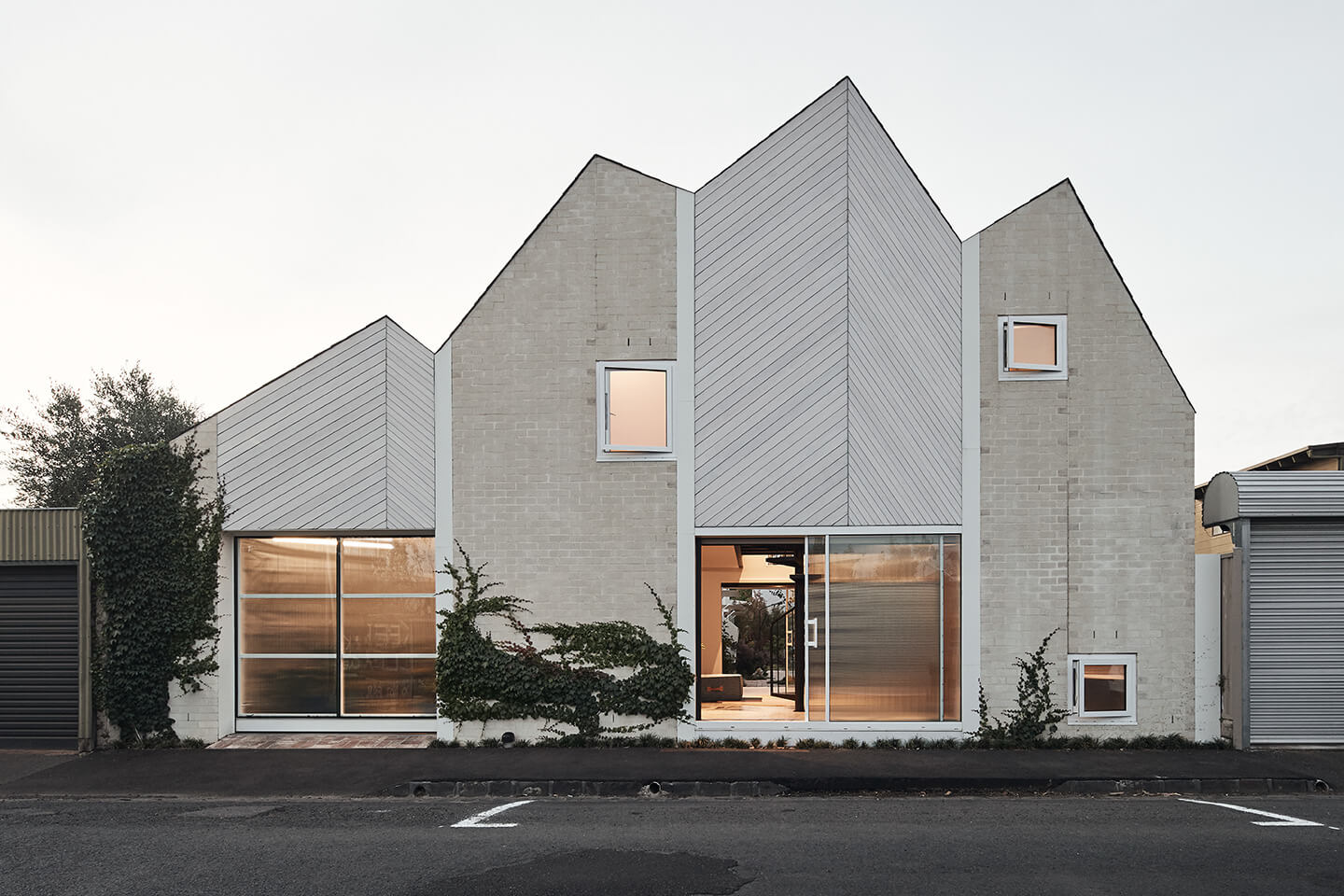

Raerae House
