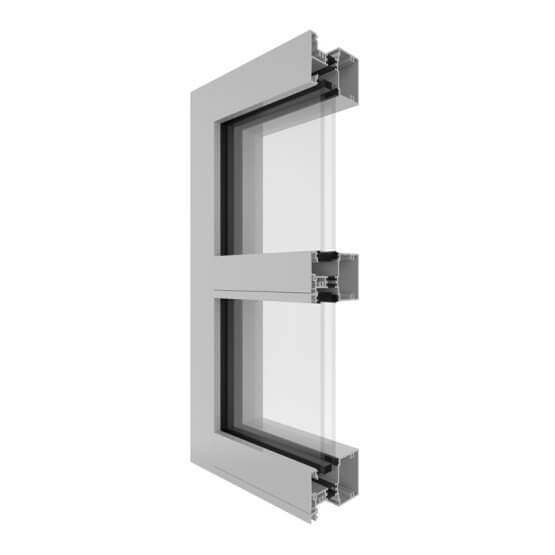

    Futureline 429TB Front Glazed Framing System (100mm) Corner Image.
    Commercial

    Futureline 429TB Front Glazed Framing System (100mm)

    The Capral Futureline 429TB framing system incorporates the glazing capacity to accommodate high-performance double-glazed units up to 34mm while retaining the crisp, clean profiles typically associated with commercial glazing systems.

    Download Brochure WERS Rating
    Residential Commercial
    Thermally
    Broken
    Declare Label
    Certified
    Acoustic
    Rated
    BAL 40
    Tested
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select

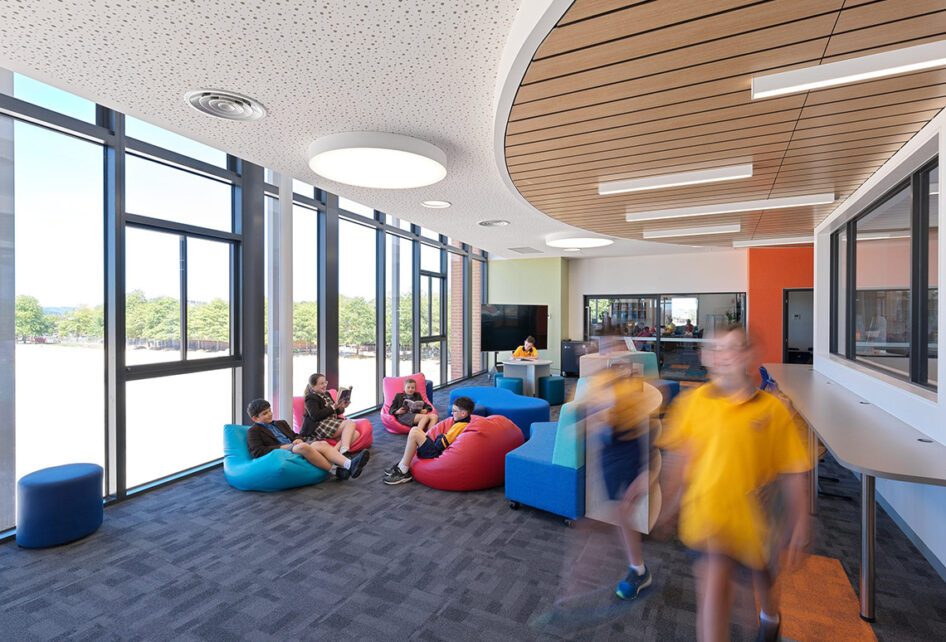

    Capral's Project Ballarat Grammar 5/6 Centre Cafeteria using Capral window and building systems.
    Capral's Project Ballarat Grammar 5/6 Centre Cafeteria using Capral window and building systems.
    Capral's Project Kunzea Estate using Capral window and building systems.
    Capral's Project Kunzea Estate using Capral window and building systems.
    Capral's Project Kunzea Estate using Capral window and building systems.
    Capral's Project Ballarat Grammar 5/6 Centre Cafeteria using Capral window and building systems.
    Capral's Project Ballarat Grammar 5/6 Centre Cafeteria using Capral window and building systems.
    Capral's Project Kunzea Estate using Capral window and building systems.
    Capral's Project Kunzea Estate using Capral window and building systems.
    Capral's Project Kunzea Estate using Capral window and building systems.
    Key features
    • Front glazed
    • Excellent ‘Uw’ values down to 1.8
    • 100mm x 62mm Front Glazed Framing System
    • Crisp, clean square profiles
    • Capable of accommodating IGUs up to 34mm
    • Thermally Broken Sub Frames
    • High-Performance Glazing Bead System
    • Trickle Vent available
    • Ability to be internally or externally glazed
    • Reverse installation is possible

    The Capral Futureline 429TB framing system incorporates the glazing capacity to accommodate high-performance double-glazed units up to 34mm while retaining the crisp, clean profiles typically associated with commercial glazing systems.
    The use of the latest thermal break technology, consisting of double-bar polyamide strips, has been incorporated for excellent levels of thermal insulation. Mullions and transoms are designed to accommodate standard modular construction methods, allowing them to be fabricated similarly to non-thermally broken framing systems.

    Download Brochure

    Details

    Product Specs
    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 4800
    Panel Width (mm) 2400

    Frame Dimensions (mm)

    Frame depth (mm) 100
    Face Width (mm) 62

    Acoustic Rating

    Rw (C;Ctr) 41 (-1;-5)

    Maximum Product Performance

    SLS (Pa) 4500
    ULS (Pa) 10000
    WATER (Pa) 900

    Glazing Details

    Double Glazed 22 - 34
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual Futureline 429TB Framing System
    Technical Manual Futureline Sub Framing
    Wall Charts
    Extrusion Wall Chart Futureline Framing Systems
    BIM Files
    Capral Framing Futureline
    CAD Files
    CAD Files Futureline 429TB Framing System
    CAD Files Futureline Sub Frames & Adapors
    CAD Wall Chart Futureline Framing, Windows & Doors
    Bulletins
    J1084 - Futureline Reveal Fixing
    PB365 - Futureline Framing Systems
    Other
    Capral Futureline Brochure Capral Futureline 429TB Brochure Specification Futureline 429TB Framing System Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
