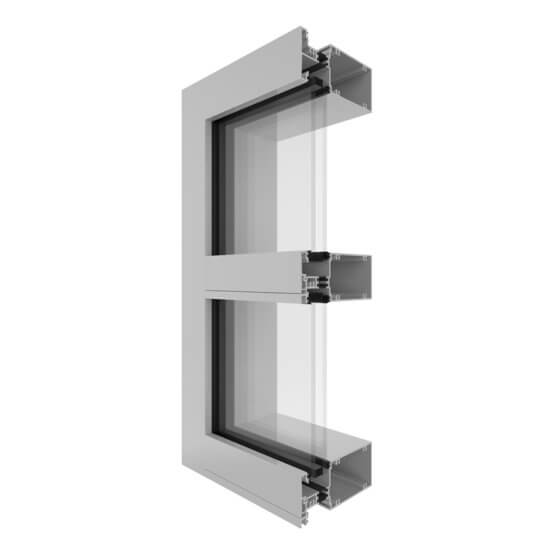

Futureline 629TB Front Glazed Framing System (150mm)
The Capral Futureline 629TB framing system incorporates the glazing capacity to accommodate high-performance double-glazed units up to 34mm while retaining the crisp, clean profiles typically associated with commercial glazing systems.
Broken
Certified
Rated
Key features
- Front glazed
- Excellent ‘Uw’ values down to 1.9
- 150mm x 62mm Front Glazed Framing System
- Crisp, clean square profiles
- Modular frame construction
- Thermally broken subframes
- Capable of accommodating IGUs up to 34mm

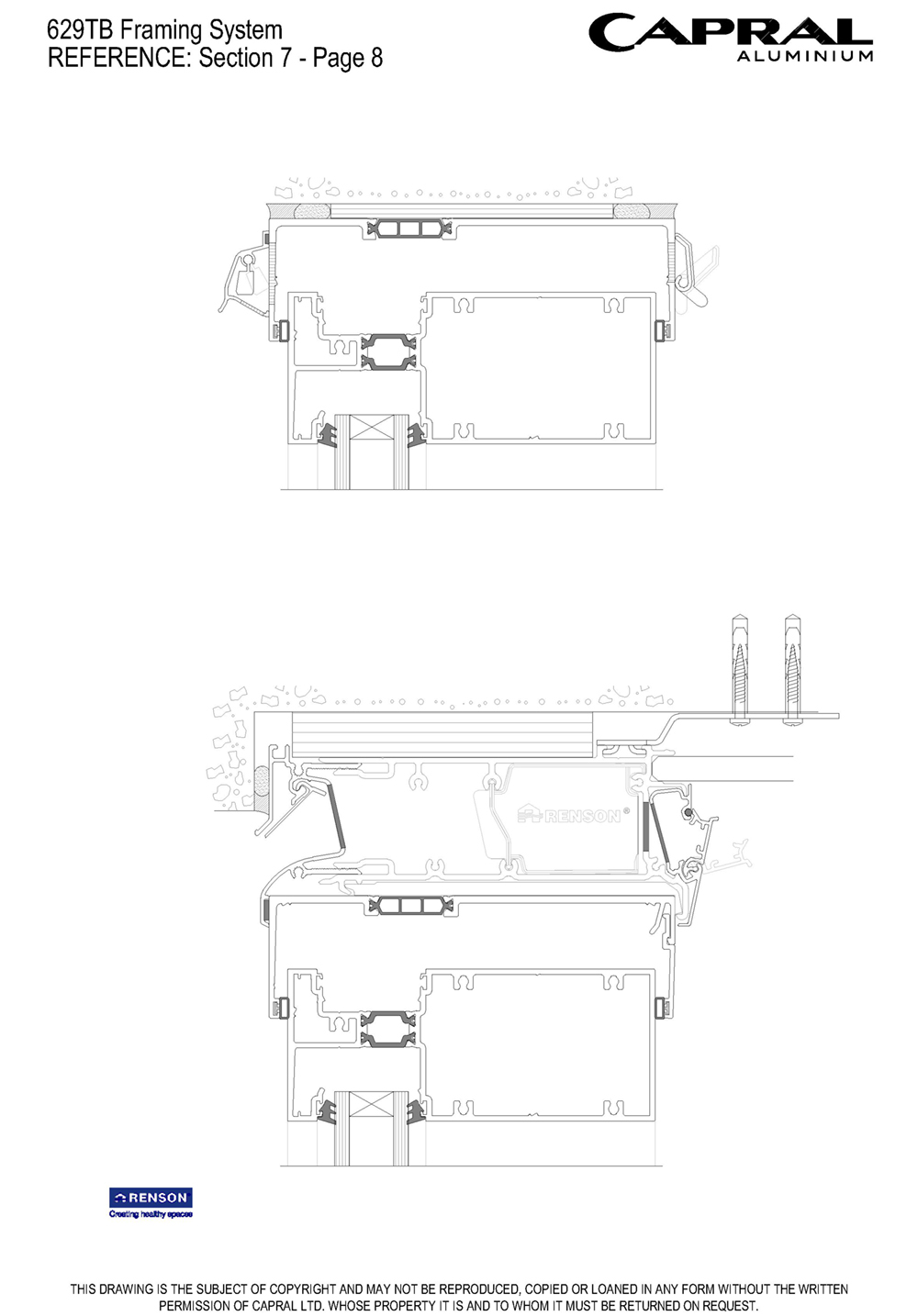

- Trickle Vent available
- Ability to be internally or externally glazed

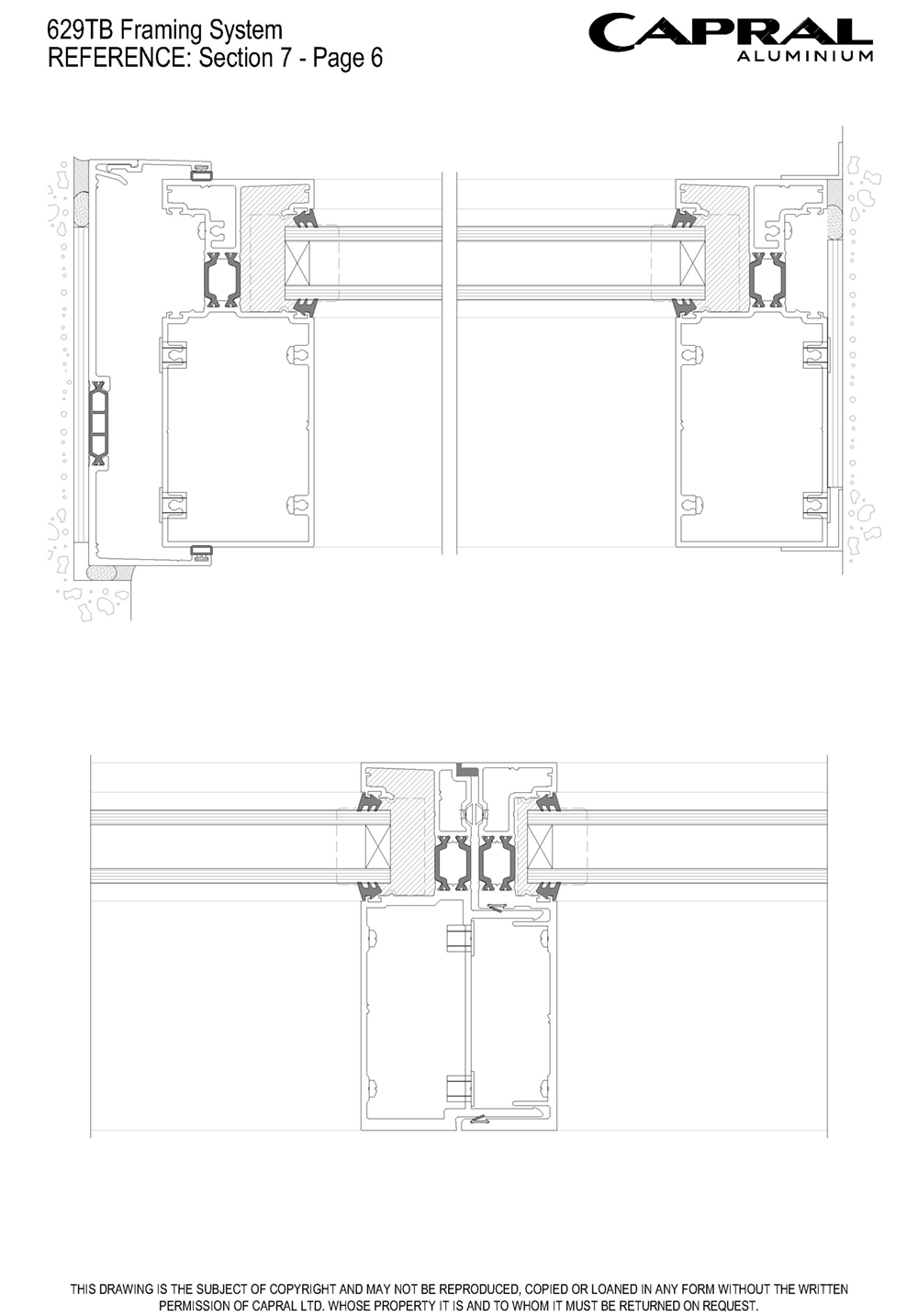

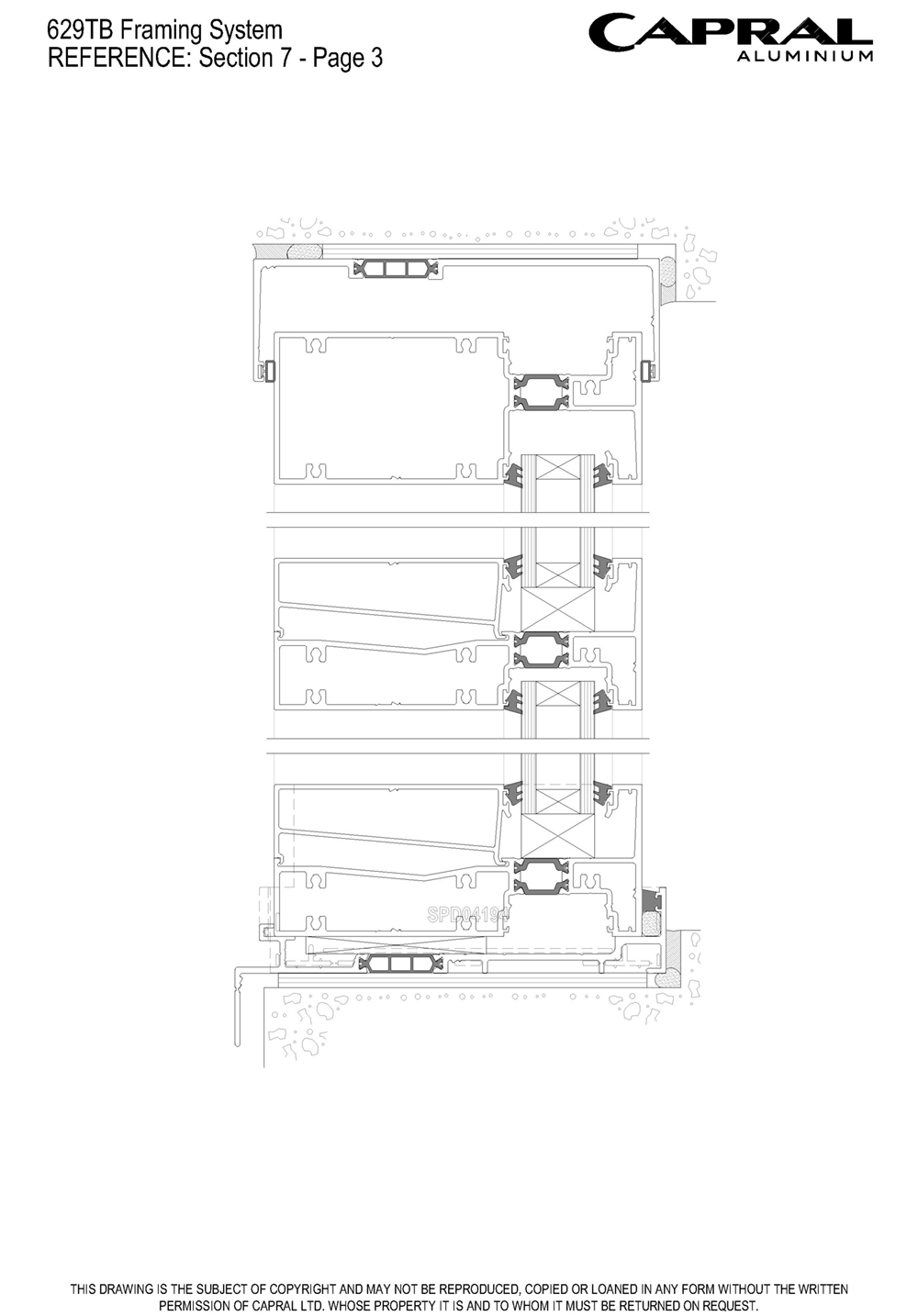

- Reverse installation is possible
The Capral Futureline 629TB framing system incorporates the glazing capacity to accommodate high-performance double-glazed units up to 34mm while retaining the crisp, clean profiles typically associated with commercial glazing systems.

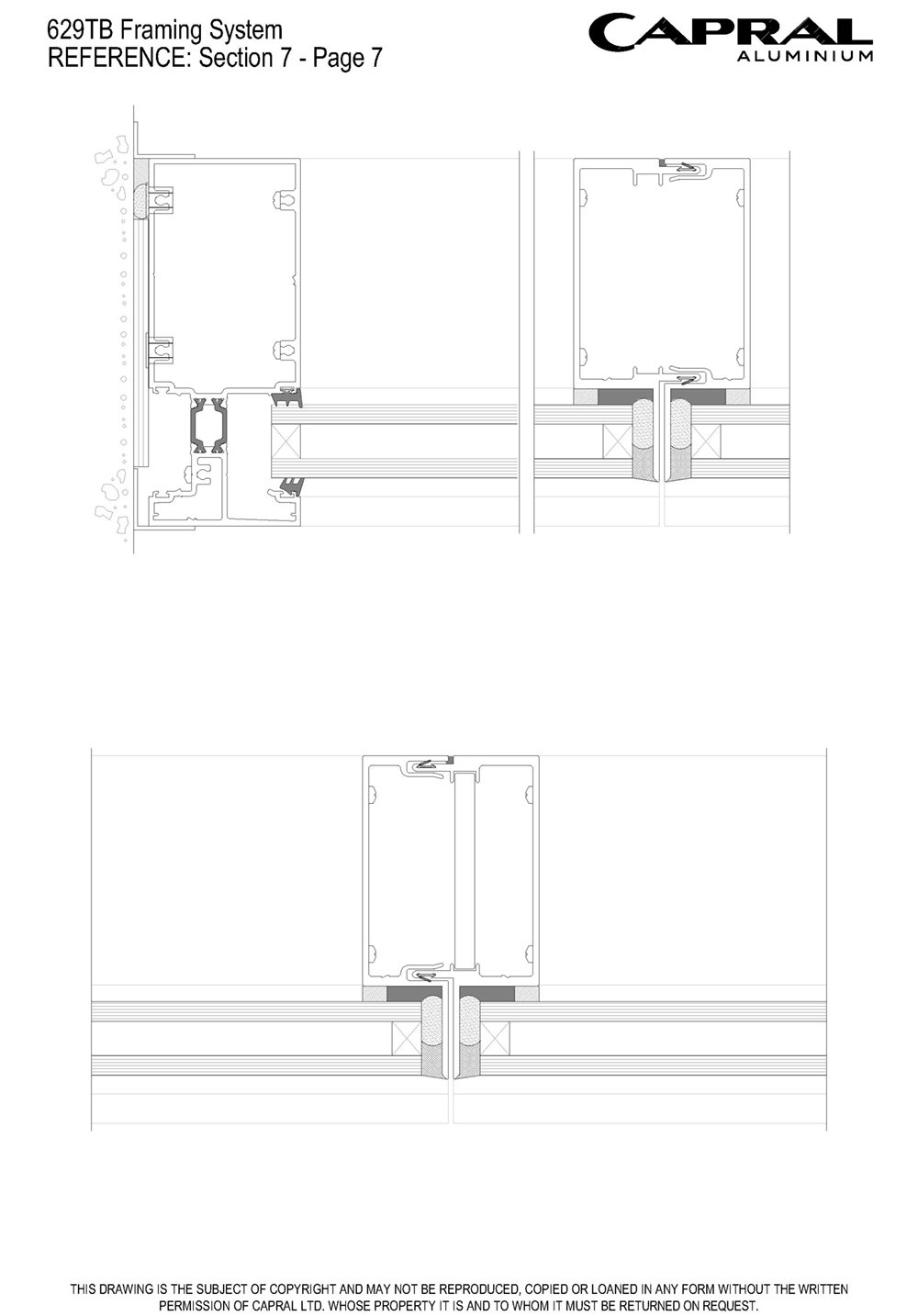

Using the latest thermal break technology, consisting of double-bar polyamide strips, delivers excellent levels of thermal insulation. Mullions and transoms accommodate common modular construction methods, allowing them to be fabricated similarly to non-thermally broken framing systems.
Details
Product Specs

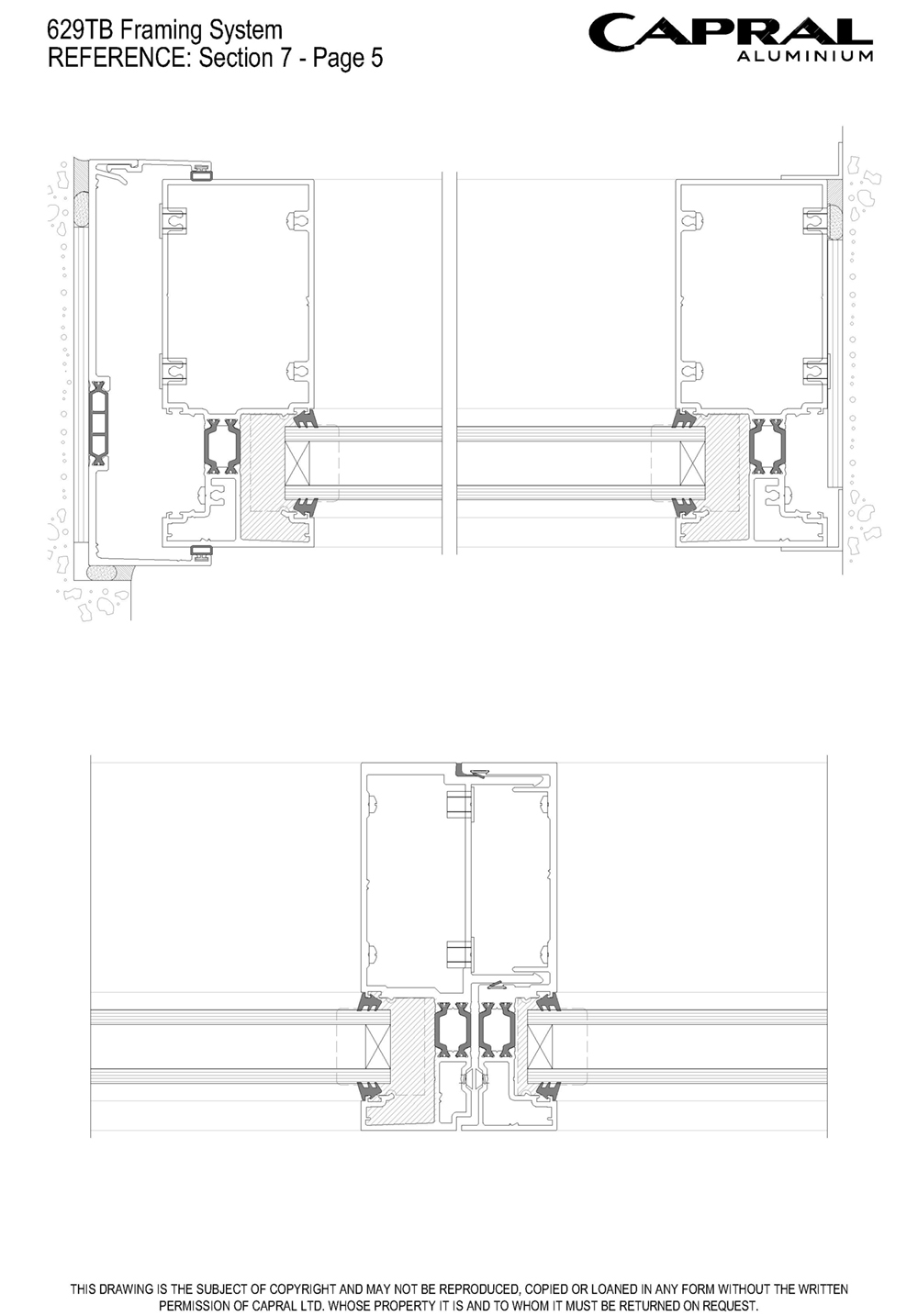

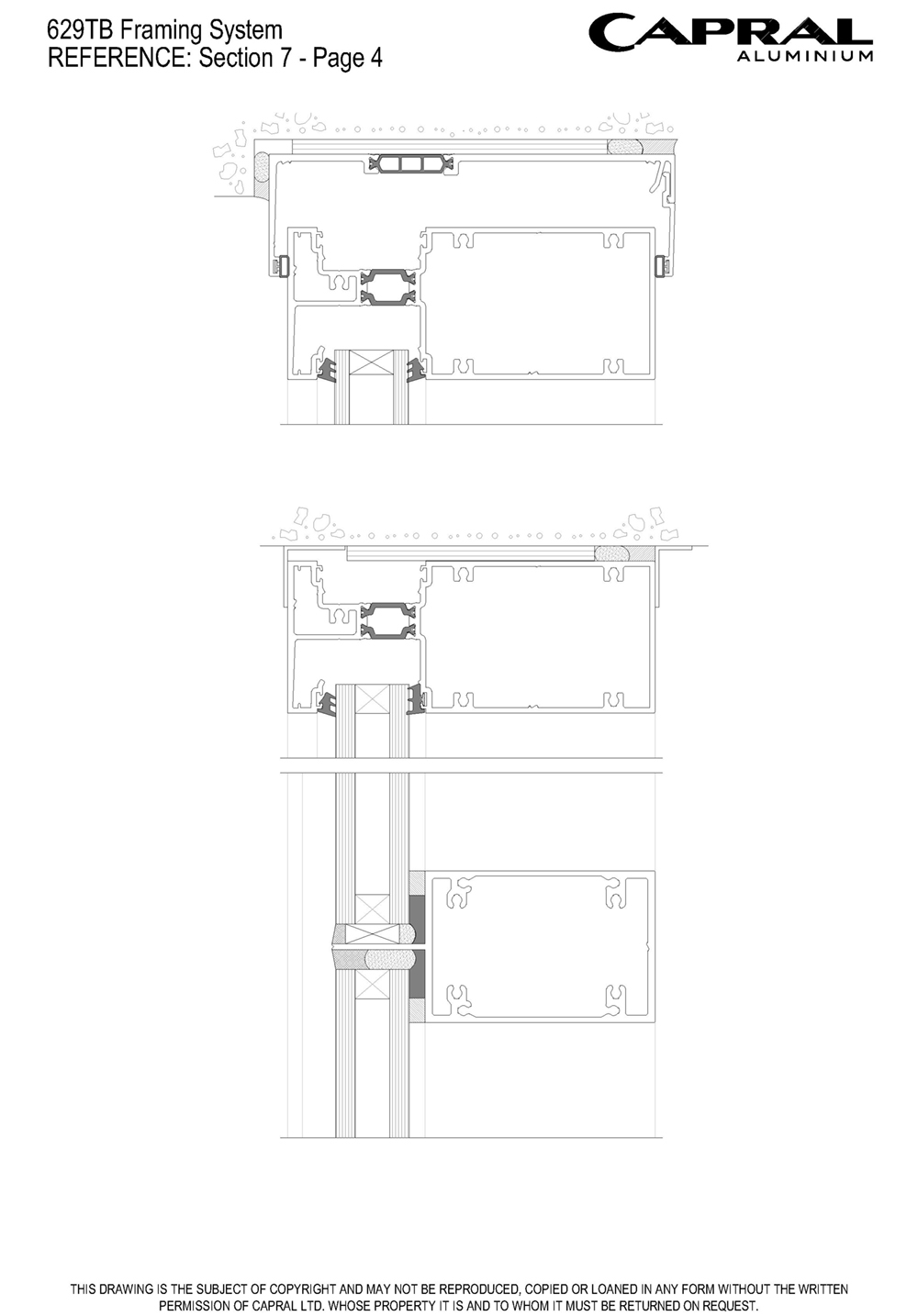

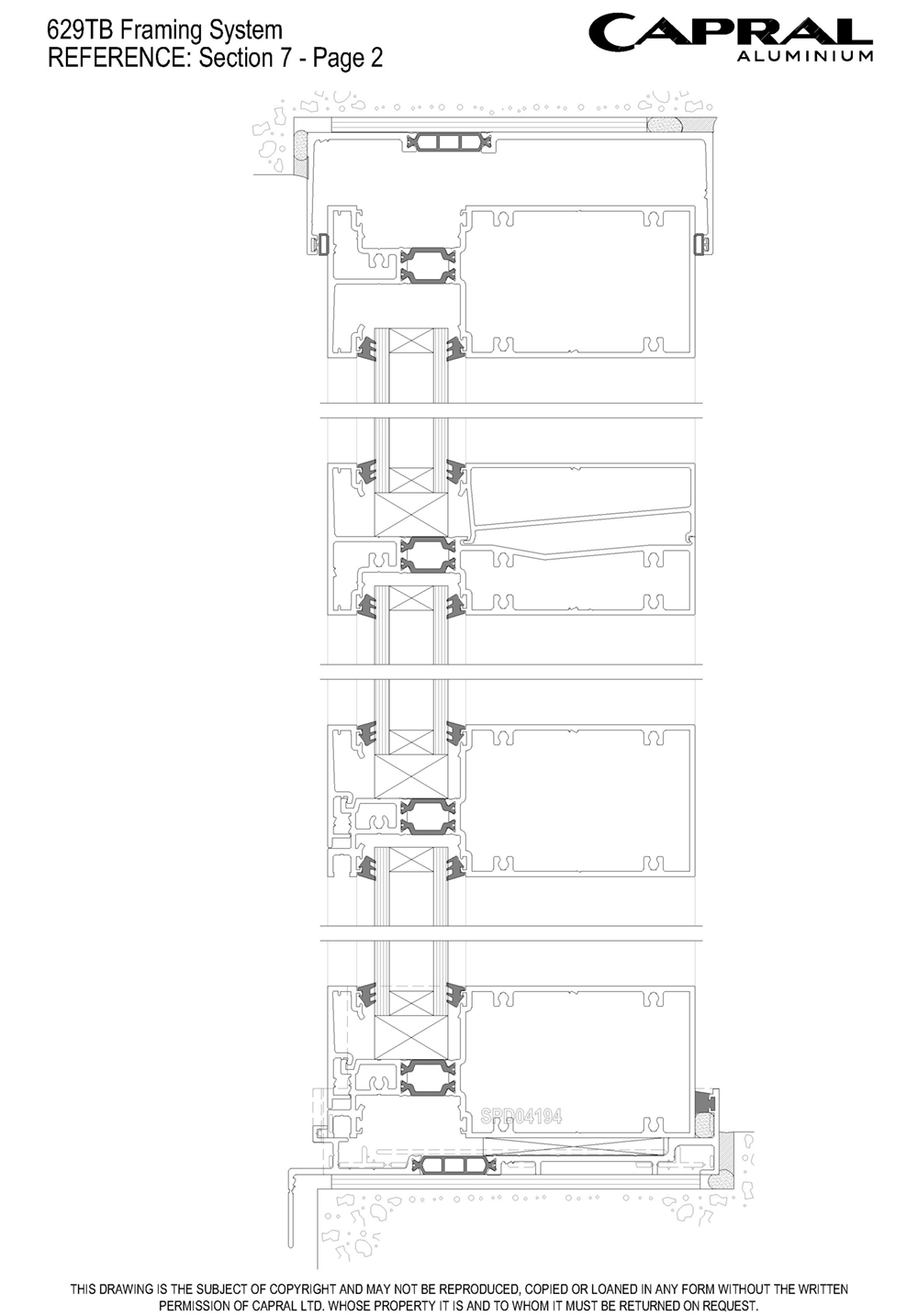

Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
5400
Panel Width (mm)
2400
Frame Dimensions (mm)
Frame depth (mm)
150
Face Width (mm)
62
Acoustic Rating
Rw (C;Ctr)
41 (-2; -5)
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
12500
WATER (Pa)
900
Glazing Details
Double Glazed
22 - 34
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Futureline 629TB Framing System
Technical Manual Futureline Sub Framing
Wall Charts
Extrusion Wall Chart Futureline Framing Systems
BIM Files
Capral Framing Futureline
CAD Files
CAD Files Futureline 629TB Framing System
CAD Files Futureline Sub Frames & Adapors
CAD Wall Chart Futureline Framing, Windows & Doors
Bulletins
J1084 - Futureline Reveal Fixing
PB470 - Futureline 629TB Framing System – Female Shade Mullion
PB365 - Futureline Framing Systems
Other
Capral Futureline Brochure
Capral Futureline 629TB Brochure
Specification Futureline 629TB Framing System
Capral Installation Details
Environmental Protection Declaration (EPDs)
