    Futureline Awning Window

    Designed to complement the excellent thermal performance of the Futureline 425TB, 429TB & 629TB framing systems, the Futureline Awning window system offers a stylish and functional operable window option.

    Download Brochure WERS Rating
    Residential Commercial
    Thermally
    Broken
    Declare Label
    Certified
    Acoustic
    Rated
    BAL 40
    Tested
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select

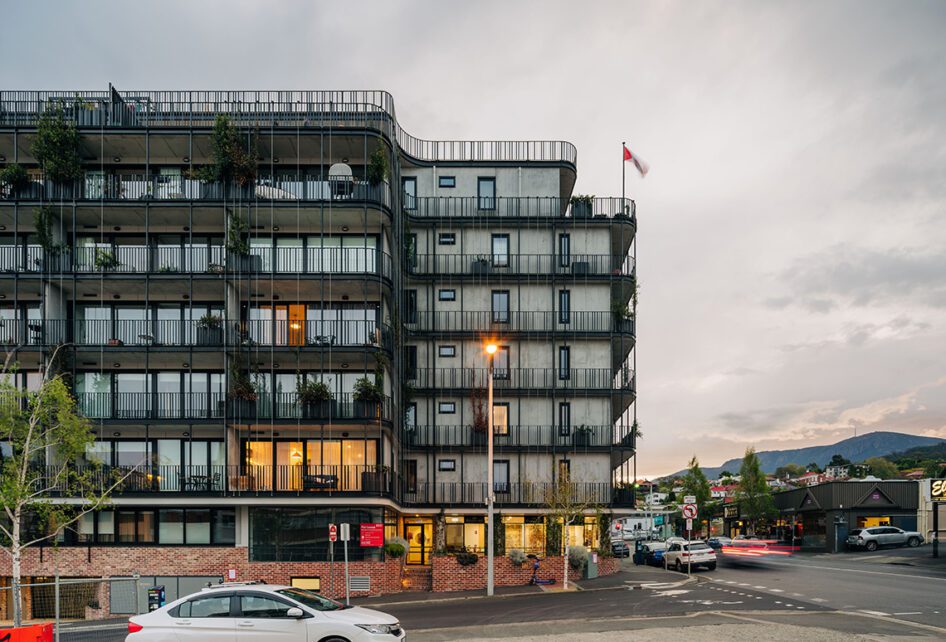

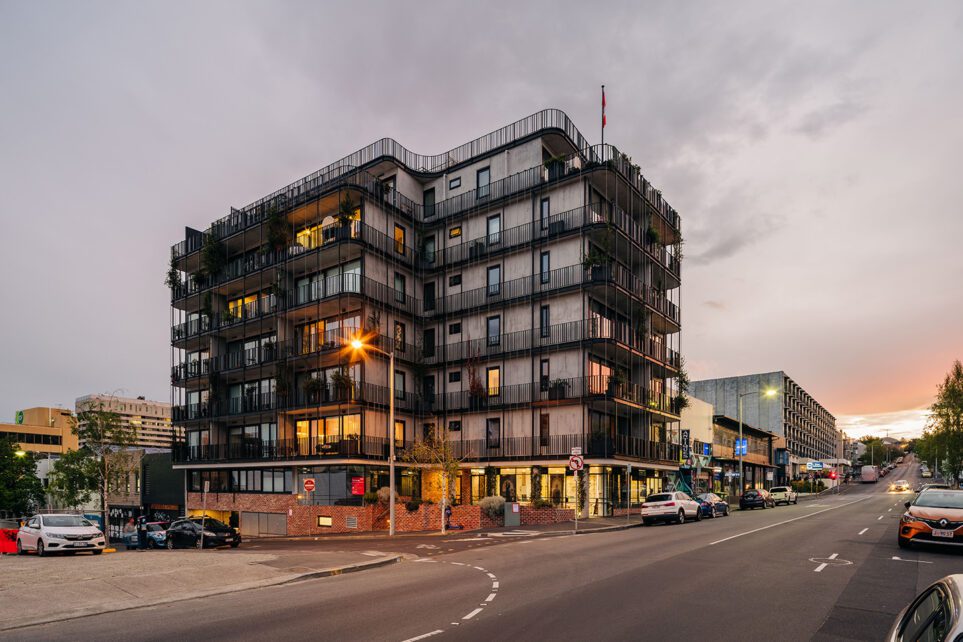

    Capral's Project The Commons using Capral window and building systems.
    Capral's Project The Commons using Capral window and building systems.

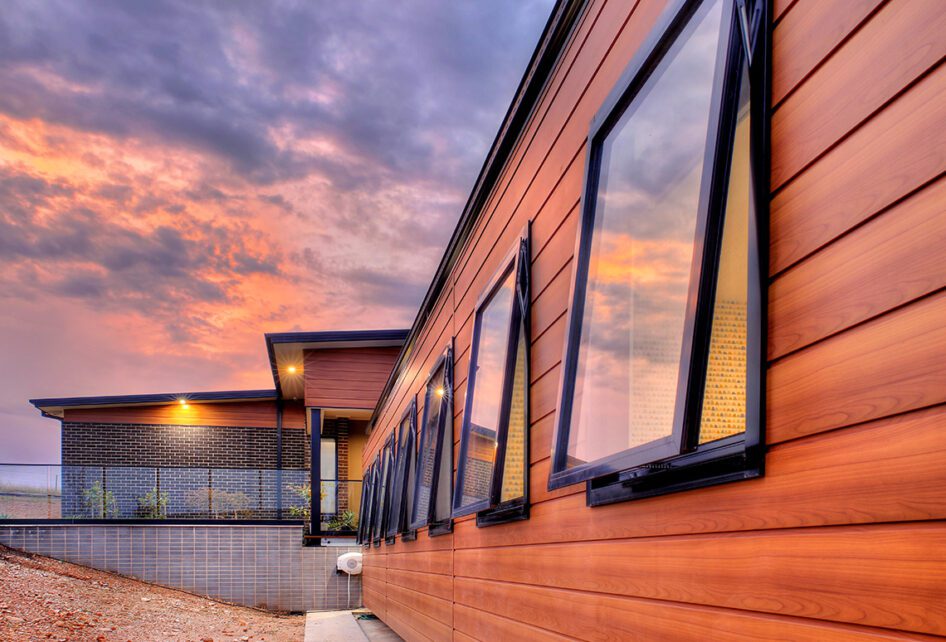

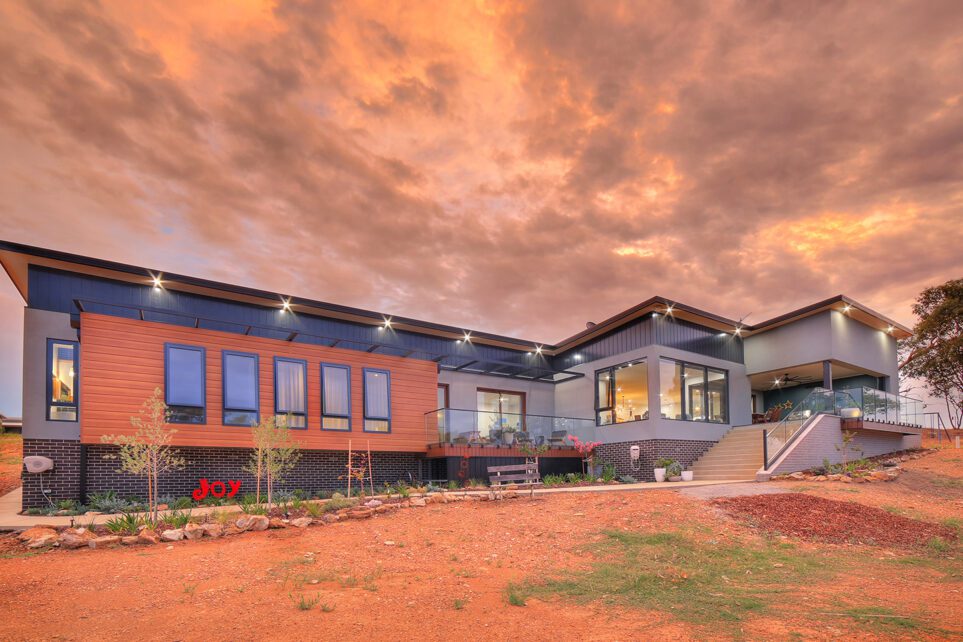

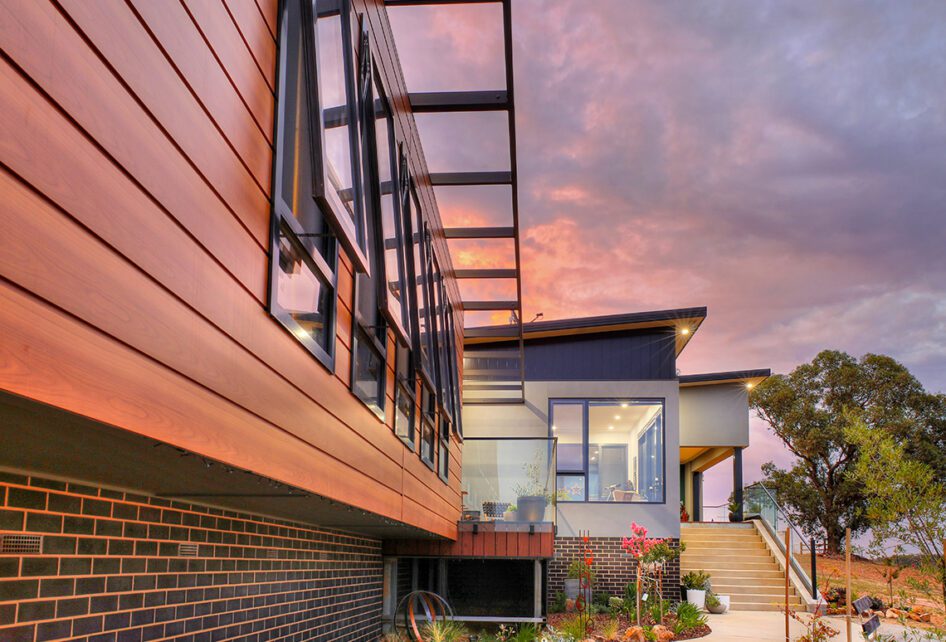

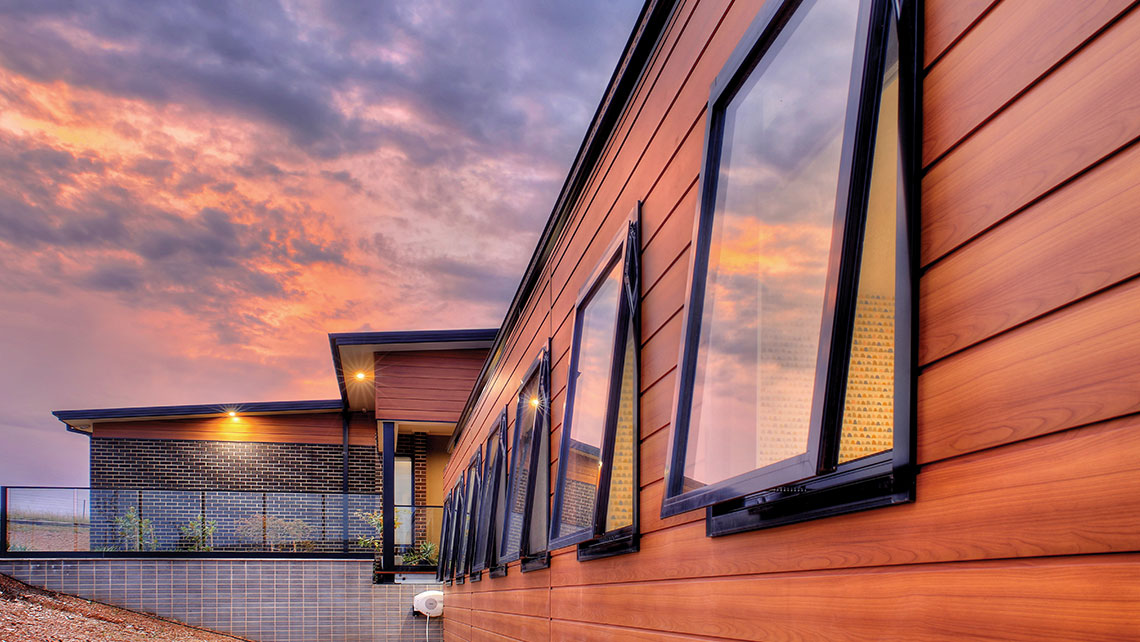

    Capral's Project Kunzea Estate using Capral window and building systems.
    Capral's Project Kunzea Estate using Capral window and building systems.
    Capral's Project Kunzea Estate using Capral window and building systems.
    Capral's Project The Commons using Capral window and building systems.
    Capral's Project The Commons using Capral window and building systems.
    Capral's Project Kunzea Estate using Capral window and building systems.
    Capral's Project Kunzea Estate using Capral window and building systems.
    Capral's Project Kunzea Estate using Capral window and building systems.
    Key features
    • Outstanding ‘Uw’ values down to 2.7

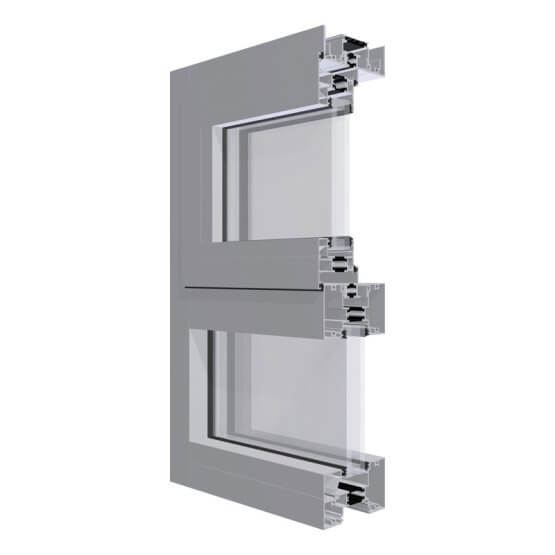

    • Overlapping external sash design
    • Crisp, clean square profiles
    • Mitred corner construction with high-quality hardware

    Designed to complement the excellent thermal performance of the Futureline 425TB, 429TB & 629TB framing systems, the Futureline Awning window system offers a stylish and functional operable window option.

    The 54mm sash profile incorporates a pair of high-performance thermal breaks to minimise heat transfer efficiently. At the same time, internal and external weather seals combined with an overlapping frame design offer a high level of weather tightness.

    The Futureline Awning Window features the option of fully integrated screening and the flexibility of either sash handles or sash operator options. Robust sash construction and corner strength are assured with high-quality European corner clamping component

    Download Brochure

    Details

    Product Specs
    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 1800
    Panel Width (mm) 1500
    Panel Weight (kg) 60
    Panel Area (m2) 2.3

    Frame Dimensions (mm)

    425TB Frame 100mm
    429TB Frame 100mm
    629TB Frame 150mm

    Acoustic Rating

    Rw (C;Ctr) 38 (-1;-3)

    Maximum Product Performance

    SLS (Pa) 2200
    ULS (Pa) 4500
    WATER (Pa) 1000

    Glazing Details

    Double Glazed 15 - 40
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual Futureline Awning & Casement Window
    Technical Manual Futureline Sub Framing
    Wall Charts
    Extrusion Wall Chart Capral Screening
    Extrusion Wall Chart Futureline Windows & Doors
    BIM Files
    Capral Futureline
    CAD Files
    CAD Files Capral Screening
    CAD Files Futureline Awning & Casement Window
    CAD Files Futureline Sub Frames & Adapors
    CAD Wall Chart Futureline Framing, Windows & Doors
    Other
    Capral Futureline Brochure Capral Installation Details Specification Futureline Awning & Casement Window
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
