Futureline Casement Window
Designed to complement the excellent thermal performance of the Futureline 425TB, 429TB and 629TB framing systems, the Futureline Casement window system offers a stylish and functional operable window option.
Broken
Certified
Rated
Tested
Key features
- Outstanding ‘Uw’ values down to 2.7
- Overlapping external sash design
- Crisp, clean square profiles
- Double weather seals
- Capable of accommodating IGU’s up to 40mm
- Mitred corner construction with high-quality hardware

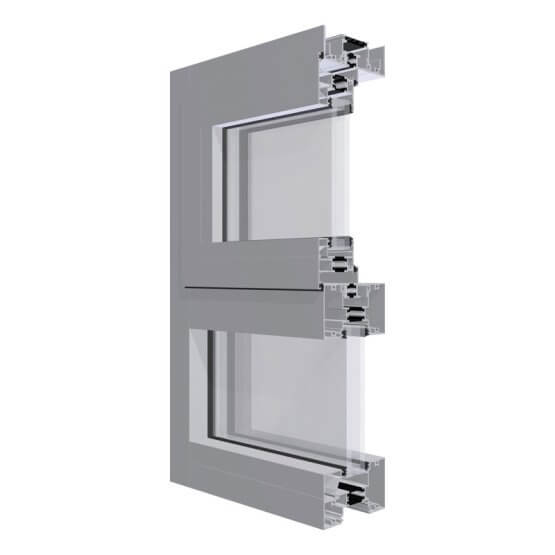

Designed to complement the excellent thermal performance of the Futureline 425TB, 429TB & 629TB framing systems, the Futureline Casement window system offers a stylish and functional operable window option. The 54mm sash profile incorporates a pair of high-performance thermal breaks to minimise heat transfer efficiently. At the same time, internal and external weather seals combined with an overlapping frame design offer a high level of weather tightness.
The Futureline Casement Window features the option of fully integrated screening and the flexibility of either sash handles or sash operator options. Robust sash construction and corner strength are assured with high-quality European corner clamping components.
Download BrochureDetails
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1800
Panel Width (mm)
900
Panel Weight (kg)
40
Panel Area (m2)
1.8
Frame Dimensions (mm)
425TB Frame
100mm
429TB Frame
100mm
629TB Frame
150mm
Acoustic Rating
Rw (C;Ctr)
38 (-1;-3)
Maximum Product Performance
SLS (Pa)
2200
ULS (Pa)
4500
WATER (Pa)
1000
Glazing Details
Double Glazed
15 - 40
